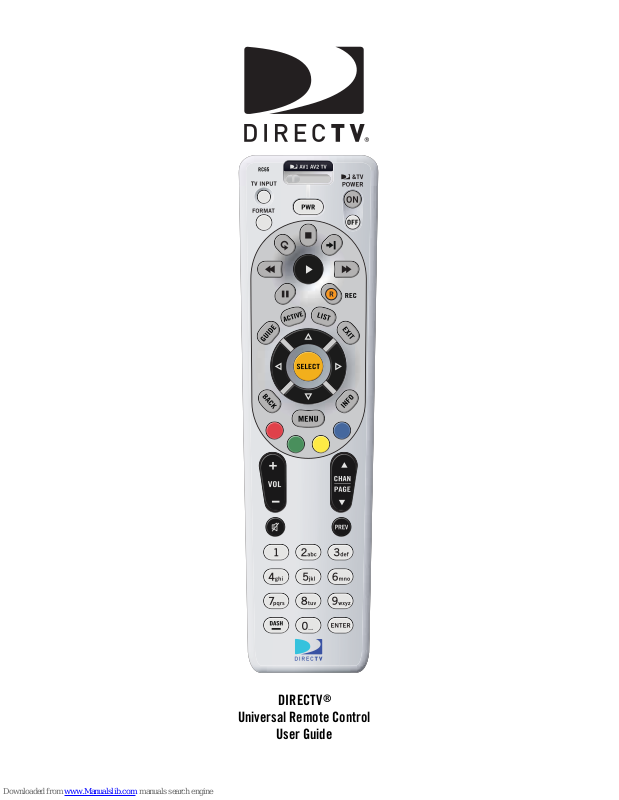

DirecTV RC65RBX User Manual
DIRECTV®
Universal Remote Control
User Guide
2
CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Features and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Key Charts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Controlling Your DIRECTV® Receiver . . . . . . . . . . . . . . . . . . . . . . . . 7
Setting Up Your DIRECTV Remote . . . . . . . . . . . . . . . . . . . . . . 7
Onscreen Remote Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Controlling Your TV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Setting Up the TV Input Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Deactivating the TV Input Select Key . . . . . . . . . . . . . . . . . . . 9
Controlling Other Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Searching for TV, AV1 or AV2 Codes . . . . . . . . . . . . . . . . . . . . . . . . .10
Verifying the Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Changing Volume Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Locking Volume to AV1, AV2 or TV . . . . . . . . . . . . . . . . . . . . .11
Restoring Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . 12
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
DIRECTV Setup Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Setup Codes for DIRECTV
®
Receivers . . . . . . . . . . . . . . . . . . 13
Setup Codes for DIRECTV
®
HD Receivers . . . . . . . . . . . . . . .13
Setup Codes for DIRECTV
®
DVRs . . . . . . . . . . . . . . . . . . . . . .14
Setup Codes, Other Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Setup Codes for TVs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Setup Codes for TVs (DLP) . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Setup Codes for TV/DVD Combos . . . . . . . . . . . . . . . . . . . . . . 27
Setup Codes for TV/VCR Combos . . . . . . . . . . . . . . . . . . . . . . 28
Setup Codes for VCRs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Setup Codes for Satellite Set-top Boxes . . . . . . . . . . . . . . . . 35
Setup Codes for Satellite Set-top Box/PVR Combos . . . . . . . 35
Setup Codes for DVD Players . . . . . . . . . . . . . . . . . . . . . . . . . 36
Setup Codes for PVRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Setup Codes for Audio Receivers. . . . . . . . . . . . . . . . . . . . . . 41
Setup Codes for Audio Amplifiers. . . . . . . . . . . . . . . . . . . . . . 45
Setup Codes for Audio Accessories . . . . . . . . . . . . . . . . . . . .45
Repair or Replacement Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Compliance with FCC Rules and Regulations. . . . . . . . . . . . . . . . . . 47
3
INTRODUCTION
Congratulations! You now have an exclusive DIRECTV®
Universal Remote Control that will contro l four
components, including a DIRECTV Receiv er, TV, and two
stereo or video components (f or exampl e, a DVD, stereo, or
second TV). Moreover, its sophisticated technology allows
you to consolidate the clutter of your original remote
controls in to one easy-to-use unit that's packed with
features such as:
• Four-position MODE slide switch for easy component
selection
• Code library for popular video and stereo compo nents
• Code search to help program control of older or discontinue d components
• Memor y protection to ensure you will not have to reprogram the remote when the batteries are replaced
Before using your DIRECTV U ni v er sal Remo te Co n tr ol, y o u
may need to program it to operate with your particular
component. Please follow the instructions detailed in this
guide to set up your DIRECTV U niv ersal R emote Co n trol so
you can start enjoying its features.
4
FEATURES AND FUNCTIONS
Key Charts
Press this key… To…
Slide the MODE switch to the DIRECTV, AV1,
AV2 or TV positions to select the com po nen t
you want t o contro l. A green LED under
each switch position indicates the
component being controlled.
Press TV INPUT to select the available inputs
on your TV.
NOTE: Additional setu p is required to
activate the TV INPUT key. (See
instructions on page 9.)
Press FORMAT to cycle through the
resolution and screen formats. Each press
of the key cycles to the next available
format and /or r esol utio n. (N o t a vailab le on
all DIRECTV
®
Receivers. )
Press PWR to turn on/off the piece of
equipment the mode switch is set to.
Press TV POWER ON/OFF to turn the TV and
DIRECTV Receiver on or off.
(NOTE: These keys are only active a fter the
remote has been setup for your TV. See
page 8.)
Use these keys to control your DIRECTV
DVR or your VCR, DVD, or CD/DVD player.
On a DIRECTV DVR, enables one-
touch record for any selected program.
Replay jumps back 6 seconds and
plays video fro m that loca tion. You can also
hold the button down to jum p back to the
beginning.
Advance jumps ahead in a recording.
You can also hold the button down to jump
forward to the end.
Use GUIDE to display the DIRECTV
Program Guide. Press twice to see
programs by category.
5
ACTIVE displays the DIRECTV Active
Channel which includes local weather,
horoscopes and more!
For non-DVR boxes, pressing LIST takes
you to the To Do List. For DVR boxes, LIST
takes you to the PLAYLIST (recordings).
(Not available on all DIRECTV
®
Receivers.)
Press EXIT to exit menu screens and the
Program Guide and return to live TV.
Press SELECT to choose highlighted items
in menu screens or the Program Guide.
Use the ARROW keys to move around in the
Program Guide and menu screens.
Press BACK to return to the previously
displayed screen.
Press MENU to display the Quick Menu in
DIRECTV mode, or other me nu f or an other
selected device.
Use INFO to display current channel and
program information when watching live
TV or in the Guide.
Displays various options while viewing live
TV, the Guide or the Playlist.
Press YELLOW* to display TV Options
Press BLUE* in full-screen TV to display th e
Mini-Guide.
Press RED* in the Guide to jump 12 hours
back.
Press GREEN* in the Guide to jump 12
hours forward.
*Other functions vary–look for onscreen
hints or refer to your DIRECTV
®
Receiver's
user guide. (Not available on all DIRECTV
Receivers.)
Press VOL to raise or lower the sound
volume. The volume key is only active
when the remote is set up for your TV.
Press this key… To…
6
While watching TV, press CHANS (or
CHAN
T) to select the next higher (or
lower) channel.
While in the DIRECTV
®
Program Guide or
menu, press PAGE+ (or PAGE-) to page up
(or down) through available channels in
the Guide.
Press MUTE to turn the sound off or back
on.
Press PREV to return to the last channel
viewed.
Press the number keys to dir ectly enter a
channel number (e.g. 207) while watching
TV or in the Guide.
Press DASH to separate main and subchannel numbers.
Press ENTER to activate number e nt ries
quickly.
Press this key… To…
7
INSTALLING BATTERIES
1. On the back of the remote control, push d own on the
door (as shown), slide the battery cover off, and
remove the used batteries.
2. Obtain two (2) new AA alkaline batteries. Matc h their
+and - marks to the + and - marks in the battery
case, then insert them.
3. Slide the cover back on until battery door clicks into
place.
CONTROLLING YOUR DIRECTV® RECEIVER
The DIRECTV® Universal Remote Control comes
programmed to work with most DIRECTV receivers.
Should the remote control not work with your DIRECTV
Receiver, y ou will need to set up the remote control b y
performing the following steps.
Setting Up Your DIRECTV Remote
1. Locate the DIRECTV Receiver's brand and model
number (on the back or bottom panel) and write it in
the spaces below.
BRAND:
......................................................................
MODEL: ......................................................................
8
2. Locate the 5-digit code for your DIRECTV® Receive r.
(See page 13.)
3. Power on the DIRECTV Receiver.
4. Slide the MODE switch to the DIRECTV p o s ition.
5. Press and hold the MUTE and SELECT keys unti l the
green ligh t unde r the DIRECTV position flashes twice,
then release both keys.
6. Using the number keys, enter the 5-digit code. If
performed correctly, the green light under the
DIRECTV position flashes twice.
7. Aim the remote at your DIRECTV Receiver and press
the PWR key once. The DIRECTV Receiver should
turnoff; if it does not, repeat steps 3 and 4, trying each
code for your brand un til you find the correct code.
8. For future referenc e, write down the working code for
your DIRECTV Receiver in the blocks below:
ONSCREEN REMOTE SETUP
Once your remote is setup to work with your DIRECTV
Receiver, you can set it up for your other equipment using
the steps detailed on the following pages, or you can set it
up onscreen by pr essing MENU, the n SELECT on Settings,
Setup in the Quick Menu, then selecting Remote from the
left menu.
CONTROLLING YOUR TV
Once yo u have succe ssfully set up your DIRECTV R emote
to operate your DIRECTV Receiver, you can set it up to
control your TV. We recommend you use the on-screen
steps described on page 8, but you can also use the
manual method below:
1. Turn on the TV.
NOTE
: Please read steps 2-5 completely before proceed-
ing. Highlight or write down the codes and component you wish to set up before moving on to
step 2.
2. Locate the 5-digit code for your TV. (See “Setup
Codes for TVs” on page14.)
3. Slide the MODE switch to the TV position.
4. Pres s an d h o l d th e MUTE and SELECT keys at the same
time until the green light under the TV position
flashes twice, then release both keys.
5. Using the n um ber keys enter the 5-digit code for your
brand of TV. If performed correctly, the green light
under TV flashed twice.
6. Aim the remote at your TV and press the PWR key
once. Your TV shou ld turn off. If it does not turn off,
repeat steps 3 and 4, trying each code for your brand
until you find the correct code.
9
7. Slide the MODE switch to the DIRECTV position. Press
TV POWER. Your TV should turn on.
8. For future referenc e, write down the working code for
your TV in the blocks below:
SETTING UP THE TV INPUT KEY
Once you have setup the DIRECTV® Remote control for
your T V, you can activate the TV INPUT key so you can
change the “source”—the piece of equipm ent whose signal
is displayed on your TV:
1. Slide the MODE switch to the TV position.
2. Press and hold the MUTE and SELECT keys unti l the
green light under the TV position flashes twice, then
release both keys.
3. Us ing the number keys enter 9-6-0. (The green light
under the TV position flashes twice.)
You now can change the input for your TV.
Deactivating the TV Input Select Key
If you want to deactivate the TV INPUT key, repeat steps 1
through 3 from the previous section; the green light will
blink 4 times. Pressing the TV INPUT key will now do
nothing.
CONTROLLING OTHER COMPONENTS
The AV1 and AV2 switch positions can be setup to control a
VCR, DVD, STEREO, second DIRECTV Receiver or second
TV. We recommen d you use the onscreen steps
described on page 8, but you can also use the manual
method below:
1. Turn on the component you wish to control (e.g. your
DVD Player).
2. Locate the 5-digit code for your component. (See
“Setup Codes, Other Devices” starting on page 14.)
3. Slide the MODE switch to the AV1 (or AV2) position.
4. Pres s an d h o l d th e MUTE and SELECT keys at the same
time until th e green light under AV1 (or AV2) flashes
twice, then release both keys.
5. Using the NUMBER keys, enter the 5-d igit code for the
brand of component being set up. If performed
correctly, the green light under the se lected position
flashes twice.
6. Aim the remote at your co mponen t and pr ess the PWR
key once. The component shou ld turn off; i f it does
not, repeat steps 3 and 4, trying each code for your
brand until you find the correct cod e.
10
7. Repeat steps 1 through 6 to set up a new component
under AV2 (or AV1).
8. For future reference write down the working code for
the component(s) set up under AV1 and AV2 below:
AV1:
COMPONENT: ___________________
AV2:
COMPONENT:___________________
SEARCHING FOR TV, AV1 OR AV2 CODES
If you were unable to find the code for your brand of TV or
componen t, you can try a code search. This process may
take up to 30 minutes.
1. Turn on the TV or component. Insert a tape or di sk if
applicable.
2. Slide the MODE switch to the TV, AV1 or AV2 position,
as desired.
3. Pres s an d h o l d th e MUTE and SELECT keys at the same
time until the green light under the selected switch
position flashes twice, then rel ease both keys.
4. Enter 9-9-1 followed by one of the following fourdigits:
5. Press PWR, or other functions (e.g. PLAY for VCR) you
want to use.
6. Point the remot e at the TV or compon ent and press
CHAN
S. Repeatedly press CHANS until the TV or
component turns off or performs the action you
selected in step 5.
NOTE: Every time CHAN
S is pressed the remo te
advances to the next code and power is transmitted to the component.
COMPONENT TYPE COMPONENT ID #
Satellite 0
TV 1
VCR/DVD/PVR 2
Stereo 3
11
7. Use the CHANT key to step back a code.
8. When the TV or component turns off turns off or
performs the action you selected in step 5, stop
pressing the CHAN
S key. Then, press and release the
SELECT key.
NOTE: If the light flashes 3 times before the TV or com-
ponent responds, you've cy cled through all
codes and the c ode y ou n eed is no t a vailab le. Yo u
must use the remote that came with your TV or
component.
Verifying the Codes
Once you have set up the DIRECTV® Univer sal Remote
Control using the above steps, use the following
instructions to find out the 5-digit code to which your
component responded:
1. Slide the MODE switch to the appropriate position.
2. Pres s an d h o l d th e MUTE and SELECT keys at the same
time until the green light under the selected switch
position flashes twice, then rel ease both keys.
3. Enter 9-9-0. (The green light under the selected
switch position flashes twice.)
4. To view the first digit in the code, Press and release
the number 1 key. Wait three seconds, and count the
number of times the green light flashes. Write this
number down in the leftmost TV, AV1 or AV2 code
box found on page 10.
5. Repeat step 4 four more times for the remaining
digits; i.e., press number 2 for the second digit, 3 for
the third di git, 4 for the fourth digit and 5 for the final
digit.
CHANGING VOLUME LOCK
Depending on how you set up y our remote, the VOL and
MUTE may control the volume only on your TV, regardless
of the position of the MODE switch. This remote can be set
up so that the VOL and MUTE keys work only with the
comp onent selected by the MODE s witch. To enable this
feature, perform the following steps:
1. Press and hold the MUTE and SELECT keys unti l the
green ligh t unde r the DIRECTV position flashes twice,
then release both keys.
2. Using the number keys, enter 9-9-3. (The green light
will flash twice after the 3.)
3. Press and release the VOL+ key. (The green light
flashes 4 times.)
Now t he VOL and MUTE keys will work only for the
comp onent selected by the MODE switch position.
Locking Volume to AV1, AV2 or TV
1. Slide the MODE switch to the AV1, AV2 or TV position to
lock the volume.
2. Press and hold the MUTE and SELECT keys unti l the
green light under th e selected s witch flas hes twice an d
release both keys.
12
3. Using the number keys, enter 9-9-3. (The green light
flashes twice.)
4. Press and release the SELECT key. (The green light
flashes twice.)
NOTE: DIRECTV
®
Receivers don’t have volume control,
so the remote will not allow the user to lock vo lume to the DIRECTV mode.
RESTORING FACTORY DEFAULT SETTINGS
To reset all the functions of the remote control to the
factory defaults (the original, out-of -the- box settings),
follow these steps:
1. Pres s an d h o l d th e MUTE and SELECT keys at the same
time until the green light flashes twice, then release
both keys.
2. Using the number keys, enter 9-8-1. (The green light
flashes 4 times.)
TROUBLESHOOTING
PROBLEM: Light at the top of the remote blinks when you
press a key, but the component does not respond.
SOLUTION 1: Try replacing the batteries (see page 7).
SOLUTION 2: Make sur e you are aiming the DIRECTV
®
Uni versal Remote Contro l at your home entertainment
component an d that you are within 15 f eet of the
component you are trying to control.
PROBLEM: The DIRECTV Universal Remote Control does
not co ntrol c omponent or commands ar e not recognized
properly.
SOLUTION: Try all listed co des for the device brand being
set up. Make sure all components can be operated with an
infrared remote control.
PROBLEM: TV/VCR combo does not respond properly.
SOLUTION: Us e the VCR codes for your bran d. So m e co m bo
units may require both a TV code and a VCR code for full
operation (see page 8).
PROBLEM: CHAN
S, CHANT, and PREV do not work for
your RCA TV.
SOLUTION: Due to RC A design for c ertain models (1983-
1987), only the original remote co ntrol will operate these
functions.
PROBLEM: Changing channels does not work properly.
SOLUTION: If original remote control required pressing
ENTER to change channels, press ENTER on the DIRECTV
Universal remote control after entering a channel number.
PROBLEM: Remote control does not turn on Sony or Sharp TV/
VCR Combo.
SOLUTION: For po wer o n, these pr oducts r equir e setting up TV
codes on the remote control. For Sony, use TV code 10000 and
VCR code 20032. For Sharp, use TV code 10093 and VCR code
20048. (See “Controlling Other Components” on page9.)
13
DIRECTV SETUP CODES
Setup Codes for DIRECTV® Receivers
Setup Codes for DIRECTV
®
HD Receivers
DIRECTV all models 00001, 00002
Hughes Network Systems (most
models)
00749
Hughes Network Systems
models GAEB0, GAEB0A, GCB0,
GCEB0A, HBH-SA, HAH-SA
01749
GE models GRD33G2A and
GRD33G3A, GRD122GW
00566
Philips models DSX5500 and
DSX5400
00099
Proscan m od els PRD8630A and
PRD8650B
00566
RCA models DRD102RW,
DRD203 RW, DRD301RA,
DRD302RA, DRD303RA,
DRD403RA, DRD703RA,
DRD502RB, DRD 503RB,
DRD505RB, DRD515RB,
DRD523 RB, and DRD 705RB
00566
DRD440 RE, DRD460RE,
DRD480RE,DRD430RG,
DRD431RG, DRD450RG,
DRD451RG,
DRD485RG,DRD486RG,
DRD430RGA, DRD450RGA,
DRD485RGA, DRD435RH,
DRD455 RH, and DR D486R H
00392
Samsung model SIR-S60W 01109
Samsung models SIR-S70, SIR-
S75, SIR-S300W, and SIRS310W
01108
Sony models (All models except
TiVo and Ultimate TV)
01639
DIRECTV all models 00001, 00002
Hitachi model 61HDX98B 00819
HNS models HIRD-E8, HTL - HD 01750
LG model LSS-3200A,
HTL-HD
01750
Mitsubishi model SR-HD5 01749, 00749
Philips model DSHD800R 01749
Proscan model PSHD105 00392
RCA models DTC-100, DTC-210 00392
Samsung model SIR-TS360 01609
Samsung models SIR-TS160 01276
14
Setup Codes for DIRECTV
®
DVRs
SETUP CODES, OTHER DEVICES
Setup Codes for TVs
Sony models SAT-HD100, 200,
300
01639
Toshiba models DST-3000,
DST-3100, DW65X91
01749, 01285
Zenith models DTV1080, HDSAT520
01856
DIRECTV all models 00 00 1, 00 002
HNS models SD-DVR80, SD-
DV40, SD-DVR120,
HDVR2, GXCEBOT, GXCEBOTD
01442
Philips models DSR704,
DSR708, DSR6000,
DSR600R, DRS700/17
01142, 01442
RCA models DWD490RE,
DWD496RG
01392
RCA models DVR39, 40, 80, 120 01442
Sony model SAT-T60 00639
Sony model SAT-W60 01640
Samsung models SIR-S4040R,
SIR-S4080R, SIR-S4120R
01442
3M 11616
A-Mark 10003
Abex 10032
Accurian 11803
Action 10873
Admiral 10093, 10463, 10179
Advent 10761, 10783, 10815, 10817,
10842, 11933
Adventura 10046
Aiko 10092, 11579
Aiwa 10032, 10701
Akai 10812, 11675, 10060, 10702,
10030, 10098, 10672, 11207,
11676, 11688, 11689, 11690,
11692, 11693, 11903, 11935
Alaron 10179, 10183
Albatron 10700, 10843
Ambassador 10177
America Action 10180
Ampro 10751
Anam 10180, 10004, 10009, 10068
Anam National 10161
15
AOC 10030, 10003, 10052, 10137,
10185, 11365, 11590, 12014
Aomni 11623
Apex Digital 10156, 10748, 10879, 10765,
10767, 10890, 11217, 11943,
11991
Archer 10003
Astar 11531, 11548, 11738
Audiovox 10451, 10180, 10092, 10003,
10623, 10710, 10802, 10846,
10875, 11284, 11937, 11951,
11952
Aventura 10171
Awa 10785
Axion 11937
Bell & Howell 10154, 10016
BenQ 11032, 11212, 11315
Boigle 11696
Boxlight 10893
Bradford 10180
Brillian 11007, 11255, 11257, 11258
Brok sonic 10236, 10463, 10180, 10003,
10177, 11911, 11929, 11935,
11938, 10642
Byd:sign 11309, 11311
Cadia 11283
Candle 10030, 10046, 10056, 10186
Carnivale 10030
Carver 10054, 10170
Casio 11205
CCE 10217, 10329
Celebrity 10000
Celera 10765
Champion 11362
Changhong 10765
Cinego 11986
Citizen 10060, 10030, 10092, 10039,
10046, 10056, 10186, 10280,
11928, 11935
Clairtone 10185
Clarion 10180
Coby 12314, 12315
Commercial Solutions 11447, 10047
Concerto 10056
Contec 10180, 10157, 10158, 101 85
Craig 10180, 10161
Crosley 10000, 10054
Crown 10180, 10039, 11446
Loading...
