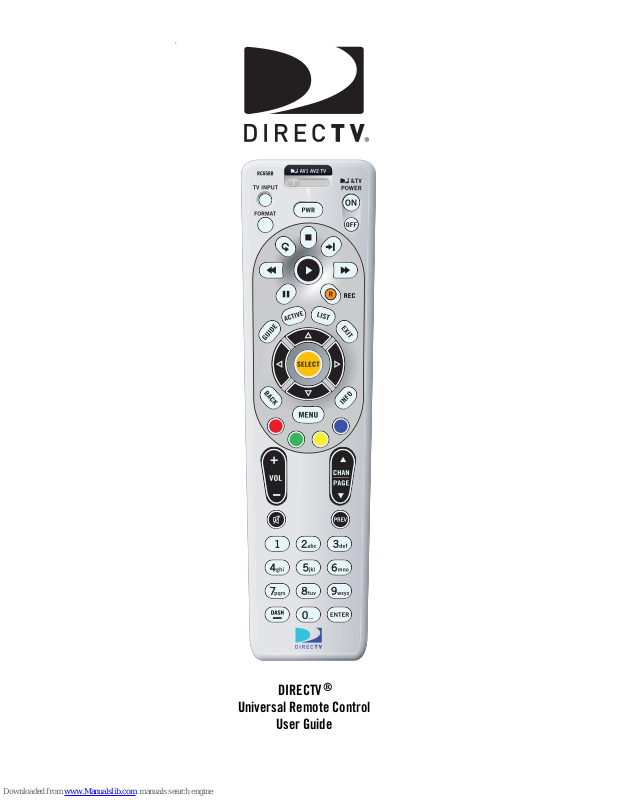

DirecTV RC65RB User Manual

DIRECTV

Universal Remote Control

User Guide

CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Features and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Key Charts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Controlling Your DIRECTV

Receiver. . . . . . . . . . . . . . . . . . . . . . . . . 7

Setting Up Your DIRECTV Remote . . . . . . . . . . . . . . . . . . . . . . 7

Onscreen Remote Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Controlling Your TV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Setting Up the TV Input Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Deactivating the TV Input Select Key . . . . . . . . . . . . . . . . . . . 9

Controlling Other Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Searching for TV, AV1 or AV2 Codes . . . . . . . . . . . . . . . . . . . . . . . . .10

Verifying the Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Changing Volume Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Locking Volume to AV1, AV2 or TV . . . . . . . . . . . . . . . . . . . . .11

Activating and Deactivating the RF Transmitter . . . . . . . . . . . . . . . 12

Activating the RF Transmitter. . . . . . . . . . . . . . . . . . . . . . . . . 12

Deactivating the RF Transmitter . . . . . . . . . . . . . . . . . . . . . .12

Restoring Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . 13

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

DIRECTV Setup Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Setup Codes for DIRECTV

Receivers. . . . . . . . . . . . . . . . . . 14

Setup Codes for DIRECTV

HD Receivers . . . . . . . . . . . . . . .14

Setup Codes for DIRECTV

DVRs. . . . . . . . . . . . . . . . . . . . . . 15

Setup Codes, Other Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Setup Codes for TVs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Setup Codes for TVs (DLP) . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Setup Codes for TV/DVD Combos . . . . . . . . . . . . . . . . . . . . . . 27

Setup Codes for TV/VCR Combos . . . . . . . . . . . . . . . . . . . . . . 28

Setup Codes for VCRs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Setup Codes for Satellite Set-top Boxes . . . . . . . . . . . . . . . . 35

Setup Codes for Satellite Set-top Box/PVR Combos . . . . . . . 35

Setup Codes for DVD Players . . . . . . . . . . . . . . . . . . . . . . . . . 36

Setup Codes for PVRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Setup Codes for Audio Receivers. . . . . . . . . . . . . . . . . . . . . . 41

Setup Codes for Audio Amplifiers. . . . . . . . . . . . . . . . . . . . . . 44

Setup Codes for Audio Accessories . . . . . . . . . . . . . . . . . . . .45

Repair or Replacement Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Compliance with FCC Rules and Regulations. . . . . . . . . . . . . . . . . . 47

INTRODUCTION

Congratulations! You now have an exclusive DIRECTV® Universal Remote Control that will control four components, including a DIRECTV Receiver, TV, and two stereo or video components (for example, a DVD, stereo, or second TV). Moreover, its sophisticated technology allows you to consolidate the clutter of your original remote controls into one easy-to-use unit that's packed with features such as:

• Four-position MODE slide switch for easy component

selection

• Code library for popular video and stereo components

• Code search to help program control of older or discontinued components

• Memory protection to ensure you will not have to reprogram the remote when the batteries are replaced

Before using your DIRECTV Universal Remote Control, you may need to program it to operate with your particular component. Please follow the instructions detailed in this guide to set up your DIRECTV Universal Remote Control so you can start enjoying its features.

FEATURES AND FUNCTIONS

Key Charts

Press this key… To…

Slide the MODE switch to the DIRECTV, AV1, AV2 or TV positions to select the component

you want to control. A green LED under each switch position indicates the component being controlled.

Press TV INPUT to select the available inputs on your TV. NOTE: Additional setup is required to activate the TV INPUT key. (See instructions on page 9.)

Press FORMAT to cycle through the resolution and screen formats. Each press of the key cycles to the next available format and /or resolution. (Not available on

all DIRECTV

Receivers.)

Press PWR to turn on/off the piece of equipment the mode switch is set to.

Press TV POWER ON/OFF to turn the TV and DIRECTV Receiver on or off. (NOTE: These keys are only active after the remote has been setup for your TV. See page 8.)

Use these keys to control your DIRECTV DVR or your VCR, DVD, or CD/DVD player.

On a DIRECTV DVR, enables one-

touch record for any selected program.

Replay jumps back 6 seconds and

plays video from that location. You can also hold the button down to jump back to the beginning.

Advance jumps ahead in a recording.

You can also hold the button down to jump forward to the end.

Use GUIDE to display the DIRECTV Program Guide. Press twice to see programs by category.

ACTIVE displays the DIRECTV Active

Channel which includes local weather, horoscopes and more!

For non-DVR boxes, pressing LIST takes you to the To Do List. For DVR boxes, LIST takes you to the PLAYLIST (recordings).

(Not available on all DIRECTV

Receivers.)

Press EXIT to exit menu screens and the Program Guide and return to live TV.

Press SELECT to choose highlighted items in menu screens or the Program Guide.

Use the ARROW keys to move around in the Program Guide and menu screens.

Press BACK to return to the previously displayed screen.

Press MENU to display the Quick Menu in DIRECTV mode, or other menu for another selected device.

Use INFO to display current channel and program information when watching live TV or in the Guide.

Displays various options while viewing live TV, the Guide or the Playlist. Press YELLOW* to display TV Options Press BLUE* in full-screen TV to display the Mini-Guide. Press RED* in the Guide to jump 12 hours back. Press GREEN* in the Guide to jump 12 hours forward. *Other functions vary–look for onscreen

hints or refer to your DIRECTV

Receiver's user guide. (Not available on all DIRECTV Receivers.)

Press VOL to raise or lower the sound volume. The volume key is only active when the remote is set up for your TV.

Press this key… To…

While watching TV, press CHANS (or CHAN

T) to select the next higher (or

lower) channel.

While in the DIRECTV

Program Guide or

menu, press PAGE+ (or PAGE-) to page up (or down) through available channels in the Guide.

Press MUTE to turn the sound off or back on.

Press PREV to return to the last channel viewed.

Press the number keys to directly enter a channel number (e.g. 207) while watching TV or in the Guide. Press DASH to separate main and subchannel numbers. Press ENTER to activate number entries quickly.

Use the LIGHT key, located on the right side of your remote control, to turn backlighting of all keys on or off.

Press this key… To…

INSTALLING BATTERIES

1. On the back of the remote control, push down on the door (as shown), slide the battery cover off, and remove the used batteries.

2. Obtain two (2) new AA alkaline batteries. Match their +and - marks to the + and - marks in the battery case, then insert them.

3. Slide the cover back on until battery door clicks into place.

CONTROLLING YOUR DIRECTV® RECEIVER

The DIRECTV® Universal Remote Control comes programmed to work with most DIRECTV Receivers. Should the remote control not work with your DIRECTV Receiver, you will need to set up the remote control by performing the following steps.

Setting Up Your DIRECTV Remote

1. Locate the DIRECTV Receiver's brand and model number (on the back or bottom panel) and write it in the spaces below.

BRAND:

......................................................................

MODEL: ......................................................................

2. Locate the 5-digit code for your DIRECTV® Receiver. (See page 14.)

3. Power on the DIRECTV Receiver.

4. Slide the MODE switch to the DIRECTV position.

5. Press and hold the MUTE and SELECT keys until the green light under the DIRECTV position flashes twice, then release both keys.

6. Using the number keys, enter the 5-digit code. If performed correctly, the green light under the DIRECTV position flashes twice.

7. Aim the remote at your DIRECTV Receiver and press the PWR key once. The DIRECTV Receiver should turnoff; if it does not, repeat steps 3 and 4, trying each code for your brand until you find the correct code.

8. For future reference, write down the working code for your DIRECTV Receiver in the blocks below:

ONSCREEN REMOTE SETUP

Once your remote is setup to work with your DIRECTV Receiver, you can set it up for your other equipment using the steps detailed on the following pages, or you can set it up onscreen by pressing MENU, then SELECT on Settings, Setup in the Quick Menu, then selecting Remote from the left menu.

CONTROLLING YOUR TV

Once you have successfully set up your DIRECTV Remote to operate your DIRECTV Receiver, you can set it up to control your TV. We recommend you use the on-screen steps described on page 8, but you can also use the manual method below:

1. Turn on the TV.

NOTE

: Please read steps 2-5 completely before proceed-

ing. Highlight or write down the codes and component you wish to set up before moving on to step 2.

2. Locate the 5-digit code for your TV. (See “Setup Codes for TVs” on page 15.)

3. Slide the MODE switch to the TV position.

4. Press and hold the MUTE and SELECT keys at the same time until the green light under the TV position flashes twice, then release both keys.

5. Using the number keys enter the 5-digit code for your brand of TV. If performed correctly, the green light under TV flashed twice.

6. Aim the remote at your TV and press the PWR key once. Your TV should turn off. If it does not turn off, repeat steps 3 and 4, trying each code for your brand until you find the correct code.

7. Slide the MODE switch to the DIRECTV position. Press TV POWER. Your TV should turn on.

8. For future reference, write down the working code for your TV in the blocks below:

SETTING UP THE TV INPUT KEY

Once you have setup the DIRECTV® Remote control for your TV, you can activate the TV INPUT key so you can change the “source”—the piece of equipment whose signal is displayed on your TV:

1. Slide the MODE switch to the TV position.

2. Press and hold the MUTE and SELECT keys until the green light under the TV position flashes twice, then release both keys.

3. Using the number keys enter 9-6-0. (The green light under the TV position flashes twice.)

You now can change the input for your TV.

Deactivating the TV Input Select Key

If you want to deactivate the TV INPUT key, repeat steps 1 through 3 from the previous section; the green light will blink 4 times. Pressing the TV INPUT key will now do nothing.

CONTROLLING OTHER COMPONENTS

The AV1 and AV2 switch positions can be setup to control a VCR, DVD, STEREO, second DIRECTV Receiver or second TV. We recommend you use the onscreen steps described on page 8, but you can also use the manual method below:

1. Turn on the component you wish to control (e.g. your DVD Player).

2. Locate the 5-digit code for your component. (See “Setup Codes, Other Devices” starting on page 15.)

3. Slide the MODE switch to the AV1 (or AV2) position.

4. Press and hold the MUTE and SELECT keys at the same time until the green light under AV1 (or AV2) flashes twice, then release both keys.

5. Using the NUMBER keys, enter the 5-digit code for the brand of component being set up. If performed correctly, the green light under the selected position flashes twice.

6. Aim the remote at your component and press the PWR key once. The component should turn off; if it does not, repeat steps 3 and 4, trying each code for your brand until you find the correct code.

7. Repeat steps 1 through 6 to set up a new component under AV2 (or AV1).

8. For future reference write down the working code for the component(s) set up under AV1 and AV2 below:

AV1:

COMPONENT: ___________________ AV 2 :

COMPONENT:___________________

SEARCHING FOR TV, AV1 OR AV2 CODES

If you were unable to find the code for your brand of TV or component, you can try a code search. This process may take up to 30 minutes.

1. Turn on the TV or component. Insert a tape or disk if applicable.

2. Slide the MODE switch to the TV, AV1 or AV2 position, as desired.

3. Press and hold the MUTE and SELECT keys at the same time until the green light under the selected switch position flashes twice, then release both keys.

4. Enter 9-9-1 followed by one of the following fourdigits:

5. Press PWR, or other functions (e.g. PLAY for VCR) you want to use.

6. Point the remote at the TV or component and press

CHAN

S. Repeatedly press CHANS until the TV or

component turns off or performs the action you selected in step 5.

NOTE: Ever y time CHAN

S is pressed the remote

advances to the next code and power is transmitted to the component.

COMPONENT TYPE COMPONENT ID #

Satellite 0

TV 1

VCR/DVD/PVR 2

Stereo 3

7. Use the CHANT key to step back a code.

8. When the TV or component turns off turns off or performs the action you selected in step 5, stop pressing the CHAN

S key. Then, press and release the

SELECT key.

NOTE: If the light flashes 3 times before the TV or com-

ponent responds, you've cycled through all codes and the code you need is not available. You must use the remote that came with your TV or component.

Verifying the Codes

Once you have set up the DIRECTV® Universal Remote Control using the above steps, use the following instructions to find out the 5-digit code to which your component responded:

1. Slide the MODE switch to the appropriate position.

2. Press and hold the MUTE and SELECT keys at the same time until the green light under the selected switch position flashes twice, then release both keys.

3. Enter 9-9-0. (The green light under the selected switch position flashes twice.)

4. To view the first digit in the code, Press and release the number 1 key. Wait three seconds, and count the number of times the green light flashes. Write this number down in the leftmost TV, AV1 or AV2 code box found on page 10.

5. Repeat step 4 four more times for the remaining digits; i.e., press number 2 for the second digit, 3 for the third digit, 4 for the fourth digit and 5 for the final digit.

CHANGING VOLUME LOCK

Depending on how you set up your remote, the VOL and MUTE may control the volume only on your TV, regardless

of the position of the MODE switch. This remote can be set up so that the VOL and MUTE keys work only with the component selected by the MODE switch. To enable this feature, perform the following steps:

1. Press and hold the MUTE and SELECT keys until the green light under the DIRECTV position flashes twice, then release both keys.

2. Using the number keys, enter 9-9-3. (The green light will flash twice after the 3.)

3. Press and release the VOL+ key. (The green light flashes 4 times.)

Now the VOL and MUTE keys will work only for the component selected by the MODE switch position.

Locking Volume to AV1, AV2 or TV

1. Slide the MODE switch to the AV1, AV2 or TV position to lock the volume.

2. Press and hold the MUTE and SELECT keys until the green light under the selected switch flashes twice and release both keys.

3. Using the number keys, enter 9-9-3. (The green light flashes twice.)

4. Press and release the SELECT key. (The green light flashes twice.)

NOTE: DIRECTV

Receivers don’t have volume control,

so the remote will not allow the user to lock volume to the DIRECTV mode.

ACTIVATING AND DEACTIVATING THE RF TRANSMITTER

Your DIRECTV Remote Control features RF (radio frequency) capability. When you activate the RF feature of your remote control, you can control your DIRECTV Receiver from anywhere in your home. You do not need to be within the line of sight of your receiver to control it.

NOTE: Not all DIRECTV Receivers are RF-capable.

Also, some RF-capable DIRECTV Receivers include integrated RF antennas and do not require an external antenna. If your receiver requires the external RF antenna, before activating the RF transmitter, locate the RF antenna included with your remote control and insert it into the RF remote antenna coaxial connector on the back of your DIRECTV Receiver.

Activating the RF Transmitter

To activate the RF transmitter on your DIRECTV Remote Control, perform the following steps:

1. Locate the 12 digit Receiver ID (RID) number of your

DIRECTV Receiver. You can find the RID number on the back panel of your receiver, or inside the CAM access door next to the reset button.

2. Write down the last six digits of the RID number.

3. Slide the mode switch to DIRECTV, AV1, or AV2.

4. Press and hold the MUTE and SELECT keys until the

green light under the selected switch flashes twice and release both keys.

5. Using the number keys, enter 9 6 1. (The green light

flashes twice.)

6. Press and release

CHANS. (The green light flashes

twice.)

7. Using the NUMBER keys, enter the the last six digits of

the RID number. (See step 2 above.)

8. Press and release the SELECT key. (The green light

flashes twice.)

Deactivating the RF Transmitter

To deactivate the RF transmitter on your DIRECTV Remote Control, perform the following steps:

1. Slide the mode switch to DIRECTV, AV1, or AV2.

2. Press and hold the MUTE and SELECT keys until the

green light under the selected switch flashes twice and release both keys.

3. Using the number keys, enter 9 6 1. (The green light

flashes twice.)

4. Press and release CHANT. (The green light flashes

twice.)

The RF transmitter on your remote control is now deactivated. To reactivate the RF transmitter, See “Activating the RF Transmitter” above.

RESTORING FACTORY DEFAULT SETTINGS

To reset all the functions of the remote control to the factory defaults (the original, out-of-the-box settings), follow these steps:

1. Press and hold the MUTE and SELECT keys at the same time until the green light flashes twice, then release both keys.

2. Using the number keys, enter 9-8-1. (The green light flashes 4 times.)

TROUBLESHOOTING

PROBLEM: Light at the top of the remote blinks when you

press a key, but the component does not respond.

SOLUTION 1: Try replacing the batteries (see page 7). SOLUTION 2: Make sure you are aiming the DIRECTV

Universal Remote Control at your home entertainment component and that you are within 15 feet of the component you are trying to control.

PROBLEM: The DIRECTV Universal Remote Control does not control component or commands are not recognized properly.

SOLUTION: Try all listed codes for the device brand being set up. Make sure all components can be operated with an infrared remote control.

PROBLEM: TV/VCR combo does not respond properly. SOLUTION: Use the VCR codes for your brand. Some combo

units may require both a TV code and a VCR code for full operation (see page 8).

PROBLEM: CHAN

S, CHANT, and PREV do not work for

your RCA TV. SOLUTION: Due to RCA design for certain models (1983-

1987), only the original remote control will operate these

functions.

PROBLEM: Changing channels does not work properly. SOLUTION: If original remote control required pressing

ENTER to change channels, press ENTER on the DIRECTV

Universal remote control after entering a channel number. PROBLEM: Remote control does not turn on Sony or Sharp

TV/VCR Combo. SOLUTION: For power on, these products require setting up

TV codes on the remote control. For Sony, use TV code 10000 and VCR code 20032. For Sharp, use TV code 10093 and VCR code 20048. (See “Controlling Other Components” on page 9.)

DIRECTV SETUP CODES

Setup Codes for DIRECTV® Receivers

Setup Codes for DIRECTV

HD Receivers

DIRECTV all models 00001, 00002

Hughes Network Systems (most models)

00749

Hughes Network Systems models GAEB0, GAEB0A, GCB0, GCEB0A, HBH-SA, HAH-SA

01749

GE models GRD33G2A and GRD33G3A, GRD122GW

00566

Philips models DSX5500 and DSX5400

00099

Proscan models PRD8630A and PRD8650B

00566

RCA models DRD102RW, DRD203RW, DRD301RA, DRD302RA, DRD303RA, DRD403RA, DRD703RA, DRD502RB, DRD 503RB, DRD505RB, DRD515RB, DRD523RB, and DRD705RB

00566

DRD440RE, DRD460RE, DRD480RE,DRD430RG, DRD431RG, DRD450RG, DRD451RG, DRD485RG,DRD486RG, DRD430RGA, DRD450RGA, DRD485RGA, DRD435RH, DRD455RH, and DRD486RH

00392

Samsung model SIR-S60W 01109

Samsung models SIR-S70, SIRS75, SIR-S300W, and SIRS310W

01108

Sony models (All models except TiVo and Ultimate TV)

01639

DIRECTV all models 00001, 00002

Hitachi model 61HDX98B 00819

HNS models HIRD-E8, HTL-HD 01750

LG model LSS-3200A, HTL-HD

01750

Mitsubishi model SR-HD5 01749, 00749

Philips model DSHD800R 01749

Proscan model PSHD105 00392

RCA models DTC-100, DTC-210 00392

Samsung model SIR-TS360 01609

Samsung models SIR-TS160 01276

Setup Codes for DIRECTV

DVRs

SETUP CODES, OTHER DEVICES

Setup Codes for TVs

Sony models SAT-HD100, 200, 300

01639

Toshiba models DST-3000, DST-3100, DW65X91

01749, 01285

Zenith models DTV1080, HDSAT520

01856

DIRECTV all models 00001, 00002

HNS models SD-DVR80, SDDV40, SD-DVR120, HDVR2, GXCEBOT, GXCEBOTD

01442

Philips models DSR704, DSR708, DSR6000, DSR600R, DRS700/17

01142, 01442

RCA models DWD490RE, DWD496RG

01392

RCA models DVR39, 40, 80, 120 01442

Sony model SAT-T60 00639

Sony model SAT-W60 01640

Samsung models SIR-S4040R, SIR-S4080R, SIR-S4120R

01442

3M 11616

A-Mark 10003

Abex 10032

Accurian 11803

Action 10873

Admiral 10093, 10463, 10179

Advent 10761, 10783, 10815, 10817,

10842, 11933

Adventura 10046

Aiko 10092, 11579

Aiwa 10032, 10701

Akai 10812, 11675, 10060, 10702,

10030, 10098, 10672, 11207, 11676, 11688, 11689, 11690, 11692, 11693, 11903, 11935

Alaron 10179, 10183

Albatron 10700, 10843

Ambassador 10177

America Action 10180

Ampro 10751

Anam 10180, 10004, 10009, 10068

Anam National 10161

AOC 10030, 10003, 10052, 10137,

10185, 11365, 11590, 12014

+ 33 hidden pages

DirecTV RC65RB User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
