EXBOX.MD
User‘s Manual
Version 1.0
page 2 of 60
EXBOX.MD Manual - Version 1.0
Copyright
All rights reserved. Permission to reprint or electronically reproduce
any document or graphic in whole or in part for any reason is
expressly prohibited, unless prior written consent is obtained from the
DirectOut GmbH.
All trademarks and registered trademarks belong to their respective
owners. It cannot be guaranteed that all product names, products,
trademarks, requisitions, regulations, guidelines, specifications and
norms are free from trade mark rights of third parties.
All entries in this document have been thoroughly checked; however
no guarantee for correctness can be given.
DirectOut GmbH cannot be held responsible for any misleading or
incorrect information provided throughout this manual.
DirectOut GmbH reserves the right to change specifications at any time
without notice.
DirectOut Technologies® is a registered trademark of the DirectOut
GmbH.
© DirectOut GmbH, 2018
page 3 of 60
EXBOX.MD Manual - Version 1.0
Table of contents
About This Manual 5
How to Use This Manual 5
Conventions 5
Chapter 1: Overview 6
Introduction 6
Feature Summary 7
Applications 8
How it works 9
CHAPTER 2: Legal issues & facts 10
Before Installing This Device 10
First Aid (in case of electric shock) 11
Defective Parts/Modules 12
Updates 12
Intended Operation 13
Conditions of Warranty 14
Conformity & Certificates 15
Contact 16
Contents 17
Accessories 18
Chapter 3: Installation 21
Installing the Device 21
CHAPTER 4: Operation 27
Introduction 27
Global Control 28
Input / Output - MADI 31
page 4 of 60
EXBOX.MD Manual - Version 1.0
Input / Output - Network 32
Input State / Clocking 34
Sample Rate 36
State 38
CHAPTER 5: Remote Control 39
Dante Controller 39
EXBOX.MD Remote 46
CHAPTER 6: Troubleshooting and Maintenance 49
Troubleshooting 49
Maintenance 51
CHAPTER 7: Technical Data 52
Appendix A - Wiring Sketches 55
Hirose HR10 (DC PSU) 55
Index 56
page 5 of 60
EXBOX.MD Manual - Version 1.0
About This Manual
About This Manual
How to Use This Manual
This manual guides you through the installation and
operation of the device.
Use the Table of Contents at the beginning of the
manual or Index Directory at the end of the document
to locate help on a particular topic. You can access
more information and latest news by visiting on the
DirectOut website at www.directout.eu.
Conventions
The following symbols are used to draw your
attention to:
TIPS!
indicate useful hints and shortcuts.
NOTES!
are used for important points of clarification or cross
references.
WARNINGS!
alert you when an action should always be observed.
page 6 of 60 EXBOX.MD Manual - Version 1.0
Chapter 1: Overview
Chapter 1: Overview
Introduction
EXBOX.MD is an Audio-over-IP to MADI converter
based on Audinate’s audio networking technology
Dante.
Equipped with three MADI ports and four network
ports it offers straight-forward conversion of 64 audio
channels between MADI and Dante.
Interfaces:
• 3 MADI I/Os
• 4 Network ports (3 standard / 1 PoE)
The built-in network switch gives the opportunity
to use Dante’s redundancy mode (Primary <>
Secondary), while more EXBOX.MDs or other Dante
devices can be connected in switched mode directly
to increase the number of channels.
page 7 of 60
EXBOX.MD Manual - Version 1.0
Chapter 1: Overview
Feature Summary
MADI Ports 1 x SC multi-mode connectors *
1 x SFP (empty cage without module)
1 x coaxial BNC connectors
Network 3 x RJ45 Socket (1 Gbit/s),
1 x RJ45 (1 Gbit/s, PoE)
Number of streams 32
Number of channels 64 @ 1 FS, 32 @ 2 FS, 16 @ 4 FS
Network Standards Dante, AES67
Modes Switched or Redundancy
Remote Dante Controller, EXBOX.MD Remote
MADI Formats 56/64 channel, 48k/96k Frame, S/MUX 2/4
Sample Rates 44.1, 48, 88.2, 96, 176.4, 192 kHz +/-
12.5%
Power Supply external,
2 x Hirose connector (9-24 V)
1 x PoE (Power over Ethernet)
* The SC I/O may be ordered as single-mode upon
request.
page 8 of 60
EXBOX.MD Manual - Version 1.0
Chapter 1: Overview
Applications
EXBOX.MD can be used as an easy to use frontend
for bidirectional signal exchange between Dante and
MADI environments.
Typical applications include:
• Integration of MADI in Dante setups
• Redundant recording setups using MADI and
Dante Virtual Soundcard
• Mixing and monitoring using redundant Dante
links between stage and FOH
page 9 of 60
EXBOX.MD Manual - Version 1.0
Chapter 1: Overview
How it works
Each MADI port and the Dante input can be selected
as source for any output.
The network audio is controlled via the Dante
Controller software provided by Audinate.
SFP
BNC
SC
Dante
SFP
BNC
SC
Dante
Dante MADI
Routing
EXBOX.MD
Routing
Dante Controller
page 10 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 2: Legal issues & facts
CHAPTER 2: Legal issues & facts
Before Installing This Device
WARNING!
Please read and observe all of the following notes
before installing this product:
• Check the hardware device for transport
damage.
• Any devices showing signs of mechanical
damage or damage from the spillage of liquids
must not be connected to the mains supply,
or disconnected from the mains immediately by
pulling out the power lead.
• All devices must be grounded. The device is
grounded through its IEC power connections.
• All devices must be connected to the mains
using the three-cord power leads supplied with
the system. Only supply electrical interfaces
with the voltages and signals described in these
instructions.
• Do not use the device at extreme temperatures.
Proper operation can only be guaranteed
between temperatures of 5ºC and 45ºC
and a maximum relative humidity of 80%, non condensing.
• The cabinet of the device will heat up. Do not
place the device close to heating sources (e.g.
heaters). Observe the environmental conditions.
page 11 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 2: Legal issues & facts
First Aid (in case of electric shock)
WARNING!
• Do not touch the person or his/her clothing
before power is turned off, otherwise you risk
sustaining an electric shock yourself.
• Separate the person as quickly as possible from
the electric power source as follows:
- Switch off the equipment.
- Unplug or disconnect the mains cable.
• Move the person away from the power source
by using dry insulating material (such as wood or
plastic).
• If the person is unconscious:
- Check their pulse and reanimate if their
respiration is poor.
- Lay the body down and turn it to one side.
Call for a doctor immediately.
• Having sustained an electric shock, Always
consult a doctor.
page 12 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 2: Legal issues & facts
Defective Parts/Modules
WARNING!
This device contains no user-serviceable parts.
Therefore do not open the device.
In the event of a hardware defect, please send the
device to your DirectOut representative together with
a detailed description of the fault.
We would like to remind you to please check
carefully whether the failure is caused by erroneous
configuration, operation or connection before sending
parts for repair.
Updates
DirectOut products are continually in development,
and therefore the information in this manual may be
superseded by new releases. To access the latest
documentation, please visit the DirectOut website:
www.directout.eu.
This guide refers to firmware version 1.1.
page 13 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 2: Legal issues & facts
WARNING!
No compensation can be claimed for damages
caused by operation of this unit other than for the
intended use described above. Consecutive damages
are also excluded explicitly. The general terms and
conditions of business of DirectOut GmbH are
applied.
Intended Operation
EXBOX.MD is designed for conversion / routing
between network audio and MADI signals. MADI
refers to AES10, network audio refers to Dante™
from Audinate.
page 14 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 2: Legal issues & facts
Conditions of Warranty
This unit has been designed and examined carefully
by the manufacturer and complies with actual norms
and directives.
Warranty is granted by DirectOut GmbH over the
period of 36 months for all components that are
essential for proper and intended operation of the
device. The date of purchase is applied for this period.
Consumable parts (e.g. battery) are excluded from
warranty claims.
WARNING!
All claims of warranty will expire once the device
has been opened or modified, or if instructions and
warnings were ignored.
For warranty claims please contact the dealer where
your device was acquired.
page 15 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 2: Legal issues & facts
Conformity & Certificates
CE
This device complies with the basic requests of
applicable EU guidelines. The appropriate procedure
for approval has been carried out.
RoHS
(Restriction of the use of certain Hazardous
Substances)
This device was constructed fulfilling the directive
on the restriction of the use of certain hazardous
substances in electrical and electronic equipment
2002/95/EC.
WEEE
(Directive on Waste Electrical and Electronic
Equipment)
Due to the directive 2002/96/EC for waste disposal
this device must be recycled.
For correct recycling please dispatch the device to:
DirectOut GmbH,
Leipziger Str. 32
09648 Mittweida
Germany
Only stamped parcels will be accepted!
WEEE-Reg.-No. DE 64879540
page 16 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 2: Legal issues & facts
Contact
DirectOut GmbH
Leipziger Str. 32, 09648 Mittweida, Germany
Phone: +49 (0)3727 5665-100
Fax: +49 (0)3727 5665-101
Mail: sales@directout.eu
www.directout.eu
page 17 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 2: Legal issues & facts
Contents
The contents of your EXBOX.MD package include:
• 1 x EXBOX.MD
• 1 x external power supply unit (9 - 24 V)
• 1 x Manual
To complete the delivery, download the Dante
Controller software from Audinate's website.
Link: http://www.audinate.com
page 18 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 2: Legal issues & facts
Two different optical SFP modules are available from
DirectOut GmbH:
• Multimode SFP transceiver with LC connectors
(No: DOICT0129)
• Singlemode SFP transceiver with LC connectors
(No: DOICT0130)
Specification of the optical SFP modules:
SFP Multimode Singlemode
Wavelength TX 1310 nm 1310 nm
Wavelength RX 1310 nm 1310 nm
Distance 2 km 10 km
Powerbudget (dB) 11 dB 12 dB
Protocols Fast Ethernet OC3/
STM1
Gigabit Ethernet,
Gigabit Fibre
Channel
Bandwidth from 100 Mbit/s 1.050 Gbit/s
Bandwidth 155 Mbit/s 1.250 Gbit/s
Laser FP FP
Receiver Type PIN PIN
Connector LC LC
Accessories
page 19 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 2: Legal issues & facts
SFP Multimode Singlemode
Wavelength TX min 1260 nm 1260 nm
Wavelength TX max 1360 nm 1360 nm
Wavelength RX min 1260 nm 1260 nm
Wavelength RX max 1620 nm 1600 nm
Transmit min - 19.00 dBm - 9.00 dBm
Transmit max - 14.00 dBm - 3.00 dBm
Receive min - 30 dBm - 21.00 dBm
Receive max
(Receiver overload)
- 5.00 dBm - 3.00 dBm
Temperature (min) 0° Celsius 0° Celsius
Temperature (max) 70° Celsius 70° Celsius
Type of DDM/DOM internal internal
Extinction Ratio 8.20 dB 9 dB
page 20 of 60 EXBOX.MD Manual - Version 1.0
CHAPTER 2: Legal issues & facts
BOX.MOUNT XL - for optimal rack mount of up to
three devices in a 19’’ frame (No: DOAPA0886):
three devices in a 19’’ frame (No: DOAPA0886):
page 21 of 60
EXBOX.MD Manual - Version 1.0
Chapter 3: Installation
WARNING
Avoid damage from condensation by waiting for the
device to adapt to the environmental temperature.
Proper operation can only be guaranteed between
temperatures of 5ºC and 45ºC and a maximum
relative humidity of 80%, non-condensing.
Ensure that the unit has sufficient air circulation for
cooling.
WARNING
The synthetics of the delivered pads might cause
stains on damageable surfaces. To avoid staining
of furniture surfaces it is recommended to place a
protective plate under the device.
Chapter 3: Installation
Installing the Device
1. Open the packaging and check that the
contents have been delivered complete and
undamaged.
2. Place the device on a non-slip horizontal
surface. The delivered pads may be affixed to
the bottom of the cabinet. Ensure a clean and
dry surface before affixing the pads.
page 22 of 60 EXBOX.MD Manual - Version 1.0
Chapter 3: Installation
Retain the protective cap if the optical port is
unused. This will protect against soiling which can
lead to malfunction.
3. Remove the protective cap from the optical
MADI port(s) before use.
NOTE!
4. Connect signal cable(s) for the MADI signals.
page 23 of 60EXBOX.MD Manual - Version 1.0
Chapter 3: Installation

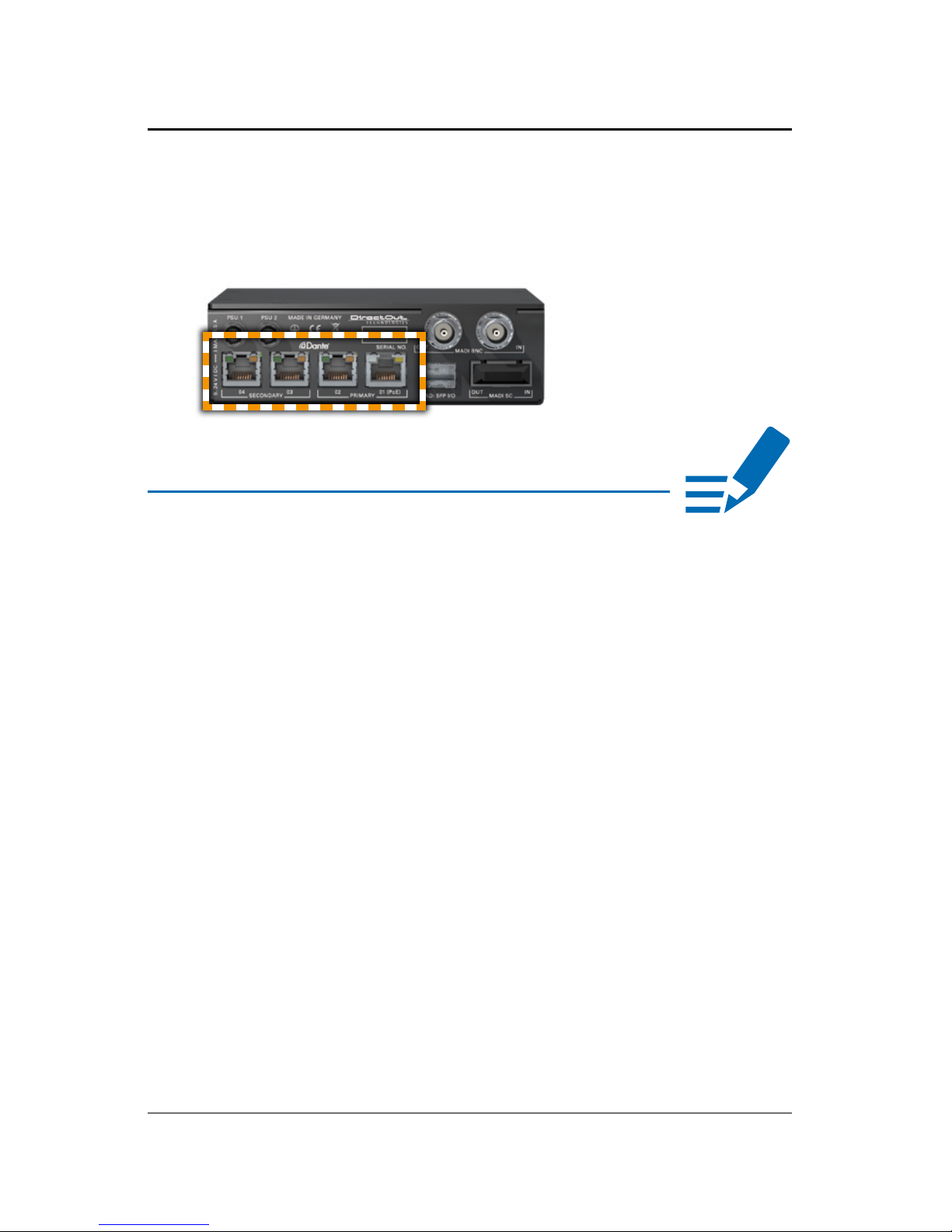

5. Plug in the network cable to the ethernet port(s)
to connect the device with your computer.
NOTE
Use appropriate network cables (CAT5E or better).
For larger setups an ethernet switch may become
necessary. Recommended features for use with
Dante:
• Managed Gigabit switch
• Quality of Service (QoS) with four queues
• Diffserv (DSCP) QoS, with strict priority
Information about network infrastructure:
https://www.audinate.com/resources/networksswitches
Dante FAQ:
https://www.audinate.com/resources/faqs
page 24 of 60 EXBOX.MD Manual - Version 1.0
Chapter 3: Installation
This device may operate with only one power
supply. To provide power supply redundancy, it is
recommended to connect both PSU1 and PSU 2 to
independent power supplies with separate fuses.
The shipment includes one external power supply
unit. Additional power supply units are available from
your local DirectOut representative.
The external power supply must be connected to
the mains using the three-cord power leads supplied
with the device. Only supply the voltages and signals
indicated (9 - 24 V DC) to the device.
6. Using the power cord of the external power
supply provided, connect the device to a
matching power supply and connect the
output of the power supply to the Hirose
connectors at the rear panel.
NOTE
WARNING
page 25 of 60EXBOX.MD Manual - Version 1.0
Chapter 3: Installation
The connected power supply must provide a current
limiting to a maximum of 2.5 A.
Keep any packaging in order to protect the device
should it need to be dispatched for service.
Never connect a PoE link to a network interface that
is not marked explictly for PoE operation. The voltage
supplied there may damage the interface.
WARNING
Power over Ethernet
The device can also be operated via a power over
ethernet connection. Connect the port labelled '01
(PoE)' to an appropriate PoE switch (PoE Class 0 /
0.4 - 13 W).
WARNING
TIP
page 26 of 60
EXBOX.BLDS Manual - Version 1.3
Chapter 3: Installation
This page is left blank intentionally.
page 27 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 4: Operation
Introduction
This chapter describes the basic operation of the
device.
Note that throughout this manual, the abbreviation FS
refers to sample rate or sample frequency. So, when
dealing with scaling factors, the following sample
rates can be written as:
• 44.1 kHz or 48 kHz = 1 FS
• 88.2 kHz or 96 kHz = 2 FS
• 176.4 kHz or 192 kHz = 4 FS
CHAPTER 4: Operation
page 28 of 60 EXBOX.MD Manual - Version 1.0
CHAPTER 4: Operation
Never connect a PoE link to a network interface that
is not marked explictly for PoE operation. The voltage
supplied there may damage the interface.
Global Control
PSU 1 Hirose socket
Connect the power supply here
(9 - 24 V DC).
PSU 2 Hirose socket
Connect the power supply here
(9 - 24 V DC).
01 (PoE) RJ45 socket
Connect PoE link here.
PoE Class 0 / 0.4 - 13 W
NOTE
The device does not provide a power switch.
Connecting a working power supply to the device will
power up the device immediately.
WARNING
page 29 of 60EXBOX.MD Manual - Version 1.0
CHAPTER 4: Operation

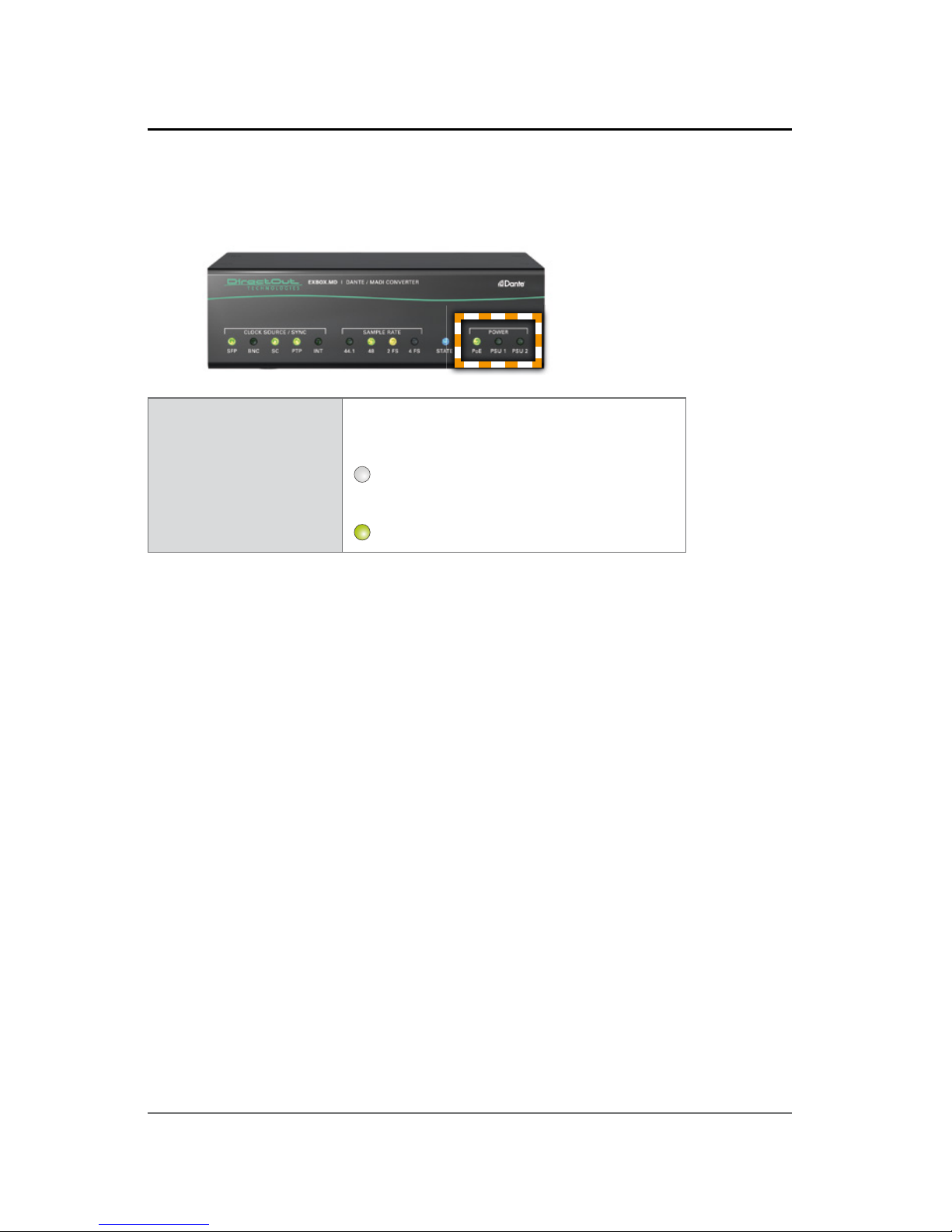

POWER
PSU 1
PSU 2
PoE
LED green - indicates state
of power supply
(OFF) = power supply not
working
(ON) = power supply working
page 30 of 60
EXBOX.BLDS Manual - Version 1.3
CHAPTER 4: Operation
This page is left blank intentionally.
page 31 of 60EXBOX.MD Manual - Version 1.0
CHAPTER 4: Operation

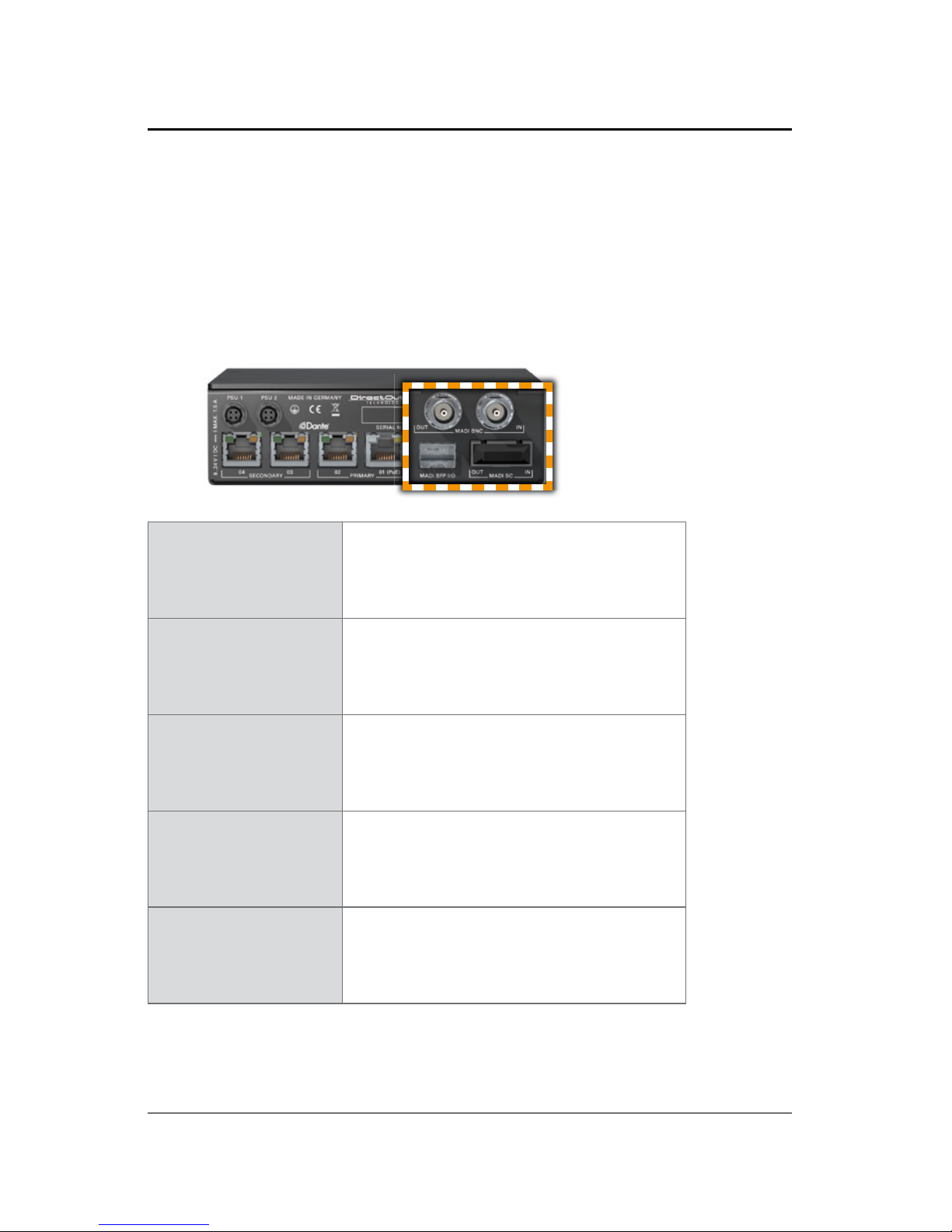

Input / Output - MADI
Three different MADI ports enable fl exible
connectivity in various scenarios. Due to the device's
routing capabilities format conversion between
different MADI formats is possible.
MADI BNC OUT BNC socket
MADI output - connect here for
MADI output signal.
MADI BNC IN BNC socket
MADI input - connect MADI input
signal here.
MADI SC OUT SC socket
MADI output - connect here for
MADI output signal.
MADI SC IN SC socket
MADI input - connect MADI input
signal here.
MADI SFP I/O SFP socket
Insert SFP module here and
connect MADI input/output.
page 32 of 60 EXBOX.MD Manual - Version 1.0
CHAPTER 4: Operation
Input / Output - Network
Four network ports are available for transmission of
audio signals and remote control. The built-in network
switch can be operated in two modes:
• switched - four ports, individual operation
• redundant - two ports, primary & secondary
The switch will be confi gured automatically by
selecting the respective operation mode in Dante
Controller.
With redundant operation each two interfaces
( primary / secondary) are combined into a single
logical port; i.e. port 1 / 3 and port 2 / 4.
NOTE
If redundancy is being used, secondary interfaces
should be connected to a second separate network.
Secondary interfaces cannot communicate with
primary interfaces.
page 33 of 60EXBOX.MD Manual - Version 1.0
CHAPTER 4: Operation
01 (PoE) RJ45 socket (1 Gbit/s)
Network interface - connect here
for network transmission.
This port accepts a PoE source for
power supply - see page 28.
02 RJ45 socket (1 Gbit/s)
Network interface - connect here
for network transmission.
03 RJ45 socket (1 Gbit/s)
Network interface - connect here
for network transmission.
04 RJ45 socket (1 Gbit/s)
Network interface - connect here
for network transmission.
LED left
(Port 1 to 4)
LED orange - indicates the
link state of the network
connection*.
(ON) = device link active
(OFF) = device link not active
LED right
(Port 1 to 4)
LED green - indicates the
activity state of the network
connection.
(ON) = data sent or received
(OFF) = no data transmission
* Some possible reasons that lead to an inactive link:
• device switched off
• connected device switched off
• cabling issue
page 34 of 60 EXBOX.MD Manual - Version 1.0
CHAPTER 4: Operation
Input State / Clocking
Five LEDs inform about the state of each signal input
and the selected clock source of the device.
The device ofers several options for clocking:
• PTP (Precision Time Protocol) IEEE 1588-2002 / PTPv1 or v2 in AES67 mode
• MADI input
• internal clock generator
CLOCK
SOURCE /
SYNC
SFP
BNC
SC
PTP
INT
LED RGB - indicates selected clock
source and the lock / sync state
of MADI input, PTP-clock or the
internal clock generator.
(OFF) = no signal lock
(50 % green) = signal lock, in sync
(100 % green) = signal lock, in sync,
selected clock source
(blinking red) = signal lock, not in sync
with selected clock
source
(blinking green) = input selected as
clock source and
no signal lock.
page 35 of 60EXBOX.MD Manual - Version 1.0
CHAPTER 4: Operation

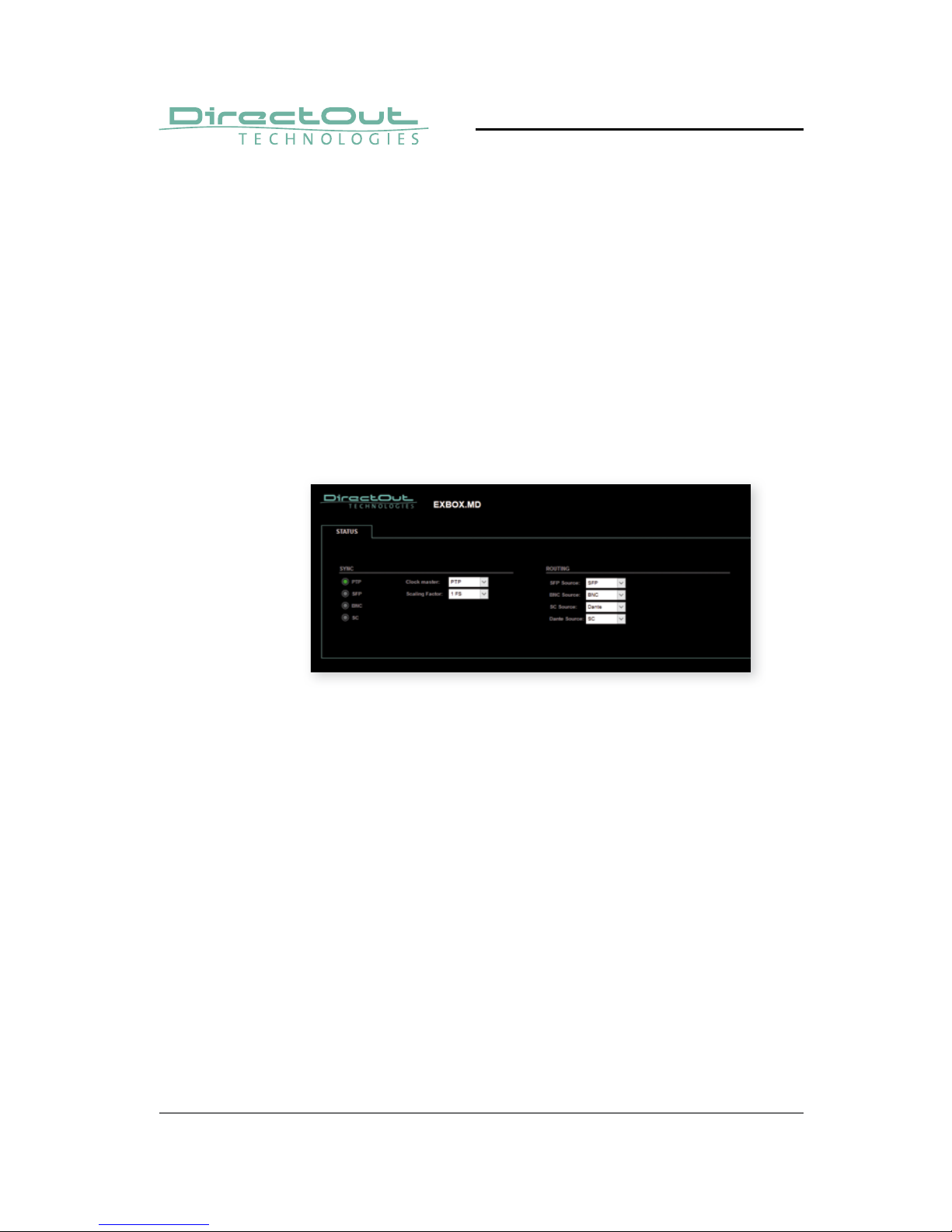

The clock source of the device is adjusted via the
remote control. Open the control page in a browser
by entering the device's IP address.
PTP confi guration is available in the tab 'Clock Status'
of the software 'Dante Controller' from Audinate.
PTP sync is handled by the Dante network
automatically. EXBOX.MD can act as a PTP slave or
Grandmaster ( preferred master).
When clocking to a source other than PTP, make sure
to enable the 'Enable Sync to External' option for this
device. The unit should also be 'preferred master'
then to make sure that the Dante network is in sync
with the system clock of EXBOX.MD.
Information about clocking in Dante network
environments is available on the Audinate website:
https://www.audinate.com/resources/faqs
page 36 of 60 EXBOX.MD Manual - Version 1.0
CHAPTER 4: Operation
Sample Rate
The base rate (44.1 kHz, 48 kHz) and the scaling
factor (1 FS, 2 FS, 4 FS) is displayed by four leds at
the front panel.
NOTE
At higher sample rates the number of audio channels
is reduced depending on the integer of the scaling
factor:
• 64 channels at 1 FS
• 32 channels at 2 FS
• 16 channels at 4 FS
page 37 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 4: Operation
SAMPLE
RATE
44.1k
LED green - indicates the base
rate of the audio engine.
(OFF) = base rate is different
from 44.1 kHz
(ON) = base rate of 44.1 kHz
(or multiple of) is used
SAMPLE
RATE
48k
LED green - indicates the base
rate of the audio engine.
(OFF) = base rate is different
from 48 kHz
(ON) = base rate of 48 kHz (or
multiple of) is used
SAMPLE
RATE
2 FS
LED yellow - indicates the scaling
factor of the base rate.
(OFF) = scaling factor is 1 FS
(ON) = scaling factor is 2 FS
SAMPLE
RATE
4 FS
LED white - indicates the scaling
factor of the base rate.
(OFF) = scaling factor is 1 FS
(ON) = scaling factor is 4 FS
page 38 of 60 EXBOX.MD Manual - Version 1.0
CHAPTER 4: Operation

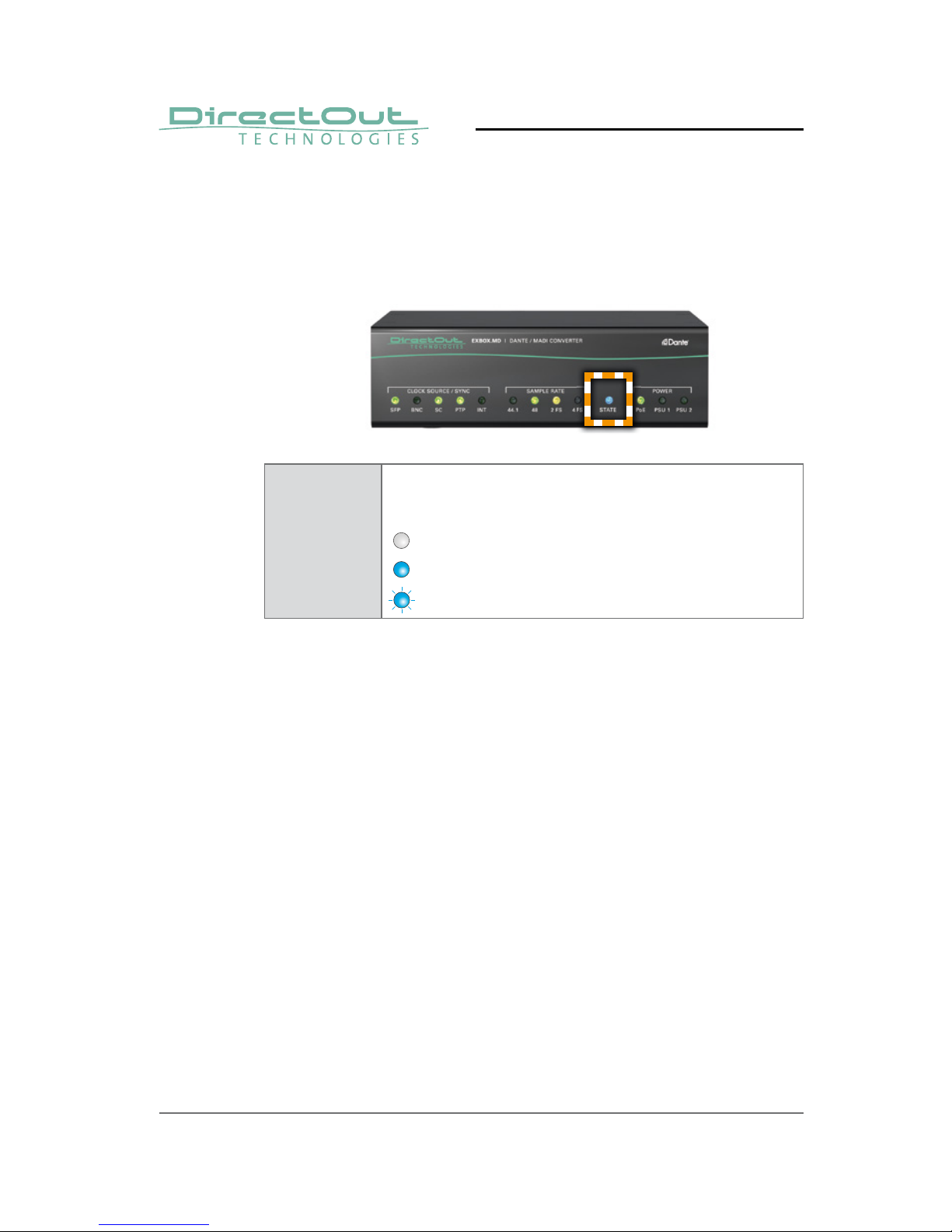

State
The status of the Dante module is monitored by a
LED at the front.
STATE LED blue - indicates the state of the
Dante module.
(OFF) = module not available
(ON) = module is working
(blinking) = module in failsafe mode*
* The Dante module starts into failsafe mode if its
fi rmware is corrupted. This may happen in very rare
cases only. Should you encounter this state, please
contact support for further information.
page 39 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 5: Remote Control
CHAPTER 5: Remote Control

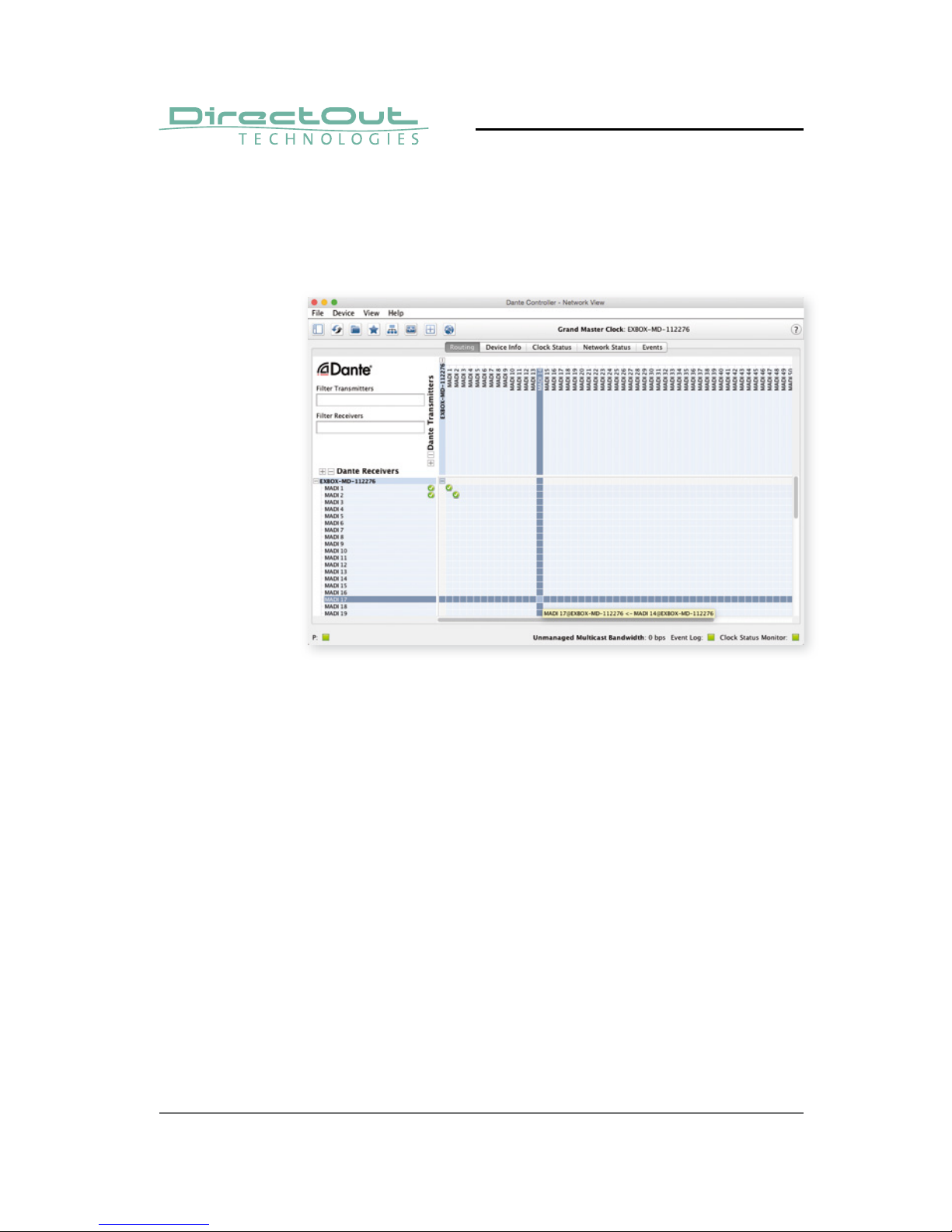

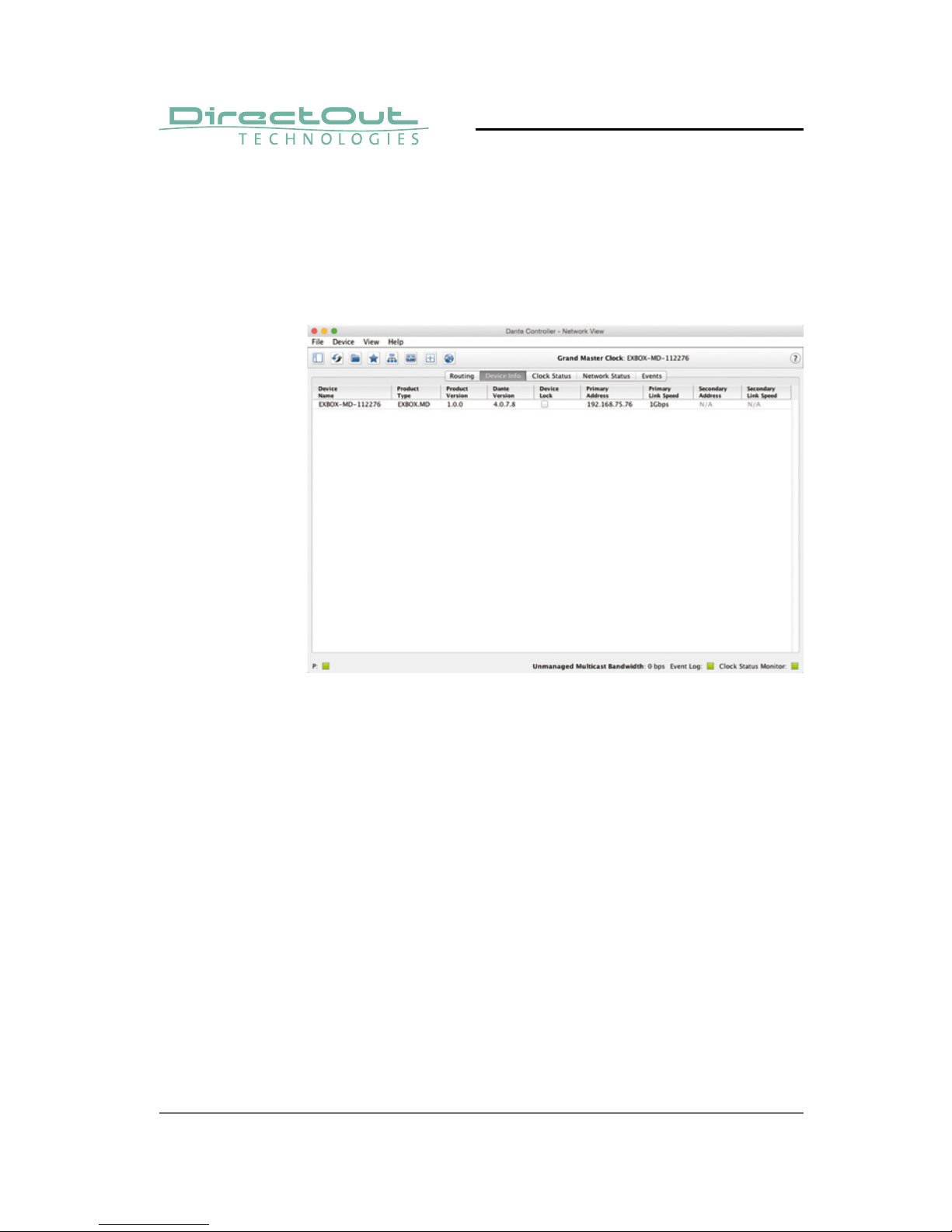

Dante Controller
To control a Dante network the application 'Dante
Controller' needs to run on a computer that is
connected to the network.
The software is available from the Audinate website
(requires a free registration):
https://www.audinate.com/products/software/dantecontroller
A detailed documentation about using Dante
Controller is available here:
https://dev.audinate.com/GA/dante-controller/
userguide/webhelp/
At startup Dante Controller scans the network
for connected Dante devices a shows them
automatically in the 'Network View'.
The IP address of a Dante device must fit into the
network environment for proper operation of a Layer
3 based network. However Dante Controller will mark
a device entry red if the IP Address is not matching
the network environment and helps resolving the
issue.
page 40 of 60 EXBOX.MD Manual - Version 1.0
CHAPTER 5: Remote Control
Network View
The 'Network View' is organised in several tabs. All
detected Dante devices are shown on a list.
EXBOX.MD is delivered with the network interface
set to DHCP as a default. Dante Controller can
be used to discover the device on the network
and change the IP confi guration if necessary - see
"Network Confi g" on page 44.
page 41 of 60EXBOX.MD Manual - Version 1.0
CHAPTER 5: Remote Control
Clock Status
The tab ' Clock Status' informs about the clock
settings of each connected device and allows to
modify them.
'Preferred Master' sets the device as PTP
Grandmaster in the network
'Enable Sync to External' allows to clock the device
from an external source (MADI input or internal). The
device shall become Grandmaster of the network
then.
page 42 of 60 EXBOX.MD Manual - Version 1.0
CHAPTER 5: Remote Control
Routing
The audio signal routing is accessible in the tab
'Routing'
'Dante Receivers' in the vertical column displays the
receiving devices (= destinations).
'Dante Transmitters' in the horizontal row displays the
transmitting devices (= sources).
The channel list can be expanded or collapsed for
each device.
Connections are made by clicking into the matrix.
page 43 of 60EXBOX.MD Manual - Version 1.0
CHAPTER 5: Remote Control
Device View
The 'Device View' is also organised in to several tabs.
It can be opened by double-clicking on to a device
name in the 'Network View'.
The status tab informs about the current fi rmware
and software versions.
TIP
To update your device the application 'Dante
Firmware Update Manager' is required:
https://www.audinate.com/products/fi rmware-updatemanager
page 44 of 60 EXBOX.MD Manual - Version 1.0
CHAPTER 5: Remote Control
Network Confi g
The tab ' Network Confi g' of the device view provides
access to the operating mode of the built-in network
switch and the network settings of the device.
page 45 of 60EXBOX.MD Manual - Version 1.0
CHAPTER 5: Remote Control
Device Confi g
The tab 'Device Confi g' to adjust the device name,
sample rate, encoding modes and more.
The clock source of the EXBOX.MD is confi gured in
the web control of the EXBOX.MD.
Open a browser and enter the device's IP address to
access the control page.
page 46 of 60 EXBOX.MD Manual - Version 1.0
CHAPTER 5: Remote Control
EXBOX.MD Remote
Some device specifi c parameters are controlled via a
website:
• Clock source
• Scaling factor of base sample rate
• Audio signal routing
The remote control is accessible via a browser. Enter
the device's IP address to open the gui.
page 47 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 5: Remote Control
SYNC
SYNC
PTP
SFP
BNC
SC
PTP
LED RGB - indicates selected clock
source and the lock / sync state of
MADI input, PTP-clock or the internal
clock generator.
(OFF) = no signal lock
(100 % green) = signal lock, in sync,
selected clock source
(blinking red) = signal lock, not in sync
with selected clock
source
(blinking green) = input selected as
clock source and
no signal lock.
Clock
master
Pull-down menu - selection of clock
source
Values:
PTP = PTP clock (Master or Slave)
SFP = MADI SFP input
BNC = MADI BNC input
SC = MADI SC input
INT 44.1 = internal clock generator 44.1 kHz
INT 48 = internal clock generator 48 kHz
Scaling
Factor*
Pull-down menu - selection of scaling
factor of base sample rate
Values: 1 FS, 2 FS, 4 FS
* See „Introduction“ on page 27.
page 48 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 5: Remote Control
ROUTING
ROUTING
SFP
BNC
SC
Dante
Pull-down menu - selection of
signal source of each signal output
Values:
SFP = MADI SFP input
BNC = MADI BNC input
SC = MADI SC input
Dante = Dante network
page 49 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 6: Troubleshooting and Maintenance
Troubleshooting
To identify a possible defect with the device please
consult the following table.
If the fault cannot be resolved using these
instructions, please contact your local DirectOut
representative or visit support.directout.eu.
CHAPTER 6: Troubleshooting and
Maintenance
Issue Possible
reason
Solution
Device
doesn’t work.
Power supply is
broken.
Check that the power supply
switch is on, that the device
is connected to the power
supply and that the socket is
working. Defective fuses must
be exchanged by qualified
service personal only.
Optical port
does not
work.
Optic is dirty. Use an air supply to carefully
remove any dust.
Never use objects for
cleaning.
No signal at
the output
port.
Connections
(input / output)
are mixed up.
Check the connections
and change the cables if
necessary.
Check the routing matrix.
page 50 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 6: Troubleshooting and Maintenance
Issue Possible
reason
Solution
No signal at
the output
port.
Signal cable
defective.
Exchange the signal cable.
No signal at
the output
port.
Connectors of
the signal cable
are dirty.
Use an air supply to carefully
remove any dust.
Never use objects for
cleaning.
or
Exchange the signal cable.
MADI signal
at the input is
not stable.
Signal source is
defective
or
bad signal
condition (Jitter >
1 ns) - e.g. due to
exceeded length
or bad screening
attenuation of
signal cable.
Change the source
or
use appropriate cables.
page 51 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 6: Troubleshooting and Maintenance
Maintenance
To clean the device, use a soft, dry cloth. To protect
the surface, avoid using cleaning agents.
The device should be disconnected from the power
supply during the cleaning process.
NOTE
page 52 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 7: Technical Data
CHAPTER 7: Technical Data
Dimensions
• Width 140 mm
• Height 42 mm
• Depth 146 mm
Weight
• 0.7 kg
Power Consumption
• 9 W (typical)
Power Supply
• 2 x Hirose socket (HR10)
• 9 V - 24 V DC (external)
WARNING
The connected power supply must provide a current
limiting to a maximum of 2.5 A.
Environmental Conditions
• Operating temperature +5°C up to +45°C
• Relative humidity: 10% - 80%, non condensing
page 53 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 7: Technical Data
MADI Ports SC optical
• SC socket FDDI (input / output)
• ISO/IEC 9314-3
• Wave length 1310 nm
• Multi-Mode 62.5/125 or 50/125
MADI Ports BNC coaxial
• BNC socket (input / output)
• Impedance: 75 Ω
• 0.3 V up to 0.6 V (peak to peak)
MADI Ports SFP
• empty cage without module
Sample Rate
• 30 - 50 kHz @ 1 FS
• 60 - 100 kHz @ 2 FS
• 120 - 200 kHz @ 4 FS
MADI Format (I/O)
• 48k Frame, 96k Frame
• 56 channel, 64 channel
page 54 of 60
EXBOX.MD Manual - Version 1.0
CHAPTER 7: Technical Data
Network
• 4 x RJ45 socket
• Gigabit Ethernet
• for transmission of network audio, control data
and firmware updates
• Network-Layer 3
• 32 streams
• 64 channels I/O @ 1 FS (32@2FS, 16@4FS)
• Standard: Dante, AES67
• Brooklyn II module, Firmware 4.x
PoE (Network Port 1)
• PoE Class 0 / 0.4 - 13 W
page 55 of 60
EXBOX.MD Manual - Version 1.0
Appendix A - Wiring Sketches
Appendix A - Wiring Sketches
Hirose HR10 (DC PSU)
Pin Signal
1 DC +
2 DC +
3 DC -
4 DC -
NOTE
To ensure proper operation all pins should be
connected.
NOTE
Ground is connected with the chassis of the plug
(safety class 1).
1 2
4 3
page 56 of 60
EXBOX.MD Manual - Version 1.0
Index
Index
A
Accessory ........................... 18
B
BOX.MOUNT XL ................ 20
Brooklyn II module ............. 54
C
Clocking
FAQ ................................ 35
Options .......................... 34
Preferred master............ 35
Sync to External ............. 35
Conformity & Certificates
CE ................................... 15
RoHS .............................. 15
WEEE ............................. 15
Contact ............................... 16
Contents ............................. 17
Conventions ......................... 5
D
Dante module state ........... 38
Defective Parts/Modules .... 12
Dimensions ........................ 52
E
Environmental conditions 21, 52
Ethernet switch ................. 23
F
Firmware ........................... 43
First Aid .............................. 11
I
Intended Operation ............. 13
M
MADI formats ...................... 7
P
PoE Class ........................... 54
Power supply ....................... 7
Primary / secondary ........... 32
R
Remote Control
Dante Controller ............ 39
EXBOX.MD Remote ...... 46
page 57 of 60
EXBOX.MD Manual - Version 1.0
Index
S
Sample rates ........................ 7
Scaling Factor .................... 27
SFP Modules ...................... 18
Sketch
Hirose HR10 (DC PSU) .. 55
Support .............................. 49
T
Technical data .................... 52
Troubleshooting ................. 49
U
Updates .............................. 12
W
Warranty ............................. 14
page 58 of 60
EXBOX.MD Manual - Version 1.0
Notes
page 59 of 60
EXBOX.MD Manual - Version 1.0
Notes
DirectOut GmbH T: +49-3727-5665-100
F: +49-3727-5665-101
www.directout.eu
Leipziger Strasse 32
09648 Mittweida
Germany
Loading...
