This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesirable operation.
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television, which can be determined by
turning the equipment OFF and ON, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
This device complies with the Industry Canada Radio Standards Specification
RSS 210. Its use is authorized only on a no-interference, no-protection basis; in
other words, this device must not be used if it is determined that it causes harmful interference to services authorized by IC. In addition, the user of this device
must accept any radio interference that may be received, even if this interference
could affect the operation of the device.
Warning:
Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this device.
The following safety warnings must be observed at all times:
Due to the complexity of this system, installation of this product must only be
performed by an authorized Directed dealer.
When properly installed, this system can start the vehicle via a command signal
from the remote control. Therefore, never operate the system in an enclosed area
or partially enclosed area without ventilation (such as a garage). When parking
in an enclosed or partially enclosed area or when having the vehicle serviced,
the remote start system must be disabled using the installed toggle switch. It is
the user’s sole responsibility to properly handle and keep out of reach from children all remote control devices to assure that the system does not unintentionally
remote start the vehicle. THE USER MUST INSTALL A CARBON MONOXIDE
DETECTOR IN OR ABOUT THE LIVING AREA ADJACENT TO THE VEHICLE.
ALL DOORS LEADING FROM ADJACENT LIVING AREAS TO THE ENCLOSED
OR PARTIALLY ENCLOSED VEHICLE STORAGE AREA MUST AT ALL TIMES
REMAIN CLOSED. These precautions are the sole responsibility of the user.
Use of this product in a manner contrary to its intended mode of operation may
result in property damage, personal injury, or death. (1) Never remotely start the
vehicle with the vehicle in gear, and (2) Never remotely start the vehicle with
the keys in the ignition. The user must also have the neutral safety feature of the
vehicle periodically checked, wherein the vehicle must not remotely start while
the car is in gear. This testing should be performed by an authorized Directed
dealer in accordance with the Safety Check outlined in the product installation
guide. If the vehicle starts in gear, cease remote start operation immediately and
consult with the authorized Directed dealer to x the problem.
After the remote start module has been installed, contact your authorized dealer
to have him or her test the remote start module by performing the Safety Check
outlined in the product installation guide. If the vehicle starts when performing
the Neutral Safety Shutdown Circuit test, the remote start unit has not been
properly installed. The remote start module must be removed or the installer must
properly reinstall the remote start system so that the vehicle does not start in gear.
All installations must be performed by an authorized Directed dealer.
OPERATION OF THE REMOTE START MODULE IF THE VEHICLE STARTS IN
GEAR IS CONTRARY TO ITS INTENDED MODE OF OPERATION. OPERATING THE REMOTE START SYSTEM UNDER THESE CONDITIONS MAY RESULT
IN PROPERTY DAMAGE OR PERSONAL INJURY. YOU MUST IMMEDIATELY
CEASE THE USE OF THE UNIT AND SEEK THE ASSISTANCE OF AN AUTHORIZED Directed DEALER TO REPAIR OR DISCONNECT THE INSTALLED
REMOTE START MODULE. DIRECTED WILL NOT BE HELD RESPONSIBLE OR
PAY FOR INSTALLATION OR REINSTALLATION COSTS.
This product is designed for fuel injected, automatic transmission vehicles only. Use of this product in a standard transmission vehicle is
dangerous and contrary to the product's intended use.
Congratulations on the purchase of your remote start keyless entry system. This system has been designed to provide years of trouble free
operation. By carefully reading this Owner’s Guide prior to using your
system, you will maximize the use of this system and its features. Additional or replacement copies of this guide can be printed by accessing
the Directed Electronics internet website at
➢ System Maintenance
The system requires no specific maintenance. Your remote is powered
by two miniature 3V CR2016 batteries that lasts approximately one
year under normal use. When the battery weakens, the LED on the
remote will dim and operating range will be reduced.
➢ Your Warranty
Your warranty card must be completely filled out and returned within
10 days of purchase. Your product warranty will not be honored if
your warranty card is not returned. Make sure that you receive the
warranty card from your dealer. You may also register online at
The receiver uses a computer-based learn routine to learn the remote
control buttons. The remote control buttons indicated in all of the instructions in this manual correspond to a Standard Configuration.
➢ Standard Configuration
Button
The lock function is controlled by pressing
one second. When held for more than 1.5 seconds, Panic is activated.
Button
The unlocking function is controlled by pressing
control for one second. You can also turn Panic off with this button.
Button
Silent Mode
pressing
second before locking or unlocking. An optional trunk release output is
controlled by pressing and holding
Button
The remote start function of your system is controlled by pressing this
button for one second.
™
and an optional auxiliary function are controlled by
. Silent Mode works by pressing
on the remote control for
on the remote
for less than one
for 1.5 seconds.
Buttons +
Car Finder is controlled by pressing these two buttons.
Buttons
+ +
When simultaneously pressed these buttons control the rear window
defogger during remote starting.
Pressing
nected). The horn honks (if connected) and the parking lights flash once
to confirm locking of the system. The optional Failsafe
activates and prevents the vehicle’s starter from cranking.
➢ Unlocking
Pressing
honks twice (if connected) and the parking lights flash twice to confirm
unlocking of the system. The optional Failsafe Starter Kill is deactivated.
➢ Disabling (optional) Starter Kill
If your remote control is lost or damaged, you can manually override
the starter kill. To do this, you must have the ve hi cle's ignition key and
know where the Valet button is located. Be sure to check with the installer for the location of the Valet button.
process.
for one second locks the system. (if the door locks are con-
®
Starter Kill also
for one second unlocks the doors (if connected). The horn
To override the starter kill, turn the ignition on and press
and release the valet button within 10 seconds. The vehicle should start. If it does not start, you may have
waited too long; turn the ignition off and repeat the
If you are threatened in or near your vehicle, you can attract attention
by trig ger ing the system with your remote control. Press
seconds to enter Panic Mode. In Panic Mode, the horn will honk and
the parking lights will flash for 30 seconds. To stop Panic Mode at
any time, press
Note:
In order for Panic Mode to be effective, the vehicle’s horn (or
optional siren) and the vehicle's parking lights must be connected.
, or
on the remote control.
for 1.5
➢ Remote Start
This feature allows you to remotely start and run your vehicle for a
pro gram ma ble period of time. This makes it possible to warm up the
engine, as well as adjust the interior tem per a ture of the ve hi cle with
the climate control system. If interior heating or cooling is desired, the
climate controls must be preset, and the fan blower must be set to the
desired level prior to remote starting the vehicle.
Important!
in gear, and never remotely start the vehicle with the key in the
ignition.
To remote start the vehicle:
4
Never remotely start the vehicle with the vehicle
Press the •
second.
The parking lights flash to confirm that the vehicle is attempting to •
start. (In gasoline vehicles, the engine will start 4 seconds after the
parking lights flash. In diesel vehicles, the engine will start when
the WAIT-TO-START timer has expired.)
Once the vehicle has started, it will run for the pre- pro gram med •
period of time (12, 24, or 60 minutes) or until a shutdown input
is trig gered.
button on the remote control 1 time and hold for 1

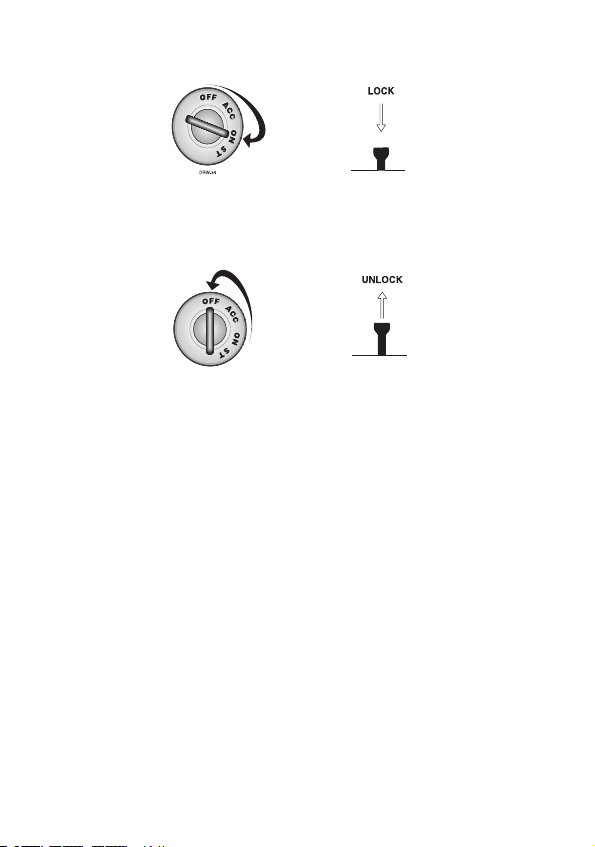

Insert the ignition key and turn it to the ON (not the START) 1.
po sition.
Press the brake pedal. The remote start system shuts down and the 2.
motor continues to run because the ignition has been turned on.
Note:
If the brake pedal is pressed before the key is in the ON position,
the engine will shut down.
While the vehicle is running during remote start operation, the system
will monitor the ve hi cle and will automatically shut down the engine if the
system receives any of the following shut-down inputs:
The brake pedal is pressed.•
The hood is opened.•
The shutdown toggle switch is put into the OFF position.•
The pre-programmed run time (12, 24, or 60 minutes) has elapsed.•
Remote control button •
is pressed 1 time to start the vehicle.
➢ Rear Defogger
To turn the rear defogger output Off:
Simultaneously press & release the 1.
remote control.
The lights flash 2 times.2.
The rear defogger output will no longer activate when the vehicle 3.
is remote started.
+ +
buttons on the
Note:
If the remote start is On, the parking lights turn Off then flash
2- times before returning to normal output. The defogger output, if active, will cease.
Simultaneously press & release the 1.
remote control.
The lights will flash 3 times.2.
The rear defogger output will once again activate when the ve-3.
hicle is remote started.
Note:
If the remote start is on the lights will turn off then flash 3-times
before returning to their normal output and the defogger output will
activate as programmed.
+ +
buttons on the
➢ Valet Take-Over
The Valet Take-Over feature allows the vehicle to remain running after
the key has been removed from the ignition. This feature is useful for
occasions when you wish to exit and lock the vehicle for short periods
of time, but would like to leave the motor running and the climate
controls on.
To perform Valet Take-Over:
Before turning off the engine, press and release 1. on the remote
control for 1 second.
Turn the ignition key to the OFF position. (The engine will stay 2.
running.)
The vehicle will run for the pre- pro gram med period of time (12, 3.
24, or 60 minutes) or until a shutdown input is trig gered.
Car finder allows you to locate your vehicle, by having the system flash
the parking lights on your vehicle..
To activate:
Press and release the 1. and
The lights flash 5 times slowly allowing you to locate your ve-2.
hicle.
buttons at the same time.
➢ Timer Mode
When you activate timer mode the system automatically starts the ve-
hicle every three hours for a maximum of 6 starts. The pre-programmed
engine runtime is 12 minutes.
Press •
four times, and after a 1 second delay, the engine starts.
To shutdown the engine, press the remote start button •
system remains in timer mode and will continue to start every 3
hours unless cancelled by turning on the ignition or by activating
the brake, or neutral safety shutdown wires.
The parking lights ash 4 times indicating timer mode is exited. •
Important!
areas. Never start and run the vehicle in an enclosed
space such as a garage or carport.
Whenever the vehicle is remote started, advanced anti-grind circuitry
prevents the starter from engaging, even if the key is turned to the start
position. This prevents damage to the starter motor if the key is turned to
the start position during remote start operation.
Note:
Anti-grind circuitry only works when the remote start system is
op er at ing the motor and the optional Failsafe
®
Starter Kill relay is in-
stalled.
➢ Disabling the Remote Start system
This feature allows your system's remote start unit to be temporarily
disabled to prevent the vehicle from being remote started accidentally.
This feature is useful if the vehicle is being serviced or stored in an
enclosed area. To disable the remote start, move the shutdown toggle
switch to the OFF position. The switch can be installed in a location of
your choice. Check with your installer for recommended locations.
If power door locks have been connected to your system, the vehicle's doors will
lock three seconds after the ignition has been turned On and unlock when the
ignition is turned Off.
Important:
In order for the ignition controlled door locks to work the
feature must be programmed On.
If the ignition is turned on when the vehicle is remote started the doors
will not lock until the remote start shuts off. To avoid being locked out
of the vehicle, do not turn the ignition on until you are ready to drive
the vehicle.
Owner Recognition is a revolutionary feature avail able only from Directed. Using a Directed Bitwriter®, hand-held programming tool, your dealer can program
many of the system settings. It is possible to program different settings for each
trans mit ter used with the system. Then, when ev er a specific transmitter is used,
the system recalls the settings assigned to that transmitter. Owner Rec og ni tion
lets up to four users of the system have different settings that meet their specific
needs. It is almost like having four separate alarms in your vehicle, one for each
user.
Important: Owner Recognition cannot be programmed without a Bitwriter® and
the necessary soft ware. Check with your dealer for more information.
Rapid Resume Logic
This Directed Electronics system will store its current state to non-volatile
memory. If power is lost and then reconnected the system will recall the
stored state from memory. This means if the unit is in Locked Mode and
the battery is dis con nect ed for any reason, such as servicing the car,
when the battery is re con nect ed the unit will still be in Locked Mode.
This applies to all states of the system.
Programming options control your system's normal, operational set-up.
Most options do not require additional parts, but some may require additional installation labor. This system's programming options are listed
below, with the factory default settings in
12
• , 24, or 60 minute run time. your system can be programmed
to allow the vehicle to run for 12, 24, or 60 minutes when remote
started. Can be programmed from 1 -60 minutes.
3, 6, 9, or •
programmed to allow the vehicle to run for 3, 6, 9, or 12 minutes
when remote started in timer mode. Can be set from 1-16 minutes
by your installer.
Comfort closure is a programming option which closes the ve-•
hicle’s windows after remote locking.
Parking lights flashing or • constant. Your system can be programmed
to either flash or to turn on the parking lights constantly during the
entire remote start operation.
Ignition switch-controlled door-locking •
on, the doors will lock 3 seconds after the ignition key is turned on,
and unlock when the ignition key is turned off.
The horn honk confirmations for locking and unlocking can be •
programmed
on, the horn must be connected to the system.
12
minute timer mode run time. Your system can be
on
or Off. In order for this feature to be programmed
Listed below are some of the many expansion options available for
use with your system. Some options may require additional parts and/
or labor. Please consult with your dealer for a complete list of options
available for use with this system.
Power Door Lock Control:
types of power door lock systems; however, some door lock systems
may require extra parts. Consult with your dealer to determine which
type of locks your vehicle uses. The system can be programmed to lock
the doors when the ignition is turned on and to unlock them when the
ignition is turned off.
Power Trunk Release:
to operate a factory power release for the vehicle's trunk or hatch. If
the factory release is not power-activated, Directed Electronics 522T
trunk-release solenoid can often be added.
Power Window Control:
rected Electronics 529T or 530T systems. The 529T system will roll
up two windows automatically when the system is locked, or roll two
windows down by using the remote control. The 530T will roll two
windows both up and down. The 530T also provides one touch switch
operation.
To disable the remote start, move the shutdown toggle switch to •
the OFF position.
Location of Shutdown Switch_____________________________
Valet Takeover
Press and release • on the remote control one time while the
vehicle is running. Turn the ignition key to the OFF position. The
vehicle remains running, and runs for the pre- pro gram med period
of time (12, 24, or 60 minutes).
Rear Window Defogger
Press the •
defogger on or off when remote starting. When pressing these
buttons, the parking lights will flash 2-times if the defogger is set
to off, and will flash 3-times if the defogger is set to on.
, and
buttons simultaneously to turn the
✂
16
Cut along the dotted line and fold to keep in purse or wallet for a quick and easy reference.
Directed Electronics. (“Directed”) promises to the original purchaser to repair or replace (at
Directed’s election) with a comparable reconditioned model any Directed unit (hereafter
the “unit”), excluding without limitation the siren, the remote transmitters, the associated
sensors and accessories, which proves to be defective in workmanship or material under
reasonable use during the lifetime of the vehicle provided the following conditions are met:
the unit was purchased from an authorized Directed dealer, the unit was professionally
installed and serviced by an authorized Directed dealer; the unit will be professionally
reinstalled in the vehicle in which it was originally installed by an authorized Directed
dealer; and the unit is returned to Directed, shipping prepaid with a legible copy of the
bill of sale or other dated proof of purchase bearing the following information: consumer’s
name, telephone number and address; the authorized dealers name, telephone number
and address; complete product description, including accessories; the year, make and
model of the vehicle; vehicle license number and vehicle identification number. All components other than the unit, including without limitation the siren, the remote transmitters
and the associated sensors and accessories, carry a one-year warranty from the date of
purchase of the same. ALL PRODUCTS RECEIVED BY DIRECTED FOR WARRANTY REPAIR
WITHOUT PROOF OF PURCHASE WILL BE DENIED. This warranty is non-transferable
and is automatically void if: the original purchaser has not completed the warranty card
and mailed it within ten (10) days from the date of purchase to the address listed on the
card; the unit’s date code or serial number is defaced, missing or altered; the unit has been
modified or used in a manner contrary to its intended purpose; the unit has been damaged
by accident, unreasonable use, neglect, improper service, installation or other causes not
arising out of defects in materials or construction. The warranty does not cover damage
to the unit caused by installation or removal of the unit. Directed, in its sole discretion, will
determine what constitutes excessive damage and may refuse the return of any unit with
excessive damage.
TO THE MAXIMUM EXTENT ALLOWED BY LAW, ALL WARRANTIES, INCLUDING
BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF
MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE AND WARRANTY OF NONINFRINGEMENT OF INTELLECTUAL PROPERTY, ARE EXPRESSLY EXCLUDED; AND
DIRECTED NEITHER ASSUMES NOR AUTHORIZES ANY PERSON OR ENTITY TO ASSUME
FOR IT ANY DUTY, OBLIGATION OR LIABILITY IN CONNECTION WITH ITS PRODUCTS.
DIRECTED DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL ACTS
OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEALERS OR INSTALLERS. DIRECTED
SECURITY SYSTEMS, INCLUDING THIS UNIT, ARE DETERRENTS AGAINST POSSIBLE
THEFT. DIRECTED IS NOT OFFERING A GUARANTEE OR INSURANCE AGAINST
VANDALISM, DAMAGE OR THEFT OF THE AUTOMOBILE, ITS PARTS OR CONTENTS;
AND HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER, INCLUDING
WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR VANDALISM. THIS
WARRANTY DOES NOT COVER LABOR COSTS FOR MAINTENANCE, REMOVAL OR
REINSTALLATION OF THE UNIT OR ANY CONSEQUENTIAL DAMAGES OF ANY KIND.
IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY,
THE VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA.
CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY AND GOVERN
THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY CLAIM AGAINST DIRECTED
SHALL BE STRICTLY LIMITED TO THE AUTHORIZED DIRECTED DEALER’S PURCHASE
PRICE OF THE UNIT. DIRECTED SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES
WHATSOEVER, INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES,
INCIDENTAL DAMAGES, DAMAGE TO VEHICLE, DAMAGES FOR THE LOSS OF TIME,
LOSS OF EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY
AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER DOES OFFER
A LIMITED WARRANTY TO REPLACE OR REPAIR THE CONTROL MODULE SUBJECT TO
THE CONDITIONS AS DESCRIBED HEREIN. THIS WARRANTY IS VOID IF THE UNIT
HAS NOT BEEN PURCHASED FROM DIRECTED, OR AN AUTHORIZED DIRECTED
DEALER, OR IF THE UNIT HAS BEEN DAMAGED BY ACCIDENT, UNREASONABLE USE,
NEGLIGENCE, ACTS OF GOD, NEGLECT, IMPROPER SERVICE, OR OTHER CAUSES
NOT ARISING OUT OF DEFECT IN MATERIALS OR CONSTRUCTION.
Some states do not allow limitations on how long an implied warranty will last or the exclusion or limitation of incidental or consequential damages. This warranty gives you specific
legal rights and you may also have other rights that vary from State to State.
This warranty is only valid for sale of product(s) within the United States of America.
Product(s) sold outside of the United States of America are sold “AS-IS” and shall have NO
WARRANTY, express or implied. This product may be covered by a Guaranteed Protection
Plan (“GPP”). See your authorized Directed dealer for details of the plan or call Directed
Customer Service at 1-800-876-0800.
Make sure you have all of the following information from your authorized Directed
dealer:
A clear copy of the sales receipt, showing the following:
o Date of purchase
o Your full name and address
o Authorized dealer’s company name and address
o Type of alarm installed
o Year, make, model and color of the automobile
o Automobile license number
