Directed Electronics PS-4661TWE-FM User Manual
TWO-WAY FM LED AUTOMATIC/MANUAL
TRANSMISSION REMOTE STARTER
INDUSTRY CANADA USER NOTICE:
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (EIRP) is not more than that required for successful communication.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this
equipment. Such modifications could void the user's authority to operate the equipment
Doc#: 110809 Rev:1.4 © 2011 - PS-4661TWE-FM - - FcN - Canada

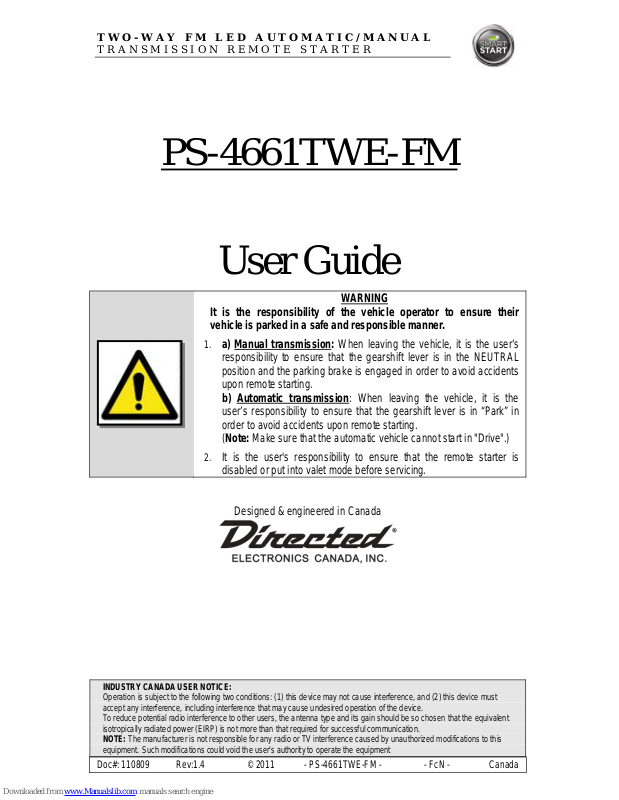

PS-4661TWE-FM
User Guide
WARNING
It is the responsibility of the vehicle operator to ensure their
vehicle is parked in a safe and responsible manner.
1. a) Manual transmission: When leaving the vehicle , it is the user’s
responsibility to ensure that the gearshift lever is in the NEUTRAL
position and the parking brake is engaged in order to avoid ac cidents
upon remote starting.
b) Automatic transmission
: When leaving the vehicle, it is the
user’s responsibility to ensure t hat the gearshift lever is in “Park” in
order to avoid accidents upon remote starting.
(Note: Make sure that the automatic vehicle ca nnot start in "Drive".)
2. It is the user's responsibility to ensure that the remote starter is
disabled or put into valet mode before servicing.
Designed & engineered in Canada
P.2 User Guide
Table of Contents
Government regulations .................................................................................................................. 4
Introduction with SmartStart™ ............................................................................................. 4
Using the Remote Control ............................................................................................................... 5
Vehicle Presets ................................................................................................................................. 6
Heater ........................................................................................................................................... 6
Windshield Wipers & Radio & Headlights ..................................................................................... 6
Arming and disarming the starter kill (if installed) ....................................................................... 7
Remote-Starting Your Vehicle ......................................................................................................... 8
Setting Your Vehicle into Ready Mode ......................................................................................... 8
Remote-starting ............................................................................................................................ 8
Driving Off ..................................................................................................................................... 9
Remote Starter Features .................................................................................................................. 9
Remote Door Locks ...................................................................................................................... 9
Remote Trunk Release ................................................................................................................. 9
Idle Mode ...................................................................................................................................... 9
Valet Mode .................................................................................................................................. 10
Panic Mode ................................................................................................................................. 11
Quick LockoutTM .......................................................................................................................... 11
Cold Weather Mode .................................................................................................................... 11
Extended Run Time .................................................................................................................... 12
Disable/Enable LED flashing ...................................................................................................... 12
Constant output .......................................................................................................................... 12
Feature Confirmation Chart ........................................................................................................... 13
Advanced Features: Installation-programmable Options .......................................................... 13
Ignition-controlled Door Locks .................................................................................................... 13
Secure Lock ................................................................................................................................ 13
Safe Start .................................................................................................................................... 14
Engine Run Time ........................................................................................................................ 14
Turbo Mode ................................................................................................................................ 14
“Home ValetTM” Mode ................................................................................................................. 15
AUX 1 .......................................................................................................................................... 15
AUX 2 .......................................................................................................................................... 15
Horn Timing Adjustment ............................................................................................................. 15
Multi-car Operation ..................................................................................................................... 16
OEM-Style Alarm ........................................................................................................................ 16
Intrusion Codes via horn ............................................................................................................. 16
Vehicle Status Request .................................................................................................................. 17
Status Request When the Engine IS NOT Running ................................................................... 17
Status Request When the Engine is Running ............................................................................ 18
Ready Mode Status Request ...................................................................................................... 18
Troubleshooting Poor Transmitting Range ................................................................................. 18
Diagnostics – Parking Light Flash Table ..................................................................................... 19
User Guide P.3
What is EncryptR™ Technology?
EncryptR™ employs proprietary encryption software that sends unique codes from the
remote starter to the ADS-TB or ADS-AL-CA bypass module that cannot be replicated or
reversed with hi-tech equipment.
The EncryptR™ communication exchan ged between the remote s tarter and the ADS byp ass
module is best described as a “sec ret handshake” tha t is never the same and c hanges every
time it is used.
Since the command / communication is never exchanged in the same way twice, it is
impossible to duplicate even for expe rt thieves and this ens ures the best security possible for
the remote starter system.
Added Security
Every Polarstart remote starter installation used in conjunction wit h an ADS-TB or an ADSAL-CA with EncryptR™ Technology comes with a Limited Anti-Theft Warranty covering up to
$ 2,000 in the event of theft. In order to qualify, upon completion of the installation, your
installer should go on-line to www.encryptr.com
and fill out the Limited anti-theft warranty
form. A copy should be printed a nd given to you for your records. Within ten (10) working
days, a pair of holographic stickers will be mailed to you. Upon receiving them, you must
ensure to affix them on both front side windows of your vehicle.
Holographic stickers to be affixed on both side windows.
P.4 User Guide
Governmentregulations
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmf ul i nterf erenc e, a nd (2) thi s dev ic e mus t ac cept an y
interference received, including interference that may cause undesired operation.
This equipment has been tested an d found to comply with the limits for a Class B digital dev ice,
pursuant to part 15 of the FCC Rules. These limits are des igned to provide reasonable protectio n
against harmful interference in a r esidential ins tallation. This equipment g enerates and ca n radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television recepti on, which can be deter mined by turning the e quipment off
and on, the user is encouraged to try to c orrect the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with the Ind ustry Canada Radio Standards Specification RSS 210. It s use is
authorized only on a no-interfere nce, no-protection basis; in other words , this device must not be
used if it is determined that it causes harmful interferences to services authorized by IC. In
addition, the user of this device must ac cept any radio interface that may be received, even if this
interference could affect the operation of the device.
Warning! Changes or modifications not express ly appro v ed by the party responsible for compliance
could void the user’s authority to operate this device.
IntroductionwithSmartStart™
This is a state-of-the-art remote car starter system. The system is packed with advanced features
such as priority access to the driver’s door (commodity features), the Safe Start children safety
feature and SmartStart™.
SmartStart™ is a groundbreaking technology that enables your remote starter features to be
accessed by your smartphone. Features include keyless entry, trunk release, panic, remote
start/stop toggle and alarm notifications
1
. Note: S martStart™ must be profess ionally installed. For
more information, see your nearest authorised Directed Canada dealer.
With many advanced functions, this product will satisfy any one of your expectations from high-end
commodity and security systems, without neglecting any standard feature commonly offered by
entry-level starters.
1
Certain conditions apply. See your authorised Directed Canada dealer.
User Guide P.5
UsingtheRemoteControl
Your remote starter is equipped with a 5-button mu lti-channel remote control. It can operate two
independent vehicles equipped with a remote starter (see Multi-car operation section on
page 16). The functions of the transm itter are as follows:
2-way LED remote
LOCK: Locks the doors and arms
the STARTER KILL (if installed).
(Image as reference
only)
UNLOCK: Unlocks the doors and
disarms the STARTER KILL (if
installed). Activates the AUX 1
output if Priority Door Access is
configured.
TRUNK: Opens the TRUNK or
activates the AUX 3 output.
Note: Trunk option must be
installed.
LED #1 LED #2
START/STOP: Remote starts or
stops the engine. Gets the system
into Cold Weather mode by
pressing the SHIFT button and
then pressing and holding the
START/STOP button for
3 seconds. Note: Icon may vary.
LED #3 LED #4
AUX
AUX: This button serves as a
second function button.
This button allows assigning
different functions to any of the
other four buttons.
P.6 User Guide
1-way companion remote (optional)
LOCK: Locks the doors and arms the STARTER KILL
(if installed).
(Image as reference only)
UNLOCK: Unlocks the doors and disarms the
STARTER KILL (if installed). Activates the AUX 1
output if Priority Door Access is configured.
TRUNK: Opens the TRUNK or activates the AUX 3
output.
Note: Trunk option must be installed.
START/STOP: Remote starts or stops the engine.
Gets the system into Cold Weather mode by pressing
the SHIFT b utton and then pressing and holding the
START/STOP button for 3 seconds. Note: Icon may
vary.
AUX
AUX: This button serves as a second function button.
This button allows assigning differe nt functions to any
of the other four buttons.
VehiclePresets
Heater
When leaving the vehicle it is recommended t o preset the acc essory controls in pre paration for the
next remote start. Settings for the bl ower motor (fan), front and r ear, should not be l eft on HIGH. It
is recommended to leave the settings on LOW or MEDIUM instead.
WindshieldWipers&Radio&Headlights
Certain vehicles require the ra dio and / or windshield wiper and / or h eadlight circuits to become
energized while running un der remote start. When leaving the vehicle you must ens ure that the
windshield wiper and headlight switches are OFF. Leaving the headlight switch ON on certain
types of vehicles could cause the m to remain ON even after remote starter shut down, res ulting in
a dead battery.
