99”” ((1166::99))
OOvveerrhheeaadd VViiddeeoo
MMoonniittoorr
MMOODDEELL OOHHVV990011AA
OO WW NN EE RR ’’ SS GG UU II DD EE
IINNSSTTAALLLLAATTIIOONN GGUUIIDDEE
© 2005 Directed Electronics, Inc. N81901A 03-05
© 2005 Directed Electronics, Inc.
2
NNOONN--TTRRAANNSSFFEERRAABBLLEE LLIIMMIITTEEDD CCOONNSSUUMMEERR WWAARRRRAANNTTYY
Directed Electronics, Inc. (Directed) promises to the original purchaser that the automotive video monitor
and/or source unit(s) (the Product), excluding accessories, purchased and installed from a Directed
authorized dealer within ninety (90) days after purchase of the new vehicle, in which the Product is
installed, will be free from defects in materials or workmanship under normal use and conditions for a period of three (3) years from date of purchase or the first 36,000 miles as registered on the new vehicle's
odometer reading at time of delivery of the Product for warranty service, whichever occurs first. Product
purchased or installed more than ninety (90) days after the new vehicle is purchased are warranted for a
period of one (1) year from date of purchase of the Product.
Directed promises to the original purchaser that all video accessories will be free from defects in materials and workmanship under normal use and condition for a period of ninety (90) days after the date of
purchase. A sales receipt and/or warranty registration card is required to provide proof of date of purchase
of the Product or accessories.
Should the Product prove to be defective during the applicable warranty period, the Product will be
repaired or replaced with a new or comparable reconditioned part(s), at Directed's election. To obtain warranty service, the Product must be returned to a Directed authorized dealer along with proof of purchase
and proof of installation by an Authorized Directed Dealer.
Note: This warranty does not cover labor costs for the removal and/or reinstallation of the Product. IN
ORDER FOR THIS WARRANTY TO BE VALID, YOUR PRODUCT MUST BE SHIPPED WITH PROOF OF
PURCHASE AND INSTALLATION BY AN AUTHORIZED DIRECTED DEALER. ALL PRODUCTS
RECEIVED BY DIRECTED FOR WARRANTY REPAIR WITHOUT PROOF OF DIRECTED DEALER
INSTALLATION WILL BE DENIED.
This warranty is non-transferable and does not apply to any Product that has been modified or used in a
manner contrary to its intended purpose, and does not cover damage to the Product caused by installation or removal of the Product. This warranty is VOID if the product has been damaged by accident or
unreasonable use, negligence, acts of God, neglect, improper service or other causes not arising out of
defect in materials or construction. This warranty does not cover the elimination of externally generated
static or noise, or the correction of antenna problems or weak television reception, damage to tapes, video
games, software, camcorders, discs, speakers, accessories or vehicle electrical systems, cosmetic damage or damage due to negligence, misuse, abuse, failure to follow operating instructions, accidental spills
or customer applied cleaners, damage due to environmental causes such as floods, airborne fallout,
chemicals, salt, hail, windstorms, lightning or extreme temperatures, damage due to accidents, road hazards, fire, theft, loss or vandalism, damage due to improper connection to equipment of another manufacturer, modification of existing equipment, damage caused by faulty media or the cleaning of components, or Product which has been opened or tampered with for any reason or which has been damaged
due to alteration or service performed by anyone other than Directed Electronics, Inc.
ALL WARRANTIES INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, AND WARRANTY
OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY ARE EXPRESSLY EXCLUDED TO THE
MAXIMUM EXTENT ALLOWED BY LAW, AND DIRECTED NEITHER ASSUMES NOR AUTHORIZES
ANY PERSON TO ASSUME FOR IT ANY LIABILITY IN CONNECTION WITH THE SALE OF THE
PRODUCT. DIRECTED HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL ACTS OF THIRD
PARTIES INCLUDING ITS LICENSED DEALERS OR INSTALLERS. IN NO EVENT WILL DIRECTED
ELECTRONICS, INC. BE LIABLE FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES (INCLUDING LOSS OF PROFITS), BY PURCHASING THIS PRODUCT, THE CONSUMER
AGREES AND CONSENTS THAT ALL DISPUTES BETWEEN THE CONSUMER AND DIRECTED
SHALL BE RESOLVED IN ACCORDANCE WITH CALIFORNIA LAWS IN SAN DIEGO COUNTY, CALIFORNIA.
Some states do not allow limitation on how long an implied warranty lasts. In such states, the limitations
or exclusions of this Limited Warranty may not apply. Some states do not allow the exclusion or limitation
of incidental or consequential damages. In such states, the exclusion or limitation of this Limited Warranty
may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights
which vary from state to state.
March 01, 2005
© 2005 Directed Electronics, Inc.
TTaabbllee ooff CCoonntteennttss
NNoonn--TTrraannssffeerraabbllee LLiimmiitteedd OOnnee YYeeaarr CCoonnssuummeerr WWaarrrraannttyy .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..22
SSaaffe
ettyy IInnssttrruuccttiioonnss aanndd CCaauuttiioonnss .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..44
WWeellccoommee .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..55
WWhhaatt’’ss IInncclluuddeedd .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..55
IImmppoorrttaanntt .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..55
When Cleaning the Vehicle .............................................................................5
While Driving ...............................................................................................5
When Parked ................................................................................................5
Proper Use ...................................................................................................5
Repairs........................................................................................................6
Radio/TV Tuner Use .......................................................................................6
Installation..................................................................................................6
Picture Quality..............................................................................................6
IImmppoorrttaanntt IInnffoorrmmaattiioonn .. .. .. .. .. .. .. .. .. .. .. .. .. .. .
. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..77
FCC Notice ...................................................................................................7
Your Warranty ...............................................................................................7
CCoonnttrroollss .. .. .. .. .. .. .. .. .. .. .. .. .. .. .
. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..88
Monitor .......................................................................................................8
SSeettttiinngg tthhee SSccrreeeenn
MMooddee .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..99
RReemmoottee CCoon
nttrrooll UUnniitt .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..1100

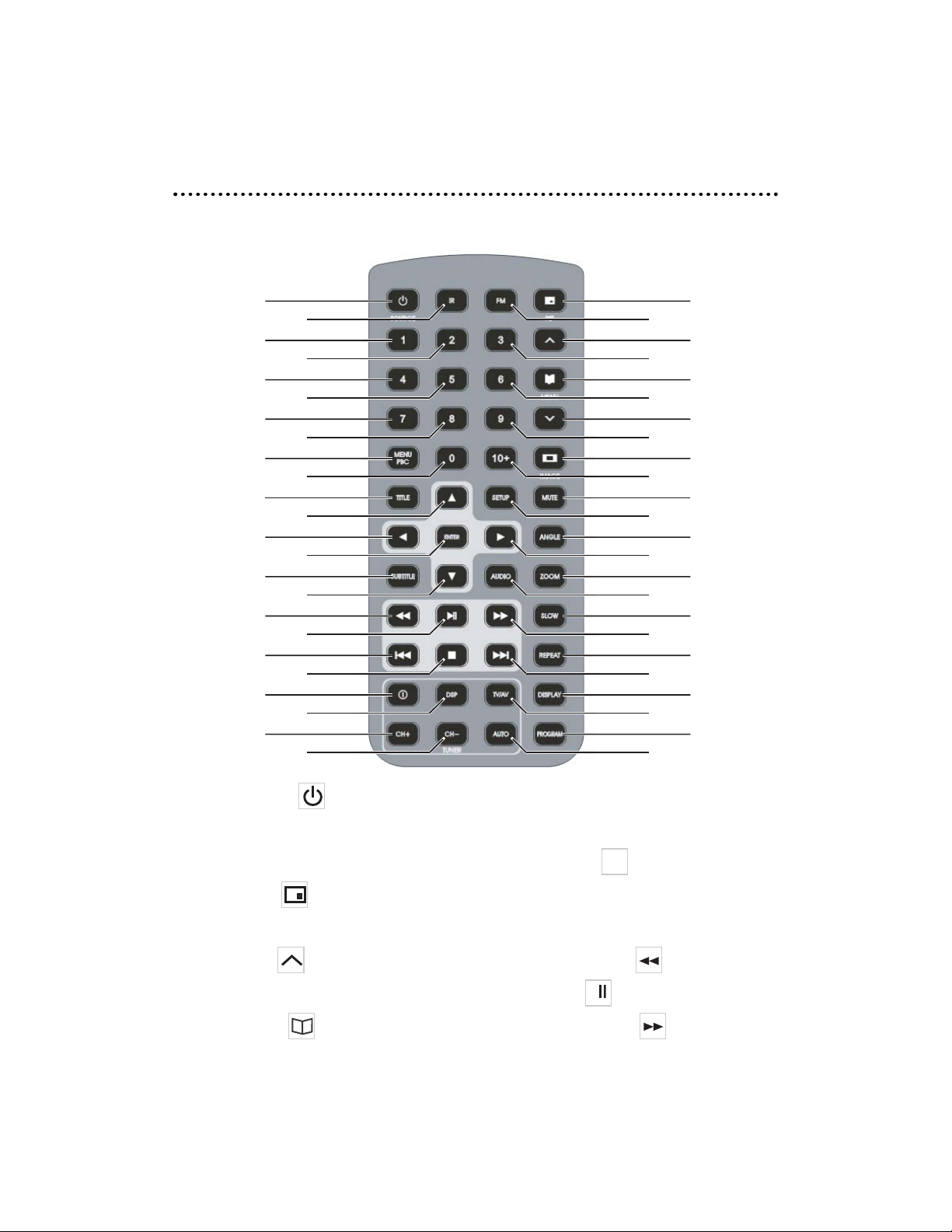

Remote Buttons ..........................................................................................10
IR Remote Feedthrough................................................................................11
Battery Replacement....................................................................................12
Precautions ................................................................................................12
OOppeerraattiinngg tthhee MMoonniittoorr .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. ..1133

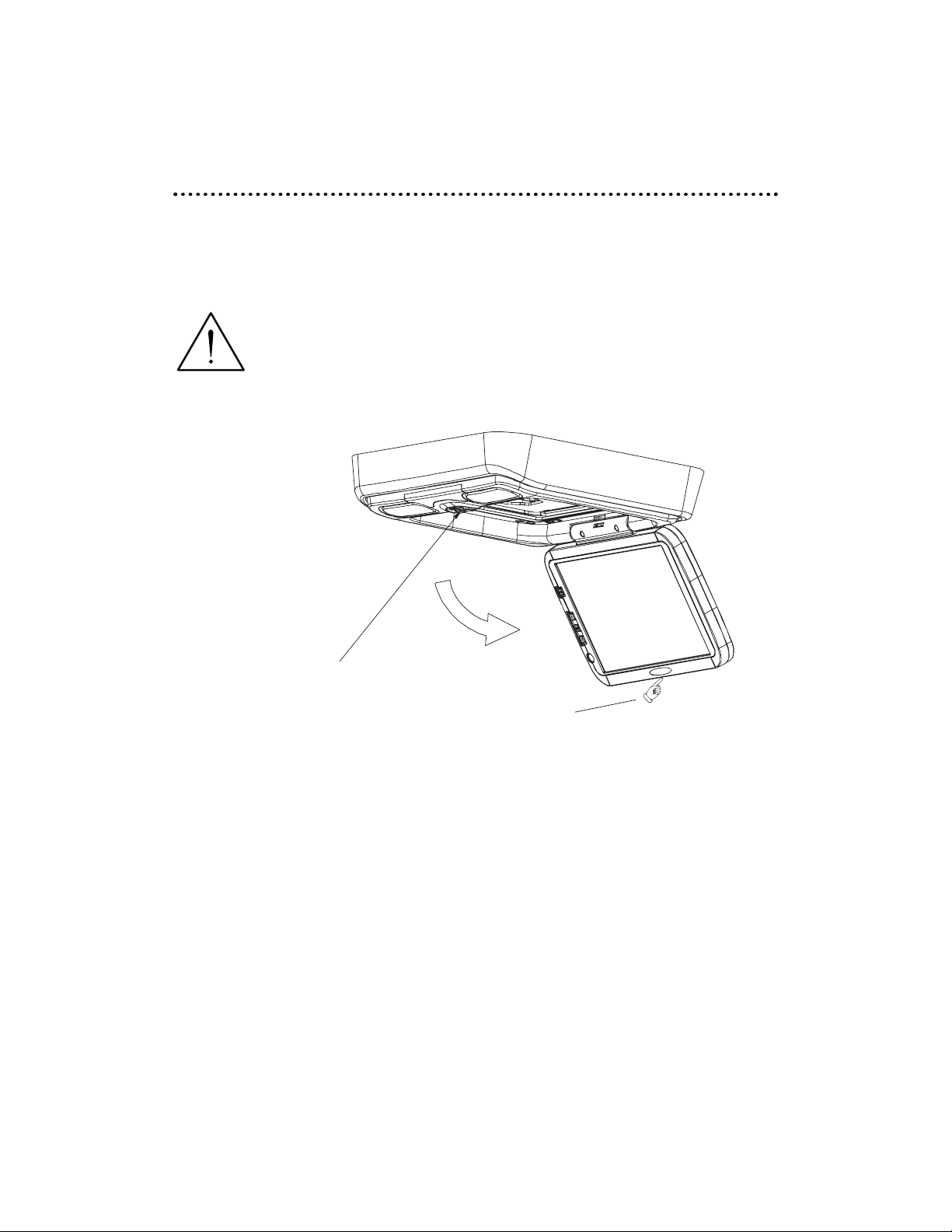

Open/Close the Display Monitor.....................................................................13
PPoowweerr UUpp//DDoowwnn tthhee DDiissppllaayy MMoonniittoorr .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .
. .. .. .. .. .. ..1144
P (Picture-In-Picture/Split Screen).................................................................14
Source (Mode) ............................................................................................14
Menu (Console Menu)...................................................................................15
Door Light On/Off .......................................................................................15
Courtesy Light On/Off ..................................................................................15
IInnssttaalllliinngg OOppttiioonnss .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. ..1166
IInnssttaallllaattiioonn GGuuiiddee .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..1177
Precautions ................................................................................................17
Electrical Connections ..................................................................................18
Signal Connections ......................................................................................19
Typical Wiring Diagram.................................................................................20
IInnssttaallllaattiioonn PPrroocceedduurree .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..2211
SSyysstteemm WWiirriinngg DDiiaaggrraamm EExxaammppllee .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..2233
TTrroouubblleesshhoooottiinngg .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..2244
SSppeecciiffiiccaattiioonnss .. .. .. .. .. .. .
. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..2266
3
© 2005 Directed Electronics, Inc.
SSaaffeettyy IInnssttrruuccttiioonnss aanndd CCaauuttiioonnss
WWAARRNNIINNGG::
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK AND
ANNOYING INTERFERENCE, USE ONLY THE INCLUDED HARDWARE.
THIS MONITOR IS ONLY DESIGNED FOR REAR SEAT PASSENGER VIEWING AND IS NOT
INTENDED FOR VIEWING BY THE DRIVER WHILE THE VEHICLE IS IN MOTION. SUCH USE MAY
DISTRACT THE DRIVER OR INTERFERE WITH THE SAFE OPERATION OF THE VEHICLE, AND
MAY ALSO VIOLATE STATE LAW.
DIRECTED ELECTRONICS, INC. DISCLAIMS ANY LIABILITY FOR ANY BODILY INJURY,
INCLUDING FATALITIES, OR PROPERTY DAMAGE THAT MAY RESULT FROM ANY IMPROPER OR
UNINTENDED USES OF THIS PRODUCT.
SHOULD THE LCD PANEL BREAK OR LEAK FLUID, AVOID ALL CONTACT WITH THE UNIT. IF
YOU SHOULD COME IN CONTACT WITH THE LEAKED FLUID, WASH THE AFFECTED AREA
THOROUGHLY WITH WATER AND SEEK IMMEDIATE MEDICAL ATTENTION.
■
During operation, if the unit should over-heat or malfunction, switch off the unit and see your
dealer. Do not disassemble the unit as there are no user-serviceable parts in this unit and the war-
ranty will be voided.
■
Should there be a need to replace a blown fuse, turn off the unit and disconnect all power to
the player. Use only the correct rating fuse to avoid electrical damage to the unit.
■
Only operate the monitor as described in this guide. Attempts to use or modify this monitor
contrary to the descriptions in this guide may cause damage and void the warranty.
■
Extremes in temperature can cause abnormal display operation. This monitor has an optimal
operating temperature range between 32–120 degrees Fahrenheit. If the vehicle interior is outside
this range, do NOT operate the monitor until the temperature is within its operating range.
■
Exposure to moisture or dust can cause harmful damage to the internal electronics. Do not
mount near cup holders or in areas where spills may occur.
■
This monitor is designed for use in vehicles with standard (-) 12 volt ground electrical systems.
■
Do not operate for an extended period of time without the engine running or the vehicle’s bat-
tery voltage may drop to levels precluding engine starting.
■
Do not drop the LCD panel or subject it to direct impact. This will damage the panel and/or
the back light element.
■
When operating the unit, avoid contact with the LCD panel.
■
Prevent metal or foreign objects being locked between the LCD screen and the enclosure.
■
Keep unit away from equipment with strong magnets such as large loudspeakers.
4
© 2005 Directed Electronics, Inc.
WWeellccoommee
Thank you for your purchase of Directed’s Overhead Monitor. Prior to operating this unit, please fully
read this instruction manual and retain it for future reference.
WWhhaatt’’ss IInncclluuddeedd
The following items are included with your purchase:
IImmppoorrttaanntt
WWHHEENN CCLLEEAANNIINNGG TTHHEE VVEEHHIICCLLEE
Do not spray this unit with water or cleaning solutions. Moisture and the chemicals found in cleaning
fluids could damage the consoles finish and interior electronics. A soft damp, lens cleaning cloth
should be used to wipe the screen. Do NOT use any type of scouring pad, abrasive cleaners, or solvents.
WWHHIILLEE DDRRIIVVIINNGG
This unit is intended for use in the rear seat area only. It is illegal in some jurisdictions to install the
unit in a location that would allow the driver to view it while driving.
WWHHEENN PPAARRKKEEDD
The screen is easily visible when deployed. Always close the screen when parking for an extended
period of time to avoid potential theft or extended exposure to direct sunlight.
PPRROOPPEERR UUSSEE
Do not touch the screen. Do not pull or hang from the fold down monitor door.
z Monitor z Power Harness
z A/V Switch Box z DIN Cable
z (2) Headphones (HP100) z Domelight Harness
z Remote Control z Mounting Trim Bezel
z Mounting Plate (with 4 screws)
5
© 2005 Directed Electronics, Inc.
RREEPPAAIIRRSS
If the monitor stops working for any reason, discontinue use immediately and consult with your
retailer about any necessary repairs.
RRAADDIIOO//TTVV TTUUNNEERR UUSSEE
When the unit is used in conjunction with a Radio/TV tuner, please assure that the receiver is man-
ufactured to receive television broadcast signals that are transmitted via terrestrial radio waves.
Reception quality will change and vary according to vehicle location and weather conditions.
IINNSSTTAALLLLAATTIIOONN
Avoid installing the monitor at a location, where it will be under direct sunlight or a hot air vent.
The operating temperature of the unit is from 32–120°F (0–50°C). Install the unit at a dry location,
where it is away from condensation.
Use only the correct size fasteners and cables during installation. Failure to do so may cause a
mechanical or electrical failure and create a fire hazard. The installation should be done by an
authorized Directed dealer.
NNOOTTEE::
If the internal temperature of the vehicle is higher than the normal operating temperature, please allow the vehicle to cool down (or warm up) prior
to operating the unit.
PPIICCTTUURREE QQUUAALLIITTYY
The picture quality of this LCD unit depends strictly on its installed location. To achieve the best
picture quality, adjust the brightness control or viewing angle of the unit until the optimum view-
ing is achieved.
6
© 2005 Directed Electronics, Inc.
IImmppoorrttaanntt IInnffoorrmmaattiioonn
FFCCCC NNOOTTIICCEE
This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interfer-
ence received, including interference that may cause undesirable operation.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this device.
YYOOUURR WWAARRRRAANNTTYY
Your warranty registration must be completely filled out and returned within 10 days of purchase.
Your product warranty will not be validated if your warranty registration is not returned. Make sure
you receive the warranty registration from your dealer. It is also necessary to keep your proof of pur-
chase, which reflects that the product was installed by an authorized dealer.
7
© 2005 Directed Electronics, Inc.
CCoonnttrroollss
MMOONNIITTOORR
1. DOME LIGHTS—Quantity 2.
2. DOOR LIGHT On/Off—Engage this switch to have the door open switch activate
the dome lights.
3. OPEN/CLOSE—The latch to open or close the LCD screen.
4. COURTESY LIGHT—Activate this switch to "ON/OFF" to activate the dome lights on the
monitor.
5. POWER—Power On/Off button, Source Select button. Hold for 3-seconds to turn power off.
Each press of this button cycles through sources DVD, AV1, or AV2.
6. UP Button—Used in conjunction with the MENU button to scroll up (or increase) the
menu setting.
7. MENU—Used to set FM Frequency, Brightness, Contrast, Saturation, Hue, or Reset (menu param-
eters). The menu will exit if no action is taken within a few seconds.
8. DOWN Button—Used in conjunction with the MENU button to scroll down (or decrease)
the menu setting.
9. IR Receiver—Infrared receiver which receives commands from the remote control.
8
5
6
7
8
9
123 4
© 2005 Directed Electronics, Inc.
SSeettttiinngg tthhee SSccrreeeenn MMooddee
The overhead monitor has 4 different screen modes. These are: FULL, NORMAL, WIDE, and ZOOM.
Press the Image button on the remote control to access the different screen modes. The last
mode set is displayed on the screen. Each time the Mode button is pressed, the screen switches in
the following sequence.
9
© 2005 Directed Electronics, Inc.
RReemmoottee CCoonnttrrooll UUnniitt
RREEMMOOTTEE BBUUTTTTOONNSS
1. POWER (source) 28. ANGLE
2. IR (on/off) 29. SUBTITLE (on/off)
3. FM (on/off) 30. DOWN (Cursor)
4. Picture (PIP) (n/a in this model) 31. AUDIO
5-7. Numeric 32. ZOOM (2, 3, 4, 1/2, 1/3, 1/4, OFF)
8. UP (display) 33. F.REV (Fast Reverse)
9-11. Numeric 34. PLAY/PAUSE
12. Console MENU 35. F.FWD (Fast Forward)
13-15. Numeric 36. SLOW
10
13
17
21
25
29
33
37
41
45
1
2
5
6
9
10
14
18
22
26
30
34
38
42
46
4
3
8
7
12
11
16
15
20
19
24
23
28
27
32
31
36
35
40
39
44
43
48
47
© 2005 Directed Electronics, Inc.
16. DOWN (display) 37. BACK
17. MENU/PBC 38. STOP
18-19 Numeric 39. NEXT
20. Image (wide, zoom, full, normal) 40. REPEAT
21. TITLE 41. POWER (Tuner)*
22. UP (Cursor) 42. DSP (channel display)*
23. SETUP 43. TV/AV (selects Tuner or Aux input)*
24. MUTE (on/off) 44. DISPLAY
25. LEFT (Cursor) 45. CH+ (channel up)*
26. ENTER 46. CH- (channel down)*
27. RIGHT (Cursor) 47. AUTO (auto programming of TV channels)*
48. PROGRAM
IIRR RREEMMOOTTEE FFEEEEDDTTHHRROOUUGGHH
The remote will operate, through the monitor, and transmit commands to other compatible devices
attached to the AV1 or AV2 source at the switch-box. The IR signals are compatible with models
DV2602, DV2605 DVD players, and TV100 tuner.
NNOOTTEE::
This remote is for the operation of the LCD screen and for the optional DVD
player. Some remote buttons only function when the optional DVD player is
installed in the monitor.
* These buttons are for use only with the TV tuner (model TV100).
11
© 2005 Directed Electronics, Inc.
BBAATTTTEERRYY RREEPPLLAACCEEMMEENNTT
NNOOTTEE::
Before using remote after installation, remove the battery plastic protective slip.
1. Move the small latch to the right and slide out the battery holder.
2. Remove old battery and replace it with a new battery (CR2025) with the positive “+” sign facing
as shown above.
3. Push battery holder back into its compartment until it is locked.
PPRREECCAAUUTTIIOONNSS
1. Properly dispose of used battery.
2. Do not misuse battery by shorting the positive “+” and negative “-” terminal or put it into fire.
Overheating may cause the battery to explode and cause a fire hazard.
3. If the remote is not to be used for a long period, remove the battery from the remote to prevent
damage from battery leakage.
4. To avoid accidents, prevent children from playing with the battery.
12
Latch
Remote Controller
+ side
Battery
Battery Holder
© 2005 Directed Electronics, Inc.
OOppeerraattiinngg tthhee MMoonniittoorr
OOPPEENN//CCLLOOSSEE TTHHEE DDIISSPPLLAAYY MMOONNIITTOORR
To open the display monitor, push the "OPEN" button and pull the monitor down
bbyy tthhee mmiiddddllee
of the
LCD to the desired position.
WWAARRNNIINNGG::
THE LCD MONITOR MUST ALWAYS BE OPENED, CLOSED, OR POSITIONED FROM
THE MIDDLE OF THE SCREEN AS SHOWN BY THE POINTING HAND BELOW. DO
NNOOTT
USE THE
CORNERS OF THE SCREEN, THIS CAN RESULT IN DAMAGE/LEAKAGE OF THE SCREEN.
To close the display monitor, push the LCD screen up until it latches closed with an audible click.
NNoottee::
The ignition key must be in the Accessory or Ignition position in order for
the monitor to have power.
13
To Open—push center button
Use this portion of the
screen for opening, closing,
and positioning.
Open Position
© 2005 Directed Electronics, Inc.
PPoowweerr UUpp//DDoowwnn tthhee DDiissppllaayy MMoonniittoorr
The unit will power up when the display monitor is unlatched and pulled down. (If the unit does
not power up, press the Power button on either the remote or the Power button on the left
side of the LCD screen.
To turn the power off to the unit, press and hold for 3-seconds the POWER button on the
remote or the Power button on the left side of the LCD screen. The power will also shut Off when
the display monitor is placed in the closed and latched position.
If the hand icon or “INVALID KEY” displays in the upper left-hand corner of the screen when
using the remote, it indicates that the command issued is not allowed during the mode that the
monitor display is presently in, or is not available on this system.
SSOOUURRCCEE ((MMOODDEE))
Press the (SOURCE) button on the remote or momentarily press the POWER button on the left
side of the LCD screen to select the input signal AV1, AV2 (or the optional DVD player or Hard Disk
drive, if installed).
14
© 2005 Directed Electronics, Inc.
MMEENNUU ((CCOONNSSOOLLEE MMEENNUU))
Press "MENU" button on the monitor or remote to activate the screen parameters set-up. The
sequence of set-up items is as follows:
FM: Transmitting frequency SHARPNESS: Sharpness adjustment
BRIGHTNESS: Brightness adjustment CONTRAST: Contrast adjustment
SATURATION: Color saturation adj. HUE: Color hue adjustment
RESET: Resets above (except FM) to factory default settings.
Once the desired setting is selected, press the cursor buttons to adjust the setting. On the remote
use the up/down cursor buttons located at either side of the menu button. On the monitor use the
cursor buttons to the right side of the button. If a button is not activated within 5 seconds,
this function mode will turn OFF. Once the correct function is selected, press the cursor button (to
set the desired setting). If no button is pressed, the menu mode will turn OFF in about 5 seconds.
The FM frequency setting allows the monitor to transmit audio to the vehicle’s radio. Use a frequency
that is not interfered with from a local broadcast station. This setting also has an OFF position.
DDOOOORR LLIIGGHHTT OONN//OOFFFF
Engage this switch on the monitor to activate the dome lights when a door is open.
NNOOTTEE::
This function is operational only when the Gray wire of the dome light circuit is connected to the door switch.
CCOOUURRTTEESSYY LLIIGGHHTT OONN//OOFFFF
Activate this switch on the monitor to control the dome light illumination.
15
FM → SHARPNESS → BRIGHTNESS → CONTRAST →
SATURATION → HUE → RESET
© 2005 Directed Electronics, Inc.
IInnssttaalllliinngg OOppttiioonnss
This unit allows the mounting of an optional DVD player or Hard Drive, not provided with this model.
NNOOTTEE::
Before installing any options, ensure that the Power to the Monitor is Off
and that the ignition key is Off.
1. Open the monitor and remove the protective cover from the monitor.
2. Store the protective cover in an area where it will not be damaged.
3. Insert the optional DVD player or Hard drive as shown below.
NNOOTTEE::
The illustration below shows a typical monitor with the DVD player option.
4. Refer to the manual that came with your option for operating instructions.
16
Removal Assist
Front of Monitor
Locking Tabs (4)
LCD Screen Side
ElectricalLock/Unlock
Insert DVD Player
and then slid down
until unit locks.
© 2005 Directed Electronics, Inc.
IInnssttaallllaattiioonn GGuuiiddee
PPRREECCAAUUTTIIOONNSS
1. This unit should be installed by an authorized Directed dealer.
2. When selecting a location to install this unit, be sure it does not interfere with the driver’s
ability to operate the vehicle or the driver's or passenger's safety.
3. This product is designed to operate with a 12V DC, negative ground battery system.
4. Disconnect the ground wire from the battery terminal prior to connecting the unit to the elec-
trical system.
NNOOTTEE::
Head units with security codes will have to be reset after battery power is
restored.
5. The wiring from some other products or accessories might bear similar color code as this prod-
uct; however, they might be for other functions. Please refer to the electrical connection diagrams
of this product prior to installation to avoid improper connection.
6. Use proper connectors and insulation to prevent electrical damage to the unit.
6. Do not connect the yellow wire and red wire together of this product directly to the +12V.
Connect the red wire of this product to the ACC of the ignition key switch and yellow wire to +12V.
Failure to do so may result in discharge of the battery.
7. Only supplied accessories should be used to avoid damage to the unit during installation.
8. Ensure that the display monitor is suitably installed at a location, such that it will not obstruct
the rear view mirror and/or the air condition vents or operation of a sunroof.
9. Do not install this unit at a declining angle exceeding 30 degrees.
10. Do not install screws over the plane surface, which may affect the LCD screen deployment or
retract function.
17
© 2005 Directed Electronics, Inc.
EELLEECCTTRRIICCAALL CCOONNNNEECCTTIIOONNSS
PPoowweerr CCaabbllee ((44––ppiinn,, oonnee ppiinn nnoott uusseedd))
DDoommee LLiigghhtt CCaabbllee ((33––ppiinn))
CCoolloorr CCooddee FFuunnccttiioonn
Black This wire supplies the ground to the domelight circuit.
Yellow This wire supplies +12V constant power to the domelight circuit.
Gray This wire connects to the (-) door trigger.
CCoolloorr CCooddee FFuunnccttiioonn
Black This wire is the ground source for the monitor and DVD.
Red
Accessory +12V switched power source for the monitor and DVD. This
wire supplies the main power to the system (0.5A fuse).
Yellow
Constant +12V power. This wire supplies power to the DVD for last
position memory (3A fuse).
18
© 2005 Directed Electronics, Inc.
SSIIGGNNAALL CCOONNNNEECCTTIIOONNSS
AAddaapptteerr AAuuddiioo
AAddaapptteerr VViiddeeoo
AAddaapptteerr IIRR
In addition each IN 2 and IN 1 grouping has an IR output jack which passes the remote control com-
mands to the device (VCR, CD player, TV tuner or other devices) connected to this input.
CCoolloorr CCooddee FFuunnccttiioonn
Yellow 1 (RCA) Video - In (V-IN 1)
Yellow 2 (RCA) Video - In (V-IN 2)
Yellow 3 (RCA) Video - Out (V-OUT 1)
CCoolloorr CCooddee FFuunnccttiioonn
Red 1 (RCA) Audio - Right (Input)
White 1 (RCA) Audio - Left (Input)
Red 2 (RCA) Audio - Right (Input)
White 2 (RCA) Audio - Left (Input)
Red 3 (RCA) Audio - Right (Output)
White 3 (RCA) Audio - Left (Output)
19
© 2005 Directed Electronics, Inc.
TTYYPPIICCAALL WWIIRRIINNGG DDIIAAGGRRAAMM
20
RED–Ignition
YELLOW–12V Constant
BLACK–Ground
A/V
OUTPUT 3
A(R) A(L) V
OUT
MONITOR
Wireless
Headphones
YELLOW–12V Constant
GRAY (-) Door Trigger
BLACK–Ground
IN2
IR V A(L) A(R)
A/V
SOURCE 2
IN1
IR V A(L) A(R)
A/V
SOURCE 1
© 2005 Directed Electronics, Inc.
IInnssttaallllaattiioonn PPrroocceedduurree
1. Identify the polarity of the dome light circuit and set the switch on the cable connection side
of the overhead monitor housing to match the vehicle’s door trigger polarity. Factory default posi-
tion for this switch is Negative. This switch is marked with the following instruction label.
2. Test fit the overhead monitor system on the ceiling of the vehicle, verifying it is not going to
interfere with the safe operation of the vehicle and is physically safe for the driver and passenger(s).
3. Once the mounting location of the overhead monitor system has been determined, carefully
mark the location with masking tape.
4. Lower the vehicle's headliner down to see if a roof support beam is available to screw the
mounting bracket to. If a support beam is not available to screw into, use a ¾" piece of plywood
cut to the appropriate size. Attach the plywood to the roof of the vehicle using silicone allowing
adequate drying time before proceeding.
5. Screw the mounting bracket in the vehicle.
DDOOUUBBLLEE CCHHEECCKK TTHHEE LLEENNGGTTHH OOFF TTHHEE SSCCRREEWWSS PPRRIIOORR
TTOO MMOOUUNNTTIINNGG TTHHEE BBRRAACCKKEETT,, TTOO PPRREECCLLUUDDEE PPEENNEETTRRAATTIIO
ONN OOFF TTHHEE VVEEHHIICCLLEE’’SS RROOOOFF
.
21
Positive
Trigger Door
Switch
Grey: Door Switch Yellow: +12V Black: Ground
Negative
Trigger Door
Switch
Dome Light Wiring
© 2005 Directed Electronics, Inc.
6. Cut a 1" hole in the headliner along the backside of the mounting bracket for the cables to
pass through.
7. Route cables through the hole to the predetermined location of the AV source(s).
8. Identify the dome light wires in the vehicle and connect them to the corresponding dome light
wires on the overhead monitor system. Ensure the domelight switch is in the correct position.
9. Plug in the AV, DIN, dome light, and power cables into the overhead monitor system.
10. Carefully hold the overhead monitor system to the mounting bracket aligning the mounting
holes while screwing in the screws. (Make sure the wires and cables are not in the way while mount-
ing the monitor).
11. Ground the Black wire of the power cable to a clean ground spot.
12. Connect the Yellow wire of the power cable to the battery positive terminal.
13. Connect the Red wire of the power cable to the Accessory wire in the ignition harness.
NNOOTTEE::
Make sure you keep the ground wire of the monitor and video source as short
as possible to prevent unwanted audio noise pickup from the vehicle’s systems.
Roof Beam Support
22
Optional Spacer Material
(Installer Provided)
Metal Bracket
Screws
(not included)
Screws
(Included)
© 2005 Directed Electronics, Inc.
SSyysstteemm WWiirriinngg DDiiaaggrraamm EExxaammppllee
VCR
23
or
AUDIO AMPLIFIER
BLACK (GROUND)
YELLOW
BATTERY (+12V)
RED (ACC)
Video In
Power
Video
L
R
Audio
DVD
OUT
ININ
Video
L
TV Tuner
Audio
R
DVD
or
YELLOW
+12V CONSTANT
BLACK (GROUND)
GRAY (DOOR SWITCH)
© 2005 Directed Electronics, Inc.
TTrroouubblleesshhoooottiinngg
NNoo PPiiccttuurree
Press the POWER (source) button (or the button on the remote) to make sure the monitor is
on and the proper source input is selected.
NNoo SSoouunndd
If acquiring signal from another remote device (e.g. DVD player or CD player) ensure the device is
setup correctly.
The DVD player is in pause, slow motion, fast forward, or fast reverse mode. Place player in play
mode.
PPiiccttuurree RRoollllss
Check that the T.V. type setting is correct for the monitors and DVDs being used. PAL video often
rolls on NTSC monitors.
WWiitthh aa DDVVDD ppllaayyeerr aanndd aa wwiiddeessccrreeeenn DDVVDD ddiisscc,, tthheerree aarree bbllaac
ckk bbaarrss oonn tthhee ssccrreeeenn
Change the TV display mode to "WIDE" in the DVD player's setup menu. After changing this setting,
if there are still black bars, press the MODE button on the remote control.
WWiitthh aa wwiiddeessccrreeeenn 1166::99 mmoonniittoorr,, II hhaavvee bbllaacckk bbaarrss oonn tthhee ssccrreeeenn
Change the TV display mode to "Wide".
24
© 2005 Directed Electronics, Inc.
TThhee RReemmoottee ddooeess NNOOTT FFuunnccttiioonn
Are there obstacles obstructing the view between the monitor and the remote.
The distance between the remote and monitor is too great.
The remote is not being pointed at the monitor’s IR receiver.
The batteries in the remote are weak.
DDIISSCC ddooeess NNOOTT PPllaayy ((wwiitthh ooppttiioonnaall DDVVDD ppllaayyeerr iinnssttaalllleedd))
Parental code is set lower than than allowed by the DVD mounted.
Ensure the disk is mounted in the player with the correct orientation (shiny side up).
The disk is warped.
The player cannot play certain formats (see the beginning of this manual).
The region code on the DVD does not match the player.
Moisture condensation has occurred within the player. Leave the unit on and the disc access cover
open and try again after about 30 minutes.
The disc has not been properly finalized (formatted) when recorded. Refer to your manual that came
with your disc authoring equipment.
UUnniitt ddooe
ess NNOOTT DDiissppllaayy oorr OOppeerraattee CCoorrrreeccttllyy
Press Reset button located on the monitor along side the removable DVD player location. This resets
all of the system, except for the Password and Parental Level setting.
25
© 2005 Directed Electronics, Inc.
SSppeecciiffiiccaattiioonnss
NNOOTTEE::
Specifications and design are subject to change without notice.
SSyysstteemm
Laser Semiconductor laser
Signal Formats NTSC, PAL
AAuuddiioo CChhaarraacctteerriissttiiccss
Frequency Response
DVD Video (PCM@ 96kHz) 20 Hz - 40 kHz ± 1dB
DVD Video (PCM@ 48kHz) 20 Hz - 20 kHz ± 1dB
CD 20 Hz - 20 kHz ± 1dB
Signal-to-Noise Ratio 90dB
Harmonic Distortion 0.01%
Dynamic Range
DVD Video 95dB
CD 95dB
OOuuttppuuttss ((AA//VV SSwwiittcchhbbooxx))
Audio (phono jacks) 2 Vrms
Video (phono jack) 1 V p-p @75 ohms
IInnppuuttss ((AA//VV SSwwiittcchhbbooxx))
Audio (phono jacks) 2 Vrms
Video (phono jack) 1 V p-p
GGeenneerraall
Power Requirements 14.4 VDC, 3.35 amps
Power Consumption 42.6 watts
Dimensions
345 mm x 65 mm x 282 mm
(length/height/width)
13.6 in. x 2.6 in. x 11.1 in.
(length/height/width)
Mass 1.7 kg 3.7 lbs
Operating Temperature 0°–50°C 32°–120°F
Operating Humidity 10% to 90%
26
Directed Electronics, Inc.
Vista, CA 92081
www.directed.com
© 2005 Directed Electronics, Inc.—All rights reserved
N81901A 03-05
