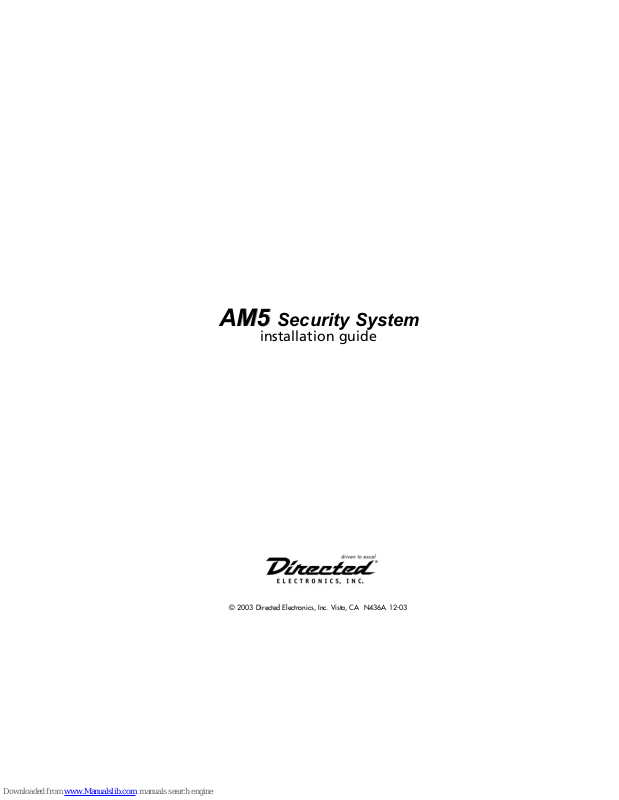

© 2003 Directed Electronics, Inc. Vista, CA N436A 12-03
AM5
AM5
Security System
installation guide
trademarks and copyrights
Bitwriter®, Clifford®, Code-Hopping®, Directed®, Doubleguard®, ESP®, FailSafe®, Ghost Switch®, Learn Routine™,
Nite-Lite
®
, Nuisance Prevention®, NPC®, Revenger®, Silent Mode™, Soft Chirp®, Stealth Coding™, Stinger®,
Valet
®
, Vehicle Recovery System™, VRS™, and Warn Away®are all Trademarks or Registered Trademarks of
Directed Electronics, Inc.
NNOOTTEE::
This product is intended for installation by a professional installer only! Any
attempt to install this product by any person other than a trained professional may
result in severe damage to a vehicle’s electrical system and components.
© 2003 directed electronics, inc.
i
contents
installation guide . . . . . . . . . . . . . . .1
what is included . . . . . . . . . . . . . . . .3
control module . . . . . . . . . . . . . . . .3
installation points to remember . . .3
before beginning the installation: 4
after the install: . . . . . . . . . . . . . .4
tools required . . . . . . . . . . . . . . . . .4
deciding on component location . .5
control module . . . . . . . . . . . . . .5
integrated LED/Valet® switch . . . .6
starter kill relay . . . . . . . . . . . . . .6
connecting your wires . . . . . . . . . . .6
obtaining constant 12V . . . . . . . .6
finding the 12V switched ignition
wire . . . . . . . . . . . . . . . . . . . . . . .7
finding the door pin switch circuit 9
main harness wire connection guide
. . . . . . . . . . . . . . . . . . . . . . . . . . . .10
main harness wiring diagram . . .10
main harness wiring guide . . . . .10
auxiliary harness wire connection
guide . . . . . . . . . . . . . . . . . . . . . . . .16
auxiliary harness wiring diagram 16
auxiliary harness wiring guide . .16
door lock harness wire connection
guide . . . . . . . . . . . . . . . . . . . . . . . .17
plug-in harnesses . . . . . . . . . . . . . .17
integrated LED/Valet® switch . . .17
data port—Bitwriter® . . . . . . . .17
four-pin optional sensor harness .18
RED wire . . . . . . . . . . . . . . . . . .18
BLACK wire . . . . . . . . . . . . . . . .18
BLUE, GREEN wires . . . . . . . . . .18
dealer master control loop . . . . . .18
on-board dual stage shock sensor 19
internal programming jumper . . .20
zones . . . . . . . . . . . . . . . . . . . . . . . .21
long term event history . . . . . . . .21
rapid resume logic . . . . . . . . . . . . .22
high security disarm . . . . . . . . . . .22
feature programming . . . . . . . . . .22
to enter feature programming rou-
tine . . . . . . . . . . . . . . . . . . . . . .23
once a feature is programmed . .23
accessing another feature . . . . .23
accessing another menu . . . . . .24
exiting feature programming . . .24
features #1 menu . . . . . . . . . . .24
features #2 menu . . . . . . . . . . .26
transmitter learn routine . . . . . . .26
master dealer remotes . . . . . . . . .27
transmitter configurations . . . . . .28
standard configuration . . . . . . . .28
troubleshooting . . . . . . . . . . . . . . .30
wiring quick reference guide . . . .31
© 2003 directed electronics, inc.
3
what is included
z
Control module
z
4-pin sensor harness
z
2 Four-button transmitters
z
Integrated LED/Valet switch
z
HF Plus receiver
z
7-pin door monitor/Aux harness
z
12-pin main harness
z
3-pin door lock harness
control module
installation points to remember
This product represents many years of research and development. It is very sophisticated and should be installed by experienced security installers only. Please do not
attempt installation of this product without reading this guide. The system has been designed to provide the ultimate in security, coupled with limitless convenience and expansion options.
This product is not intended for consumer installation and will have NO WARRANTY
unless it is installed by an authorized dealer.
BITWRITER®
DEALER
MASTER
CONTROL
LOOP
HF PLUS
RECEIVER
SHOCK SENSOR
ADJUSTMENT
12-PIN
MAIN
HARNESS
VALE T®
(INTEGRATED
LED/VALET
SWITCH)
OPTIONAL
SENSOR
INPUT
(506T OR 504D)
7-PIN DOOR MONITOR/
AUX HARNESS
DOOR LOCK
LED (INTEGRATED LED/
VALE T® SWITCH)
10-AMP
FUSE/JUMPER
ACCESS
4
© 2003 directed electronics, inc.
Do not disconnect the battery if the vehicle has an anti-theft coded radio. If equipped
with an airbag, avoid disconnecting the battery if possible.
IIMMPPOORRTTAANNTT!!
Please read this entire installation guide before beginning the installation. The installation of this security system requires interfacing with many of the vehicle’s systems. Many new vehicles use low-voltage or multiplexed systems which can
be damaged by low resistance testing devices, such as test lights or logic probes. Test
all circuits with a high-quality digital multi-meter before making the connections.
I
MMPPOORRTTAANNTT!!
Many airbag systems will display a diagnostic code through their warning light after they lose power. Disconnecting the battery requires this code to be
erased, a procedure that can require a trip to the dealer.
before beginning the installation:
z
Check with the customer to determine the integrated LED/Valet switch location.
z
Remove the domelight fuse. This prevents accidentally draining the battery.
z
Roll down a window to avoid being locked out of the car.
after the install:
z
Test all functions. The “Using Your System” section of the Owner’s Guide is very
helpful when testing.
z
When testing, don’t forget that this system is equipped with Nuisance Prevention®Circuitry.
NPC™can bypass both instant trigger zones, making them seem to stop working.
z
Carefully reassemble the under-dash trim panels.
z
Inspect the engine compartment for tools that may have been left behind.
tools required
This is a general list of tools required to complete the installation of this security system in most vehicles. Some vehicles may require additional tools.
z
Digital multi-meter
z
Nutdriver and/or socket set
z
Wire cutters/strippers
z
Panel removal tool
© 2003 directed electronics, inc.
5
z
Solderless terminal crimpers
z
Drill bit set
z
Cordless power drill
z
Phillips head screwdriver
z
Torx driver set
z
Work light
deciding on component location
control module
Never put the control module in the engine compartment!
The first step in hot-wiring a vehicle is removing the driver's side underdash panel to
access the starter and ignition wires. If the control module is placed just behind the
driver's side dash it can easily be disconnected.
When locating the control module, try to find a secure location that will not require
you to extend the harnesses’ wires (they are 1.5 meters long). Keep it away from the
heater core (or any other heat sources) and any obvious leaks.
Some good control module locations: Above the glove box, inside the center console,
above the underdash fuse box, above the radio, etc.
6
© 2003 directed electronics, inc.
integrated LED/Valet®switch
Things to remember when positioning the integrated LED/Valet®switch:
• It should be visible from both sides and the
rear of the vehicle, if possible.
• It needs at least 1-1/2" clearance to the rear.
• It is easiest to use a small removable panel,
such as a switch blank or a dash bezel.
Remove it before drilling your 5/16" hole.

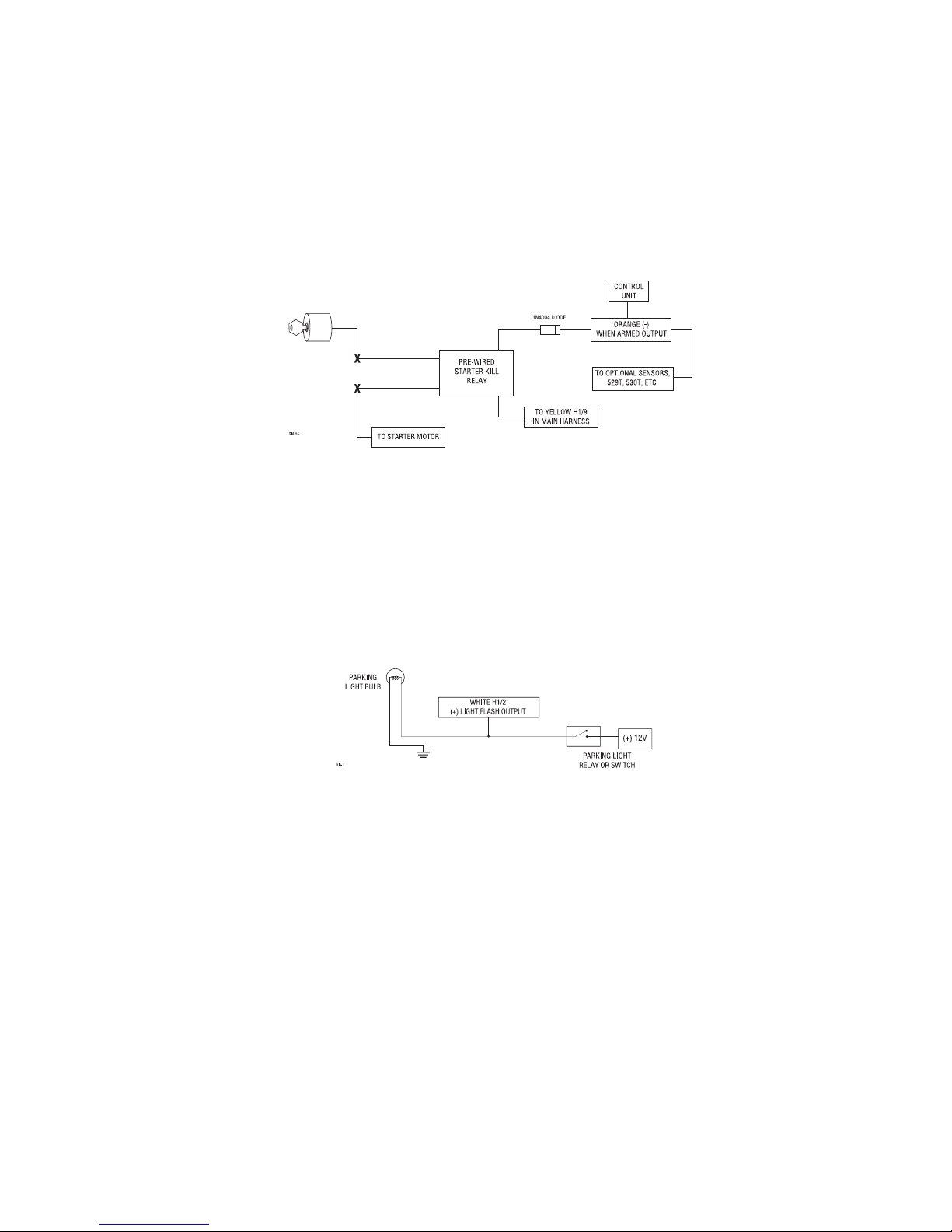

starter kill relay
If the Starter Kill Relay or it’s connections are immediately visible upon removal of the
underdash panel, they can easily be bypassed. Always make the relay and its connections difficult to discern from the factory wiring! Exposed yellow butt connectors do
not look like factory parts, and will not fool anyone! For this reason, routing the starter
kill wires away from the steering column is recommended.
connecting your wires
Now that you have decided where each component will be located, you’re going to
find the wires in the car that the security system will be connected to.
IIMMPPOORRTTAANNTT!!
Do not use a 12V test light to find these wires! All testing described in
this manual is described using a digital multimeter.

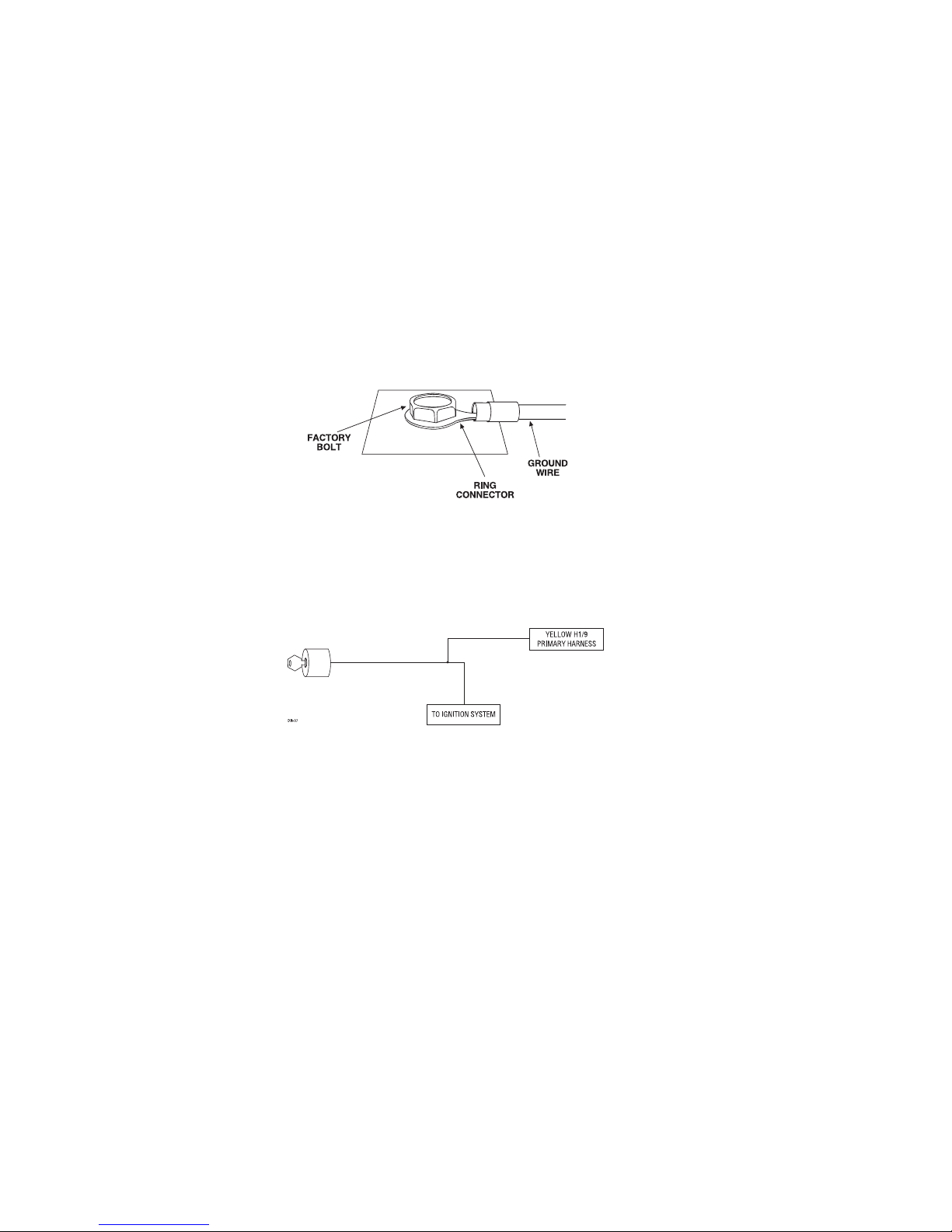

obtaining constant 12V
We recommend two possible sources for 12V constant: The (+) terminal of the battery,
or the constant supply to the ignition switch. Always install a fuse within 12 inches
of this connection.
© 2003 directed electronics, inc.
7
IIMMPPOORRTTAANNTT!!
Do not remove the fuse holder on the red (H1/11) wire. It ensures that
the control module has it’s own fuse, of the proper value, regardless of how many
accessories are added to the main power feed.
finding the 12V switched ignition wire
The ignition wire is powered when the key is in the run or start position. This is
because the ignition wire powers the ignition system (spark plugs, coil) as well as the
fuel delivery system (fuel pump, fuel injection computer). Accessory wires, on the other
hand, lose power when the key is in the start position to make more current available
to the starter motor. Use the following procedure to find (+)12V with your multimeter.
1. Set to DCV or DC voltage (12V or 20V is fine).
2. Attach the (-) probe of the meter to chassis ground.
3. Probe the wire you suspect of being the ignition wire.
The steering column harness or ignition switch harness is
an excellent place to find this wire.
4. Turn the ignition key switch to the run position. If your
meter reads (+)12V, go to the next step. If it doesn’t, probe
another wire.
5. Now turn the key to the start position. The meter display should stay steady, not dropping by more than a few
tenths of a volt. If it drops close to or all the way to zero,
go back to step 3. If it stays steady at (+)12V, you have
found an ignition wire.
8
© 2003 directed electronics, inc.
finding a parking light wire
The parking light wire is often found near the switch. Many cars have the switch built
into the turn signal lever, and in these cars the parking light wire can be found in the
steering column. The same wire is often available in the kick panel or running board.
(+) parking light wire
Use the following procedure to find (+) parking light wire with your multimeter.
1. Set to DCV or DC voltage (12V or 20V
is fine).
2. Attach the (-) probe of the meter to
chassis ground.
3. Probe the wire you suspect of being the
parking light wire. Usually, the area
near the headlight/parking light switch
is an excellent area to start, as is the
kick panel.
4. Turn on the parking lights. If your meter shows (+)12V, turn off the parking lights
and make sure it goes back to zero.
5. If it does return to zero, turn the parking lights back on and, using the dash light
dimmer control, turn the brightness of the dash lights up and down. If the meter
changes more than a volt when using the dimmer, look for another wire. If it
stays relatively close to (+)12V, you have found your parking light wire.
(-) parking light wire
Use the following procedure to find (-) parking light wire with your multimeter.
1. Set to DCV or DC voltage (12V or 20V
is fine).
2. Attach the (+) probe of the meter to
+12V.
3. Probe the wire you suspect of being the
parking light wire. Usually, the area
near the headlight/parking light switch
is an excellent area to start, as is the
kick panel.
© 2003 directed electronics, inc.
9
4. Turn on the parking lights. If your meter shows (+)12V, turn off the parking lights
and make sure it goes back to zero.
5. If it does return to zero, turn the parking lights back on and, using the dash light
dimmer control, turn the brightness of the dash lights up and down. If the meter
changes more than a volt when using the dimmer, look for another wire. If it
stays relatively close to (+)12V, you have found your parking light wire.

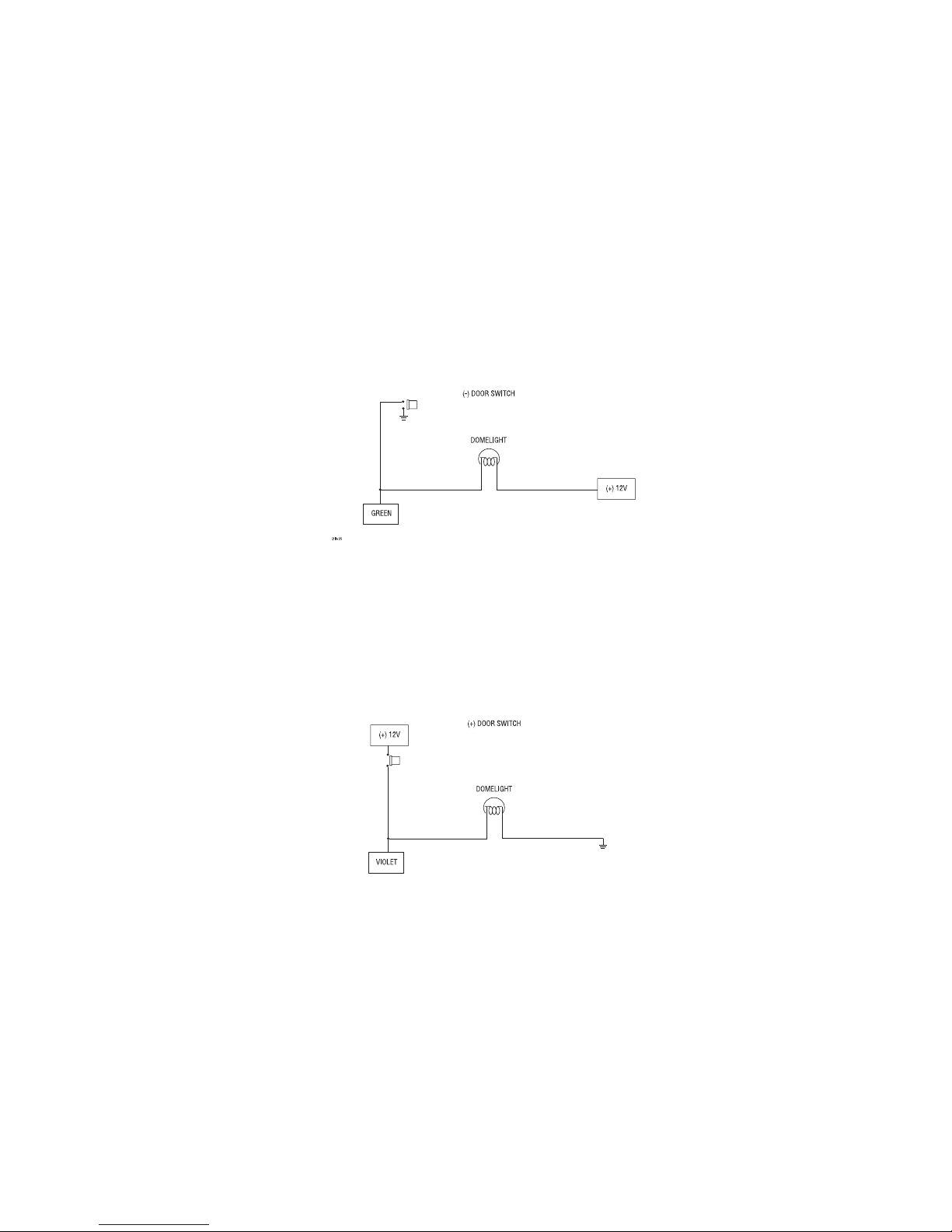

finding the door pin switch circuit
The best places to find the door switch wire are:
At the pin switch: When testing at the pin switch, check the wire to ensure that it “sees”
all the doors. Often, the passenger switch will cover all the doors even if the driver’s
switch will not.

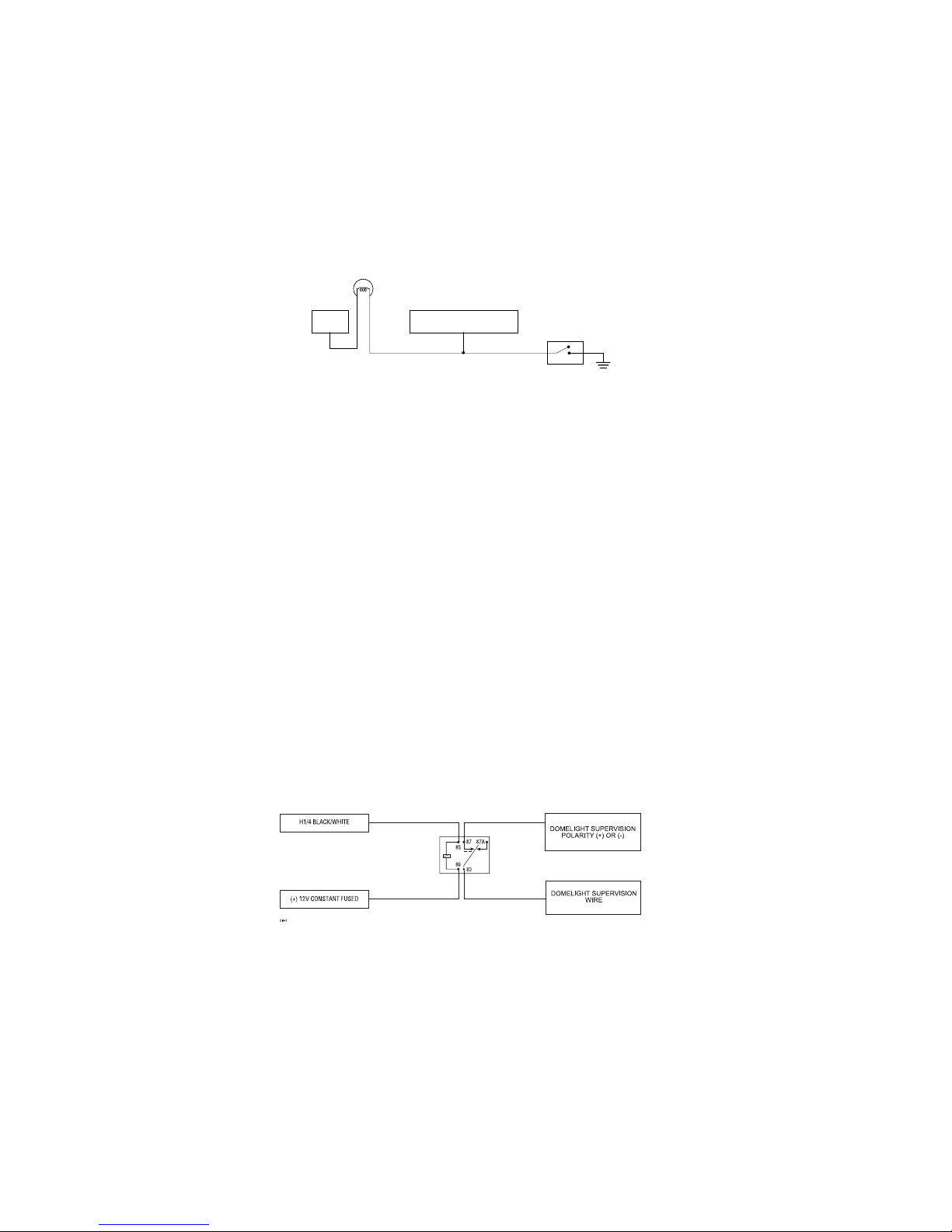

At the dome light: This may not be your best choice if the vehicle has delayed domelight
supervision, but it will work in vehicles with completely diode-isolated pin switches.
you have determined the wire color, the easiest place to connect to the wire is often at
the kick panel, at the windshield pillar, or in the running board. When an easy location is not available, running a wire to the domelight itself is often the best solution.
Use the following procedure to find the door pin switch wire with your multimeter.
1. Set to DCV or DC voltage (12V or 20V is fine).
2. In most cars, fasten the (+) probe of your meter to (+)12V constant.
3. Probe the wire you suspect of being the door trigger wire. If the meter reads
(+)12V when any door is opened and the meter goes to 0 with the door closed,
you have found a trigger wire.
NNOOTTEE
: Make sure the wire you use “sees” all the doors! Some newer vehicles lack
standard-type pinswitches. The dome light in these vehicles is turned on when the door
handle is lifted. These usually have a wire coming out of the door into the kick panel
which will provide a (-) trigger for all doors.
10
© 2003 directed electronics, inc.
main harness wire connection guide
main harness wiring diagram
___
___
___
___
___
___
___
___
___
___
___
___
main harness wiring guide
H1/1 ORANGE (-) 500 mA ground-when-armed output: This wire supplies a (-)
ground as long as the system is armed. This output ceases as soon as the system is
disarmed. This wire controls operation of the pre-wired starter kill relay and can be
used to control other optional accessories.
NNOOTTEE::
If connecting the orange wire to control another module, such as a 529T or
530T window controller, a 1 amp diode (type 1N4004) will be required. Insert the
diode as shown below.
RED/WHITE (-) 200mA Auxiliary Channel/Delayed Accessory Output
RED (+) 12V Constant Power Input
BROWN (+) Siren Output
YELLOW (+) Ignition Input
BLACK (-) Chassis Ground Input
VIOLET (+) Door Trigger Input
BLUE (-) Instant Trigger (Hood and Trunk Pin)
GREEN (-) Door Trigger Input
BLACK/WHITE (-) 200mA Domelight Supervision Output
WHITE/BLUE (-) 200mA Channel 3 Output
WHITE (+)/(-) Light Flash Output
ORANGE (-) 500mA Ground When Armed
H1/1
H1/2
H1/3
H1/4
H1/5
H1/6
H1/7
H1/8
H1/9
H1/10
H1/11
H1/12
© 2003 directed electronics, inc.
11
IIMMPPOORRTTAANNTT!!
Never interrupt any wire other than the starter wire.
H1/2 WHITE light flash output: As shipped, this wire should be connected to the (+)
parking light wire. It will supply a (+) 10A output. If the light flash polarity fuse jumper
inside the unit is moved to the opposite position (see Internal Jumpers), this wire supplies a (-) 10A output. This is suitable for driving (-)parking light wires.
12
© 2003 directed electronics, inc.
H1/3 WHITE/BLUE -) 200 mA channel 3 output: This wire supplies a (-) 200 mA output whenever the button on transmitter programmed for channel 3 is pressed. This output is used to control optional accessories. This channel can be programmed to provide the following types of output (see feature programming section of this guide).
1. A validity output will send a signal as the transmission is received.
2. Second unlock output when the unlock button is pressed a second time after
disarming the system. This can be used to unlock the passenger doors when
installing progressive door locks.
IIMMPPOORRTTAANNTT!!
Zones 2 and 4 are shunted when this channel becomes active. Zones
2 and 4 reactivate 5-seconds after this output ceases.
NNOOTTEE::
Other features can be programmed to channel 3 using the Bitwriter
®
.
H1/4 BLACK/WHITE (-) 200 mA domelight-supervision output: Connect this wire to
the optional domelight supervision relay.
IIMMPPOORRTTAANNTT!!
This output is only intended to drive a relay. It cannot be connected
directly to the domelight circuit, as the output cannot support the current draw of one
or more bulbs.
LIGHT BULB
PARKING LIGHT
RELAY OR SWITCH
(+) 12V
WHITE H1/2
(-) LIGHT FLASH OUTPUT
© 2003 directed electronics, inc.
13
H1/5 GREEN (-) door trigger input: Most vehicles use negative door trigger circuits.
Connect the green wire to a wire which shows ground when any door is opened. In
vehicles with factory delays on the domelight circuit, there is usually a wire that is
unaffected by the delay circuitry.
H1/6 BLUE (-) instant trigger: This input will respond to a negative input with an
instant trigger. It is ideal for hood and trunk pins and will report on zone one.
H1/7 VIOLET (+) door trigger input: This wire is used in vehicles that have a positive
(+) switched dome light circuit . Connect the violet wire to a wire that shows (+)12V
when any door is opened, and ground when the door is closed.
14
© 2003 directed electronics, inc.
H1/8 BLACK (-) chassis ground connection: Connect this wire to bare metal, preferably with a factory bolt rather than your own screw. Screws tend to either strip or
loosen with time. All components, should be grounded to the same point in the vehicle if possible.
H1/9 YELLOW (+) ignition input: Connect this wire to the (+)12V ignition wire. This
wire must show (+)12V with the key in Run position and during cranking. Take care
to insure that this wire cannot be shorted to the vehicle chassis at any point.
H1/10 BROWN (+) siren output: This output can be used if an optional siren is
installed. Connect this to the RED wire of the siren. Connect the BLACK wire of the
siren to (-) chassis gound, preferably at the same point as the control module’s BLACK
ground wire.
© 2003 directed electronics, inc.
15
H1/11 RED (+)12V constant power input: Before connecting this wire, remove the
supplied fuse. Connect to the battery positive terminal or the constant 12V supply to
the ignition switch.
NNOOTTEE::
Always use a fuse within 12 inches of the point you obtain (+)12V. Do not use
the 15A fuse in the harness for this purpose. This fuse protects the module itself.
H1/12 RED/WHITE (-) 200mA auxiliary channel/delayed accessory output: If programmed for an auxiliary output, this wire will provide a (-) pulse when the lock button on the factory transmitter is pressed twice within three seconds. This output can be
used to control optional accessories. If programmed for delayed accessory output, this
wire will provide (-) ground when the ignition is turned off and will continue to output
(-) ground until a door is opened then closed. This can be used to energize the accessory circuit in the vehicle to keep the radio and other accessories on after the ignition
is turned off.
IIMMPPOORRTTAANNTT!!
Never use this wire to drive anything but a relay or a low-current input!
This transistorized output can only supply (-) 200 mA, and connecting directly to a solenoid, motor, or other high-current device will cause the module to fail.
NNOOTTEE::
Zones 2 and 4 are shunted when this channel becomes active. Zones 2 and
4 reactivate 5-seconds after this channel’s output ceases.
16
© 2003 directed electronics, inc.
auxiliary harness wire connection guide
auxiliary harness wiring diagram
___
___
___
___
___
___
___
auxiliary harness wiring guide
H2/1 BROWN (-)horn honk output: This wire supplies a 200 mA (-) output that can
be used to honk the vehicle’s horn. It provides a pulsed output when the security system is armed/disarmed and in the triggered sequence or in panic mode. In most vehicle’s with (-) horn circuits this wire can control the vehicle’s horn without adding a
relay. If the vehicle has a (+) horn circuit, an optional relay must be used to interface
with the vehicle’s horn circuit.
IIMMPPOORRTTAANNTT!!
Never use this wire to drive anything but a relay or a low-current input!
This transistorized output can only supply (-) 200 mA, and connecting directly to a solenoid, motor, or other high-current device will cause the module to fail.
H2/2 GREEN no function.
H2/3 RED no function.
H2/4 BLUE no function.
H2/5 GRAY no function.
YELLOW/BLACK No Function
VIOLET/BLACK (-) 200mA Channel 4 Output
GRAY No Function
BLUE No Function
RED No Function
GREEN No Function
BROWN (-) Horn Honk Output
H2/1
H2/2
H2/3
H2/4
H2/5
H2/6
H2/7
© 2003 directed electronics, inc.
17
H2/6 VIOLET/BLACK (-) 200 mA channel 4 output: This wire supplies a (-) 200 mA
output whenever the button on transmitter programmed for channel 4 is pressed. This
output is used to control optional accessories.
IIMMPPOORRTTAANNTT!!
Zones 2 and 4 are shunted when this channel becomes acttive. Zones
2 and 4 reactivate 5-seconds after this output ceases.
H2/7 YELLOW/BLACK no function.
door lock harness wire connection guide
___
___
___
The control module can control 2 common power door lock types without any additional parts. With certain verhicles, or if an actuator is to be installed, either a 451M Door
Lock Relay Satellite or two relays will be required. Refer to TechTips document 1041.
plug-in harnesses
integrated LED/Valet®switch
The integrated LED/Valet®switch should be accessible from the driver’s seat. The
Valet®part of the integrated LED/Valet®switch plugs into the blue port on the side of
the unit. Check for rear clearance before drilling a 5/16-inch hole and mounting the
switch. The LED part of the integrated LED/Valet®switch operates at 2V DC and plugs
into the white port on the side of the unit. Make sure the LED wires are not shorted to
ground as the LED will be damaged.
data port—Bitwriter
®
The black three-pin port can be used for programming the unit or to accommodate a
serial controller. The Bitwriter
®
is available for programming through this port.
BLUE (-) Unlock, (+) Lock Output
Not Used
GREEN (-) Lock, (+) Unlock Output
H3/A
H3/B
H3/C
18
© 2003 directed electronics, inc.
four-pin optional sensor harness
RED wire
The red wire supplies constant power to the optional sensor.
BLACK wire
The black wire supplies ground to the optional sensor.
BLUE, GREEN wires
The blue and green wires are multiplex inputs. They are both tied to the same zone.
If an input of less than 0.8 seconds is supplied to either wire the Warn-Away
®
response will occur. An input longer than 0.8 seconds to either wire will initiate the
triggered sequence and report zone 4. This port can be used for optional sensors such
as: the 506T—glass breakage sensor, or the 508D—field disturbance sensor.
dealer master control loop
This 2-pin black connector when removed from the control module will reset the system
back to allow the full set of customer settings and remove the dealer remote from memory.
© 2003 directed electronics, inc.
19

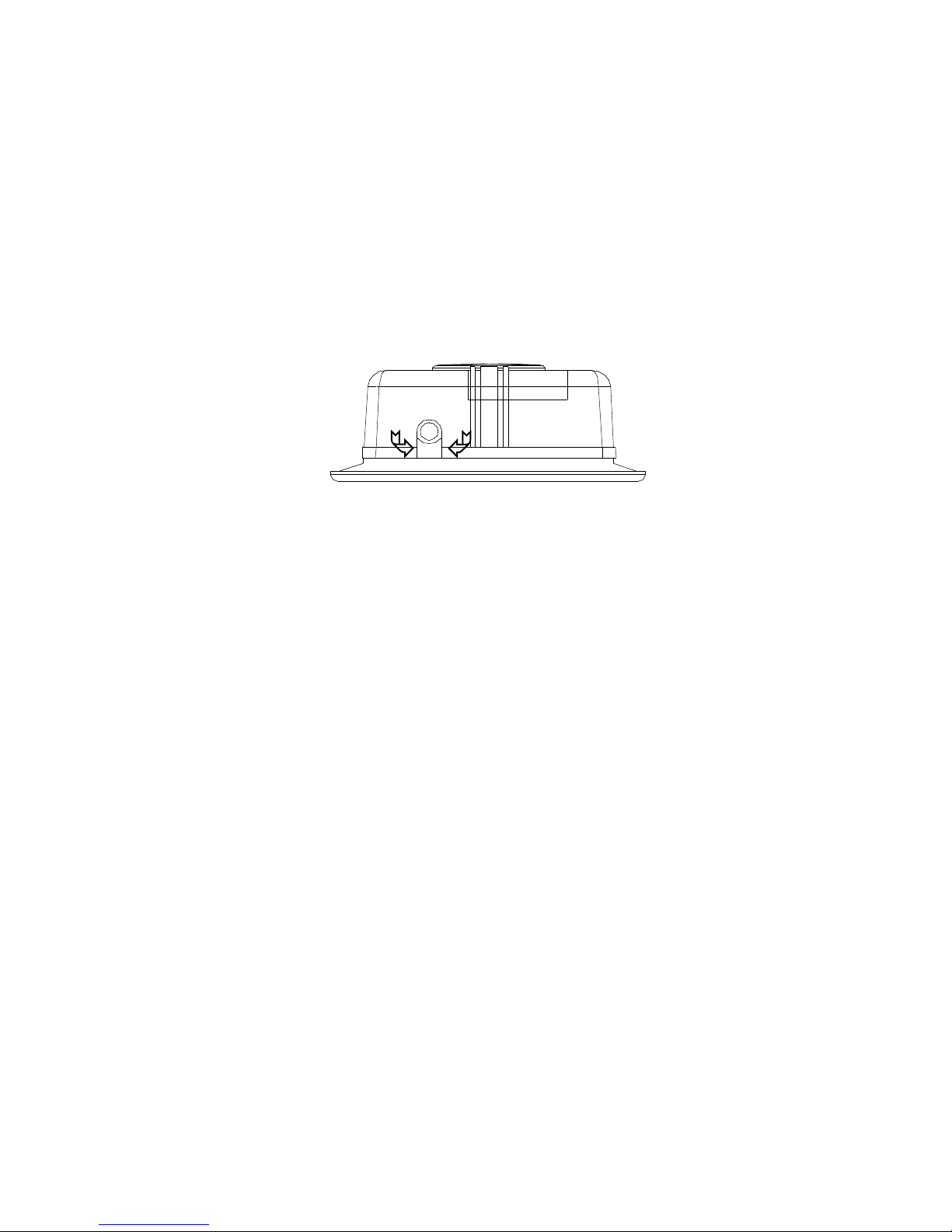

on-board dual stage shock sensor
There is a dual-stage shock sensor inside the control module. Adjustments are made via
the rotary control as indicated above. Since the shock sensor does not work well when
mounted firmly to metal, we recommend against screwing down the control module. The
full trigger of the onboard shock sensor reports zone 2. See Table of Zones.
NNOOTTEE::
When adjusting the sensor, it must be in the same mounting location that it will
be after the install is completed. Adjusting the sensor and then relocating the module
requires readjustment.
Less Sensitive
More Sensitive
20
© 2003 directed electronics, inc.

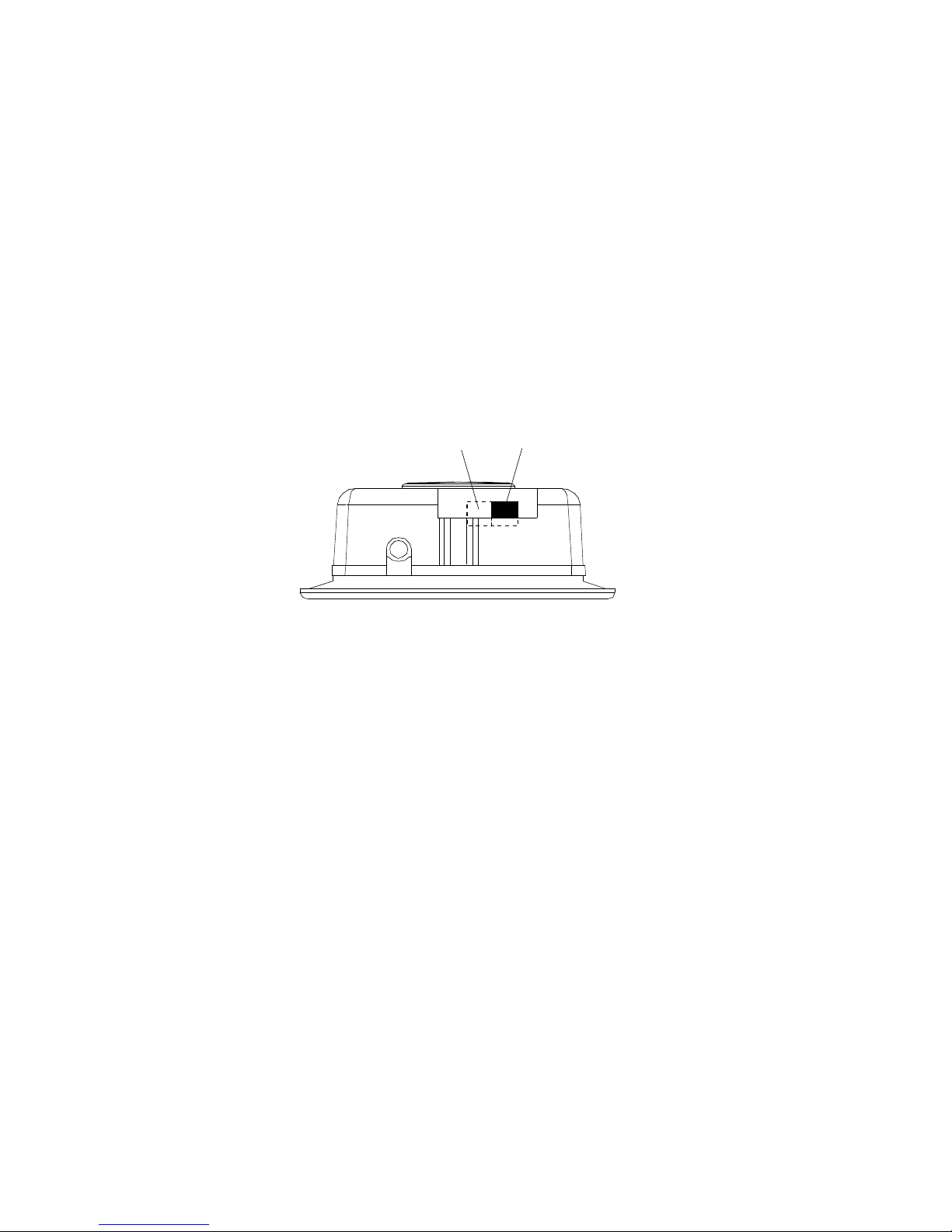

internal programming jumper
A 10A fuse is used as both a fuse and a program jumper. This jumper determines the
light flash output polarity. In the (+) position, the on-board relay is enabled and the
unit will output (+)12V on the WHITE wire, H1/2. In the (-) position, the on-board
relay is enabled for (-) output on the WHITE wire, H1/2. To access the jumper, remove
the sliding door from on top of the control module, as shown below.
FUSE/JUMPER
(-) POSITION
FUSE/JUMPER
(+) POSITION
© 2003 directed electronics, inc.
21
zones
NNOOTTEE::
The Warn Away®response do not report on the LED.
long term event history
The control module will store the last 2 triggers (zone numbers) in memory. To access
the event history use the following procedure.
1. Turn the ignition switch off and press and hold the integrated LED/Valet
®
switch.
2. While holding the integrated LED/Valet
®
switch turn the ignition On.
3. Release the integrated LED/Valet
®
switch.
4. Within 5-seconds, press and release the integrated LED/Valet
®
switch.
The LED will flash in groups indicating the last two zones reported triggered. For
example, if zone 2 and 3 were the last two zones to be triggered, the LED will flash
two times followed by a pause and then flash three times followed by a pause.
Zone
Number
Trigger Type Input Description
1 Instant trigger Hood and/or trunk pin switches.
2 Multiplexed input Heavy impact from on-board
Doublegurard
®
shock sensor.
3 Two-stage, progresses from warning
to full alarm
Door switch circuit.
4 Multiplexed Optional sensor, Inputs shorter than
0.8 seconds will trigger Warn Away
®
response, while inputs longer than
0.8 seconds will instantly trigger full
alarm.
5 Two-stage (similar to zone 3) Ignition input.
22
© 2003 directed electronics, inc.
NNOOTTEE::
The Warn Away®response does not report on the LED.
The Long Term Event History will exit if the ignition is turned off or there is no activity
for 60-seconds.
rapid resume logic
The current state of the alarm will be stored in non-volatile memory. If power is lost
and then reconnected, the system will recall the stored state from memory (arm,
disam, and Valet®mode).
high security disarm
If the system is armed and triggered and either the lock or unlock button on your
remote are pressed within 5-seconds, the alarm will cease horn output. The horn will
chirp once for Arm if the lock button was pressed. The horn will chirp four times for
Disarm if the unlock button was pressed. If the lock or unlock button is used after the
5-second period during a system alarm, the horn will silence, but the system will
remain in the armed state (there will be no horn honk).
feature programming
The feature programming routine is used to access and change any of the feature settings in the two menus below. The feature settings can be accessed and changed by
using one of the following:
z
The integrated LED/Valet®switch to enter the feature programming routine.
z
Use the Directed Electronics Bitwriter
®.
NNOOTTEE::
If Feature Programming Lockout is set to ON, all features will be locked and
can only be accessed by using a Bitwriter
®
.
© 2003 directed electronics, inc.
23
to enter feature programming routine
1. Open a door.
2. Turn the ignition on and then off.
3. Within 5-seconds, press and hold the integrated LED/Valet
®
switch. After 3-seconds the horn will sound once to indicate entry into the first features menu. To select
the second features menu, continue to hold the integrated LED/Valet®switch until the
horn sounds twice. Once the desired menu is selected, release the integrated
LED/Valet®switch.
4. Within 5-seconds, press and release the integrated LED/Valet
®
switch the number
of times corresponding to the desired feature listed below. Then press the integrated
LED/Valet®switch one more time and hold. The horn will sound the number of times
equal to the feature number selected.
5. While holding the integrated LED/Valet
®
switch, selecte the feature by either press-
ing for 1 short horn honk setting or pressing for 2 short horn honk setting.
once a feature is programmed
z
Another feature(s) can be programmed.
z
The other feature menu can be selected.
z
The Learn Routine can be exited.
accessing another feature
z
Release, then press and release the integrated LED/Valet®switch the number of
times to advance from the feature just programmed to the next feature desired.
z
Press and hold the integrated LED/Valet®switch once more.
24
© 2003 directed electronics, inc.
accessing another menu
z
Release, then press and hold the integrated LED/Valet®switch.
z
After 3-seconds, the unit will advance to the next menu and the horn will sound
the number of times corresponding to the menu selected (once or twice).
exiting feature programming
z
Close the door.
z
Turn the ignition On.
z
No activity for 15-seconds.
z
Press and release the integrated LED/Valet®switch too many times.
features #1 menu
Default settings are shown in bold.
NNOOTTEE::
Feature step 5 is not applicable to the 436A.
© 2003 directed electronics, inc.
25
Feature
Step
Lock Button (one chirp) Unlock Button (two chirps)
1 Active arming Passive arming
2 Chirps ON Chirps OFF
3 Door Trigger Error Chirp ON Door Trigger Error Chirp OFF
4 Ignition-Controlled Domelight ON Ignition-Controlled Domelight OFF
5 Panic Enabled (OEM upgrade) Auxiliary Output Enabled (OEM upgrade)
6 Auxiliary Output Delayed Accessory Output
7 Delayed Door Trigger Instant Door Trigger
8 Sensor shunt zones 2 & 4 All zones
9 Siren Duration–30 seconds Siren Duration–60 seconds
10 Valet®switch input: 1-pulse Valet®switch input: 2-5 pulses
11
Horn pulse honk duration 0.020
seconds (does not affect full trigger pulse duration)
0.030, 0.040, 0.050 seconds
26
© 2003 directed electronics, inc.
features #2 menu
Default settings are shown in bold.
transmitter learn routine
1. Key. Turn the key to the ON position.
2. Choose. Within 5 seconds, press and release the integrated LED/Valet
®
switch the
number of times corresponding to the desired channel listed below. Once you
have selected the channel, press the switch once more and HOLD it. The LED will
flash and the horn will honk ( if connected) to confirm the selected channel. Do not
release the integrated LED/Valet®switch.
3. Transmit. While holding the integrated LED/Valet
®
switch, press the button from
the transmitter that you wish to assign to the selected channel. The unit will chirp
indicating successful programming. It is not possible to teach a transmitter button
to the system more than once.
Feature
Step
Lock Button (one chirp) Unlock Button (two chirps)
1 Ignition-Controlled Locking ON Ignition-Controlled Locking OFF
2 Ignition-Controlled UnLocking ON Ignition-Controlled Unlocking OFF
3 Active Locking Passive Locking
4 Door Lock Pulse Duration–0.8 sec. Door Lock Pulse Duration–3.5 sec.
5 Single Unlock Pulse Double Unlock Pulse
6 Channel 3: Validity Channel 3: Second Unlock
7 Code Hopping ON Code Hopping OFF
© 2003 directed electronics, inc.
27
4. Release. Once the code is learned, the integrated LED/Valet®switch can be
released.
master dealer remotes
A master dealer remote can be programmed into the system for demonstration purposes. Generally, each salesman would carry a remote that would operate all the cars
on the lot equipped with this system. The dealer remotes are binary transmitters that
are detuned slightly in order to limit transmitting range. The dealer remote can be
taught to the system by following the Transmitter Learn Routine.
When installing the system, it is possible to preset all of the operation settings using
the master dealer remote. However, when the system is operated using the master
dealer remote, a special set of dealer default settings are followed. The dealer default
settings are used to ensure that every vehicle equipped with this system is protected at
all times. Only the settings listed below are affected. When using a master dealer
remote, the system operates as follows:
z
Passive arming
Channel Number Function Wire Color
1 Auto learn standard
configuration
2 Arm/Disarm/Panic
3 Channel 2
4 Channel 3 WHITE/BLUE
5 Channel 4 VIOLET/BLACK
6 Arm only
7 Disarm only
8 Panic only
9 Delete all transmitters
28
© 2003 directed electronics, inc.
z
Confirmation honks off
z
Ignition lock and unlock on (if installed)
z
Passive locking (if programmed on)
z
Ignition domelight on
z
Security features on
z
Valet®mode disabled
The dealer default settings only affect the settings listed above. The remaining features
control outputs of the system that must be programmed to meet the needs of the installation. Once the vehicle is delivered to the end user, the customer transmitter should
be programmed to the system. This will delete the master dealer remote and return the
security system to normal operation. The system will then operate according to how
the operating settings have been preset. It is also possible to reprogram the operating
settings by following the feature programming section of this guide.
transmitter configurations
The transmitters can be programmed with the standard or single button arm/disarm
configurations by using the Auto Learn functions in the Transmitter/Receiver Learn
Routine.
standard configuration
A remote that uses the standard configuration operates similarly to many factory keyless entry remotes. A standard configuration transmitter allows arming, disarming,
and Panic Mode activation with separate buttons. When programmed for standard
configuration, the transmitter buttons are assigned to the following functions:
operates Arm only
operates Disarm only
© 2003 directed electronics, inc.
29
operates Channel 2 and Silent Mode
operates Panic
and operate Channel 3
and operate Channel 4
The standard configuration also allows the user to utilize Multi-Level Security Arming,
a feature that cannot be accessed from a single button arm/disarm configuration
transmitter.
30
© 2003 directed electronics, inc.
troubleshooting
starter kill does not work:
z
Is the correct starter wire being interrupted? If the car starts when the starter kill relay
is completely disconnected, the wrong starter wire has been cut and interrupted.
• Is the yellow wire connected to “true” ignition? Make sure this wire is connected
to a wire that has power in the run and start positions.
the Valet®switch does not work.
• Is it plugged into the correct socket? See the integrated LED/Valet®Switch section. Is the H1/9 YELLOW wire properly connected? See Primary Harness (H1)
Wire Connection Guide section of this guide.
status LED does not work.
• Is the LED plugged into the small white port on the side of the control unit? See
integrated LED/Valet®Switch section.
door locks operate backwards.
• This unit has easily-reversed lock/unlock outputs. Recheck Harness 3, (+/-) Door
Lock Outputs section to see if you have reversed these.
the horn honks when the unit enters panic mode, but the confirmation honks do not work when locking and unlocking.
• Are the confirmation honks turned on in programming? See Operating Settings
Learn Routine and Feature Descriptions sections.
I can get into programming and change the feature settings,
but when I use the remote the settings seem to change.
• Are you using a binary, master dealer remote? Remember, you can program the
settings using a master dealer remote. However, the unit will follow the dealer
default settings when using a binary remote to operate the system.
© 2003 directed electronics, inc.
31
wiring quick reference guide
32
© 2003 directed electronics, inc.
Loading...
