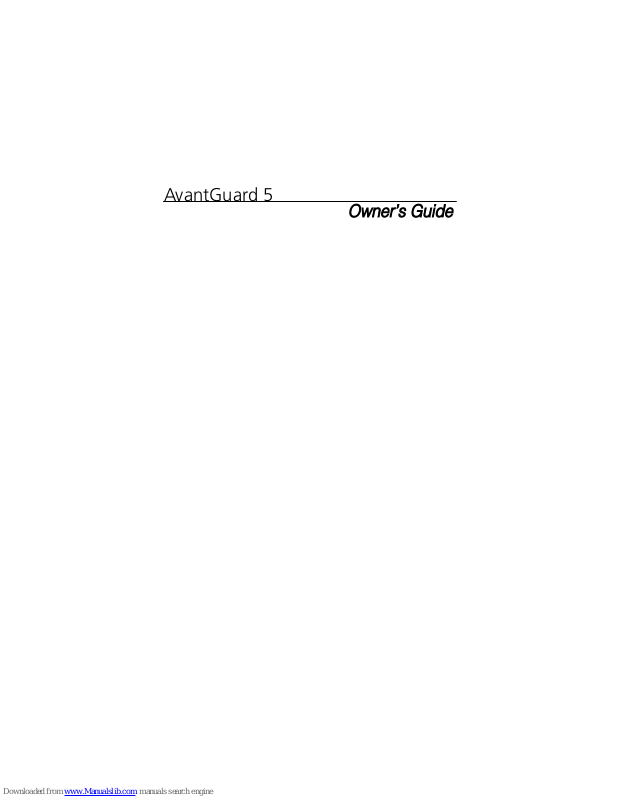

AvantGuard 5

OOwwnneerr’’ss GGuuiiddee

limited lifetime consumer warranty

Directed Electronics, Inc. ("Directed") promises to the original purchaser to repair or replace with a comparable reconditioned model any Directed unit (hereafter the "unit"), excluding without limitation the siren, the remote transmitters, the associated sensors and accessories, which proves to be defective in workmanship or material under reasonable use during the lifetime of the vehicle provided the following conditions are met: the unit was professionally installed and serviced by an authorized Directed dealer; the unit will be professionally reinstalled in the vehicle in which it was originally installed by an authorized Directed dealer; and the unit is returned to Directed, shipping prepaid with a legible copy of the bill of sale or other dated proof of purchase bearing the following information: consumer's name, telephone number and address; the authorized dealers name, telephone number and address; complete product description, including accessories; the year, make and model of the vehicle; vehicle license number and vehicle identification number. All components other than the unit, including without limitation the siren, the remote transmitters and the associated sensors and accessories, carry a one-year warranty from the date of purchase of the same. This warranty is non-transferable and is automatically void if: the original purchaser has not completed the warranty card and mailed it within ten (10) days of the date of purchase to the address listed on the card; the unit's date code or serial number is defaced, missing or altered; the unit has been modified or used in a manner contrary to its intended purpose; the unit has been damaged by accident, unreasonable use, neglect, improper service, installation or other causes not arising out of defects in materials or construction. The warranty does not cover damage to the unit caused by installation or removal of the unit. Directed, in its sole discretion, will determine what constitutes excessive damage and may refuse the return of any unit with excessive damage. TO THE MAXIMUM EXTENT ALLOWED BY LAW, ALL WARRANTIES, INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY, ARE EXPRESSLY EXCLUDED; AND DIRECTED NEITHER ASSUMES NOR AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY, OBLIGATION OR LIABILITY IN CONNECTION WITH ITS PRODUCTS. DIRECTED DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEALERS OR INSTALLERS. DIRECTED SECURITY SYSTEMS, INCLUDING THIS UNIT, ARE DETERRENTS AGAINST POSSIBLE THEFT. DIRECTED IS NOT OFFERING A GUARANTEE OR INSURANCE AGAINST VANDALISM, DAMAGE OR THEFT OF THE AUTOMOBILE, ITS PARTS OR CONTENTS; AND HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER, INCLUDING WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR VANDALISM. THIS WARRANTY DOES NOT COVER LABOR COSTS FOR MAINTENANCE, REMOVAL OR REINSTALLATION OF THE UNIT OR ANY CONSEQUENTIAL DAMAGES OF ANY KIND. IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE PROPER VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA. CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY AND GOVERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY CLAIM AGAINST DIRECTED SHALL BE STRICTLY LIMITED TO THE AUTHORIZED DIRECTED DEALER'S PURCHASE PRICE OF THE UNIT. DIRECTED SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, DAMAGES FOR THE LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL

LOSS, LOSS OF ECONOMIC OPPORTUNITY AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR THE CONTROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on how long an implied warranty will last or the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights and you may also have other rights that vary from State to State.

This product may be covered by a Guaranteed Protection Plan ("GPP"). See your authorized Directed dealer for details of the plan or call Directed Customer Service at 1-800-876-0800. Directed security systems, including this unit, are deterrents against possible theft. Directed is not offering a guarantee or insurance against vandalism, damage or theft of the automobile, its parts or contents; and hereby expressly disclaims any liability whatsoever, including without limitation, liability for theft, damage and/or vandalism. Directed does not and has not authorized any person or entity to create for it any other obligation, promise, duty or obligation in connection with this security system.

Make sure you have all of the following information from your dealer:

A clear copy of the sales receipt, showing the following:

Date of purchase

Your full name and address

Authorized dealer's company name and address

Type of alarm installed

Year, make, model and color of the automobile

Automobile license number

Vehicle identification number

All security options installed on automobile

Installation receipts

trademarks and copyrights

Bitwriter™, Clifford®, Code-Hopping™, Directed®, Doubleguard®, ESP™, FailSafe®, Ghost Switch™, Learn Routine

™

, Nite-Lite®, Nuisance Prevention Circuitry®, NPC®, Revenger®, Silent Mode™, Soft

Chirp

, Stealth Coding™, Stinger®, Valet®, Vehicle Recovery System®, VRS®, and Warn Away®are

all Trademarks or Registered Trademarks of Directed Electronics, Inc.

iimmppoorrttaanntt!!

Please note that this manual was intended for US consumers

and therefore includes American phrases or words.

limited lifetime consumer

warranty . . . . . . . . . . . . . . . . . . . . .i

trademarks and copyrights . . . . .ii

what is included . . . . . . . . . . . . .3

important information . . . . . . . . .3

system maintenance . . . . . . . .4

your warranty . . . . . . . . . . . . .4

fcc/id notice . . . . . . . . . . . . . . .4

transmitter configurations . . . . . .5

transmitter functions . . . . . . . . . .6

standard configuration . . . . . . .6

arming with transmitter . . . . . .9

arming without transmitter . . .9

disarming . . . . . . . . . . . . . . . .10

disarming without a

transmitter . . . . . . . . . . . . . . .11

remote siren silencing . . . . . .11

transmitter chirp muting . . . .12

transmitter sensor disable . . .12

intellistart and smartwindows

sensor bypass . . . . . . . . . . . . .13

auxiliary channel bypass . . . . .13

panic mode with smart door

locking . . . . . . . . . . . . . . . . . .13

disarm/valet mode . . . . . . . . .14

transmitter valet mode . . . . . .15

one-time auto-arming bypass .15

low battery warning . . . . . . .15

multiple event total recall . . . .16

false alarm control technology

(FACT II) . . . . . . . . . . . . . . . . .16

select siren sounds . . . . . . . . . . .17

diagnostics . . . . . . . . . . . . . . . . . .18

arming diagnostics . . . . . . . . .18

disarming diagnostics . . . . . . .19

arm/disarm diagnostic chart . .19

table of zones . . . . . . . . . . . .20

anti-code grabbing (ACG) . . . . .20

high frequency . . . . . . . . . . . . . .21

smart power up II . . . . . . . . . . . .21

power saver mode . . . . . . . . . . .21

programming . . . . . . . . . . . . . . .22

cliffnet wizard installation

software programming . . . . .22

manual programming

instructions . . . . . . . . . . . . . .23

user selectable features . . . . .24

user selectable features

descriptions - column one . . .25

user selectable features

descriptions - column two . . .27

user selectable features

descriptions - column three . .29

pin programming . . . . . . . . . . . .31

remote start . . . . . . . . . . . . . . . .32

remote start features . . . . . . .32

remote start do's and don'ts .33

remote start/engine

shut down . . . . . . . . . . . . . . .34

contents

shortstop mode . . . . . . . . . . .35

low temperature/battery start 36

retained accessory power . . . .36

diesel compatibility . . . . . . . .37

auto-immobilization feature . . .37

auto-immobilization sequence 37

one-time valet feature . . . . . .38

blackjax feature . . . . . . . . . . . . .38

blackjax activation . . . . . . . . .38

blackjax deactivation sequence39

bypass blackjax temporarily . .39

blackjax off warning indicator 40

sensor description section . . . . .41

507T tilt/motion sensor . . . . .41

adjusting the proximity sensor 41

adjusting the omnisensor . . . .43

glossary of terms . . . . . . . . . . . . .46

security & convenience

expansions . . . . . . . . . . . . . . . . . .48

health check . . . . . . . . . . . . . . . .49

what is included

Control module and harness

IntelliStart module and harness

Two five-button transmitters

Presentation envelope and quick reference card

Two window decal's

XHF antenna/receiver with harness

Pre-wired blue status LED

PlainView 2 Valet switch

515C Smart Self-Powered siren

Digital dual-zone proximity sensor

Digital dual-zone Omnisensor

507T Digital Tilt sensor

important information

Congratulations on the purchase of your state-of-the-art vehicle

security remote start system. It has been designed to provide years of

trouble-free operation. This system must be installed by an authorized

dealer. Installation of this product by anyone other than an authorized

dealer voids the warranty. As verification of authorization, all autho-

rized dealers are provided with preprinted dealer certificates.

In order to maximize the use of this system, please review this owner's

guide carefully prior to using your system. You can print additional or

replacement copies of this owner’s guide by accessing the Clifford web-

site at www.clifford.com.

system maintenance

The system requires no specific maintenance. Your transmitter is powered by two miniature 3V lithium batteries that will last approximately one year under normal use. When the batteries weaken, operating range will be reduced and the system will provide a low battery warning chirp indication when disarming.

your warranty

Your warranty registration must be completely filled out and returned within 10 days of purchase. Your product warranty will not be validated if your warranty registration is not returned. Make sure you receive the warranty registration from your dealer. It is also necessary to keep your proof of purchase, which reflects that the product was installed by an authorized dealer.

fcc/id notice

This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesirable operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device.

Model Number

XHF

Directed Electronics, Inc.

Tested to Comply

with FCC Standards

transmitter configurations

nnoottee::

This manual describes the features and accessories that are included with your system along with information about compatible Clifford accessories that are not included. For a list of included accessories, please refer to the

What Is Included

section of this manual.

Remote Start or

Accessory Output Button

Arm/Disarm and Panic Button

Silent Arm/Disarm or

Accessory Output Button

Shift Button

Trunk Release or Optional Accessory Channel Button

transmitter functions

This system uses computer-based code learning to learn the transmitter buttons. This makes it possible to assign any transmitter button to any system function. The transmitter initially comes programmed with standard configuration, but may also be customized using the CliffNet Wizard PC program. The buttons in all of the instructions in this manual correspond to a standard configuration transmitter.

standard configuration

Button

The arming, disarming, and panic function are controlled by this button.

Button

The trunk release or accessory output A is controlled by this button.

Button

Silent arm and disarm is controlled by this button.

Button

Remote start is controlled by this button.

Button, then Button

Accessory B output is controlled by these buttons.

Button, then Button

These buttons activate SmartWindows.

Button, then Button

Accessory C output is controlled by these buttons.

Button twice, then Button

These buttons activate remote valet.

Button twice, then Button

These buttons disable the sensors.

warning! Operation of the remote start module if the the vehicle starts in gear is contrary to its intended mode of operation. Operating the remote start system under these conditions may result in property damage or personal injury. Immediately cease the use of the unit and repair or disconnect the installed remote start module. Clifford will not be held responsible or pay for installation or reinstallation costs.

Button twice, then Button

These buttons enter safe start mode for manual transmission vehicles

and activate Autostart mode.

Button three times, then Button

These buttons adjust the dual-zone omnisensor.

Button three times, then Button

These buttons adjust the dual-zone radar sensor.

using your system

The buttons used in the instructions in this manual correspond to the

standard transmitter configuration. If your transmitter has been custom

configured, the icons on your transmitter buttons may not correspond

to the indicated functions.

arming with transmitter

You can activate, or arm, the system by pressing on your trans-

mitter for one second. When the system arms, you will hear two short

siren sounds, or chirps, and see the parking lights flash twice. The LED

will begin to flash steadily. If the vehicle’s power door locks have been

connected to the system, the doors will lock.

While the system is armed, the LED status indicator will flash approxi-

mately once per second showing that the system is actively protecting

your vehicle. If you hear more than two chirps when arming, refer to

the Diagnostics section of this guide. These extra chirps confirm a mal-

function autobypass.

arming without transmitter

The security system also can be programmed to arm itself without a

transmitter (called passive arming). If the system is programmed for

passive arming, it will automatically arm 30 seconds after the ignition

is turned off and the system sees you leave the vehicle by opening and

closing a door. The siren will chirp twice and the lights will flash twice

five seconds after the last door has been closed. The system is not actu-

ally armed at that point. The system arms and the doors lock (if con-

nected and programmed for passive locking) at 30 seconds, but the

siren will not chirp. The early chirps provide you with a 25-second

warning prior to arming.

When armed, your vehicle is protected as follows:

The LED will flash as a visible theft deterrent.

Light impacts will trigger the Warning Zone signal. When triggered, the siren will sound for a few seconds.

Heavy impacts will trigger the system. The triggered sequence is 30, 60, or 90 seconds of constant siren sounding and flashing parking lights.

If a protected entry (door, hood, or trunk) is opened, the system will immediately trigger the siren and flash the parking lights.

Digital dual zone radar sensor will protect the interior of the vehicle and it’s contents with an invisible perimeter of protection.

The 507T tilt/motion sensor will trigger the system with transmitter, if an attempt is made to steal the vehicle by towing.

disarming

To disarm the system, press . You will hear a chirp and the parking lights will flash once. If the power locks are connected to the system, the doors will unlock. If the siren chirps three times when disarming, refer to the Diagnostics section of this guide. This is called Tamper Alert. If the siren is active when the system is disarmed you will hear two chirps but the system is not disarmed. (Refer to the Remote Siren

nnoottee::

If any protected entry point (a door or a switch-protected trunk or hood) is open, the system will not passively arm. Additionally, each time a protected entry is triggered during the arming countdown, the 30-second countdown starts over.

Silencing section of this guide.) However, if the alarm completes the full trigger cycle when disarmed you will hear three chirps.

disarming without a transmitter

This feature allows you to disarm the system without the transmitter

should it be lost, damaged, or disabled. In order to disarm without a

transmitter, you must have the vehicle’s ignition key, know where the

PlainView 2 Valet switch is located, and have the PIN code. Be sure to

check with the installer for the location of the PlainView 2 Valet switch.

Please refer to the Disarm/Valet Mode section of this guide for instruc-

tions to enter the pin code.

remote siren silencing

This system offers remote siren silencing. Remote siren silencing is a feature that makes it possible to silence and reset the system when it is triggering without disarming the system. If the system is triggered and the siren has been sounding, press on the transmitter to stop the trigger and return the unit to the armed state. This prevents you from disabling the system should you wish to silence it without visually checking the vehicle. After resetting the system, press again to disarm the system.

transmitter chirp muting

To temporarily turn off the arm or disarm chirps, use transmitter chirp

muting. Simply press on the transmitter, and the confirmation

chirp(s) will be eliminated for that one operation only. The parking

lights will flash to confirm the arm/disarm command. If you want the

arm/disarm chirps turned off permanently, please refer to the User-

Selectable Features section of this guide.

transmitter sensor disable

To temporarily disable a sensor input, arm the system, press

twice and then . The lights will flash four times and

all sensor warn away zones are bypassed. Press the buttons again; the

lights flash four times and both warn away and full trigger sensor zones

are bypassed until the system is disarmed. This can be performed any-

time the system is armed.

1. Arm the system.

2. Press twice and then .

3. The lights will flash four times; all warn away zones are now bypassed.

4. Transmit the sensor bypass channel again.

5. The lights will flash four more times; the sensor warn away and full trigger zones are now bypassed.

6. The sensor zones will reset when disarmed.

intellistart and smartwindows sensor bypass

When the system sees a command to start the vehicle via the Intellistart, it bypasses all sensors and will continue to bypass these sensors until the remote start shuts down.

When the system sees a SmartWindows command for up or down operation, the unit will automatically bypass all sensors until the windows complete their operation.

auxiliary channel bypass

All sensor will be bypassed while a pulsed or timed auxiliary output channel is active.

panic mode with smart door locking

If you are threatened in or near your vehicle, you can attract attention by triggering the system with your transmitter! Just press for two seconds to enter Panic Mode. The siren will sound and the parking lights will flash for the programmed duration. If the ignition is on, the doors will lock; if the ignition is off, the doors will unlock. To stop Panic Mode at any time press on the transmitter again.

disarm/valet mode

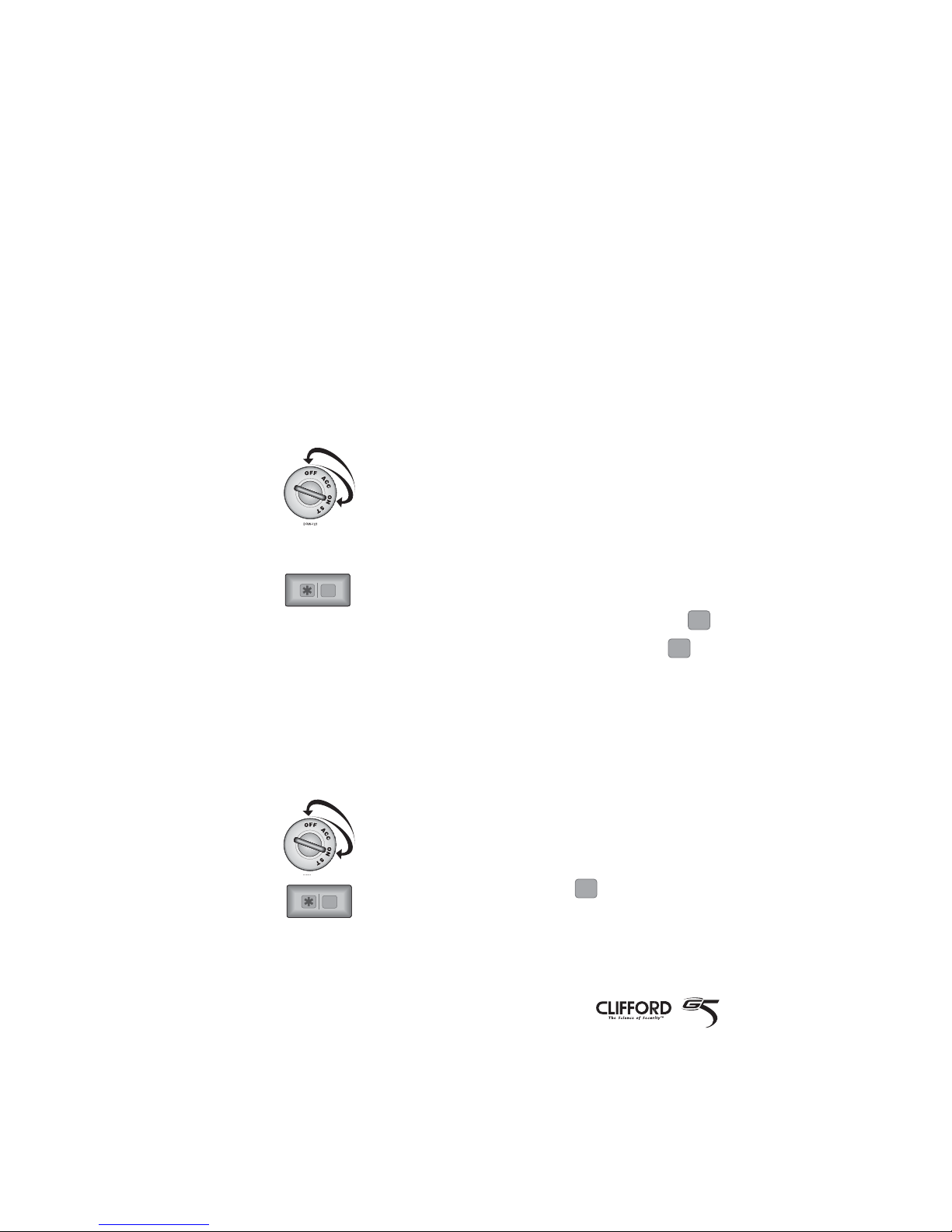

Entering your pin code using the PlainView 2 Valet switch allows you to disarm the system or enter valet mode without using the transmitter. In valet mode, the security system will not arm, even with the transmitter, but all convenience functions (door locks, trunk release, etc.) will continue to work normally.

To disarm or enter Valet Mode:

1. Turn the ignition on.

2. Enter PIN code (factory setting is 2 - this procedure is described later in this manual).

3. After the last digit of the pin code is entered:

a. To disarm the system: press and release

b. To enter valet mode: Press and hold

for

three seconds.

The LED status indicator will light steadily when Valet Mode has been

entered.

To exit Valet Mode:

1. Turn the ignition on.

2. Enter PIN code.

3. After the last digit press for one second.

The LED status indicator will turn off when

Valet Mode has been exited.

transmitter valet mode

To enter or exit Valet Mode, press twice and then .

The LED status indicator will light solid when Valet Mode is entered, or

will turn off when Valet Mode is exited.

one-time auto-arming bypass

This will bypass the auto arm feature once only.

1. With the key, turn the ignition on, then off within two seconds.

2. The siren will chirp once to confirm auto arming bypass.

3. The system will not auto arm.

During auto arming bypass the system will not roll up the windows if

SmartWindows is connected, and the accessory output will not auto-

activate when using the remote to arm the system.

low battery warning

When the transmitter battery is low, the system will generate a low-

pitched tone when disarmed.

nnoottee::

The system will revert to normal auto arming when the system

sees the ignition on for at least three seconds.

multiple event total recall

This will report the last eight system triggers.

1. Press and hold of the PlainView 2 Valet switch.

2. While still holding , arm and disarm the system, then release the button.

3. The LED will start to blink to indicate the most recent trigger and proceed down to the eighth trigger. If fewer than eight triggers are stored in memory, the LED will blink continuously until the system is armed/disarmed using the transmitter or the ignition is turned on. For more information, please refer to the Table of Zones section of this guide.

false alarm control technology (FACT II)

Your system offers FACT II, a feature that prevents annoying

repetitive trigger sequences due to a faulty sensor or environmental

conditions such as thunder, jackhammers, airport noise, etc.

Here’s how it works: The alarm triggers three times. If the same sensor is

triggering the alarm and the first and the third triggers are within 60 min-

utes of each other, FACT

II will interpret this pattern of triggers as false

alarms. After the third trigger, FACT II ignores, or bypasses, that sensor

(along with any other sensors sharing the same zone) for 60 minutes.

If the bypassed sensor tries to trigger the system while it is being

bypassed, the 60-minute bypass period will start over. This ensures that

a sensor that continually triggers will remain bypassed.

Doors are covered by FACT II differently; if the alarm is triggered by an

open door for three full cycles, the doors will be bypassed until the trigger ceases. FACT II is programmable. See the Programming Options

section of this guide.

select siren sounds

To customize siren sounds, please refer to the selectable siren sounds

feature in the User Selectable Features grid. Once in programming

mode, press on the transmitter to begin playback of the avail-

able sounds.

Press on the PlainView 2 Valet switch while playing the desired

sound to add that sound; press while playing the desired sound to

delete that sound.

nnoottee::

Additional tones can be accessed through the CliffNet Wizard.

nnoottee::

Arming and disarming the system does not reset this function! The only way to reset a bypassed zone is for 60 minutes or to turn on the ignition. If testing your system, it is important to remember that the FACT II programming can cause zones to be bypassed and appear to stop working. If you wish to clear the FACT II memory, turn the ignition key on.

diagnostics

The microprocessor at the heart of your security system is constantly monitoring all of the switches and sensors that are connected to it. It detects any faulty switches and sensors and prevents them from disabling the entire system. The microprocessor will also record and report any triggers that occurred during your absence.

arming diagnostics

If the system is armed while an input is active (door open, sensor trig-

gering, etc.) the unit will chirp as per the arm/disarm diagnostic chart

(next page). This is called Bypass Notification.

The security system will ignore the input that was active when the sys-

tem was armed, until the input goes away. Three seconds later the sys-

tem will monitor that input normally.

1. If a door is open the siren will chirp 4 times – 5 seconds after the arming chirps.

2. If a sensor is active the siren will chirp 4 times – 10 seconds after the arming chirps.

3. If the hood or trunk is open, the siren will chirp 4 times on arming.

disarming diagnostics

Extra disarm chirps are the Tamper Alert. If three chirps are heard when

disarming, the system was triggered in your absence. If three chirps are

heard, the LED status indicator will indicate which zone was involved

when you turn the ignition on (see the Table of Zones section). The sys-

tem will retain this information in its memory. Refer to the Multiple

Event Total Recall section of this guide.

arm/disarm diagnostic chart

Action Chirps Light Flashes Description

Arm 2 2 System armed

Arm 4 4 System armed with hood/

trunk active and bypassed (zones 5 and 6)

Arm 2 (5 sec.) 4 2 (5 sec.) 4 System armed with door

active and bypassed (zone 4)

Arm 2 (10 sec.) 4 2 (10 sec.) 4 System armed with sensor

active and bypassed zones 1, 2, 3, and 8

Disarm 1 1 System disarmed

Disarm 3 3 System disarmed with

tamper alert

table of zones

The zone number is the number of LED flashes used by the system to identify a specific input. The standard input assignments are listed below, along with spaces to write in any optional sensors or switches you have had installed. If the Warning Zone response is triggered, the LED will not report it.

anti-code grabbing (ACG)

This unit features Anti-Code Grabbing (ACG) with Random Code

Encryption. This means the receiver and transmitters each use a math-

ematical formula called an algorithm to change their code each time

the transmitter is used. This technology has been developed to increase

the security of the unit. The control unit knows what the next code

should be.

Zone - Number Dealer-Installed of LED Flashes Description Options

1 Proximity sensor

2 Omnisensor

3 Mux 1 trigger - for optional

sensors

4 Door switch trigger

5 Instant trigger - trunk

6 Instant trigger - hood

7 Ignition trigger

8 Mux 2 trigger - for optional

sensors

9 BlackJax activation

10 Power interrupt

high frequency

Your system transmits and receives at 433 MHz. This provides a cleaner

spectrum with less interference and a more stable signal.

smart power up II

This security system will store its current state to non-volatile memory.

If power is lost and then reconnected the system will recall the stored

state from memory. This means if the unit is in Valet Mode and the bat-

tery is disconnected for any reason, such as servicing the car, when the

battery is reconnected the unit will still be in Valet Mode. This applies

to all states of the system including arm, disarm, and Valet Mode.

power saver mode

Your system will automatically enter Power Saver Mode while armed or

in Valet Mode, after a period of time in which no operation has been

performed. This lowers the current draw on the vehicle's battery and

prevents the system from draining the battery. Power Saver Mode takes

over under the following conditions:

Power Saver when the system is armed: After the system has been armed for 48 hours, the LED will flash at half its normal rate, decreasing the system's current draw.

Power Saver in Valet Mode: When the system enters Valet Mode the LED illuminates steadily. If the vehicle is not used (ignition is not turned on) for a period of one hour while the system is in Valet Mode, the LED will shut off. If the system remains in Valet Mode, the LED will come back on and restart the 1 hour timer the next time the ignition is turned off.

programming

cliffnet wizard installation software programming

Cliffnet Wizard provides access to all available system features and

some that are not available when manually programming with the

Valet switch. Cliffnet Wizard is compatible with Microsoft Windows

95/98/2000/ME/XP/NT so most programming operations can be

accomplished by pointing and clicking with a mouse. This eliminates

the need for programming grids and lengthy programming sequences.

For a complete guide to system programming using the Cliffnet Wizard

refer to the Cliffnet Wizard help menu. The software is available for

download at www.directed.com.

manual programming instructions

Be sure to document changes by taking note of all feature changes

made in programming mode.

To enter the User Selectable Features programming:

1. Ignition on - Turn the ignition to the run position or start the engine.

2. Enter PIN - Enter the factory preset PIN code 2 by pressing

on the PlainView 2 Valet switch twice, then once.

3. Hold/Chirp/Release - After entering the PIN code, press and hold until a chirp is heard and the LED turns on, then release the button. You have now entered the feature selection position of the User Selectable Features grid.

4. Column select - Press the same number of times as the desired column. After a pause the siren will chirp the same number of times as the selected column for confirmation.

5. Feature select - Press the same number of times as the desired feature. The siren will chirp with each press. The feature can now be changed using the remote control.

6. Feature change - Press on the transmitter. If the system chirps once, the feature has just turned off; if the system chips twice, the feature has just turned on. If the feature has more than two settings, continue pressing on the transmitter to toggle through the settings.

To advance to the next feature in the same column, press the same number of times as the desired feature within 60 seconds; to change a feature in a different column begin at step 4 by entering the column number first and then the row

nnoottee::

If the factory preset PIN has been changed, the new PIN must be

entered.

number.

7. Exit programming - To exit programming mode turn the ignition off or wait 60 seconds without pressing the PlainView 2 Valet switch. The siren will chirp three times to indicate programming mode has been exited.

user selectable features

* This feature is only available with IntelliStart connected. ** This feature is only available with optional SmartWindows connected.

nnoottee::

Refer to the

Feature Descriptions

sections of this guide for impor-

tant notes and descriptions of the system features and programming.

Then Press

First Press

Add new remote

(autolearn)

Auto (passive)

arm off/on

Chirps

off/on/quiet

Auto lock

off/ignition/rpm

Auto unlock

off/ignition

Auto (passive)

arm and lock

off/on

Siren duration

30/60/90

Second unlock

off/on

Not used BlackJax off/on Clear all remotes

Set PIN code

(default = 2)

Select siren

sounds

FACT II off/on New remote learn

Remote valet

off/on

Entry delay off/on New remote learn

Reset to default

(except transmitter

and valet code)

Panic off/on New remote learn

Autostart setting*

(off/battery only/

temp only/

battery and temp)

New remote learn

arm/disarm only

New remote learn

accessory A channel

accessory B channel

New remote learn

silent mode

remote valet

New remote learn

remote start*

window down/vent**

New remote learn

accessory C channel

user selectable features descriptions - column one

add new remote (auto learn)

Auto-learn new five-button Radar2 remote controls to the system in the

standard button configuration. Once you have entered the feature,

press on the transmitter until you hear a confirmation chirp. Press

again until you hear two chirps indicating the new remote is learned.

auto (passive) arm - off/on

Off: The transmitter must be used to arm the system.

On: When the system sees the ignition turn off and the last protected entry (door, hood, or trunk) close, it will begin a 30-second countdown before arming itself. After the first five seconds, you will hear two chirps and the lights will flash. The system will arm 25 seconds later.

chirps - off/on/quiet

Off: Chirps will not sound when arming/disarming the system.

On: Chirps will sound when arming/disarming the system.

Quiet: Chirps will sound when arming/disarming the system but at a lower volume than normal.

auto lock - off/ignition/rpm

Off: The doors will not lock automatically.

Ignition: The doors will automatically lock three seconds after the ignition is turned on unless a door is open at that time.

Rpm: The doors will lock when the system sees the engine reach a preprogrammed RPM.

auto unlock - off/ignition

Off: The doors will not automatically unlock when the ignition is turned off.

Ignition: The doors will automatically unlock as soon as the ignition is turned off.

auto (passive) arm and lock - off/on

Off: The doors will not lock when the system passively arms.

On: The doors will lock when the system passively arms. This feature only applies when passive arming is programmed on.

siren duration - 30/60/90

The system will sound the alarm for the programmed duration (30/60/90 seconds) during an alarm trigger or when the system is put into panic mode.

second unlock - off/on

Off: Second unlock output is pulsed at the same time as the unlock output when the system is disarmed.

On: Second unlock output is active when the arm/disarm button is pressed within 10 seconds of disarming the system.

nnoottee::

The second unlock can be installed by your dealer. Please note

that extra parts and labor may be required.

user selectable features descriptions - column two

set pin code

This feature allows the setting of the user's personal PIN code. For more

information, please refer to the PIN Programming section of this guide.

select siren sounds

The individual sounds the siren produces during an full trigger alarm can

be customized for owner recognition of an alarm trigger. For more infor-

mation, please refer to the Select Siren Sounds section of this guide.

fact II off/on

Off: The alarm will respond to sensor inputs indefinitely without bypassing.

On: The alarm will bypass for 60 minutes if a sensor is triggered three times within a one hour period.

remote valet off/on

Off: The alarm can not be put into valet mode with the remote control.

On: The alarm can be put into valet mode with the remote control.

entry delay off/on

Off: There is no entry delay when armed. The system will trigger instantly when a door is opened.

On: If the system has passively armed, it will not trigger for 15 seconds after a door is opened allowing the user to enter the vehicle and disarm the system via the PlainView 2 Valet switch.

nnoottee::

Sounds 7 through 15 available using CliffNet Wizard.

reset to default settings

All system settings (except PIN and remote programming) in the User Programming grid will be reset to their default factory setting as indicated in bold lettering.

Press the arm/disarm button of the TX; the siren will chirp twice as confirmation.

panic off/on

Off: The panic feature is not available.

On: The panic feature is available.

auto start setting - off/battery only/temp only/battery and temp

This feature is only available with the IntelliStart option.

Off: The vehicle will not autostart.

Battery: The vehicle will only autostart when the car battery gets low.

Temperature: The vehicle will only autostart at a preset low temperature.

Battery and temperature: The vehicle will autostart with a low car battery or low temperature.

blackjax off/on

Off: The system cannot enter BlackJax mode.

On: The system will enter BlackJax mode when triggered.

nnoottee::

Temperature and battery calibration and settings can be made

only with the Cliffnet Wizard.

user selectable features descriptions - column three

The features in this column pertain to programming individual trans-

mitter channels in custom configurations. Following is an explanation

of the features.

arm/disarm only

The remote control channel programmed into this feature will arm/dis-

arm the system only.

accessory a output

The transmitter channel programmed into this feature will activate the

accessory output.

accessory b output

The transmitter channel programmed into this feature will activate the

accessory output.

silent mode

The transmitter channel programmed into this feature will arm/disarm

the system, but the siren will not chirp.

remote valet

The transmitter channel programmed into this feature will make the

system enter/exit valet mode.

nnoottee::

When programming a new remote control to custom configuration a channel must first be programmed to this feature before programming the remaining channels.

remote start

This feature is only available with IntelliStart connected.

The transmitter channel programmed into this feature will activate or shut down the Intellistart remote start system.

window control

This feature is only available with SmartWindows connected.

The transmitter channel programmed into this feature will activate the vent or roll down feature of the SmartWindows system.

accessory c output

The transmitter channel programmed into this feature will activate the

accessory output.

clear all remotes

This feature will erase all remote codes from the system memory. This feature is convenient for erasing any transmitters that have been lost, stolen, or incorrectly programmed into the system.

After entering this feature press any button on the transmitter; the siren will chirp to indicate that all transmitters have been erased from memory.

pin programming

A PIN code can have one to four digits; each digit can be from 0-9.

Programming Procedure

1. Enter the feature location in the installer programming grid.

2. Immediately press and release of the PlainView 2 Valet switch.

3. Select each digit by pressing 1-9 times, and then press

to enter the number into the system. To enter a zero,

press only.

To program a PIN code of 1032:

1. Press and release once and once. You will

hear one chirp.

3. Press and release once. You will not hear a chirp

after programming a zero.

5. Press and release three times, and then press

once. You will hear three chirps.

6. Press and release two times, and then press

once. You will hear two chirps.

4. Wait for two siren chirps after a five second pause or five seconds after the last digit has been entered if using less than four digit code number.

5. Turn off the ignition; the siren will chirp three times.

6. The programming mode is now exited.

nnoottee::

A PIN code cannot begin with a zero.

PIN Code Confirmation Procedure

Begin this procedure within 15 seconds of finishing the programming

sequence or the new code will not be set.

1. Turn on the ignition.

2. Enter the new PIN code.

3. Press and hold for three seconds.

LED turns on: New PIN code is learned and programming is complete.

LED stays off: New PIN code is not learned and the system reverts to the old PIN code. Repeat the programming sequence.

remote start

remote start features

Remotely start your car’s engine from hundreds of feet away.

Automatically performs extensive pre-start safety checks.

Automatic cold weather cranking for hard-start conditions.

Activates all preset accessories such as the heater or AC.

Monitors RPM and shuts down the engine if problems are detected.

Clifford security system remains armed throughout.

Automatically bypasses triggered security sensors.

Automatically shuts down the engine if the alarm sounds.

Auto shutdown after 30 minutes if left unattended.

Prevents the starter from engaging if the driver turns the ignition key too far.

ShortStop lets you remove the key and arm the alarm for a brief errand while the engine continues to idle.

Selectable low temp autostart warm up for very cold weather.

Selectable low battery autostart recharging.

Extended accessory power after ignition is turned off.

Automatic transmission compatibility.

remote start do's and don'ts

Do's

Park in a well ventilated area if you should plan on remote starting your vehicle.

Engage the parking brake at all times.

Place the transmission in PARK before shutting the engine off.

Preset your comfort controls according to the condition desired for the vehicle interior when remote start is activated.

Always make sure the vehicle has sufficient petrol.

nnoottee::

this product must be installed by an authorized Directed dealer in accordance with the instructions supplied. It is intended for automobiles with a 12V battery and a gas- or diesel-powered, electronic fuelinjected engine. Your authorized Directed dealer can correct any wiring problems, and if necessary, can return any malfunctioning component to Directed Electronics for repair/replacement under the warranty terms and conditions noted in this manual.

Don'ts

DON'T remote start your vehicle or engage Shortstop or Autostart modes in an enclosed area such as a garage or car port.

DON'T allow children access to your remote control.

DON'T engage remote start or Shortstop or Autostart modes when children or pets are present in the vehicle.

DON’T remote start the vehicle when someone is in front or behind the vehicle.

remote start/engine shut down

To remotely start your vehicle, press for one second.

When starting:

The lights will flash 2 times as confirmation to start.

The ignition and preset accessories will start and run for the programmed run time.

The lights will stay on as a visual indicator that the engine is running.

To remotely shut off your vehicle, press the button of the remote

control for 1 second. The engine will shut off and the lights will go out.

Drive vehicle after remote starting:

After your vehicle has been remotely started, you can enter and drive

away without having to restart.

Disarm the security section of your system as you normally would.

Enter the vehicle without stepping on the brake or moving the shift lever.

Insert your key into the ignition and turn to the run position.

Step on the brake, the remote start will turn off and the engine will stay running.

You are ready to drive.

shortstop mode

Shortstop mode is a convenience feature that allows the remote start

to keep the engine running while you run a brief errand. In Shortstop

mode, the security section of your system will operate normally should

you want to activate it.

To activate shortstop mode:

Park the vehicle, place the shifter into park, and engage the hand brake. Place the shifter into the neutral position if it is a manual transmission.

Without pressing the brake pedal, press the button of your remote control. The lights will flash 2 times as confirmation.

Turn the ignition off and remove the keys from the ignition switch. The engine will continue to run.

Exit the vehicle, arm the security system and attend to your business. The engine will run for the programmed run time.

low temperature/battery start

Your remote start system can automatically start your vehicle if the inte-

rior reaches a pre-programmed low temperature setting or if the bat-

tery charge level drops too low. Both these settings can be calibrated

and set using the Cliffnet Wizard. It is recommended that you have

your installer calibrate and set the start time intervals if you intend to

use this feature.

To activate autostart mode:

Arm the security section of your system.

Transmit the Autostart command, the button twice, then the button once. The lights will flash 2 times as confirmation of Autostart mode.

The remote start will monitor the temperature and battery levels and start at the programmed settings and intervals.

retained accessory power

The remote start section of this system will, after turning off the igni-

tion, keep the accessory power of the vehicle on for 5 minutes or until

the vehicle door is opened. This is very convenient if you forgot to roll

up windows or just want to listen to the radio.

diesel compatibility

The system will activate the engine’s glow plugs for the necessary dura-

tion before starting via either a timer delay or through a direct connection

to your vehicle’s glow plug indicator (may require optional parts or wiring).

auto-immobilization feature

Auto-immobilization is a feature designed for maximum security; it

activates the UltraSecure Immobilization circuitry automatically.

auto-immobilization sequence

1. Turn ignition off or disarm alarm.

2. After 30 seconds the systems Immobilization circuits activate and engage the starter and ignition interrupt.

3. LED blinks at ½ normal speed.

Disarming auto-immobilization

To disarm auto-immobilization when active, follow any of the

sequences listed below.

Turn ignition on and press the arm/disarm button.

Arm the alarm and then disarm the alarm.

Turn the ignition on and enter the system valet/PIN code.

one-time valet feature

This feature allows the system to be put in valet mode only until the

next time the ignition is turned on.

ON: Valet mode will be exited every time the ignition is turned on.

OFF: Valet mode will only be exited by using the valet switch or

the remote control.

blackjax feature

Clifford's exclusive BlackJax feature provides a safe and effective means

of recovering your vehicle after a carjacking by monitoring the door

input, brakes, and engine speed. Simply get out of the vehicle and let

the thief drive away.

blackjax activation

After the vehicle is at a safe distance BlackJax will activate the siren and

brake lights to draw attention to the vehicle. When BlackJax sees the

vehicle slow down or stop, the UltraSecure Immobilizer circuit shuts off

the engine, stranding the thief and vehicle. At this time your transmit-

ter will not operate the system, only you can turn off the BlackJax by

entering your secret PIN through the PlainView 2 valet switch.

When BlackJax is programmed ON, BlackJax sequence will begin every

time the ignition is turned on and must be turned off by entering your

PIN code. It will then activate again while driving when triggered.

blackjax deactivation sequence

To deactivate BlackJax turn the key on and then enter the PIN code at

any time.

bypass blackjax temporarily

This feature allows you to easily bypass BlackJax activation when anoth-

er person drives your vehicle that should not know your PIN code. (IE:

valet parking, auto service dept.)

Bypass BlackJax temporarily

1. Turn ignition on.

2. Enter PIN code. Do not enter valet or programming mode.

3. Within 10 seconds press .

nnoottee::

BlackJax can be turned off by entering PIN code at any time.

nnoottee::

If the driver accidently exits the vehicle and triggers the blackjax feature, the siren will sound 5 chirps after 20 seconds. The driver then has 20 seconds to enter the pin code to deactivate the blackjax feature.

4. Siren chirps 1 time as confirmation of BlackJax bypassed.

5. Turn Ignition Off, siren chirps 3 times as confirmation of exiting programming.

To return to normal BlackJax Operation

1. Turn ignition on.

2. Enter Pin code.

3. Within 10 seconds press .

4. Siren chirps 2 times as confirmation of BlackJax active.

5. Turn ignition off, siren chirps 3 times as confirmation of exiting programming.

blackjax off warning indicator

Each time the ignition is turned off when BlackJax is bypassed the LED

will blink 10 times as warning that the BlackJax has been temporarily

bypassed.

nnoottee::

If ignition remains on after entering PIN code and no action for 10

seconds, unit will automatically exit programming mode without chirps.

nnoottee::

If ignition remains on after entering PIN code and no action for 10

seconds, unit will automatically exit programming mode without chirps.

sensor description section

507T tilt/motion sensor

This sensor detects when the vehicle is being raised in an attempt to

either remove the wheels/tires or tow the vehicle. This sensor is capa-

ble of learning the vehicle’s initial angles of vertical and horizontal incli-

nation each time the vehicle is parked.

adjusting the proximity sensor

It is recommended that adjustments be performed away from fluores-

cent lighting, large metal structures, or confined areas that can affect

the sensor field. The alarm will exit adjustment mode automatically 60

seconds after the last adjustment signal from the transmitter and revert

to its previous settings.

The proximity sensor field takes one to two minutes to settle after

entering adjustment mode, so begin adjusting the sensor within 45

seconds and adjust it slowly so it has time to settle. After two minutes

you will have a consistent field during adjustment testing. Each zone

has 32 settings that are indicated by chirps that raise and lower in fre-

quency as adjustments are made. Total adjustment time for this sensor

should be five minutes or less.

nnoottee::

You MUST exit using the ARM/DISARM button after program-

ming to lock in the new settings!

Read the following instructions thoroughly for a full understanding of

how to properly adjust this sensor.

1. Disarm system

2. Transmit Channel 16 (Press 3-times then 1-time)

The LED will turn on and the siren will chirp 1-time.

Primary (full trigger) zone adjustment has now been entered.

Primary zone can now be adjusted.

3. Adjusting Primary Zone

Press of the remote control to increase sensitivity.

Press of the remote control to decrease sensitivity.

The sensor Primary zone can be tested at any time during adjustment and will generate 1 siren chirp each time the zone is activated.

4. Press to adjust Warn-Away zone

Siren chirps 1 time.

Warn-away Zone adjustment has now been entered.

Warn-away Zone can now be adjusted.

5. Adjust Warn-away Zone

Press to increase sensitivity.

Press to decrease sensitivity.

The sensor Warn-away zone can be tested at any time during adjustment and will generate 1 siren chirp each time the zone is activated.

6. Press of the remote control to return to Primary zone adjustment and lock in Warn Away zone setting.

Siren chirps 2 times.

Primary zone can now be re-adjusted as described in step 3.

Or press again to lock in primary zone setting and exit programming mode.

The siren will chirp 3 times when sensor adjustment mode has been exited.

Auto-Scroll for adjusting sensitivity - press and hold or to increase or decrease sensitivity setting several levels rapidly.

adjusting the omnisensor

The Omnisensor is designed for ease of adjustment by the user and to

give the ultimate in impact detection without the possibility of false

triggers that are common with less sophisticated sensor.

While adjusting this sensor it is required that you strike the vehicle with

the amount force that is desired for the system to trigger.

1. Disarm system

2. Transmit Channel 15 (Press 3 times then 1 time).

The LED will turn on and the siren will chirp 1 time.

nnoottee::

DO NOT strike window glass or flat sheet metal panels that can dent easily. It is recommended that you only strike the metal pillars between the windows, they are structurally sound enough not to dent. ONLY strike the pillars using the heel of your hand, it is more than sufficient for the sensor to distinguish this as a theft attempt.

Sensor test and adjustment mode is entered.

3. To test Primary (full trigger) zone.

Press of the remote control.

Siren will chirp 2 times.

Hit vehicle.

Siren chirps 1 time if hit hard enough to activate sensor.

4. To adjust Primary zone

Press of the remote control.

Siren chirps 2 times.

Sensor adjustment mode is entered.

Hit vehicle at the desired level of impact.

Sensor adjusts itself to the force of Hit.

Siren chirps 1 time as confirmation of adjustment.

Press of the remote control to lock adjustment.

5. To adjust Warn-away zone

Press .

Siren chirps 1 time.

Warn-away zone adjustment is entered.

6. To test Warn-away zone

Press .

Siren will chirp 2 times.

Hit vehicle.

Siren chirps 1 time if hit hard enough to activate sensor.

7. Adjust Warn-away zone

Press .

Siren chirps 2 times.

Sensor adjustment mode is entered.

Hit vehicle at the desired level of impact.

Sensor adjusts itself to the force of Hit.

Siren chirps 1 time as confirmation of adjustment.

Press to lock adjustment.

8. Press to re-enter Primary zone adjustment

Siren chirps 2 times.

Primary zone can now be re-adjusted as described in

step 4.

Or press again to exit programming mode.

The siren will chirp 3 times when sensor adjustment

mode has been exited.

nnoottee::

You must wait 15 seconds after arming for the omnisensor to

become active.

glossary of terms

507T Tilt/Motion sensor:

This sensor detects when the vehicle is being

raised in an attempt to either remove the wheels/tires or tow the vehi-

cle. This sensor is capable of learning the vehicle’s initial angles of ver-

tical and horizontal inclination each time the vehicle is parked.

Control Unit:

The "brain" of your system. Usually hidden underneath

the dash area of the vehicle. It houses the microprocessor which mon-

itors your vehicle and controls all of the system's functions.

Input

: A physical connection to the system. An input can be provided

by a sensor, pinswitch or through an existing system in the vehicle, such

as ignition or courtesy lights.

LED

: Blue light mounted somewhere in the vehicle. It is used to indi-

cate the status of your system. It is also used to report triggers and

faults in the system or sensors.

Omnisensor: A dual-zone learning impact sensor.

PlainView 2 Valet Switch

: A small two-button switch mounted some-

where inside the vehicle. It is used to override the alarm when a trans-

mitter is lost or damaged, or to enter or exit Valet mode.

Power Window Control:

Automatic power window control is provided

with the SmartWindows system.

Proximity Sensor

: This is a sensor mounted in the vehicle that is

designed to protect the interior and its contents.

Siren

: Noise generating device usually installed in the engine compart-

ment of the vehicle. It is responsible for generating the "chirps" you

hear, as well as the six tones you hear while the alarm is triggered.

Transmitter

: Hand-held transmitter which operates the various func-

tions of your system.

Trigger or Triggered Sequence: This is what happens when the alarm

goes off or trips. The triggered response of your system consists of the

siren sounding and parking light flashing for the programmed duration.

UltraSecure Immobilizer

: A feature on the module which prevents the

vehicle’s engine from operating whenever the system is armed. The

vehicle is never prevented from running when the system is disarmed,

in Valet mode, or loss of power.

Warning Zone Response:

Lighter impacts or movement close to the vehi-

cle will generate the Warning Zone response. It consists of a warning

siren blast or beep.

Zone

: A zone is a separate input that the alarm can recognize as

unique. Each input to the system is connected to a particular zone. Two

or more inputs often share the same zone.

security & convenience expansions

Here we have listed only some of the many expansion options avail-

able. Please contact your dealer for a complete list of all the options

available to you.

Backup Battery:

The 520T keeps the system armed, triggers the alarm and

keeps the immobilization circuits active if main battery power is disconnected.

Glass Tamper Sensor:

Metal on glass, glass cracking, and breaking glass

each produce distinctive acoustic signatures. The 506T glass tamper sen-

sor uses a microphone to pick up sounds, and then analyzes them with

proprietary acoustic software to determine if the glass has been struck.

Power Trunk Release: The button can operate a factory power

release for the vehicle’s trunk or hatch. (An optional relay may be re-

quired.) If the factory release is not power activated, the Directed

522T trunk release solenoid can often be added.

Power Window Control:

Automatic power window control is provided

with the SmartWindows system.

health check

Directed Electronics recommends you return to your installing Clifford deal-

er to have your system checked for correct operation. The first check is due

one year after the installation date and at yearly intervals thereafter.

nnoottee::

There may be a small charge incurred for this service.

Vista, CA 92081

www.directed.com

G909640 08-04

The company behind this system is Directed Electronics, Inc.

Since its inception, Directed®has had one purpose, to provide consumers with the finest vehicle security and car stereo products and accessories available. The recipient of nearly 100 patents and Innovations Awards in the field of advanced electronic technology, Directed

is ISO

9001 registered.

Quality Directed Electronics products are sold and serviced throughout North America and around the world.

E&OE, specification is subject to change without notice. Some vehicles require optional parts/wiring and a few are incompatible with some features.

Directed®is committed to delivering world-class quality products and services

that excite and delight our customers.

Directed Electronics AdvantGuard 5 Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
