Directed Electronics 991 User Manual

Responder LC Model 991

Security and Remote Start

Owner’s Guide

G5702P 2008-08

Contents

Government regulations .....................................................................................5

Warning! Safety first .........................................................................................7

What is included .............................................................................................10

Important information ......................................................................................10

Your warranty.........................................................................................10

Replacement remote controls ....................................................................11

Out of Range Notification ........................................................................11

System maintenance ...............................................................................11

Charging the Battery ...............................................................................12

Low battery indicator ..............................................................................12

Battery Replacement ................................................................................13

Responder LC 2-Way .......................................................................................14

LC 1-way companion .......................................................................................15

Transmitter configuration ..........................................................................15

Using the system .............................................................................................17

Additional arming features ...............................................................................23

Arm Features: .........................................................................................23

While the system is armed .......................................................................23

System override ......................................................................................25

Modified Arming Modes..........................................................................26

Disarm Features: .....................................................................................27

Additional remote start features.........................................................................28

Auxiliary features ............................................................................................34

Remote control feature programming .................................................................35

Sensor adjust .........................................................................................39

Pair Remote Mode ..................................................................................39

Demo Modes .........................................................................................39

Safety features ...............................................................................................40

Starter anti-grind circuitry .........................................................................40

Disabling the remote start system ..............................................................40

Diagnostics ....................................................................................................41

Last trigger ............................................................................................41

Arming .................................................................................................41

Disarming .............................................................................................42

System status chirps ...............................................................................42

Table of zones ........................................................................................43

Interpreting zone diagnostics ....................................................................43

Nuisance prevention® circuitry ................................................................44

Owner recognition .........................................................................................45

Rapid resume logic ..........................................................................................45

Power saver mode...........................................................................................46

System...................................................................................................46

2-way remote .........................................................................................46

Programming options .......................................................................................47

Security & convenience expansions ...................................................................49

Glossary of terms ............................................................................................51

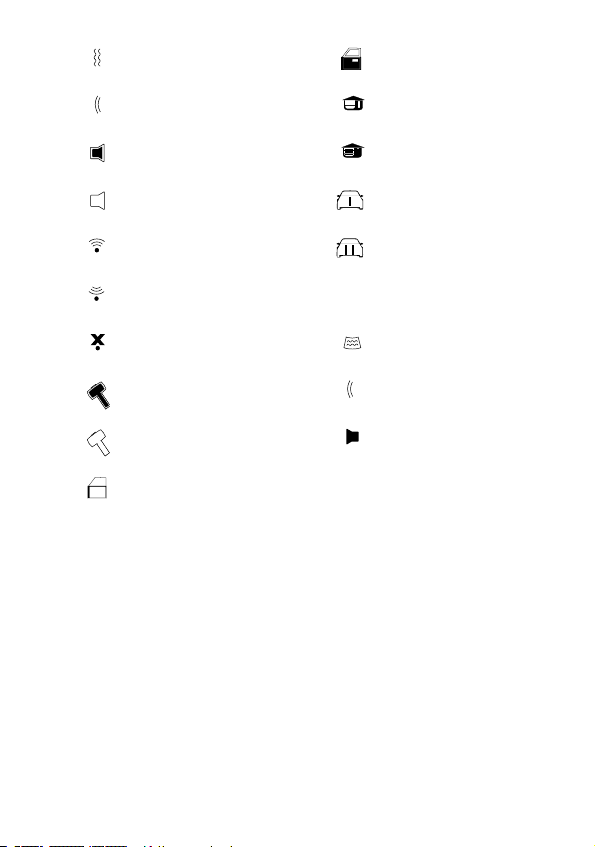

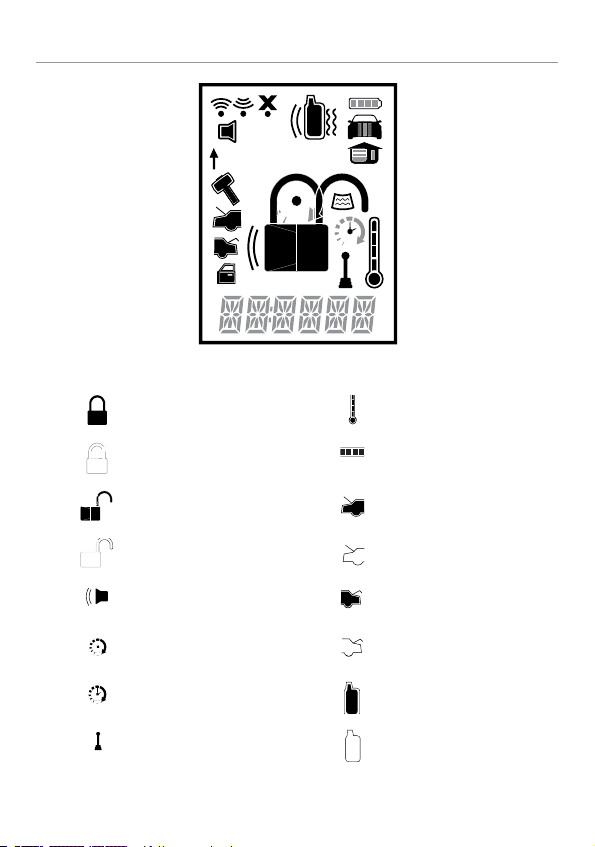

LCD layout .....................................................................................................53

Quick reference guide .....................................................................................55

Limited lifetime consumer warranty ....................................................................57

Government regulations

This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesirable operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio / TV technician for help.

Remote Controls

To satisfy FCC RF exposure compliance requirements, this device should be used

in hand-held, hand operated conﬁgurations only. The device and its antenna must maintain a separation distance of 20 cm or more from the person’s body,

except for the hand and wrists, to satisfy RF exposure compliance. This device

is designed to be used in a person’s hands and its operating conﬁgurations do

not support normal transmissions while it is carried in pockets or holsters next to

a person’s body.

Control Center

To satisfy FCC RF exposure compliance requirements, the device and its antenna

must maintain a separation distance of 20 cm or more from the person’s body,

except for the hand and wrists, to satisfy RF exposure compliance.

This device complies with the Industry Canada Radio Standards Speciﬁcation RSS 210. Its use is authorized only on a no-interference, no-protection basis; in other words, this device must not be used if it is determined that it causes harmful interference to services authorized by IC. In addition, the user of this device must accept any radio interference that may be received, even if this interference could affect the operation of the device.

WARNING!

Changes or modications not expressly approved by the party re-

sponsible for compliance could void the user’s authority to operate this device.

Warning! Safety ﬁrst

The following safety warnings must be observed at all times:

Due to the complexity of this system, installation of this product must only be

performed by an authorized Directed dealer.

When properly installed, this system can start the vehicle via a command signal from the remote control transmitter. Therefore, never operate the system in an enclosed area or partially enclosed area without ventilation (such as a garage). When parking in an enclosed or partially enclosed area or when having the vehicle serviced, the remote start system must be disabled using the installed toggle switch. It is the user’s sole responsibility to properly handle and keep out of reach from children all remote control transmitters to assure that the system does not unintentionally remote start the vehicle. THE USER MUST INSTALL A

CARBON MONOXIDE DETECTOR IN OR ABOUT THE LIVING AREA ADJACENT TO THE VEHICLE. ALL DOORS LEADING FROM ADJACENT LIVING AREAS TO THE ENCLOSED OR PARTIALLY ENCLOSED VEHICLE STORAGE

AREA MUST AT ALL TIMES REMAIN CLOSED. These precautions are the sole responsibility of the user.

Remote starters on manual transmission vehicles operate differently than those with automatic transmission

must read this Owner’s Guide to familiarize yourself with the proper procedures

regarding manual transmission remote starters. If you have any questions, ask your installer or contact Directed at 1-800-753-0600.

because you must leave your car in neutral. You

Before remote starting a manual transmission vehicle, be sure to:

Leave the vehicle in neutral and be sure no one is standing in front or •

behind the vehicle.

Only remote start on a ﬂat surface•

Have the parking brake fully engaged•

WARNING!

It is the responsibility of the owner to ensure the parking/emergen-

cy brake properly functions. Failure to do so can result in personal injury or prop-

erty damage. We recommend the owner have the parking / emergency brake

system inspected and adjusted by a qualiﬁed automotive shop biannually.

Use of this product in a manner contrary to its intended mode of operation may result in property damage, personal injury, or death. (1) Never remotely start the vehicle with the vehicle in gear, and (2) Never remotely start the vehicle with the keys in the ignition. The user must also have the neutral safety feature of the vehicle periodically checked, wherein the vehicle must not remotely start while the car is in gear. This testing should be performed by an authorized Directed dealer in accordance with the Safety Check outlined in the product installation guide. If the vehicle starts in gear, cease remote start operation immediately and

consult with the authorized Directed dealer to x the problem.

After the remote start module has been installed, contact your authorized dealer to have him or her test the remote start module by performing the Safety Check outlined in the product installation guide. If the vehicle starts when performing the Neutral Safety Shutdown Circuit test, the remote start unit has not been properly installed. The remote start module must be removed or the installer must properly reinstall the remote start system so that the vehicle does not start in gear. All installations must be performed by an authorized Directed dealer.

OPERATION OF THE REMOTE START MODULE IF THE VEHICLE STARTS IN GEAR IS CONTRARY TO ITS INTENDED MODE OF OPERATION. OPERATING THE REMOTE START SYSTEM UNDER THESE CONDITIONS MAY RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY. YOU MUST IMMEDIATELY

CEASE THE USE OF THE UNIT AND SEEK THE ASSISTANCE OF AN AUTHORIZED Directed DEALER TO REPAIR OR DISCONNECT THE INSTALLED REMOTE START MODULE. DIRECTED WILL NOT BE HELD RESPONSIBLE OR PAY FOR INSTALLATION OR REINSTALLATION COSTS.

This product is designed for fuel injected vehicles only. Use of this product in a standard transmission vehicle must be in strict accordance with this guide.

This product should not be installed in any convertible vehicles, soft or hard top with a manual transmission. Installation in such vehicles may pose certain risk.

What is included

1 ﬁve-button, 2-way Supercode Responder LC remote control •

(p/n 7752P)

1 ﬁve-button, 1-way Supercode remote control •

The control module with Stinger™DoubleGuard®two-stage shock •

sensor

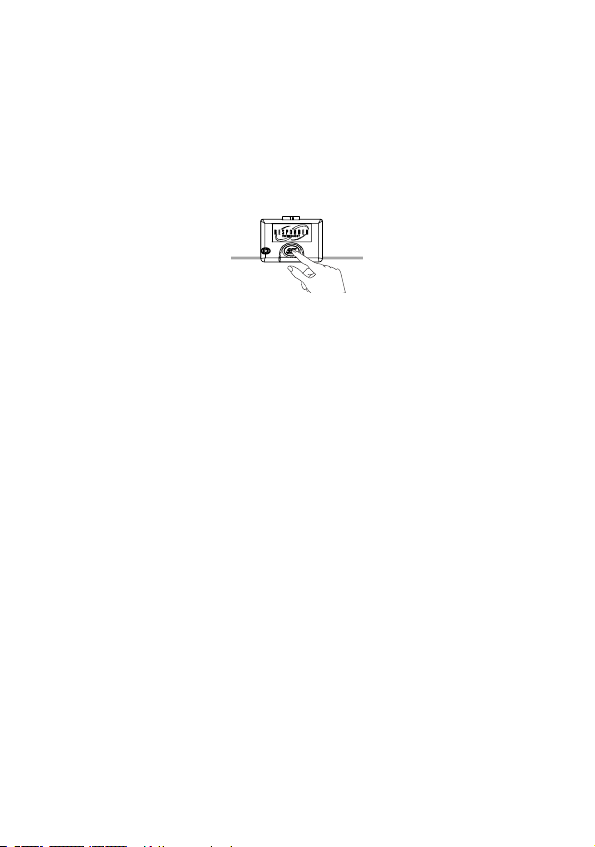

Control center with integrated status LED and Valet override •

switch (P/N 6711T)

Revenger™Soft Chirp™six-tone siren•

A remote start defeat toggle switch•

Battery charger•

Window decals•

Your warranty registration•

(p/n 7652P)

Important information

Congratulations on the purchase of your state-of-the-art remote start and

alarm system. Due to the complexity of this system, it must be installed

by an authorized dealer only. Installation of this product by anyone other than an authorized dealer voids the warranty. All dealers are provided with a preprinted dealer certiﬁcate to verify authorization.

By carefully reading this Owner’s Guide prior to using your system, you will maximize the use of this system and its features. You can print

additional or replacement copies of this manual by accessing our web site at www.directed.com.

➢ Your warranty

Your warranty registration must be completely ﬁlled out and returned within 10 days of purchase. Your product warranty will not be validat-

ed if your warranty registration is not returned. Make sure you receive the warranty registration from your dealer. It is also necessary to keep your proof of purchase, which reﬂects that the product was installed by an authorized dealer.

➢ Replacement remote controls

Your system comes with one Responder LC remote control (P/N 7752P) and one companion remote control (P/N

controls are desired, please see your authorized dealer or visit us at www.directedstore.com to order.

7652P). If additional remote

➢ Out of Range Notiﬁcation

If a command is issued from the remote, but the remote is beyond the range of the vehicle to receive the command, the remote will respond with an Out of Range notiﬁcation. If this occurs, the remote will emit a harsh tone and the out of range indicator will appear.

Since conditions will vary in different areas (ie: Weather, RF interference, etc) range may be affected and require you to be closer to the vehicle for successful transmission.

➢ System maintenance

The system requires no speciﬁc maintenance. Your One way remote is powered by small coin cell lightweight 3-volt lithium battery that will last

approximately one year under normal use. The 1-way remote uses one

CR2032 cell battery. The 2-way remote contains a non-replaceable rechargeable battery. When the battery begins to weaken, the operating range will be reduced.

➢ Charging the Battery

Sirius-Ready, SAT Radio Ready or select OEM headunits with optional Honda Bus Compatible Translator

Plug in the USB charger (alternately a standard mini USB cable •

connected to any standard USB port on any laptop or desktop

computer can also be used (cable not included).

The LCD displays “CHARGE” while the battery level bars within •

the battery icon ﬂash.

When charging is complete the LCD then displays “FULL”. •

Note:

If the battery has been severely discharged all remote functions are disabled for a short charge period. The battery status outline ﬂashes and CHARGE is displayed on the LCD. Once the battery has accumulated enough charge for functionality, the LCD icons initialize with a beep sound, the battery status outline stops ﬂashing and the remote

becomes operational while still displaying CHARGE.

Warning! The temperature range over which the

battery can be charged is 0ºC TO 45ºC (32ºF TO 113ºF). Charging the battery at temperatures outside this range may cause severe damage to

the battery or reduce battery life expectancy.

➢ Low battery indicator

When the batteries are low on the 2-way remote it emits two groups of beeps, the battery icon ﬂashes and low battery is indicated, the alarm then emits an additional chirp upon disarming of the alarm to let you know its time to change the battery. When the battery is low on the 1-way remote, the remote responds the same way audibly.

Note:

The Arm/Disarm chirps should be programmed ON for the

alarm to emit any additional chirps during disarm. Ask your authorized dealer if you have any questions.

➢ Battery Replacement

AU X



ALL



ALL

AU X



ALL



ALL

AU X

Slide the door up to expose the battery beneath the holder. Remove the expired battery. Place the new battery into the remote control. When

power is returned the remote control is ready for use.

➢ Multi-car control capability

You can operate the 2-way remote control system for two cars, with full command capability for both vehicles.

To change the Car to be operated:

Two Way Remote

Press/hold the 1. The

or displayed. Change car: While in this mode press the 2. between cars and the indicating which car the remote currently operates. Select the car you want to operate and then press any command 3. to operate the system. The selected car remains selected until the setting is changed.

One Way Remote

Press and hold the 1. twice indicating current vehicle (one blink = car 1, two blinks = car 2). To change from one car to the other press the 2. When using the remote to control the system, the amber light will 3. ﬂash in a sequence of 1 or 2 ﬂashes indicating the current vehicle selected.

button for 3 seconds or until the remote beeps.

icon ashes and the text “Car 1” or “Car 2” is

button to switch

icon changes accordingly

button until the amber light blinks once or

button again.

Responder LC 2-Way



5319

,&$

)&&,'(=6'(,



5313

,&$

)&&,'(=6'(,

AU X

Feature Description

1 LCD (2-way) Activity/icon display

2 Lock button

3 Unlock button

4 Auxiliary button

Press for one second to arm.

Press for one second to disarm.

Press and hold for 1.5 second to activate optional trunk release.

5 Remote start button

Press for one second to activate remote start.

6 Function button

Allows access to programming and modifies operation of the other buttons.

7 Charge Port (2-way)

8 Label

9 Battery Door (1-way)

10 Transmit LED (1-way)

Note:

If the keypad is locked, ﬁrst press

The battery charger plugs into this port.

Back of remote has label to identify the remote.

For accessing batteries when necessary.

Active when communicating

and then press

to exit.

LC 1-way companion



5313

,&$

)&&,'(=6'(,

%$77(5<&5

A U X

AU X

Note:

See call-out table for 2 way on previous page.

➢ Transmitter conﬁguration

Direct Access

Level

Button

Arm/Lock

(Panic)

Disarm/Unlock Silent Disarm Valet

Remote Start

On/Off

Trunk Release AUX 1 AUX 2 AUX 3

Silent Arm Sensor

Reset

Runtime

x 1

x 2

Bypass

On/Off

Timer Mode

On/Off

x 3

Silent Mode

Sensors

Car Finder

Smart Start

On/Off

x 4

Silent Mode

All Zones

Defogger

Advance Level

Change Car

(3s), Enter

programming

(8s) *

button must be pressed and

Temperature

Check *

Runtime

Remaining *

held

to access state, for example to

Event His-

tory Report*

access “Request temperature” or “Runtime remaining” press the

AU X

ton the speciﬁed amount of times, and then hold.

Note:

Pressing more than one button simultaneously generates an Error

tone.

but-

Using the system

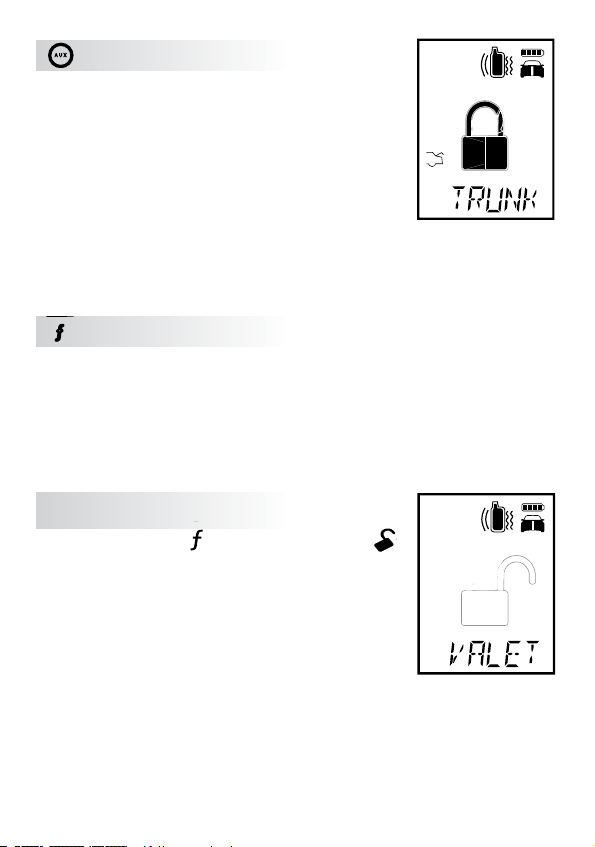

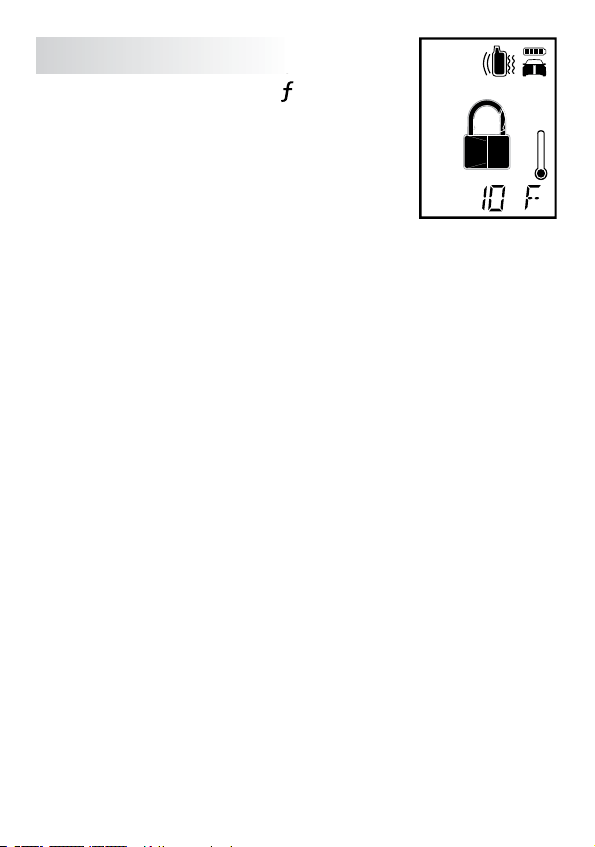

Please note the screen shot to the right of a feature indicates what the display looks like when this feature is activated.

Arm

Command Feedback

Notes

Details

will ﬂash once. If the power door locks have been connected, the doors will lock. The system will automatically check for errors when it

arms. The 2-way remote will “chirp” once and the lock icon appear to

conﬁrm arming. If no arm conﬁrmation is received, the remote will give the Out-Of-Range signal.

If errors are found when arming:

If an alarm trigger zone – such as a door, the trunk, the hood, or a

sensor, was active at the time of arming, the system will “bypass”, or

ignore, this trigger zone. This allows the system to continue to protect your vehicle using the remaining trigger zones. You are notiﬁed of this active zone immediately after arming the system.

The siren in the vehicle will “chirp” again after arming. The Status LED

indicator in the vehicle will blink in a pattern to indicate the active zone number error which was found (See Table of Zones). The 2-way

remote control will sound a short “error” tone and the text will display

the active zone..

Press one time to Arm

Lock Icon will appear, and one beep from remote

Press/hold for 1.5 seconds to Arm

the system and then activate the Panic output

: The siren in the vehicle will “chirp” once and the parking lights

Disarm

Command Feedback

Press one time to Disarm

: Unlock icon appears and remote beeps

twice

The siren in the vehicle will “chirp” twice, and the

parking lights will ﬂash. The 2-way remote will

“chirp”

twice

and the

unlock icon appears to conﬁrm disarming. The door locks (if connected) will unlock and the parking lights will ﬂash

Note:

For additional chirps when disarming the system refer to the

diagnostics section of this guide

Remote Start

Command

Press one time to activate Remote Start

Feedback

Remote Start Icon appears on screen. remote emits a tone and parking lights ﬂash

Notes:

Before using the remote start be sure the vehicle is parked in a safe area with proper ventilation.

The preset remote start run time is 12 minutes. This can be changed to between 12 and 60 minutes. The system has a feature, if programmed On , that automatically notiﬁes you when the runtime is running low. When the system reaches 3

+ 42 hidden pages
