Directed Electronics 50.7X User Manual
Responder LC Model 50.7X
Security and Remote Start
Owner’s Guide
© 2008 Directed Electronics, Vista, CA
G5702X 2008-08
Contents
Government regulations .....................................................................................5
Warning! Safety first .........................................................................................7
What is included .............................................................................................10
Important information ......................................................................................10
Your warranty.........................................................................................10
Replacement remote controls ....................................................................11
Out of Range notification .........................................................................11
System maintenance ...............................................................................11
Charging the Battery ...............................................................................12
Low battery indicator ..............................................................................12
Battery Replacement ................................................................................13
Responder LC 2-Way .......................................................................................14
LC 1-way companion .......................................................................................15
Transmitter configuration ..........................................................................15
Using the system .............................................................................................17
Additional arming features ...............................................................................23
Arm Features: .........................................................................................23
While the system is armed .......................................................................23
System override ......................................................................................25
Modified Arming Modes..........................................................................26
Disarm Features: .....................................................................................27
Additional remote start features.........................................................................28
Auxiliary features ............................................................................................34
Remote control feature programming .................................................................35
Sensor adjust .........................................................................................39
Pair Remote Mode ..................................................................................39
Demo Mode ...........................................................................................39
Safety features ...............................................................................................40
Starter anti-grind circuitry .........................................................................40
Disabling the remote start system ..............................................................40
Diagnostics ....................................................................................................41
Last trigger ............................................................................................41
Arming .................................................................................................41
Disarming .............................................................................................42
System status chirps ...............................................................................42
Table of zones ........................................................................................43
Interpreting zone diagnostics ....................................................................43
Nuisance prevention® circuitry ................................................................44
Owner recognition .........................................................................................45
Rapid resume logic ..........................................................................................45
Power saver mode...........................................................................................46
System...................................................................................................46
2-way remote .........................................................................................46
Programming options .......................................................................................47
Security & convenience expansions ...................................................................49
Glossary of terms ............................................................................................51

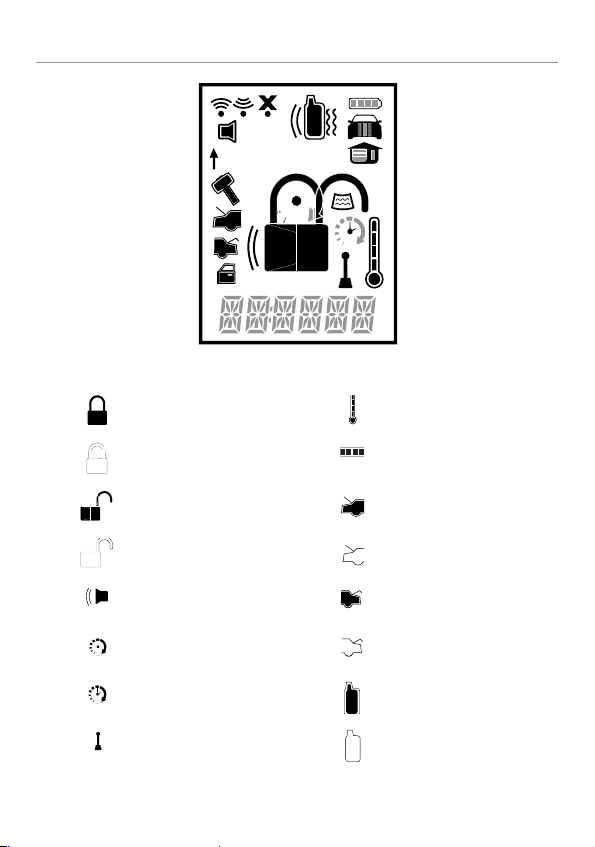

LCD layout .....................................................................................................53
Quick reference guide .....................................................................................55
Limited lifetime consumer warranty ....................................................................57
Government regulations
This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesirable operation.
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television, which can be determined by
turning the equipment OFF and ON, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
Remote Controls
To satisfy FCC RF exposure compliance requirements, this device should be used
in hand-held, hand operated configurations only. The device and its antenna
must maintain a separation distance of 20 cm or more from the person’s body,
except for the hand and wrists, to satisfy RF exposure compliance. This device
is designed to be used in a person’s hands and its operating configurations do
not support normal transmissions while it is carried in pockets or holsters next to
a person’s body.
© 2008 Directed Electronics. All rights reserved.
5
Control Center
To satisfy FCC RF exposure compliance requirements, the device and its antenna
must maintain a separation distance of 20 cm or more from the person’s body,
except for the hand and wrists, to satisfy RF exposure compliance.
This device complies with the Industry Canada Radio Standards Specification
RSS 210. Its use is authorized only on a no-interference, no-protection basis; in
other words, this device must not be used if it is determined that it causes harmful interference to services authorized by IC. In addition, the user of this device
must accept any radio interference that may be received, even if this interference
could affect the operation of the device.
WARNING!
Changes or modications not expressly approved by the party re-
sponsible for compliance could void the user’s authority to operate this device.
6
© 2008 Directed Electronics. All rights reserved.
Warning! Safety first
The following safety warnings must be observed at all times:
Due to the complexity of this system, installation of this product must only be
performed by an authorized Directed dealer.
When properly installed, this system can start the vehicle via a command signal
from the remote control transmitter. Therefore, never operate the system in an
enclosed area or partially enclosed area without ventilation (such as a garage).
When parking in an enclosed or partially enclosed area or when having the
vehicle serviced, the remote start system must be disabled using the installed
toggle switch. It is the user’s sole responsibility to properly handle and keep out
of reach from children all remote control transmitters to assure that the system
does not unintentionally remote start the vehicle. THE USER MUST INSTALL A
CARBON MONOXIDE DETECTOR IN OR ABOUT THE LIVING AREA ADJACENT TO THE VEHICLE. ALL DOORS LEADING FROM ADJACENT LIVING
AREAS TO THE ENCLOSED OR PARTIALLY ENCLOSED VEHICLE STORAGE
AREA MUST AT ALL TIMES REMAIN CLOSED. These precautions are the sole
responsibility of the user.
Remote starters on manual transmission vehicles operate differently than those
with automatic transmission
must read this Owner’s Guide to familiarize yourself with the proper procedures
regarding manual transmission remote starters. If you have any questions, ask
your installer or contact Directed at 1-800-753-0600.
because you must leave your car in neutral. You
Before remote starting a manual transmission vehicle, be sure to:
Leave the vehicle in neutral and be sure no one is standing in front or •
behind the vehicle.
Only remote start on a flat surface•
Have the parking brake fully engaged•
© 2008 Directed Electronics. All rights reserved.
7
WARNING!
It is the responsibility of the owner to ensure the parking/emergen-
cy brake properly functions. Failure to do so can result in personal injury or prop-
erty damage. We recommend the owner have the parking / emergency brake
system inspected and adjusted by a qualified automotive shop biannually.
Use of this product in a manner contrary to its intended mode of operation may
result in property damage, personal injury, or death. (1) Never remotely start the
vehicle with the vehicle in gear, and (2) Never remotely start the vehicle with
the keys in the ignition. The user must also have the neutral safety feature of the
vehicle periodically checked, wherein the vehicle must not remotely start while
the car is in gear. This testing should be performed by an authorized Directed
dealer in accordance with the Safety Check outlined in the product installation
guide. If the vehicle starts in gear, cease remote start operation immediately and
consult with the authorized Directed dealer to x the problem.
After the remote start module has been installed, contact your authorized dealer
to have him or her test the remote start module by performing the Safety Check
outlined in the product installation guide. If the vehicle starts when performing
the Neutral Safety Shutdown Circuit test, the remote start unit has not been
properly installed. The remote start module must be removed or the installer must
properly reinstall the remote start system so that the vehicle does not start in gear.
All installations must be performed by an authorized Directed dealer.
OPERATION OF THE REMOTE START MODULE IF THE VEHICLE STARTS IN
GEAR IS CONTRARY TO ITS INTENDED MODE OF OPERATION. OPERATING THE REMOTE START SYSTEM UNDER THESE CONDITIONS MAY RESULT
IN PROPERTY DAMAGE OR PERSONAL INJURY. YOU MUST IMMEDIATELY
CEASE THE USE OF THE UNIT AND SEEK THE ASSISTANCE OF AN AUTHORIZED Directed DEALER TO REPAIR OR DISCONNECT THE INSTALLED
REMOTE START MODULE. DIRECTED WILL NOT BE HELD RESPONSIBLE OR
PAY FOR INSTALLATION OR REINSTALLATION COSTS.
8
© 2008 Directed Electronics. All rights reserved.
This product is designed for fuel injected vehicles only. Use of this
product in a standard transmission vehicle must be in strict accordance
with this guide.
This product should not be installed in any convertible vehicles, soft or
hard top with a manual transmission. Installation in such vehicles may
pose certain risk.
© 2008 Directed Electronics. All rights reserved.
9
What is included
1 five-button, 2-way Supercode Responder LC remote control •
(p/n 7752X)
1 five-button, 1-way Supercode remote control •
The control module with Stinger™DoubleGuard®two-stage shock •
sensor
Control center with integrated status LED and Valet override •
switch (P/N 6711T)
Revenger™Soft Chirp™six-tone siren•
A remote start defeat toggle switch•
Battery charger•
Window decals•
Your warranty registration•
(p/n 7652X)
Important information
Congratulations on the purchase of your state-of-the-art remote start and
alarm system. Due to the complexity of this system, it must be installed
by an authorized dealer only. Installation of this product by anyone
other than an authorized dealer voids the warranty. All dealers are
provided with a preprinted dealer certificate to verify authorization.
By carefully reading this Owner’s Guide prior to using your system,
you will maximize the use of this system and its features. You can print
additional or replacement copies of this manual by accessing our web
site at www.directed.com.
➢ Your warranty
Your warranty registration must be completely filled out and returned
within 10 days of purchase. Your product warranty will not be validat-
10
© 2008 Directed Electronics. All rights reserved.
ed if your warranty registration is not returned. Make sure you receive
the warranty registration from your dealer. It is also necessary to keep
your proof of purchase, which reflects that the product was installed by
an authorized dealer.
➢ Replacement remote controls
Your system comes with one Responder LC remote control (P/N 7752X)
and one companion remote control (P/N
controls are desired, please see your authorized dealer or visit us at
www.directedstore.com to order.
7652X). If additional remote
➢ Out of Range notification
If a command is issued from the remote, but the remote is beyond the
range of the vehicle to receive the command, the remote will respond
with an Out of Range notification. If this occurs, the remote will emit a
harsh tone and the out of range indicator will appear.
Since conditions will vary in different areas (ie: Weather, RF interference, etc) range may be affected and require you to be closer to the
vehicle for successful transmission.
➢ System maintenance
The system requires no specific maintenance. Your One way remote is
powered by small coin cell lightweight 3-volt lithium battery that will last
approximately one year under normal use. The 1-way remote uses one
CR2032 cell battery. The 2-way remote contains a non-replaceable
rechargeable battery. When the battery begins to weaken, the operating range will be reduced.
© 2008 Directed Electronics. All rights reserved.
11
➢ Charging the Battery
Sirius-Ready, SAT Radio Ready or select OEM headunits with optional Honda Bus Compatible Translator
Plug in the USB charger (alternately a standard mini USB cable •
connected to any standard USB port on any laptop or desktop
computer can also be used (cable not included).
The LCD displays “CHARGE” while the battery level bars within •
the battery icon flash.
When charging is complete the LCD then displays “FULL”. •
Note:
If the battery has been severely discharged all remote functions
are disabled for a short charge period. The battery status outline flashes
and CHARGE is displayed on the LCD. Once the battery has accumulated enough charge for functionality, the LCD icons initialize with
a beep sound, the battery status outline stops flashing and the remote
becomes operational while still displaying CHARGE.
Warning! The temperature range over which the
battery can be charged is 0ºC TO 45ºC (32ºF
TO 113ºF). Charging the battery at temperatures
outside this range may cause severe damage to
the battery or reduce battery life expectancy.
➢ Low battery indicator
When the batteries are low on the 2-way remote it emits two groups of
beeps, the battery icon flashes and low battery is indicated, the alarm
then emits an additional chirp upon disarming of the alarm to let you
know its time to change the battery. When the battery is low on the
1-way remote, the remote responds the same way audibly.
Note:
The Arm/Disarm chirps should be programmed ON for the
alarm to emit any additional chirps during disarm. Ask your authorized
dealer if you have any questions.
12
© 2008 Directed Electronics. All rights reserved.
➢ Battery Replacement
AU X
ALL
ALL
AU X
ALL
ALL
AU X
AU X
Slide the door up to expose the battery beneath the holder. Remove the
expired battery. Place the new battery into the remote control. When
power is returned the remote control is ready for use.
➢ Multi-car control capability
You can operate the 2-way remote control system for two cars, with full
command capability for both vehicles.
To change the Car to be operated:
Two Way Remote
Press/hold the 1.
The
or
displayed.
Change car: While in this mode press the 2.
between cars and the
indicating which car the remote currently operates.
Select the car you want to operate and then press any command 3.
to operate the system. The selected car remains selected until the
setting is changed.
One Way Remote
Press and hold the 1.
twice indicating current vehicle (one blink = car 1, two blinks =
car 2).
To change from one car to the other press the 2.
When using the remote to control the system, the amber light will 3.
flash in a sequence of 1 or 2 flashes indicating the current vehicle
selected.
button for 3 seconds or until the remote beeps.
icon ashes and the text “Car 1” or “Car 2” is
button to switch
or
icon changes accordingly
button until the amber light blinks once or
button again.
© 2008 Directed Electronics. All rights reserved.
13
5319
,&$
)&&,'(=6'(,
531;
,&$
)&&,'(=6'(,
5313
,&$
)&&,'(=6'(,
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
AU X
Responder LC 2-Way
Feature Description
1 LCD (2-way) Activity/icon display
2 Lock button
3 Unlock button
4 Auxiliary button
Press for one second to arm.
Press for one second to disarm.
Press and hold for 1.5 second to activate
optional trunk release.
5 Remote start button
Press for one second to activate remote
start.
6 Function button
Allows access to programming and modifies operation of the other buttons.
7 Charge Port (2-way)
8 Label
9 Battery Door (1-way)
10 Transmit LED (1-way)
Note:
If the keypad is locked, first press
14
The battery charger plugs into this port.
Back of remote has label to identify the
remote.
For accessing batteries when necessary.
Active when communicating
© 2008 Directed Electronics. All rights reserved.
and then press
to exit.
LC 1-way companion
10
5313
,&$
)&&,'(=6'(,
%$77(5<&5
A U X
531;
,&$
)&&,'(=6'(,
%$77(5<&5
2
3
4
5
6
8
9
10
2
3
4
5
6
8
9
10
2
3
4
5
6
8
9
A U X
A U X
A U X
A U X
A U X
A U X
AU X
Note:
See call-out table for 2 way on previous page.
➢ Transmitter configuration
Direct Access
Level
Button
*
© 2008 Directed Electronics. All rights reserved.
Arm/Lock
(Panic)
Disarm/Unlock Silent Disarm Valet
Remote Start
On/Off
Trunk Release AUX 1 AUX 2 AUX 3
Advance Level
Change Car
(3s), Enter
programming
(8s) *
button must be pressed and
x 1
Silent Arm Sensor
Bypass
On/Off
Reset
Runtime
Temperature
Check *
Timer Mode
On/Off
Runtime
Remaining *
held
to access state, for example to
x 2
Silent Mode
Sensors
Car Finder
Smart Start
On/Off
Event His-
tory Report*
x 3
x 4
Silent Mode
All Zones
Defogger
On
15
access “Request temperature” or “Runtime remaining” press the
AU X
ton the specified amount of times, and then hold.
Note:
Pressing more than one button simultaneously generates an Error
tone.
but-
16
© 2008 Directed Electronics. All rights reserved.
Using the system
Please note the screen shot to the right of a feature indicates what the
display looks like when this feature is activated.

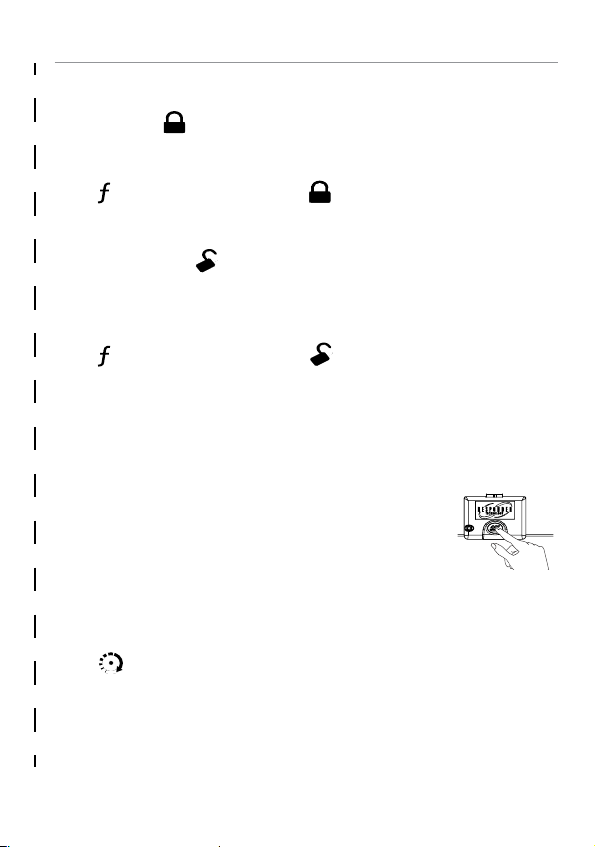

Arm
Command
Feedback
Notes
Details
will flash once. If the power door locks have been connected, the
doors will lock. The system will automatically check for errors when it
arms. The 2-way remote will “chirp” once and the lock icon appear to
confirm arming. If no arm confirmation is received, the remote will give
the Out-Of-Range signal.
If errors are found when arming:
If an alarm trigger zone – such as a door, the trunk, the hood, or a
sensor, was active at the time of arming, the system will “bypass”, or
ignore, this trigger zone. This allows the system to continue to protect
your vehicle using the remaining trigger zones.
You are notified of this active zone immediately after arming the system.
The siren in the vehicle will “chirp” again after arming. The Status LED
indicator in the vehicle will blink in a pattern to indicate the active
zone number error which was found (See Table of Zones). The 2-way
remote control will sound a short “error” tone and the text will display
the active zone..
© 2008 Directed Electronics. All rights reserved.
:
Press one time to Arm
:
Lock Icon will appear, and one beep
from remote
:
Press/hold for 1.5 seconds to Arm
the system and then activate the
Panic output
: The siren in the vehicle will “chirp” once and the parking lights
17
Disarm
Command
Feedback
:
Press one time to Disarm
: Unlock icon appears and remote beeps
twice
The siren in the vehicle will “chirp” twice, and the
parking lights will flash. The 2-way remote will
“chirp”
twice
and the
unlock icon appears to
confirm disarming. The door locks (if connected) will unlock and the
parking lights will flash
Note:
For additional chirps when disarming the system refer to the
diagnostics section of this guide
Remote Start
Command
:
Press one time to activate Remote
Start
Feedback
:
Remote Start Icon appears on screen.
remote emits a tone and parking
lights flash
Notes:
Before using the remote start be sure the vehicle is parked in a safe
area with proper ventilation.
The preset remote start run time is 12 minutes. This can be changed to
between 12 and 60 minutes.
The system has a feature, if programmed On , that automatically notifies you when the runtime is running low. When the system reaches 3
18
© 2008 Directed Electronics. All rights reserved.
Loading...
