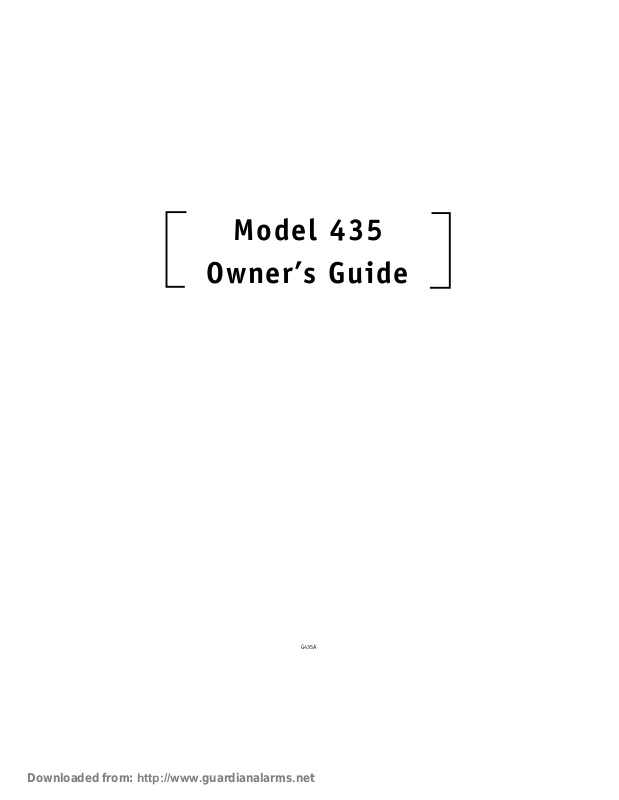

Directed Electronics 435 User Manual
G435A
Model 435
Owner’s Guide
Downloaded from: http://www.guardianalarms.net
i
©
1999 Directed Electronics, Inc.
Limited Lifetime
Consumer Warranty
Directed Electronics, Inc. ("DEI®") promises to the original purchaser to repair or replace with a comparable reconditioned model any DEI unit (hereafter the "unit"), excluding
without limitation the siren, the remote transmitters, the associated sensors and accessories, which proves to be defective in workmanship or material under reasonable
use during the lifetime of the vehicle provided the following conditions are met: the
unit was professionally installed and serviced by an authorized DEI dealer; the unit will
be professionally reinstalled in the vehicle in which it was originally installed by an
authorized DEI dealer; and the unit is returned to DEI, shipping prepaid with a legible copy of the bill of sale or other dated proof of purchase bearing the following
information: consumer's name, telephone number and address; the authorized dealers
name, telephone number and address; complete product description, including accessories; the year, make and model of the vehicle; vehicle license number and vehicle
identification number. All components other than the unit, including without limitation the siren, the remote transmitters and the associated sensors and accessories, carry
a one-year warranty from the date of purchase of the same. This warranty is non-transferable and is automatically void if: the original purchaser has not completed the warranty
card and mailed it within ten (10) days of the date of purchase to the address listed
on the card; the unit's date code or serial number is defaced, missing or altered; the
unit has been modified or used in a manner contrary to its intended purpose; the unit
has been damaged by accident, unreasonable use, neglect, improper service, installation or other causes not arising out of defects in materials or construction. The
warranty does not cover damage to the unit caused by installation or removal of the
unit. DEI, in its sole discretion, will determine what constitutes excessive damage and
may refuse the return of any unit with excessive damage. TO THE MAXIMUM EXTENT
ALLOWED BY LAW, ALL WARRANTIES, INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR
PARTICULAR PURPOSE AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL
PROPERTY, ARE EXPRESSLY EXCLUDED; AND DEI NEITHER ASSUMES NOR AUTHORIZES
ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY, OBLIGATION OR LIABILITY
IN CONNECTION WITH ITS PRODUCTS. DEI DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED
DEALERS OR INSTALLERS. DEI SECURITY SYSTEMS, INCLUDING THIS UNIT, ARE DETERRENTS AGAINST POSSIBLE THEFT. DEI IS NOT OFFERING A GUARANTEE OR
INSURANCE AGAINST VANDALISM, DAMAGE OR THEFT OF THE AUTOMOBILE, ITS PARTS
OR CONTENTS; AND HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER,
INCLUDING WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR VANDALISM.
THIS WARRANTY DOES NOT COVER LABOR COSTS FOR MAINTENANCE, REMOVAL OR
ii
©
1999 Directed Electronics, Inc.
REINSTALLATION OF THE UNIT OR ANY CONSEQUENTIAL DAMAGES OF ANY KIND. IN
THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DEI OR ITS SUBSIDIARY, THE PROPER
VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA. CALIFORNIA
STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY AND GOVERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY CLAIM AGAINST DEI SHALL BE STRICTLY
LIMITED TO THE AUTHORIZED DEI DEALER'S PURCHASE PRICE OF THE UNIT. DEI SHALL
NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, DAMAGES FOR THE
LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY
AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER DOES OFFER
A LIMITED WARRANTY TO REPLACE OR REPAIR THE CONTROL MODULE AS DESCRIBED
ABOVE. Some states do not allow limitations on how long an implied warranty will last
or the exclusion or limitation of incidental or consequential damages. This warranty
gives you specific legal rights and you may also have other rights that vary from State
to State.
This product may be covered by a Guaranteed Protection Plan ("GPP"). See your authorized DEI dealer for details of the plan or call DEI Customer Service at 1-800-876-0800.
DEI security systems, including this unit, are deterrents against possible theft. DEI is
not offering a guarantee or insurance against vandalism, damage or theft of the automobile, its parts or contents; and hereby expressly disclaims any liability whatsoever, including
without limitation, liability for theft, damage and/or vandalism. DEI does not and has
not authorized any person or entity to create for it any other obligation, promise, duty
or obligation in connection with this security system.
Make sure you have all of the following information from your dealer:
A clear copy of the sales receipt, showing the following:
■ Date of purchase
■ Your full name and address
■ Authorized dealer's company name and address
■ Type of alarm installed
■ Year, make, model and color of the automobile
■ Automobile license number
■ Vehicle identification number
■ All security options installed on automobile
■ Installation receipts
11
©
1999 Directed Electronics, Inc.
Table of Contents
Limited Lifetime Consumer Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i
What Is Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Your Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FCC/ID Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Transmitter Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Standard Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Disarming Without a Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Silent Mode™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Panic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Valet Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Remote Valet
®
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Nuisance Prevention
®
Circuitry (NPC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Arming Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Disarming Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Table of Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Code Hopping™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Owner Recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Multi-vehicle Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Rapid Resume Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installation Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Programming Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Security & Convenience Expansions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Glossary Of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Quick Reference Guide (Removable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2
©
1999 Directed Electronics, Inc.
Standard Configuration
3
©
1999 Directed Electronics, Inc.
What is Included
■ A control module
■ Two four-button remote transmitters
■ A Stinger
®
dual-stage shock sensor (on-board the control module)
■ A Revenger
®
Soft Chirp®six-tone programmable siren
■ A red status LED indicator light
■ A push-button Valet switch
■ A Failsafe
®
Starter Kill relay (may require additional labor)
Important Information
This security system has been designed to provide years of trouble-
free operation. Due to its complexity, it must be installed by an
authorized dealer only. Installation of this product by anyone other
than an authorized dealer voids the warranty. All dealers are pro-
vided with preprinted dealer certificates to verify that they are
authorized.
By carefully reading this owner's guide prior to using your secu-
rity system, you will maximize the use of this system and its
features.
4
©
1999 Directed Electronics, Inc.
This system requires no specific maintenance. Your remote is pow-
ered by a miniature 3-volt battery, type 2032, that lasts approximately
one year under normal use. When the battery weakens, the LED on
the remote will dim and operating range will be reduced.
Your warranty card must be returned and the barcode serial number
must not be removed. If the warranty card is not returned, no war-
ranty will be honored on your unit. It is also necessary to keep your
proof of purchase, which reflects that the product was installed by
an authorized dealer. Make sure you receive the warranty card from
your dealer.
This device complies with part 15 of FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harm-
ful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate this device.
FCC/ID Notice
Your Warranty
System Maintenance
5
©
1999 Directed Electronics, Inc.
Transmitter Functions
Your vehicle security system is programmable, making it possible
to assign any button on the remote to any specific receiver func-
tion. The transmitter initially comes programmed with the Standard
Configuration, but may also be customized by an authorized dealer.
Unless otherwise specified, all instructions in this manual assume
operation using the Standard Configuration.
The functions of the buttons described below correspond to a trans-
mitter programmed with the default Standard Configuration. These
buttons will function differently in a Custom Configuration.
Button
The arming and locking functions are controlled by pressing this but-
ton for one second.
Button
The disarming and unlocking functions are controlled by pressing
this button for one second.
Button
Silent Mode
™
and an optional auxiliary function are controlled by press-
ing this button. Silent Mode
™
works by pressing for less than
one second. An optional auxiliary function, such as trunk release,
is controlled by pressing and holding for 1.5 seconds. The aux-
iliary output controls _____________________________.
Standard Configuration
