[ Put a stop to crime ]

S e c u r i t y s y s t e m a n d c o n v e n i e n c e

MODELMODEL

[ User guide ]

110XV 110XV

Limited Consumer Warranty

For a period of five calendar year from the date of purchase of this device, Directed Electronics, Inc. promises to the ORIGINAL PURCHASER to repair or replace (with a comparable reconditioned model), free of cost, any electronic control module which proves to be defective in workmanship or material under normal use, SO LONG AS THE SYSTEM WAS SOLD, INSTALLED, AND SERVICED BY A PROFESSIONAL AUTO INSTALLER, AND REMAINS IN THE CAR IN WHICH THE SYSTEM WAS ORIGINALLY INSTALLED. If warranty service is necessary you must have a clear copy of your sales receipt containing all of the information shown on the following page.

After the fifth calendar year, from the date of purchase of this device, Directed Electronics, Inc., promises to the ORIGINAL PURCHASER to repair or replace (with a comparable reconditioned model) any electronic control module which proves to be defective in workmanship or material under normal use FOR A CHARGE OF $45.00, SO LONG AS THE SYSTEM WAS SOLD, INSTALLED, AND SERVICED BY A PROFESSIONAL AUTO INSTALLER, AND REMAINS IN THE CAR IN WHICH THE SYSTEM WAS ORIGINALLY INSTALLED. If warranty service is necessary you must have a clear copy of your sales receipt containing all of the information shown on the following page.

This warranty contains the entire agreement relating to warranty and supersedes all previous and contemporaneous representations or understandings, whether written or oral. IN ANY EVENT, DIRECTED ELECTRONICS, INC. IS NOT LIABLE FOR THE THEFT OF THE VEHICLE AND/OR ITS CONTENTS.

This warranty is void if the product has been damaged by accident, unreasonable use, neglect, improper service or other causes not arising out of defects in materials or construction. This warranty is nontransferable and does not apply to any unit that has been modified or used in a manner contrary to its intended purpose and does not cover batteries. The unit in question must be returned to the manufacturer, postage prepaid. This warranty d

oes not cover labor costs for the removal, diagnosis, troubleshooting or reinstallation of the unit. For service on an out-of-warranty product a flat rate fee by model is charged. Contact your authorized dealer to obtain the service charge for your unit.

These systems are a deterrent against possible theft. Directed Electronics, Inc. is not offering a guarantee or insuring against the theft of the automobile or its contents and disclaims any liability for the theft of the vehicle and/or its contents. Directed Electronics does not authorize any person to create for it any other obligation or liability in connection with this security system.

TO THE MAXIMUM EXTENT ALLOWED BY LAW, ANY AND ALL WARRANTIES ARE EXCLUDED BY THE MANUFACTURER AND EACH ENTITY PARTICIPATING IN THE STREAM OF COMMERCE THEREWITH. THIS EXCLUSION INCLUDES BUT IS NOT LIMITED TO THE EXCLUSION OF ANY AND ALL WARRANTY OF MERCHANTABILITY AND/OR ANY AND ALL WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY AND ALL WARRANTY OF NON-INFRINGEMENT OF PATENTS, IN THE UNITED STATES OF AMERICA AND/OR ABROAD. NEITHER THE MANUFACTURER OR ANY ENTITIES CONNECTED THEREWITH SHALL BE RESPONSIBLE OR LIABLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, TOWING, REPAIR, REPLACEMENT, DAMAGES FOR LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY AND THE LIKE. NOTWITHSTANDING THE ABOVE, MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR THE CONTROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on how long an implied warranty will last or the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

IMPORTANT NOTE:

This product warranty is automatically void if its date code or serial number is defaced, missing, or altered. This warranty will not be valid unless you have completed the warranty card and mailed it to Directed Electronics, Inc. within 10 days after purchase to the address listed on the warranty registration card.

Make sure you have all of the following information from your dealer:

A clear copy of the sales receipt, showing the following:

■ Date of purchase

■ Your full name and address

■ Authorized dealer's company name and address

■ Type of system installed

■ Year, make, model and color of the automobile

■ Automobile license number

■ Vehicle identification number

■ All security options installed on automobile

■ Installation receipts

ttaabbllee ooff ccoonntteennttss

lliimmiitteedd lliiffeettiimmee ccoonnssuummeerr wwaarrrraannttyy .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ii

ssttaannddaarrdd ttrraannssmmiit

ttteerr ccoonnffiigguurraattiioonn.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 33

wwhhaatt iiss iinncclluuddeedd.. .. .. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 44

iimmppoorrttaanntt iinnffoorrmmaattiioonn.. .. .. .. .. .. ..

.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 44

system maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

your warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

fcc/id notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

ttrraannssmmiitttteerr ffuunnccttiioonnss .. .. .. .. .. .. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 66

standard configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

uussiinngg yyoouurr ssyysstteemm .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 88

warning! safety first. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

active arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

passive arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

multi-level security arming . . . . . . . . . . . . . . . . . . . . . . . . . . 12

arming while driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

disarming without a transmitter . . . . . . . . . . . . . . . . . . . . . . 14

silent mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

panic mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

valet mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

remote start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

valet take-over. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

short-run/turbo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

timer mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

ssaaffeettyy ffeeaattuurreess.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 2222

starter anti-grind circuitry. . . . . . . . . . . . . . . . . . . . . . . . . . . 22

disabling the remote start system . . . . . . . . . . . . . . . . . . . . . 22

over and under rev protection. . . . . . . . . . . . . . . . . . . . . . . . 22

shut down inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

nuisance prevention circuitry . . . . . . . . . . . . . . . . . . . . . . . . 23

ddiiaaggnnoossttiiccss .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 2244

arming diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

disarming diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

system status chirps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

table of zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

interpreting zone diagnostics . . . . . . . . . . . . . . . . . . . . . . . . 27

ccooddee hhooppppiinngg .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..

.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 2288

hhiigghh ffrreeqquueennccyy .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 2288

oowwnneerr rreeccooggnniittiioonn .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 2299

rraappiidd rreessuummee llooggiicc .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 2299

ppoowweerr s

saavveerr mmooddee .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3300

pprrooggrraammmmiinngg ooppt

tiioonnss .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3300

sseeccuurriittyy && ccoonnvveenniieennccee eexxp

paannssiioonnss .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3333

gglloossssaarryy ooff tteerrmmss .. .. .. .. .. .. .. .. .. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3355

qquuiicckk rreeffeerreennccee gguuiiddee .. .. .. .. .. .. .. .. .. .. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3377

nnootteess .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3388

ssttaannddaarrdd ttrraannssmmiitttteerr ccoonnffiigguurraattiioonn

controls the

AArrmm

and

PPaanniicc

On/Off function.

controls the

DDiissaarrmm

and

PPaanniicc

Off function.

controls

SSiilleenntt MMooddee™™

and

AAuuxxiilliiaarryy

channel 22output.

controls the

RReemmoottee SSttaarrtt

function.

and pressed together control the

TTiimmeerr

mode.

and pressed together control

TTuurrbboo//SShhoorrtt RRuun

and pressed together control channel 44output.

and pressed together control channel 55output

wwhhaatt iiss iinncclluuddeedd

iimmppoorrttaanntt iinnffoorrmmaattiioonn

Congratulations on the purchase of your combination remote

start alarm system. Due to the complexity of this system, it must

be installed by an authorized dealer only. Installation of this

product by anyone other than an authorized dealer voids the

warranty. All dealers are provided with a preprinted dealer certifi-

cate to verify authorization.

By carefully reading this Owner's Guide prior to using your

system, you will maximize the use of this system and its features.

You can print additional or replacement copies of this manual by

accessing our web site at www.directed.com.

➤ A control module

➤ An XHF receiver/antenna

➤ Two four-button transmitters

➤ A Stinger™ DoubleGuard® two-stage shock sensor

➤ A Revenger™ Soft Chirp™ six-tone programmable siren

➤ A status LED indicator light

➤ A push-button Valet® switch

➤ Your warranty registration

➤ A shut-down toggle switch

system maintenance

The system requires no specific maintenance. Your remote is

last approximately one year under normal use. When the battery

begins to weaken, operating range will be reduced and the LED

on the remote will dim.

your warranty

Your warranty registration must be completely filled out and

returned within 10 days of purchase. Your product warranty

will not be validated if your warranty registration is not returned.

Make sure you receive the warranty registration from your dealer.

It is also necessary to keep your proof of purchase, which reflects

that the product was installed by an authorized dealer.

fcc/id notice

This device complies with Part 15 of FCC rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) This device must accept any

interference received, including interference that may cause

undesired operation.

Changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to

operate this device.

➜

caution

This product is designed for fuel injected, automatic transmis-

sion vehicles only. Use of this product in a standard transmission

vehicle is dangerous and contrary the product's intended use.

ttrraannssmmiitttteerr ffuunnccttiioonnss

The receiver uses a computer-based Learn Routine to learn the

transmitter buttons. This makes it possible to assign any remote

transmitter button to any receiver function. The transmitter

initially comes programmed with Standard Configuration, but

may also be customized by an authorized dealer. The buttons in

all of the instructions in this manual correspond to a Standard

Configuration transmitter.

standard configuration

Button

The arming and panic functions are controlled by pressing this

button for one second.

Button

The disarming function is controlled by pressing this button for

one second.

Button

Silent Mode™ and an optional auxiliary function are controlled

by this button. (Silent Mode works by pressing this button for

➜

less than one second before arming or disarming. An optional

auxiliary function, such as trunk release, can be controlled by

pressing this button for 1.5 seconds.)

The auxiliary output controls __________________________.

Button

The remote start function of your system is controlled by

pressing this button twice within 3 seconds.

and Buttons

An optional auxiliary convenience or expansion function that

you have added to your system can be activated by pressing these

buttons simultaneously.

The auxiliary output controls __________________________.

and Buttons

An optional auxiliary convenience or expansion function that

you have added to your system can be activated by pressing these

buttons simultaneously.

The auxiliary output controls __________________________.

and Buttons

The remote start timer mode is controlled by pressing these

buttons simultaneously.

and Buttons

The short-run turbo mode is activated when these buttons are

pressed simultaneously.

uussiinngg yyoouurr ssyysstteemm

warning! safety first

The following safety warnings must be observed at all times:

➤ Due to the complexity of this system, installation of this

product must only be performed by an authorized Directed

dealer.

➤ When properly installed, this system can start the vehicle via

a command signal from the remote control transmitter.

Therefore, never operate the system in an enclosed area or

partially enclosed area without ventilation (such as a garage).

When parking in an enclosed or partially enclosed area or

when having the vehicle serviced, the remote start system

must be disabled using the installed toggle switch. It is the

user's sole responsibility to properly handle and keep out of

reach from children all remote control transmitters to assure

that the system does not unintentionally remote start the

vehicle.

TTHHEE UUSSEERR MMUUSSTT IINNSSTTAALLLL AA CCAARRBBOONN

MMOONNOOXXIIDDEE DDEETTEECCTTOORR IINN OORR AABBOOUUTT TTHHEE

LLIIVVIINNGG AARREEAA AADDJJAACCEENNTT TTOO TTHHEE VVEEHHIICCL

LEE.. AALLLL

DDOOOORRSS LLEEAADDIINNGG FFRROOMM AADDJJAACCEENNTT LLIIVVIINNGG AARREEAASS

TTOO TTHHEE EENNCCLLOOSSEEDD OORR PPAARRTTIIAALLLLYY EENNCCLLOOSSEEDD

VVEEHHIICCLLEE SSTTOORRAAG

GEE AARREEAA MMUUSSTT AATT AALLLL TTIIMMEESS

RREEMMAAIINN CCLLOOSSEEDD..

These precautions are the sole respon-

sibility of the user.

➤ Use of this product in a manner contrary to its intended

➜

mode of operation may result in property damage, personal

injury, or death. (1) Never remotely start the vehicle with the

vehicle in gear, and (2) Never remotely start the vehicle with

the keys in the ignition. The user must also have the neutral

safety feature of the vehicle periodically checked, wherein the

vehicle must not remotely start while the car is in gear. This

testing should be performed by an authorized Directed dealer

in accordance with the Safety Check outlined in the product

installation guide. If the vehicle starts in gear, cease remote

start operation immediately and consult with the authorized

Directed dealer to fix the problem.

➤ After the remote start module has been installed, contact

your authorized dealer to have him or her test the remote

start module by performing the Safety Check outlined in the

product installation guide. If the vehicle starts when

performing the Neutral Safety Shutdown Circuit test, the

remote start unit has not been properly installed. The remote

start module must be removed or the installer must properly

reinstall the remote start system so that the vehicle does not

start in gear. All installations must be performed by an autho-

rized Directed dealer.

OOPPEERRAATTIIOONN OOFF TTHHEE RREEMMOOTTEE

SSTTAARRTT MMOODDUULLEE IIFF TTHHEE VVEEHHIICCLLEE SSTTAARRTTSS IINN GGEEAARR

IISS CCOONNTTRRAARRYY TTOO IITTSS IINNTTEENNDDEEDD MMOODDE

E OOFF OOPPEERR--

AATTIIOONN.. OOPPEERRAATTIINNGG TTHHEE RREEMMOOTTEE SSTTAARRTT SSYYSSTTEEMM

UUNNDDEERR TTHHEESSEE CCOONNDDIITTIIOONNSS MMAAYY RREESSUULLTT IINN

PPRROOPPEERRTTYY DDAAM

MAAGGEE OORR PPEERRSSOONNAALL IINNJJUURRYY.. YYOOUU

MMUUSSTT IIMMMMEEDDIIAATTEELLYY CCEEAASSEE TTHHEE UUSSEE OOFF TTHHEE

UUNNIITT AANNDD SSEEEEKK TTHHEE AASSSSIISSTTAANNCCEE OOFF AANN AAUUTTHHOO--

RRIIZZEEDD DDIIRREECCTTEEDD DDEEAALLEERR TTOO RREEPPAAIIRR OORR

DDIISSCCOONNNNEECCTT TTHHEE IINNSSTTAALLLLEED

D RREEMMOOTTEE SSTTAARRTT

MMOODDUULLEE.. DDIIRREECCTTEEDD WWIILLLL NNOOTT BBEE HHEELLDD

RREESSPPOONNSSIIBBLLEE OORR PPAAYY FFOORR IINNSSTTAALLLLAATTIIOONN OORR

RREEIINNSSTTAALLLLAATTIIO

ONN CCOOSSTTSS..

active arming

You can arm the system by pressing of your transmitter for

one second. When the system arms, you will hear a short siren

sound, or chirp, and see the parking lights flash once. If the

power door locks are controlled by the system, the doors will also

lock. While the system is armed, the status LED will flash

approximately once per second, indicating that the system is

actively protecting your vehicle. If you hear a second chirp after

arming and note that the status LED is flashing in groups, see the

Diagnostics Section of this guide. This extra chirp is called Bypass

Notification.

passive arming

The system can be programmed to arm itself automatically (called

passive arming). If the system is programmed for passive arming, it

will automatically arm 30 seconds after the ignition is turned off

and the system detects that you have left the vehicle by opening and

closing a door. Whenever the system is in its 30-second passive

arming countdown, the status LED will flash twice as fast as it does

when the system is armed. At the 20-second point of the count-

➜

down, the siren will chirp to indicate that the system is about to

arm. At the 30-second point, the parking lights will flash to indicate

that the system is armed.

When armed your vehicle is protected as follows:

➤ Light impacts trigger the Warn Away

signal. When trig-

gered, the siren chirps and the parking lights flash for a few

seconds.

➤ Heavy impacts trip a Triggered Sequence. The sequence

consists of the siren sounding continuously and the parking

lights flashing for a pre-programmed period, which can range

in duration from 1 to 180 seconds.

➤ If a door is opened, the system will immediately start

chirping the siren and flashing the parking lights. Three

seconds later, the siren output changes to a continuous blast.

This progressive response gives you time to disarm the system

with your transmitter if you inadvertently open the door

while the system is armed, while still providing instant re-

sponse (even if the door is immediately closed).

➤ Turning on the ignition key will trip the same progressive re-

sponse as opening a door.

➤ The optional starter kill prevents the vehicle’s starter from

cranking.

note: If any protected entry point (such as a door or a switch-protected trunk or hood) is open, the system will not passively arm (unless forced passive arming is programmed on. See Programming Options section.) Additionally, each time a sensor is triggered during the arming countdown, the 30-second countdown starts over.

multi-level security arming

Multi-Level Security Arming allows you to select which of the

system's inputs or sensors will be active and which will be

bypassed when the system is armed. (See Table of Zones section

of this guide.) Pressing (only in Standard Configuration)

again within five seconds of arming the system will activate the

Multi-Level Security feature. Each time is pressed again, a

different security level is selected. The different security levels are

selected as follows:

➤ Press once: The siren chirps once. The system is armed.

➤ Press a second time within five seconds: The siren

chirps twice followed by a long chirp. Zone 2 is now

bypassed.

➤ Press a third time within five seconds: The siren chirps

three times followed by a long chirp. Zone 4 is now

bypassed.

➤ Press a fourth time within five seconds: The siren chirps

four times followed by a long chirp. Zones 2 and 4 are now

bypassed.

➤ Press a fifth time within five seconds: The siren chirps

five times followed by a long chirp. All input zones, except

the ignition, are now bypassed.

➜

arming while driving

Your security system can be armed while driving the vehicle!

Simply press on the transmitter for two seconds while the

vehicle is running. The siren will chirp once to indicate that the

security system is armed, and then once more to indicate that the

ignition is on. The system will not respond to any input except

the door triggers, and the starter kill relay (if installed) will not be

activated. Once you have arrived at your destination, the system

will disarm when the ignition is turned off. The siren will chirp

twice and the LED will then stop flashing. The system can also

be disarmed at any time by pressing

disarming

To disarm the security system, press . You will hear two

chirps, and the parking lights will flash twice. If the power locks

are controlled by the system, the doors will also unlock. The siren

chirping either four or five times when disarming indicates

Tamper Alert, which is described in the Diagnostics Section of

this guide.

➜

note: Multi-Level Security Arming only applies to a single arming cycle. Once the system is disarmed and then re-armed, all the zones will be active again.

high security disarm

This security system offers High Security Disarm. High Security

Disarm is a feature that makes it possible to silence and reset the

system while it is triggering, without disarming the system. If the

system is triggered and the siren has been sounding for longer

than six seconds, pressing on the remote transmitter will

stop the trigger and return the unit to the armed state. The

system will not disarm, but rather reset. This prevents you from

disabling the system should you wish to disarm it without visu-

ally checking the vehicle. Pressing after resetting the system

will disarm the system; pressing this button during the first six

seconds of the triggered sequence will disarm the security system

immediately. The six second timer is provided for your conve-

nience, in case the system is accidentally triggered.

disarming without a transmitter

If your remote transmitter is lost or damaged, you can manually

disarm your vehicle security system. To disarm the system

without a transmitter, you must have the vehicle's ignition key

and know where the Valet

switch is located. Be sure to check

with your installer at the time of installation for both the location

and the preset response (1-5 presses) of the Valet

switch.

➜

To disarm the security system,

turn the ignition to the ON posi-

tion. Press the Valet button the

preset number of times (one to

five times) within 15 seconds.

After five seconds, the system will

disarm. If the system does not

disarm, you may have waited too

long; turn the ignition off and on and try again.

Location of Valet Button_________________________________

Number of Presses_____________________________________

silent mode

To temporarily turn off the arm or disarm chirps, use Silent

Mode™. Simply press for less than one second before

arming or disarming, and the confirmation chirp(s) will be elim-

inated for that one operation only. If you want the arm/disarm

chirps turned off permanently, your dealer can do this for you.

note: The Warn Away® response to lighter impacts is bypassed if the system is armed using Silent Mode. This ensures that no chirps will be emitted by the siren in an area you want chirp-free. The system is still fully capable of triggering. Only the Warn Away® response is bypassed.

➜

important! The Valet®switch can be programmed to respond to 1-5 presses for the disarm function. You must check with the installer to verify the programming for your individual unit.

DRW-35

panic mode

If you are threatened in or near your vehicle, you can attract

attention by triggering the system with your transmitter. Just

press for two seconds, and you will enter Panic Mode. The

siren will sound and the parking lights will flash for the

programmed siren duration. To stop Panic Mode at any time,

press on the remote transmitter again.

valet mode

You can prevent your security system from automatically arming

and triggering by using Valet Mode. This is very useful when

washing the vehicle or having it serviced. In Valet Mode, the

security system will not arm, even with the remote transmitter,

but all convenience functions (door locks, trunk release, etc.) will

continue to work normally.

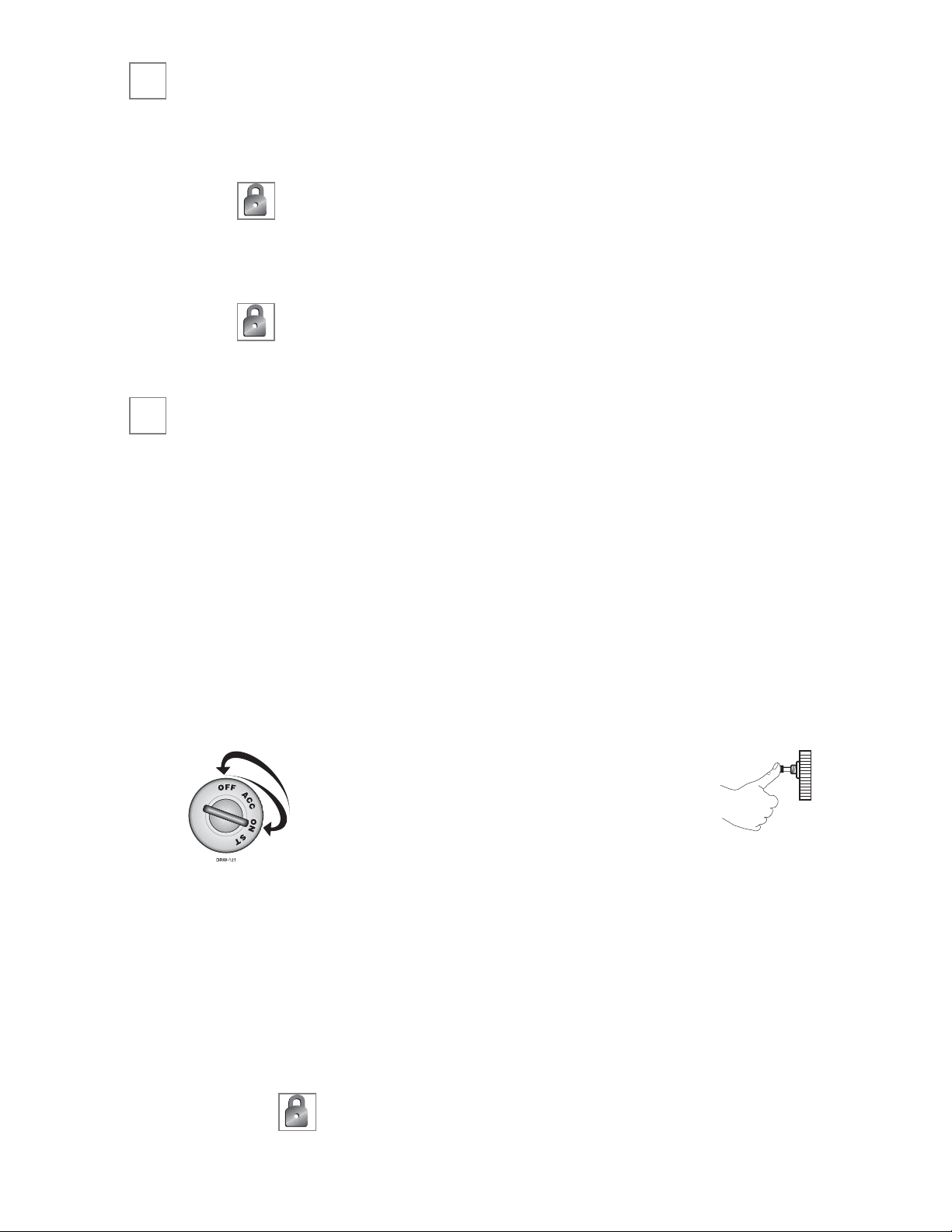

To enter or exit Valet Mode:

1. Turn the ignition on.

2. Turn the ignition off.

3. Press and release the Valet switch

within 10 seconds.

The status LED will light solidly if you are entering Valet Mode,

and it will go out if you are exiting Valet Mode.

To enter or exit Valet Mode using the transmitter:

1. Open any vehicle door.

2. Press .

➜

DRW-35

3. Press .

4. Press again.

The status LED will light solidly if you are entering Valet Mode,

and it will go out if you are exiting Valet Mode.

remote start

This feature allows you to remotely start and run your vehicle for

a programmable period of time. This makes it possible to warm

up the engine, as well as adjust the interior temperature of the ve-

hicle with the climate control system. If interior heating or

cooling is desired, the climate controls must be preset, and the

fan blower must be set to the desired level prior to remote starting

the vehicle.

To remote start the vehicle:

1. Press on the transmitter twice within 3 seconds.

2. The parking lights will flash to confirm that the vehicle will

attempt to start.

3. In gasoline vehicles, the engine will start 4 seconds after the

parking lights flash. In diesel vehicles, the engine will start

when the WAIT-TO-START indicator on the vehicle's dash

goes out.

4. Once the vehicle has started, it will run for the pre-program-

iimmppoorrttaanntt!!

(1) Never remote start your vehicle when the

keys are in the ignition, except when performing Valet

Take-Over, and (2) Never start the vehicle if it is not in either PARK or NEUTRAL.

➜

med period of time (either 12, 24, or 60 minutes - see

Programming Options section of this guide) or until a shut-

down input is triggered.

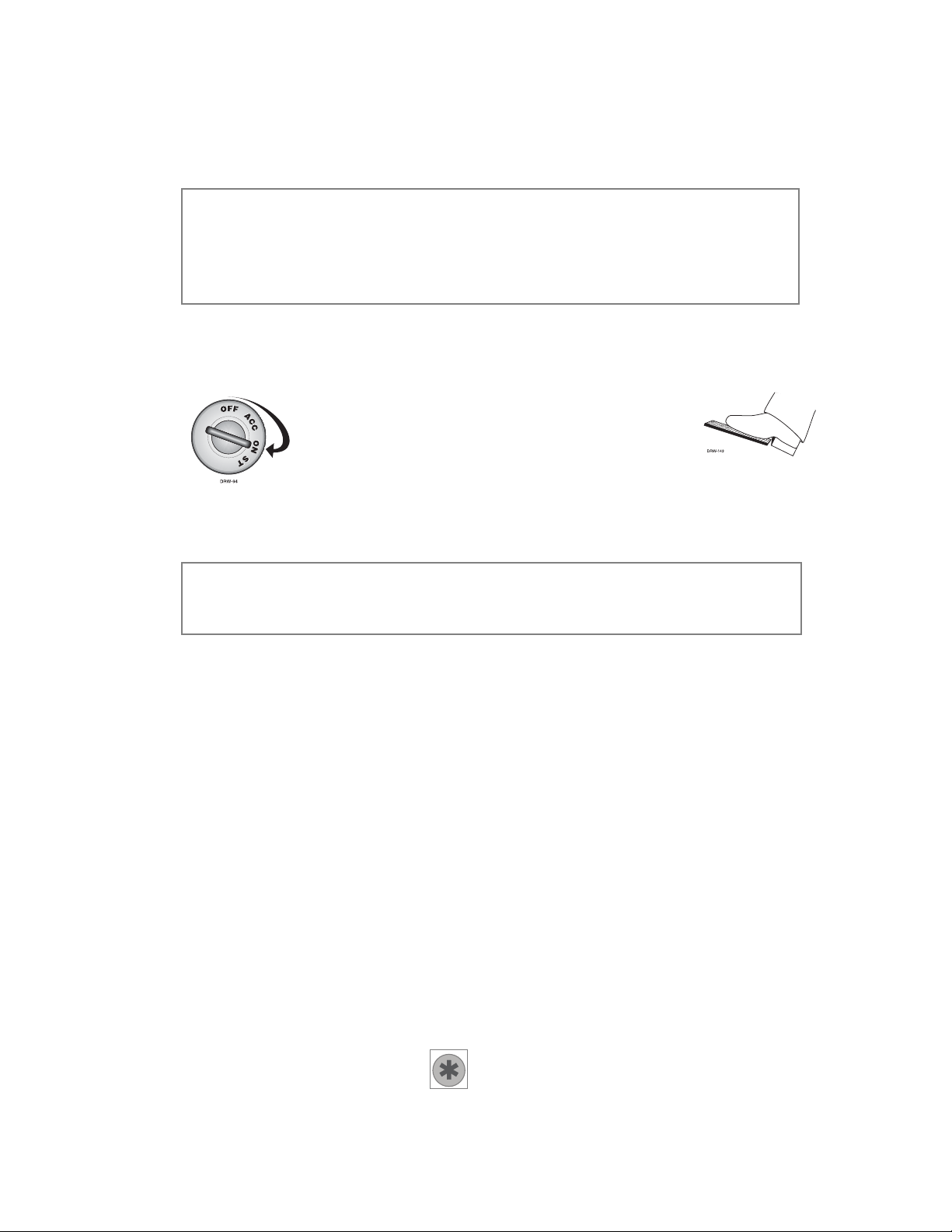

When you are ready to drive the vehicle:

1. Insert the ignition key and turn

it to the ON (not START) posi-

tion.

2. Press the brake pedal.

While the vehicle is running during remote start operation, the

system will monitor the vehicle and will automatically shut down

the engine if the system receives any of the following shut-down

inputs:

➤ The brake pedal is pressed.

➤ The hood is opened.

➤ The shutdown toggle switch is put into the OFF position.

➤ The pre-programmed run time (12, 24, or 60 minutes) has

elapsed.

➤ Transmitter buttons is pressed twice within 3 seconds.

note: If the brake pedal is pressed before the key is in the ON position, the engine will shut down.

iimmppoorrttaanntt!!

It is unsafe to operate a vehicle’s motor in a garage or other closed off area. Breathing the exhaust from the vehicle is hazardous to your health. Never activate the remote start in an enclosed space.

valet take-over

The Valet®Take-Over feature allows the vehicle to remain

running after the key has been removed from the ignition. This

feature is useful for occasions when you wish to exit and lock the

vehicle for short periods of time, but would like to leave the

motor running and the climate controls on.

To perform Valet®Take-Over:

1. Before turning off the engine, press and release twice

within 3 seconds on the transmitter (or press and release the

optional momentary switch). Then wait five seconds.

2. Turn the ignition key to the OFF position. (The engine will

stay running.)

3. The engine will run until the pre-programmed time elapses

or a shut-down input is received. (See the previous Remote

Start section for a complete list of shut-down inputs.)

note: This feature will not work if the brake pedal is being pressed.

➜

short-run/turbo

Short run turbo mode keeps the engine running after arriving at

you destination for a programmable period of 1, 3, 5 or 10

minutes. This allows the system’s timer to conveniently cool

down the turbo after you have left the vehicle.

To activate:

1. Park the vehicle and set parking brake.

2. Remove your foot from the brake pedal and leave the engine

running.

3. Press and release the and buttons at the same time.

4. The lights will flash to indicate the remote start has entered

short run turbo mode.

5. Turn off the key, the engine will keep running.

6. Exit and secure the vehicle.

7. The engine will turn off after the programmed run time.

timer mode

By pressing the remote and buttons the parking

lights will flash 4 times and then start the vehicle and run for the

set duration. The remote start can be shut off by the transmitter

by pressing the remote start button and remain in timer

mode, but if any other shut down zones or the ignition becomes

➜

active the timer mode will cancel.

1. Press Timer mode buttons.

2. The vehicle will confirm with 4 parking light flashes.

3. A 1-second delay will start.

4. The system will start the car and will run for the specified

duration, unless shut down by the remote start button . If

shut down with the remote start button the

system will remain in timer mode.

5. The system will start every 3 hours until canceled by the

brake, hood, or neutral safety shut-down wires.

To exit timer mode, turn the ignition switch on any time the

engine is running. The parking lights will flash 4 times, indi-

cating timer mode has been exited.

important

Timer Mode should be used only in open areas. Never start and run the vehicle in an enclosed space such as a garage or carport.

ssaaffeettyy ffeeaattuurreess

This system has several important safety features to ensure proper

operation of the motor and prevent accidental damage to the

engine or its components.

starter anti-grind circuitry

Whenever the vehicle is remote started, advanced anti-grind

circuitry prevents the starter from engaging, even if the key is

turned to the start position. This prevents damage to the starter

motor if the key is turned to the start position during remote start

operation.

disabling the remote start system

This feature allows your system's remote start unit to be

temporarily disabled to prevent the vehicle from being remote

started accidentally. This feature is useful if the vehicle is being

serviced or stored in an enclosed area. To disable the remote start,

move the shutdown toggle switch to the OFF position. The

switch can be installed in a location of your choice. Check with

your installer for recommended locations.

Location of Shutdown Switch____________________________

over and under rev protection

The system monitors the engine speed and will automatically

shut the engine off if the RPMs rise above or fall below the

➜

programmed levels. This feature prevents damage to the motor

due to fuel delivery system failures or other problems which may

cause the engine to race.

shut down inputs

This security system uses several inputs to shut down the remote

start operation of the motor or prevent remote start if certain

inputs are active. The two most important are hood and brake

inputs. The hood input will prevent the motor from starting, as

well as shut it down, any time the hood is opened. The brake

pedal will shut down the motor at any time during remote start

operation, as well as preventing the remote start from activating

while it is being pressed.

nuisance prevention circuitry

Your system has Directed’s Nuisance Prevention Circuitry

™

(NPC™). It prevents annoying repetitive trigger sequences due to

faulty door pin switches or environmental conditions such as

thunder, jackhammers, airport noise, etc.

Example

If the alarm triggers three times within a 60-minute period and

each time the same sensor or switch triggers the alarm, NPC

™

will interpret those triggers as false alarms. After the third trigger,

➜

note: The system uses a wire connected to the vehicle to sense engine speed. This wire must be connected in order for over and under rev protection to work.

NPC™ignores, or bypasses, that sensor or switch (along with any

other sensors or switches sharing the same zone) for 60 minutes.

If the bypassed sensor tries to trigger the security system while it

is being bypassed, the 60-minute bypass period will start over.

This ensures that a sensor that is continually being triggered will

remain bypassed.

The vehicle doors are protected by NPC

™

differently. If your

security system is triggered by an open door for three full cycles,

the system will bypass the doors until the trigger ceases.

ddiiaaggnnoossttiiccss

The microprocessor at the heart of your system is constantly

monitoring all of the switches and sensors connected to it. It is

designed to detect any faulty switches and sensors and prevents

them from disabling the entire system. The microprocessor will

also record and report any triggers that occurred during your

absence. Refer to the System Status Chirps and Table of Zones

sections of this guide for diagnostic information.

note: Arming and disarming the system does not reset this function! The only ways to reset a bypassed zone are for it to not trigger for 60 minutes, or to turn on the ignition. If testing your system, it is important to remember that the NPC™programming can cause zones to be bypassed and appear to stop working. If five chirps are heard when disarming, NPC™has been engaged. If you wish to clear the NPC™memory, turn the ignition on.

arming diagnostics

If the security system is armed at the same time that an input is

active (such as a door opening or sensor triggering), you will hear

one siren chirp to indicate arming and a second siren chirp to

indicate Bypass Notification. A Bypass Notification chirp means

that the security system ignores the input that was active when

the system was armed, until that input ceases. Three seconds after

that input ceases, the security system will resume normal moni-

toring. For example, if your vehicle has an interior light exit delay

and you arm your security system before the interior light turns

off, you may hear a second Bypass Notification chirp. Once the

light turns off, however, the security system resumes normal

monitoring.

disarming diagnostics

Extra chirps that are heard when disarming the system are the Tamper Alert. If four chirps are heard when disarming the system, then the security system was triggered in your absence. If five chirps are heard when disarming the system, a zone was triggered so many times that the Nuisance Protection Circuitry

™

has

bypassed that zone. In either case, the status LED will indicate which zone was involved (see Table of Zones section). The security system will retain this information in its memory and chirp four or five times each time it is disarmed, until the next time that the ignition is turned on.

➜

note: Bypass Notification does not occur when the system is in Silent Mode or if the notification chirps have been programmed off by the installer.

➜

system status chirps

The siren will chirp when arming/disarming the system. The

pattern of chirps will audibly report the system’s status as

described below.

table of zones

A zone is represented by the number of LED flashes used by the

system to identify a particular type of input. Standard input

assignments are listed in the following table, along with spaces to

write in any optional sensors or switches that have been installed.

➜

Action Number of Chirps Description

Arm 1 System armed

Arm 1 (3-second delay), 1 System armed with

Bypass Notification

Disarm 2 System disarmed

Disarm 4 System disarmed with

Tamper Alert

Disarm 5 System disarmed NPC

active

➜

ZONE

(Number of DEALER-INSTALLED

LED Flashes) DESCRIPTION OPTIONS

1 Trunk Pin

2 Instant trigger - a heavier impact

detected by the shock sensor

3 Door switch trigger

4 Instant trigger - for optional

sensors

5 Ignition trigger

6 Hood Pin

interpreting zone diagnostics

Warn Away responses are not reported by arming or disarming

diagnostics. If you receive a Bypass notification when arming or

a Tamper Alert notification when disarming, look at the LED.

Active or triggered zones will be indicated by a pattern of blinks

by the LED.

Example

If zone 3 was active or triggered, the LED will blink three times

with a two-second pause. Then it will blink three times again,

and repeat until the ignition is turned on.

note: Your system stores the last two triggered zones in memory. If your system has been triggered but the LED has been reset by turning on the ignition, your dealer can still recall the last two zones that were triggered. Contact your dealer for details.

➜

ccooddee hhooppppiinngg

The receiver and transmitters use a mathematical formula called

an algorithm to change their code each time the transmitter is

used. This technology has been developed to increase the secu-

rity of the unit. The control unit knows what the next codes should

be. This helps to keep the transmitter “in sync” with the control

unit even if you use the remote control out of range of the

vehicle. However, if the remote has been pressed many times out

of range of the vehicle, or the battery has been removed, it may fall

out of sync with the control unit and fail to operate the system.

To re-sync the remote simply press several times within

range of the vehicle. The alarm will automatically re-sync and

respond to the transmitters normally.

hhiigghh ffrreeqquueennccyy

Your system transmits and receives at 434 MHz. This provides a

cleaner spectrum with less interference and a more stable signal.

Enjoy a phenomenal increase in range, even in areas with high

radio interference.

oowwnneerr rreeccooggnniittiioonn

Owner Recognition is a revolutionary new feature available only

from Directed. Using a Directed Bitwriter, hand-held program-

ming tool, your dealer can program many of the system settings.

The programmer makes it possible to program different settings

for each transmitter that is used with the system. Then, whenev-

er a specific transmitter is used, the system will recall the settings

assigned to that transmitter. Owner Recognition lets up to four

users of the system have different settings that meet their specific

needs. It is almost like having four separate alarms in your

vehicle, one for each user.

rraappiidd rreessuummee llooggiicc

This Directed system will store its current state to non-volatile

memory. If power is lost and then reconnected the system will

recall the stored state from memory. This means if the unit is in

Valet

Mode and the battery is disconnected for any reason, such

as servicing the car, when the battery is reconnected the unit will

still be in Valet

Mode. This applies to all states of the system

including arm, disarm, and Valet

Mode.

note: Owner Recognition cannot be programmed without a Bitwriter and the necessary software. Check with your dealer for more information.

ppoowweerr ssaavveerr mmooddee

Your system will automatically enter Power Saver Mode while

armed or in Valet

Mode, after a period of time in which no

operation has been performed. This lowers the current draw on

the vehicle's battery. Power Saver Mode takes over under the

following conditions:

➤ Power Saver when the system is armed: After the system has

been armed for 24 hours the LED will flash at half its

normal rate, decreasing the system's current draw.

➤ Power Saver in Valet

Mode: When the system enters Valet

Mode the LED illuminates steadily. If the vehicle is not used

(ignition is not turned on) for a one hour period while the

system is in Valet

Mode, the LED will shut off. If the

system remains in Valet

Mode, the LED will come back on

the next time the ignition is turned on and then back off.

pprrooggrraammmmiinngg ooppttiioonnss

Programming options control your system's normal, operational

set-up. Most options do not require additional parts, but some

may require installation labor.

The following is a list of the programmable options, with the

factory settings in Bold.

➤

AAccttiivvee

arming (transmitter only) or passive arming (auto-

matic arming 30 seconds after the last door has been closed).

➤ Arming/disarming siren chirps

oonn

or off.

➤ The ignition controlled door lock feature

oonn

or off: When

this feature is programmed on, the doors will lock three

seconds after the ignition is turned on, and unlock when the

ignition is turned off. If your installer is programming the

security system with the Directed Bitwriter, ignition lock

and unlock are independent features that can be

programmed separately.

➤ Passive door locking (with passive arming) or

aaccttiivvee ddoooorr

lloocckkiinngg

(only when arming with the transmitter). Passive

locking allows the vehicle's doors to lock when the security

system passively arms (after the 30-second countdown). This

feature only works if passive arming has been programmed.

➤ Panic mode

eennaabblleedd

/disabled when the ignition is turned

on. (Some states have laws against sirens sounding in moving

cars.)

➤ Forced passive arming

oonn

or off. If your security system is

programmed for passive arming and the forced passive

arming feature has been programmed on, the system will

passively arm after one hour, even if a protected entry has

been left open. Forced passive arming ensures that the

system will be armed if a door has accidentally been left ajar

when leaving the vehicle.

note: When the system passively arms after one hour, the entry point that has been left open, and anything connected to the same zone, is bypassed and cannot trigger the system. However, the remaining inputs to the system are fully operational.

➤ Full trigger response

3300

or 60 seconds: This determines how

long the full triggered sequence lasts. Some states have laws

regulating how long a security system can sound before it is

considered a nuisance. If your installer is programming the

security system with the Directed Bitwriter, the full triggered

response can be programmed for any duration ranging from

1 to 180 seconds.

➤ Automatic Engine Disable (AED) on or

ooffff

. The purpose of

this feature is to protect the vehicle from being stolen at all

times, regardless of whether or not the alarm is armed. If

AED is programmed on, the starter of the vehicle will be

disabled 30 seconds after the ignition is turned off. Once the

key is turned off, the LED will flash slowly (one-half its

normal armed rate) to indicate the AED arming cycle.

Thirty seconds later, the starter will be disabled. To start the

car, it will be necessary to disarm the system with the trans-

mitter. It is also possible to disarm the AED feature by

turning the ignition key to the RUN position and pressing

the Valet

button the programmed number of times. AED is

also disabled when the system is in Valet

mode.

➤ Siren tones and chirp volume. The output of the Revenger

™

Soft Chirp™siren consists of six different tones in sequence.

Any of these tones can be eliminated by a dealer, resulting in a

unique, easily identifiable siren sound. The chirps can be either

note: This feature will only function if the FailSafe

Starter Kill relay has been installed.

full volume or

66 ddeecciibbeellss qquuiieetteerr

than the full alarm blast.

➤ The engine can be programmed to run for any duration

ranging from 1 to 60 minutes.

1122 mmiinnuutteess

is the default.

After the programmed run time, the engine will shut down

and will not restart, unless in Timer Mode.

➤ While the remote start system is running the engine, the

parking lights of the vehicle can

ffllaasshh oonn aanndd ooffff

or come on

and light steadily.

sseeccuurriittyy && ccoonnvveenniieennccee eexxppaannssiioonnss

Listed below are some of the many expansion options available.

Please consult your dealer for a complete explanation of all the

options available to you.

Audio Sensor:

Metal on glass, glass cracking, and breaking

glass produce distinctive acoustic signatures. The 506T audio

sensor uses a microphone to pick up sounds, then analyzes them

with proprietary acoustic software to determine if the glass has

been struck.

Backup Battery:

The 520T keeps the system armed, triggers the

alarm and keeps the starter interrupt active if main battery is dis-

connected.

Hood Lock:

Prevents the vehicle’s hood from being opened

without a key, keeping thieves away from the system’s siren, the

battery connections, and other components under the hood.

Field Disturbance Sensor:

An invisible dome of coverage is estab-

lished by installing the 508D “radar” sensor. Your system can

react to any intrusions into this field with the full triggered

sequence.

Power Locks:

This system offers lock outputs that can control

some manufacturers' power door lock systems. For other

systems, additional parts may be required.

Power Trunk Release:

The accessory output of the system can op-

erate a factory power release for the vehicle’s trunk or hatch.

Although the on-board relay can control most power trunk re-

leases, sometimes an optional relay is required. If the factory

release is not power-activated, Directed®'s 522T trunk release

solenoid can often be added.

Power Window Control:

Automatic power window control is pro-

vided with the 529T and 530T systems. These can operate

power windows, and can roll them up automatically when the

system is armed, roll them down, or both up and down.

Mobile Video:

This system is compatible with Directed Video’s

MCB1000 Multi-Channel Controller, featuring on-screen secu-

rity system programming and zone trigger information.

gglloossssaarryy ooff tteerrmmss

Control Unit:

The “brain” of your system. Usually hidden under-

neath the dash area of the vehicle. The control unit houses the

microprocessor which monitors your vehicle and controls all

system functions.

Fault-Proof Starter Interrupt:

An automatic switch controlled by

your system that prevents the vehicle’s starter from cranking

whenever the system is armed. The vehicle is never prevented

from cranking when the system is disarmed, in Valet Mode, or if

the starter interrupt switch itself fails. Your system has feature-

ready circuitry for the starter interrupt, however installation may

require additional labor.

Input:

A physical connection to the system. An input can be

provided by a sensor, pinswitch or by existing systems in the

vehicle, such as ignition or courtesy lights.

LED:

A red light mounted at a discretionary location inside the

vehicle. It is used to indicate the status of your system.

Shock Sensor:

This system has a dual zone shock sensor. This

sensor is mounted in the vehicle and designed to pick up impacts

to the vehicle or glass.

Transmitter:

A hand-held, remote control which operates the

various functions of your system.

Trigger or Triggered Sequence:

This is what happens when the

alarm “goes off” or “trips.” The triggered sequence of your

system consists of the siren sounding and parking lights flashing

for the programmed duration.

Valet Switch:

A small push button mounted at a discretionary

location inside the vehicle. It is used to override the starter inter-

rupt when a transmitter is lost or damaged, or to enter or exit

Valet Mode.

Warning Zone Response:

Lighter impacts to the vehicle will

generate the Warning Zone response. It consists of several

seconds of siren chirps and parking light flashes.

Zone:

A zone is a separate input that the alarm can recognize as

unique. Each input to the system is connected to a particular

zone. Often two or more inputs may share the same zone.

QUICK REFERENCE GUIDE

Arming

■ To arm, press . When the system arms, you will hear a short chirp, and the parking lights will flash once.

Arming while driving

■ To arm the system while driving, press on your transmitter while the vehicle is running. The system will chirp once and then once more to indicate that the ignition is on.

Disarming

■ To disarm, press . You will hear two chirps, and the parking lights will flash twice.

High security disarm

■ For high security disarm, press on your transmitter and the siren will stop sounding. To completely disarm the security system, press again and the system will chirp 4 or 5 times (reporting the trigger).

Disarming without a transmitter

■ Turn on the ignition. Press the Valet®switch within 15 seconds. The system should now disarm. If it does not, you may have waited too long, so turn the ignition off and on and try again.

Silent Mode

™

■ Pressing briefly before arming or disarming will eliminate the confirma-

tion chirp(s) for that one operation only.

Panic Mode

■ Press for 2 seconds, and you will enter Panic Mode. The siren will sound and the parking lights will flash for 30 seconds. To stop Panic Mode at any time, press on the transmitter again.

To remote start the vehicle

■ Press twice within 3 seconds. The parking lights will turn on (if connected) and the vehicle will start and run for the programmed period of time.

To disable the remote start system

■ To disable the remote start, move the shutdown toggle switch to the OFF position.

Location of Valet®switch_________________________________ Number of Valet

switch pulses for disarming_______________

Cut along dotted line and fold for a quick and easy reference to keep in your purse or wallet.

✂

Notes

The company behind this system is Directed Electronics, Inc.

Since its inception, Directed Electronics has had one purpose, to provide consumers with the finest vehicle security and car stereo products and accessories available. The recipient of nearly 100 patents and Innovations Awards in the field of advanced electronic technology, Directed is ISO 9001 registered.

Quality Directed Electronics products are sold and serviced throughout North America and around the world.

Call

((880000)) 336611--77227711

for more information about our products and services.

Directed Electronics Inc

www.directed.ca

G980110 09-4

Directed Electronics is committed to delivering world class quality products

and services that excite and delight our customers.

Directed Electronics 110XV User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
