Thanks for your purchase of our product: Dragon Pedicure Spa.
Please read the operation manual before using the product.
Please put the operation manual in the place easy for you to read and you can read it at any time.

Contents

Introduction

Safety & Precaution

Aftercare Instructions

1

2

3

Assembly Instructions

Operation Instructions

Control Panel

Pedicure Spa Parts

4

9

11

13

Warranty

14

DIR

Contact Us 15

1

Introduction

Dragon Dir

Introduction

Product Name: DRAGON
Product Code: 5820

DIR

DIR

Thank you for selecting DIR, the leading salon and beauty Furniture company in the UK.
The Dragon pedicure spa comes with four-wheel driven muted massage system which
gives you the experience of ultimate relaxation. Please take time to read this entire
manual before assembly and use. If you have any problems or have questions regarding
your pedicure spa, please contact our technical support team:

DIR BIRMINGHAM

93-96 Floodgate Street Tel: [phone]
Birmingham Email: [email protected]
B5 5SR, UK

DIR LONDON

Unit 1 River Road Business Park Tel: [phone]
33 River Road, Barking Email: [email protected]
Greater London IG11 0DA, UK

DIR COLOGNE

Konrad-Adenauer-Straße 25 Tel: + 49 (0) 221 / 88888.128
50996 Köln Email: [email protected]
Germany

DIR NEW YORK

24 Woodward Ave, Suite C Tel: [phone]
Ridgewood, NY 11385 [phone]
USA Email: [email protected]

DIR IRELAND

Unit 5 Block E, Riverview Business Tel: [phone]
Park, Nangor Road, Dublin 12 Email: [email protected]
Republic of Ireland

Safety & Precaution

Dragon Dir

2

The Dragon pedicure spa requires that you contact a local, licensed plumber to install your new pedicure spa. Installation must be
in compliance with all your building codes. Your pedicure spa cannot operate eciently or safely unless it is provided with adequate
electrical power, sucient water pressure, proper water temperature, and required drainage capabilities. Subsequent inspections
and approvals that may be required are the responsibility of the purchaser.

When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using the pedicure spa

1. Use the pedicure spa only for its intended use as described in this manual. Do not use attachments not recommended by the
manufacturer.

2. Never operate the pedicure spa if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged,
or dropped into water.

3. Never drop or insert any object into any opening.

4. The unit must be connected to an electrical supply circuit that is protected by a ground fault circuit interrupter.

5. Do not block jets during whirlpool operation.

6. To reduce the risk of injury, do not permit children to use this unit unless they are supervised at all times.

7. The pedicure spa is for indoor use only. Disconnect power supply cord before servicing and cleaning.

8. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

1. Excessive water temperature is dangerous and should be checked BEFORE use.

2. Maximum temperature of the water should never exceed 100 degrees F.

3. Always enter and exit the pedicure spa slowly and carefully.

4. NEVER bring and / or operate any electrical devices into or near the pedicure spa.

Safety & Precaution

Important
Requirements

Important
Safety
Instructions

Warning

DIR

3

Pedicure Spa Parts

Dragon Dir

Headrest Cushion

Backrest Cushion

Seat

Faucet Handle

Min Max Adjuster

Tap

Pedicure Spa Parts

Shower Head

Drain Button

Power on/o

Legrest

DIR

DIR

4

Assembly Instructions

Dragon Dir

Headrest Cushion

Backrest Cushion

Seat

The backrest cushion and the seat
are connected by a zip.

The headrest cushion and the
backrest cushion are connected
by velcro.

Assembly Instructions

Step 1

DIR

5

Assembly Instructions

Dragon Dir

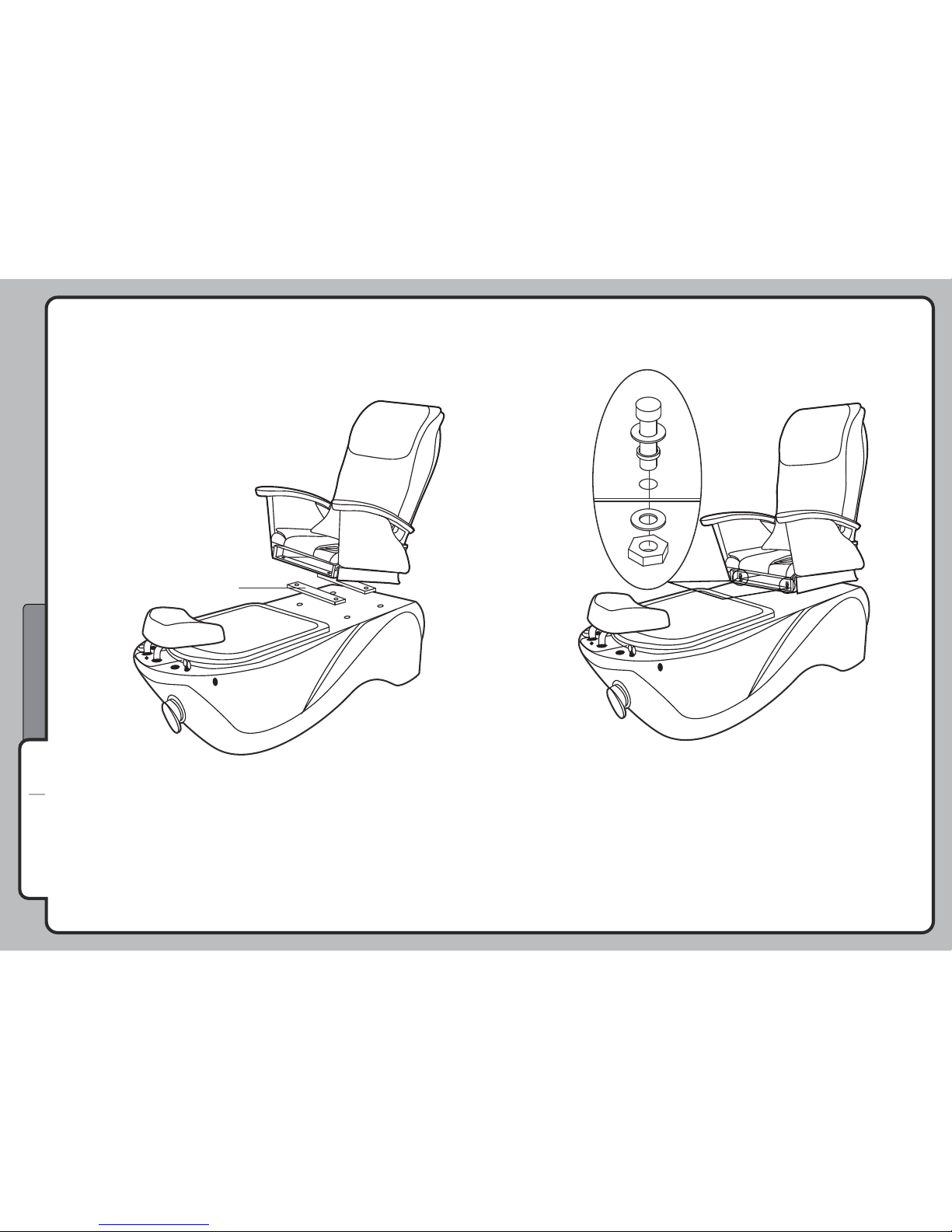

Align the seat with the pre-drilled holes on the base then tightly secure
with the nuts and bolts provided. (use the alan key provided)
Need two person assembly.

Step 2 Step 3

Rubber

DIR

DIR

6

Assembly Instructions

Dragon Dir

Attach the covers for the seat to the front and both sides of the seat.

Step 4

DIR

7

Assembly Instructions

Dragon Dir

Waste Pipe Connection

Waste Pipe Waste Pipe

NOTE: waste pipe must be on a downward ow.

DIR

DIR

8

Assembly Instructions

Dragon Dir

Wall

26 in

15.7 in400 mm

2 Meter a part

DIR

9

Operation Manual

Dragon Dir

Operation Manual

Filling Spa
a. Lift the tap located on the front of the spa.
b. Adjust water temperature by moving the tap left or right.
c. Fill the spa to the height of the client’s ankles. Caution there is no
overow protection

Water Movement On/O
a. To start the Jacuzzi jets, press the “Power On/O” button located on the
front panel of the spa.
b. To control the air ow use turn the adjuster to either min or max.

Drain Water
a. To drain water from the Dragon pedicure spa, turn the faucet handle
located on the front panel on the left hand side.
b. Press the drain button on the side panel.

DIR

DIR

10

Operation Manual

Dragon Dir

Operation Manual

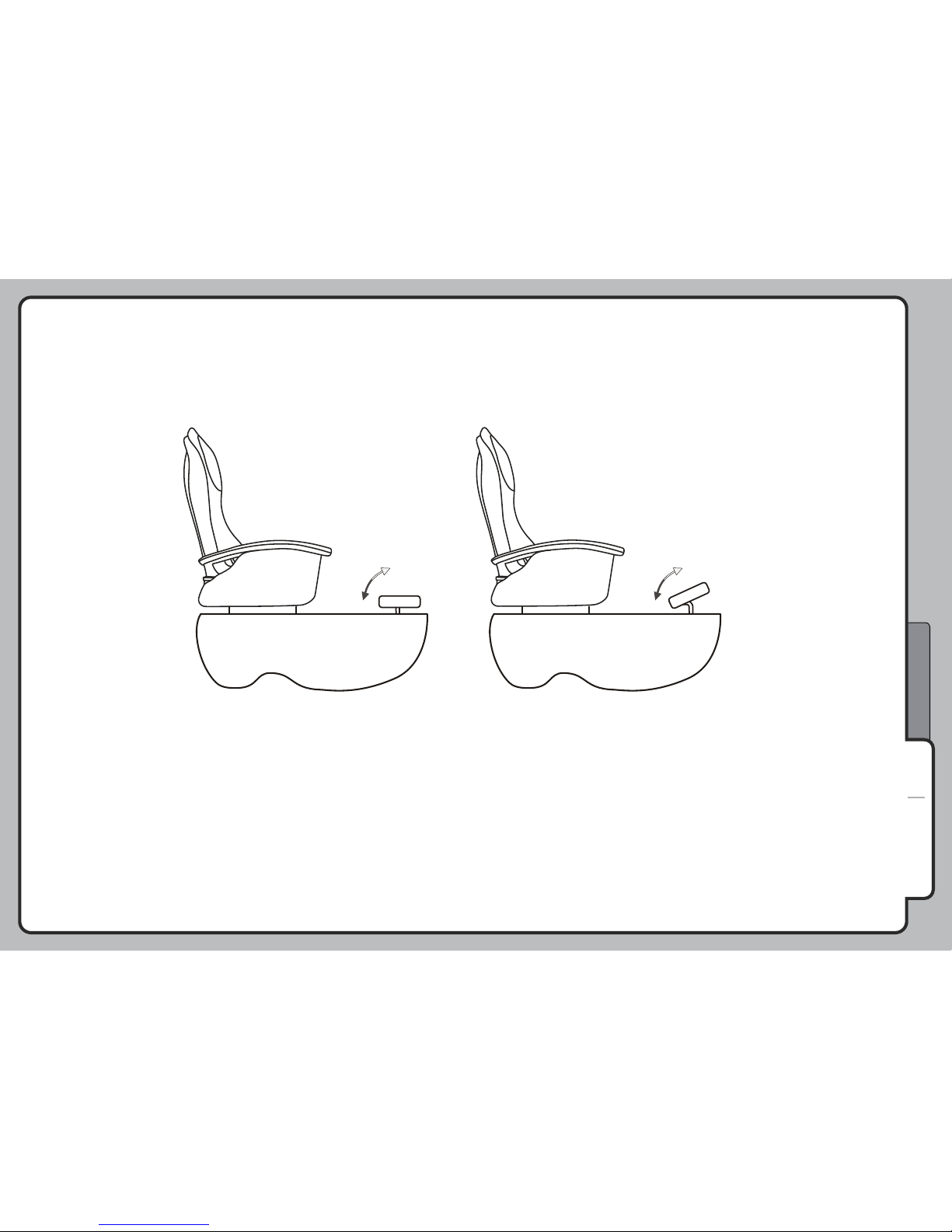

Adjust Legrest
Lift the legrest to meet customer’s needs.

DIR

11

Control Panel

Dragon Dir

Power: to start or stop message of the
upper body. The button will not work
when the massage device is at its
position of recovery.

Timing: to set the massage time, three
period for choice: 10 minutes, 20
minutes, 30minutes.

Upper Body: the massage device works
with various techniques at dierent
body zone of your upper body.

Neck & Shoulder: the massage device
mainly automatically covers your neck or
shoulder.

Back & Waist: the massage device mainly
automatically covers your back and
waist.

Control Panel

1

1

A

D

2

2

3

3

4

4

6

CB

98 0

9

8

0

5

E

7

Buttock

Mode

Intensify

DIR

DIR

12

Control Panel

Dragon Dir

Up Arrow: when xed massage has been chosen,
press this button to move the massage device
upward to suit precise massage points, not available
under auto state.

Down Arrow: when xed massage has been chosen,
press this button to move the massage device
downward to suit precise massage points, not
available under auto state.

Width: when massage treatment of apping, shiatsu,
or knocking has been chosen, press this button to
adjust the width of the massage hands, three options,
not available under auto kneading state.

Press the button continually and the seat
frame will move forward, release your nger
and the movement will stop.

Press this button continually and the seat
frame will move backward, release your
nger and the movement will stop.

Press this button continually and the
backrest frame will move upward, release
your nger and the movement will stop.

Press this button continually and the
backrest frame will move downward,
release your nger and the movement will
stop.

Speed: for speed and massage treatments selection.
Five speed options available. The indicators are as
follows:(black stands for on)

Back Stretching: to select full-range, partial or xed
massage. (overall, xed, partial )

5

6

7

A

KNEAD

B

FLAP

C

KNEAD & FLAP

D

PRESS

E

KNOCK

DIR

13

Aftercare Instructions

Dragon Dir

Caring for the cushion and covers

Soak a piece of soft cloth in lukewarm water in which a small amount of mild detergent has
been added. Then thoroughly wring it out before cleaning o any spots or grime.

Caring for the remote control

Wipe dirt o the remote control with a dry cloth. Never use a moistened or wet cloth as it
may result in mechanical failure.

Caring for other plastic parts

Soak a piece of soft cloth in lukewarm water in which a small amount of mild detergent has
been added. Then thoroughly wring it out before cleaning o any spots or grime. Then
wipe with a dry cloth so that no detergent residue remains.
Do not use alcohol based or other household cleaning products or abrasives because they
can scratch or crack the nish and / or cause colour to fade.

Aftercare Instructions

Caution: When cleaning or caring for the product, make sure to
unplug the product from the wall outlet rst. Do not plug or unplug
the power cord with wet hands。

DIR

DIR

14

Warranty

Dragon Dir

Warranty

Dream In Reality Group oers a 1 year warranty starting from the date of purchase,
which is liable to the original buyer only.
The warranty is under the condition that the goods shall be received free of defects, in
its original condition when purchased and manufactured faults. Damage resulting from
general wear and improper usage will not be covered under the warranty.
Should you require further information or technical support please contact DIR on:
[phone]

Exclusions

1. Damage to pump parts and / or motor parts due to obstruction in plumbing lines etc.

2. Staining, fading or discolouration of plastic surfaces due to exposure and / or the use
of harmful cleaning agents or chemicals.

3. Staining, fading or discolouration caused by improper or poor water additives not
related to the maintenance of proper water are not covered by this warranty.

4. Staining, fading or discolouration of the seat, armrests or footrests.

5. Freight damage, misuse, neglect, accidents, natural disaster and abuse.

6. Unauthorised repairs.
