Dipol K1650 User Manual
V1.1
IP High Speed Dome Camera
User’s Manual
IP High Speed Dome Camera User’s Manual
Chapter 1 Profile
Network Camera is a kind of embedded digital surveillance product collected traditional simulation camera and network
video server. Adopts embedded Linux operation system and SOC hardware platform of Graim Corp. And has characteristics of
high efficiency on system adjustment, solidified code on Flash, small bulk, high stability and reliability.
1.1 Functions and Characteristics
Basic Function
¾ Video compression tech: adopts H 264 video compression tech, high compression ratio with super agility handling.
¾ Network function: integrate TCP/IP protocols and video, alarm, voice data supported, built-in WEB browser, IE interview
supported.
¾ Heartbeat function: host computer is able to know running state of network camera real time by heartbeat function.
¾ PTZ control function: control for PTZ, kinds of decoder protocols and dome cameras supported.
¾ Alarm function: 1 channel alarm input (signal parameter), 1 channel alarm output (on-off parameter), motion detective,
video lost, mask alarm, alarm link output.
¾ Voice speech: two-way voice speech, one-way voice broadcast.
¾ User management: multi-level user popedom management.
Compression Handling Function
¾ 1 channel video signal supported, separate hardware compression, adopts H.264 compression standard on video
compression, not only support change code ratio, but also support change frame ratio, while setting up video image quality,
it’s able to restrict compression bit rate of video image.
¾ D1(PAL:704*576, NTSC:704*480), CIF(PAL:352*288, NTSC:352*240), QCIF(PAL:176*144, NTSC:240*160) supported
¾ OSD supported, date and time setup available.
Remote interview and transmission function
¾ One self-compliant 10M/100M Ethernet interface as standard accessory..
¾ PPPoE, DHCP, DDNS protocol supported.
¾ Available to set parameter, browse real time video, check network camera state through applications or IE browser.
Available to realize alarm link and save compressed bit rate through network.
¾ Available to realize remote upgrade and maintenance through network.
¾ RS-485 can support one-way network rendezvous point aisle connection, client side can control serial devices through
network rendezvous point aisle of network camera.
1.2 Applications
Suitable for circumstances required for network remote surveillance
¾ ATM, Bank Counter, Supermarket, Factory etc
¾ Nursing House, Kindergarten, School etc.
¾ Intelligentized door management system
¾ Intelligentized Building, intelligentized community management system
¾ Electricity station, telecom base station etc unmanned on duty system
¾ Outdoor bridge, tunnel, crossing traffic etc surveillance system
¾ flowing line and warehouse surveillance
¾ 24h surveillance to road traffic
¾ Remote surveillance to forest, fountain and river etc.
Chapter 2 Installation
2.1 cautions
¾ Please check carefully while unpacking, be sure articles inside accordance to the list
¾ Please read this chapter carefully before installation
¾ Be sure to off all concerned power while installation
¾ Check power and voltage in case to damage facility because of unmatched voltage
¾ Installation circumstance: do not install in circumstances of high humidity or high temperature, please keep good ventilation,
pay attention to defend rain, avoid installing in acute vibrate circumstance.
¾ In times of malfunction, do not attempt to dismantle and service the camera yourself. Please refer to qualified serving
personnel to repair or contact our technical department to solve the problems.
Remark: power supply, lens and SD card optional while ex-factory.
IP High Speed Dome Camera User’s Manual
2.2 Panel Illuminate
2.2.1 Rear Elevation
Fig. 2.1 Connection Cable
ID Cable Function Connection
Red/White
1
Black/Purple
AC24V Input Please refer to the camera parameter
2 N/A Video Output Connect to video cable of monitor, standard BNC interface
3 N/A Audio In/Output
3.5mm interface, connect to acoustics device, such as speaker etc for
audio speech output(impedance: >16Ω); connect to audio input device,
such as tone arm(impedance: 1kΩ)
4 N/A Network interface Connect to Ethernet device, such as Ethernet exchanger, HUB etc.
Pink RS485＋
Green RS485－
Connect to RS-485 device, such as Pan/Tile, PTZ etc.
Orange Alarm in（DC12V）
5
Purple Alarm in GND
Connect to alarm input, 1 channel signal alarm（0~DC12V）
Chapter 3 Parameter setup
Some network parameters must be setup firstly after finishing installation, includes IP address, submask, port etc, can be
setup through many kinds of ways, see below two kinds for examples:
1. Setup parameters such as IP address and PPPoE etc through IE browser
2. Setup parameters through applications on client’s side.
Please be confirm PC and network camera already be connected, and the network camera can be PING!
The Preset No.95 is to invoke the camera menu.Press the left key to cancel or return to the previous menu, and press
the right key to confirm or access to the next menu.
Please refer to the camera manual for the settingd.
1 Alarm Input
RTP/RTCP,TCP/UDP,HTTP,DHCP,
IP High Speed Dome Camera User’s Manual
3.1 Setup parameter by IE browser
The default IP:192.168.0.120, default port:30001, superuser: admin, superuser password: admin
Login network camera by IE, input IP address, and will shoot out logging in window, input username and password, click
“login” to enter IE client interface.
Function detailed guide please refer to “NVMS Manual”.
Important Note: to check device by IE, the premise is to set browser security level, open IE browser, enter “tool/Internet
option/security/user-defined level”, set security level ”security level-low”, or directly set “ActiveX, Widget and Insert ”to open.
Appendix
Parameter Description
Video out 1 BNC（PAL/NTSC, 1.0Vp-p，75Ω）
Video Compression H.264(ISO/IEC 14496-10) baseline profile to level 3.1
Image Frame Rate
PAL:D1(704x576)@25fps, CIF(352x288)@25fps,
QCIF(176x144)@25fps;
NTSC: D1(704x480)@30fps, CIF(352x240)@30fps,
QCIF(240x160)@30fps.
Bit stream Control CBR、VBR
Audio Input/Output
1 internal Microphone In, 1 External Microphone In,
1 Audio Line Out
Audio Compression G723.1/6.3kbps
Audio bit stream 6.3Kbps
Web Server Microsoft Internet Explorer Version 5.5 or higher
Network Protocol
DNS,IPv4/IPv6,SMTP,FTP
Network Ethernet RJ-45,10/100Base-T
Alarm Input/Output
PTZ Control RS485, Polco-D/Polco-P
SD Card Support MicroSD/HC, MiniSD/HC
Safely Watchdog, Password protection
Protection IP66 Standard, Vandal Proof
CMS Client and SDK Open API for application integration including SDK
The next content is high speed dome camera manual for the settingd
IP High Speed Dome Camera User’s Manual
- 1 -
Contents
1. Attention....................................................................................................................................................... 3
2. Speed dome camera performance characteristics.................................................................................... 4
3. Function and Operation ............................................................................................................................... 5
4．Basic Operation of Dome Camera............................................................................................................ 7
5. Display Settings........................................................................................................................................... 8
6. Camera Parameter Setup Menu.................................................................................................................. 9
7. Privacy Mask ...............................................................................................................................................16
8. User Program ..............................................................................................................................................17
9. System Settings..........................................................................................................................................23
10. Language setup.........................................................................................................................................28
11. Camera Menu Index..................................................................................................................................29

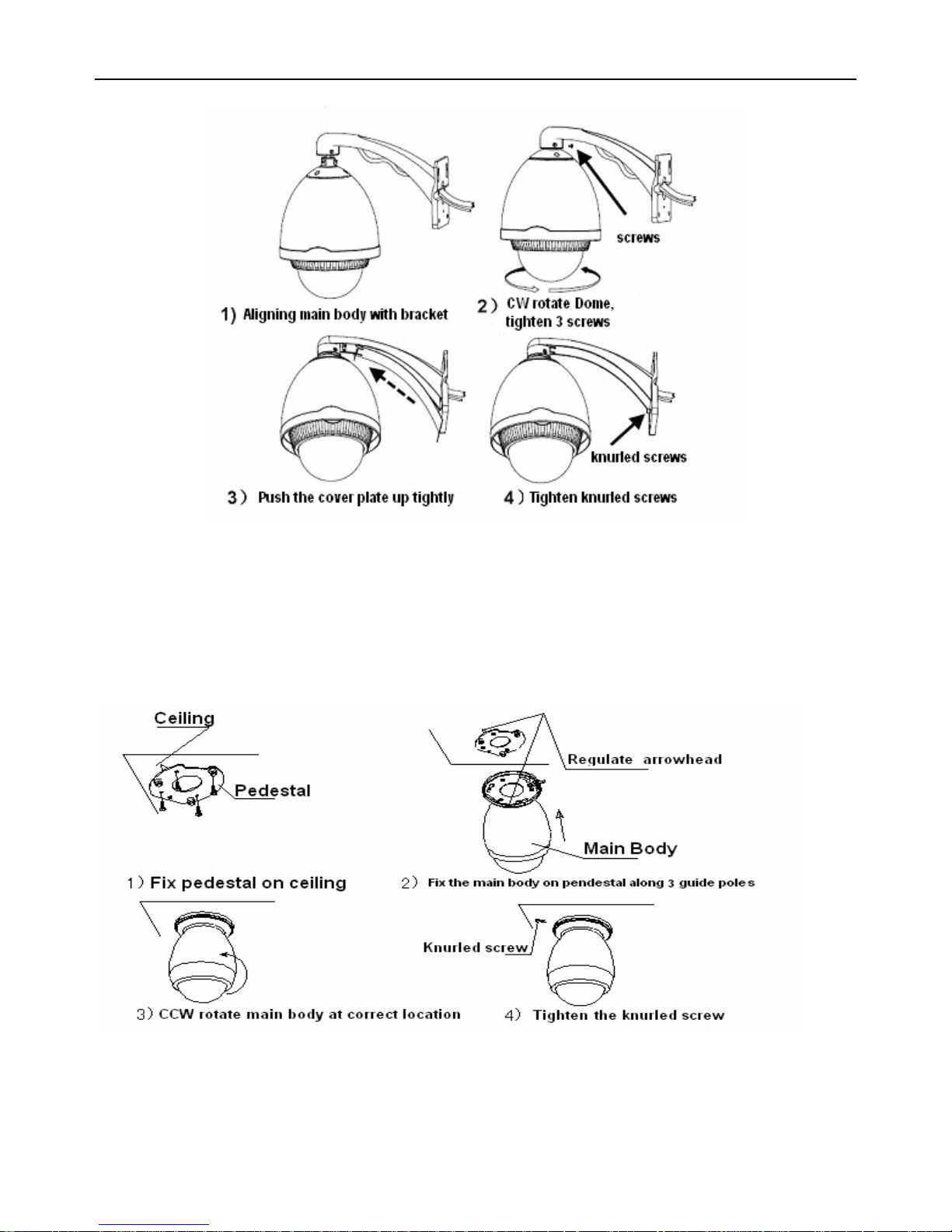

12. System Installation....................................................................................................................................30
Appendix A：24VAC Wire Diameter and Transmission Distance Comparison Chart..............................36
Appendix B：Wire Gauge Conversion Chart...............................................................................................37

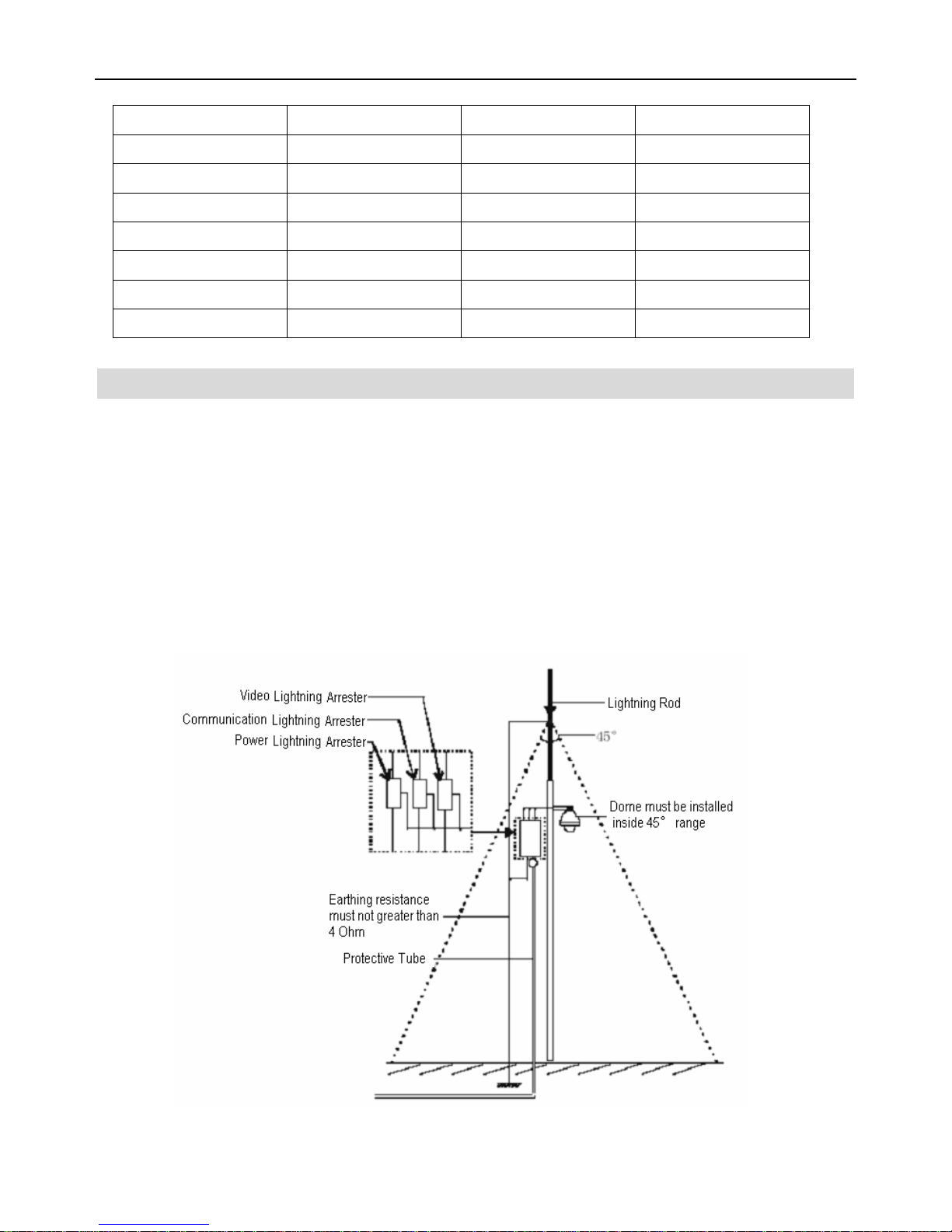

Appendix C：Lightning Proof and Surge Signal Proof...............................................................................38
IP High Speed Dome Camera User’s Manual
SAFE PRECAUTIONS
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN!
SHOCK, DO NOT OPEN COVERS. NO USER
CAUTION: TO REDUCE THE RISK OF ELECTRICAL
TO QUALIFIED SERVICE PERSONNEL.
SERVICEABLE PARTS INSIDE. REFER SERVICING
The requirement for the people who will install and repair the machine:
●
Owning the certificate to install and repair CCTV system.
●
Owning the certificate to
work aloft
.
●
Obtaining the basic knowledge and operating skill of wirin g and connection at low voltage.
●
Reading carefully and understanding all the contents in this manual.
The requirement for lifting appliance:
●
Using the lifting appliance suitable for the speed dome camera in stallation place and installation types.
●
Lifting appliance could reach the installation heigh t.
●
Lifting appliance is in good safe condition.
- 2 -
IP High Speed Dome Camera User’s Manual
- 3 -
1. Attention
→ Electric Safety
The national and local electric safety standard must be obeyed during the installation.
→ Shipping with Care
Prevent the damage caused by stress, strenuous vibration and moist during the shipping, storing and
installation. The products are packed individually, and will not be in warranty due to the damage caused by
whole-packaging in shipping.
→ Careful Installation
Please refer to the instruction manual carefully. Do not install the camera in opposite
direction,
and h
andle
the camera block with care; do not press against the structural element, which may cause mechanical
problem. The plastic cover is advanced optical product, please don’t touch it directly to avoid the cover
scratch and bad image quality
.
→ Do Not
Disassembly The Camera Without Authorization
Do not tear down the screws and protecting cap of the camera block. There are no spare parts in the
camera block for users’ maintenance, and only the professional engineers shall check and maintain the
camera.
→ Environmental Requirement
● Indoor Environmental Requirement:
Temperature: -10º ~ +50º
Humidity :＜90%
Atmospheric Pressure: 86 ~ 106Kpa
AC Supply: 24V / 2000mA, 50 / 60HZ
● Outdoor Envi ronmental Requirement
Temperature: -40º ~ +60º
Humidity :＜90%
Atmospheric Pressure: 86 ~ 106Kpa
AC Supply: 24V / 2500mA, 50 / 60HZ
→ Do Not Aim Objects in Strong Light
Do not aim the objects in strong light or the sun to avoid the image blur and
spectacle
, no matter the
camera is in use or not.
→ Waterproof
The outdoor speed dome cameras are featured as waterproof, damp proof and dustproof, and could meet the
international standard IP66. The indoor speed dome camera can not be installed at the place where there is full of
hydrosphere and water. The water drops and
splashing may damage the inside components of both the indoor and outdoor cameras.
IP High Speed Dome Camera User’s Manual
2. Speed dome camera performance characteristics
2.1 Technical Parameter
Electrical：
Set up：
Rating Voltage AC24V
Baud rate
(RS485)
2400/4800/9600/19200bps
Power 12W indoor, 35W outdoor Protocol
Pelco-P / Pelco-D/Phillips / Panasonic and so on, 17
Protocol choice
Operation：
Add. Set up 0-255
Decoder Internal Environment：
Panning angle 360º Continuous rotation
Operation
Environment
-40~ +60ºC
Tilt angle 0º~90º Humidity 0-95%No condensation
Rotary speed
Level 0.4~270º/S
Vertical 0.4~160º/S
Protection
level
IP66, 24-hour, safety cover
TVS1500W lightning proof
surge proof
Alarm 7 input, 2 output
Physical：
Preset 220 Installation Ceiling/Corner/ wall type
Surveillance way
Preset/touring/horizontal scan/ Auto
learning
Weight(without
bracket)
4.25Kg(outdoor)/3.85Kg(indoor)
Speed
Magnification times match with
speed
Material Aluminum
2.2 Performance Characteristics
The speed dome cameras adopt bran-new design and are featured as compact and metal structure. It is
equipped with thermostatic apparatus inside, and has rapid heat dissipation function. It is easy and
convenient to install. The surveillance is more privy with the inside black cover. The camera rotates flexibly
with low-noise and wide coverage, providing excellent image quality for users.
→ Internal Decoder
● Digital desi gn, all data are stored in the camera block, and will not be lost even power down
● All-in-one integrated design, high reliability
● 220 presets
● 1-80 preset supports auto touring; 4 tours, 32 presets of each
● 4 Auto learning
● 4 limited scan
● Internal permanent calendar
● Internal temperature sensor
● RS485 (Optional Manchester code or coaxial monitoring control)
● 24 privacy masking zones
● 7 alarm inputs, 2 outputs normal open/close switch available
→ Internal Pan & Tilt
● All-metal structure, high strength, favora ble heat dispersion
● Precise stepping motor driv e, reposeful operation, sensitive reaction, and exact positioning
● All-in-one integrated design, compact structure, easy to install.
● Ingenious mechanical drive system, support 360 º continuous rotation, tilt angle 0-90º and 180 º
reversal
● 0.4 º/S
slow-rotation processing
without image quivering
→ Internal Digital Camera
● All-in-one Digital Processin g with High Sensitive an d High-resolution
● Auto Focus
- 4 -
IP High Speed Dome Camera User’s Manual
- 5 -
● Auto Brightness Control
● Auto Iris
● Auto A WB
● Color & B/W Transition
● Auto BLC
● Auto Frame Accumulating
→ OSD Menu
● Chinese/English Menu
● OSD menu display; change the information and parameter of the camera by keyboard and OSD,
operation becomes simple and easy.
● Auto activation function can be set, evoking presets or starting up tours, auto leaning and horizontal
scan can be set when the camera is not in use
● Restoring operation before power-down or carry out appointed operation
→ Internal Temperature Detector
● Real-time temperature display
● Fans start up when the temperature exceeds the upper limit
● Speed dome will postpone starting up when the temperatu re is lower than the lower limit
● The fans start up accordin g to real time temperature detection, which makes the fans longevity longer
→ Real Time Clock Function
● Real time display, clock can be set
● Real time color & B/W transforming time
● Alarm time can be set
3. Function and Operation
This chapter describes the main function and the realize principle of the speed dome and does not
involved in operation. Different system has different method of operation. Usually we use the operation
manual from the system company. If you have any special requirements, please contact the system
company to get the necessary information.
3.1 Set the Camera Coding

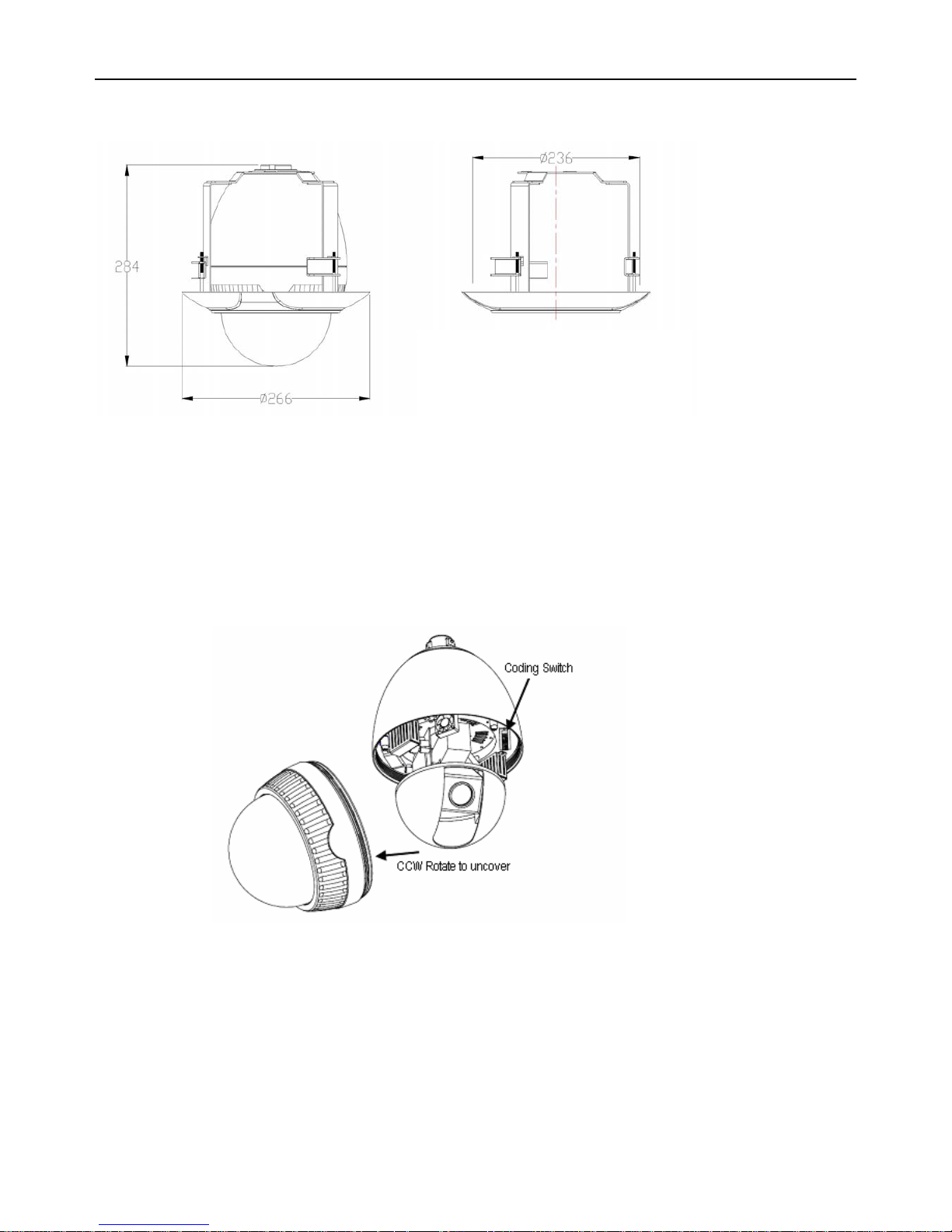

There are two code switches on the camera’s pin board, SW1 and SW2, SW1 sets camera address, and
SW2 sets baud rate and protocol (See ‘Camera Settings’ on P38).
Besides the factory protocol, the camera compatible with many main protocol, like: PELCO-D, PELCO-P
etc. ( Optional ALEC, VCL, MOLYNX, VICON, SANTACHI, PANASONIC, SAMSUNG, DIAMOND,
KALATEL, LILIN, PHILIPS and AD and so on.)
Any of the control order must be based on the address. of the target camera, the camera just respond to
the order that has the same add of itself. Three types of the address.
● Code switch address. Set by the Code switch on the bracket in the camera (SW1), add. Range:1-255
● Broadcast address: If the customer prefers to use broadcast address, all of the camera in the system
will carry out the same action; system 255 is the broadcast address.
● Debugging address: (factory protocol and PELCO protocol only): if the address of the camera is 0, the
user can control the camera by any address.
3.2 Auto Carry Out the Operation
→ Focus / Rev Automatic Matching
When we use manual adjustment, in the case of far focus, the camera high speed reaction cause the
rocker shock may cause the image whisk or image lost. Based on humanization design, the camera
IP High Speed Dome Camera User’s Manual
- 6 -
automatically adjusts the rev of the tripod head according to the focus. And make the manual tracking
object easier.
→ Automatic Reversal
If the operator pulling rocker when the lens appoint the bottom, the lens will horizontal whirl 180 º
automatically and whirl 90º upwards, user can watch the views on the back side, so it can realize the 180 º
entire journey surveillance. To realize the function, you need set the “Automatic reversal” in the OSD to
ON.
→ Timing Automatic Activation
If the camera’s not carrying out any operation by using “spare time activation” function, the user can set
auto transfer preset or start cruise, self-leaning or limi ted scan.
→ Automatic Activation
By using “restart”, the user can set automatic activation and the camera will recover to the operation before
electrify after electrify or restart, it also can be set auto transfer preset or start cruise, self-leaning or limited
scan.
3.3 Camera Control
→ Magnification Times Control
Through the button named “Three dimension button” or “Wide” and “Tele” button on the keyboard, you can
adjust to full view or close-up view. Dome camera supports digital PTZ and optics PTZ, and digital PTZ can
be settled.
→ Focus Control
System uses auto focus as tacitly approved. When lens change, camera can focus on the view
automatically to keep the view clear. Through “FAR/NEAR”, users can adjust it manually in order to have
the view you want. When use the keyboard, camera can be back to automatic focusing.
On these conditions, camera can not focus automatically:
● Target not in the centre of view
● Observe close view and distant view at the same time, cannot guarantee both of them are clear
● Target is as high light materials. Such as neon lamp, spotlight and any shine objects
● Target moves so fast
● Big size dull target, such as wall
● Target is too dark or not clear
● Target view is too small
→ Iris Control
System uses auto Iris as tacitly approved. It can feel the light around to adjust the iris to keep the output
view’s luminosity steady.
Users can use “Open/Close” button on the keyboard, adjust the iris manually to get the fittest luminosity. It
can be back to automatic iris by using the keyboard.
→ Face Away from Light Compensating
Camera district fulfill facing away from light compensating automatically. Under high light background, it
will automatically compensate to the light, and adjust the light to the fittest view. This method can avoid
whole view with more light, and make the target view more clearly.
→ Auto White Balance
Automatic adjust based on the changing of light around, to appear the true color.
3.4 Monitor Function
→ Set/adjust preset point
Preset point function is that record the data of horizontal angle, tilt angle and focal distance of camera to
IP High Speed Dome Camera User’s Manual
- 7 -
the memory. When need, you can use these data to the position. Preset point can be set quickly and easily
by using keyboard, you can set two hundred twenty preset points.
→ Auto Cruising
Auto cruising is the function of this dome. It can be settled previously, make the preset points as a
sequence added to the auto cruising. You can inset preset point to the cruising, can fulfill auto cruising
between preset points. Cruising sequence can be set. You also can set the stop time of preset point, one
cruising, can be set 32 preset points.
→ Level, Right & Left Scan
Through keyboard and menu, users can set left position and right position, as a speed scan from left to
right.
→ Self-learning
This dome has the pattern scan function. The dome can record at least 180s moving track. Run the
self-learning pattern, according to the record, dome can repeat moving, one dome can set 4 route s.

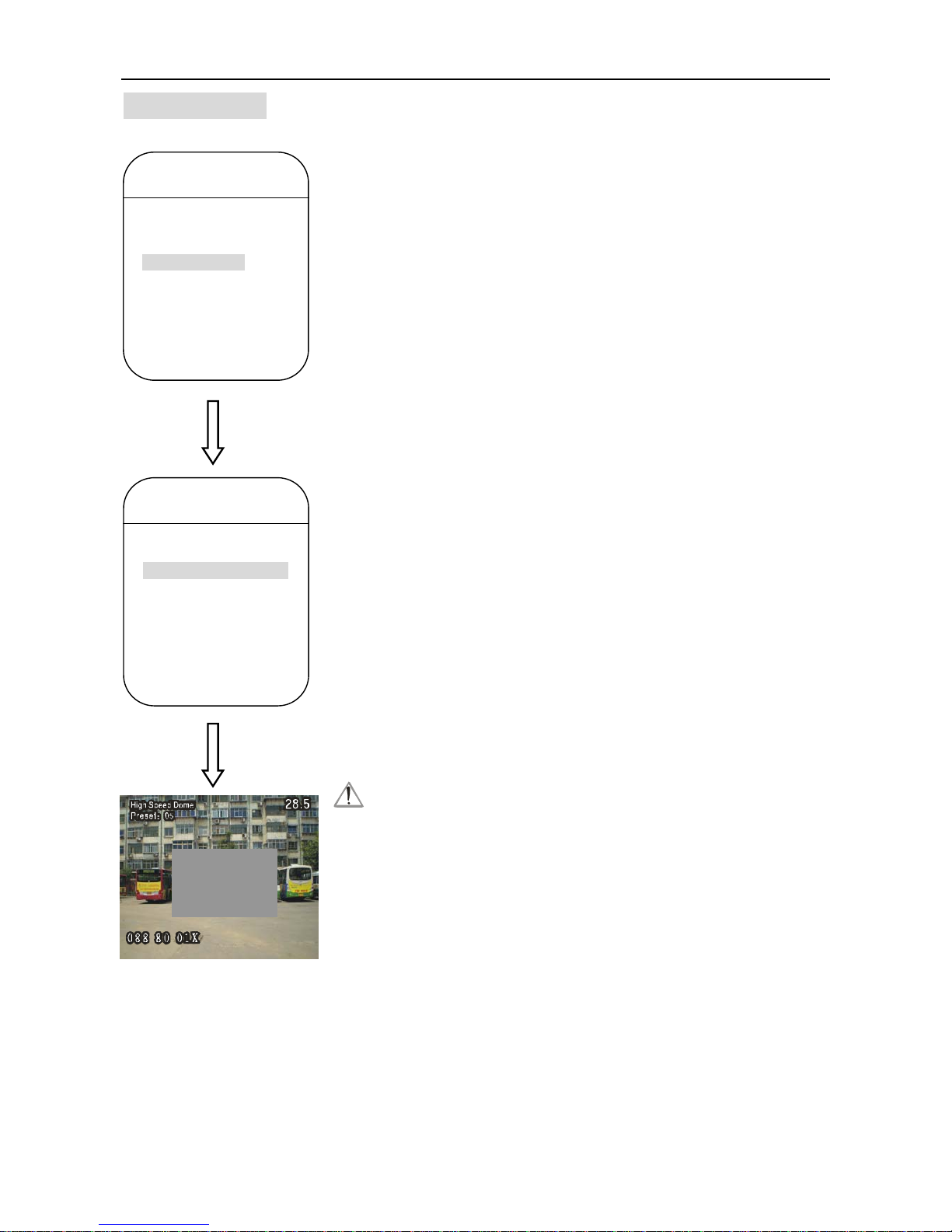

→ Privacy masking function set
Users can set privacy masking function to cover some zone.
→ Alarm input & output control
When dome receive a alarm signal, run the preset action, until the alarm is finished. If have some unusual
situation, it will send another alarm signal. Dome can set 7 input alarm signals, 2 output sign als.
→ Camera Lens Position Display
After dome self-check, the position will at 0° of level and vertical place, the level place from 0°-360°，the vertical place from
0°-90°.The information can be displayed on the screen.
4．Basic Operation of Dome Camera
4.1 Camera Power On Self-Test
After connecting wires and power-on, dome camera executes self-checking program, it will appear system
information on the screen, as shown below. Camera will move horizontally to horizontal origin which was
default setting when leaving factory, then move vertically to vertical origin, lens is pulled closest and
farthest, self-check finished.
Edition number: 1.0.0
Protocol: PELCOD
Baud rate: 9600
Camera ID: 001
This information will be shown until finishing self-test for system.
● Edition number: Shows information of camera software edition
● Protocol: Shows type of control protocol which has been set up
● Baud rate: Shows communication baud rate which has been set up, including 2400, 4800, 9600, 19200
four types of communication baud rate. Detailed setting method as per addenda.
● Camera ID: Set via camera’s switch SW1, detailed setting method a s pe r addenda.
4.2 Transfer Main Menu
Open the main menu of system by pressing “menu” key on the control keyboard or by matrix via the
operation “Call No. 95 or 64 preset positions”. All menu setup must first transfer main menu.
4.3 Basic Operation of Menu and Keyboard
→ Basic Operation of Keyboard:
[OPEN] When choosing image, shows increasing iris, it will save automatically after finishing setup.
[CLOSE] When choosing image, shows decreasing iris, it will save automatically after finishing setup.
IP High Speed Dome Camera User’s Manual
[NEAR] focus on vicinity
[FAR] focus on beyond
Joystick tilt up: When choosing menu, shows choosing the previous one, when choosing image, shows
camera circumgyrating upwards.
Joystick tilt down: When choosing menu, shows choosing the next one, when choosing image, shows
camera circumgyrating downwards.
Joystick pan left: When choosing menu, shows entering junior menu, or entering setting up or return to
superior menu, when choos ing serial number, shows decreasing, when choosing image, shows c amera
circumgyrating leftwards.
Joystick pan right: When choosing menu, shows entering junior menu, or entering setting up or return to
superior menu, when choosing serial number, when choosing serial number, shows increasing, when
choosing image, shows camera circumgyrating rightwards.
Three-Dimensional Joystick Circumgyrating Joystick Cap Function: Circumgyrating deasil shows pull
image closer, setting date/time/visitatorial data increased, circumgyrating widdershins shows pull image
farer, setting date\time\visitatorial data decreased.
→ Basic Menu Operation
“Return”: return to superior menu
“Open”: open certain setting
“Close”: close certain setting
4.4 Camera Language Setting
Switch Chinese/English in language setting menu under main menu.
5. Display Settings
1. Press ‘Menu’ on the keyboard or evoke the presets no. 95 and 64 to enter the main menu, or
press the preset no.1 twice continuously within 1 second.
2. Move the joystick horizontally to enter ‘CAMERA SETTINGS’.
3. Each item in the menu can be set to ‘On’ or ‘off’.
The information of the camera will change while the camera block rotates, and user can see the
inner temperature, zoom times, times, etc on the screen. When all information displays, it will
be as below（’288’ indicates the horizontal angle; and ’68 ’indicates the vertical angle.）
Notice:
1. If there is no any operation within 1 minute after entering the main menu, it will be
closed automatically.
2. Default values of the items in the menu are ‘OFF’.
MAIN MENU
1. DISPLAY SETTINGS
2. CAMERA SETTINGS
3. PRIVACY MASK
4. USER PROGRAM
5. SYSTEM SETTINGS
6. LANGUAGE/语言
7. EXIT
DISPLAY SETUP
1.CAMERA TITLE OPEN
2.ADDRESS OPEN
3.PRESET TITLE OPEN
4.ZOOM MULTIPLE OPEN
5.COORDINATE OPEN
6.TEMPERATURE OPEN
7.DATE&TIME OPEN
8.RETURN
- 8 -
IP High Speed Dome Camera User’s Manual
- 9 -
Temperature label
Camera title
Coordinate label
Lens multiple
Date label
Time label
ID labe
l
Preset title
6. Camera Parameter Setup Menu
3. Move the cursor to ‘ZOOM SPEED’; Choose ‘HIGH’ or ‘LOW
4. Move the joystick vertically to ‘RETURN’; Exit the menu and the system will
save the settings automatically
6.1 Zoom Speed
1. Press ‘Menu’ on the keyboard or evoke the presets no. 95 and 64 to enter
the main menu, or press the preset no.1 twice continuously within 1 second.
2. Move the joystick vertically to ‘Camera settings’, and enter the sub-menu
MAIN MENU
1. DISPLAY SETTINGS
2. CAMERA SETTINGS
3. PRIVACY MASK
4. USER PROGRAM
5. SYSTEM SETTINGS
6. LANGUAGE/语言
7. EXIT
CAMERA SETTINGS
1.ZOOM SPEED HIGH
2.BLC CLOSE
3.FLAME HEAP OPEN
4.D-ZOOM OPEN
5.VIDEO SYNC OPEN
6.B/W SETTINGS
7.ADVANCED SETTINGS
8.RETURN
Loading...
