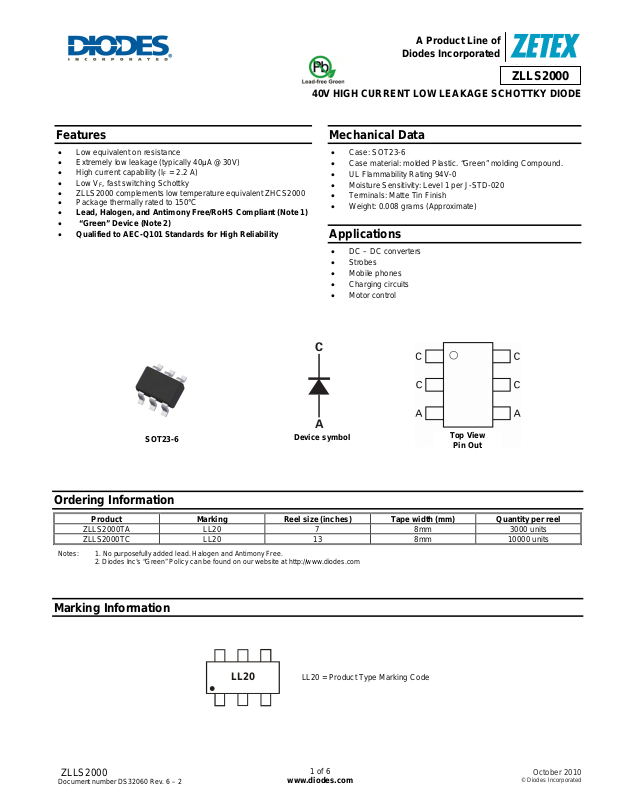

Diodes ZLLS2000 User Manual

A

f

Features

• Low equivalent on resistance

• Extremely low leakage (typically 40μA @30V)

• High current capability (I

• Low V

• ZLLS2000 complements low temperature equivalent ZHCS2000

• Package thermally rated to 150°C

• Lead, Halogen, and Antimony Free/RoHS Compliant (Note 1)

• “Green” Device (Note 2)

• Qualified to AEC-Q101 Standards for High Reliability

, fast switching Schottky

F

= 2.2 A)

F

SOT23-6

Device symbol

Product Line o

Diodes Incorporated

ZLLS2000

40V HIGH CURRENT LOW LEAKAGE SCHOTTKY DIODE

Mechanical Data

• Case: SOT23-6

• Case material: molded Plastic. “Green” molding Compound.

• UL Flammability Rating 94V-0

• Moisture Sensitivity: Level 1 per J-STD-020

• Terminals: Matte Tin Finish

• Weight: 0.008 grams (Approximate)

Applications

• DC – DC converters

• Strobes

• Mobile phones

• Charging circuits

• Motor control

C

A

Top View

Pin Out

Ordering Information

Product Marking Reel size (inches) Tape width (mm) Quantity per reel

ZLLS2000TA LL20 7 8mm 3000 units
ZLLS2000TC LL20 13 8mm 10000 units

Notes: 1. No purposefully added lead. Halogen and Antimony Free.

2. Diodes Inc’s “Green” Policy can be found on our website at http://www.diodes.com

Marking Information

LL20

ZLLS2000

Document number DS32060 Rev. 6 – 2

LL20 = Product Type Marking Code

1 of 6

www.diodes.com

October 2010

© Diodes Incorporated

A

f

Maximum Ratings @T

Characteristic Symbol Value Unit

Continuous Reverse Voltage
Forward Current
Peak Repetitive Forward Current

Rectangular Pulse Duty Cycle
Non Repetitive Forward Current t ≤ 100μs
t ≤ 10ms

= 25°C unless otherwise specified

A

I

I

V

I

F

FPK

FSM

R

Product Line o

Diodes Incorporated

40 V

2.2 A

3.55 A
36

12

Thermal Characteristics

Characteristic Symbol Value Unit

Power Dissipation @TA = 25°C
Single Die Continuous
Single Die Measured at t < 5 secs

Junction to Ambient (Note 3)
Junction to Ambient (Note 4)
Storage Temperature Range
Junction Temperature

Notes: 3. For a device surface mounted on 25mm x 25mm FR4 PCB with high coverage of single sided 1oz copper, in still air conditions.

4.

For a device mounted on FRB PCB measured at t < 5secs.

P

D

R

θJA

R

θJA

T

STG

T

J

1.1

1.71

113 °C/W

73 °C/W

-55 to +150 °C
150 °C

ZLLS2000

A
A

W
W

120

T

=25°C

100

Thermal Resistance (°C/W)

amb

Rectangular Pulse

80

D=0.5

60

40

D=0.2

20

100µ 1m 10m 100m 1 10 100 1k

Single Pulse

D=0.05

D=0.1

Pulse Width (s)

Transient Thermal Impedance

ZLLS2000

Document number DS32060 Rev. 6 – 2

www.diodes.com

2 of 6

1.2

1.0

0.8

0.6

0.4

0.2

0.0
0 20 40 60 80 100 120 140 160

Max Power Dissipation (W)

Temperature (°C)

Derating Curve

October 2010

© Diodes Incorporated

A

f

(BR)

Electrical Characteristics @T

= 25°C unless otherwise specified

A

Characteristic Symbol Min Typ Max Unit Test Condition

Reverse Breakdown Voltage

V

R

40 - - V

-

-

-

-

Forward Voltage (Note 5)

V

F

-

-

-

-

­Reverse Current
Diode Capacitance
Reverse Recovery Time

Reverse Recovery Charge

Notes: 5. Measured under pulsed conditions. Pulse width = 300μs. Duty cycle < 2%

I

R

C

D

t

rr

Q

rr

-

-

- 65 - pF

-

-

285 ­305 ­335 ­365 390
403 430
433 490
461 540
509 600
450 -

10

0.6

6

685

40

-

-

-

Product Line o

Diodes Incorporated

IR= 1mA

= 50mA

I

F

= 100mA

I

F

= 250mA

I

F

= 500mA

I

F

mV

μA

mA

ns

nC

= 1A

I

F

= 1.5A

I

F

= 2A

I

F

= 3A

I

F

= 2A,TA = 100°C

I

F

V

= 30V

R

V

= 30V, TA = 85°C

R

f = 1MHz, VR = 30V
Switched from I
Measured @ I

= 6Ω; R

R

source

= 500mA to VR = 5.5V

F

50mA. di /dt = 500mA/ ns.

R

load

ZLLS2000

= 10Ω

ZLLS2000

Document number DS32060 Rev. 6 – 2

3 of 6

www.diodes.com

October 2010

© Diodes Incorporated

A

f

10

1

100m

10m

1m

100µ

10µ

1µ

- Forward Current (A)

F

I

100n

0.0 0.2 0.4 0.6

VF - Forward Voltage (V)

IF v V

F

150°C
85°C
25°C

-55°C

100m

10m

+150°C

1m

100µ

+85°C

10µ

1µ

100n

100p

- Reverse Current (A)
I

+25°C

10n

-15°C

1n

R

10p

0 10203040

VR - Reverse Voltage (V)

Product Line o

Diodes Incorporated

-55°C

I

R v V

R

ZLLS2000

160

140

120

100

80

60

Rth=113°C/W

40

Rectangular Pulse

20

0.01 0.1 1 10

- Initial Junction Temp (A)

j

T

160

140

120

Tj=150°C

100

Rth(j-a) = 10°C/W
Rth(j-a) = 50°C/W

80

Rth(j-a) = 113°C/W
Rth(j-a) = 200°C/W

60

Rth(j-a) = 300°C/W

40

20

Ta - Max Ambient Temp (°C)

110

D = 1
D = 0.5
D = 0.2
D = 0.1
D = 0.05

I

- Peak Fwd Current (A)

F(pk)

TC v I

F(av)

VR - Continuous Reverse Voltage (V)

Ta v V

R

Tj=150°C

1.0

Rectangular Pulse

0.8

0.6

0.4

0.2

- Avg Power Diss (W)

F(av)

0.0

P

0.01 0.1 1 10

400
350
300
250
200
150
100

50

- Diode Capacitance (pF)

0

D

C

D = 1
D = 0.5
D = 0.2
D = 0.1
D = 0.05

I

- Peak Fwd Current (A)

F(pk)

P

v I

F(av)

100m 1 10

F(pk)

VR - Reverse Voltage (V)

CD v V

R

f = 1MHz

ZLLS2000

Document number DS32060 Rev. 6 – 2

4 of 6

www.diodes.com

October 2010

© Diodes Incorporated

A

f

Package Outline Dimensions

K

J

A

H

D

Suggested Pad Layout

Z

C2

G

Y

X

B C

C2

Product Line o

Diodes Incorporated

ZLLS2000

SOT-26

Dim Min Max Typ

A 0.35 0.50 0.38
B 1.50 1.70 1.60
C 2.70 3.00 2.80
D

⎯ ⎯

H 2.90 3.10 3.00
J 0.013 0.10 0.05

M

L

Dimensions Value (in mm)

C1

K 1.00 1.30 1.10
L 0.35 0.55 0.40
M 0.10 0.20 0.15

0° 8°

α

All Dimensions in mm

Z 3.20
G 1.60
X 0.55
Y 0.80

C1 2.40
C2 0.95

0.95

⎯

ZLLS2000

Document number DS32060 Rev. 6 – 2

5 of 6

www.diodes.com

October 2010

© Diodes Incorporated

A

f
