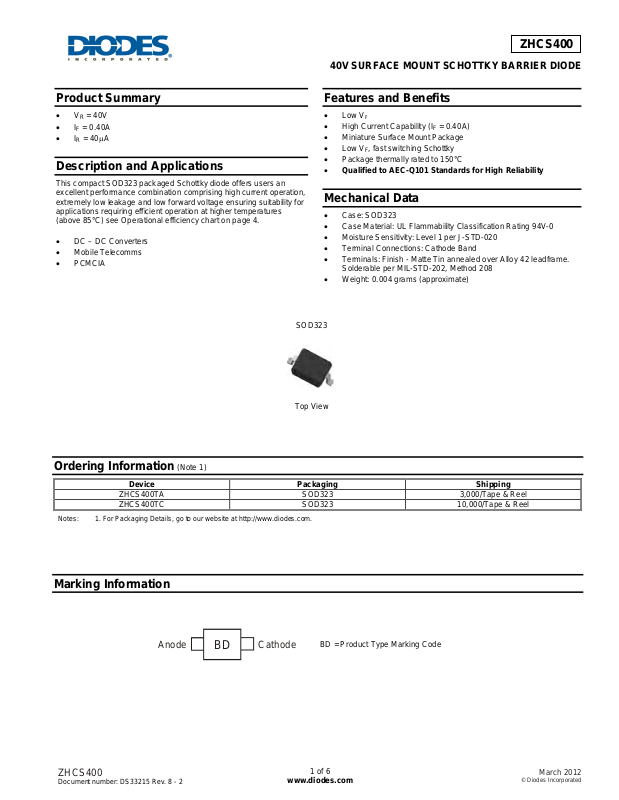

Page 1
Product Summary
• VR = 40V
• I
= 0.40A
F
= 40μA
• I
R
Description and Applications
This compact SOD323 packaged Schottky diode offers users an
excellent performance combination comprising high current operation,
extremely low leakage and low forward voltage ensuring suitability for
applications requiring efficient operation at higher temperatures
(above 85°C) see Operational efficiency chart on page 4.
• DC – DC Converters
• Mobile Telecomms
• PCMCIA
Top View
40V SURFACE MOUNT SCHOTTKY BARRIER DIODE
Features and Benefits
• Low VF
• High Current Capability (I
• Miniature Surface Mount Package
• Low V
• Package thermally rated to 150°C
• Qualified to AEC-Q101 Standards for High Reliability
, fast switching Schottky
F
= 0.40A)
F
Mechanical Data
• Case: SOD323
• Case Material: UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminal Connections: Cathode Band
• Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe.
Solderable per MIL-STD-202, Method 208
• Weight: 0.004 grams (approximate)
SOD323
ZHCS400
Ordering Information (Note 1)
Device Packaging Shipping
ZHCS400TA SOD323 3,000/Tape & Reel
ZHCS400TC SOD323 10,000/Tape & Reel
Notes: 1. For Packaging Details, go to our website at http://www.diodes.com.
Marking Information
ZHCS400
Document number: DS33215 Rev. 8 - 2
Anode
BD
Cathode
www.diodes.com
BD = Product Type Marking Code
1 of 6
March 2012
© Diodes Incorporated
Page 2
Maximum Ratings @T
Continuous Reverse Voltage
Continuous Forward Current
Forward Voltage @IF = 400mA VF
Average Peak Forward Current; D.C. = 50%
Continuous Drain Current (Note x)
= 25°C unless otherwise specified
A
Characteristic Symbol Value Units
I
≤ 100μs
t
t ≤ 10ms
I
Thermal Characteristics
Characteristic Symbol Value Unit
Power Dissipation, TA = 25°C PD
Storage Temperature Range
T
STG
V
I
F
FAV
FSM
ZHCS400
R
40 V
400 mA
500 mV
1000 mA
6.75 A
3 A
250 mW
-55 to +150 °C
ZHCS400
Document number: DS33215 Rev. 8 - 2
2 of 6
www.diodes.com
March 2012
© Diodes Incorporated
Page 3
(BR)
Electrical Characteristics @T
Characteristic Symbol Min Typ Max Unit Test Condition
Reverse Breakdown Voltage
Forward Voltage
Reverse Current
Diode Capacitance
= 25°C unless otherwise specified
A
40 60 - V
V
R
- 270 300
- 300 350
- 370 460
V
F
- 425 500
- 550 670
- 640 780
- 810 1050
- 440 -
I
R
C
D
- 15 40
- 20 - pF
IR = 200μA
= 50mA
I
F
= 100mA
I
F
= 250mA
I
F
= 400mA
I
F
mV
μA
= 750mA
I
F
= 1,000mA
I
F
= 1,500mA
I
F
= 500mA, TA = 100°C
I
F
VR = 30V
f = 1MHz, VR = 25V
ZHCS400
Operational efficiency chart
The operational efficiency chart indicates the beneficial use of the ZLLS series diodes in applications requiring higher voltage, higher temperature
operation. Circuits requiring low voltage low temperature operation will benefit from using Zetex low V
ZHCS series diodes.
F
ZHCS400
Document number: DS33215 Rev. 8 - 2
3 of 6
www.diodes.com
March 2012
© Diodes Incorporated
Page 4
ZHCS400
ZHCS400
Document number: DS33215 Rev. 8 - 2
4 of 6
www.diodes.com
March 2012
© Diodes Incorporated
Page 5
Package Outline Dimensions
C
H
B
M
SOD323
Dim Min Max
A
K
L
J
A 0.25 0.35
B 1.20 1.40
C 2.30 2.70
H 1.60 1.80
J 0.00 0.10
K 1.0 1.1
L 0.20 0.40
M 0.10 0.15
α
All Dimensions in mm
0° 8°
ZHCS400
Suggested Pad Layout
X
C
Dimensions Value (in mm)
Z 3.75
G 1.05
X 0.65
GY
Z
Y 1.35
C 2.40
ZHCS400
Document number: DS33215 Rev. 8 - 2
5 of 6
www.diodes.com
March 2012
© Diodes Incorporated
Page 6
