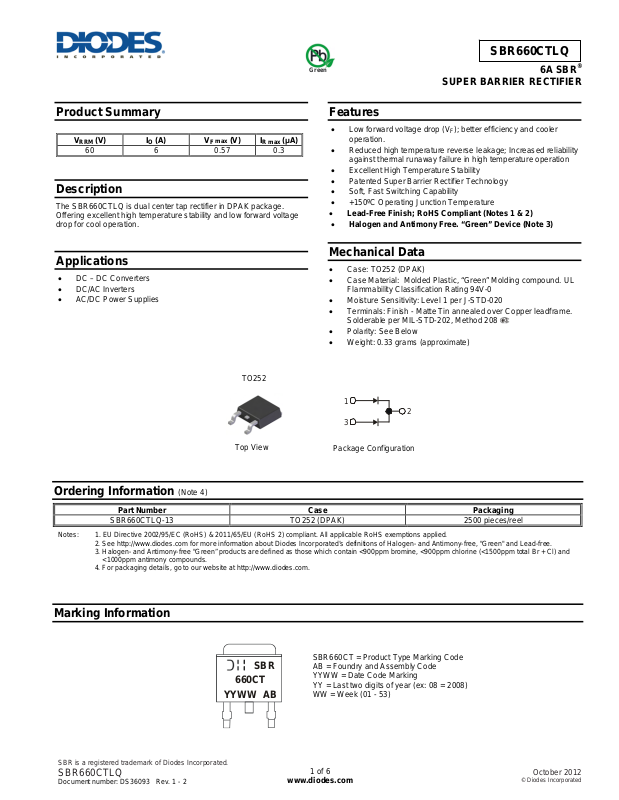

Diodes SBR660CTLQ User Manual
A
Product Summary
(V) IO (A) V
V
RRM
60 6 0.57 0.3
max (V) I
F
R max
(μA)
Description
The SBR660CTLQ is dual center tap rectifier in DPAK package.
Offering excellent high temperature stability and low forward voltage
drop for cool operation.
Applications
• DC – DC Converters
• DC/AC Inverters
• AC/DC Power Supplies
TO252
Top View
SBR660CTLQ
Green
SUPER BARRIER RECTIFIER
Features
• Low forward voltage drop (VF); better efficiency and cooler
operation.
• Reduced high temperature reverse leakage; Increased reliability
against thermal runaway failure in high temperature operation
• Excellent High Temperature Stability
• Patented Super Barrier Rectifier Technology
• Soft, Fast Switching Capability
• +150ºC Operating Junction Temperature
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
• Case: TO252 (DPAK)
• Case Material: Molded Plastic, “Green” Molding compound. UL
Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish - Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
• Polarity: See Below
• Weight: 0.33 grams (approximate)
1
2
3
Package Configuration
6A SBR
®
Ordering Information (Note 4)
Part Number Case Packaging
SBR660CTLQ-13 TO252 (DPAK) 2500 pieces/reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
SBR is a registered trademark of Diodes Incorporated.
SBR
660CT
YYWW AB
SBR660CTLQ
Document number: DS36093 Rev. 1 - 2
SBR660CT = Product Type Marking Code
B = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 08 = 2008)
WW = Week (01 - 53)
1 of 6
www.diodes.com
October 2012
© Diodes Incorporated
θ
P, P
OWER
PAT
O
N
Maximum Ratings (Per Leg) (@T
= +25°C, unless otherwise specified.)
A
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic Symbol Value Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current (Per Leg)
(Total)
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Repettitive Peak Avalanche Power (1μs, +25 ºC)
Non-Repetitive Avalanche Energy
(T
= +25°C, IAS = 5A, L = 8.5mH)
J
Thermal Characteristics (Per Leg)
Characteristic Symbol Value Unit
Typical Thermal Resistance (per leg) (Note 5)
Operating and Storage Temperature Range
SBR660CTLQ
V
RRM
V
RWM
V
RM
I
O
I
FSM
P
ARM
E
AS
R
JC
T
, T
J
STG
60 V
3
6
A
80 A
10000 W
190 mJ
2 °C/W
-65 to +150 ºC
Electrical Characteristics (Per Leg) (@T
= +25°C, unless otherwise specified.)
A
Characteristic Symbol Min Typ Max Unit Test Condition
Leakage Current (Note 6)
Forward Voltage Drop
Notes: 5. Device mounted on Polymide substrate, 125mm2Copper pad, double-sided, PC Board.
6. Short duration pulse test used to minimize self-heating effect.
I
R
V
F
-
-
- - 0.57 V
5
3.5
3.0
(W)
2.5
I
2.0
DISSI
1.5
0.01
1.0
D
0.001
0.5
0.1
1
0.3
12
T = 150°C
A
T = 125°C
A
mA
T = 85°C
A
T = 25°C
A
T = -55°C
A
= 60V, TJ = +25ºC
V
R
V
= 60V, TJ = +125ºC
R
IF = 3A, TJ = +25ºC
F
0
0123456
I , AVERAGE FORWARD CURRENT (A)
F(AV)
Figure 1 Forward Power Dissipation
I , INSTANTANEOUS FORWARD CURRENT (A)
0.0001
0 100 200 300 400 500 600 700 800
V , INSTANT ANEOUS FORWARD VOLT A GE (mV)
F
Figure 2 Typical Forward Characteristics
SBR is a registered trademark of Diodes Incorporated.
SBR660CTLQ
Document number: DS36093 Rev. 1 - 2
2 of 6
www.diodes.com
October 2012
© Diodes Incorporated
