Features
• Low Forward Voltage Drop
• Excellent High Temperature Stability
• Patented Super Barrier Rectifier Technology
• Soft, Fast Switching Capability
• Lead Free Finish, RoHS Compliant (Note 2)
• Also Available in Green Molding Compound (Note 4)
TO-220AB
Top View
TO-220AB
Bottom View
ITO-220AB
Top View
SBR3045CT
SBR3045CTFP
30A SBR
SUPER BARRIER RECTIFIER
Mechanical Data
• Case: TO-220AB, ITO-220AB
• Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
• Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
• Marking Information: See Page 2
• Ordering Information: See Page 2
• Weight: TO-220AB – 1.85 grams (approximate)
ITO-220AB – 1.65 grams (approximate)
ITO-220AB
Bottom View
Package Pin Out
Configuration
®
Maximum Ratings (Per Leg) @T
= 25°C unless otherwise specified
A
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic Symbol Value Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current (Per Leg)
(Total)
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Peak Repetitive Reverse Surge Current (2uS-1Khz)
Isolation Voltage (ITO-220AB Only)
From terminal to heatsink t = 3 sec.
Thermal Characteristics (Per Leg)
Typical Thermal Resistance (per leg)
Package = TO-220AB
Package = ITO-220AB
Operating and Storage Temperature Range
Characteristic Symbol Value Unit
Electrical Characteristics (Per Leg) @T
Characteristic Symbol Min Typ Max Unit Test Condition
Forward Voltage Drop
Leakage Current (Note 1)
Notes: 1. Short duration pulse test used to minimize self-heating effect.
2. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at http://www.diodes.com/products/lead_free.html.
SBR is a registered trademark of Diodes Incorporated.
SBR3045
Document number: DS30968 Rev. 4 - 2
V
F
I
R
V
V
V
I
I
V
RRM
RWM
RM
I
O
FSM
RRM
AC
45 V
15
30
A
200 A
2 A
2000 V
R
JC
θ
T
, T
J
STG
= 25°C unless otherwise specified
A
-
- -
-
0.48
0.55
0.50
0.5
100
2
4
-65 to +150 ºC
= 15A, TJ = 25ºC
I
V
mA
F
= 15A, TJ = 125ºC
I
F
= 45V, TJ = 25ºC
V
R
V
= 45V, TJ = 125ºC
R
ºC/W
1 of 4
www.diodes.com
July 2009
© Diodes Incorporated
Page 2
V
A
A
SBR3045CT
SBR3045CTFP
15
10
5
, AVERAGE FORWARD CURRENT (A)
F(AVE)
0
I
0
25
50
TC, CASE TEMPERATURE (°C)
75
100
125 150
100
10
TA=150° C
TA = 125°C
1
IF, INST ANTANEOUS FORW ARD CURRENT (A)
0.1
0.00 0.10 0.20 0.30
T
= 75°C
A
T
= 25°C
A
0.40 0.50 0.60 0.70
, INSTANTANEOUS FORWARD VOLTAGE (V)
F
Figure 1: Current Derating Curve, Per Element Figure 2: Typical Forward Characteristics, Per Element
100
10
1
TA = 150° C
TA= 125°C
TA= 75°C
IR, INSTANTANEOUS REVERSE CURRENT (mA)
0.1
0 15
30 45
V
R, INSTANTANEOUS REVERSE VOLTAGE (V)
TA=25°C
Figure 3: Typical Reverse Characteristics, Per Element
Ordering Information (Notes 3 & 4)
Part Number Case Packaging
SBR3045CT TO-220AB 50 pieces/tube
SBR3045CT-G TO-220AB 50 pieces/tube
SBR3045CTFP ITO-220AB 50 pieces/tube
SBR3045CTFP-G ITO-220AB 50 pieces/tube
Notes: 3. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
4. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR3045CT-G.
Marking Information
SBR3045CT
YYWW AB
SBR3045CT = Product Type Marking Code
B = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 06 = 2006)
WW = Week (01-52)
SBR3045CTFP
YYWW AB
SBR is a registered trademark of Diodes Incorporated.
SBR3045
Document number: DS30968 Rev. 4 - 2
2 of 4
www.diodes.com
SBR3045CTFP = Product Type Marking Code
B = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 06 = 2006)
WW = Week (01-52)
July 2009
© Diodes Incorporated
Page 3
P
SBR3045CT
SBR3045CTFP

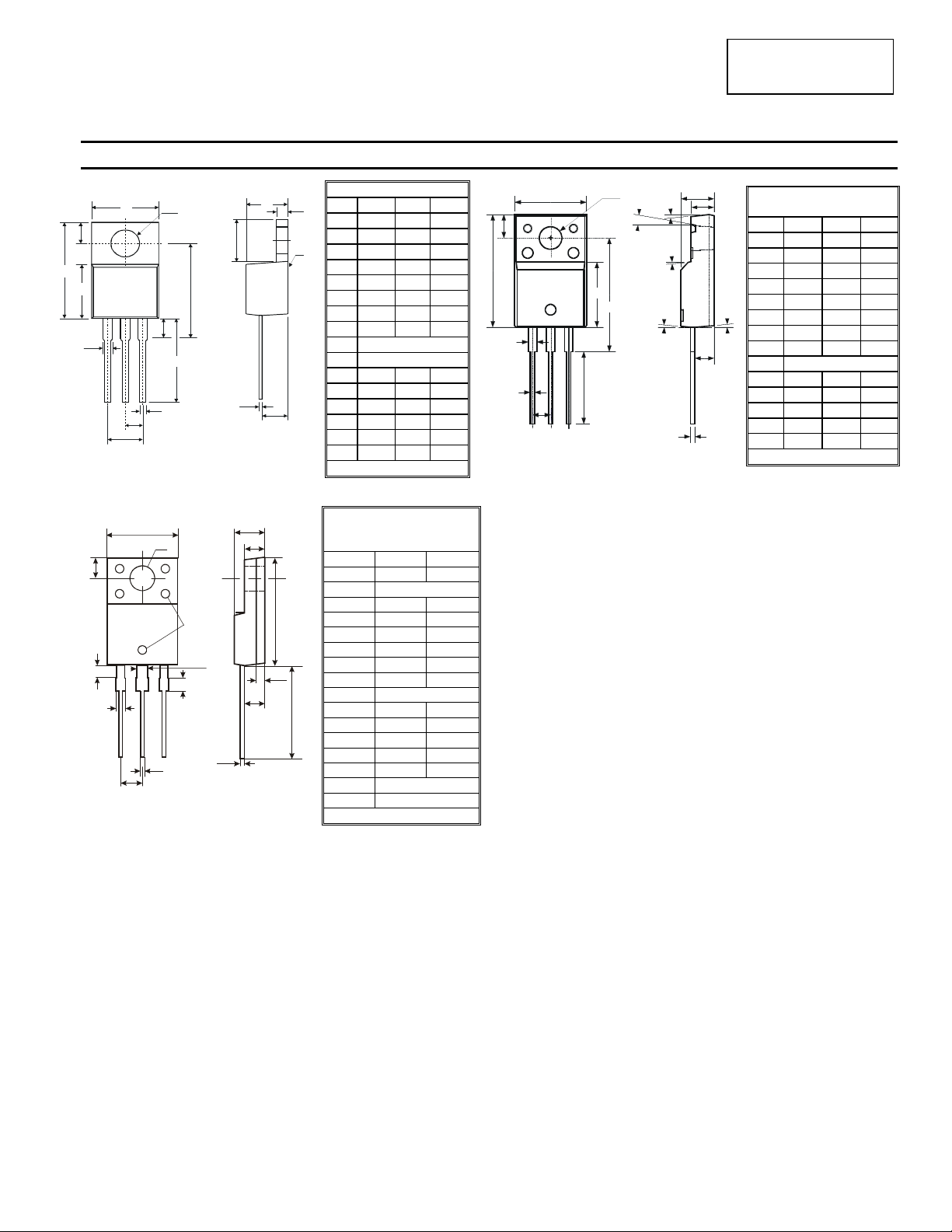

Package Outline Dimensions
E
Q
P
D
D1
b2
e
e1
±
16.00 0.20*
L1
L
b
*Guaranteed by TO-220AB leadframe design
Q
E
ØP
+
Not Through Holes
1
23
L1
b1
b2
L2
b
e
Notes: 5. For product manufactured with Date Code 0733 (week 33, 2007) and newer, please refer to ITO-220AB dimensions. For product manufactured prior to
Date Code 0733, please refer to ITO-220AB ALTERNATE dimensions.
A
A1
H1
SEATING PLANE
c
A2
A
F
D
A1
J1
c
L
TO-220AB
Dim Min Typ Max
A 3.56 - 4.82
A1 0.51 - 1.39
A2 2.04 - 2.92
b 0.39 0.81 1.01
b2 1.15 1.24 1.77
c 0.356 - 0.61
D 14.22 - 16.51
D1 8.39 - 9.01
e 2.54
e1 5.08
E 9.66 - 10.66
H1 5.85 - 6.85
L 12.70 - 14.73
L1 - - 6.35
P 3.54 - 4.08
Q 2.54 - 3.42
All Dimensions in mm
ITO-220AB
ALTERNATE
(Note 5)
DIM. MIN. MAX.
A 4.30 4.70
A1 1.3
b 0.50 0.75
b1 1.10 1.35
b2 1.50 1.75
c 0.50 0.75
D 14.80 15.20
E 9.96 10.36
e 2.54 typ
F 2.80 3.20
J1 2.50 2.90
L 12.80 13.60
L1 1.70 1.90
L2 1.90 2.10
ØP 3.50 typ
Q 2.70 typ
All Dimensions in mm
D
3 x b1
3 x b
Q
2 x e
E
123
Ø
10°
A
A1
5°
ITO-220AB
(Note 5)
Dim Min Typ Max
A 4.50 4.70 4.90
A1 3.04 3.24 3.44
5°
D1
L1
5°
A2
L
A2 2.56 2.76 2.96
b 0.50 0.60 0.75
b1 1.10 1.20 1.35
c 0.50 0.60 0.70
D 15.67 15.87 16.07
5°
D1 8.99 9.19 9.39
e 2.54
E 9.91 10.11 10.31
L 9.45 9.75 10.05
L1 15.80 16.00 16.20
c
P 2.98 3.18 3.38
Q 3.10 3.30 3.50
All Dimensions in mm
SBR is a registered trademark of Diodes Incorporated.
SBR3045
Document number: DS30968 Rev. 4 - 2
3 of 4
www.diodes.com
July 2009
© Diodes Incorporated
