A

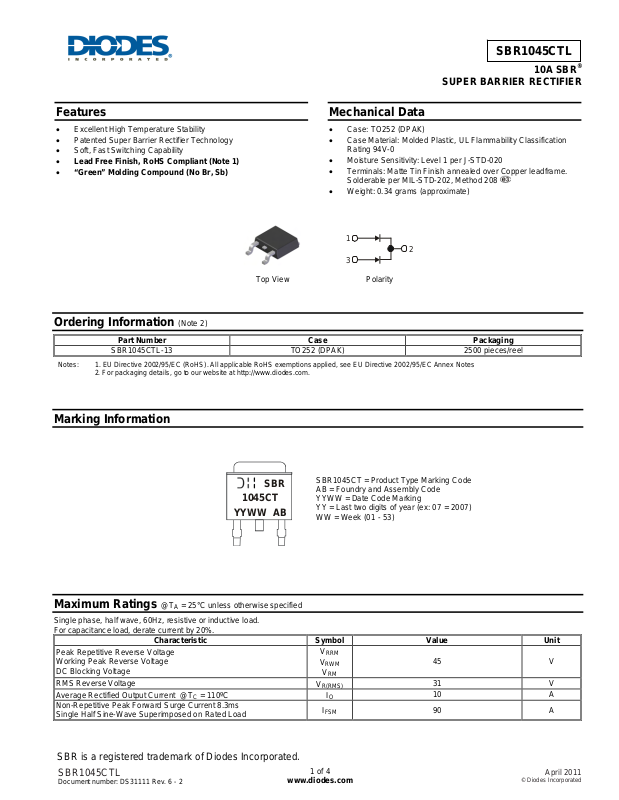

SUPER BARRIER RECTIFIER
Features
• Excellent High Temperature Stability
• Patented Super Barrier Rectifier Technology
• Soft, Fast Switching Capability
• Lead Free Finish, RoHS Compliant (Note 1)
• “Green” Molding Compound (No Br, Sb)
Top View Polarity
Mechanical Data
• Case: TO252 (DPAK)
• Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
• Weight: 0.34 grams (approximate)
1
2
3
Ordering Information (Note 2)
Part Number Case Packaging
SBR1045CTL-13 TO252 (DPAK) 2500 pieces/reel
Notes: 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes
2. For packaging details, go to our website at http://www.diodes.com.
SBR1045CTL
10A SBR
®
Marking Information
Maximum Ratings @T
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current @TC = 110ºC IO
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
SBR is a registered trademark of Diodes Incorporated.
= 25°C unless otherwise specified
A
Characteristic Symbol Value Unit
SBR1045CTL
Document number: DS31111 Rev. 6 - 2
SBR
1045CT
YYWW AB
SBR1045CT = Product Type Marking Code
B = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 07 = 2007)
WW = Week (01 - 53)
V
RRM
V
RWM
V
RM
V
R(RMS
I
FSM
1 of 4
www.diodes.com
45 V
31 V
10 A
90 A
April 2011
© Diodes Incorporated
Page 2
θ
(BR)
P, P
OWER
PATIO
N
Thermal Characteristics
Characteristic Symbol Value Unit
Maximum Thermal Resistance (per leg) (Note 3)
Operating and Storage Temperature Range
Electrical Characteristics @T
= 25°C unless otherwise specified
A
Characteristic Symbol Min Typ Max Unit Test Condition
Reverse Breakdown Voltage (Note 4)
Forward Voltage Drop (Per Leg)
Leakage Current (Note 4)
Notes: 3. Device mounted on polymide substrate 2” x 2”, 2oz. Copper, 1 x MRP double-sided, PC boards.
4. Short duration pulse test used to minimize self-heating effect.
V
R
V
F
I
R
3
(W)
2
R
JA
, T
T
J
STG
45 - - V
-
-
-
-
0.5
-
13
100
10
T = 125°C
A
1
SBR1045CTL
47 ºC/W
-65 to +150 ºC
IR = 0.5mA
= 5A, TJ = 25ºC
0.55
0.53
0.5
100
T = 150°C
A
V
mA
I
F
I
= 5A, TJ = 85ºC
F
= 45V, TJ = 25ºC
V
R
= 45V, TJ = 125ºC
V
R
DISSI
1
D
0
0123456
I , AVERAGE FORWARD CURRENT (A)
F(AV)
Fig. 1 Forward Power Dissipation
100,000
T = 150°C
10,000
1,000
100
A
T = 125°C
A
T = 85°C
A
T = 25°C
A
10
1
0.01
0.001
F
I , INSTANTANEOUS FORWARD CURRENT (A)
0.0001
10,000
1,000
100
T
C , TOTAL CAPACITANC E (pF)
0.1
T = 85°C
A
T = 25°C
A
T = -55°C
A
0 0.2 0.4 0.6 0.8 1
V , INSTANTANEOUS FORWARD VOLTAGE (V)
F
Fig. 2 Typical Forward Characteristics
f = 1MHz
10
T = -55°C
R
0.1
I , INSTANTANEOUS REVERSE CURRENT (uA)
0 5 10 15 20 25 30 35 40 45
V , INSTANTANEOUS REVERSE VOLT AGE (V)
R
Fig. 3 Typical Reverse Characteristics
A
1
0.1 1 10 100
V , DC REVERSE VOLTAGE (V)
R
Fig. 4 To tal Capacitance vs. Reverse Voltage
SBR is a registered trademark of Diodes Incorporated.
SBR1045CTL
Document number: DS31111 Rev. 6 - 2
2 of 4
www.diodes.com
April 2011
© Diodes Incorporated
Page 3
SBR1045CTL
7
6
5
Per Die
Note 3
150
125
100
4
75
3
50
2
T , DERATED AMBIENT TEMPERATURE (°C)
25
A
0
0
51015202530354045
V , DC REVERSE VOLTAGE (V)
R
Fig. 6 Operating T emperature Derating
1
F(AV)
I , A VERAGE FORW ARD CURRENT (A)
0
0 25 50 75 100 125 150
T , AMBIENT TEMPERATURE (°C)
A
Fig. 5 Forward Current Derating Curve

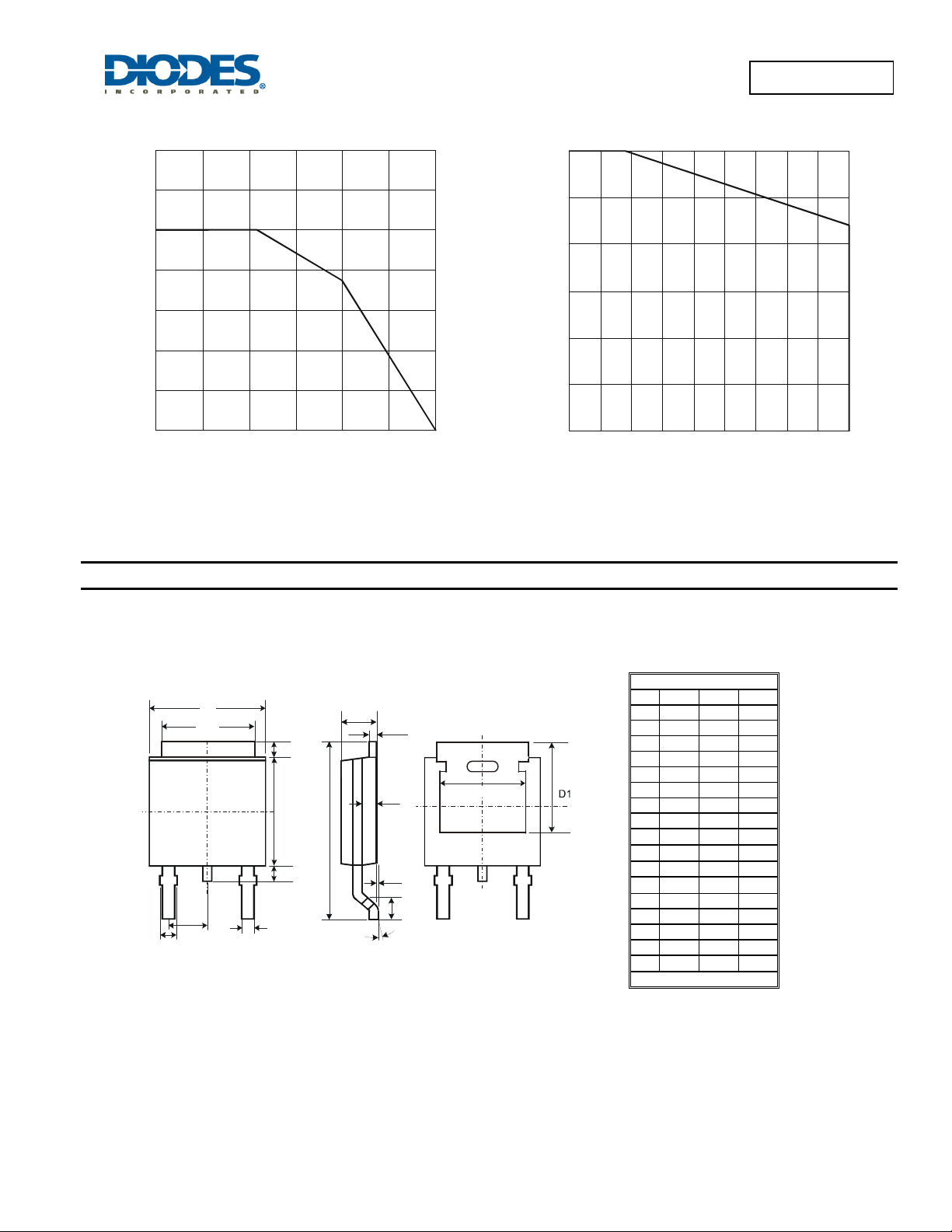

Package Outline Dimensions
E
b3
L3
A
c2
D
H
A2
E1
e
2X b2
3X b
L4
A1
L
a
SBR is a registered trademark of Diodes Incorporated.
SBR1045CTL
Document number: DS31111 Rev. 6 - 2
3 of 4
www.diodes.com
Dim Min Max Typ
TO252
A 2.19 2.39 2.29
A1 0.00 0.13 0.08
A2 0.97 1.17 1.07
b 0.64 0.88 0.783
b2 0.76 1.14 0.95
b3 5.21 5.46 5.33
c2 0.45 0.58 0.531
D 6.00 6.20 6.10
D1 5.21
e
− −
− −
2.286
E 6.45 6.70 6.58
E1 4.32
− −
H 9.40 10.41 9.91
L 1.40 1.78 1.59
L3 0.88 1.27 1.08
L4 0.64 1.02 0.83
a 0° 10°
−
All Dimensions in mm
April 2011
© Diodes Incorporated
Page 4
SBR1045CTL

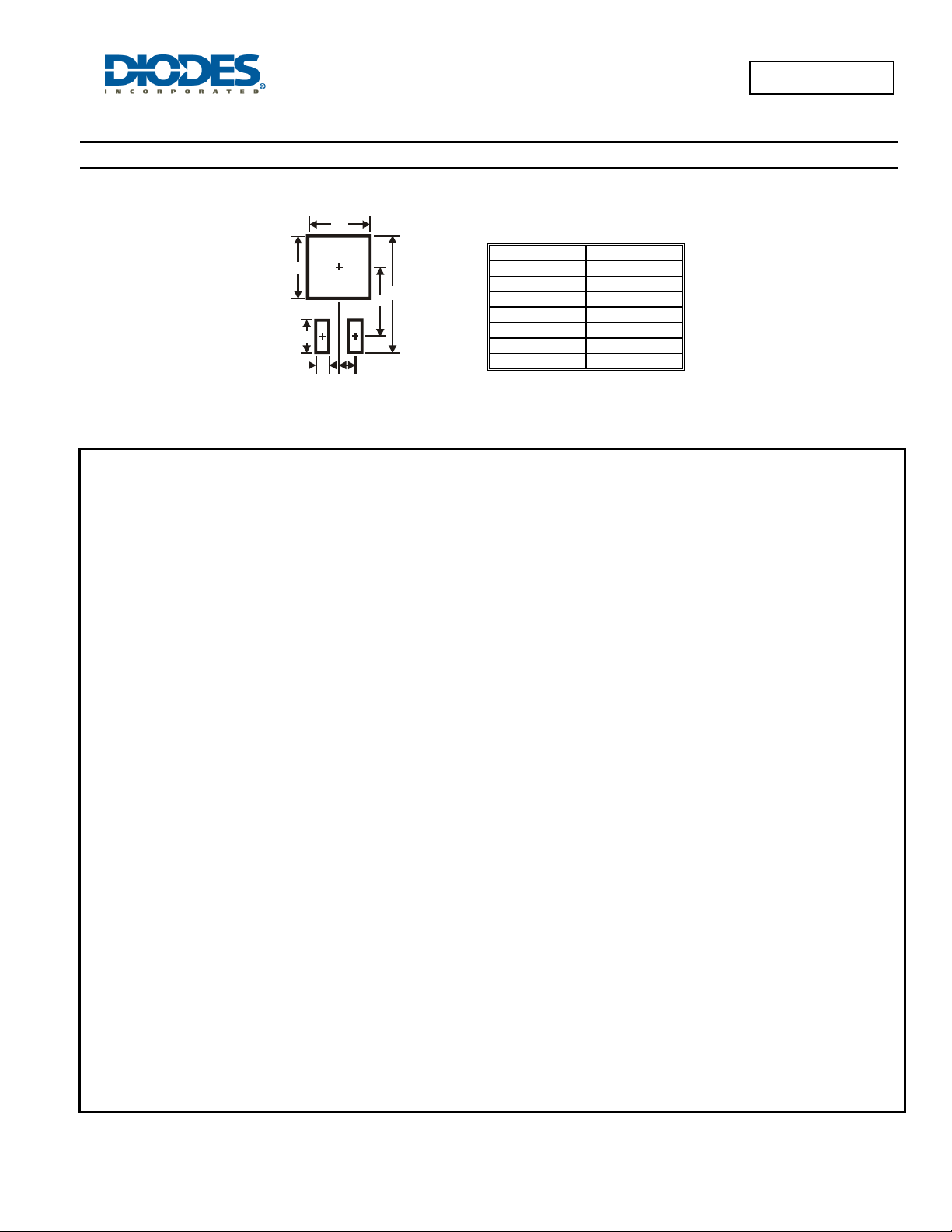

Suggested Pad Layout
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorize d application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2011, Diodes Incorporated
www.diodes.com
Y2
Y1
X1
X2
E1
Dimensions Value (in mm)
Z 11.6
Z
C
IMPORTANT NOTICE
LIFE SUPPORT
X1 1.5
X2 7.0
Y1 2.5
Y2 7.0
C 6.9
E1 2.3
SBR is a registered trademark of Diodes Incorporated.
SBR1045CTL
Document number: DS31111 Rev. 6 - 2
www.diodes.com
4 of 4
