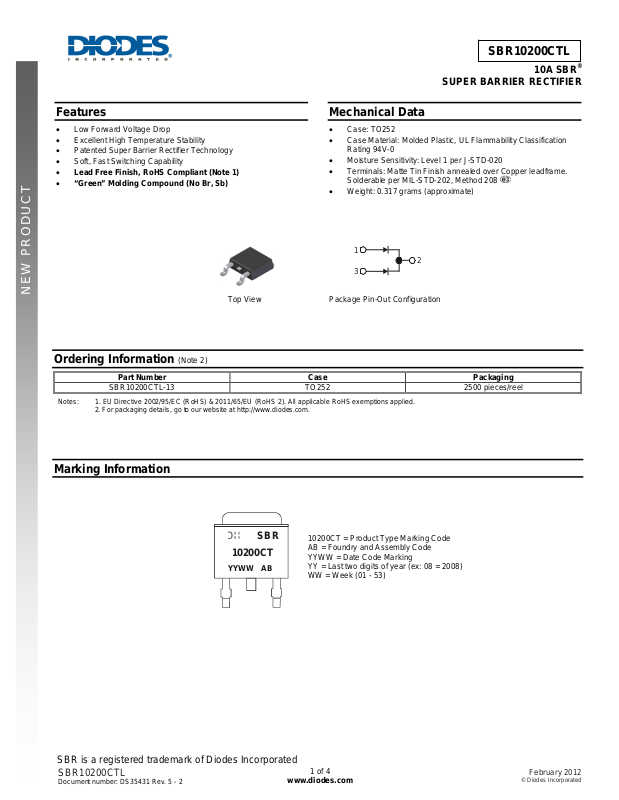

Features
• Low Forward Voltage Drop
• Excellent High Temperature Stability
• Patented Super Barrier Rectifier Technology
• Soft, Fast Switching Capability
• Lead Free Finish, RoHS Compliant (Note 1)
• “Green” Molding Compound (No Br, Sb)
NEW PRODUCT
Top View
SBR10200CTL
SUPER BARRIER RECTIFIER
Mechanical Data
• Case: TO252
• Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
• Weight: 0.317 grams (approximate)
1
2
3
Package Pin-Out Configuration
10A SBR
®
Ordering Information (Note 2)
Part Number Case Packaging
SBR10200CTL-13 TO252 2500 pieces/reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2). All applicable RoHS exemptions applied.
2. For packaging details, go to our website at http://www.diodes.com.
Marking Information
SBR is a registered trademark of Diodes Incorporated
10200CT
YYWW AB
SBR10200CTL
Document number: DS35431 Rev. 5 - 2
SBR
www.diodes.com
10200CT = Product Type Marking Code
B = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 08 = 2008)
WW = Week (01 - 53)
1 of 4
February 2012
© Diodes Incorporated
Page 2
θ
P, P
O
R
PAT
O
TANT
O
US FOR
RD C
URR
T
Maximum Ratings (Per Leg) @T
= 25°C unless otherwise specified
A
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic Symbol Value Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current Per Device (Per Leg)
(Total)
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Thermal Characteristics (Per Leg)
NEW PRODUCT
Typical Thermal Resistance (Notes 3)
Operating and Storage Temperature Range
Characteristic Symbol Value Unit
SBR10200CTL
V
RRM
V
RWM
V
RM
I
O
I
FSM
R
JC
T
, T
J
STG
200 V
5
10
A
110 A
2 ºC/W
-65 to 150 ºC
Electrical Characteristics (Per Leg) @T
= 25°C unless otherwise specified
A
Characteristic Symbol Min Typ Max Unit Test Condition
Forward Voltage Drop
Leakage Current (Note 4)
Notes: 3. Device mounted on Polymide substrate, 125mm2 copper pad, double-sided, PC boards.
4. Short duration pulse test used to minimize self-heating effect.
V
F
I
R
-
- -
3.5
100
(A)
3.0
2.5
N (W)
EN
I
2.0
WA
0.1
DISSI
1.5
WE
1.0
D
0.5
0.01
ANE
0.001
10
1
0.88
-
0.94
0.85
100
20
T = 150°C
A
T = 125°C
A
V
μA
mA
T = 25°C
A
= 5A, TJ = 25ºC
I
F
= 5A, TJ = 125ºC
I
F
V
= 200V, TJ = 25ºC
R
= 200V, TJ = 125ºC
V
R
T = 85°C
A
F
I, INS
0
0246
I AVERAGE FORWARD CURRENT (A)
F(AV)

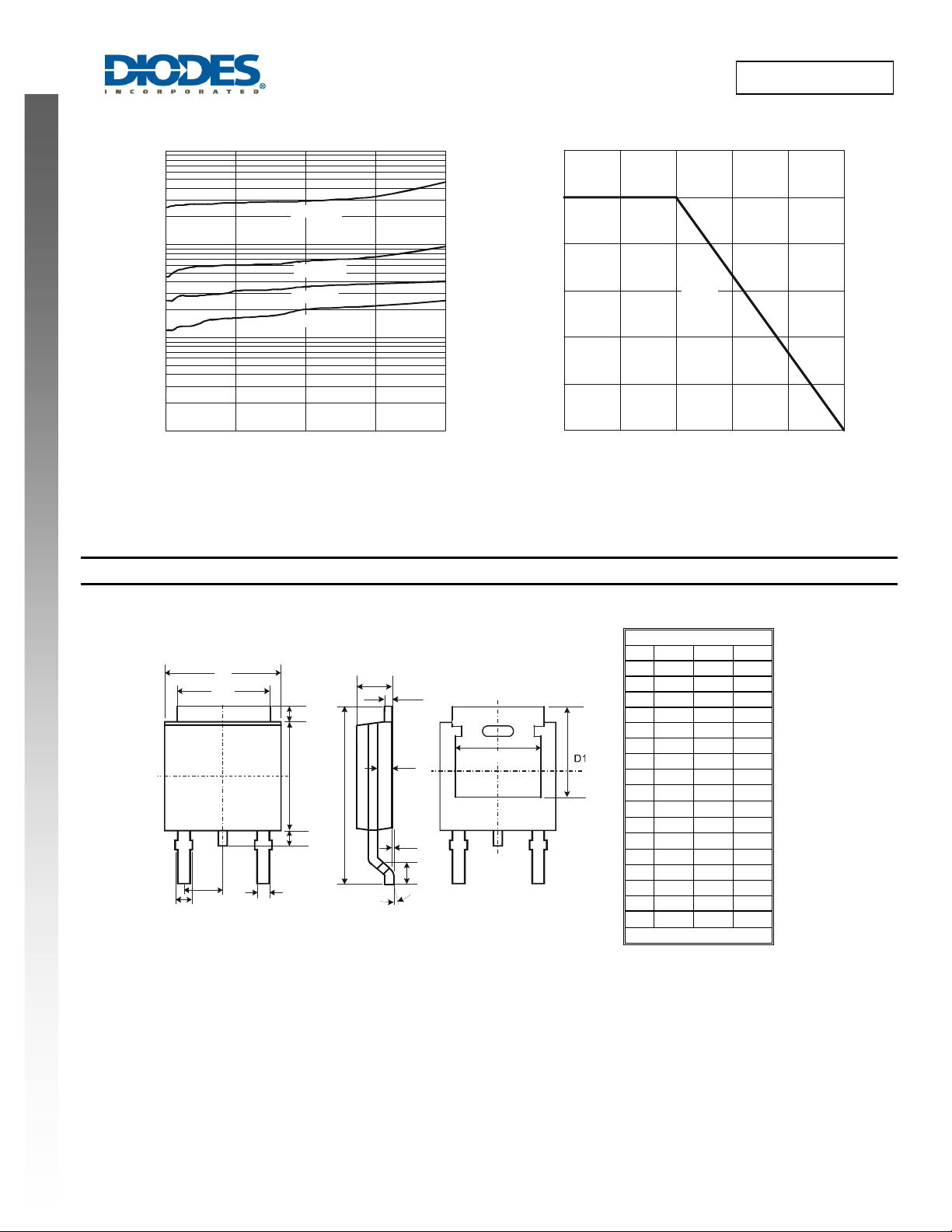

Fig. 1 Forward Power Dissipation
0.0001
0 0.2 0.4 0.6 0.8 1.0 1.2
V , INSTANTANEOUS FORW ARD VOLT AGE (V)
F
Fig. 2 Typical Forwar d Characteristics
SBR is a registered trademark of Diodes Incorporated
SBR10200CTL
Document number: DS35431 Rev. 5 - 2
2 of 4
www.diodes.com
February 2012
© Diodes Incorporated
Page 3
NEW PRODUCT
SBR10200CTL
10
0.1
T = 150°C
A
1
T = 125°C
A
T = 85°C
A
T = 25°C
A
6
5
4
3
Note 3
2
1
F(AV)
R
I , INSTANTANEOUS REVERSE CURRENT (µA)
0.01
0 50 100 150 200
V , INSTANTANEOUS REVERSE VOLTAGE (V)
R
Fig. 3 Typical Reverse Characteristics
I , AVERAGE FORWARD CURRENT (A)
0
25 50 75 100 125 150
T , AMBIENT TEMPERATURE (°C)
A
Fig. 4 Forward Current Derating Curve
Package Outline Dimensions
SBR is a registered trademark of Diodes Incorporated
SBR10200CTL
Document number: DS35431 Rev. 5 - 2
2X b2
E
b3
L3
D
L4
e
3X b
A
c2
A2
H
A1
L
a
E1
3 of 4
www.diodes.com
Dim Min Max Typ
TO252
A 2.19 2.39 2.29
A1 0.00 0.13 0.08
A2 0.97 1.17 1.07
b 0.64 0.88 0.783
b2 0.76 1.14 0.95
b3 5.21 5.46 5.33
c2 0.45 0.58 0.531
D 6.00 6.20 6.10
D1 5.21
e
− −
− −
2.286
E 6.45 6.70 6.58
E1 4.32
− −
H 9.40 10.41 9.91
L 1.40 1.78 1.59
L3 0.88 1.27 1.08
L4 0.64 1.02 0.83
a 0° 10°
−
All Dimensions in mm
February 2012
© Diodes Incorporated
Page 4
SBR10200CTL

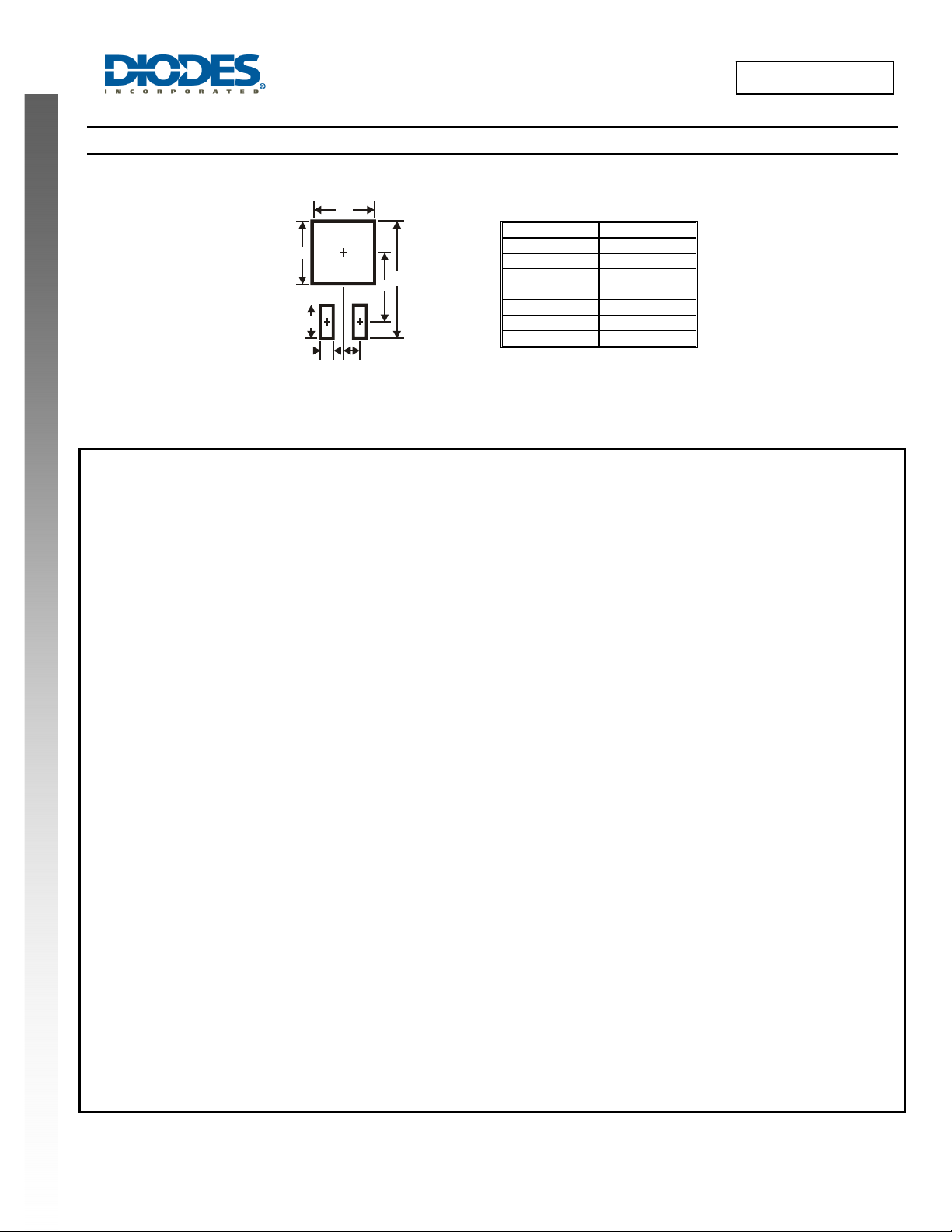

Suggested Pad Layout
NEW PRODUCT
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document o r products described herein in such applica tions shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorize d application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2012, Diodes Incorporated
www.diodes.com
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
Y2
Y1
X1
X2
E1
Dimensions Value (in mm)
Z 11.6
X1 1.5
Z
C
IMPORTANT NOTICE
LIFE SUPPORT
X2 7.0
Y1 2.5
Y2 7.0
C 6.9
E1 2.3
SBR is a registered trademark of Diodes Incorporated
SBR10200CTL
Document number: DS35431 Rev. 5 - 2
www.diodes.com
4 of 4
February 2012
© Diodes Incorporated
