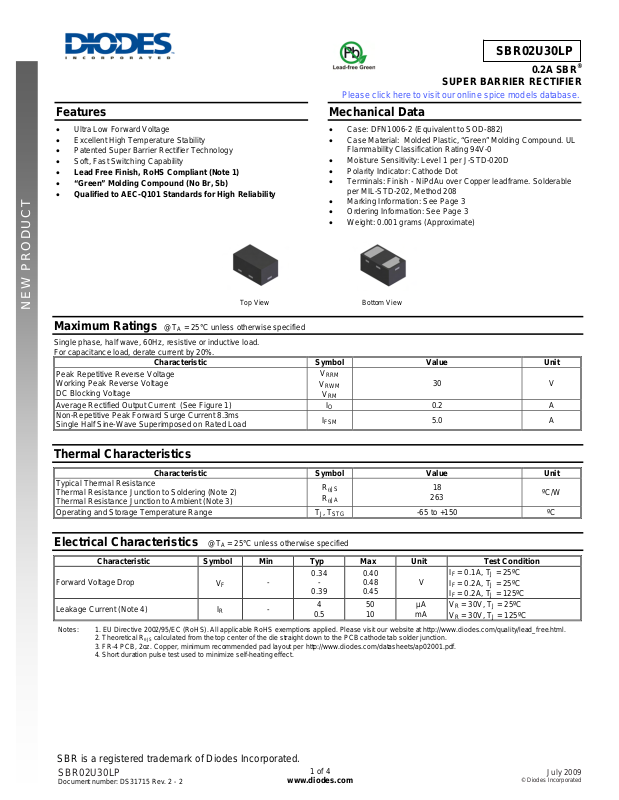

Page 1
Please click here to visit our online spice models database.
Features
• Ultra Low Forward Voltage
• Excellent High Temperature Stability
• Patented Super Barrier Rectifier Technology
• Soft, Fast Switching Capability
• Lead Free Finish, RoHS Compliant (Note 1)
• “Green” Molding Compound (No Br, Sb)
• Qualified to AEC-Q101 Standards for High Reliability
NEW PRODUCT
Maximum Ratings @T
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current (See Figure 1)
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
= 25°C unless otherwise specified
A
Characteristic Symbol Value Unit
Top View
SBR02U30LP
0.2A SBR
SUPER BARRIER RECTIFIER
Mechanical Data
• Case: DFN1006-2 (Equivalent to SOD-882)
• Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020D
• Polarity Indicator: Cathode Dot
• Terminals: Finish - NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
• Marking Information: See Page 3
• Ordering Information: See Page 3
• Weight: 0.001 grams (Approximate)
Bottom View
V
V
RRM
RWM
V
I
FSM
RM
I
O
30 V
0.2 A
5.0 A
®
Thermal Characteristics
Typical Thermal Resistance
Thermal Resistance Junction to Soldering (Note 2)
Thermal Resistance Junction to Ambient (Note 3)
Operating and Storage Temperature Range
Electrical Characteristics @T
Characteristic Symbol Min Typ Max Unit Test Condition
Forward Voltage Drop
Leakage Current (Note 4)
Notes: 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at http://www.diodes.com/quality/lead_free.html.
2. Theoretical R
3. FR-4 PCB, 2oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf.
4. Short duration pulse test used to minimize self-heating effect.
SBR is a registered trademark of Diodes Incorporated.
SBR02U30LP
Document number: DS31715 Rev. 2 - 2
Characteristic Symbol Value Unit
= 25°C unless otherwise specified
A
V
F
I
R
calculated from the top center of the die straight down to the PCB cathode tab solder junction.
θJS
-
-
www.diodes.com
R
R
T
, T
J
0.34
-
0.39
4
0.5
1 of 4
θ
θ
JS
JA
STG
0.40
0.48
0.45
50
10
18
263
ºC/W
-65 to +150 ºC
= 0.1A, TJ = 25ºC
I
V
µA
mA
F
I
= 0.2A, TJ = 25ºC
F
= 0.2A, TJ = 125ºC
I
F
V
= 30V, TJ = 25ºC
R
V
= 30V, TJ = 125ºC
R
July 2009
© Diodes Incorporated
Page 2
P, P
OWER
P
TIO
NSTAN
TANEO
US R
R
CUR
REN
T
C, TOT
CAPACITAN
C
F
5
T
RAT
N
T T
PER
TUR
C
NEW PRODUCT
SBR02U30LP
0.6
0.5
N (W)
0.4
10
1
0.1
A
0.3
DISSI
0.2
D
0.1
0
0 0.2 0.4 0.6 0.8 1
I , AVERAGE FORWARD CURRENT (A)
F(AV)
Fig. 1 Forward Power Dissipation
100,000
F
0.00001
I , INSTANTANEOUS FORWARD CURRENT (A)
0.01
0.001
0.0001
0 200 400 600 800 1,000
V , IN STANTANEOUS F O RWARD VOL TAGE (m V)
F
Fig. 2 Typical Forward Characteristics
1,000
(µA)
)
10,000
E (p
100
SE
1,000
EVE
AL
10
T
1
0.1 1 10 100
V , DC REVERSE VOLTAGE (V)
R
Fig. 4 Total Capacitance vs. Reverse Voltage
150
)
E (°
125
I, I
100
R
10
0 102030405060
V , INSTANTANEOUS REVERSE VOLTAGE (V)
R
Fig. 3 Typical Reverse Characteristics
0.2
Note 3
0.2
A
100
0.15
EM
75
0.1
50
ED AMBIE
0.05
F(AV)
I , AVERAGE FORWARD CURRENT(A)
0
0 25 50 75 100 125 150
T , AMBIENT TEMPERATURE (°C)
A
Fig. 5 Forward Current Derating Curve
175 200
25
, DE
A
0
0 3 6 9 12 15 18 21 24 27 30
V , DC REVERSE VOLTAGE (V)
R
Fig. 6 Operating Temperature Derating
SBR is a registered trademark of Diodes Incorporated.
SBR02U30LP
Document number: DS31715 Rev. 2 - 2
2 of 4
www.diodes.com
July 2009
© Diodes Incorporated
Page 3
Ordering Information (Note 5)
Part Number Case Packaging
SBR02U30LP-7
Notes: 5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
DFN1006-2
Marking Information
Package Outline Dimensions
NEW PRODUCT
A
E
A1
D
R
L
e
23 = Product Type Marking Code
Dot Denotes Cathode Side
b
SBR02U30LP
3000/Tape & Reel
DFN1006-2
Dim Min Max Typ
A 0.47 0.53 0.50
A1 0 0.05 0.03
b 0.45 0.55 0.50
D 0.95 1.075 1.00
E 0.55 0.675 0.60
e - - 0.40
L 0.20 0.30 0.25
R 0.05 0.15 0.10
All Dimensions in mm
Suggested Pad Layout
X
C
Y
SBR is a registered trademark of Diodes Incorporated.
SBR02U30LP
Document number: DS31715 Rev. 2 - 2
G
Z
www.diodes.com
3 of 4
Dimensions Value (in mm)
Z 1.1
G 0.3
X 0.7
Y 0.4
C 0.7
July 2009
© Diodes Incorporated
