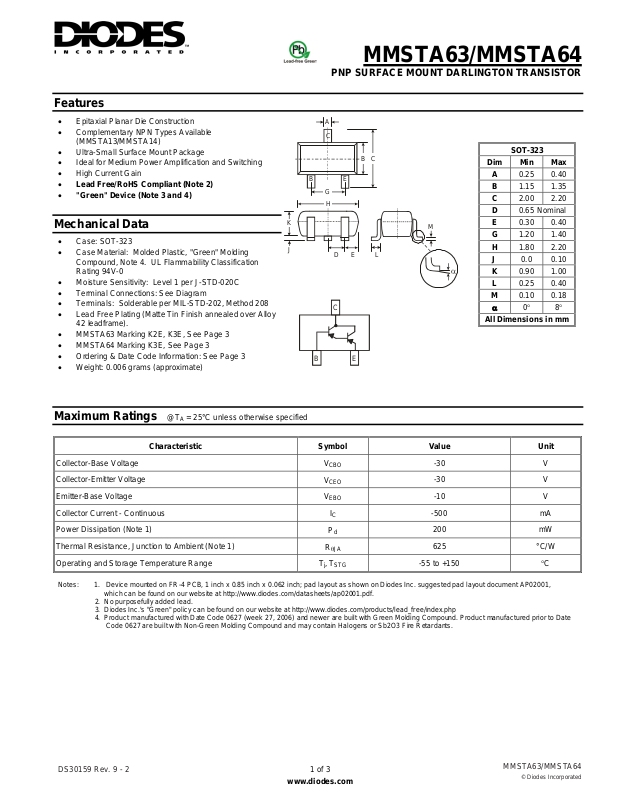

MMSTA63/MMSTA64

PNP SURFACE MOUNT DARLINGTON TRANSISTOR

Features

• Epitaxial Planar Die Construction

• Complementary NPN Types Available

(MMSTA13/MMSTA14)

• Ultra-Small Surface Mount Package

• Ideal for Medium Power Amplification and Switching

• High Current Gain

• Lead Free/RoHS Compliant (Note 2)

• "Green" Device (Note 3 and 4)

Mechanical Data

• Case: SOT-323

• Case Material: Molded Plastic, "Green" Molding

Compound, Note 4. UL Flammability Classification
Rating 94V-0

• Moisture Sensitivity: Level 1 per J-STD-020C

• Terminal Connections: See Diagram

• Terminals: Solderable per MIL-STD-202, Method 208

• Lead Free Plating (Matte Tin Finish annealed over Alloy

42 leadframe).

• MMSTA63 Marking K2E, K3E, See Page 3

• MMSTA64 Marking K3E, See Page 3

• Ordering & Date Code Information: See Page 3

• Weight: 0.006 grams (approximate)

BE

K

J

B

A
C

G
H

C

C

B

M

L

ED

E

SOT-323

Dim Min Max

A 0.25 0.40
B 1.15 1.35
C 2.00 2.20
D 0.65 Nominal
E 0.30 0.40
G 1.20 1.40
H 1.80 2.20
J 0.0 0.10
K 0.90 1.00
L 0.25 0.40
M 0.10 0.18
α

All Dimensions in mm

0° 8°

Maximum Ratings @T

Characteristic Symbol Value Unit

Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current - Continuous
Power Dissipation (Note 1)
Thermal Resistance, Junction to Ambient (Note 1)
Operating and Storage Temperature Range

Notes: 1. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001,

which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.

2. No purposefully added lead.

3. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php

4. Product manufactured with Date Code 0627 (week 27, 2006) and newer are built with Green Molding Compound. Product manufactured prior to Date

Code 0627 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.

= 25°C unless otherwise specified

A

V

CBO

V

CEO

V

EBO

IC
Pd

R

θ

Tj, T

JA

STG

-30 V

-30 V

-10 V

-500 mA
200 mW
625 °C/W

-55 to +150

°C

DS30159 Rev. 9 - 2 1 of 3

www.diodes.com

MMSTA63/MMSTA64

© Diodes Incorporated

P, P

OWER

PATIO

N

C

O

CTO

R T

O

T

TER

D

C

C

U

R

R

N

T

G

N

T

T

R VO

TAG

Electrical Characteristics @T

= 25°C unless otherwise specified

A

Characteristic Symbol Min Max Unit Test Condition

OFF CHARACTERISTICS (Note 5)

Collector-Emitter Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current

V

(BR)CEO

I

CBO

I

EBO

-30
⎯
⎯

⎯

V

-100 nA

-100 nA

IC = -100μA VBE = 0V
VCB = -30V, IE = 0
V

= -10V, IC = 0

EB

ON CHARACTERISTICS (Note 5)

DC Current Gain MMSTA63
MMSTA64
MMSTA63
MMSTA64

Collector-Emitter Saturation Voltage
Base- Emitter Saturation Voltage

hFE

V

CE(SAT)

V

BE(SAT)

5,000
10,000
10,000
20,000

⎯

⎯

⎯ ⎯

-1.5 V

-2.0 V

IC = -10mA, VCE = -5.0V
IC = -10mA, V

= -5.0V

CE

IC = -100mA, VCE = -5.0V
IC = -100mA, V

= -5.0V

CE

IC = -100mA, IB = -100μA
IC = -100mA, VCE = -5.0V

SMALL SIGNAL CHARACTERISTICS

Current Gain-Bandwidth Product

Notes: 5. Short duration pulse test used to minimize self-heating effect.

200

fT

125

⎯

1.20

VCE = -5.0V, IC = -10mA,

MHz

f = 100MHz

1.15

1.10

150

(mW)

1.05

1.00

0.95

EMI

0.90

0.85

100

DISSI

D

50

0

10,000,000

0

25 50

T , AMBIENT TEMPERATURE (°C)

A

75 100 125

Fig. 1, Max Power Dissipation vs.

Ambient Temperature

150

175

200

LLE

SATURATION VOLTAGE (V)

CE(SAT)

V,

0.80

0.75

0.70

0.65

0.60

0.55

0.50

0.45

0.40
1

10

I , COLLECTOR CURRENT (mA)

C

100

Fig. 2, Collector Emitter Saturation Voltage

vs. Collec to r Current

1,000

1.6

1.5

1.4

1,000,000

AI

E

100,000

1.3

E (V)

1.2

L

1.1

1.0

0.9

E

0.8

10,000

0.7

0.6

FE

h,

1,000

100

1

10

I , COLLECTOR CURRENT (mA)

C

100

1,000

Fig. 3, DC Current Gain vs.

Collector Current

0.5

0.4

0.3

BE(ON)

V , BASE EMI

0.2

0.1

0.1

1

I , COLLECTOR CURRENT (mA)

C

10

100

Fig. 4, Base Emitter Voltage vs.

Collector Current

DS30159 Rev. 9 - 2 2 of 3

www.diodes.com

MMSTA63/MMSTA64

© Diodes Incorporated

G

T

H P

R

ODU

C

T

H

1,000

V = 5V

z)
(M

100

10

AIN BANDWID

T

f,

CE

1

110

I , COLLECTOR CURRENT (mA)

C

Fig. 5, Gain Bandwidth Prod uct vs.

Collector Current

100

Ordering Information (Note 4 & 6)

Device
MMSTA63-7-F
MMSTA64-7-F

Notes: 6. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.

Packaging Shipping

SOT-323 3000/Tape & Reel
SOT-323 3000/Tape & Reel

Marking Information

Date Code Key

Year

Code

Month Jan Feb Mar Apr May Jun Jul

Code 1 2 3 4 5 6 7

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.

Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.

1998 1999 2000 2001 2002 2003 2004

J K L M N P R

KxE

KxE = Product Type Marking Code, e.g. K2E = MMSTA63
YM = Date Code Marking

YM

Y = Year ex: N = 2002
M = Month ex: 9 = September

2005 2006 2007 2008 2009 2010 2011 2012

S T U V W X Y Z

Aug Sep Oct Nov Dec

8 9 O N D
