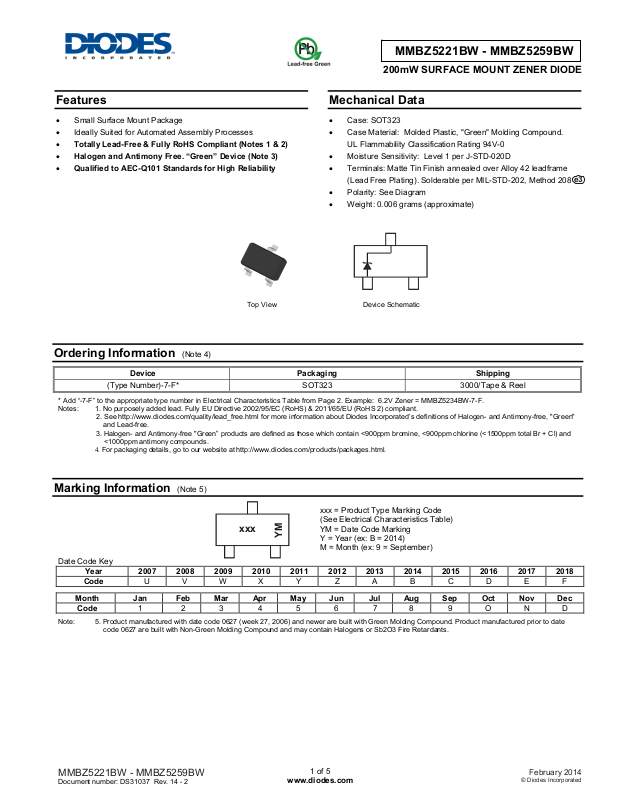

Features

• Small Surface Mount Package

• Ideally Suited for Automated Assembly Processes

• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• Qualified to AEC-Q101 Standards for High Reliability

Top View Device Schematic

MMBZ5221BW - MMBZ5259BW

200mW SURFACE MOUNT ZENER DIODE

Mechanical Data

• Case: SOT323

• Case Material: Molded Plastic, "Green" Molding Compound.

UL Flammability Classification Rating 94V-0

• Moisture Sensitivity: Level 1 per J-STD-020D

• Terminals: Matte Tin Finish annealed over Alloy 42 leadframe

(Lead Free Plating). Solderable per MIL-STD-202, Method 208

• Polarity: See Diagram

• Weight: 0.006 grams (approximate)

Ordering Information (Note 4)

Device Packaging Shipping

(Type Number)-7-F* SOT323 3000/Tape & Reel

* Add “-7-F” to the appropriate type number in Electrical Characteristics Table from Page 2. Example: 6.2V Zener = MMBZ5234BW-7-F. Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds.

Marking Information (Note 5)

Date Code Key

Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec

Code 1 2 3 4 5 6 7 8 9 O N D

Note: 5. Product manufactured with date code 0627 (week 27, 2006) and newer are built with Green Molding Compound. Product manufactured prior to date code 0627 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.

Year 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018

Code U V W X Y Z A B C D E F

xxx

xxx = Product Type Marking Code (See Electrical Characteristics Table) YM = Date Code Marking Y = Year (ex: B = 2014) M = Month (ex: 9 = September)

MMBZ5221BW - MMBZ5259BW

Document number: DS31037 Rev. 14 - 2

1 of 5

www.diodes.com

February 2014

Page 2

MMBZ5221BW - MMBZ5259BW

Maximum Ratings (@T

= +25°C, unless otherwise specified.)

Characteristic Symbol Value Unit

Forward Voltage @ IF = 10mA VF

0.9 V

Thermal Characteristics

Characteristic Symbol Value Unit

Power Dissipation (Note 6) Thermal Resistance, Junction to Ambient Air (Note 6) Operating and Storage Temperature Range

Notes: 6. Mounted on FR4 PC Board with recommended pad layout which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.

J, TSTG

Electrical Characteristics (@T

Zener Voltage Range (Note 7) Test Current

Type

Number

Marking

Code

= +25°C, unless otherwise specified.)

Maximum Zener Impedance

VZ @ IZT IZT Z

ZT @ IZT

(Note 8)

Nom (V) Min (V) Max (V) mA

MMBZ5221BW KC1 2.4 2.28 2.52 20 30 1200 100 1.0 MMBZ5223BW KC3 2.7 2.57 2.84 20 30 1300 75 1.0 MMBZ5225BW KC5 3.0 2.85 3.15 20 30 1600 50 1.0 MMBZ5226BW KG1 3.3 3.14 3.47 20 28 1600 25 1.0 MMBZ5227BW KG2 3.6 3.42 3.78 20 24 1700 15 1.0 MMBZ5228BW KG3 3.9 3.71 4.10 20 23 1900 10 1.0 MMBZ5229BW KG4 4.3 4.09 4.52 20 22 2000 5.0 1.0 MMBZ5230BW KG5 4.7 4.47 4.94 20 19 1900 5.0 2.0 MMBZ5231BW KE1 5.1 4.85 5.36 20 17 1600 5.0 2.0 MMBZ5232BW KE2 5.6 5.32 5.88 20 11 1600 5.0 3.0 MMBZ5233BW KE3 6 5.70 6.30 20 7.0 1600 5.0 3.5 MMBZ5234BW KE4 6.2 5.89 6.51 20 7.0 1000 5.0 4.0 MMBZ5235BW KE5 6.8 6.46 7.14 20 5.0 750 3.0 5.0 MMBZ5236BW KF1 7.5 7.13 7.88 20 6.0 500 3.0 6.0 MMBZ5237BW KF2 8.2 7.79 8.61 20 8.0 500 3.0 6.5 MMBZ5238BW KF3

8.7 8.27 9.14 20 8 600 3 6.5 MMBZ5239BW KF4 9.1 8.65 9.56 20 10 600 3.0 7.0 MMBZ5240BW KF5 10 9.50 10.50 20 17 600 3.0 8.0 MMBZ5241BW KH1 11 10.45 11.55 20 22 600 2.0 8.4 MMBZ5242BW KH2 12 11.40 12.60 20 30 600 1.0 9.1 MMBZ5243BW KH3 13 12.35 13.65 9.5 13 600 0.5 9.9 MMBZ5245BW KH5 15 14.25 15.75 8.5 16 600 0.1 11 MMBZ5246BW KJ1 16 15.20 16.80 7.8 17 600 0.1 12 MMBZ5248BW KJ3 18 17.10 18.90 7.0 21 600 0.1 14 MMBZ5250BW KJ5 20 19.00 21.00 6.2 25 600 0.1 15 MMBZ5251BW KK1 22 20.90 23.10 5.6 29 600 0.1 17 MMBZ5252BW KK2 24 22.80 25.20 5.2 33 600 0.1 18 MMBZ5254BW KK4 27 25.65 28.35 5.0 41 600 0.1 21 MMBZ5255BW KK5 28 26.60 29.40 4.5 44 600 0.1 21 MMBZ5256BW KM1 30 28.50 31.50 4.2 49 600 0.1 23 MMBZ5257BW KM2 33 31.35 34.65 3.8 58 700 0.1 25 MMBZ5258BW KM3 36 34.20 37.80 3.4 70 700 0.1 27 MMBZ5259BW KM4 39 37.05 40.95 3.2 80 800 0.1 30

Notes: 7. Short duration pulse test used to minimize self-heating effect.

MMBZ5221BW - MMBZ5259BW

Document number: DS31037 Rev. 14 - 2

8. f = 1KHz.

2 of 5

www.diodes.com

200 mW 625

-65 to +150

Leakage Current (Note 7)

ZZK @ I

= 0.25mA

°C/W

°C

Maximum Reverse

IR @ VR

μA

February 2014

Page 3

P, P

OWER

PAT

R CUR

RENT

OWER

0.4

Note 6

MMBZ5221BW - MMBZ5259BW

0.3 N (W) I

(mA)

0.2 DISSI

0.1

2505075

T , AMBIENT TEMPERATURE ( C)

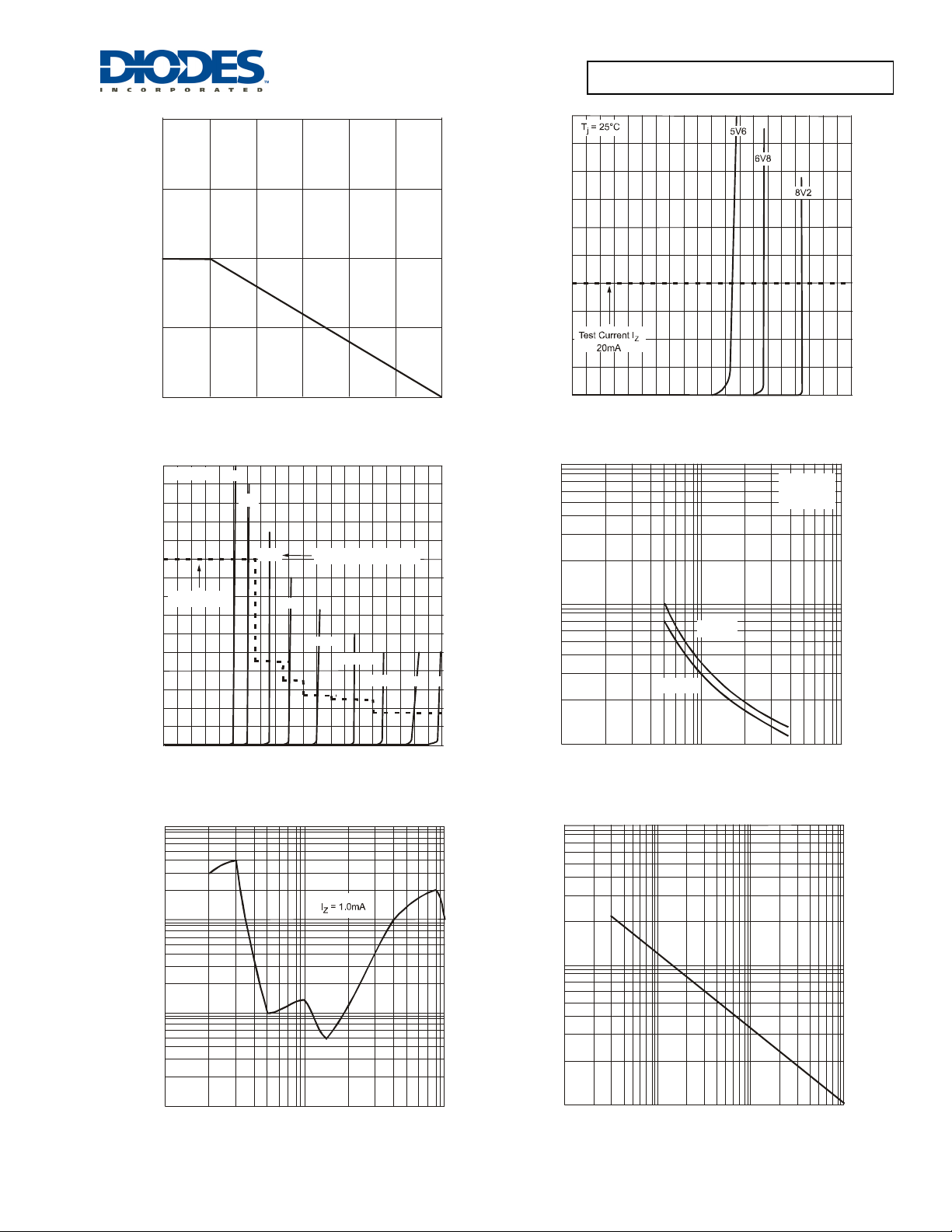

Fig. 1 Power Derating Curve

T = 25°C

100 125

150

I, ZENE

0123456

V , ZENER VOLTAGE (V)

Fig. 2 Typical Zener Breakdown Characteristics

1,000

8910

T= 25 °C

f = 1MHz

(mA)

I, ZENE

1,000

100

Test current I

10 20 30 40

V , ZENER VOLTAGE (V)

Nominal Zener Voltage

Fig. 3 Typical Zener Breakdown Characteristics

100

V = 1V

361539

C , TOTAL CAPACITANCE (pF)

V , NOMINAL ZENER VOLTAGE (V)

V = 2V

Fig. 4 Typical Total Capacitance vs. Nominal Zener Voltage

1001

100

(W)

Z , ZENER IMPEDANCE ( )

110100

V , ZENER VOLTAGE (V)

Fig. 5 Typical Zener Impedence Characteristics

EAK S ,

100

1,000

PULSE WIDTH (ms)

Fig. 6 Maximum Non-repetitive Surge Power

MMBZ5221BW - MMBZ5259BW

Document number: DS31037 Rev. 14 - 2

3 of 5

www.diodes.com

February 2014

Page 4

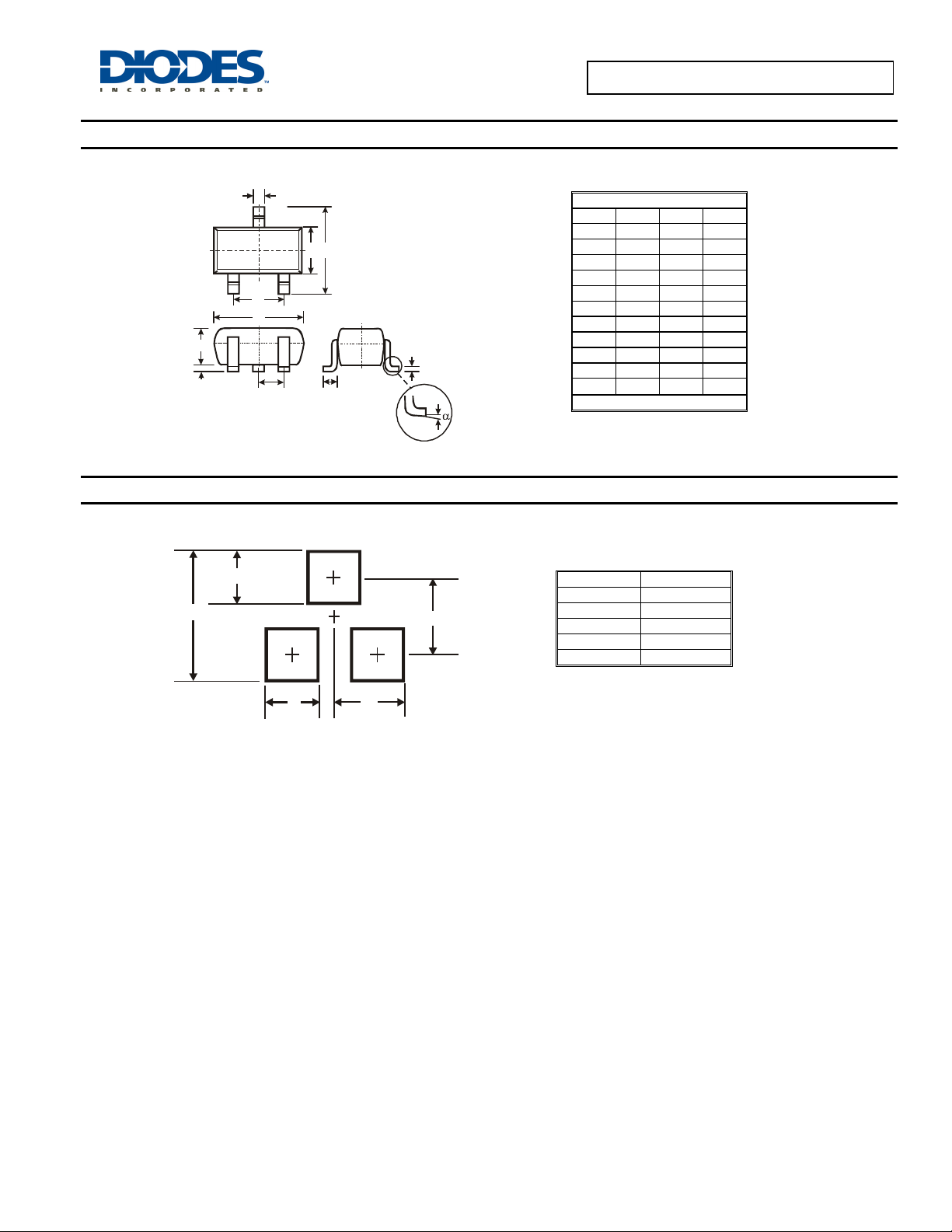

Package Outline Dimensions

Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.

Suggested Pad Layout

Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for latest version.

Dimensions Value (in mm)

MMBZ5221BW - MMBZ5259BW

Dim Min Max Typ

A 0.25 0.40 0.30 B 1.15 1.35 1.30 C 2.00 2.20 2.10 D - - 0.65 G 1.20 1.40 1.30 H 1.80 2.20 2.15 J 0.0 0.10 0.05 K 0.90 1.00 1.00 L 0.25 0.40 0.30 M 0.10 0.18 0.11

SOT323

0° 8° -

All Dimensions in mm

Z 2.8 X 0.7 Y 0.9 C 1.9 E 1.0
