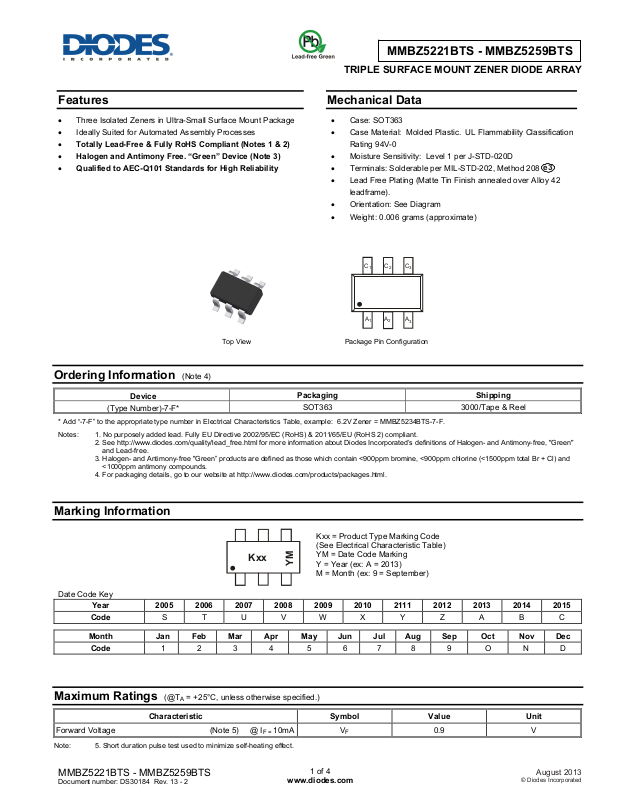

Page 1

Features

 Three Isolated Zeners in Ultra-Small Surface Mount Package

 Ideally Suited for Automated Assembly Processes

 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

 Halogen and Antimony Free. “Green” Device (Note 3)

 Qualified to AEC-Q101 Standards for High Reliability

Top View

MMBZ5221BTS - MMBZ5259BTS

TRIPLE SURFACE MOUNT ZENER DIODE ARRAY

Mechanical Data

 Case: SOT363

 Case Material: Molded Plastic. UL Flammability Classification

Rating 94V-0

 Moisture Sensitivity: Level 1 per J-STD-020D

 Terminals: Solderable per MIL-STD-202, Method 208

 Lead Free Plating (Matte Tin Finish annealed over Alloy 42

leadframe).

 Orientation: See Diagram

 Weight: 0.006 grams (approximate)

C1C

Package Pin Configuration

Ordering Information (Note 4)

Device

(Type Number)-7-F*

* Add “-7-F” to the appropriate type number in Electrical Characteristics Table, example: 6.2V Zener = MMBZ5234BTS-7-F.

Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Packaging Shipping

SOT363 3000/Tape & Reel

Marking Information

Date Code Key

Year 2005 2006 2007 2008 2009 2010 2111 2012 2013 2014 2015

Code S T U V W X Y Z A B C

Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec

Code 1 2 3 4 5 6 7 8 9 O N D

Kxx

Kxx = Product Type Marking Code (See Electrical Characteristic Table) YM = Date Code Marking

Y = Year (ex: A = 2013) M = Month (ex: 9 = September)

Maximum Ratings (@T

= +25°C, unless otherwise specified.)

Characteristic Symbol Value Unit

Forward Voltage (Note 5) @ I

Note: 5. Short duration pulse test used to minimize self-heating effect.

10mA VF

F =

MMBZ5221BTS - MMBZ5259BTS

Document number: DS30184 Rev. 13 - 2

www.diodes.com

1 of 4

0.9 V

August 2013

Page 2

MMBZ5221BTS - MMBZ5259BTS

Thermal Characteristics

Characteristic Symbol Value Unit

Power Dissipation (Note 6)

Thermal Resistance, Junction to Ambient Air (Note 6)

Operating and Storage Temperature Range

Electrical Characteristics (@T

= +25°C, unless otherwise specified.)

Zener Voltage Range (Note 7)

Type

Number

Marking

Code

IZT Z

Z @ IZT

Nom (V) Min (V) Max (V) mA

J, TSTG

θJA

Maximum Zener

Impedance (Note 8)

ZT @ IZT

200 mW

625 °C/W

-65 to +150 °C

Maximum Reverse

Leakage Current (Note 7)



= 0.25mA

ZK @ IZK

A

@ VR

MMBZ5221BTS KSB 2.4 2.28 2.52 20 30 1200 100 1.0

MMBZ5223BTS KSC 2.7 2.57 2.84 20 30 1300 75 1.0

MMBZ5225BTS KSD 3.0 2.85 3.15 20 30 1600 50 1.0

MMBZ5226BTS KSE 3.3 3.14 3.47 20 28 1600 25 1.0

MMBZ5227BTS KSF 3.6 3.42 3.78 20 24 1700 15 1.0

MMBZ5228BTS KSG 3.9 3.71 4.10 20 23 1900 10 1.0

MMBZ5229BTS KSH 4.3 4.09 4.52 20 22 2000 5.0 1.0

MMBZ5230BTS KS1 4.7 4.47 4.94 20 19 1900 5.0 2.0

MMBZ5231BTS KS2 5.1 4.85 5.36 20 17 1600 5.0 2.0

MMBZ5232BTS KS3 5.6 5.32 5.88 20 11 1600 5.0 3.0

MMBZ5233BTS KRF 6.0 5.70 6.30 20 7 1600 5.0 3.5

MMBZ5234BTS KS4 6.2 5.89 6.51 20 7 1000 5.0 4.0

MMBZ5235BTS KS5 6.8 6.46 7.14 20 5 750 3.0 5.0

MMBZ5236BTS KS6 7.5 7.13 7.88 20 6 500 3.0 6.0

MMBZ5237BTS KS7 8.2 7.79 8.61 20 8 500 3.0 6.5

MMBZ5238BTS KRG 8.7 8.27 9.14 20 8 600 3.0 6.5

MMBZ5239BTS KS8 9.1 8.65 9.56 20 10 600 3.0 7.0

MMBZ5240BTS KS9 10 9.50 10.50 20 17 600 3.0 8.0

MMBZ5241BTS KR1 11 10.45 11.55 20 22 600 2.0 8.4

MMBZ5242BTS KR2 12 11.40 12.60 20 30 600 1.0 9.1

MMBZ5243BTS KR3 13 12.35 13.65 9.5 13 600 0.5 9.9

MMBZ5245BTS KR4 15 14.25 15.75 8.5 16 600 0.1 11

MMBZ5246BTS KR5 16 15.20 16.80 7.8 17 600 0.1 12

MMBZ5248BTS KR6 18 17.10 18.90 7.0 21 600 0.1 14

MMBZ5250BTS KR7 20 19.00 21.00 6.2 25 600 0.1 15

MMBZ5251BTS KR8 22 20.90 23.10 5.6 29 600 0.1 17

MMBZ5252BTS KR9 24 22.80 25.20 5.2 33 600 0.1 18

MMBZ5254BTS KRA 27 25.65 28.35 5.0 41 600 0.1 21

MMBZ5255BTS KRH 28 26.60 29.40 4.5 44 600 0.1 21

MMBZ5256BTS KRB 30 28.50 31.50 4.2 49 600 0.1 23

MMBZ5257BTS KRC 33 31.35 34.65 3.8 58 700 0.1 25

MMBZ5258BTS KRD 36 34.20 37.80 3.4 70 700 0.1 27

MMBZ5259BTS KRE 39 37.05 40.95 3.2 80 800 0.1 30

Notes: 6. Mounted on FR4 PC Board with recommended pad layout which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.

7. Short duration pulse test used to minimize self-heating effect.

8. f = 1KHz.

MMBZ5221BTS - MMBZ5259BTS

Document number: DS30184 Rev. 13 - 2

2 of 4

www.diodes.com

August 2013

Page 3

P, P

OWER

C, TOT

CAPACITAN

P, P

URGE P

OWER

0.4

Note 6

(W)

0.3

1,000

)

E (p

100

MMBZ5221BTS - MMBZ5259BTS

0V BIAS

0.2

DISSI

110100

V , NOMINAL ZENER VOLTAGE (V)

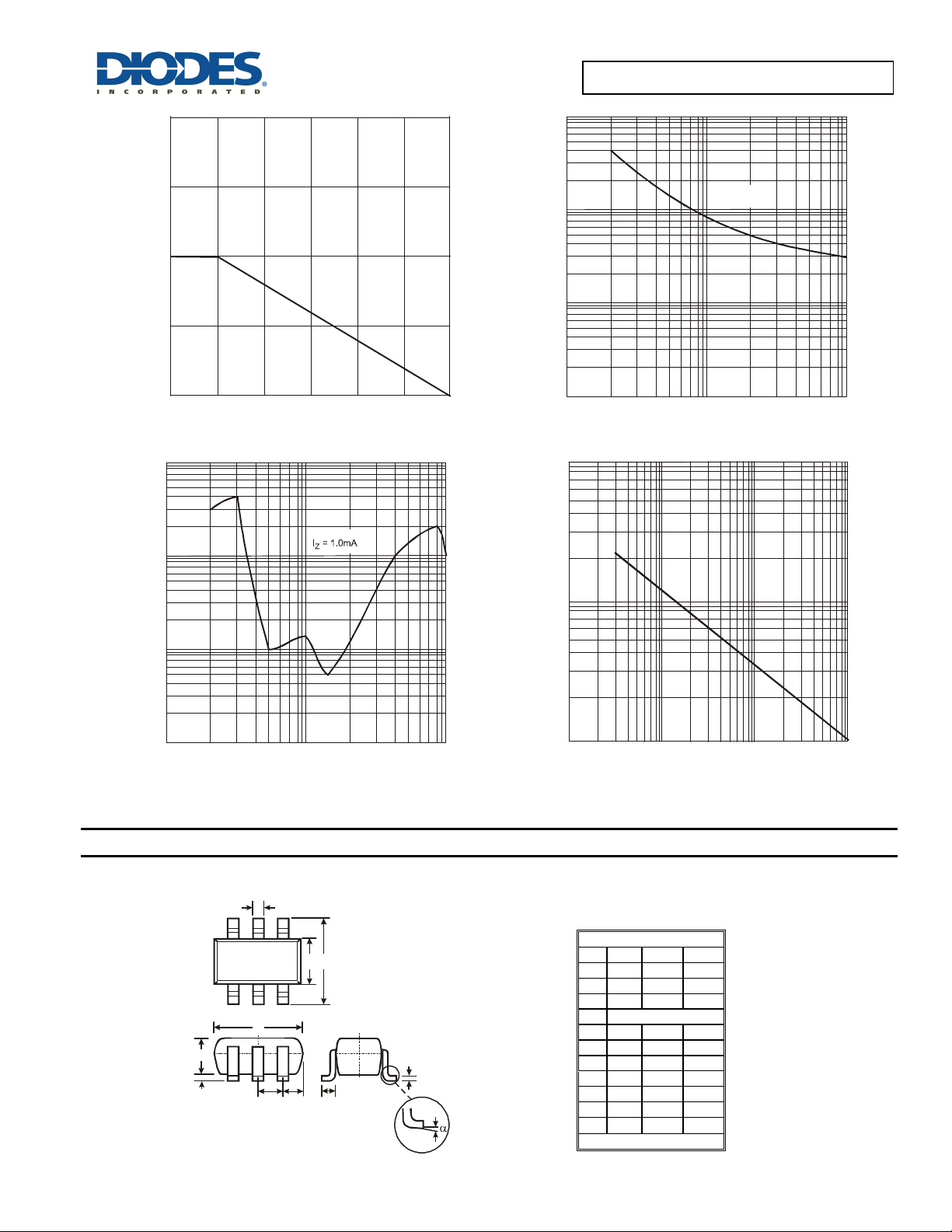

Fig. 2 Typical Total Capacitance vs. Nominal Zener Voltage

100

0.1

1,000

50 75 100 125 150

T , AMBIENT TEMPERATURE ( C)

Fig. 1 Power Derating Curve



(W)

100

Z , ZENER IMPEDANCE ( )

110100

V , ZENER VOLTAGE (V)

Fig. 3 Typical Zener Impedance Characteristics

EAK S

100

PULSE WIDTH (ms)

Fig. 4 Maximum Non-repetitive Surge Power

1,000

Package Outline Dimensions

Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.

MMBZ5221BTS - MMBZ5259BTS

Document number: DS30184 Rev. 13 - 2

SOT363

B C

Dim Min Max Typ

A 0.10 0.30 0.25 B 1.15 1.35 1.30 C 2.00 2.20 2.10

D 0.65 Typ F 0.40 0.45 0.425 H 1.80 2.20 2.15 J 0 0.10 0.05 K 0.90 1.00 1.00

L 0.25 0.40 0.30 M 0.10 0.22 0.11

0° 8° -



All Dimensions in mm

3 of 4

www.diodes.com

August 2013

Page 4

MMBZ5221BTS - MMBZ5259BTS

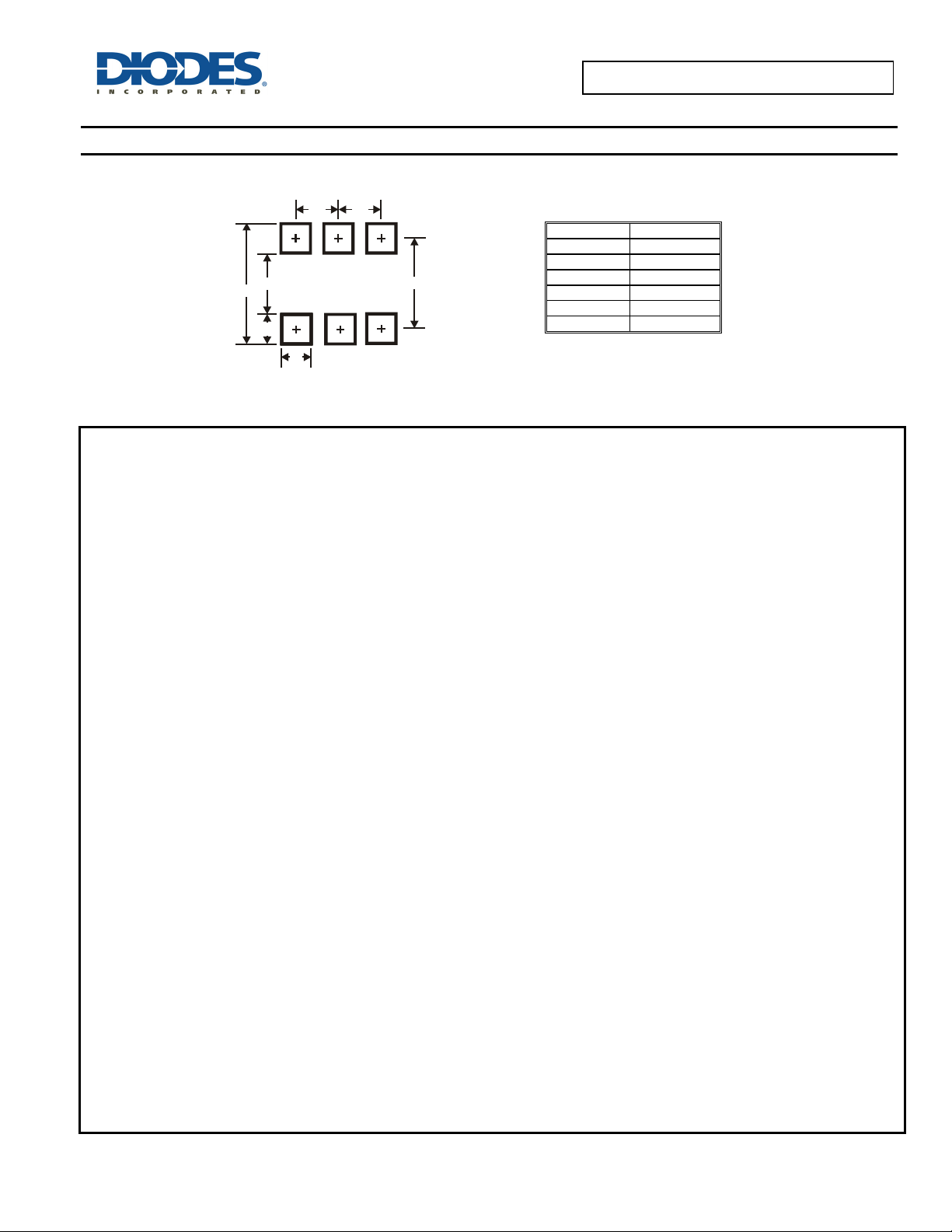

Suggested Pad Layout

Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for latest version.

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the final and determinative format released by Diodes Incorporated.

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

IMPORTANT NOTICE

LIFE SUPPORT

Dimensions Value (in mm)

Z 2.5 G 1.3 X 0.42

Y 0.6 C1 1.9 C2 0.65
