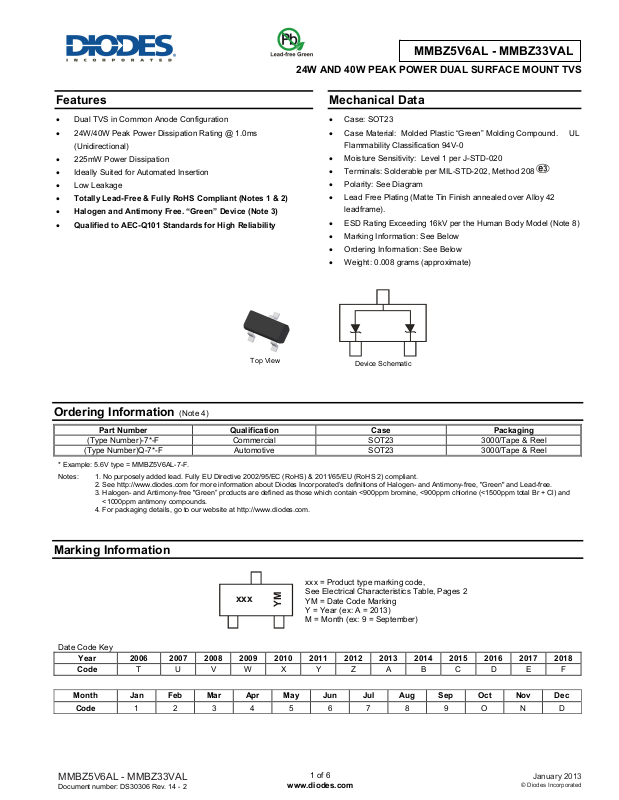

Page 1

Features

• Dual TVS in Common Anode Configuration

• 24W/40W Peak Power Dissipation Rating @ 1.0ms

(Unidirectional)

• 225mW Power Dissipation

• Ideally Suited for Automated Insertion

• Low Leakage

• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• Qualified to AEC-Q101 Standards for High Reliability

Top View

MMBZ5V6AL - MMBZ33VAL

24W AND 40W PEAK POWER DUAL SURFACE MOUNT TVS

Mechanical Data

• Case: SOT23

• Case Material: Molded Plastic “Green” Molding Compound. UL

Flammability Classification 94V-0

• Moisture Sensitivity: Level 1 per J-STD-020

• Terminals: Solderable per MIL-STD-202, Method 208

• Polarity: See Diagram

• Lead Free Plating (Matte Tin Finish annealed over Alloy 42

leadframe).

• ESD Rating Exceeding 16kV per the Human Body Model (Note 8)

• Marking Information: See Below

• Ordering Information: See Below

• Weight: 0.008 grams (approximate)

Device Schematic

Ordering Information (Note 4)

Part Number Qualification Case Packaging

(Type Number)-7*-F Commercial SOT23 3000/Tape & Reel

(Type Number)Q-7*-F Automotive SOT23 3000/Tape & Reel

* Example: 5.6V type = MMBZ5V6AL-7-F.

Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com.

Marking Information

Date Code Key

Year 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018

Code T U V W X Y Z A B C D E F

Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec

Code 1 2 3 4 5 6 7 8 9 O N D

xxx

MMBZ5V6AL - MMBZ33VAL

Document number: DS30306 Rev. 14 - 2

xxx = Product type marking code, See Electrical Characteristics Table, Pages 2 YM = Date Code Marking

Y = Year (ex: A = 2013) M = Month (ex: 9 = September)

1 of 6

www.diodes.com

January 2013

Page 2

MMBZ5V6AL - MMBZ33VAL

Maximum Ratings (@T

= +25°C, unless otherwise specified.)

Characteristic Symbol Value Unit

Peak Power Dissipation MMBZ5V6AL - MMBZ10VAL (Note 6) Peak Power Dissipation MMBZ15VAL - MMBZ33VAL (Note 6)

24 W 40 W

Thermal Characteristics

Characteristic Symbol Value Unit

Power Dissipation (Note 5) Thermal Resistance, Junction to Ambient Air (Note 5) Operating and Storage Temperature Range

θJA

, T

STG

Electrical Characteristics (@T

= +25°C, unless otherwise specified.)

24 Watt (VF = 0.9V max @ IF = 10mA)

Max

Reverse

RWM

Type

Number

Marking

Code

RWM

Current, I

@ V (Note 7)

Volts µA Min Nom Max mA V A TC (mV/°C)

MMBZ5V6AL K9A 3 5.0 5.32 5.6 5.88 20 8.0 3.0 1.8

Breakdown Voltage

VBR (Note 7) (V) @ IT V

24 Watt (VF = 0.9V max @ IF = 10mA)

Max

Reverse

RWM

Type

Number

Marking

Code

RWM

Current, I

@ V (Note 7)

Volts µA Min Nom Max mA V A TC (%/°C)

MMBZ6V2AL K9B 3.0 0.5 5.89 6.2 6.51 1.0 8.7 2.76 +0.04 MMBZ6V8AL K9C 4.5 0.5 6.46 6.8 7.14 1.0 9.6 2.5 +0.045 MMBZ9V1AL K9D 6.0 0.3 8.65 9.1 9.56 1.0 14 1.7 +0.065 MMBZ10VAL K9E 6.5 0.3 9.50 10 10.5 1.0 14.2 1.7 +0.065

Breakdown Voltage

VBR (Note 7) (V) @ IT V

40 Watt (VF = 0.9V max @ IF = 10mA)

Max.

Reverse

Type

Number

Marking

Code

RWM

Current, IR

@ V

RWM

(Note 7)

Volts nA Min Nom Max mA V A TC (%/°C)

MMBZ15VAL K9K 12 50 14.25 15 15.75 1.0 21 1.9 +0.080 MMBZ18VAL K9L 14.5 50 17.10 18 18.90 1.0 25 1.6 +0.090 MMBZ20VAL K9N 17 50 19.00 20 21.00 1.0 28 1.4 +0.090 MMBZ27VAL K9Q 22 50 25.65 27 28.35 1.0 40 1.0 +0.090 MMBZ33VAL K9T 26 50 31.35 33 34.65 1.0 46 0.87 +0.090

Notes: 5. Device mounted on FR-4 PCB pad layout (2oz copper) as shown on Diodes, Inc. suggested pad layout AP02001, which can be found on our website at

6. Non-repetitive current pulse per Figure 2 and derate above T

7. Short duration pulse test used to minimize self-heating effect.

8. MMBZ5V6AL and MMBZ15VAL exceed 16kV ESD rating, all other voltages exceed 8kV ESD rating.

http://www.diodes.com.

MMBZ5V6AL - MMBZ33VAL

Document number: DS30306 Rev. 14 - 2

Breakdown Voltage

VBR (Note 7) (V) @ IT VC IPP

= +25°C per Figure 2.

2 of 6

www.diodes.com

225 mW 556 °C/W

-65 to +150 °C

Max. Clamping Voltage,

@ IPP (Note 6)

Typical

Temperature

Coefficient

IPP

Max. Clamping Voltage,

@ IPP (Note 6)

of Reverse

Voltage

Typical

Temperature

Coefficient

IPP

Max. Clamping Voltage,

VC @ IPP (Note 6)

of Reverse

Voltage

Typical

Temperature

Coefficient of Reverse

Voltage

January 2013

Page 3

RATING

MMBZ5V6AL - MMBZ33VAL

100

IN %

LSE DE

PEAK POWER OR CURRENT

EAK

10 X 1000 Waveform as defined by R.E.A.

PP pp

I , PEAK PULSE CURRENT (%I )

0 25 50 75 100 125 150 175 200

T , AMBIENT TEMPERATURE ( C)

Fig. 1 Pulse Derating Curve

t, TIME (ms)

Fig. 2 Pulse Waveform

f = 1MHz

MMBZ5V6AL

C, CAPACITANCE (pF)

BIAS (V)

Fig. 3 Typical Capacitance vs. Bias Voltage

(Lower curve is Bidirectional mode,

Upper curve is Unidirectional mode)

Fig. 4 Typical Capacitance vs. Bias Voltage

(Lower curve is Bidirectional mode,

Upper curve is Unidirectional mode)

MMBZ15VAL

BIAS (V)

f = 1MHz

MMBZ27VAL

MMBZ5V6AL - MMBZ33VAL

Document number: DS30306 Rev. 14 - 2

3 of 6

www.diodes.com

January 2013

Page 4

P, P

OWER

PATIO

MMBZ5V6AL - MMBZ33VAL

300

250

(mW)

200

100

Unidirectional

Bidirectional

T = 25CJ°

Non repetitive

pulse waveform

(Rectangular)

150

DISSI

100

025

100

FR-5 Board

75 100 125 150

T , AMBIENT TEMPERATURE

Fig. 5 Steady State Power Derating Curve

T = 25CJ°

1.0

P , PEAK PULSE POWER (W)

0.1

0.1 1.0

10 100

1,000 10,000

PULSE WIDTH (ms)

Fig. 6 Pulse Rating Curve,

P (W) vs. Pulse Width (ms)

Power is defined as P = V x I

pk C pp

Bidirectional

Non repetitive

pulse waveform

(Rectangular)

Unidirectional

1.0

pk (NOM)

P , PEAK PULSE POWER (W)

0.1

0.1 1.0

10 100

1,000 10,000

PULSE WIDTH (ms)

Fig. 7 Pulse Rating Curve,

P (W) vs. Pulse Width (ms)

pk (NOM)

Power is define d as P = V x I

where V is the nominal reverse breakdown voltage

BR(NOM)

measured at the low test current used

pk(NOM) BR(NOM) pp

for vol tage classification

MMBZ5V6AL - MMBZ33VAL

Document number: DS30306 Rev. 14 - 2

4 of 6

www.diodes.com

January 2013

Page 5

Package Outline Dimensions

Suggested Pad Layout

MMBZ5V6AL - MMBZ33VAL

Dim Min Max Typ

A 0.37 0.51 0.40 B 1.20 1.40 1.30

C 2.30 2.50 2.40 D 0.89 1.03 0.915 F 0.45 0.60 0.535 G 1.78 2.05 1.83 H 2.80 3.00 2.90 J 0.013 0.10 0.05

K 0.903 1.10 1.00

K1 - - 0.400

L 0.45 0.61 0.55 M 0.085 0.18 0.11

Dimensions Value (in mm)

SOT23

0° 8° -

All Dimensions in mm

Z 2.9 X 0.8 Y 0.9 C 2.0 E 1.35

MMBZ5V6AL - MMBZ33VAL

Document number: DS30306 Rev. 14 - 2

5 of 6

www.diodes.com

January 2013
