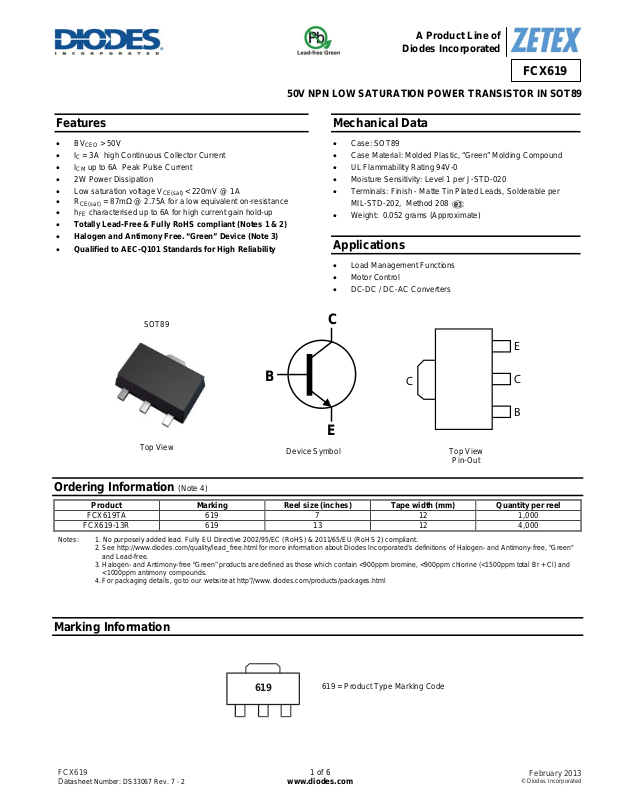

Page 1
A
f
C
Product Line o
50V NPN LOW SATURATION POWER TRANSISTOR IN SOT89
Features
Mechanical Data
Diodes Incorporated
FCX619
BV
I
I
2W Power Dissipation
Low saturation voltage V
R
h
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
> 50V
CEO
= 3A high Continuous Collector Current
C
up to 6A Peak Pulse Current
CM
< 220mV @ 1A
= 87mΩ @ 2.75A for a low equivalent on-resistance
CE(sat)
characterised up to 6A for high current gain hold-up
FE
CE(sat)
SOT89
Top View
B
Case: SOT89
Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.052 grams (Approximate)
Applications
Load Management Functions
Motor Control
DC-DC / DC-AC Converters
C
E
Device Symbol Top View
Pin-Out
E
C
B
Ordering Information (Note 4)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
FCX619TA 619 7 12 1,000
FCX619-13R 619 13 12 4,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html
Marking Information
FCX619
tasheet Number: DS33067 Rev. 7 - 2
Da
619
www.diodes.com
619 = Product Type Marking Code
1 of 6
February 2013
© Diodes Incorporated
Page 2
A
f
Maximum Ratings (@T
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Pulse Current
Continuous Base Current
Thermal Characteristics (@T
Power Dissipation
Thermal Resistance, Junction to Ambient Air
Thermal Resistance, Junction to Leads (Note 7)
Operating and Storage Temperature Range
Notes: 5. For a device surface mounted on 15mm x 15mm x 0.6mm FR4 PCB with high coverage of single sided 1 oz copper, in still air conditions; the device is
measured when operating in steady state condition.
6. Same as note (5), except the device is mounted on 40mm x 40mm x 1.6mm FR4 PCB.
7. Thermal resistance from junction to solder-point (on the exposed collector pad).
= +25°C, unless otherwise specified.)
A
Characteristic Symbol Value Unit
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
= +25°C, unless otherwise specified.)
A
Characteristic Symbol Value Unit
(Note 5)
(Note 6) 2
(Note 5)
(Note 6) 62.5
P
R
R
T
J,TSTG
θJA
θJL
D
Diodes Incorporated
50 V
50 V
7 V
3 A
6 A
500 mA
1
125
5.73
-55 to +150
FCX619
W
C/W
C/W
C
Product Line o
Thermal Characteristics and Derating Information
1.0
0.8
0.6
0.4
0.2
0.0
0 25 50 75 100 125 150
Max Power Dissipation (W)
Temperature (°C)
Derating Curve
100
Single Pulse. T
10
amb
=25°C
Thermal Resistance (°C/W)
120
100
80
D=0.5
60
40
D=0.2
20
0
100µ 1m 10m 100m 1 10 100 1k
Single Pulse
D=0.05
D=0.1
Pulse Width (s)
Transient Thermal Impeda nc e
1
100µ 1m 10m 100m 1 10 100 1k
Max Power Dissipat i o n (W)
Pulse Width (s)
Pulse Power Dissipation
FCX619
tasheet Number: DS33067 Rev. 7 - 2
Da
2 of 6
www.diodes.com
February 2013
© Diodes Incorporated
Page 3
A
f
)
)
(on)
(
)
Electrical Characteristics (@T
= +25°C, unless otherwise specified.)
A
Characteristic Symbol Min Typ. Max Unit Test Condition
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage (Note 8)
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current
Emitter Cutoff Current
BV
BV
BV
I
I
I
CBO
CEO
EBO
CBO
EBO
CES
50 190 — V
50 65 — V
7 8.3 — V
— — 100 nA
— — 100 nA
— — 100 nA
200
300
DC current transfer Static ratio (Note 8)
h
FE
200
100
—
Collector-Emitter Saturation Voltage (Note 8)
Base-Emitter Saturation Voltage (Note 8)
Base-Emitter Turn-on Voltage (Note 8)
Transitional Frequency
Output capacitance
Turn-On Time
Note: 8. Measured under pulsed conditions. Pulse width ≤ 300μs. Duty cycle ≤ 2%.
V
CE(sat)
V
BE(sat
V
BE(on
C
t
t
f
obo
off
T
—
— 0.97 1.1 V
— 0.89 1.0 V
100 165 — MHz
— 12 20 pF
— 170 — ns
— 750 — ns
400
450
400
200
30
13
150
190
240
Product Line o
Diodes Incorporated
IC = 100µA
IC = 10mA
IE = 100µA
V
V
V
I
C
I
— —
25
220
260
V
320
C
I
C
I
C
I
C
I
C
I
C
I
C
I
C
IC = 2.75A, IB = 100mA
IC = 2.75A, VCE= 2V
I
C
f = 100MHz
V
V
I
B1
FCX619
= 40V
CB
= 5.6V
EB
= 40V
CES
= 10mA, V
= 200mA, V
= 1A, V
= 2A, V
= 6A, V
= 100mA, IB = 10mA
= 1A, IB = 10mA
= 2A, IB = 50mA
= 2.75A, IB = 100mA
= 50mA, V
= 10V, f = 1MHz,
CB
=10V, IC =1A
CC
= -I
B2
= 2V
CE
= 2V
CE
= 2V
CE
= 2V
CE
= 2V
CE
= 10V
CE
= 10mA Turn-Off Time
FCX619
tasheet Number: DS33067 Rev. 7 - 2
Da
3 of 6
www.diodes.com
February 2013
© Diodes Incorporated
Page 4
A
f

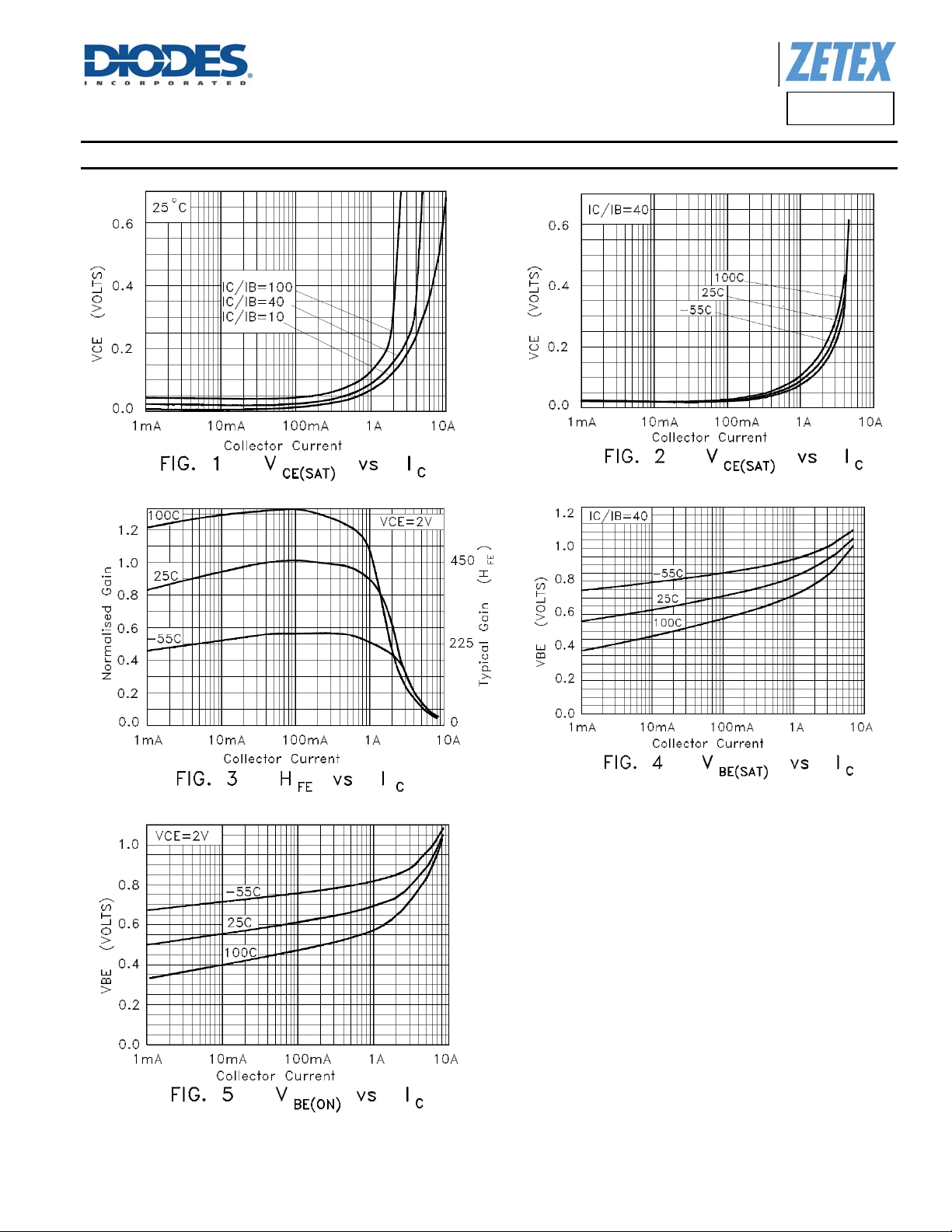

Typical Electrical Characteristics (@T
= +25°C, unless otherwise specified.)
A
Product Line o
Diodes Incorporated
FCX619
FCX619
tasheet Number: DS33067 Rev. 7 - 2
Da
www.diodes.com
4 of 6
February 2013
© Diodes Incorporated
Page 5
A
f
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
E
B1
D1
8° (4X)
D
0
0
2
.
0
R
1
H
L
B
e
A
C
Dim Min Max
H
A 1.40 1.60
B 0.44 0.62
B1 0.35 0.54
C 0.35 0.44
D 4.40 4.60
D1 1.62 1.83
E 2.29 2.60
e 1.50 Typ
H 3.94 4.25
H1 2.63 2.93
L 0.89 1.20
All Dimensions in mm
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
Y3
Y
X1
X2 (2x)
Y1
Y4
Y2
C
X (3x)
Dimensions Value (in mm)
X 0.900
X1 1.733
X2 0.416
Y 1.300
Y1 4.600
Y2 1.475
Y3 0.950
Y4 1.125
C 1.500
Product Line o
Diodes Incorporated
FCX619
SOT89
FCX619
tasheet Number: DS33067 Rev. 7 - 2
Da
5 of 6
www.diodes.com
February 2013
© Diodes Incorporated
Page 6
A
f
