Features

• 43% smaller than SOT223; 60% smaller than TO252

• Maximum height just 1.1mm

• Rated up to 3.2W

• V

• I

• Low Saturation voltage

• Lead, Halogen and Antimony Free, RoHS Compliant (Note 1)

• “Green” Device (Note 2)

= 60V

CEO

= 6A; ICM = 20A

C

Applications

• Motor driver

• Regulator circuit

ADVANCE INFORMATION

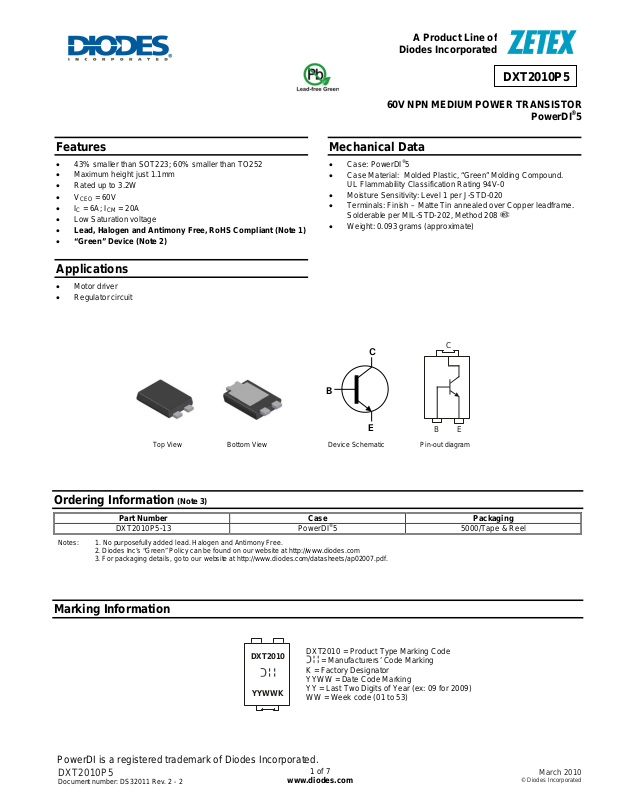

Top View Bottom View Pin-out diagram

Product Line o

Diodes Incorporated

DXT2010P5

60V NPN MEDIUM POWER TRANSISTOR

PowerDI

Mechanical Data

• Case: PowerDI®5

• Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

• Moisture Sensitivity: Level 1 per J-STD-020

• Terminals: Finish – Matte Tin annealed over Copper leadframe.

Solderable per MIL-STD-202, Method 208

• Weight: 0.093 grams (approximate)

C

B

E

Device Schematic

BE

®

5

Ordering Information (Note 3)

Part Number Case Packaging

DXT2010P5-13 PowerDI®5 5000/Tape & Reel

Notes: 1. No purposefully added lead. Halogen and Antimony Free.

3. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.

2. Diodes Inc’s “Green” Policy can be found on our website at http://www.diodes.com

Marking Information

PowerDI is a registered trademark of Diodes Incorporated.

DXT2010

YYWWK

DXT2010P5

Document number: DS32011 Rev. 2 - 2

DXT2010 = Product Type Marking Code

= Manufacturers’ Code Marking K = Factory Designator YYWW = Date Code Marking YY = Last Two Digits of Year (ex: 09 for 2009) WW = Week code (01 to 53)

1 of 7

www.diodes.com

March 2010

A

f

θ

Product Line o

Diodes Incorporated

DXT2010P5

Maximum Ratings @T

= 25°C unless otherwise specified

A

Characteristic Symbol Value Unit Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Peak Pulse Current

V

CBO

V

CEO

V

EBO

I

C

I

CM

150 V

60 V

7 V 6 A

20 A

Thermal Characteristics

Characteristic Symbol Value Unit

Power Dissipation @ TA = 25°C (Note 4) PD Thermal Resistance, Junction to Ambient Air (Note 4) @TA = 25°C

R

JA

Power Dissipation @ TA = 25°C (Note 5) PD Thermal Resistance, Junction to Ambient Air (Note 5) @TA = 25°C

ADVANCE INFORMATION

Power Dissipation @ TA = 25°C (Note 6) PD Thermal Resistance, Junction to Ambient Air (Note 6) @TA = 25°C Thermal Resistance, Junction to Collector Terminal Operating and Storage Temperature Range

Notes: 4. Device mounted on FR-4 PCB, single sided 2 o z. coppe r, collector pad dimensions 25mm x 25mm.

5. Device mounted on FR-4 PCB, single sided 1 oz. copper, collector pad dimensions 50mm x 50mm.

6. Device mounted on FR-4 PCB, single sided 1 oz. copper, minimum recommended pad layout.

R

JA

R

JA

R

JT

, T

T

J

STG

PowerDI is a registered trademark of Diodes Incorporated.

DXT2010P5

Document number: DS32011 Rev. 2 - 2

2 of 7

www.diodes.com

3.2 W 39 °C/W

1.7 W 75 °C/W

0.74 W 169 °C/W

5.6 °C/W

-55 to +150 °C

March 2010

A

f

V

CE(sat)

Limited

10

1

DC

1s

100ms

amb

10ms

=25°C

1ms

100µs

100m

Single Pulse. T

Collector Current (A)

C

I

10m

100m 1 10 100

See note 3

VCE Collector-Emitter Voltage (V)

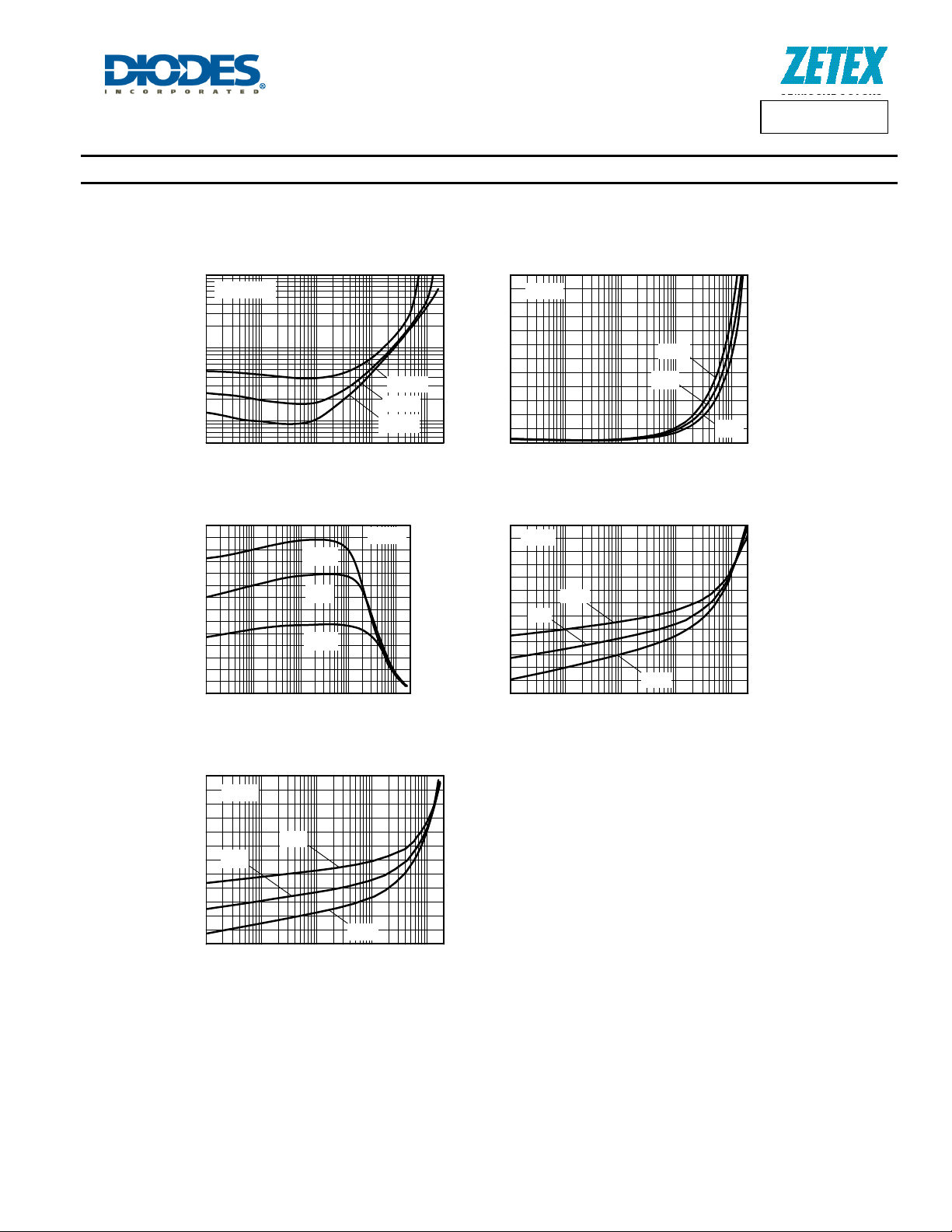

Safe Operating Area

3.5

3.0

2.5

2.0

1.5

1.0

0.5

0.0 0 25 50 75 100 125 150 175

Max Power Dissipation (W)

Temperature (°C)

Derating Curve

Product Line o

Diodes Incorporated

DXT2010P5

See note 3

See note 4

See note 5

ADVANCE INFORMATION

40

See note 3

30

D=0.5

20

D=0.2

10

0

100µ 1m 10m 100m 1 10 100 1k

Thermal Resistance (° C/ W)

Pulse Width (s)

Single Pulse

D=0.05

D=0.1

Transient Thermal Im p edance

180 160 140 120 100

80 60

2 oz. weight Copper

40 20

10 100 1000 10000

Thermal Resistance (°C/W)

1 oz. weight Copper

Copper Area (sq mm)

T

(amb)

=25°C

100

10

1

100µ 1m 10m 100m 1 10 100 1k

Max Power Dissipation (W)

Pulse Power Dissipation

4

T

=25°C

(amb)

3

2 oz. weight Copper

2

1

Power Rating (W)

0

10 100 1000 10000

Copper Area (sq mm)

Single Pulse. T

See note 3

Pulse Width (s)

1 oz. weight Copper

amb

=25°C

Thermal Resistance vs. Cu Area

PowerDI is a registered trademark of Diodes Incorporated.

DXT2010P5

Document number: DS32011 Rev. 2 - 2

3 of 7

www.diodes.com

Power Rating vs. Cu Area
