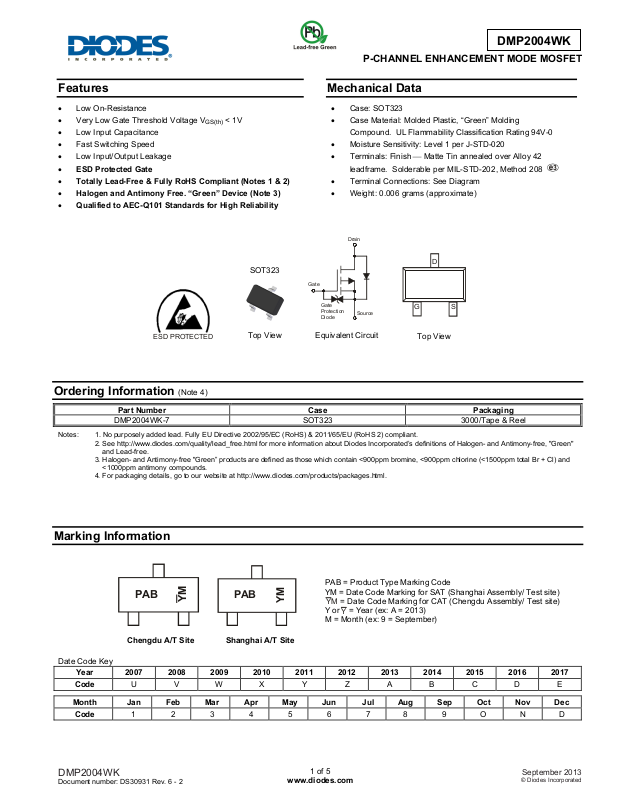

P-CHANNEL ENHANCEMENT MODE MOSFET

Features

 Low On-Resistance

 Very Low Gate Threshold Voltage V

 Low Input Capacitance

 Fast Switching Speed

 Low Input/Output Leakage

 ESD Protected Gate

 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

 Halogen and Antimony Free. “Green” Device (Note 3)

 Qualified to AEC-Q101 Standards for High Reliability

NEW PRODUCT

ESD PROTECTED

GS(th)

< 1V

SOT323

Top View

Mechanical Data

 Case: SOT323

 Case Material: Molded Plastic, “Green” Molding

Compound. UL Flammability Classification Rating 94V-0

 Moisture Sensitivity: Level 1 per J-STD-020

 Terminals: Finish  Matte Tin annealed over Alloy 42

leadframe. Solderable per MIL-STD-202, Method 208

 Terminal Connections: See Diagram

 Weight: 0.006 grams (approximate)

Drai

Gate

Protection

Diode

Equivalent Circuit

Source

View

DMP2004W

Ordering Information (Note 4)

Part Number Case Packaging

DMP2004WK-7 SOT323 3000/Tape & Reel

Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

Date Code Key

Year 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017

Code U V W X Y Z A B C D E

Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec

Code 1 2 3 4 5 6 7 8 9 O N D

PAB

Chengdu A/T Site

PAB

Shanghai A/T Site

PAB = Product Type Marking Code YM = Date Code Marking for SAT (Shanghai Assembly/ Test site) = Date Code Marking for CAT (Chengdu Assembly/ Test site)

Y or = Year (ex: A = 2013) M = Month (ex: 9 = September)

DMP2004WK

Document number: DS30931 Rev. 6 - 2

1 of 5

www.diodes.com

September 2013

Page 2

Maximum Ratings (@T

Characteristic Symbol Value Units

Drain-Source Voltage

Gate-Source Voltage

Drain Current (Note 5)

Pulsed Drain Current

Thermal Characteristics (@T

Characteristic Symbol Value Units

Total Power Dissipation (Note 5)

NEW PRODUCT

Thermal Resistance, Junction to Ambient (Note 5)

Operating and Storage Temperature Range

Electrical Characteristics (@T

= +25°C, unless otherwise specified.)

DSS

GSS

j, TSTG

DMP2004W



-20 V

±8 V

-400 mA

-1.4 A

250 mW

500 °C/W

-55 to +150 °C

Characteristic Symbol Min Typ Max Unit Test Condition

OFF CHARACTERISTICS (Note 6)

Drain-Source Breakdown Voltage

Zero Gate Voltage Drain Current

Gate-Source Leakage

DSS

 

GSS

ON CHARACTERISTICS (Note 6)

Gate Threshold Voltage

Static Drain-Source On-Resistance

Forward Transfer Admittance

Diode Forward Voltage (Note 6)

DS(ON)

GS(th)



DYNAMIC CHARACTERISTICS (Note 7)

Input Capacitance

Output Capacitance

Reverse Transfer Capacitance

Notes: 5. Device mounted on FR-4 PCB.

6. Short duration pulse test used to minimize self-heating effect.

7. Guaranteed by design. Not subject to production testing.

iss

oss

 

rss

DMP2004WK

Document number: DS30931 Rev. 6 - 2

-20

 

-0.5



0.7

1.1

1.7

200

-0.5

 



 

2 of 5

www.diodes.com

VGS = 0V, ID = -250µA

-1.0 µA

1.0

µA

-1.0 V

0.9

1.4

2.0

-1.2 V

VGS = 4.5V, VDS = 0V

VDS = VGS, ID = -250A

Ω

VGS = -2.5V, ID = -300mA

VGS = -1.8V, ID = -150mA

VDS =10V, ID = -0.2A

175 pF

30 pF

20 pF

V f = 1.0MHz

= -20V, VGS = 0V

= -4.5V, ID = -430mA

= 0V, IS = -115mA

= -16V, V

= 0V

September 2013

Page 3

CUR

RENT

CUR

NEW PRODUCT

(A)

DMP2004W

AIN

-I , D

-V , DRAIN SOURCE VOLTAGE (V)

Fig. 1 Typical Output Characteristics

AIN

-I , D

-V , GATE SOURCE VOLTAGE (V)

Fig. 2 Typical Transfer Characteristics

GS(th)

-V , GATE THRESHOLD VOLTAGE (V)

-I , DRAIN-SOURCE CURRENT (A)

T , AMBIENT TEMPERATURE (°C)

Fig. 3 Gate Threshold Voltage vs. Ambient Temperature

Fig. 4 Static Drain-Source On-Resistance vs. Drain Current

-I , DRAIN-SOURCE CURRENT (A)

Fig. 5 Static Drain-Source On-Resistance vs.

Drain Current

-I , DRAIN-SOURCE CURRENT (A)

Fig. 6 Static Drain-Source On-Resistance vs.

Drain-Source Current vs. Gate Source Voltage

DMP2004WK

Document number: DS30931 Rev. 6 - 2

3 of 5

www.diodes.com

September 2013

Page 4

NEW PRODUCT

1.1

1.0

T , AMBIENT TEMPERATURE (°C)

Fig. 7 Static Drain-Source On-State Resistance

vs. Ambient Temperature

DMP2004W

-I , DRAIN CURRENT (A)

Fig. 9 Forwar d Transfer Admittance vs. Drain Current

Package Outline Dimensions

Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.

DMP2004WK

Document number: DS30931 Rev. 6 - 2

Dim Min Max Typ

4 of 5

www.diodes.com

-V , DRAIN-SOURCE VOLTAGE (V)

Fig. 10 Typical Capacitance

SOT323

A 0.25 0.40 0.30 B 1.15 1.35 1.30 C 2.00 2.20 2.10 D - - 0.65 G 1.20 1.40 1.30 H 1.80 2.20 2.15 J 0.0 0.10 0.05 K 0.90 1.00 0.95 L 0.25 0.40 0.30 M 0.10 0.18 0.11

0° 8° -



All Dimensions in mm

September 2013

Page 5

DMP2004W

Suggested Pad Layout

Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.

NEW PRODUCT
