Diodes DFLT5V0A, DFLT220A User Manual
A
225W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Features
225W Peak Pulse Power Dissipation (10µs x 1000µs waveform)
5.0V - 220V Standoff Voltages
Excellent Clamping Capability
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Patented Interlocking Clip Design for High Surge Capacity,
US Patent #7,095,113
POWERDI123
Green
DFLT5V0A –DFLT220
Mechanical Data
Case: POWERDI123
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: Cathode Band
Terminals: Finish Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.01 grams (approximate)
Top View
POWERDI
Ordering Information (Note 4)
Product Compliance Marking Reel size(inches) Tape width(mm) Quantity per reel
DFLTxxxA-7* AEC-Q101 Fxx 7 8 3,000/Tape & Reel
* Add "-7" to the appropriate type number in Electrical Characteristics Table on page 2. Example: 10V reverse standoff device = DFLT10A-7.
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
Date Code Key
Year 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018
Code R S T U V W X Y Z A B C D E F
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Fxx
YM
Fxx = Product Type Marking Code,
See Electrical Characteristics Table on Page 2
YM = Date Code Marking
Y = Year (ex: R = 2004)
M = Month (ex: 9 = September)
POWERDI is a registered trademark of Diodes Incorporated.
DFLT5V0A – DFLT220A
Document number: DS30581 Rev. 8 - 2
1 of 5
www.diodes.com
June 2013
© Diodes Incorporated
A
pp
DFLT5V0A –DFLT220
Maximum Ratings (@T
= +25°C, unless otherwise specified.)
A
Characteristic Symbol Value Unit
Peak Pulse Power Dissipation (Note 5) 10/1000µs
(Note 6) 8/20µs
Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 7)
P
I
FSM
PK
Instantaneous Forward Voltage @ IPP = 12A (Note 8) VF
225
1125
W
50 A
3.5 V
Thermal Characteristics
Characteristic Symbol Value Unit
DC Steady-State Power Dissipation (Note 9)
Thermal Resistance, Junction to Ambient (Note 9)
Thermal Resistance, Junction to Soldering Point (Note 10)
Operating and Storage Temperature Range
P
D
R
θJA
R
θJS
T
, T
J
STG
Electrical Characteristics (@T
Reverse
Part Number
Standoff
Voltage
V
(V)
RWM
V
Min (V) Max (V)
= +25°C, unless otherwise specified.)
A
Breakdown
Voltage
@ IT (Note 11)
BR
Test
Current
IT (mA) IR (A) VC (V)
Max. Reverse
Leakage @ V
RWM
Max. Clamping
Voltage @ Ipp
DFLT5V0A 5.0 6.40 7.0 10 400 9.2 24.5 FAE
DFLT6V0A 6.0 6.67 7.37 10 400 10.3 21.8 FAG
DFLT6V5A 6.5 7.22 7.98 10 250 11.2 20.1 FAK
DFLT7V0A 7.0 7.78 8.60 10 100 12.0 18.8 FAM
DFLT7V5A 7.5 8.33 9.21 1.0 50 12.9 17.4 FAP
DFLT8V0A 8.0 8.89 9.83 1.0 25 13.6 16.5 FAR
DFLT8V5A 8.5 9.44 10.4 1.0 10 14.4 15.6 FAT
DFLT9V0A 9.0 10.0 11.1 1.0 5.0 15.4 14.6 FAV
DFLT10A 10 11.1 12.3 1.0 2.5 17.0 13.2 FAX
DFLT11A 11 12.2 13.5 1.0 2.5 18.2 12.4 FAZ
DFLT12A 12 13.3 14.7 1.0 2.5 19.9 11.3 FBE
DFLT13A 13 14.4 15.9 1.0 1.0 21.5 10.5 FBG
DFLT14A 14 15.6 17.2 1.0 1.0 23.2 9.7 FBK
DFLT15A 15 16.7 18.5 1.0 1.0 24.4 9.22 FBM
DFLT16A 16 17.8 19.7 1.0 1.0 26.0 8.65 FBP
DFLT17A 17 18.9 20.9 1.0 1.0 27.6 8.15 FBR
DFLT18A 18 20.0 22.1 1.0 1.0 29.2 7.71 FBT
DFLT20A 20 22.2 24.5 1.0 1.0 32.4 6.94 FBV
DFLT22A 22 24.4 26.9 1.0 1.0 35.5 6.34 FBX
DFLT24A 24 26.7 29.5 1.0 1.0 38.9 5.78 FBZ
DFLT26A 26 28.9 31.9 1.0 1.0 42.1 5.35 FCE
DFLT27A 27 30 33.15 1.0 1.0 43.7 5.15 FCF
DFLT28A 28 31.1 34.4 1.0 1.0 45.4 4.96 FCG
DFLT30A 30 33.3 36.8 1.0 1.0 48.4 4.65 FCK
DFLT33A 33 36.7 40.6 1.0 1.0 53.3 4.22 FCM
DFLT36A 36 40.0 44.2 1.0 1.0 58.1 3.87 FCP
DFLT40A 40 44.4 49.1 1.0 1.0 64.5 3.49 FCR
DFLT43A 43 47.8 52.8 1.0 1.0 69.4 3.24 FCT
DFLT45A 45 50.0 55.3 1.0 1.0 72.7 3.10 FCV
DFLT48A 48 53.3 58.9 1.0 1.0 77.4 2.91 FCX
DFLT51A 51 56.7 62.7 1.0 1.0 82.4 2.73 FCZ
DFLT170A 170 189 209 1.0 5.0 281 0.81 FDZ
DFLT220A 220 242 276 1.0 5.0 375 0.60 FEZ

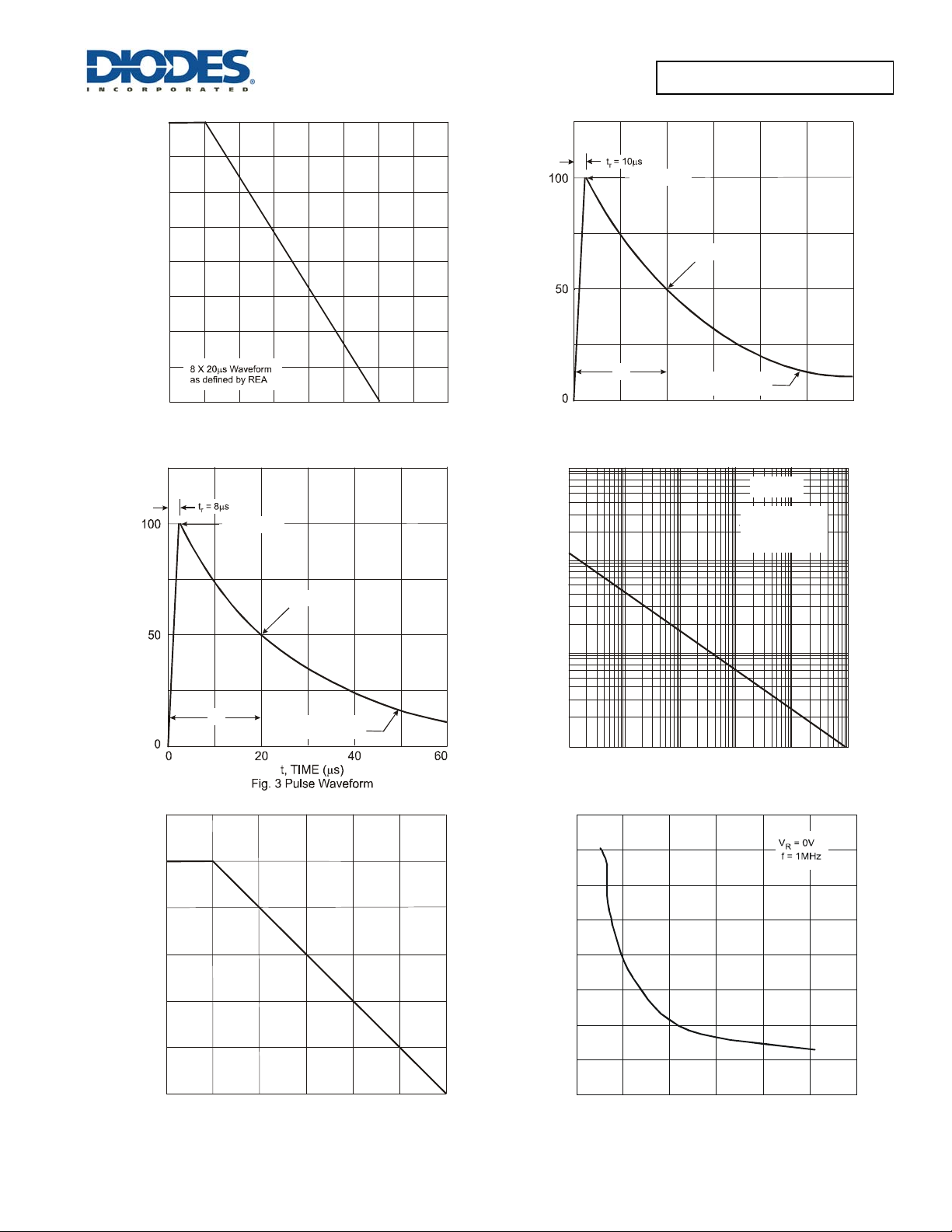

Notes: 5. Non-Repetitive current pulse as shown in figure 2 and derated above TA = +25°C as per figure 1.
6. Non-Repetitive current pulse as shown in figure 3 and derated above T
7. I
8. 1/2 sine wave (or equivalent square wave), pulse width = 8.3ms, duty cycle = 4 pulses/minute maximum.
9. Device mounted on 1"x1", FR-4 PCB; 2 oz. Cu pad layout. Cathode pad dimensions 5.5mm x 3.5mm. Anode pad dimensions 2.25mm x 3.5mm.
10. Theoretical R
11. V
POWERDI is a registered trademark of Diodes Incorporated.
DFLT5V0A – DFLT220A
Document number: DS30581 Rev. 8 - 2
= 40A for DFLT170A and DFLT220A; I
FSM
calculated from the top center of the die straight down to the PCB/cathode tab solder junction.
measured at pulse test current IT with tp 5.0ms at TA = +25°C.
BR
JS
= 50A for all other voltages.
FSM
www.diodes.com
= +25°C as per figure 1.
A
2 of 5
1.0 W
125 °C/W
6 °C/W
-65 to +150
C
Max. Peak
Pulse Current
I
Marking
Code
(A)
June 2013
© Diodes Incorporated
