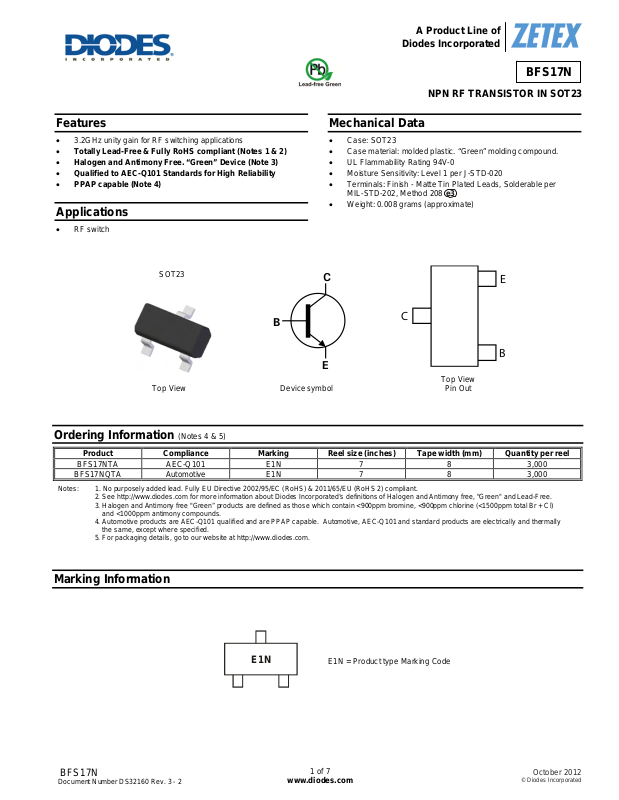

NPN RF TRANSISTOR IN SOT23

Features

• 3.2GHz unity gain for RF switching applications

• Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• Qualified to AEC-Q101 Standards for High Reliability

• PPAP capable (Note 4)

Mechanical Data

• Case: SOT23

• Case material: molded plastic. “Green” molding compound.

• UL Flammability Rating 94V-0

• Moisture Sensitivity: Level 1 per J-STD-020

• Terminals: Finish - Matte Tin Plated Leads, Solderable per

MIL-STD-202, Method 208

• Weight: 0.008 grams (approximate)

e3

Applications

• RF switch

NEW PRODUCT

SOT23

Top View

B

Device symbol

C

E

C

E

Top View

Pin Out

B

BFS17N

Ordering Information (Notes 4 & 5)

Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel

BFS17NTA AEC-Q101 E1N 7 8 3,000

BFS17NQTA Automotive E1N 7 8 3,000

Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen and Antimony free, "Green" and Lead-Free.

3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the same, except where specified.

5. For packaging details, go to our website at http://www.diodes.com.

Marking Information

BFS17N

Document Number DS32160 Rev. 3 - 2

E1N

www.diodes.com

E1N = Product type Marking Code

1 of 7

October 2012

A

f

Product Line o

Diodes Incorporated

BFS17N

Maximum Ratings (@T

Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current

Thermal Characteristics (@T

Power Dissipation

Thermal Resistance, Junction to Ambient

NEW PRODUCT

Thermal Resistance, Junction to Leads (Note 8) Operating and Storage Temperature Range

= +25°C, unless otherwise specified.)

A

Characteristic Symbol Value Unit

V

CBO

V

CEO

V

EBO

I

C

= +25°C, unless otherwise specified.)

A

Characteristic Symbol Value Unit

(Note 6) (Note 7) 350 (Note 6) (Note 7) 357

R R

T

J,TSTG

P

θJA

θJL

D

20 V 11 V

3 V

50 mA

310

403

350

-55 to +150

ESD Ratings (Note 9)

Electrostatic Discharge - Human Body Model ESD HBM 2,000 V 2 Electrostatic Discharge - Machine Model ESD MM 100 V A

Notes: 6. For the device mounted on minimum recommended pad layout FR4 PCB with high coverage of single sided 1oz copper in still air condition ;

7. Same as Note 6, expect the device is mounted on 15mm X 15mm X 1.6mm FR4 PCB

8. Thermal resistance from junction to solder-point (at the end of the leads).

9. Refer to JEDEC specification JESD22-A114 and JESD22-A115.

Characteristic Symbol Value Unit JEDEC Class

mW

°C/W °C/W

°C

BFS17N

Document Number DS32160 Rev. 3 - 2

2 of 7

www.diodes.com

October 2012

A

f

Thermal Characteristics and Derating information

Product Line o

Diodes Incorporated

BFS17N

NEW PRODUCT

0.4

0.3

0.2

0.1

0.0 0 255075100125150

Max Power D i ssi pa tion (W)

Temperature (°C)

Derat ing C urv e

10

Single Pulse. T

1

amb

=25°C

400 350 300 250

D=0.5

200 150

D=0.2

100

50

0

100µ 1m 10m 100m 1 10 100 1k

Thermal Resistance (°C/W)

D=0.1

Single Pulse

D=0.05

Pulse Width (s)

Transient Thermal Impedance

0.1

10m 100m 1 10 100 1k

Max Power Dissipation (W)

Pulse Width (s)

Pulse Power Dissipation

BFS17N

Document Number DS32160 Rev. 3 - 2

3 of 7

www.diodes.com

October 2012

A

f

)

Product Line o

Diodes Incorporated

BFS17N

Electrical Characteristics (@T

= +25°C, unless otherwise specified.)

A

Characteristic Symbol Min Typ Max Unit Test Condition

Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage (Note 10) Emitter-Base Breakdown Voltage Collector Cutoff Current Emitter Cutoff Current Static Forward Current Transfer Ratio (Note 10) Collector-Emitter Saturation Voltage (Note 10)

Transition Frequency (Note 10) Collector Output Capacitance (Note 10)

Notes: 10. Measured under pulsed conditions. Pulse width ≤ 300µs. Duty cycle ≤ 2%

NEW PRODUCT

BFS17N

Document Number DS32160 Rev. 3 - 2

BV

CBO

BV

CEO

BV

EBO

I

CBO

I

EBO

h

FE

V

CE(sat

f

T

C

−

ob

www.diodes.com

20 11

3

− −

56

− −

1.4 3.2

4 of 7

− −

0.5 µA

180

−

0.5 V

−

0.8 1.5 pF

V V V

−

GHz

IC = 10µA IC = 1mA IE = 10µA V

= 10V

CB

V

= 2V

EB

IC = 5mA, V

CE

= 10V

IC = 25mA, IB = 5mA

= 25mA, V

I

E

CE

= 5V,

f = 500MHz V

= 10V, f = 1MHz

CB

October 2012

A

f

Product Line o

Diodes Incorporated

BFS17N

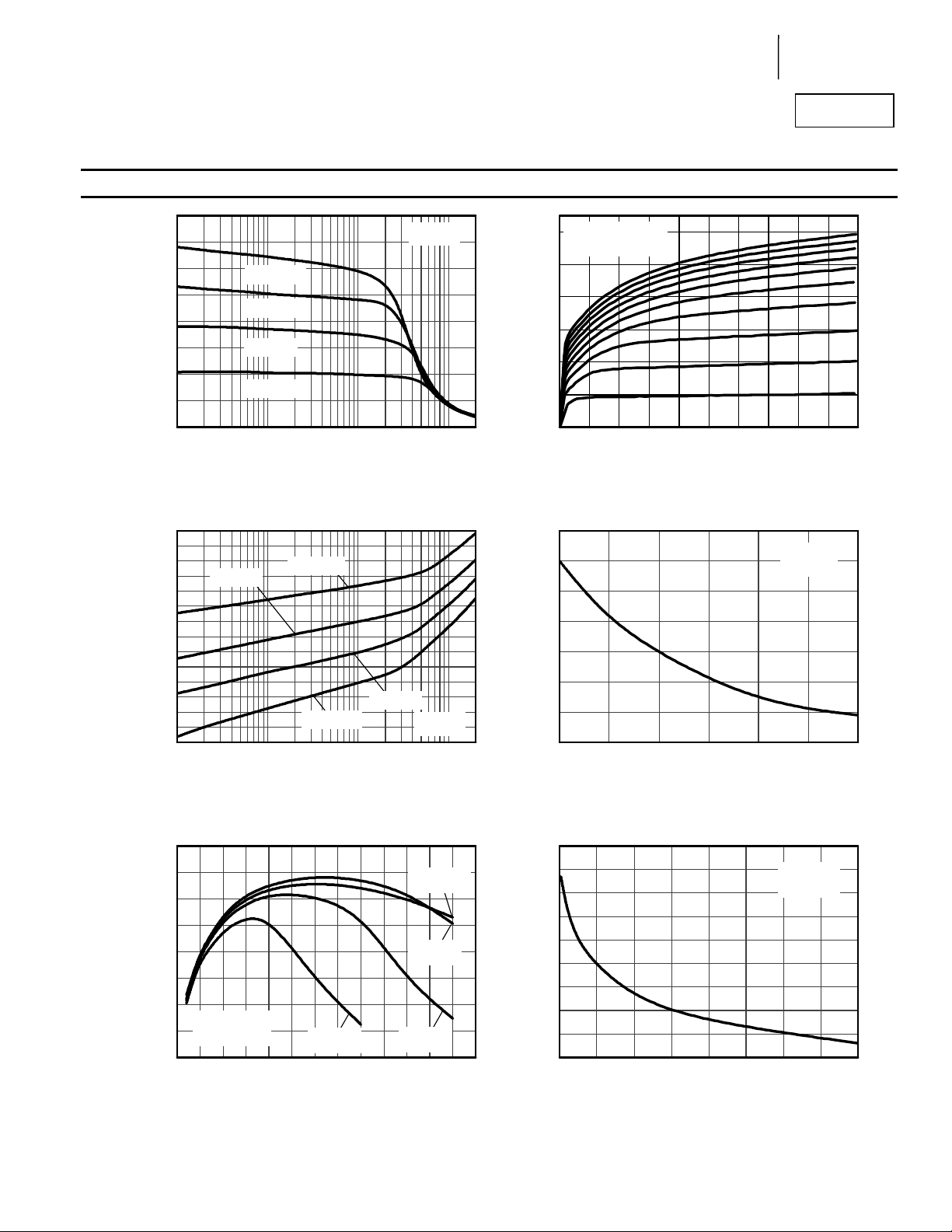

Typical Electrical Characteristics (@T

200

150

100

hFE Gain

50

0

0.1 1 10 100

T=150°C

T=85°C

T=25°C

T=-55°C

IC Collector Curren t (mA)

NEW PRODUCT

1100 1000

900

T=25°C

T=-55°C

800

(V)

700

BE(ON)

600

V

500 400

0.1 1 10 100

T=150°C

IC Collector Current (mA)

= +25°C, unless otherwise specified.)

A

VCE=5V

0.06

0.05

0.04

0.03

0.02

0.01

Collector Current (A)

C

I

0.00

1.6

1.5

1.4

1.3

1.2

1.1

T=85°C

VCE=5V

Capacitance (pF)

1.0

EB

C

0.9

Ten base steps 100μA per step

012345678910

VCE (V)

Ta=25°C f=1MHz

0.0 0.5 1.0 1.5 2.0 2.5 3.0

VEB Emitter-Bas e Vo l ta g e (V)

4

VCE=10V

1.4

3

Ta=25°C f=1MHz

1.2

2

fT (GHz)

1

Tamb=25°C f=500MHz

0

0.0 5.0 10.0 15.0 20.0 25.0 30.0

VCE=1V

IC Collector Current (mA)

BFS17N

Document Number DS32160 Rev. 3 - 2

VCE=5V

VCE=2V

www.diodes.com

5 of 7

1.0

0.8

Capacitance (pF)

CB

C

0.6 0 5 10 15 20

VCB Collector-Base Voltage (V)

October 2012

A

f

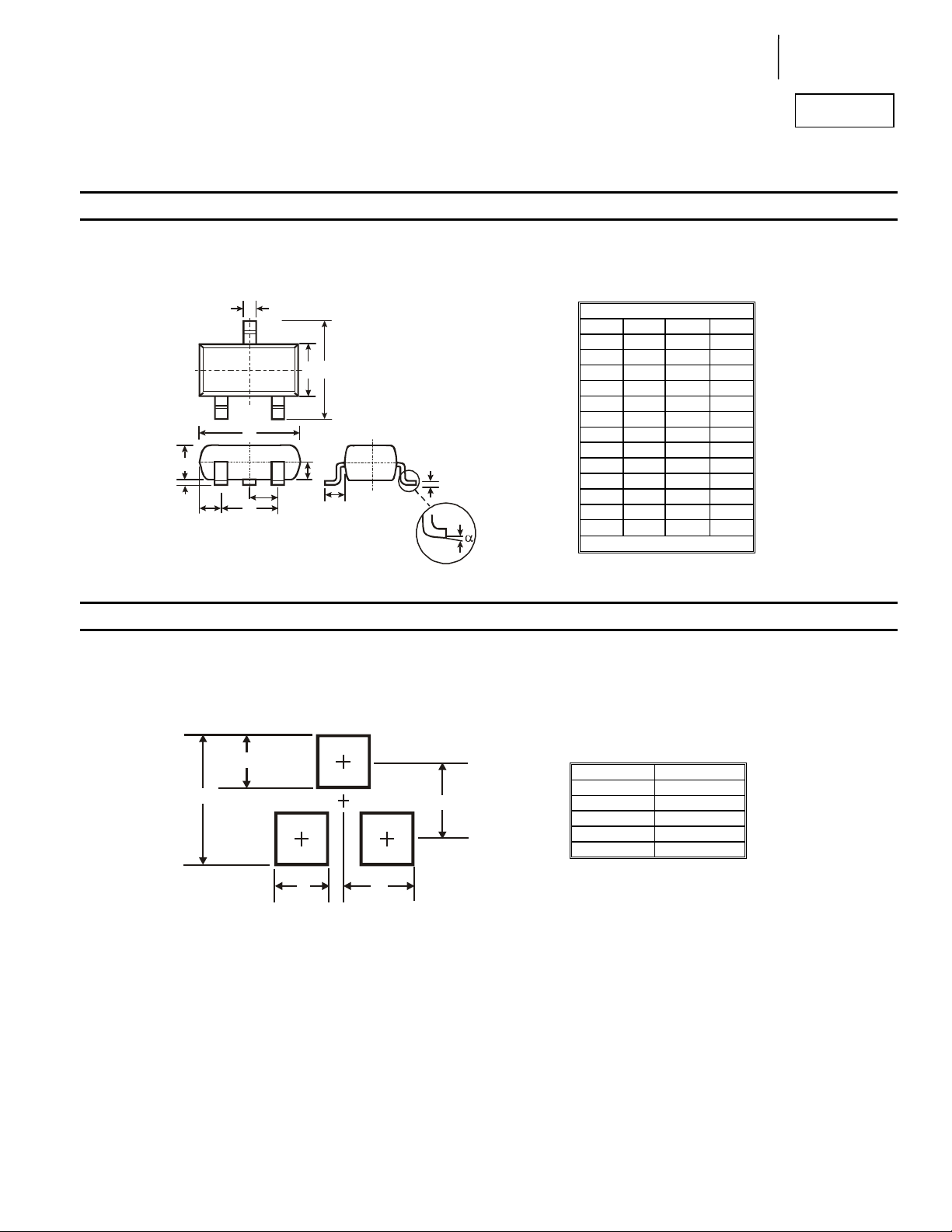

Package Outline Dimensions

Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.

A

C

B

K1

D

L

M

NEW PRODUCT

K

J

H

F

G

Suggested Pad Layout

Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.

Y

Z

X

E

C

Product Line o

Diodes Incorporated

Dim Min Max Typ

A 0.37 0.51 0.40 B 1.20 1.40 1.30 C 2.30 2.50 2.40 D 0.89 1.03 0.915 F 0.45 0.60 0.535 G 1.78 2.05 1.83 H 2.80 3.00 2.90 J 0.013 0.10 0.05 K 0.903 1.10 1.00

K1 - - 0.400

L 0.45 0.61 0.55 M 0.085 0.18 0.11

α

Dimensions Value (in mm)

SOT23

0° 8° -

All Dimensions in mm

Z 2.9 X 0.8 Y 0.9 C E

2.0

1.35

BFS17N
