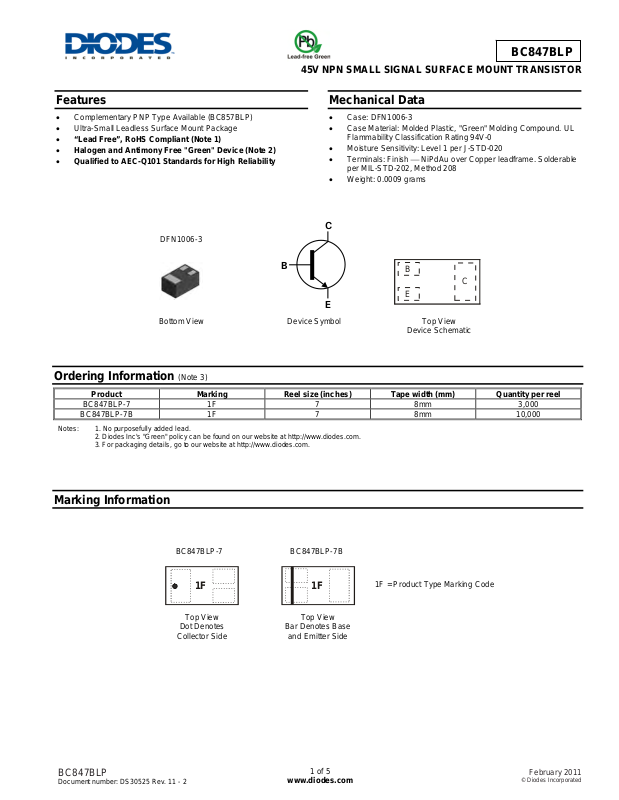

Page 1
Features
• Complementary PNP Type Available (BC857BLP)
• Ultra-Small Leadless Surface Mount Package
• “Lead Free”, RoHS Compliant (Note 1)
• Halogen and Antimony Free "Green" Device (Note 2)
• Qualified to AEC-Q101 Standards for High Reliability
DFN1006-3
Bottom View
BC847BLP
45V NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Mechanical Data
• Case: DFN1006-3
• Case Material: Molded Plastic, "Green" Molding Compound. UL
Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish ⎯ NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
• Weight: 0.0009 grams
C
B
E
Device Symbol
B
C
E
Top View
Device Schematic
Ordering Information (Note 3)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
BC847BLP-7 1F 7 8mm 3,000
BC847BLP-7B 1F 7 8mm 10,000
Notes: 1. No purposefully added lead.
2. Diodes Inc's "Green" policy can be found on our website at http://www.diodes.com.
3. For packaging details, go to our website at http://www.diodes.com.
Marking Information
BC847BLP
Document number: DS30525 Rev. 11 - 2
BC847BLP-7 BC847BLP-7B
1F1F
Top View
Dot Denotes
Collector Side
Top View
Bar Denotes Base
and Emitter Side
1 of 5
www.diodes.com
1F = Product Type Marking Code
February 2011
© Diodes Incorporated
Page 2
θ
BC847BLP
Maximum Ratings @T
= 25°C unless otherwise specified
A
Characteristic Symbol Value Unit
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
V
CBO
V
CEO
V
EBO
I
C
50 V
45 V
6.0 V
100 mA
Thermal Characteristics @T
= 25°C unless otherwise specified
A
Characteristic Symbol Value Unit
Power Dissipation (Note 4)
Thermal Resistance, Junction to Ambient (Note 4)
Operating and Storage Temperature Range
P
D
R
JA
T
, T
J
STG
250 mW
500
-55 to +150
°C/W
°C
Electrical Characteristics @T
= 25°C unless otherwise specified
A
Characteristic (Note 5) Symbol Min Typ Max Unit Test Condition
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
DC Current Gain
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
Base-Emitter Voltage
Collector-Cutoff Current
Gain Bandwidth Product
Collector-Base Capacitance
Notes: 4. Device mounted on FR-4 PCB.
5. Short duration pulse test used to minimize self-heating effect.
BV
CBO
BV
CEO
BV
EBO
h
FE
V
CE(sat)
V
BE(sat)
V
BE(ON)
I
CBO
f
T
C
CBO
50 — — V
45 — — V
6 — — V
200 350 450 —
—
—
—
80
200
700
900
580 — 640
725
—
—
—
—
250
600
—
—
700
770
15
5.0
100 — — MHz
— 3.0 — pF
IC = 10μA, IB = 0
IC = 10mA, IB = 0
IE = 1μA, IC = 0
VCE = 5.0V, IC = 2.0mA
mV
mV
mV
nA
µA
= 100mA, IB = 5.0mA
I
C
= 10mA, IB = 0.5mA
I
C
I
= 100mA, IB = 5.0mA
C
= 5.0V, IC = 2.0mA
V
CE
= 5.0V, IC = 10mA
V
CE
V
= 30V
CB
V
= 30V, TA = 150°C
CB
V
= 5.0V, IC = 10mA,
CE
= 10mA, IB = 0.5mA
I
C
f = 100MHz
VCB = 10V, f = 1.0MHz
BC847BLP
Document number: DS30525 Rev. 11 - 2
2 of 5
www.diodes.com
February 2011
© Diodes Incorporated
Page 3
P, P
OWER
P
T
O
BC847BLP
300
250
N (mW)
200
I
A
150
DISSI
100
D
50
R = 500 C/W
°
θ
JA
0
0 255075100125150
T , AMBIENT TEMPERATURE (°C)
A
Fig. 1 Power Dissipation
vs. Ambient Temperature (Note 4)
1,000
350
I/I = 20
300
CB
250
200
T = 125ºC
A
150
T = 150ºC
100
SATURA TION VOL TAGE (mV)
(CE)SAT
V , COLLECTOR-EMITTER
50
A
T = 85ºC
A
T = 25ºC
A
T = -55ºC
A
0
1
I , COLLECTOR CURRENT (mA)
C
10
100
Fig. 2 Typical Collector-Emitter Saturation Voltage
vs. Collecto r Cu r re nt
1.0
0.9
T = -55ºC
800
600
A
T = 25ºC
A
T = 85ºC
A
0.8
0.7
0.6
0.5
BE(ON)
V , BASE-EMITTER TURN-ON VOLTAGE (mV)
1,000
100
FE
h , DC CURRENT GAIN
400
200
10
T = 150ºC
A
T = 125ºC
A
0.4
0.3
0.2
V = 5V
CE
0
0
2
I , COLLECTOR CURRENT (mA)
C
Typical Base-Emitter Turn-On Voltage
Fig. 3
46 810
vs. Collector Current
0.1
0
110010
(BE)SAT
V , BASE-EMITTER SATURATION VOLTAGE (V)
I , COLLECTOR CURRENT (mA)
C
Typical Base-Emitter Saturation Voltage
Fig. 4
vs. Collector Current
1
0.1
110
Fig. 5
I , COLLECTOR CURRENT (mA)
C
Typical DC Current Gain vs. Collector Current
100
1,000
BC847BLP
Document number: DS30525 Rev. 11 - 2
3 of 5
www.diodes.com
February 2011
© Diodes Incorporated
Page 4
Package Outline Dimensions
A
A1
D
b2
E
L2
Suggested Pad Layout
X
1
G2
X
BC847BLP
DFN1006-3
Dim Min Max Typ
A 0.47 0.53 0.50
A1 0 0.05 0.03
b1 0.10 0.20 0.15
b2 0.45 0.55 0.50
D 0.95 1.075 1.00
b1
e
L1L3
C
Dimensions Value (in mm)
G1
Y
Z
E 0.55 0.675 0.60
e
⎯ ⎯
L1 0.20 0.30 0.25
L2 0.20 0.30 0.25
L3
⎯ ⎯
All Dimensions in mm
Z 1.1
G1 0.3
G2 0.2
X 0.7
X1 0.25
Y 0.4
C 0.7
0.35
0.40
BC847BLP
Document number: DS30525 Rev. 11 - 2
4 of 5
www.diodes.com
February 2011
© Diodes Incorporated
