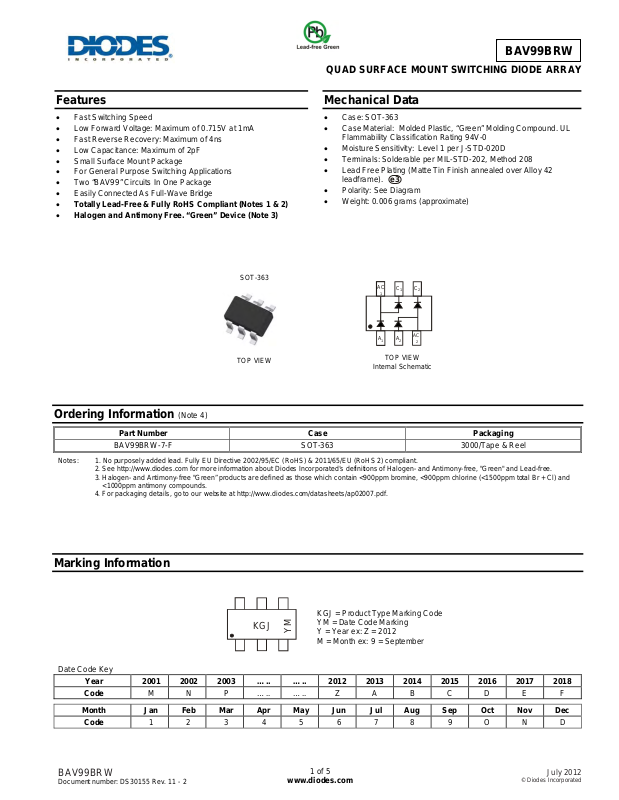

Diodes BAV99BRW User Manual

Features
Fast Switching Speed
Low Forward Voltage: Maximum of 0.715V at 1mA
Fast Reverse Recovery: Maximum of 4ns
Low Capacitance: Maximum of 2pF
Small Surface Mount Package
For General Purpose Switching Applications
Two “BAV99” Circuits In One Package
Easily Connected As Full-Wave Bridge
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
SOT-363
TOP VIEW
BAV99BRW
QUAD SURFACE MOUNT SWITCHING DIODE ARRAY
Mechanical Data
Case: SOT-363
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
Polarity: See Diagram
Weight: 0.006 grams (approximate)
e3
AC
C
C
1
1
A
1
TOP VIEW
Internal Schematic
2
AC
A
2
2
Ordering Information (Note 4)
Part Number Case Packaging
BAV99BRW-7-F SOT-363 3000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
4. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds.
Marking Information
KGJ
KGJ = Product Type Marking Code YM = Date Code Marking
YM
Y = Year ex: Z = 2012 M = Month ex: 9 = September
Date Code Key
Year 2001 2002 2003 ….. ….. 2012 2013 2014 2015 2016 2017 2018
Code M N P ….. ….. Z A B C D E F
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
BAV99BRW
Document number: DS30155 Rev. 11 - 2
1 of 5
www.diodes.com
© Diodes Incorporated
July 2012
)
θ
(BR)
Maximum Ratings (@T
= +25°C, unless otherwise specified.)
A
Characteristic Symbol Value Unit
Non-Repetitive Peak Reverse Voltage Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage DC Blocking Voltage
RMS Reverse Voltage Forward Continuous Current (Note 5) Average Rectified Output Current (Note 5) Non-Repetitive Peak Forward Surge Current @ t = 1.0µs
@ t = 1.0s
Thermal Characteristics
Characteristic Symbol Value Unit
Power Dissipation (Note 5) Thermal Resistance Junction to Ambient Air (Note 5) Operating and Storage Temperature Range
VRM V V
RWM
VR
V
R(RMS
IFM
I
FSM
PD
R
TJ , T
RRM
IO
JA
STG
BAV99BRW
100 V
75 V
53 V 300 mA 150 mA
2.0
1.0
200 mW 625
-65 to +150
A
°C/W
°C
Electrical Characteristics (@T
= +25°C, unless otherwise specified.)
A
Characteristic Symbol Min Max Unit Test Condition
Reverse Breakdown Voltage (Note 6)
Forward Voltage
Reverse Current (Note 6)
Total Capacitance Reverse Recovery Time
Notes: 5. Device mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
6. Short duration pulse test used to minimize self-heating effect.
BAV99BRW
Document number: DS30155 Rev. 11 - 2
V
VF
IR
CT
trr
2 of 5
www.diodes.com
75
R
0.715
0.855
1.0
1.25
2.5 50 30 25
⎯ ⎯
2.0 pF
4.0 ns
V
IR = 2.5µA IF = 1.0mA IF = 10mA
V
IF = 50mA IF = 150mA VR = 75V
µA
VR = 75V, TJ = +150°C
µA µA
VR = 25V, TJ = +150°C
nA
VR = 20V VR = 0, f = 1.0MHz IF = IR = 10mA, I
= 0.1 x IR, RL = 100Ω
rr
July 2012
© Diodes Incorporated
