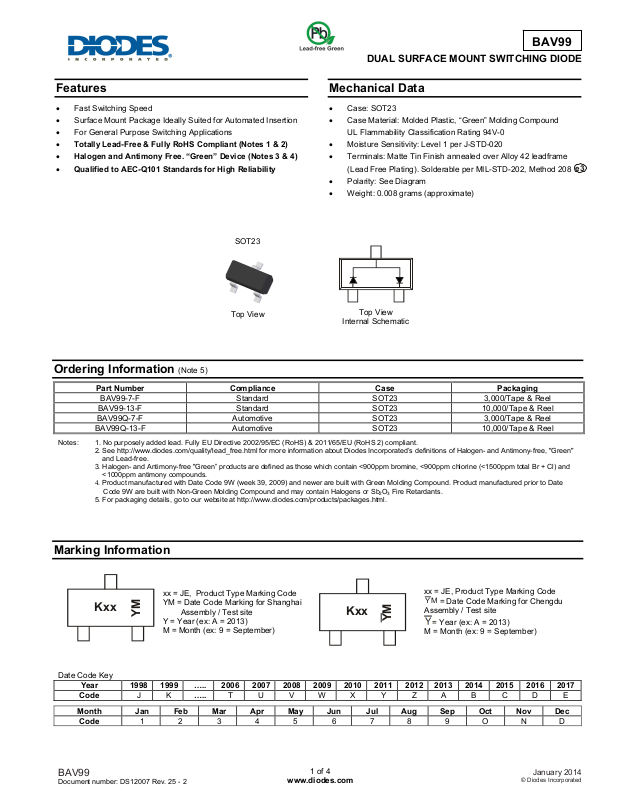

Diodes BAV99 User Manual
A
Features
• Fast Switching Speed
• Surface Mount Package Ideally Suited for Automated Insertion
• For General Purpose Switching Applications
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
• Qualified to AEC-Q101 Standards for High Reliability
SOT23
Top View
DUAL SURFACE MOUNT SWITCHING DIODE
Mechanical Data
• Case: SOT23
• Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
• Polarity: See Diagram
• Weight: 0.008 grams (approximate)
Top View
Internal Schematic
BAV99
e3
Ordering Information (Note 5)
Part Number Compliance Case Packaging
BAV99-7-F Standard SOT23 3,000/Tape & Reel
BAV99-13-F Standard SOT23 10,000/Tape & Reel
BAV99Q-7-F Automotive SOT23 3,000/Tape & Reel
BAV99Q-13-F Automotive SOT23 10,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
Code 9W are built with Non-Green Molding Compound and may contain Halogens or Sb
4. Product manufactured with Date Code 9W (week 39, 2009) and newer are built with Green Molding Compound. Product manufactured prior to Date
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Fire Retardants.
2O3
Marking Information
Date Code Key
Kxx
Year 1998 1999 ….. 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017
Code J K ….. T U V W X Y Z A B C D E
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
BAV99
Document number: DS12007 Rev. 25 - 2
xx = JE, Product Type Marking Code
YM = Date Code Marking for Shanghai
Assembly / Test site
YM
Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)
Kxx
1 of 4
www.diodes.com
YM
xx = JE, Product Type Marking Code
YM
= Date Code Marking for Chengdu
ssembly / Test site
= Year (ex: A = 2013)
M = Month (ex: 9 = September)
January 2014
© Diodes Incorporated
Maximum Ratings (@T
= +25°C, unless otherwise specified.)
A
Characteristic Symbol Value Unit
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
V
Forward Continuous Current (Note 6)
Non-Repetitive Peak Forward Surge Current @ t = 1.0µs
@ t = 1.0s
Thermal Characteristics
Characteristic Symbol Value Unit
Power Dissipation (Note 6)
Thermal Resistance Junction to Ambient Air (Note 6)
Operating and Storage Temperature Range
Electrical Characteristics (@T
= +25°C, unless otherwise specified.)
A
Characteristic Symbol Min Max Unit Test Condition
Reverse Breakdown Voltage (Note 7)
Forward Voltage
Reverse Current (Note 7)
Total Capacitance
Reverse Recovery Time
Notes: 6. Part mounted on Polymide PC board with pad dimensions 1.13mm x 1.27mm.
7. Short duration pulse test used to minimize self-heating effect.
T
V
(BR)R
V
F
I
⎯
R
C
⎯
T
t
⎯
rr
V
RM
V
RRM
V
RWM
V
R(RMS)
I
FM
I
FSM
P
R
θJA
, T
J
R
D
STG
BAV99
75
⎯
100 V
75 V
53 V
300 mA
2.0
1.0
A
350 mW
357 °C/W
-65 to +150 °C
⎯
0.715
0.855
1.0
1.25
2.5
50
30
25
2.0 pF
4.0 ns
V
IR = 2.5µA
I
I
V
I
I
V
µA
V
µA
V
µA
nA
V
VR = 0, f = 1.0MHz
I
I
= 1.0mA
F
= 10mA
F
= 50mA
F
= 150mA
F
= 75V
R
= 75V, TJ = +150°C
R
= 25V, TJ = +150°C
R
= 20V
R
= IR = 10mA,
F
= 0.1 x IR, RL = 100Ω
rr
BAV99
Document number: DS12007 Rev. 25 - 2
2 of 4
www.diodes.com
January 2014
© Diodes Incorporated
