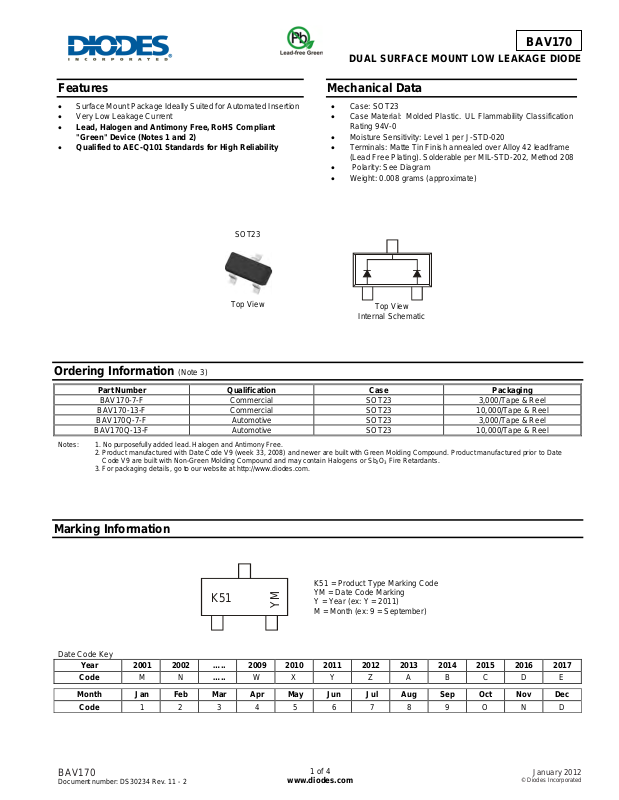

Diodes BAV170 User Manual

DUAL SURFACE MOUNT LOW LEAKAGE DIODE
Features
Surface Mount Package Ideally Suited for Automated Insertion
Very Low Leakage Current
Lead, Halogen and Antimony Free, RoHS Compliant
"Green" Device (Notes 1 and 2)
Qualified to AEC-Q101 Standards for High Reliability
SOT23
Top View
Mechanical Data
Case: SOT23
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 0.008 grams (approximate)
Top View
Internal Schematic
BAV170
Ordering Information (Note 3)
Part Number Qualification Case Packaging
BAV170-7-F Commercial SOT23 3,000/Tape & Reel
BAV170-13-F Commercial SOT23 10,000/Tape & Reel
BAV170Q-7-F Automotive SOT23 3,000/Tape & Reel
BAV170Q-13-F Automotive SOT23 10,000/Tape & Reel
Notes: 1. No purposefully added lead. Halogen and Antimony Free.
3. For packaging details, go to our website at http://www.diodes.com.
2. Product manufactured with Date Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb
Fire Retardants.
2O3
Marking Information
Date Code Key
Year 2001 2002 ….. 2009 2010 2011 2012 2013 2014 2015 2016 2017
Code M N ….. W X Y Z A B C D E
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
K51
YM
BAV170
Document number: DS30234 Rev. 11 - 2
K51 = Product Type Marking Code YM = Date Code Marking Y = Year (ex: Y = 2011) M = Month (ex: 9 = September)
1 of 4
www.diodes.com
January 2012
© Diodes Incorporated
)
θ
(BR)
Maximum Ratings @T
= 25°C unless otherwise specified
A
Characteristic Symbol Value Unit
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
RMS Reverse Voltage Forward Continuous Current (Note 4) Single Diode
Double Diode Repetitive Peak Forward Current Non-Repetitive Peak Forward Surge Current @ t = 1.0μs
@ t = 1.0ms @ t = 1.0s
Thermal Characteristics
Characteristic Symbol Value Unit
Power Dissipation (Note 4) Thermal Resistance Junction to Ambient Air (Note 4) Operating and Storage Temperature Range
V
T
V
RRM
V
RWM
V
R
R(RMS
I
FM
I
FRM
I
FSM
P
D
R
JA
, T
J
STG
BAV170
85 V
60 V
215 125
mA
500 mA
4.0
1.0
A
0.5
250 mW 500
-65 to +150
°C/W
°C
Electrical Characteristics @T
= 25°C unless otherwise specified
A
Characteristic Symbol Min Typ Max Unit Test Condition
Reverse Breakdown Voltage (Note 5)
Forward Voltage
Leakage Current (Note 5) Total Capacitance
Reverse Recovery Time
Notes: 4. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com.
5. Short duration pulse test used to minimize self-heating effect.
V
VF
IR
CT
trr
85
R
0.90
1.0
1.1
1.25
5.0 80
2
3.0
V
IR = 100μA IF = 1.0mA IF = 10mA
V
IF = 50mA IF = 150mA VR = 75V
nA nA
VR = 75V, TJ = 150°C
pF
VR = 0, f = 1.0MHz IF = IR = 10mA,
μs
I
= 0.1 x IR, RL = 100Ω
rr
BAV170
Document number: DS30234 Rev. 11 - 2
2 of 4
www.diodes.com
January 2012
© Diodes Incorporated
