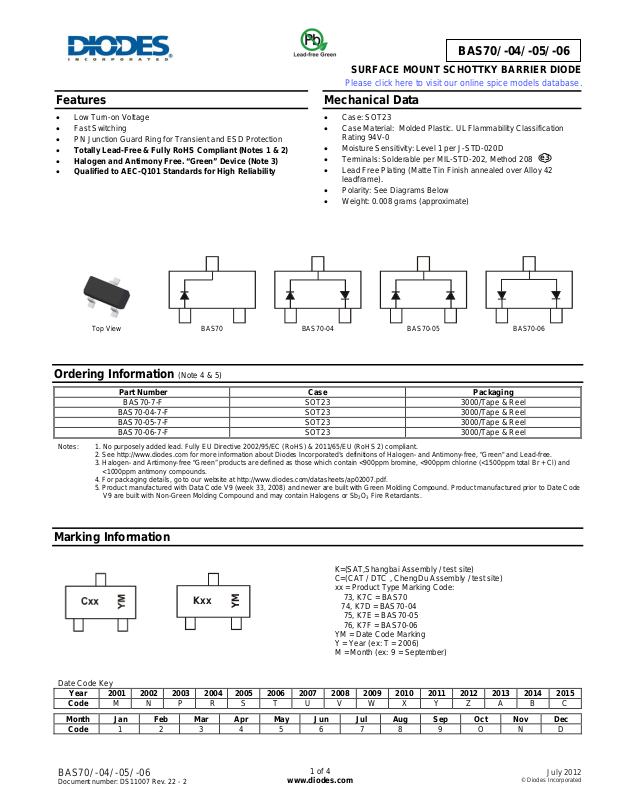

Features
• Low Turn-on Voltage
• Fast Switching
• PN Junction Guard Ring for Transient and ESD Protection
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Top View BAS70 BAS70-04 BAS70-05 BAS70-06
BAS70/ -04/ -05/ -06
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Mechanical Data
• Case: SOT23
• Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020D
• Terminals: Solderable per MIL-STD-202, Method 208
• Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
• Polarity: See Diagrams Below
• Weight: 0.008 grams (approximate)
e3
Ordering Information (Note 4 & 5)
Part Number Case Packaging
BAS70-7-F SOT23 3000/Tape & Reel
BAS70-04-7-F SOT23 3000/Tape & Reel
BAS70-05-7-F SOT23 3000/Tape & Reel
BAS70-06-7-F SOT23 3000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
4. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
5. Product manufactured with Data Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date Code
V9 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
Marking Information
Kxx
Date Code Key
Year 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015
Code M N P R S T U V W X Y Z A B C
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
BAS70/ -04/ -05/ -06
Document number: DS11007 Rev. 22 - 2
YM
K=(SAT,Shangbai Assembly / test site)
C=(CAT / DTC , ChengDu Assembly / test site)
xx = Product Type Marking Code:
73, K7C = BAS70
74, K7D = BAS70-04
75, K7E = BAS70-05
76, K7F = BAS70-06
YM = Date Code Marking
Y = Year (ex: T = 2006)
M = Month (ex: 9 = September)
1 of 4
www.diodes.com
July 2012
© Diodes Incorporated
Page 2
)
θ
(BR)
P, P
OWER
PAT
O
N
TANT
O
U
O
R
R
C
U
R
R
T
BAS70/ -04/ -05/ -06
Maximum Ratings (@T
= +25°C, unless otherwise specified.)
A
Characteristic Symbol Value Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Maximum Forward Continuous Current (Note 6)
Non-Repetitive Peak Forward Surge Current @ t ≤ 1.0s
V
V
V
R(RMS
RRM
RWM
VR
IFM
I
FSM
70 V
49 V
70 mA
100 mA
Thermal Characteristics
Power Dissipation (Note 6)
Thermal Resistance Junction to Ambient Air (Note 6)
Operating Junction Temperature Range
Storage Temperature Range
Electrical Characteristics (@T
Reverse Breakdown Voltage (Note 7)
Forward Voltage
Reverse Current (Note 7)
Total Capacitance
Reverse Recovery Time
Notes: 6. Part mounted on FR-4 board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
7. Short duration pulse test used to minimize self-heating effect.
BAS70/ -04/ -05/ -06
Document number: DS11007 Rev. 22 - 2
(mW)
I
DISSI
D
250
200
150
100
50
0
0
Characteristic Symbol Value Unit
PD
R
JA
TJ
T
STG
= +25°C, unless otherwise specified.)
A
200 mW
625 °C/W
-55 to +125
-65 to +150 °C
Characteristic Symbol Min Max Unit Test Condition
V
VF
IR
CT
trr
70 — V
R
—
⎯
⎯
— 5.0 ns
410
1000
mV
100 nA
2.0 pF
IR = 10µA
tp <300µs, IF = 1.0mA
tp <300µs, IF = 15mA
tp <300µs, VR = 50V
VR = 0V, f = 1.0MHz
IF = IR = 10mA to IR = 1.0mA,
RL =100Ω
100
T = 125ºC
(mA)
EN
D
10
A
T = 75ºC
A
T = 25ºC
A
WA
S F
1.0
ANE
T = 0ºC
A
T = -40ºC
40
T , AMBIENT TEMPERATURE ( C)
A
80 160
120
°
Figure 1 Power Derating Curve, Total Package
200
0.1
F
I, INS
0
V , INSTANTANEOUS FORWARD VOLTAGE (V)
F
Figure 2 Typical Forward Characteristics
0.4
A
0.8
1.0
0.60.2
2 of 4
www.diodes.com
1.2
1.4
© Diodes Incorporated
°C
1.6
July 2012
Page 3
T
T
O
US R
R
CUR
RENT
C, TOT
CAPACITAN
C
F
10,000
(nA)
1,000
SE
100
EVE
10
ANE
1
AN
R
I, INS
0.1
0
V , INSTANTANEOUS REVERSE VOLTAGE (V)
R
2010 30 605040
Figure 3 Typical Reverse Characteristics
70
1.8
1.6
)
1.4
E (p
1.2
1.0
0.8
AL
0.6
0.4
T
0.2
0
0
Figure 4 Total Capacitance vs. Reverse Voltage
105
V , DC REVERSE VOLTAGE (V)
R
BAS70/ -04/ -05/ -06
20 25
15
353040
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
K
J
A
Dim Min Max Typ
A 0.37 0.51 0.40
C
B
B 1.20 1.40 1.30
C 2.30 2.50 2.40
D 0.89 1.03 0.915
F 0.45 0.60 0.535
H
K1
F
D
G
L
M
G 1.78 2.05 1.83
H 2.80 3.00 2.90
J 0.013 0.10 0.05
K 0.903 1.10 1.00
K1 - - 0.400
L 0.45 0.61 0.55
M 0.085 0.18 0.11
α
SOT23
0° 8° -
All Dimensions in mm
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
BAS70/ -04/ -05/ -06
Document number: DS11007 Rev. 22 - 2
Y
Dimensions Value (in mm)
Z 2.9
Z
X
E
C
3 of 4
www.diodes.com
X 0.8
Y 0.9
C
E
2.0
1.35
July 2012
© Diodes Incorporated
Page 4
