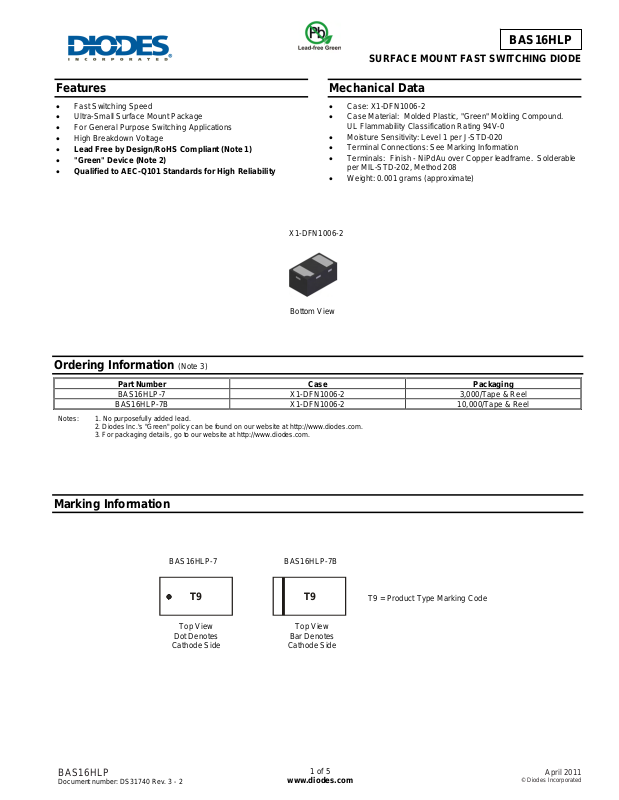

Features
• Fast Switching Speed
• Ultra-Small Surface Mount Package
• For General Purpose Switching Applications
• High Breakdown Voltage
• Lead Free by Design/RoHS Compliant (Note 1)
• "Green" Device (Note 2)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: X1-DFN1006-2
• Case Material: Molded Plastic, "Green" Molding Compound.
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminal Connections: See Marking Information
• Terminals: Finish - NiPdAu over Copper leadframe. Solderable
• Weight: 0.001 grams (approximate)
X1-DFN1006-2
Bottom View
BAS16HLP
SURFACE MOUNT FAST SWITCHING DIODE
UL Flammability Classification Rating 94V-0
per MIL-STD-202, Method 208
Ordering Information (Note 3)
Part Number Case Packaging
BAS16HLP-7 X1-DFN1006-2 3,000/Tape & Reel
BAS16HLP-7B X1-DFN1006-2 10,000/Tape & Reel
Notes: 1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com.
3. For packaging details, go to our website at http://www.diodes.com.
Marking Information
BAS16HLP-7 BAS16HLP-7B
T9 T9
Top View
Dot Denotes
Cathode Side
BAS16HLP
Document number: DS31740 Rev. 3 - 2
Top View
Bar Denotes
Cathode Side
1 of 5
www.diodes.com
T9 = Product Type Marking Code
April 2011
© Diodes Incorporated
Page 2
)
θ
(BR)
Maximum Ratings @T
= 25°C unless otherwise specified
A
Characteristic Symbol Value Unit
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current
Non-Repetitive Peak Forward Surge Current @ t = 1.0μs
@ t = 1.0ms
@ t = 1.0s
Thermal Characteristics
Characteristic Symbol Value Unit
Power Dissipation (Note 4)
Thermal Resistance Junction to Ambient (Note 4)
Operating and Storage Temperature Range
V
T
V
RM
V
RRM
V
RWM
V
R(RMS
I
FM
I
FSM
P
R
, T
J
R
D
JA
STG
BAS16HLP
125 V
100 V
71 V
215 mA
4
1
A
0.5
250 mW
500
-65 to +150
°C/W
°C
Electrical Characteristics @T
= 25°C unless otherwise specified
A
Characteristic Symbol Min Max Unit Test Conditions
Reverse Breakdown Voltage (Note 5)
Forward Voltage
V
V
F
100
R
⎯
⎯
⎯
⎯
⎯
0.715
0.855
1.0
1.25
500
Peak Reverse Current (Note 5)
I
R
⎯
50
30
30
Total Capacitance
Reverse Recovery Time
Notes: 4. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com.
5. Short duration pulse test used to minimize self-heating effect.
C
⎯
T
t
⎯
rr
1.5 pF
4.0 ns
V
IR = 100μA
= 1.0mA
I
F
I
= 10mA
F
V
nA
μA
μA
nA
= 50mA
I
F
I
= 150mA
F
V
= 80V
R
V
= 80V, TJ = 150°C
R
= 25V, TJ = 150°C
V
R
V
= 25V
R
VR = 0V, f = 1.0MHz
= IR = 10mA,
I
F
= 0.1 x IR, RL = 100Ω
I
rr
BAS16HLP
Document number: DS31740 Rev. 3 - 2
2 of 5
www.diodes.com
April 2011
© Diodes Incorporated
Page 3
P, P
OWER
PATIO
R
R
REC
OVER
Y T
BAS16HLP
300
250
N (mW)
200
150
DISSI
100
D
50
F
0
0 25 50 75 100 125 150
T , AMBIENT TEMPERATURE (°C)
A

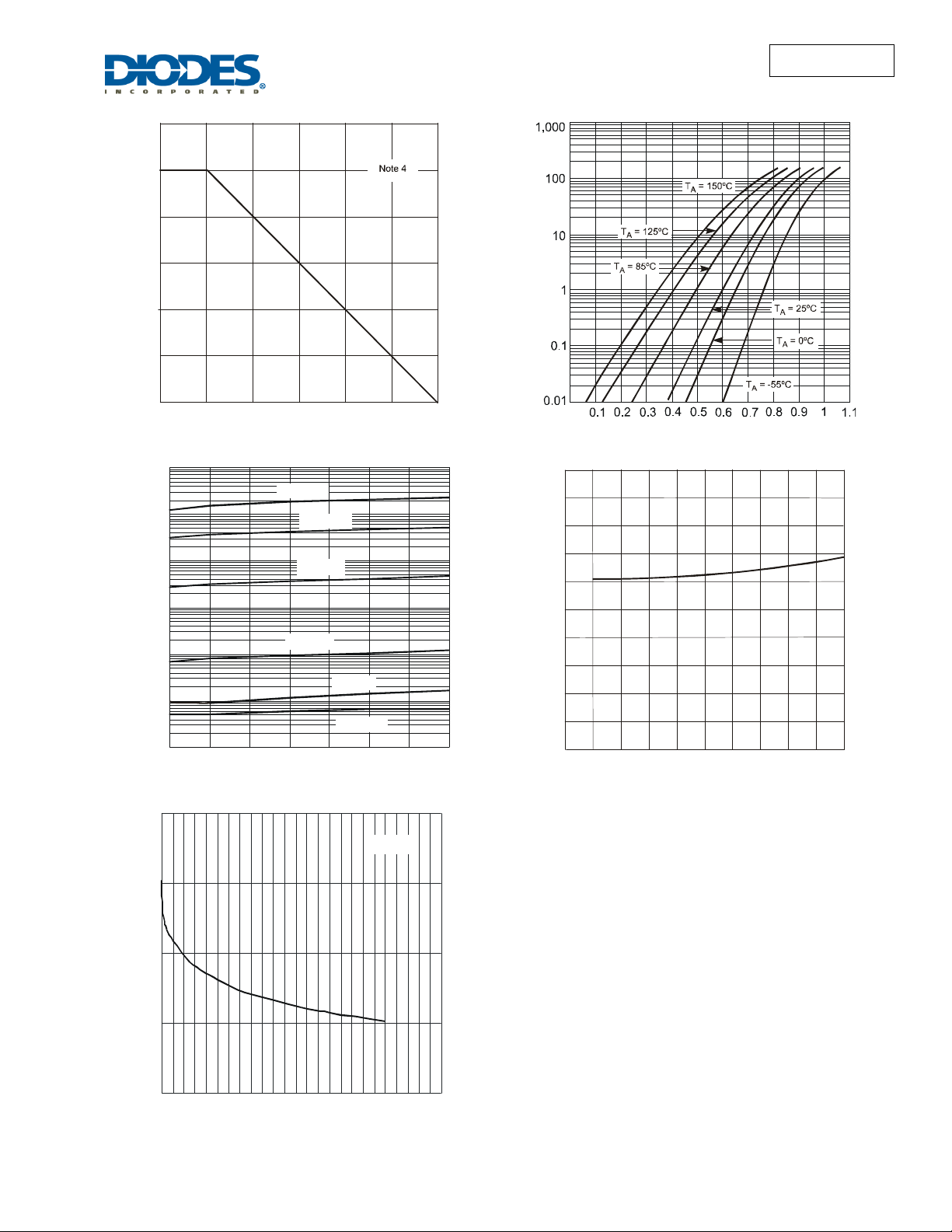

Fig. 1 Power Derating Curve
100
μ
10
T = 150ºC
A
T = 125ºC
A
I , INSTANTANEOUS FORWARD CURRENT (mA)
0
V , INSTANTANEOUS FORWARD VOLTAGE (V)
F
Fig. 2 Typical Forward Characteristics
2.5
2.0
IME (nS)
1
T = 85ºC
A
1.5
R
I , INSTANTANEOUS REVERSE CURRENT ( A)
T
C , TOTAL CAPACITA NCE (pF)
0.1
0.01
0.001
0.0001
0.60
0.55
0.50
0.45
T = 25ºC
A
T = 0ºC
A
T = -55ºC
A
30 40 50 60
20
10
V , INSTANTANEOUS REVERSE VOLTAGE (V)
R
70 80
Fig. 3 Typical Reverse Characteristics
f = 1MHz
1.0
SE
EVE
0.5
rr
t,
0
0468210
I , FORWARD CURRENT (mA)
F
Fig. 4 Reverse Recovery Time vs. Forward Current
0.40
01020304050
V , REVERSE VOLT AGE (V)
R
Fig. 5 Typical Total Capacitance
BAS16HLP
Document number: DS31740 Rev. 3 - 2
3 of 5
www.diodes.com
April 2011
© Diodes Incorporated
Page 4

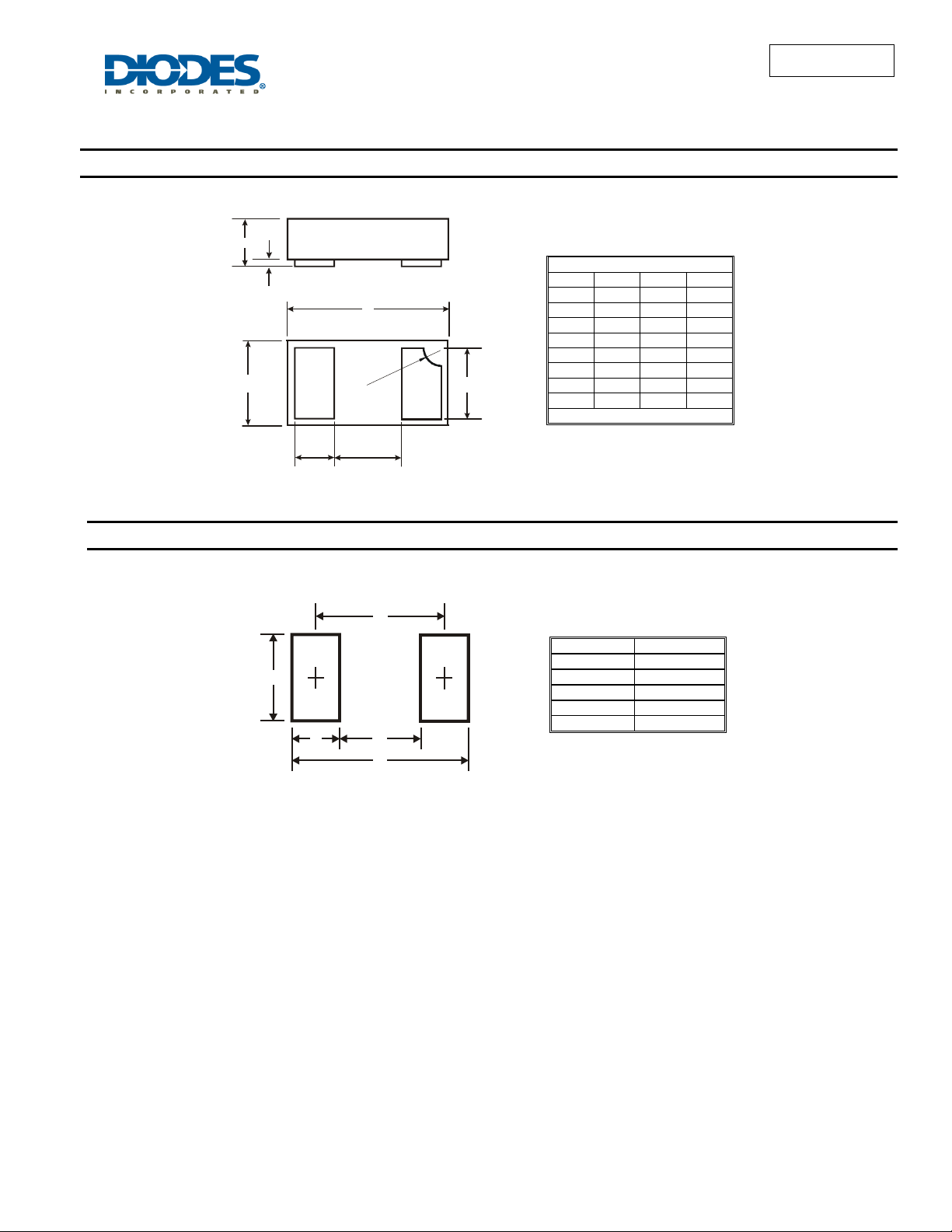

Package Outline Dimensions
A
A1
E
L
Suggested Pad Layout
X
Y
BAS16HLP
X1-DFN1006-2
Dim Min Max Typ
D
R
e
C
G
Z
b
A 0.47 0.53 0.50
A1 0 0.05 0.03
b 0.45 0.55 0.50
D 0.95 1.075 1.00
E 0.55 0.675 0.60
e - - 0.40
L 0.20 0.30 0.25
R 0.05 0.15 0.10
All Dimensions in mm
Dimensions Value (in mm)
Z 1.1
G 0.3
X 0.7
Y 0.4
C 0.7
BAS16HLP
Document number: DS31740 Rev. 3 - 2
4 of 5
www.diodes.com
April 2011
© Diodes Incorporated
Page 5
