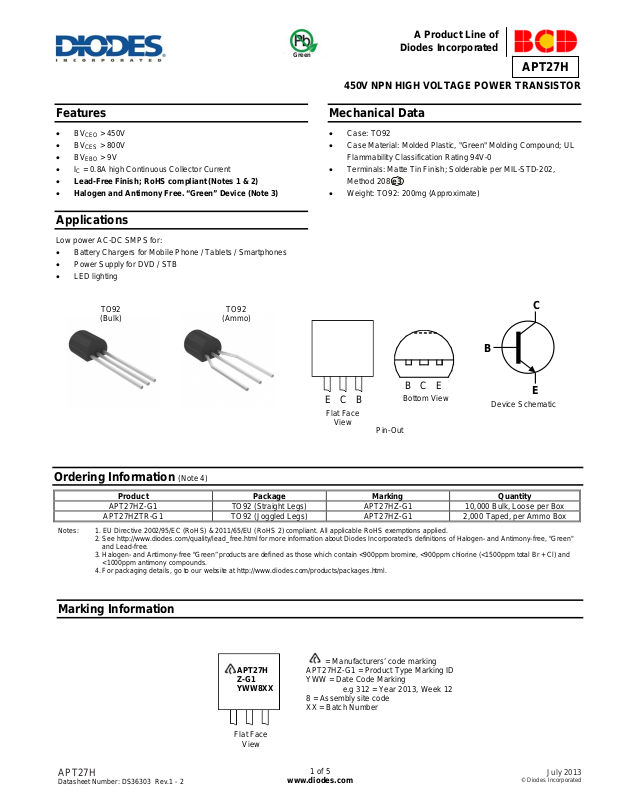

Diodes APT27H User Manual
A
f
A
Features
Product Line o
Green
Diodes Incorporated
PT27H
450V NPN HIGH VOLTAGE POWER TRANSISTOR
Mechanical Data
BV
BV
BV
I
Lead-Free Finish; RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
> 450V
CEO
> 800V
CES
> 9V
EBO
= 0.8A high Continuous Collector Current
C
Applications
Low power AC-DC SMPS for:
Battery Chargers for Mobile Phone / Tablets / Smartphones
Power Supply for DVD / STB
LED lighting
TO92
(Bulk)
TO92
(Ammo)
Case: TO92
Case Material: Molded Plastic, "Green" Molding Compound; UL
Flammability Classification Rating 94V-0
Terminals: Matte Tin Finish; Solderable per MIL-STD-202,
Method 208
Weight: TO92: 200mg (Approximate)
e3
C
B
Flat Face
View
BCE
Pin-Out
E CB
Bottom View
Device Schematic
E
Ordering Information (Note 4)
Product Package Marking Quantity
APT27HZ-G1 TO92 (Straight Legs) APT27HZ-G1 10,000 Bulk, Loose per Box
APT27HZTR-G1 TO92 (Joggled Legs) APT27HZ-G1 2,000 Taped, per Ammo Box
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
APT27H
Z-G1
YWW8XX
Flat Face
View
= Manufacturers’ code marking
APT27HZ-G1 = Product Type Marking ID
YWW = Date Code Marking
e.g 312 = Year 2013, Week 12
8 = Assembly site code
XX = Batch Number
APT27H
Datasheet Number: DS36303 Rev.1 - 2
1 of 5
www.diodes.com
July 2013
© Diodes Incorporated
A
f
A
Product Line o
Diodes Incorporated
PT27H
Absolute Maximum Ratings (@T
Characteristic Symbol Value Unit
Collector-Emitter Voltage (VBE = 0V) V
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Pulse Collector Current
Continuous Base Current
Peak Pulse Base Current
Thermal Characteristics (@T
Characteristic Symbol Value Unit
Power Dissipation
Thermal Resistance, Junction to Ambient Air
Operating and Storage Temperature Range
= +25°C, unless otherwise specified.)
A
= +25°C, unless otherwise specified.)
A
ESD Ratings (Note 5)
V
V
I
I
P
R
T
J,TSTG
CES
CEO
EBO
I
C
CM
I
B
BM
D
θJA
800 V
450 V
9 V
0.8 A
1.6 A
0.4 A
0.8 A
0.8 W
156.25 °C/W
-55 to +150 °C
Characteristic Symbol Value Unit JEDEC Class
Electrostatic Discharge - Human Body Model ESD HBM ≥ 8,000 V 3B
Electrostatic Discharge - Machine Model ESD MM ≥ 400 V C
Note: 5. Refer to JEDEC specification JESD22-A114 and JESD22-A115.
Safe Operating Area and Derating Information (@T
= +25°C, unless otherwise specified.)
A
APT27H
Datasheet Number: DS36303 Rev.1 - 2
2 of 5
www.diodes.com
July 2013
© Diodes Incorporated
