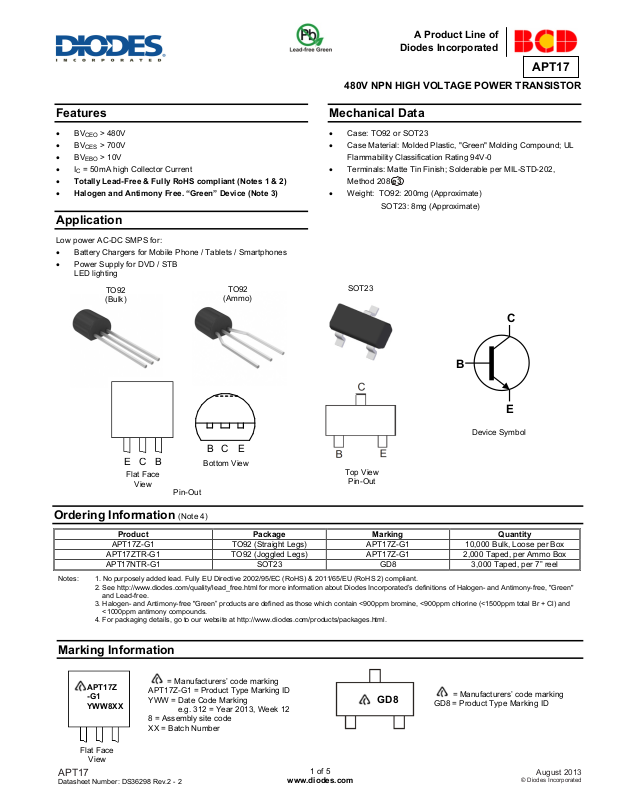

Diodes APT17 User Manual

Page 1
f
A
Features
480V NPN HIGH VOLTAGE POWER TRANSISTOR
Mechanical Data
Product Line o
Diodes Incorporated
PT17
BV
BV
BV
I
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
> 480V
CEO
> 700V
CES
> 10V
EBO
= 50mA high Collector Current
C
Application
Low power AC-DC SMPS for:
Battery Chargers for Mobile Phone / Tablets / Smartphones
Power Supply for DVD / STB
LED lighting
TO92 (Bulk)
B C E
Flat Face
View
Pin-Out
TO92
(Ammo)
E C B
Bottom View
Case: TO92 or SOT23
Case Material: Molded Plastic, "Green" Molding Compound; UL
Flammability Classification Rating 94V-0
Terminals: Matte Tin Finish; Solderable per MIL-STD-202,
Method 208
Weight: TO92: 200mg (Approximate)
SOT23: 8mg (Approximate)
SOT23
e3
C
B
E
Device Symbol
Top View
Pin-Out
Ordering Information (Note 4)
Product Package Marking Quantity
APT17Z-G1 TO92 (Straight Legs) APT17Z-G1 10,000 Bulk, Loose per Box APT17ZTR-G1 TO92 (Joggled Legs) APT17Z-G1 2,000 Taped, per Ammo Box APT17NTR-G1 SOT23 GD8 3,000 Taped, per 7” reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
APT17Z
-G1 YWW8XX
Flat Face
View
APT17
Datasheet Number: DS36298 Rev.2 - 2
= Manufacturers’ code marking APT17Z-G1 = Product Type Marking ID YWW = Date Code Marking e.g. 312 = Year 2013, Week 12 8 = Assembly site code XX = Batch Number
1 of 5
www.diodes.com
GD8
= Manufacturers’ code marking
GD8 = Product Type Marking ID
August 2013
© Diodes Incorporated
Page 2
f
A
Product Line o
Diodes Incorporated
PT17
Absolute Maximum Ratings (@T
Characteristic Symbol Value Unit
Collector-Emitter Voltage (VBE = 0V) V
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Pulse Collector Current
Continuous Base Current
Peak Pulse Base Current
Thermal Characteristics (@T
Characteristic Symbol Value Unit
Power Dissipation
Thermal Resistance, Junction to Ambient Air
Operating and Storage Temperature Range
= +25°C, unless otherwise specified.)
A
= +25°C, unless otherwise specified.)
A
For TO92 For SOT23 0.2
For TO92
For SOT23 625
ESD Ratings (Note 5)
CES
V
CEO
V
EBO
I
C
I
CM
I
B
I
BM
P
D
R
θJA
T
J,TSTG
700 V
480 V
10 V
50 mA
100 mA
25 mA
50 mA
0.5
250
-55 to +150 °C
W
°C/W
Characteristic Symbol Value Unit JEDEC Class
Electrostatic Discharge - Human Body Model ESD HBM 8,000 V 3B
Electrostatic Discharge - Machine Model ESD MM 400 V C
Note: 5. Refer to JEDEC specification JESD22-A114 and JESD22-A115.
Safe Operating Area (@T
= +25°C, unless otherwise specified.)
A
APT17
Datasheet Number: DS36298 Rev.2 - 2
2 of 5
www.diodes.com
August 2013
© Diodes Incorporated
Page 3
f
A
Electrical Characteristics (@T
= +25°C, unless otherwise specified.)
A
Characteristic Symbol Min Max Unit Test Condition
Collector-Emitter Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
BV
BV
BV
I
CES
CEO
EBO
CEV
700 — V
480 — V
10 — V
— 10 µA
21
DC Current Transfer Static Ratio (Note 6)
h
FE
24.5 20
Note: 6. Measured under pulsed conditions. Pulse width 300μs. Duty cycle 2%.
Typical Electrical Characteristics
36.5
35.5
45.5
Product Line o
Diodes Incorporated
— —
IC = 100µA, VBE = 0V
IC = 300µA
IE = 100µA
V
CE
IC = 100µA, V
= 500µA, V
I
C
= 10mA, V
I
C
= 700V, VBE = -1.5V
CE
CE
CE
PT17
= 20V = 20V
= 20V
APT17
Datasheet Number: DS36298 Rev.2 - 2
3 of 5
www.diodes.com
August 2013
© Diodes Incorporated
Page 4
f
A
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
TO92 Type C
D
A
E
EJECTION MARK
b
1
E
EJECTION MARK
L
2
L
L
1
e
BUL
e
K
D
1
A
2
c
e
2
AMMO
TAPED
b
e
2
h
ø
Package Outline Dimensions (cont.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
SOT23
K
J
A
C
B
H
K1
F
D
G
L
M
Product Line o
Diodes Incorporated
Dim Min Max Typ
L
3
A 3.30 3.70 -
A2 1.10 1.40 -
b 0.38 0.55 - c 0.36 0.51 - D 4.40 4.70 -
D1 3.430 - -
E 4.30 4.70 - e - - 1.27
e2 2.440 2.640 -
h 0.00 0.38 -
L 14.10 14.50 -
L1 12.50 14.50 - L3 2.50 3.50 -
ø - 1.60 -
All Dimensions in mm
SOT23
Dim Min Max Typ
A 0.37 0.51 0.40 B 1.20 1.40 1.30 C 2.30 2.50 2.40 D 0.89 1.03 0.915 F 0.45 0.60 0.535 G 1.78 2.05 1.83 H 2.80 3.00 2.90 J 0.013 0.10 0.05 K 0.903 1.10 1.00
K1 - - 0.400
L 0.45 0.61 0.55 M 0.085 0.18 0.11
0° 8° -

All Dimensions in mm
PT17
TO92 Type C
APT17
Datasheet Number: DS36298 Rev.2 - 2
4 of 5
www.diodes.com
August 2013
© Diodes Incorporated
Page 5
f
A
Product Line o
Diodes Incorporated
PT17
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
SOT23
Y
Z
Note: For high voltage applications, the appropriate industry sector guidelines should be considered with regards to voltage spacing between terminals.
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the final and determinative format released by Diodes Incorporated.
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2013, Diodes Incorporated
www.diodes.com
X
E
IMPORTANT NOTICE
C
LIFE SUPPORT
Dimensions Value (in mm)
Z 2.9 X 0.8 Y 0.9 C 2.0 E 1.35
APT17
Datasheet Number: DS36298 Rev.2 - 2
5 of 5
www.diodes.com
August 2013
© Diodes Incorporated
