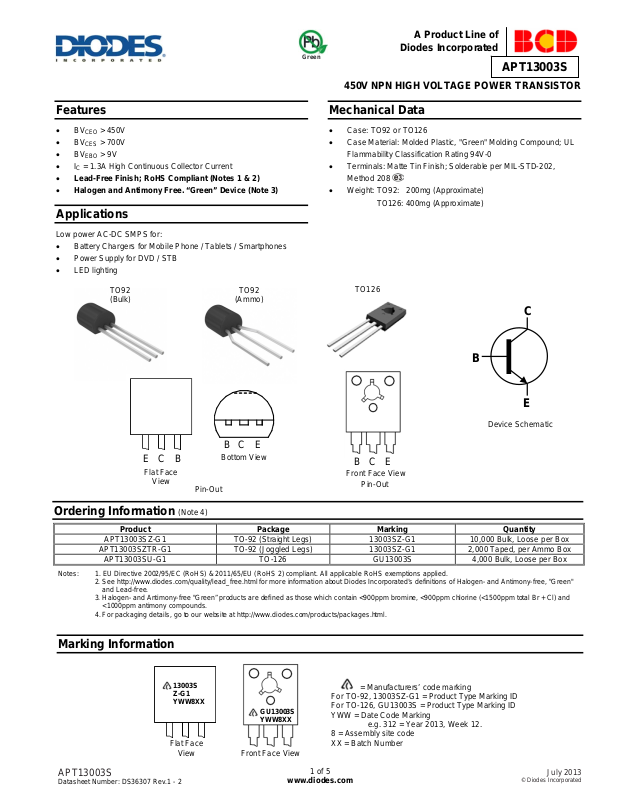

Diodes APT13003S User Manual
A
f
A
Features
Green
450V NPN HIGH VOLTAGE POWER TRANSISTOR
Mechanical Data
Product Line o
Diodes Incorporated
PT13003S
BV
BV
BV
I
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
> 450V
CEO
> 700V
CES
> 9V
EBO
= 1.3A High Continuous Collector Current
C
Case: TO92 or TO126
Case Material: Molded Plastic, "Green" Molding Compound; UL
Flammability Classification Rating 94V-0
Terminals: Matte Tin Finish; Solderable per MIL-STD-202,
Method 208
Weight: TO92: 200mg (Approximate)
TO126: 400mg (Approximate)
Applications
Low power AC-DC SMPS for:
Battery Chargers for Mobile Phone / Tablets / Smartphones
Power Supply for DVD / STB
LED lighting
TO92
(Bulk)
Flat Face
View
B C E
Pin-Out
TO92
(Ammo)
EC B
Bottom View
TO126
C
B
E
Device Schematic
ECB
Front Face View
Pin-Out
Ordering Information (Note 4)
Product Package Marking Quantity
APT13003SZ-G1 TO-92 (Straight Legs) 13003SZ-G1 10,000 Bulk, Loose per Box
APT13003SZTR-G1 TO-92 (Joggled Legs) 13003SZ-G1 2,000 Taped, per Ammo Box
APT13003SU-G1 TO-126 GU13003S 4,000 Bulk, Loose per Box
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
13003S
Z-G1
YWW8XX
GU13003S
YWW8XX
APT13003S
Datasheet Number: DS36307 Rev.1 - 2
Flat Face
View
Front Face View
www.diodes.com
= Manufacturers’ code marking
For TO-92, 13003SZ-G1 = Product Type Marking ID
For TO-126, GU13003S = Product Type Marking ID
YWW = Date Code Marking
e.g. 312 = Year 2013, Week 12.
8 = Assembly site code
XX = Batch Number
1 of 5
July 2013
© Diodes Incorporated
A
f
A
Product Line o
Diodes Incorporated
PT13003S
Absolute Maximum Ratings (@T
Characteristic Symbol Value Unit
Collector-Emitter Voltage (VBE = 0V) V
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Pulse Collector Current (Note 5)
Continuous Base Current
Peak Pulse Base Current (Note 5)
Note: 5. Pulse test for Pulse Width < 5ms, Duty Cycle ≤ 10%.
Thermal Characteristics (@T
Characteristic Symbol Value Unit
Power Dissipation
Thermal Resistance, Junction to Ambient Air
Thermal Resistance, Junction to Case
Operating and Storage Temperature Range
= +25°C, unless otherwise specified.)
A
= +25°C, unless otherwise specified.)
A
For TO-92
For TO126 @ TC = +25°C
For TO-92
For TO-126 96
For TO-92
For TO-126 6.25
ESD Ratings (Note 6)
CES
V
CEO
V
EBO
I
C
I
CM
I
B
I
BM
P
D
R
θJA
R
θJC
T
J,TSTG
700 V
450 V
9 V
1.3 A
2.6 A
0.65 A
1.3 A
1.1
20
113.6
83.3
-65 to +150 °C
W
°C/W
°C/W
Characteristic Symbol Value Unit JEDEC Class
Electrostatic Discharge - Human Body Model ESD HBM ≥ 8,000 V 3B
Electrostatic Discharge - Machine Model ESD MM ≥ 400 V C
Note: 6. Refer to JEDEC specification JESD22-A114 and JESD22-A115.
Safe Operating Area and Derating Information (@T
= +25°C, unless otherwise specified.)
A
APT13003S
Datasheet Number: DS36307 Rev.1 - 2
2 of 5
www.diodes.com
July 2013
© Diodes Incorporated
