Diodes APD245 User Manual

Data Sheet

SCHOTTKY BARRIER RECTIFIERS APD245

Features

· Low Forward Voltage Drop

· Very Small Conduction Losses

· High Surge Capability

· Surge Overload Rating up to 50A Peak Value

DO-41 DO-15 DO-214AC

Applications

· Low Voltage High Frequency Inverters

· DC-DC Converters

· Free Wheeling

· Polarity Protection

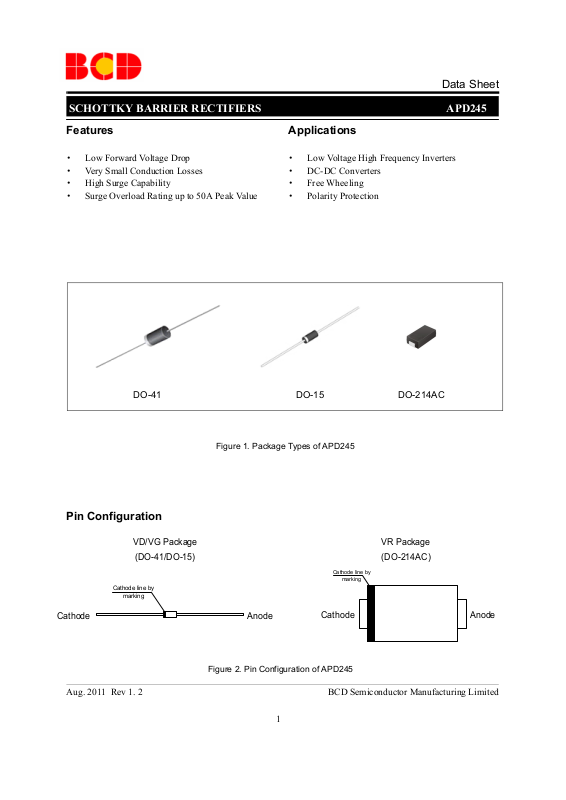

Figure 1. Package Types of APD245

Pin Configuration

VD/VG Package

(DO-41/DO-15)

Cathode line by

marking

Cathode Anode

Figure 2. Pin Configuration of APD245

Aug. 2011 Rev 1. 2 BCD Semiconductor Manufacturing Limited

1

VR Package

(DO-214AC)

AnodeCathode

Data Sheet

SCHOTTKY BARRIER RECTIFIERS APD245

Ordering Information

APD245 -

Circuit Type

E1: Lead Free G1: Green

Ammo or Tape & Reel

Package

VD: DO-41

TR:

Blank: Bulk

VG: DO-15 VR: DO-214AC

Package

DO-41

DO-15

DO-214AC

BCD Semiconductor's Pb-free products, as designated with "E1" suffix in the part number, are RoHS compliant. Products with "G1" suffix are available in green packages.

Temperature

Range

-65 to 125

o

C

o

C

o

C

Lead Free Green Lead Free Green

APD245VD-E1 APD245VD-G1 D245VD 245VDG Bulk

APD245VDTR-E1 APD245VDTR-G1 D245VD 245VDG Ammo

APD245VG-E1 APD245VG-G1 D245VG 245VGG Bulk

APD245VGTR-E1 APD245VGTR-G1 D245VG 245VGG Ammo

Part Number Marking ID

APD245VRTR-G1 245VRG Tape & Reel

Packing Type

Aug. 2011 Rev 1. 2 BCD Semiconductor Manufacturing Limited

2

Data Sheet

SCHOTTKY BARRIER RECTIFIERS APD245

Absolute Maximum Ratings (T

=25oC, unless otherwise noted) (Note 1)

A

Parameter Symbol Value Unit

Maximum Repetitive Peak Reverse Voltage V

Maximum DC Blocking Voltage V

Maximum RMS Voltage V

Average Rectified Forward Current

0.375 " (9.5mm) Lead Length

I

Non-Repetitive Peak Forward Surge Current

8.3ms Single Half Sine-Wave on Rated Load

Operating Junction Temperature Range

Storage Temperature Range

RRM

DC

RMS

F (AV)

I

FSM

T

J

T

STG

45 V

32 V

2.0 A

50 A

-65 to 125

-65 to 150

o

C

o

C

Note 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Maximum Ratings" for extended periods may affect device reliability.

Aug. 2011 Rev 1. 2 BCD Semiconductor Manufacturing Limited

3

Data Sheet

SCHOTTKY BARRIER RECTIFIERS APD245

Thermal Characteristics (T

=25oC, unless otherwise noted)

A

Parameter Symbol Values Unit

Typical Thermal Resistance

Electrical Characteristics (T

θ

JA

=25oC, unless otherwise noted)

A

DO-41/DO-15 52

DO-214AC 90

Parameter Symbol Values Unit

Forward Voltage @ I

Reverse Current @ Rated V

=2.0A V

F

o

=25

C

T

(Note 2)

R

A

o

=100

T

C

A

F

I

R

0.5 V

0.5

10

Note 2: Pulse Test: 300µs pulse width, 1.0% duty cycle.

o

C/W

mA

Typical Performance Characteristics (T

2.5

2.0

1.5

1.0

0.5

Average Forward Current (A)

0.0 0 25 50 7 5 100 125 150

Ambient Temperature (oC)

=25oC, unless otherwise noted)

A

10

1

0.1

Instantaneous Forward Current (A)

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4

Instantaneous Forward Voltage (V)

Figure 3. Forward Current Derating Curve Figure 4. Typical Instantaneous Forward Characteristics

TJ=25oC

TJ=125oC

Aug. 2011 Rev 1. 2 BCD Semiconductor Manufacturing Limited

4

Data Sheet

SCHOTTKY BARRIER RECTIFIERS APD245

Typical Performance Characteristics (Continued)

50

45

40

35

30

25

20

Peak Forward Surge Current (A)

15

10

110100

Number of Cycle at 60Hz

Figure 5.

Maximum Non-Repetitive Figure 6. Typical Reverse Characteristics

Peak Forward Surge Current

TJ=TJ(max)

Single Half Sine-Wave

10000

1000

Instantaneous Reverse Current (µA)

100

10

TJ=25oC

1

0 10203040

Peak Reverse Voltage (V)

TJ=125oC

100

Junction Capacitance (pF)

10

0.1 1 10

Reverse Voltage (V)

TJ=25oC

f=1.0mHz V

=50mVp-p

SIG

Figure 7. Typical Junction Capacitance

Aug. 2011 Rev 1. 2 BCD Semiconductor Manufacturing Limited

5

Data Sheet

SCHOTTKY BARRIER RECTIFIERS APD245

Mechanical Dimensions

Unit: mm(inch)DO-41

25.400(1. 000) MIN

Cathode line

by marking

25.400(1. 000) MIN

0.700(0. 028)

0.900(0. 035)

DIA.

4.200(0. 165)

5.200(0. 205)

2.000(0. 080)

2.700(0. 107)

DIA.

Aug. 2011 Rev 1. 2 BCD Semiconductor Manufacturing Limited

6

Data Sheet

SCHOTTKY BARRIER RECTIFIERS APD245

Mechanical Dimensions (Continued)

Unit: mm(inch)DO-15

25.400(1.000) MIN

Cathode line

by marking

25.400(1.000) MIN

0.700(0.028)

0.035

0.900( )

DIA.

5.800(0.228)

7.600(0.299)

2.600(0.102)

3.600(0.142)

DIA.

Aug. 2011 Rev 1. 2 BCD Semiconductor Manufacturing Limited

7

Data Sheet

SCHOTTKY BARRIER RECTIFIERS APD245

Mechanical Dimensions (Continued)

Unit: mm(inch)DO-214AC

Cathode line by

marking

1.250(0.049)

1.650(0.065)

1.900(0.075)

2.290(0. 090)

3.990(0.157)

4.600(0.181)

2.400(0.094)

2.790(0.110)

0.152(0.006)

0.305(0.012)

0. 760(0. 030)

1. 520(0. 060)

4. 800(0. 189)

5.280(0.208)

0.100(0.004)

0.310(0.012)

Aug. 2011 Rev 1. 2 BCD Semiconductor Manufacturing Limited

8
