Page 1

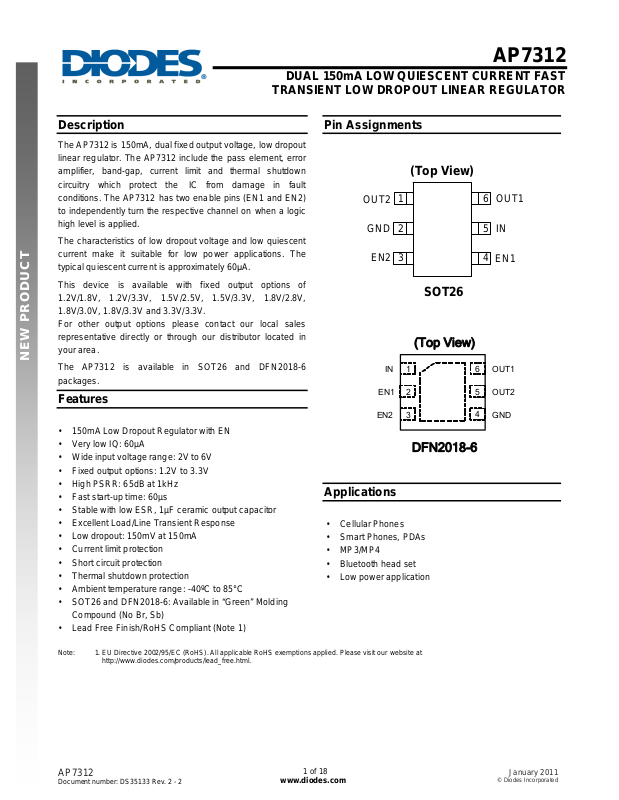

AP7312
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
Description
The AP7312 is 150mA, dual fixed output voltage, lo w dropout linear regulator. The AP7312 include the pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry which protect the IC from damage in fault conditions. The AP7312 has two enable pins (EN1 and EN2) to independently turn the respective channel on when a logic high level is applied.
The characteristics of low dropout voltage and low quiescent current make it suitable for low power applications. The typical quiescent current is approximately 60μA.
This device is available with fixed output options of
1.2V/1.8V, 1.2V/3.3V, 1.5V/2.5V, 1.5V/3.3V, 1.8V/2.8V,
1.8V/3.0V, 1.8V/3.3V and 3.3V/3.3V. For other output options please contact our local sales representative directly or through our distributor located in your area.
Pin Assignments
NEW PRODUCT
The AP7312 is available in SOT26 and DFN2018-6 packages.
Features
• 150mA Low Dropout Regulator with EN
• Very low IQ: 60µA
• Wide input voltage range: 2V to 6V
• Fixed output options: 1.2V to 3.3V
• High PSRR: 65dB at 1kHz
• Fast start-up time: 60µs
• Stable with low ESR, 1µF ceramic output capacitor
• Excellent Load/Line Transient Response
• Low dropout: 150mV at 150mA
• Current limit protection
• Short circuit protection
• Thermal shutdown protection
• Ambient temperature range: -40ºC to 85°C
• SOT26 and DFN2018-6: Available in “Green” Molding Compound (No Br, Sb)
• Lead Free Finish/RoHS Compliant (Note 1)
Note: 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at
http://www.diodes.com/products/lead_free.html.
Applications
• Cellular Phones
• Smart Phones, PDAs
• MP3/MP4
• Bluetooth head set
• Low power application
OUT2
GND
EN2
EN1
EN2
(Top View)
1
2
3
(Top View)
1
IN
2
3
DFN2018-6
SOT26
6
OUT1
5
IN
4
EN1
6
OUT1
OUT2
5
4
GND
AP7312
Document number: DS35133 Rev. 2 - 2
1 of 18
January 2011
© Diodes Incorporated
Page 2
Typical Application Circuit
AP7312
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
Pin Descriptions
NEW PRODUCT
Pin Name
OUT2 1 5 Voltage output 2. Bypass to ground through 1µF ceramic capacitor
GND 2 4 Ground
EN2 3 3 Enable input 2, active high EN1 4 2 Enable input 1, active high
IN 5 1 Voltage input. Bypass to ground through at least 1µF capacitor
OUT1 6 6 Voltage output 1. Bypass to ground through 1µF ceramic capacitor
V
IN
1uF
OFF
OFF
Pin Number
SOT26 DFN2018-6
ON
ON
VIN
EN1
EN2
VOUT1
VOUT2
GND
V
OUT2
1uF
Description
V
OUT1
1uF
AP7312
Document number: DS35133 Rev. 2 - 2
2 of 18
January 2011
© Diodes Incorporated
Page 3
Functional Block Diagram
AP7312
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
NEW PRODUCT
IN
EN 1
EN 2
Thermal
Shutdown
Gate
Driver
Gate
Driver
OUT 1
Current Limit
and
Short Circuit
Bandgap
GND
Current Limit
and
Short Circuit
AP7312
Document number: DS35133 Rev. 2 - 2
3 of 18
OUT 2
January 2011
© Diodes Incorporated
Page 4
Absolute Maximum Ratings
Symbol Parameter Ratings Unit
ESD HBM Human Body Model ESD Protection 8 kV
ESD MM Machine Model ESD Protection 400 V
VIN Input Voltage 6.5 V
OUT, EN Voltage VIN + 0.3 V
Continuous Load Current Internal Limited TOP Operating Junction Temperature Range -40 ~ 125 °C TST Storage Temperature R ange -65 ~150 °C
PD Power Dissipation (Note 3)
TJ Maximum Junction Temperature 150 °C
Recommended Operating Conditions
NEW PRODUCT
Symbol Parameter Min Max Unit
V
IN
I
OUT
T
A
Notes: 2. Ratings apply to ambient temperature at 25°C.
3. The device maintains a stable, regulated output voltage without a load current.
AP7312
Document number: DS35133 Rev. 2 - 2
Input voltage 2 6 V Output Current (Note 3) 0 150 mA Operating Ambient Temperature -40 85
AP7312
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
SOT26 950 mW DFN2018-6 2200 mW
°C
4 of 18
January 2011
© Diodes Incorporated
Page 5
AP7312
x
Electrical Characteristics
= 25oC, V
(T
A
Symbol Parameter Test Conditions Min Typ. Max Unit
V
REF
I
ADJ
V
OUT
ΔV
/ΔVIN/V
OUT
ΔV
OUT
V
Dropout
I
Q
I
SHDN
I
LEAK
tST
NEW PRODUCT
PSRR I
SHORT
I
LIMIT
V V I
EN
T
SHDN
T
HYS
θ
JA
Notes: 4. Dropout voltage is the voltage difference between the input and the output at which the output voltage drops 2% below its nominal value.
5. This specification is guaranteed by design.
6. Test condition for SOT26: Device mounted on FR-4 substrate PC board, with minimum recommended pad layout
7. Test condition for DFN2018-6: Device mounted on FR-4 2-layer board,2oz copper, with minimum recommended pad on top layer and 3 vias to bottom layer.
/V
IL IH
= V
IN
+1V, C
OUT
ADJ Reference Voltage (Adjustable version)
= 1uF, C
IN
OUT
= 1uF, V
ADJ Leakage (Adjustable version) 0.1 1 μA Output Voltage Accuracy
Line Regulation Load Regulation
OUT
Dropout Voltage (Note 4) Input Quiescent Current (2 channels) V
Input Shutdown Current VEN = 0V, I Input Leakage Current VEN = 0V, OUT grounded 0.1 1
Start-up Time
PSRR (Note 5) Short-circuit Current Current limit
EN Input Logic Low Voltage VIN = V EN Input Logic High Voltage VIN = V EN Input Current VIN = 0V or V Thermal shutdown threshold 165 Thermal shutdown hysteresis 30
Thermal Resistance Junction-to-Ambient
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
= VIN, unless otherwise stated)
EN
= 0mA 0.8 V
I
OUT
= -40oC to 85oC,
T
A
I
= 10% of I
OUT
= (V
V
IN
V
EN
= (V
V
IN
I
OUT
V
OUT
V
OUT EN
V
EN
I
OUT
= [V
V
IN
f = 1kHz, I
= V
V
IN
V
OUT
= V
V
IN
V
OUT/ROUT
+1V) to V
OUT
= VIN, I
OUT
+1V) to V
OUT
= 1mA to 150mA
< 2.5V, I ≥ 2.5V, I
= VIN, I
OUT
OUT
= 0V to 2.0V in 1μs,
= 150mA
+1V]VDC + 0.5V
OUT
= 50mA
OUT
to V
IN-Min
= 1/4 target V
to V
IN-Min
= 0.6A
to V
IN-Min
to V
IN-Min
IN-Max
OUT-Ma
,
IN-Max
= 1mA
,
IN-Max
= 150mA 200 300
OUT
= 150mA 150 200
OUT
= 0mA 60 80 μA = 0mA 0.1 1
ppAC
,
IN-Max
OUT
,
IN-Max
0.4 V
IN-Max
1.4 V
IN-Max
-1 1 μA
SOT26 (Note 6) 140 DFN2018-6 (Note 7) 60
-2 2 %
0.01 0.20 %/V
-0.6 0.6 %
150 μs
,
60 65 dB
60 mA
200 300 mA
mV
μA μA
°C °C
o
C/W
AP7312
Document number: DS35133 Rev. 2 - 2
5 of 18
January 2011
© Diodes Incorporated
Page 6
Typical Performance Characteristics
Start-Up Time
=5V, No load
V
IN
C
IN=COUT1=COUT2
=1μF
VEN=0V to 2V (2V/div) VEN=0V to 2V (2V/div)
AP7312
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
Start-Up Time
V
=5V, Both I
IN
C
IN=COUT1=COUT2
LOAD
=1μF
=150mA
NEW PRODUCT
=2.8V (1V/div)
V
OUT2
=1.8V (1V/div)
V
OUT1
Time (40μs/div)
Line Transient Response
=3.8V to 4.8V (1V/div)
V
IN
C
OUT1=COUT2
=1.8V (10mV/div) V
V
OUT1
=1μF, Tr=Tf=2μs, Both I
LOAD
=15mA
Line Transient Response
V
=3.8V to 4.8V (1V/div)
IN
C
OUT1=COUT2
=1.8V (10mV/div)
OUT1
=1μF, Tr=Tf=2μs, Both I
V
OUT2
V
OUT1
Time (40μs/div)
=2.8V (1V/div)
=1.8V (1V/div)
=100mA
LOAD
V
=2.8V (10mV/div)
OUT2
Time (100μs/div)
AP7312
Document number: DS35133 Rev. 2 - 2
V
OUT2
6 of 18
=2.8V (10mV/div)
Time (100μs/div)
January 2011
© Diodes Incorporated
Page 7
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
Typical Performance Characteristics (Continued)
Load Transient Response
AP7312
Load Transient Response
NEW PRODUCT
=10mA to 50mA (50mA/div)
I
LOAD
V
=1.8V (20mV/div)
OUT1
=2.8V (20mV/div)
V
OUT2
V C
=3.8V
IN=VEN IN=COUT1=COUT2
=1μF
Time (100μs/div)
EN1 Pin Response
=2V to 0V (2V/div)
V
EN1
=2V (2V/div)
V
EN2
V
=2.8V (1V/div)
OUT2
=10mA to 100mA (100mA/div)
I
LOAD
=1.8V (20mV/div)
V
OUT1
=2.8V (20mV/div)
V
OUT2
V C
=3.8V
IN=VEN IN=COUT1=COUT2
=1μF Time (100μs/div)
EN2 Pin Response
V
Both I
=50mA Both I
LOAD
=2V (2V/div)
EN1
V
=2V to 0V (2V/div)
EN2
V
=2.8V (1V/div)
OUT2
LOAD
=50mA
=1.8V (1V/div)
V
OUT1
Time (400μs/div)
AP7312
Document number: DS35133 Rev. 2 - 2
V
OUT1
7 of 18
=1.8V (1V/div)
Time (400μs/div)
January 2011
© Diodes Incorporated
Page 8
Typical Performance Characteristics (Continued)
EN Pin Shutdown Response
NEW PRODUCT
=5V, Both I
V
IN
=50mA
LOAD
V
=0V to 5V (5V/div)
EN
V
=2.8V (1V/div)
OUT2
V
=1.8V (1V/div)
OUT1
Time (100μs/div)
AP7312
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
PSRR vs Fre quency
100
1.8V
80
60
2.8V
40
PSRR(dB)
TA=25°C
=3.8V+0.5V
V
IN
20
C
OUT1=COUT2
Both I
0
10 100 1000 10000 100000 100000
10 100 1k 10k 100k 1M
LOAD
=50mA
ppAC
=1μF
Frequency(Hz)
0
Input Quiescent current vs Input Voltage
80
60
40
TA=25°C
20
Input Quiescent current(μA)
0
3.5 4 4.5 5 5.5 6
V V I
OUT
OUT1 OUT2
=0mA
=1.8V =2.8V
Input Voltage(V)
Input Quiescent current vs Tempe rature
80
60
40
VIN=VEN=3.8V
20
Input Quiescent current(μA)
0
-50 -25 0 25 50 75 100 125
V V I
OUT
OUT1 OUT2
=0mA
=1.8V =2.8V
Temperature(℃)
AP7312
Document number: DS35133 Rev. 2 - 2
8 of 18
January 2011
© Diodes Incorporated
Page 9
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
Typical Performance Characteristics (Continued)
AP7312
NEW PRODUCT
Line Re gul ation
0.2
0.1
0.0
-45°C 25°C
0.04
0.02
0
90°C
-0.1
Output V ari ation (%/V)
-0.2
V
=1.8V
OUT
=1mA
I
OUT
2.533.544.555.56 Input Vol tage(V )
-0.02
Output Variati on(%/V)
-0.04
V
OUT
=1mA
I
OUT
3.544.555.56
Load Regul ation
0.00
0.00
-45°C
-0.05
25°C
-0.05
Line Re gul ation
-45°C 25°C
90°C
=2.8V
Input Voltage(V)
Load Regul ation
-45°C
25°C
-0.10
Output V ariat i on(% )
VIN=VEN=2.8V
=1.8V
V
-0.15
OUT
0 25 50 75 100 125 150
Outp ut Current (m A)
AP7312
Document number: DS35133 Rev. 2 - 2
90°C
Output Variation(% )
9 of 18
90°C
-0.10
VIN=VEN=3.8V
=2.8V
V
OUT
-0.15 0 25 50 75 100 125 150
Output Current (m A )
January 2011
© Diodes Incorporated
Page 10
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
Typical Performance Characteristics (Continued)
AP7312
NEW PRODUCT
Dropout Voltage vs Output Current
250
V
=1.8V
OUT
200
90°C
150
25°C
100
Dropout Vol tage(mV )
50
0
0 25 50 75 100 125 150
Output Current (m A )
-45°C
200
150
100
50
Dropout Vol tage(mV )
Current limit vs Input Voltage
500
500
TA=25°C
400
300
400
300
Dropout Voltage vs Output Current
V
=3.3V
OUT
90°C
25°C
-45°C
0
0 25 50 75 100 125 150
Out put Current (mA )
Current limit vs Temperature
VIN=2.8V
200
Current l i m i t(A )
100
0
23456
Input V ol tage(V )
AP7312
Document number: DS35133 Rev. 2 - 2
Current limit(A)
10 of 18
200
100
0
-50-25 0 255075100125 Temperature(℃)
January 2011
© Diodes Incorporated
Page 11
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
Typical Performance Characteristics (Continued)
AP7312
NEW PRODUCT
Short Circuit Current vs Input Volta ge
100
Short-circuit Current vs Tempera ture
100
VIN=3.8V
80
60
-45°C
25°C
80
60
90°C
40
20
Short Ci rc uit Current (m A)
0
2.533.544.555.56 Input Vol tage(V )
40
20
Short - circuit Current (mA)
0
-50 -25 0 25 50 75 100 125 Temperature(℃)
AP7312
Document number: DS35133 Rev. 2 - 2
11 of 18
January 2011
© Diodes Incorporated
Page 12
AP7312
Application Note
Input Capacitor
A 1μF ceramic capacitor is recommended between IN and GND pins to decouple input power supply glitch and noise. T he amount of the capacitance may be increased without limit. This input capacitor must be located as close as possible to the device to assure input stability and reduce noise. For PCB layout, a wide copper trace is required for both IN and GND pins. A lower ESR capacitor type allows the use of less capacitance, while higher ESR type requires more capacitance.
Output Capacitor
The output capacitor is required to stabilize and improve the transient res ponse of the LDO. The AP7312 is stable with ver y small ceramic output capacitors. Using a ceramic capacitor value that is at least 1μF with ESR≧10mΩ on the output ensures stability. Higher capacitance values help to improve line and load transient response. The output capacitance may be
increased to keep low undershoot and overshoot. Output capac itor must be placed as close as possible to OUT and GND pins.
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
NEW PRODUCT
ESR (Ω)
OUT
C
0.01
0.001
Region of Stabl e C
100
Unstable Range
10
1
Stable Range
0.1
0 20 50 100 150
CIN=C
Unstable Range
Load Curr ent (mA)
ESR vs. Load Current
OUT
OUT1
= C
OUT2
=1μF
No Load Stability
Other than external resistor divider, no minimum load is required to keep the device stable. The device will remain stable and regulated in no load condition.
ON/OFF Input Operation
The AP7312 is turned on by setting the EN pin high, and is turned off by pulling it low. If this feature is not used, the EN pin should be tied to IN pin to keep the regulator output on at all time. To ensure proper operation, the signal source used to drive the EN pin must be able to swing above and below the specified turn-on/off voltage thresholds listed in the Electrical Characteristics section under V
and VIH.
IL
AP7312
Document number: DS35133 Rev. 2 - 2
12 of 18
January 2011
© Diodes Incorporated
Page 13
AP7312
+
Application Note (Continued)
Current Limit Protection
When output current at OUT pin is higher than current limit threshold, the current lim it protection will be triggered and clamp the output current to approximately 300mA to prevent over-current and to protect the regulator from damage due to overheating.
Short Circuit Protection
When OUT pin is short-circuit to GND, short circuit protection will be triggered and clamp the output current to approximately 60mA. This feature protects the regulator from over-current and damage due to overheating.
Thermal Shutdown Protection
Thermal protection disables the output when the junction temperature rises to appr oximately +165°C, allowing the device to cool down. When the junction temperature reduces to appr oximate ly +135 °C the output c ircuitr y is ena bled aga in. Depe nding on power dissipation, thermal resistance, and ambient temperature, the thermal protection circuit may cycle on and off. This cycling limits the heat dissipation of the regulator, protecting it from damage due to overheating.
Ultra Fast Start-up
After enabled, the AP7312 is able to provide full power in as little as tens of microseco nds, typically 150µs, without sacrific ing low ground current. This feature will help load circuitry move in and out of standby mode in real time, eventually extend battery life for mobile phones and other portable devices.
NEW PRODUCT
Fast Transient Response
Fast transient response LDO can extend battery life. TDMA-based cell phone protocols such as Global System for Mobile Communications (GSM) have a transmit/receive duty factor of only 12.5 percent, enabling power savings by putting much of the baseband circuitry into standby mode in between transmit cycles. In baseband circuit s, the load often transitions virtually instantaneously from 100µA to 100mA. To meet this load requirement, the LDO must react very quickly without a large voltage drop or overshoot — a requirement that cannot be met with conventional, general-purpose LDO.
The AP7312’s fast transient response from 0 to 150mA provides stable voltag e supply for fast DSP and GSM chipset with fast changing load.
Low Quiescent Current
The AP7312, consuming only around 60µA for all input range, provides great power saving in portable and low power applications.
Power Dissipation
The device power dissipation and proper sizing of the thermal plane that is connected to the thermal pad is critical to avoid thermal shutdown and ensure reliable operation. Power dissipation of the device depends on input voltage and load conditions and can be calculated by:
The maximum power dissipation, handled by the device, depends on the maximum junction to ambient thermal resistance, maximum ambient temperature, and maximum device junction temperature, which can be calculated by the equation in the following:
P
D
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
= (V
- V
P
D
IN
(max@TA) =
OUT
) X I
R
°
θ
OUT
JA
)AT-C150(
AP7312
Document number: DS35133 Rev. 2 - 2
13 of 18
January 2011
© Diodes Incorporated
Page 14
Ordering Information
AP7312
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
AP7312- XXYY XX - 7
Output Voltage : V
1218 : 1.2V / 1.8V 1233 : 1.2V / 3.3V
1525 : 1.5V / 2.5V 1533 : 1.5V / 3.3V 1828 : 1.8V / 2.8V 1830 : 1.8V / 3.0V 1833 : 1.8V / 3.3V 3333 : 3.3V / 3.3V
OUT1/VOUT2
Package
FM : DFN2018-6
W6 : SOT26
Packing
7 : Tape & Reel
Device Package Code
AP7312-XXYY W6-7 W6 SOT26 3000/Tape & Reel -7 AP7312-XXYY FM-7 FM DFN2018-6 3000/Tape & Reel -7
Note: 8. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at
NEW PRODUCT
http://www.diodes.com/datasheets/ap02001.pdf.
Packaging
(Note 8)
Quantity Part Number Suffix
AP7312
Document number: DS35133 Rev. 2 - 2
14 of 18
7” Tape and Reel
January 2011
© Diodes Incorporated
Page 15
Marking Information
(1) SOT26
(2) DFN2018-6
NEW PRODUCT
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
( Top View )
7
6
1 2 3
7
5
XXX
Y W X
4
XXX : Identification code
: Year 0~9
Y
W
: Week : A~Z : 1~26 week;
a~z : 27~52 week; z represents 52 and 53 week
: A~Z : Internal Code
X
( Top View )
: Identification code
XXX
XXX
Y W X
Y : Year : 0~9
: Week : A~Z : 1~26 week;
W
a~z : 27~52 week; z represents
52 and 53 week
: A~Z : Internal Code
X
Device Package Package Identification Code
AP7312-1218 SOT26 DFN2018-6 CAS AP7312-1233 SOT26 DFN2018-6 CAZ AP7312-1525 SOT26 DFN2018-6 CA6 AP7312-1533 SOT26 DFN2018-6 CBC AP7312-1828 SOT26 DFN2018-6 CBK AP7312-1830 SOT26 DFN2018-6 CBN AP7312-1833 SOT26 DFN2018-6 CBR AP7312-3333 SOT26 DFN2018-6 CEA
AP7312
AP7312
Document number: DS35133 Rev. 2 - 2
15 of 18
January 2011
© Diodes Incorporated
Page 16
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
Package Outline Dimensions (All Dimensions in mm)
(1) SOT26
AP7312
NEW PRODUCT
(2) DFN2018-6
6X-
2X-
0.10 C
0.08 C
0.25
0/0.05
0.545/0.605
B
Pin #1 ID
1.95/2.075
B
Side View
A
0.25
2X-
1.75/1.875
0.50Typ
Bottom View
C
L
1.3/1.5
C
L
0.15/0.25
0.13Typ
C
A
0.2/0.3
0.9/1.1
Seating Plane
C
L
C
L
6x-0.35
Pin #1
6x-0.25
Land Pattern Recommendation
4x-0.50
1.600
(Unit:mm)
Top View
C
0.10
AB
0.20 1.20
AP7312
Document number: DS35133 Rev. 2 - 2
16 of 18
January 2011
© Diodes Incorporated
Page 17

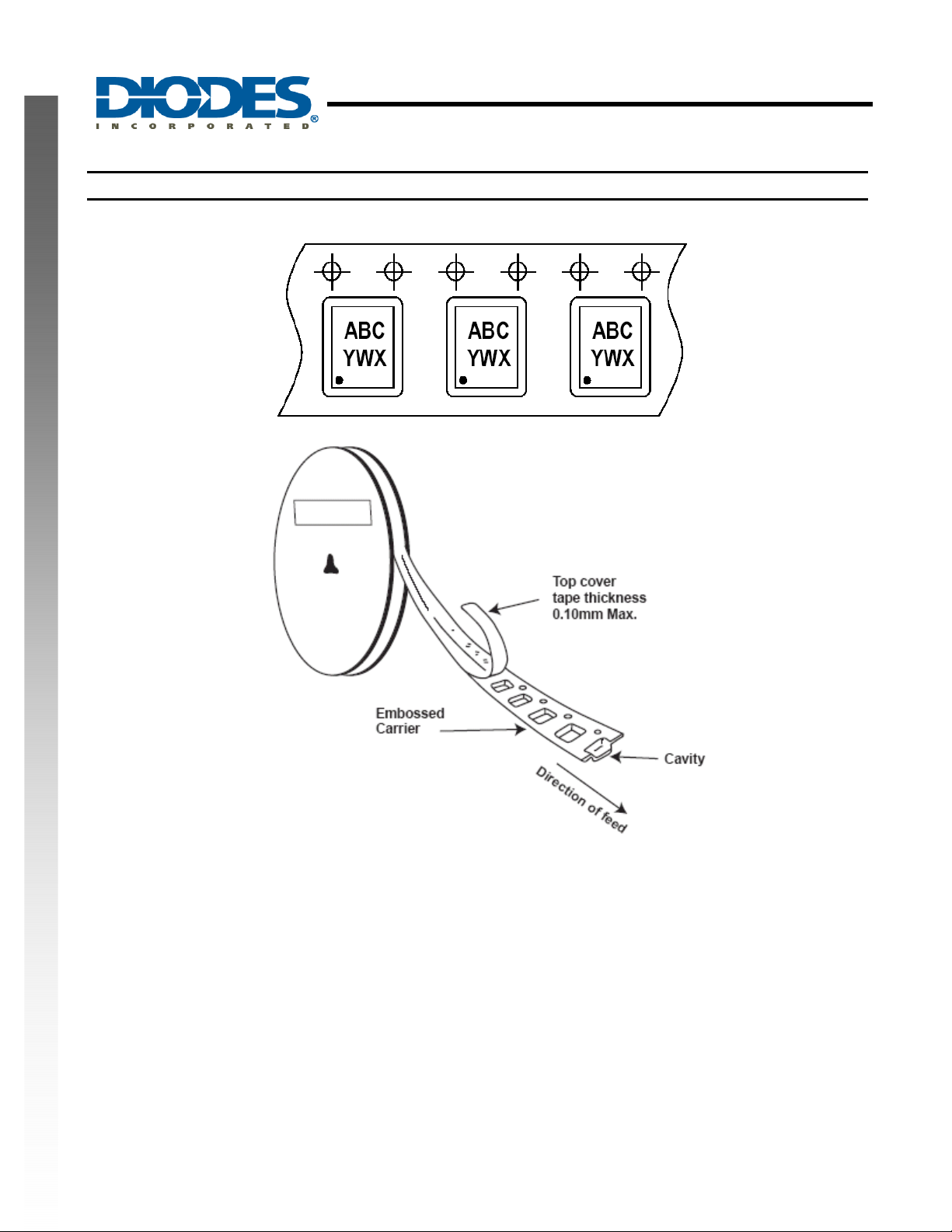

Taping Orientation (Note 9)
For DFN2018-6
AP7312
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
NEW PRODUCT
Note: 9. The taping orientation of the other package type can be found on our website at http://www.diodes.com/datasheets/ap02007.pdf
AP7312
Document number: DS35133 Rev. 2 - 2
17 of 18
January 2011
© Diodes Incorporated
Page 18
AP7312
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
NEW PRODUCT
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY A ND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to this document and any product described herein. Diodes Incorporat ed does not assume any liability arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. A ny Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harml ess ag ai nst all damages.
Diodes Incorporated does not warrant or acc ept any liability whatsoever in respec t of any products purchas ed through unauthorized sales channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless agai nst all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death ass ociated with such unintended or unauthorized application.
Products described herein may be covered by one or more United Stat es, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herei n:
A. Life support devices or systems are devices or systems which:
1. are i ntend ed to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructi ons for us e provided in the labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected
to cause the failure of the life support device or to affect its safety or effectiveness .
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives agai nst any damages arising out of the use of Diodes Incorporated products in such safety-critic al, l ife support devic es or syst ems .
Copyright © 2011, Diodes Incorporated
www.diodes.com
AP7312
Document number: DS35133 Rev. 2 - 2
18 of 18
January 2011
© Diodes Incorporated
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
