380kHz, 2A Asynchronous DC-DC Buck Converter AP3202
Preliminary Datasheet
General Description
The AP3202 is a 380kHz fixed frequency, current
mode, PWM buck (step-down) DC-DC converter,
capable of driving a 2A load with high efficiency,
excellent line and load regulation. The device
integrates N-channel power MOSFET switch with
low on-resistance. Current mode control provides fast
transient response and cycle-by-cycle current limit.
A standard series of inductors are available from
several different manufacturers optimized for use
with the AP3202. This feature greatly simplifies the
design of switch-mode power supplies.
This IC is available in SOIC-8 package.
Features
• Input Voltage Range: 4.75V to 18V
• Fixed 380kHz Frequency
• High Efficiency: up to 93%
• Output Current: 2A
• Current Mode Control
• Built-in Over Current Protection
• Built-in Thermal Shutdown Function
• Built-in UVLO Function
• Built-in Over Voltage Protection
• Built-in Soft-start
Applications
• LCD TV
• Set Top Box
• Portable DVD
• Digital Photo Frame

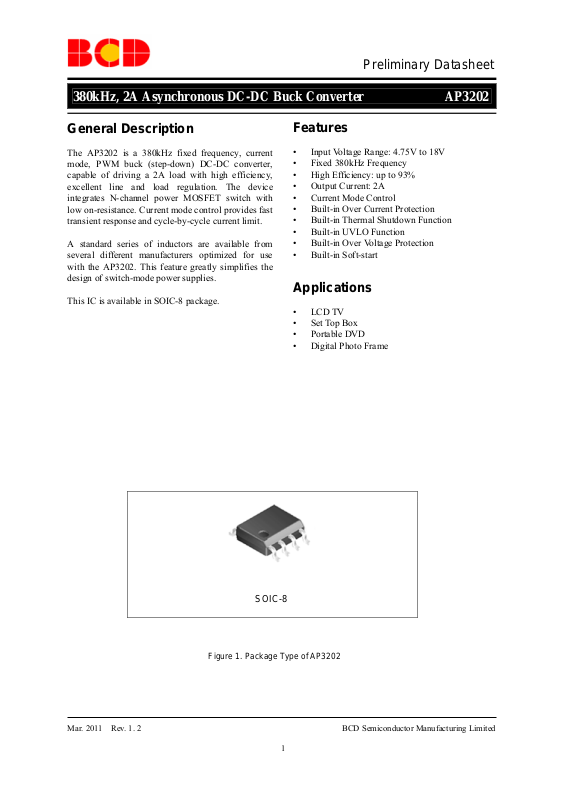

Figure 1. Package Type of AP3202
SOIC-8
Mar. 2011 Rev. 1. 2 BCD Semiconductor Manufacturing Limited
1
Page 2
Preliminary Datasheet
380kHz, 2A Asynchronous DC-DC Buck Converter AP3202
Pin Configuration
M Package
(SOIC-8)
Figure 2. Pin Configuration of AP3202 (Top View)
Pin Description
Pin Number Pin Name Function
Bootstrap pin. A bootstrap capacitor is connected between the BS pin
1
2
3
4
5
6
7
8
BS
IN
SW
GND Ground pin
FB
COMP
EN
NC No Connection
and SW pin. The voltage across the bootstrap capacitor drives the
internal high-side power MOSFET
Supply input pin. A capacitor should be connected between the IN pin
and GND pin to keep the input voltage constant
Power switch output pin. This pin is connected to the inductor and
bootstrap capacitor
Feedback pin. This pin is connected to an external resistor divider to
program the system output voltage. When the FB pin voltage exceeds
20% of the nominal regulation value of 1.222V, the over voltage
protection is triggered. When the FB pin voltage is below 0.6V, the
oscillator frequency is lowered to realize short circuit protection
Compensation pin. This pin is the output of the transconductance
error amplifier and the input to the current comparator. It is used to
compensate the control loop. Connect a series RC network from this
pin to GND. In some cases, an additional capacitor from this pin to
GND pin is required
Control input pin. Forcing this pin above 1.5V or set this pin floating
enables the IC. Forcing this pin below 0.5V shuts down the IC. When
the IC is in shutdown mode, all functions are disabled to decrease the
supply current below 1µA
Mar. 2011 Rev. 1. 2 BCD Semiconductor Manufacturing Limited
2
Page 3
Preliminary Datasheet
380kHz, 2A Asynchronous DC-DC Buck Converter AP3202
Functional Block Diagram
2
IN
Current
Sense
Amplifier
S
R
PWM
Comparator
1.8V
8
NC
EN
INTERNAL
PULL
HIGH
7
0.5/1.5V
Short
Protection
Comparator
Internal Bias
And Regulator
Oscillator
90k/380k
Shutdown
Comparator
0.6
5
FB
1.222
CLK
Error
Amplifier
SLOP
COMP
6
COMP
Figure 3. Functional Block Diagram of AP3202
Ordering Information
AP3202 -
Circuit Type
Package
Package
M: SOIC-8
Temperature
Range
Part Number Marking ID Packing Type
5V
1
BS
M1
Q
Q
0.22
M2
10
3
SW
4
GND
G1: Green
TR: Tape & Reel
Blank: Tube
SOIC-8
-40 to 85°C
AP3202M-G1 3202M-G1 Tube
AP3202MTR-G1 3202M-G1 Tape & Reel
BCD Semiconductor's Pb-free products, as designated with "G1" suffix in the part number, are RoHS compliant
and green.
Mar. 2011 Rev. 1. 2 BCD Semiconductor Manufacturing Limited
3
Page 4
Preliminary Datasheet
380kHz, 2A Asynchronous DC-DC Buck Converter AP3202
Absolute Maximum Ratings (Note 1)
Parameter Symbol Value Unit
IN Pin Voltage VIN -0.3 to 20 V
EN Pin Voltage VEN -0.3 to VIN V
SW Pin Voltage VSW 20 V
BS Pin Voltage VBS -0.3 to VSW+6 V
FB Pin Voltage VFB -0.3 to 6 V
COMP Pin Voltage V
Thermal Resistance
Operating Junction Temperature TJ 150 ºC
Storage Temperature T
Lead Temperature (Soldering, 10sec) T
ESD (Machine Model) 200 V
ESD (Human Body Model) 2000 V
-0.3 to 6 V
COMP
θJA
-65 to 150 ºC
STG
260 ºC
LEAD
105 ºC/W
Note 1: Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to
the device. These are stress ratings only, and functional operation of the device at these or any other conditions
beyond those indicated under “Recommended Operating Conditions” is not implied. Exposure to “Absolute
Maximum Ratings” for extended periods may affect device reliability.
Recommended Operating Conditions
Parameter Symbol Min Max Unit
Input Voltage VIN 4.75 18 V
Maximum Output Current I
Operating Ambient Temperature TA -40 85 ºC
OUT(Max)
2 A
Mar. 2011 Rev. 1. 2 BCD Semiconductor Manufacturing Limited
4
Page 5
Preliminary Datasheet
380kHz, 2A Asynchronous DC-DC Buck Converter AP3202
Electrical Characteristics
VIN=VEN=12V, V
o
=25
T
C, and those in boldface type apply over the full operating temperature range (T
A
Parameter Symbol Conditions Min Typ Max Unit
Input Voltage VIN 4.75 18 V
Quiescent Current IQ VFB=1.4V, VEN=2V 1.0 1.5 mA
=3.3V, unless otherwise specified. Specification with standard typeface are for
OUT
=-40oC to 85oC)
A
Shutdown Supply Current I
Feedback Voltage VFB
Feedback Over Voltage
Threshold
Feedback SCP Voltage Threshold V
Feedback Bias Current IFB VFB=1V -0.1 0.1
High-side Switch On-resistance (Note 2) R
Low-side Switch On-resistance (Note 2) R
High-side Switch Leakage Current I
High-side Switch Current Limit I
Low-side Switch Current Limit I
EN Pin Threshold
EN Pull-up Current I
Input UVLO Threshold V
Input UVLO Hysteresis V
Oscillator Frequency F
Short Circuit Oscillator
Frequency
Maximum Duty Cycle D
Minimum Duty Cycle D
VEN=0V 1 10
SHDN
1.185 1.222 1.258
1.48 V
V
FBOV
FBSCP
0.6 V
µ A
V
µ A
ISW=0.5A
DSONH
ISW=0.05A
DSONL
=18V, VEN=0V
V
IN
LEAKH
2.8 3.8 A
LIMH
From drain to source 0.15 A
LIML
V
1.5
ENH
V
0.5
ENL
VEN=0V 1.0
EN-PH
VIN Rising 3.5 3.9 4.4 V
UVLO
0.3 V
HYS
380 kHz
OSC1
90 kHz
F
OSC2
VFB=1.0V 90 %
MAX
VFB=1.5V 0 %
MIN
=0V
V
SW
0.1 10
0.22
10
Ω
Ω
µ A
V
µ A
Error Amplifier Voltage Gain (Note 3) AEA 400 V/V
Error Amplifier Transconductance GEA 700
COMP to Current Sense
Transconductance
Thermal Shutdown (Note 3) T
Thermal Shutdown Hysteresis (Note 3) T
Soft-start Time (Note 3) tSS I
V - V
Note 2: R
DSON
=
SW2 SW1
SW2 SW1
I- I
2.4 A/V
G
CS
160 ºC
OTSD
30 ºC
HYS
=0A 500
OUT
µA/V
µs
Note 3: Not tested, guaranteed by design.
Mar. 2011 Rev. 1. 2 BCD Semiconductor Manufacturing Limited
5
Page 6
Preliminary Datasheet
380kHz, 2A Asynchronous DC-DC Buck Converter AP3202

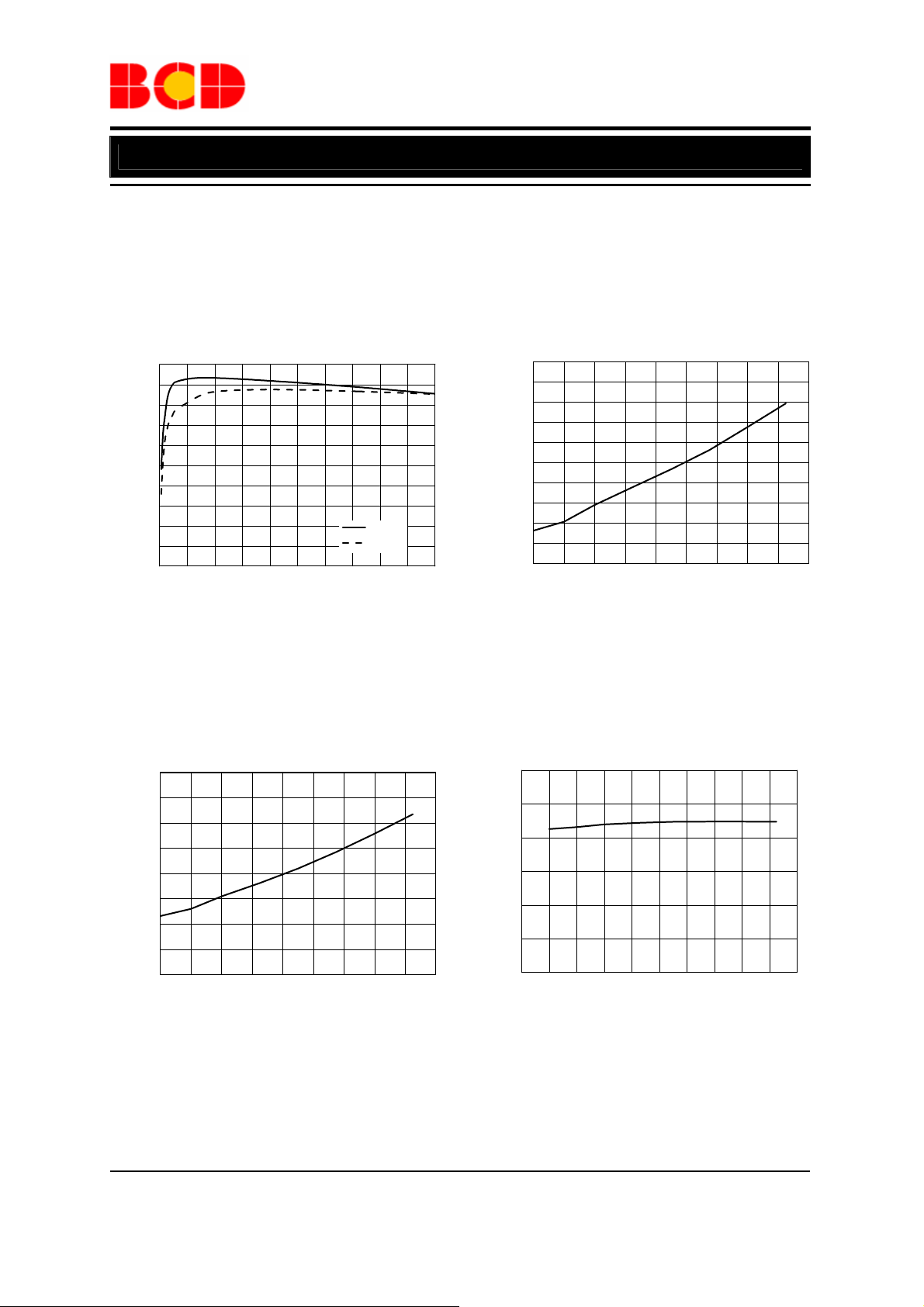

Typical Performance Characteristics
o
TA=25
C, V
=12V, V
IN
=3.3V, unless otherwise noted.
OUT
100
90
80
70
60
50
40
Efficiency (%)
30
20
10
0
0 . 00 . 20 . 40 . 60 . 81 . 01 . 21 . 41 . 61 .82 . 0
Output Current (A)
VIN=5V
VIN=12V
375
350
325
300
275
250
225
200
175
150
High-side Switch On-resistance (mΩ)
125
-40 -20 0 20 40 60 80 100 120 140
Case Temperature (oC)
Figure 4. Efficiency vs. Output Current Figure 5. R
vs. Case Temperature
DSONH
20
18
16
14
12
10
8
Low-side Switch On-resistance (Ω)
6
4
-40 -20 0 20 40 60 80 100 120 140
Case Temperature (oC)
1.30
1.25
1.20
1.15
1.10
Feedback Voltage (V)
1.05
1.00
-60 -40 -20 0 20 40 60 80 100 120 140
Case Temperature (oC)
Figure 6. R
vs. Case Temperature Figure 7. Feedback Voltage vs. Case Temperature
DSONL
Mar. 2011 Rev. 1. 2 BCD Semiconductor Manufacturing Limited
6
Page 7
Preliminary Datasheet
380kHz, 2A Asynchronous DC-DC Buck Converter AP3202

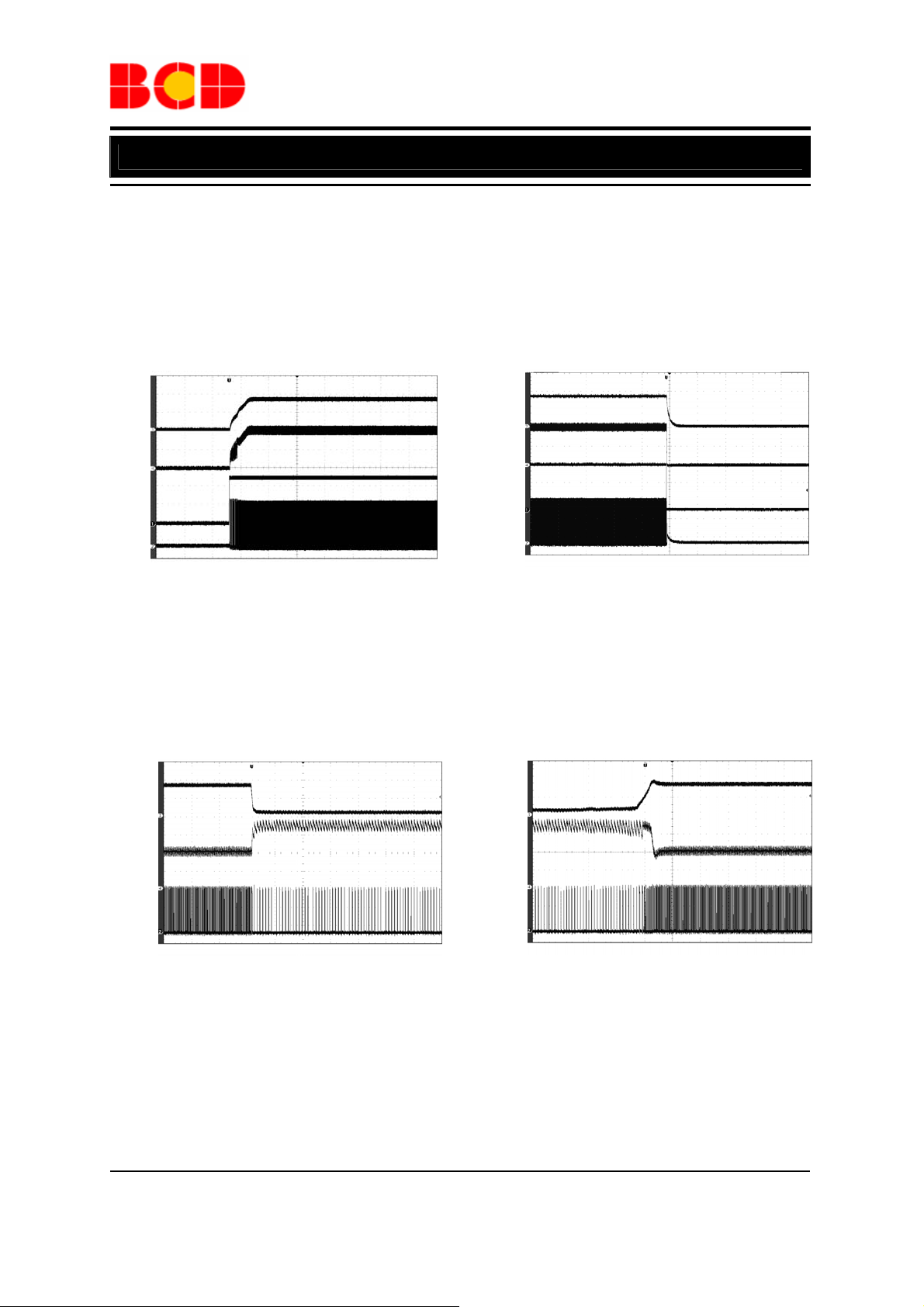

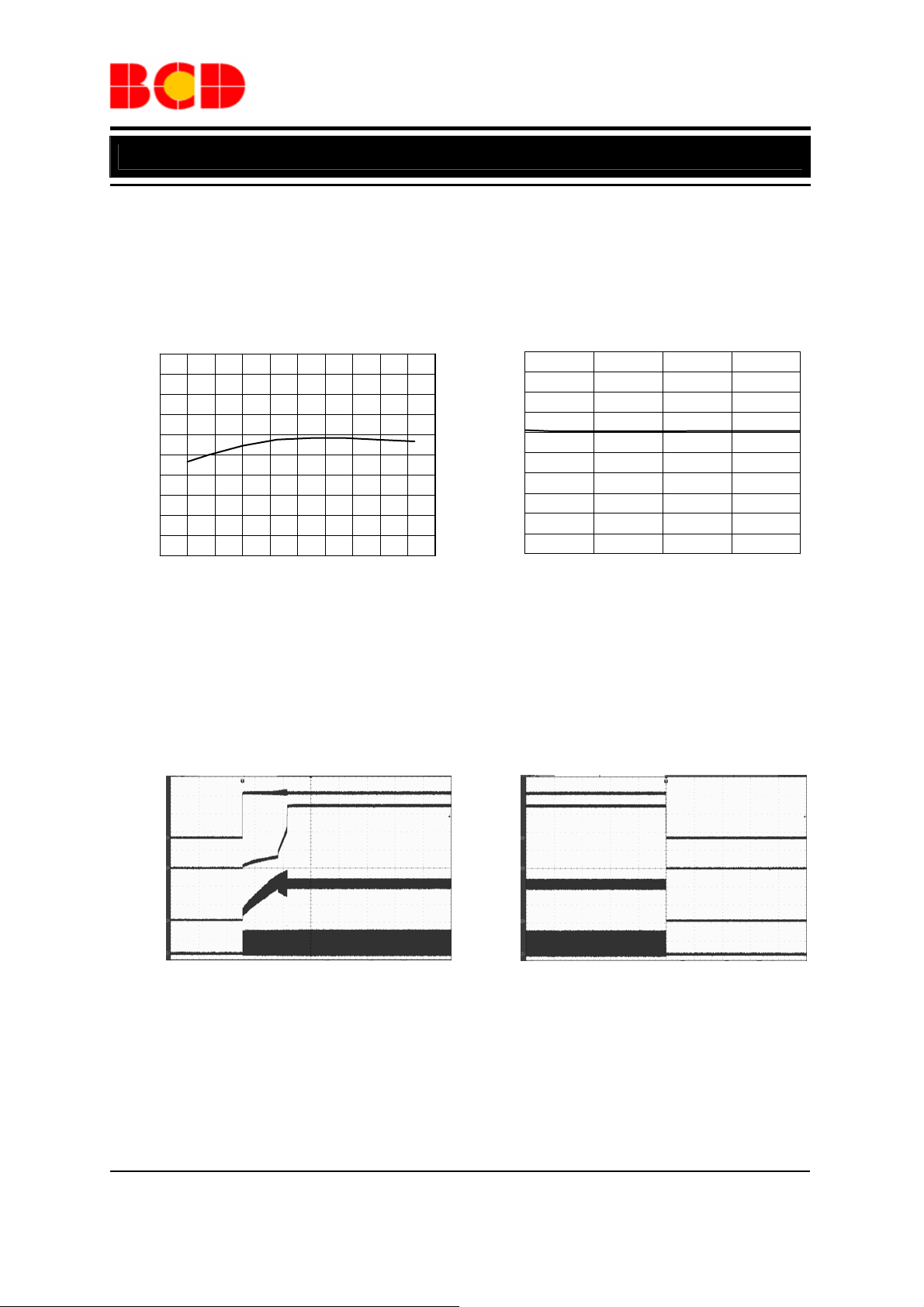

Typical Performance Characteristics (Continued)
o
T
=25
C, V
A
=12V, V
IN
=3.3V, unless otherwise noted.
OUT
1.5
1.4
1.3
1.2
1.1
1.0
0.9
0.8
Quiescent Current (mA)
0.7
0.6
0.5
-60 -40 -20 0 20 40 60 80 100 120 140
Case Temperature (oC)
Figure 8. Quiescent Current vs. Figure 9. Output Voltage vs.
Case Temperature Output Current
3.50
3.45
3.40
3.35
3.30
3.25
3.20
Output Voltage (V)
3.15
3.10
3.05
3.00
0.0 0.5 1.0 1.5 2.0
Output Current (A)
V
V
EN
2V/div
V
OUT
1V/div
IL
1A/div
VSW
10V/div
Figure 10. Enable Turn on Characteristic Figure 11. Enable Turn off Characteristic
(I
Time (10ms/div)
=2A, CC Mode) (I
OUT
EN
2V/div
V
OUT
1V/div
I
1A/div
V
SW
10V/div
L
Time (10ms/div)
=2A, CC Mode)
OUT
Mar. 2011 Rev. 1. 2 BCD Semiconductor Manufacturing Limited
7
Page 8
Preliminary Datasheet
380kHz, 2A Asynchronous DC-DC Buck Converter AP3202
Typical Performance Characteristics (Continued)
o
T
=25
C, V
A
=12V, V
IN
=3.3V, unless otherwise noted.
OUT
V
V
OUT
2V/div
I
L
1A/div
VEN
2V/div
V
SW
5V/div
Figure 12. Enable Turn on Characteristic Figure 13. Enable Turn off Characteristic
Time (800µs/div)
(I
=2A, Resistance Load) (I
OUT
OUT
2V/div
1A/div
V
2V/div
V
SW
5V/div
I
L
EN
Time (400µs/div)
=2A, Resistance Load)
OU T
V
OUT
2V/div
V
OUT
2V/div
1A/div
I
L
1A/div
I
L
V
V
SW
5V/div
SW
5V/div
Time (100µs/div)
Time (100µs/div)
Figure 14. Short Circuit Protection Figure 15. Short Circuit Recovery
=2A) (I
(I
OUT
OUT
=2A)
Mar. 2011 Rev. 1. 2 BCD Semiconductor Manufacturing Limited
8
Page 9
Preliminary Datasheet
380kHz, 2A Asynchronous DC-DC Buck Converter AP3202

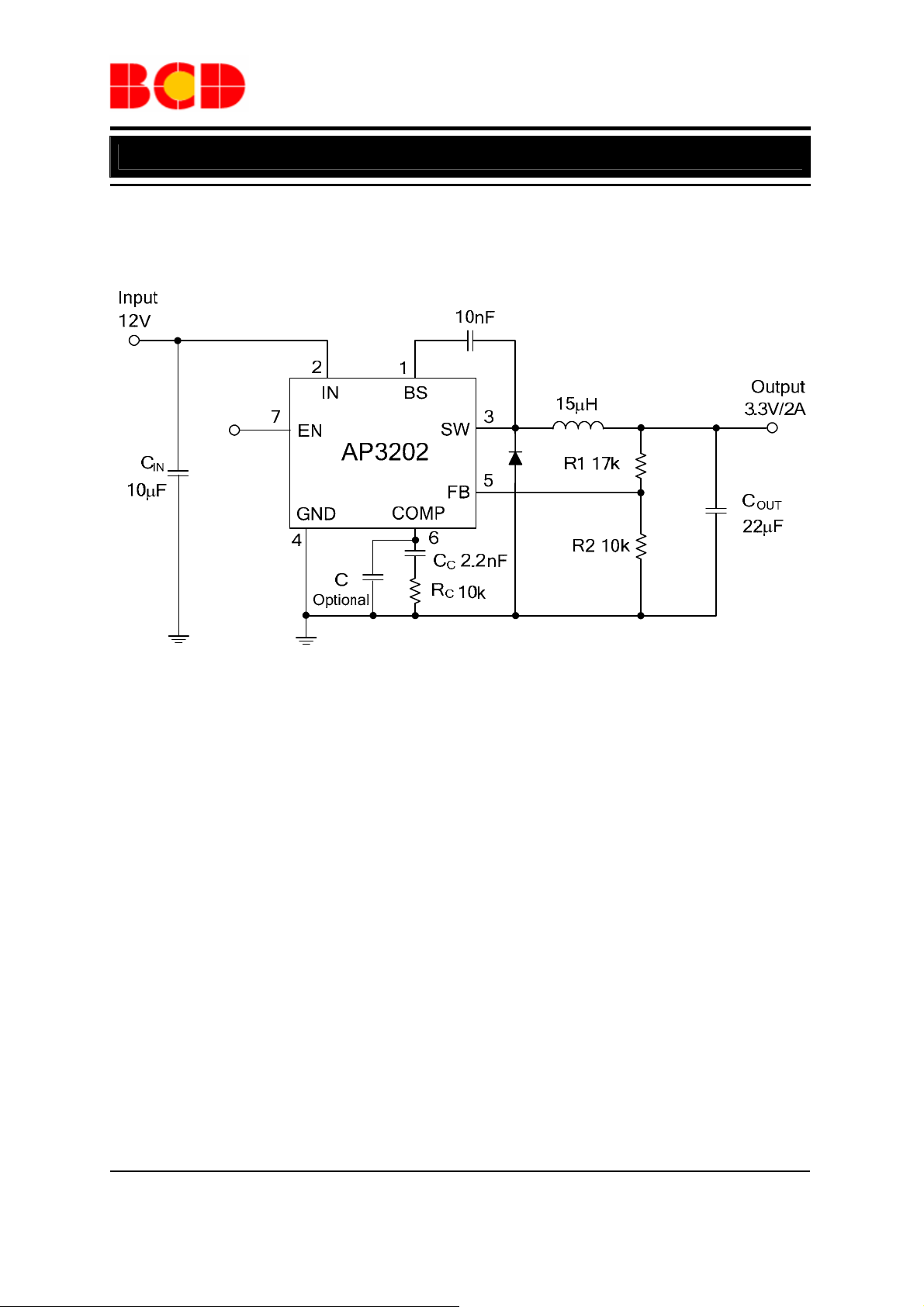

Typical Application
Figure 16. Typical Application of AP3202
Mar. 2011 Rev. 1. 2 BCD Semiconductor Manufacturing Limited
9
Page 10
Preliminary Datasheet
380kHz, 2A Asynchronous DC-DC Buck Converter AP3202

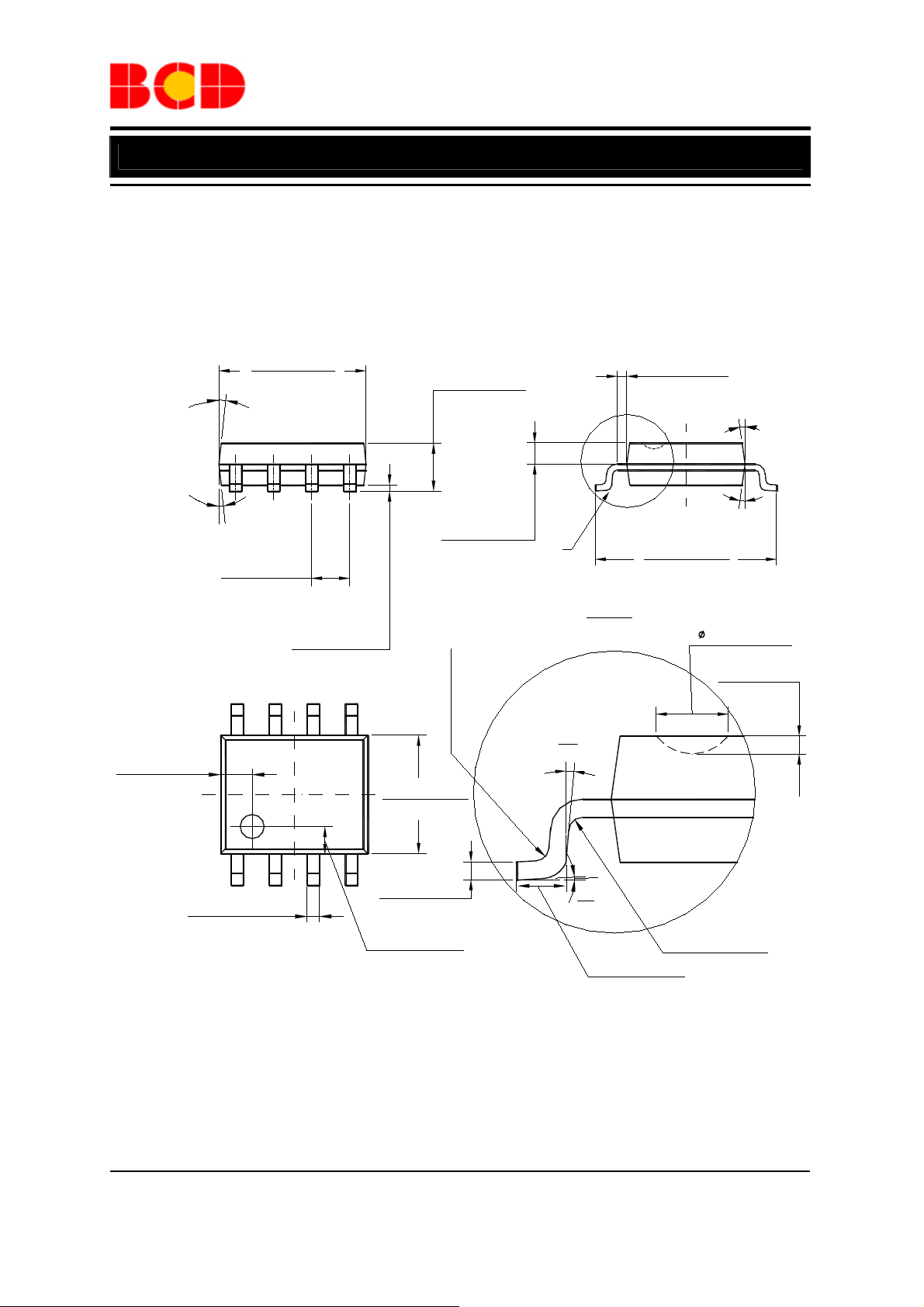

Mechanical Dimensions
SOIC-8 Unit: mm(inch)
4.700(0.185)
5.100(0.201)
7
°
7
°
1.270(0.050)
TYP
0.100(0.004)
0.300(0.012)
1.350(0.053)
1.750(0.069)
0.675(0.027)
0.725(0.029)
D
2
D
1
:
0
0.320(0.013)
5.800(0.228)
6.200(0.244)
0.800(0.031)
°
8
°
8
0.200(0.008)
0
°
8
°
1°
5°
0.450(0.017)
0.800(0.031)
)
6
0
0
.
0
(
0
5
1
.
0
R
1.000(0.039)
0.330(0.013)
0.510(0.020)
R0.150(0.006)
3.800(0.150)
4.000(0.157)
0.190(0.007)
0.250(0.010)
0.900(0.035)
Note: Eject hole, oriented hole and mold mark is optional.
Mar. 2011 Rev. 1. 2 BCD Semiconductor Manufacturing Limited
10
Page 11
BCD Semiconductor Manufacturing Limited
IMPOR T ANT NOTICE
IMPORTANT NOTICE
BC D Semiconductor Manufactu ring Limited reserves the r i ght to make changes without further not ice to any pr oducts or specifi-
BCD Semiconductor Manufacturing Limited reserves the right to make changes without further notice to any products or specifi-
cations h e rein. BCD Semiconductor Manuf acturin g Limited does not as sume any responsibility fo r us e of any its products for any
cations herein. BCD Semiconductor Manufacturing Limited does not assume any responsibility for use of any its products for any
particular purp ose, nor do es BCD Semiconductor Man ufacturi ng Limited assume any liability ar is ing out of the application or use
particular purpose, nor does BCD Semiconductor Manufacturing Limited assume any liability arising out of the application or use
of any its pro ducts or circui ts. BCD Semiconductor Manufactu ring Limited does not con v ey any license un der its patent rights or
of any its products or circuits. BCD Semiconductor Manufacturing Limited does not convey any license under its patent rights or
other rights no r the rights of others.
other rights nor the rights of others.
http://www .bcdsemi.com
MAIN SI TE
MAIN SITE
- Headquarters
BCD Semi condu ctor Manufact u ri ng Li mite d
BCD Semiconductor Manufactur ing Limited
- W a fer Fab
No. 1600, Zi Xing Road, Shanghai ZiZhu Science-based Industrial Park, 200241, China
Sh angh ai SI M - BCD Semicondu c t or Manufact u ring L i m i t e d
Tel: +86-21-24162266, Fax: +86-21-24162277
800, Y i Shan Road, Shanghai 200233, Chi na
T e l: +86- 21-6485 1491, F a x: + 86-21-5450 0008
REGIONAL SALES OFFICE
Shenzhen Office
REGIONAL S A L E S OF FICE
Shanghai SIM-BCD Semiconductor Manufacturing Co., Ltd., Shenzhen Office
Sh en zh e n Of f i ce
Unit A Room 1203, Skyworth Bldg., Gaoxin Ave.1.S., Nanshan District, Shenzhen,
Sh angh ai SI M - BCD Semicondu c t or Manuf act u ring Co., Ltd . Shen z h e n Off i c e
China
Advan c e d An alog Cir c ui t s ( S han g hai) Cor p orat i o n S h e n zh en O ffi ce
Tel: +86-755-8826 7951
Room E, 5F , Noble Center , No.1006, 3rd F uz hong R oa d, F utian District, Sh e nzhe n 51 8026, China
Fax: +86-755-8826 7865
T e l: +86- 755-8826 7951
Fax: +86-755- 88 26 7865
- Wafer Fab
BCD Se mic o n duct o r Manu factur in g Li mi ted
Shanghai SIM-BCD Semiconductor Manufacturing Co., Ltd.
- IC Design G r oup
800 Yi Shan Road, Shanghai 200233, China
Ad vance d Analog Cir c u i ts (Sh anghai ) Corporation
Tel: +86-21-6485 1491, Fax: +86-21-5450 0008
8F , Zone B , 900, Y i S han Road, Shangha i 200233, China
T e l: +86-21-6495 9539, Fax: +86- 21 - 6485 9673
Taiwan Office
BCD Semiconductor (Taiwan) Company Limited
T aiwan O f fice
4F, 298-1, Rui Guang Road, Nei-Hu District, Taipei,
BCD Se mi con d u c tor (T ai wan ) Com p an y Li mi te d
Tai wan
4F , 298-1, Rui Guang Road, Ne i - Hu District, T a ipei,
Tel: +886-2-2656 2808
Ta i w a n
Fax: +886-2-2656 2806
T e l: +886-2-2656 2808
F a x: + 886-2-2656 2806
USA Office
BCD Semiconductor Corp.
US A O f fice
30920 Huntwood Ave. Hayward,
B C D S e micon d uctor C o rporation
CA 94544, USA
30920 Huntwood A ve . Haywa r d,
Tel : +1-510-324-2988
C A 9454 4, U .S .A
Fax: +1-510-324-2788
T e l : +1-510- 324-2988
F a x: + 1-510-324- 2 788
