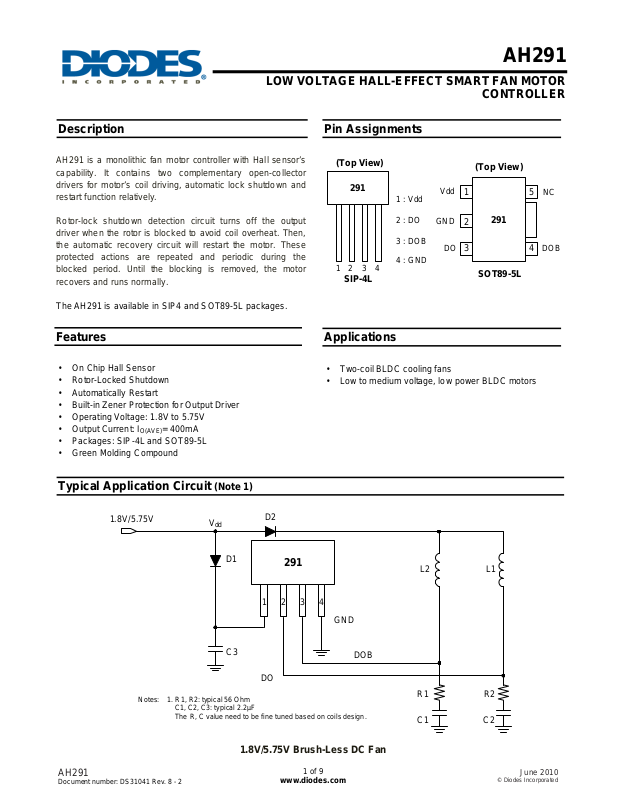

AH291
LOW VOLTAGE HALL-EFFECT SMART FAN MOTOR
CONTROLLER
Description
AH291 is a monolithic fan motor controller with Hall sensor’s
capability. It contains two complementary open-collector
drivers for motor’s coil driving, automatic lock shutdown and
restart function relatively.
Rotor-lock shutdown detection circuit turns off the output
driver when the rotor is blocked to avoid coil overheat. T hen,
the automatic recovery circuit will restart the motor. These
protected actions are repeated and periodic during the
blocked period. Until the blocking is removed, the motor
recovers and runs normally.
The AH291 is available in SIP4 and SOT89-5L packages.
Features
• On Chip Hall Sensor
• Rotor-Locked Shutdown
• Automatically Restart
• Built-in Zener Protection for Output Driver
• Operating Voltage: 1.8V to 5.75V
• Output Current: I
• Packages: SIP-4L and SOT89-5L
• Green Molding Compound
O(AVE)
= 400mA
Pin Assignments
(Top View)
291
12 43
SIP-4L
1 : Vdd
2 : DO
3 : DOB
4 : GND
Vdd
GND
(Top View)
1
291
2
3 7
SOT89-5L
Applications
• Two-coil BLDC cooling fans
• Low to medium voltage, low power BLDC motors
NC
5
DOBDO
4
Typical Application Circuit (Note 1)
1.8V/5.75V
Notes: 1. R1, R2: typical 56 Ohm
C1, C2, C3: typical 2.2µF
The R, C value need to be fine tuned based on coils design.
AH291
Document number: DS31041 Rev. 8 - 2
V
dd
D1
C3
1.8V/5.75V Brush-Less DC Fan
D2
291
1234
DO
1 of 9
www.diodes.com
GND
DOB
L2 L1
R1 R2
C1 C2
June 2010
© Diodes Incorporated
Page 2
Pin Descriptions
Pin Name Description
Vdd Input Power
DO Output Pin
DOB Output Pin
GND Ground
NC Not Connected
Functional Block Diagram
Vdd
AH291
LOW VOLTAGE HALL-EFFECT SMART FAN MOTOR
CONTROLLER
Regulator
Hall
Plate
AH291
Document number: DS31041 Rev. 8 - 2
Amp.
Lock detect,
shutdown and
automatic re-start
Control Logic
GND
2 of 9
www.diodes.com
DO
DOB
June 2010
© Diodes Incorporated
Page 3
AH291
LOW VOLTAGE HALL-EFFECT SMART FAN MOTOR
CONTROLLER
Absolute Maximum Ratings (T
Symbol Characteristics Rating Unit
Vdd Operating Supply Voltage 8 V
IO Output Current
PD Power Dissipation
TST Storage Temperature -55 ~ 150
TJ Maximum Junction Temperature 150
Recommended Operating Conditions
Symbol Characteristic Conditions Min Max Unit
Vdd Supply Voltage (Note 2) Operating 1.8 5.75 V
TA Operating Ambient Temperature Operating -20 100
Notes: 2. The output of IC will be switched after the supply voltage is over 1.8V, but the magnetic characteristics won't be normal until the
supply is over 2.0V.
= 25°C)
A
O(AVE)
I
O(PEAK)
SOT89-5L 400 mA
700 mA
SIP-4L 400 mA
I
SIP-4L 550 mW
SOT89-5L 800 mW
°C
°C
°C
Electrical Characteristics (T
= 25 °C, Vdd = 5V, unless otherwise specified)
A
Symbol Characteristics Conditions Min Typ. Max Unit
Idd Supply Current Operating - 2.6 4.0 mA
T
T
RLP-OFF
V
R
RLP-ON
DS(ON)
Rotor Lock Protection On Time - 0.4 - Sec
Rotor Lock Protection Off Time 2.4 3 3.6 Sec
I
= 180mA - 300 - mV
Output Saturation Voltage
)SAT(OUT
O
IO = 350mA - 600 - mV
Output On Resistance - 1.75 - ohm
Vz Output Zener-Breakdown Voltage - 15 - V
Truth Table
IN- IN+ CT OUT1 OUT2 Mode
H L L H L Rotating
L H L L H Rotating
- - H off off Lockup protection activated
AH291
Document number: DS31041 Rev. 8 - 2
3 of 9
www.diodes.com
June 2010
© Diodes Incorporated
Page 4
AH291
LOW VOLTAGE HALL-EFFECT SMART FAN MOTOR
CONTROLLER

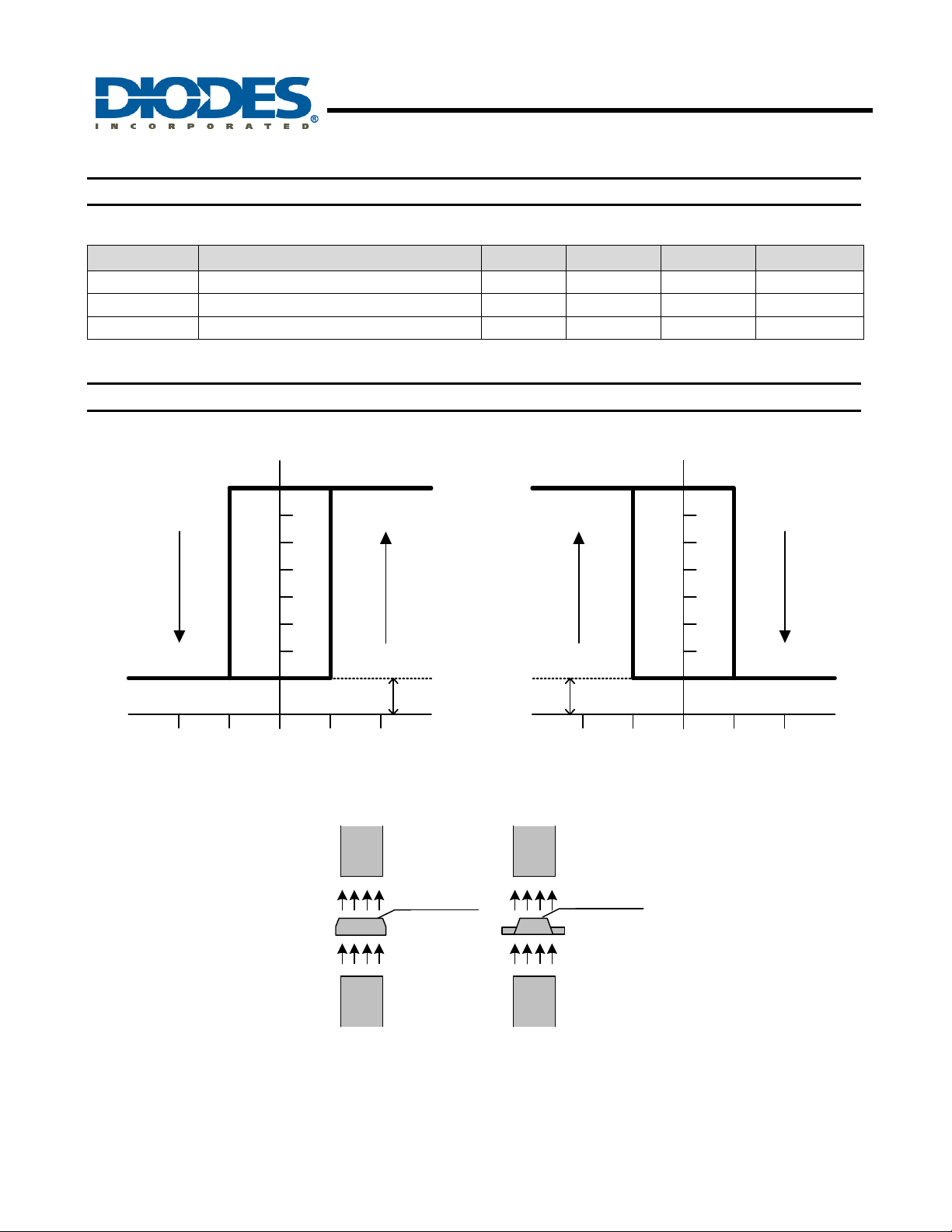

Magnetic Characteristics (T
Symbol Characteristics Min Typ. Max Unit
Bop Operation Point - 30 60 Gauss
Brp Release Point -60 -30 - Gauss
Bhy Hysteresis - 60 - Gauss
Notes: 3. The magnetic characteristics may vary with supply voltage, operating temperature and after soldering.
Operating Characteristics
DOB DO
= 25 °C, Vcc = 24V, unless otherwise specified, Note 3)
A
(1mT = 10 Gauss)
RP
Output Voltage in Volts
ON
12
10
8
6
4
2
OFF
OP
V
SAT
OFF
RP
Output Voltage in Volts
V
SAT
Magnetic Flux Density in GaussMagnetic Flux Density in Gauss
12
10
8
6
4
2
OP
ON
BopBrp 0BopBrp 0
S
Marking
side
S
Marking
side
AH291
Document number: DS31041 Rev. 8 - 2
N
( SIP-4L )
N
( SOT89-5L )
4 of 9
www.diodes.com
June 2010
© Diodes Incorporated
Page 5
A

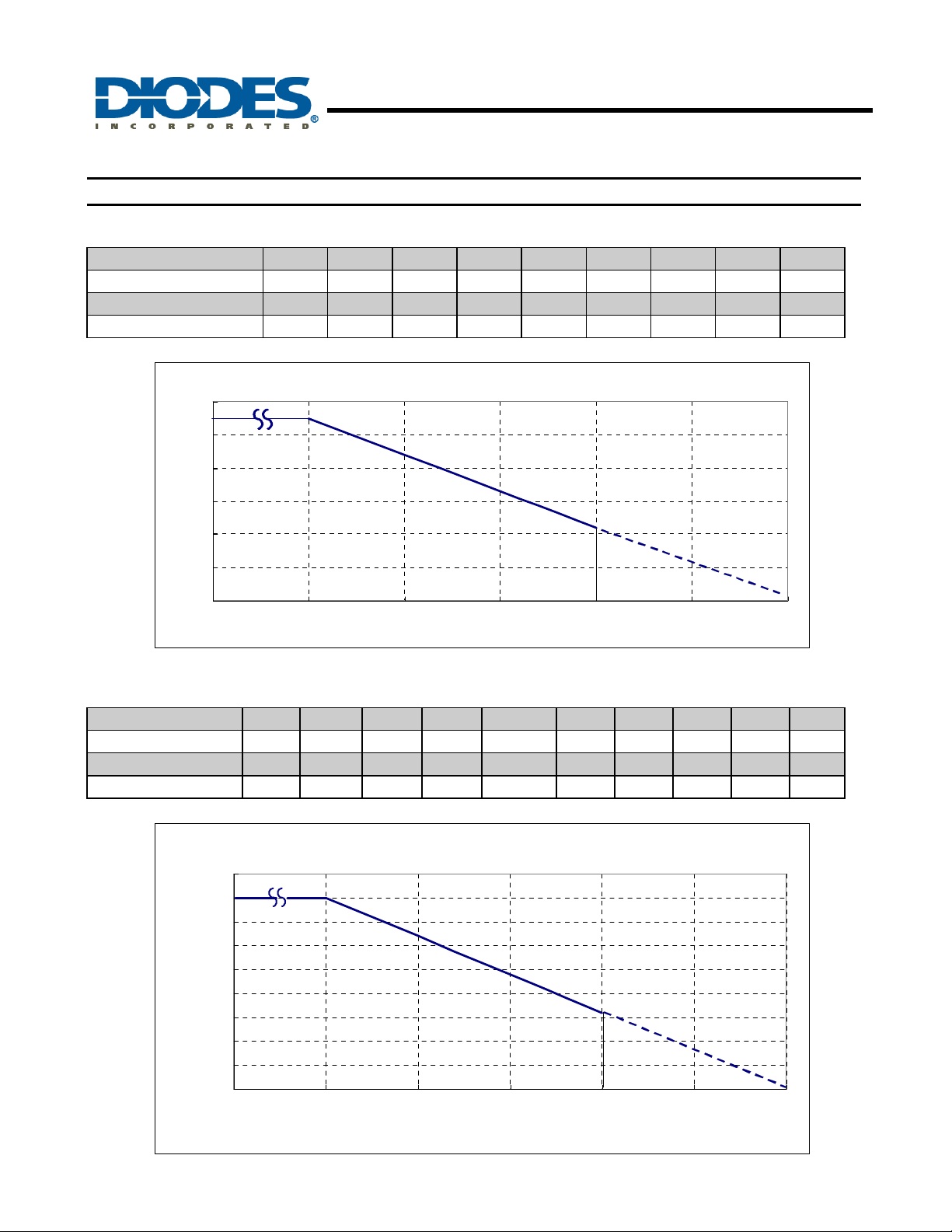

Performance Characteristics
(1) SIP-4L
T
(°C)
PD (mW)
TA (°C)
PD (mW)
(mW)
P
D
600
500
400
300
200
25 50 60 70 80 85 90 95 100
550 440 396 352 308 286 264 242 220
105 110 115 120 125 130 135 140 150
198 176 154 132 110 88 66 44 0
AH291
LOW VOLTAGE HALL-EFFECT SMART FAN MOTOR
CONTROLLER
Power Dissipation Curve
100
0
0 25 50 75 100 125 150
TA (°C)
(2) SOT89-5L
TA (°C)
PD (mW)
TA (°C)
PD (mW)
25 50 60 70 75 80 85 90 95 100
800 640 576 512 480 448 416 384 352 320
105 110 115 120 125 130 135 140 145 150
288 256 224 192 160 128 96 64 32 0
(mW)
P
D
900
800
700
600
500
400
300
200
100
0
-40
0 25 50 75 100 125 150
Power Dissipation Curve
TA (°C)
AH291
Document number: DS31041 Rev. 8 - 2
5 of 9
www.diodes.com
June 2010
© Diodes Incorporated
Page 6

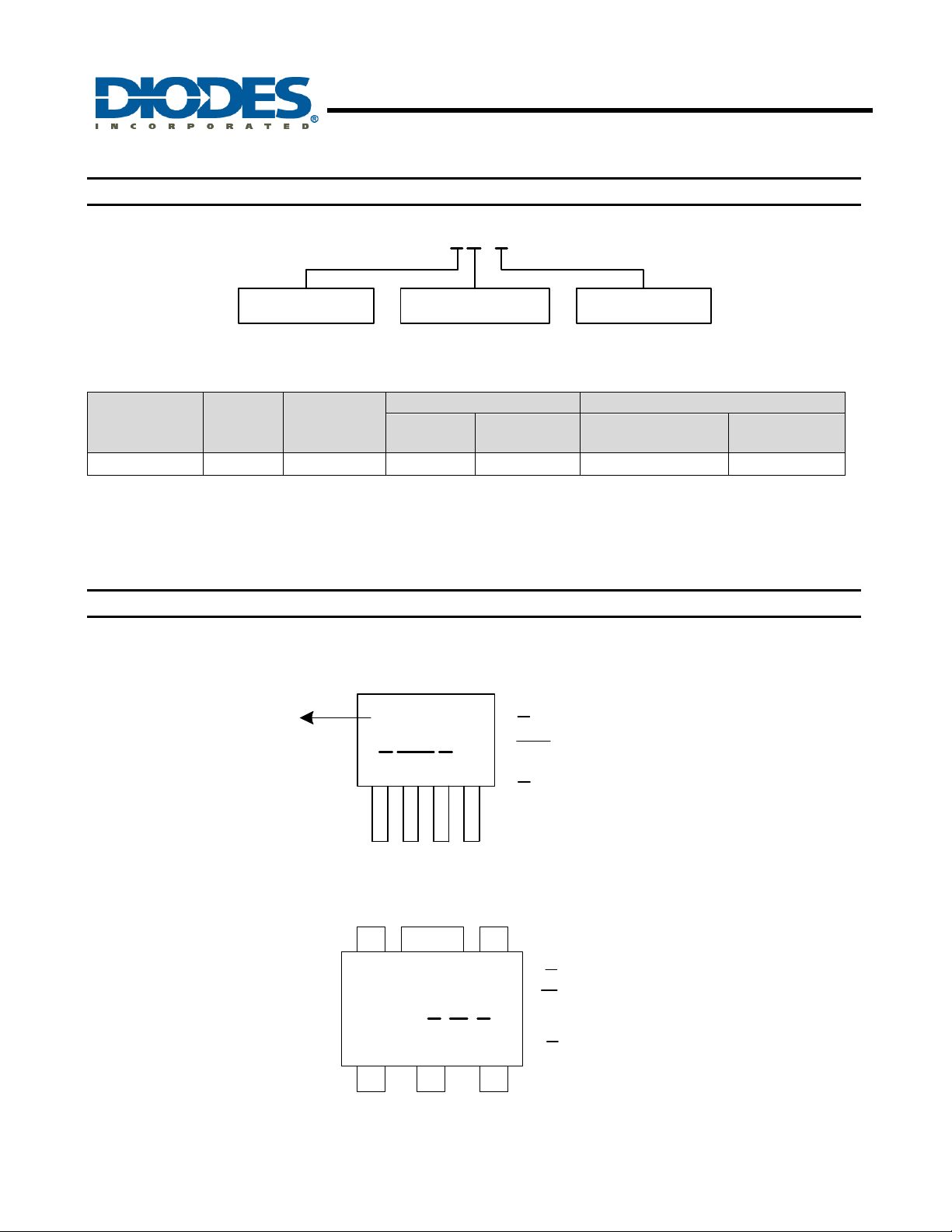

Ordering Information
AH291
LOW VOLTAGE HALL-EFFECT SMART FAN MOTOR
CONTROLLER
AH 291 - X G - X
Package Green
P : SIP-4L
G : Green (Note 4)
Y : SOT89-5L 13 : Tape & Reel
Device
AH291-YG-13 Y SOT89-5L NA NA 2500/Tape & Reel -13
Notes: 4. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at
http://www.diodes.com/products/lead_free.html.
5. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at
http://www.diodes.com/datasheets/ap02001.pdf.
6. Reverse taping as shown on Diodes Inc. Surface Mount (SMD) Packaging document AP02007, which can be found on our website
http://www.diodes.com/datasheets/ap02007.pdf.
Package
Code
Packaging
(Note 5, 6)
Quantity
Bulk 13” Tape and Reel
Part Number
Suffix
Packing
B : Bulk
Quantity
Part Number
Suffix
Marking Information
(1) SIP-4L
Part Number
( Top View )
291
Y WW X
: Year : 0~9
Y
: Week : 01~52, "52" represents
WW
52 and 53 week
X : Internal Code : A~Z : Green
(2) SOT89-5L
AH291
Document number: DS31041 Rev. 8 - 2
( Top View )
5
291 Y W X
1 2 3
6 of 9
www.diodes.com
4
7
Y : Year : 0~9
: Week : A~Z : 1~26 week;
W
a~z : 27~52 week;
z represents 52 and 53 week
: Internal code
X
A~Z : Green
June 2010
© Diodes Incorporated
Page 7
LOW VOLTAGE HALL-EFFECT SMART FAN MOTOR

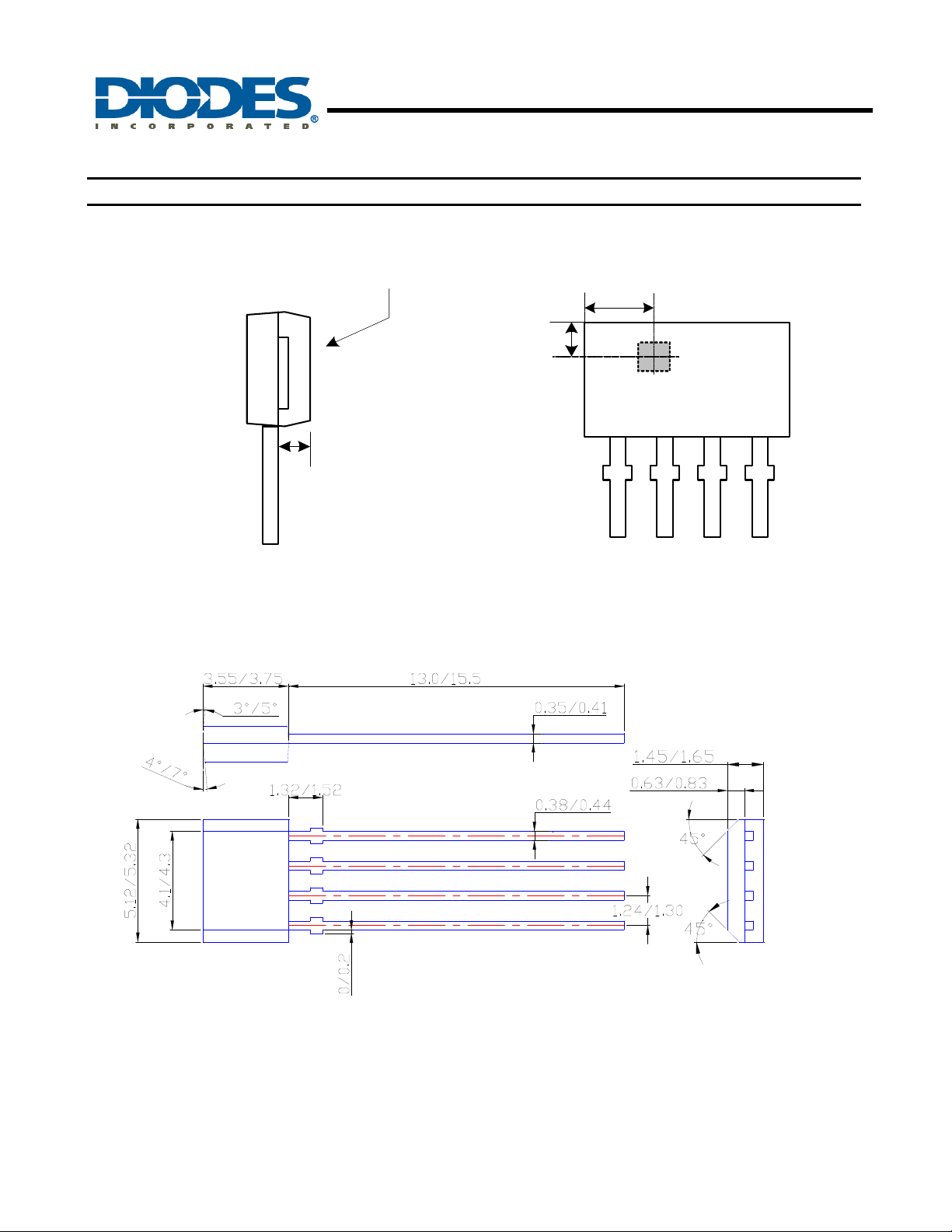

Package Outline Dimensions (All Dimensions in mm)
(1) Package type: SIP-4L
AH291
CONTROLLER
Active Area Depth
Package Dimension
0.7mm
Marking side
1.95士0.1mm
1.1士0.1mm
1234
Sensor Location
AH291
Document number: DS31041 Rev. 8 - 2
7 of 9
www.diodes.com
June 2010
© Diodes Incorporated
Page 8
LOW VOLTAGE HALL-EFFECT SMART FAN MOTOR

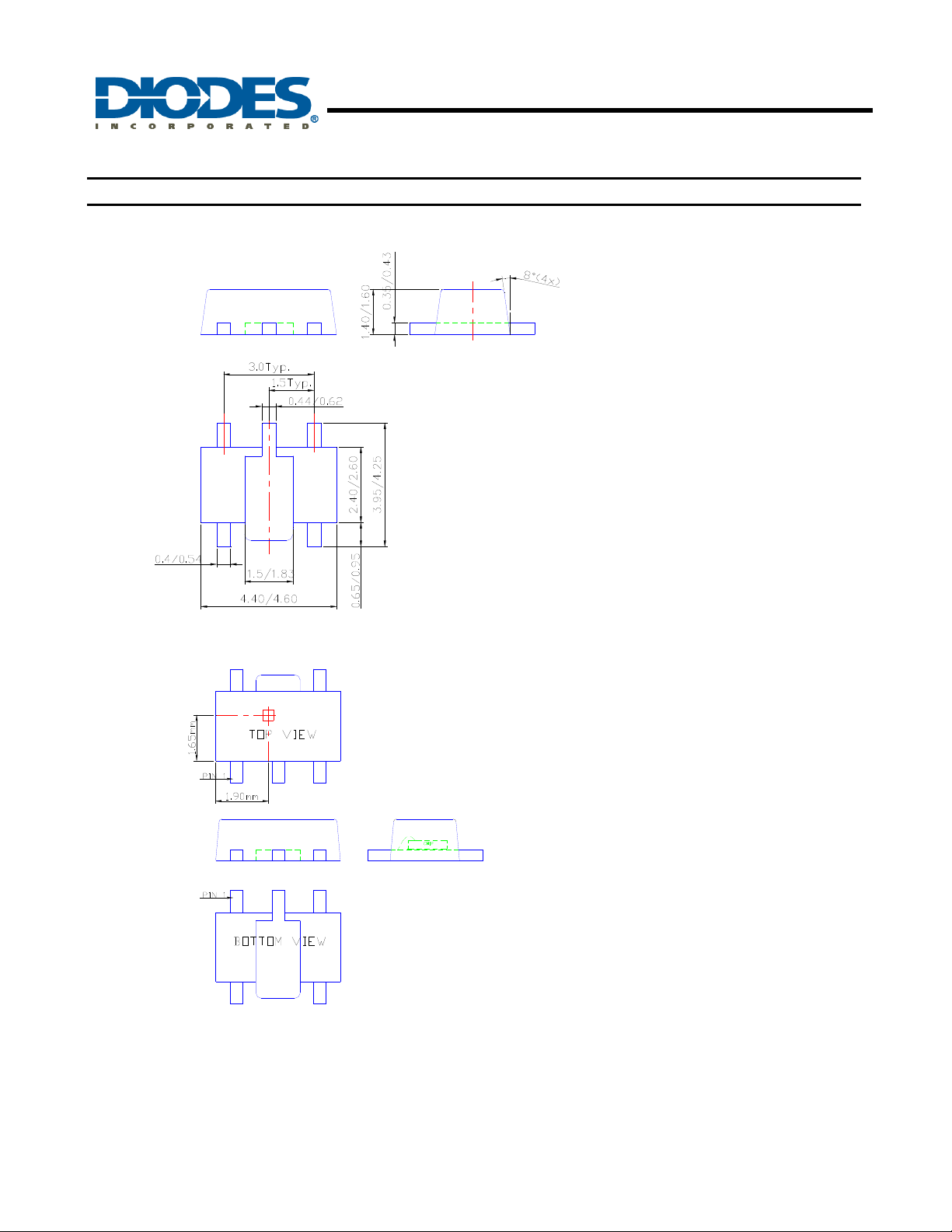

Package Outline Dimensions (Continued)
(2) Package type: SOT89-5L
AH291
CONTROLLER
Sensor Location
AH291
Document number: DS31041 Rev. 8 - 2
8 of 9
www.diodes.com
June 2010
© Diodes Incorporated
Page 9
AH291
LOW VOLTAGE HALL-EFFECT SMART FAN MOTOR
CONTROLLER
