Page 1
AH175
HALL EFFECT LATCH FOR HIGH TEMPERATURE
Description
AH175 is a single-digital-output Hall-Effect latch sensor for
high temperature operation. The device includes an on-chip
Hall voltage generator for magnetic sensing, an amplifier to
amplify Hall voltage, and a comparator to provide switching
hysteresis for noise rejection, an open-collector output predriver. An internal band-gap regulator provides a temperature
compensated supply voltage for internal circuits and allows a
wide operating supply range.
When the magnetic flux density (B) is larger than operate
point (Bop), output is switched on (OUT pin is pulled low).
The output state is held on until a magnetic flux density
reversal falls below Brp. When B is less than Brp, the output
is switched off.
The AH175 is available in SIP-3L and SC59 packages.
Features
• Bipolar Hall-Effect latch sensor
• 3.5V to 20V DC operating voltage
• Open collector pre-driver
• 25mA output sink current
• Built-in power reverse protection
• Operating Temperature: -40ºC~+150ºC
• SIP-3L and SC59 packages
(SC59 is commonly known as SOT23 in Asia)
• Green Molding Compound (No Br, Sb) (Note 1)
Notes: 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at
http://www.diodes.com/products/lead_free.html.
Pin Assignments
(Top View)
SIP-3L
(Top View)
GND 2.
SC59
Applications
• Rotor Position Sensing
• Current Switch
• Encoder
• RPM Detection
3.
2.
1.
3. OUT
1. Vcc
OUT
GND
Vcc
Typical Application Circuit
IA
IB
Driver
&
IC
Ia
Ib
Ic
Control Logic
HA
HB
HC
Hall Motor Driver
AH175
Document number: DS31043 Rev. 10 - 2
M
RPM sensing
3 Phase Hall Motor
1 of 9
www.diodes.com
Digital Hall Effect Sensor
M: Three Phase Hall Motor
July 2010
© Diodes Incorporated
Page 2
Pin Descriptions
Pin Name Pin # Description
Vcc 1 Positive Power Supply
GND 2 Ground
OUT 3 Output Stage
Functional Block Diagram
V
CC
1
AH175
HALL EFFECT LATCH FOR HIGH TEMPERATURE
REG.
3
OUT
AMP
2
GND
Absolute Maximum Ratings (T
Symbol Characteristics Values Unit
VCC Supply Voltage 20 V
V
(off) Output “Off” Voltage 20 V
OUT
IO (sink) Output “On” Current 25 mA
Ts Storage Temperature Range -65~+150
TJ Maximum Junction Temperature +150
PD Power Dissipation
= 25°C)
A
SIP-3L 550 mW
SC59 230 mW
°C
°C
Recommended Operating Conditions
Symbol Characteristic Conditions Min Max Unit
VCC Supply Voltage Operating 3.5 20 V
TA
Notes: 2. The device PD and Safety Operation Area should not be exceeded.
AH175
Document number: DS31043 Rev. 10 - 2
Operating Ambient Temperature
(Note 2)
Operating -40 150
2 of 9
www.diodes.com
© Diodes Incorporated
°C
July 2010
Page 3
AH175
HALL EFFECT LATCH FOR HIGH TEMPERATURE
Electrical Characteristics (T
Symbol Characteristics Conditions Min Typ. Max Unit
V
OUT (SAT)
Output Saturation Voltage
ICC Supply Current VCC = 12V, OUT ”OFF” - 3.5 6 mA
Magnetic Characteristics (T
A grade
Symbol Parameter Min Typ. Max Unit
Bops(south pole to brand side) Operation Point 15 - 60 Gauss
Brps(south pole to brand side) Release Point -60 - -15 Gauss
Bhy(|Bopx|-|Brpx|) Hysteresis 30 80 120 Gauss
B grade
Symbol Parameter Min Typ. Max Unit
Bops(south pole to brand side) Operation Point 5 - 80 Gauss
Brps(south pole to brand side) Release Point -80 - -5 Gauss
Bhy(|Bopx|-|Brpx|) Hysteresis 10 80 160 Gauss
Notes: 3. Magnetic characteristics may vary with supply voltage, operating temperature and after soldering.
= 25°C)
A
V
= 12V, OUT ”ON”
CC
I
= 10mA
O
= 25°C, Vcc = 12V, unless otherwise specified, Note 3)
A
- 300 400 mV
(1mT = 10 Gauss)
Operating Characteristics
S
Marking side
N
(SC59)
S
N
(SIP-3L)
Marking side
V
out
V
cc
High
Voltage)
(Output
V
SAT
rp
B
0
(Magnetic Flux Density)
d
V
hy
B
Low
op
B
AH175
Document number: DS31043 Rev. 10 - 2
3 of 9
www.diodes.com
July 2010
© Diodes Incorporated
Page 4

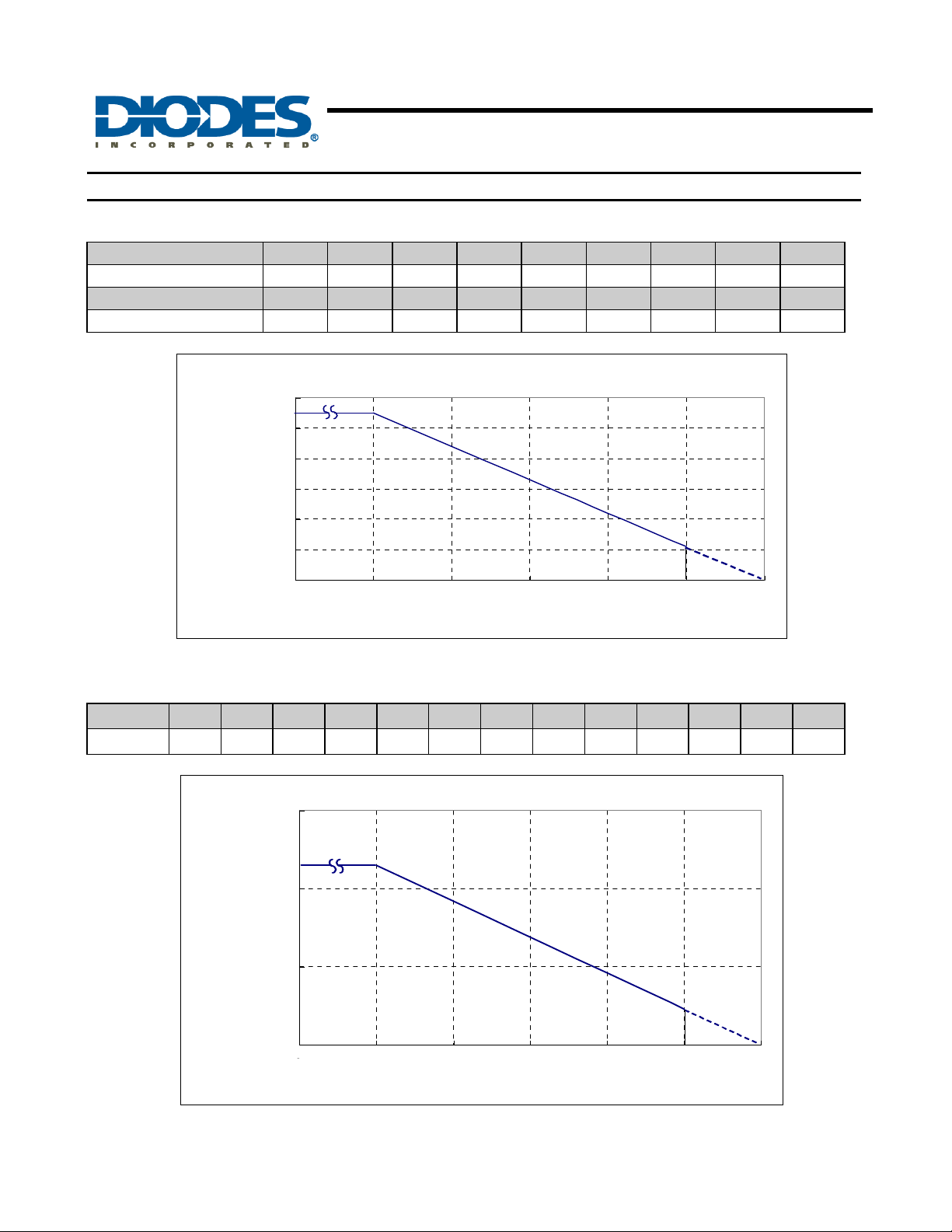

Performance Characteristics
(1) SIP-3L
TA (°C)
PD (mW)
TA (°C)
PD(mW)
(mW )
P
D
25 50 60 70 80 85 90 95 100
550 440 396 352 308 286 264 242 220
105 110 115 120 125 130 135 140 150
198 176 154 132 110 88 66 44 0
600
500
400
300
200
AH175
HALL EFFECT LATCH FOR HIGH TEMPERATURE
P o wer Dis s ip a tio n Cu rve
100
0
0 25 50 75 100 125 150
-40
(2) SC59 (commonly known as SOT23 in Asia)
TA (°C)
PD (mW)
25 50 60 70 80 85 90 100 110 120 130 140 150
230 184 166 147 129 120 110 92 74 55 37 18 0
P
(mW )
D
300
200
100
Po we r D is sipa tion C u rve
T
A
(°C )
0
AH175
Document number: DS31043 Rev. 10 - 2
0 25 50 75 100 125 150
-40
T
A
4 of 9
www.diodes.com
(°C )
July 2010
© Diodes Incorporated
Page 5
Ordering Information
AH175
HALL EFFECT LATCH FOR HIGH TEMPERATURE
Package
P : SIP-3L
W : SC59
L : Lead Free
G : Green (Note 4)
AH175 - X X - X - X
Lead Free
Packing
A : Ammo Box (Note 7)
B : Bulk (Note 8)
Magnetic
Characteristics
A or B
7 : Tape & Reel
Tube/Bulk 7” Tape and Reel Ammo Box
Device
AH175-PL-A-A P SIP-3L NA NA NA NA 4000/Box -A A
AH175-PL-A-B P SIP-3L NA NA NA NA 4000/Box -A B
AH175-PG-A-A P SIP-3L NA NA NA NA 4000/Box -A A
AH175-PG-A-B P SIP-3L NA NA NA NA 4000/Box -A B
AH175-PL-B-A P SIP-3L 1000 -B NA NA NA NA A
AH175-PL-B-B P SIP-3L 1000 -B NA NA NA NA B
AH175-PG-B-A P SIP-3L 1000 -B NA NA NA NA A
AH175-PG-B-B P SIP-3L 1000 -B NA NA NA NA B
AH175-WL-7-A W SC59 NA NA 3000/Tape & Reel -7 NA NA A
AH175-WL-7-B W SC59 NA NA 3000/Tape & Reel -7 NA NA B
AH175-WG-7-A W SC59 NA NA 3000/Tape & Reel -7 NA NA A
AH175-WG-7-B W SC59 NA NA 3000/Tape & Reel -7 NA NA B
Notes: 4. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at
http://www.diodes.com/products/lead_free.html.
5. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at
http://www.diodes.com/datasheets/ap02001.pdf.
6. Reverse taping as shown on Diodes Inc. Surface Mount (SMD) Packaging document AP02007, which can be found on our
website http://www.diodes.com/datasheets/ap02007.pdf.
7. Ammo Box is for SIP-3L Spread Lead.
8. Bulk is for SIP-3L Straight Lead.
Package
Code
Packaging
(Note 5, 6)
Quantity
Part
Number
Suffix
Quantity
Part
Number
Suffix
Quantity
Part
Number
Suffix
Magnetic
Characteristics
AH175
Document number: DS31043 Rev. 10 - 2
5 of 9
www.diodes.com
July 2010
© Diodes Incorporated
Page 6
Marking Information
(1) SIP-3L
(Top View)
Part Number
(2) SC59 (Commonly known as SOT23 in Asia)
175
WW X
Y
AH175
HALL EFFECT LATCH FOR HIGH TEMPERATURE
: Year : 0~9
Y
WW
: Week : 01~52, "52" represents
52 and 53 week
X
: Internal Code : A~Z : Green
a~z : Lead Free
(Top View)
XX : Identification code
: Year 0~9
Y
: Week : A~Z : 1~26 week;
XX Y W
X
W
a~z : 27~52 week; z represents
52 and 53 week
: A~Z : Green
X
a~z : Lead Free
Part Number Package Identification Code
AH175 SC59 J5
AH175
Document number: DS31043 Rev. 10 - 2
6 of 9
www.diodes.com
July 2010
© Diodes Incorporated
Page 7
HALL EFFECT LATCH FOR HIGH TEMPERATURE
Package Outline Dimensions (All Dimensions in mm)
(1) Package Type: SIP-3L for Bulk pack
0.51mm
NOM
2.00 +/-
0.10mm
1.15 +/-
0.10mm
AH175
Package Dimension
BRANDED
SURFACE
123
Active Area Depth Sensor Location
AH175
Document number: DS31043 Rev. 10 - 2
7 of 9
www.diodes.com
July 2010
© Diodes Incorporated
Page 8
HALL EFFECT LATCH FOR HIGH TEMPERATURE

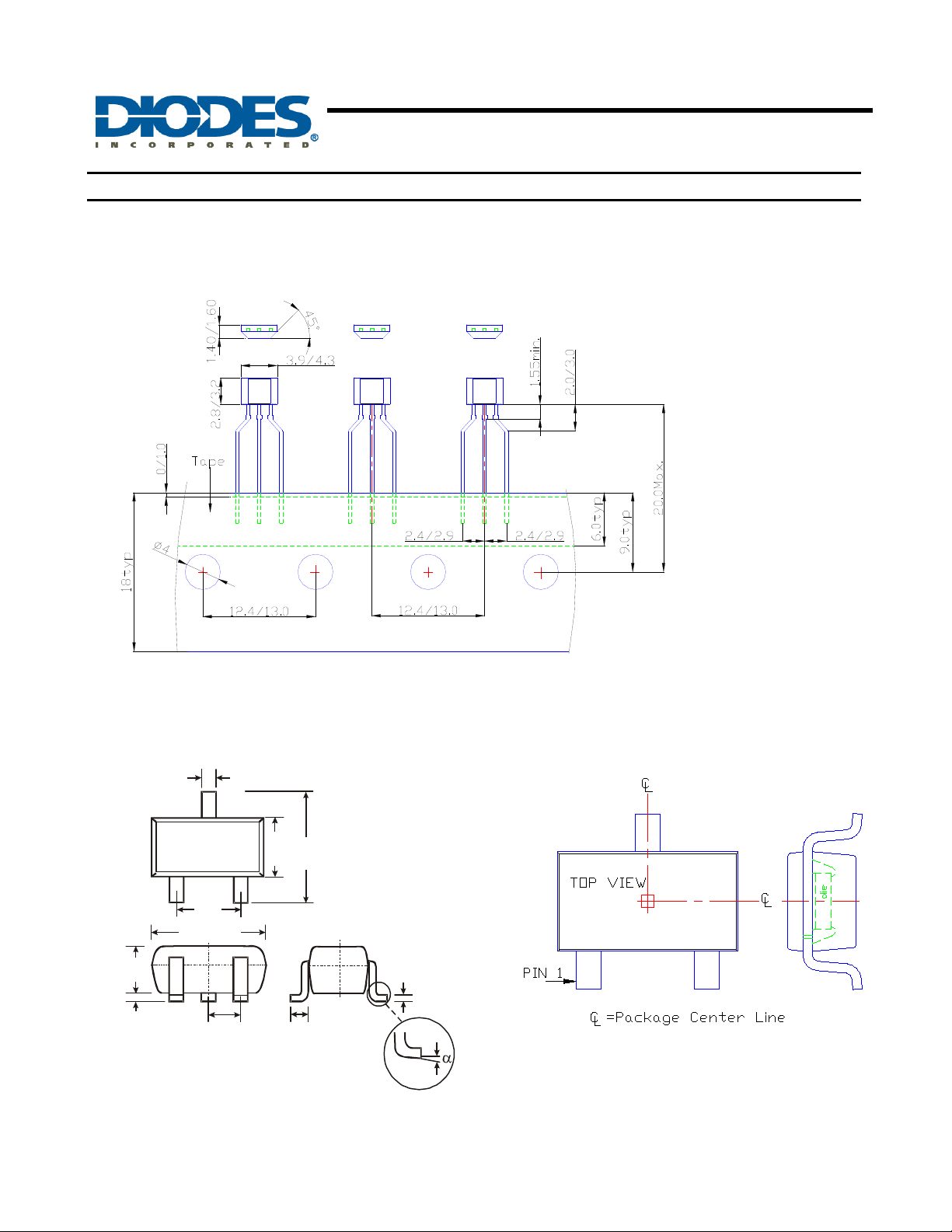

Package Outline Dimensions (Continued)
(2) Package Type: SIP-3L for Ammo pack
AH175
(3) SC59 (Commonly known as SOT23 in Asia)
0.35/0.50
1.00/
1.30
0.013/0.10
TOP VIEW
1.90
2.90/3.10
0.95
2.70/
1.50/
1.70
3.00
0.35/0.55
0.10/0.20
AH175
Document number: DS31043 Rev. 10 - 2
O
0O/8
8 of 9
www.diodes.com
July 2010
© Diodes Incorporated
Page 9
AH175
