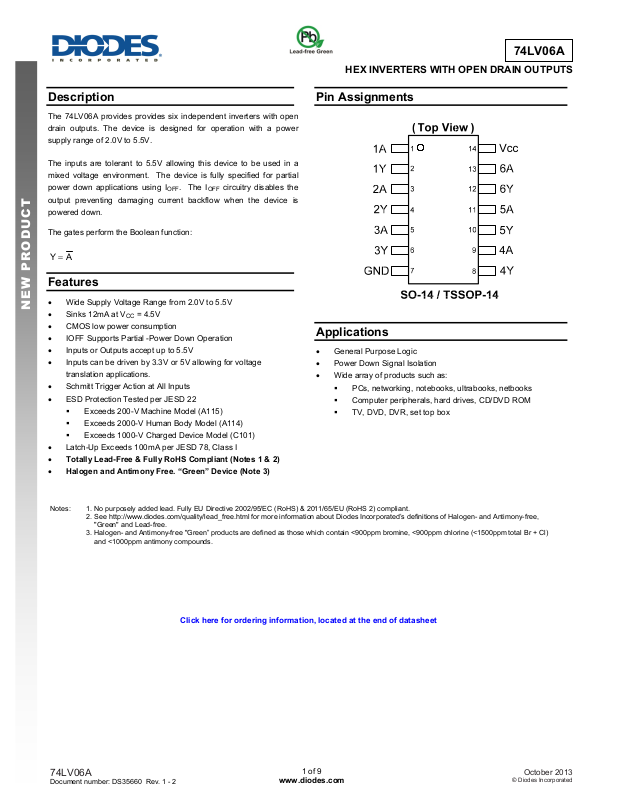

Diodes 74LV06A User Manual

A

74LV06

HEX INVERTERS WITH OPEN DRAIN OUTPUTS

Description

The 74LV06A provides provides six independent inverters with open

drain outputs. The device is designed for operation with a power

supply range of 2.0V to 5.5V.

The inputs are tolerant to 5.5V allowing this device to be used in a

mixed voltage environment. The device is fully specified for partial

power down applications using I

output preventing damaging current backflow when the device is

powered down.

The gates perform the Boolean function:

OFF

. The I

AY 

circuitry disables the

OFF

Pin Assignments

Features

 Wide Supply Voltage Range from 2.0V to 5.5V

NEW PRODUCT

 Sinks 12mA at V

 CMOS low power consumption

 IOFF Supports Partial -Power Down Operation

 Inputs or Outputs accept up to 5.5V

 Inputs can be driven by 3.3V or 5V allowing for voltage

translation applications.

 Schmitt Trigger Action at All Inputs

 ESD Protection Tested per JESD 22

 Exceeds 200-V Machine Model (A115)

 Exceeds 2000-V Human Body Model (A114)

 Exceeds 1000-V Charged Device Model (C101)

 Latch-Up Exceeds 100mA per JESD 78, Class I

 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

 Halogen and Antimony Free. “Green” Device (Note 3)

Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds.

74LV06A

Document number: DS35660 Rev. 1 - 2

= 4.5V

CC

Applications

 General Purpose Logic

 Power Down Signal Isolation

 Wide array of products such as:

 PCs, networking, notebooks, ultrabooks, netbooks

 Computer peripherals, hard drives, CD/DVD ROM

 TV, DVD, DVR, set top box

Click here for ordering information, located at the end of datasheet

1 of 9

www.diodes.com

October 2013

A

74LV06

Pin Descriptions

Pin Number

1 1A Data Input

2 1Y Data Output

3 2A Data Input

4 2Y Data Output

5 3A Data Input

6 3Y Data Output

7 GND Ground

8 4Y Data Output

9 4A Data Input

10 5Y Data Output

11 5A Data Input

12 6Y Data Output

13 6A Data Input

14 Vcc Supply Voltage

NEW PRODUCT

Pin Name Description

Logic Diagram

+0.5V

2 of 9

-20 mA

-50 mA

- 25 mA

Function Table

Input Output

A Y

H L

L Z

Absolute Maximum Ratings (Note 4) (@T

Symbol Parameter Rating Unit

ESD HBM Human Body Model ESD Protection 2 kV

ESD CDM Charged Device Model ESD Protection 1 kV

ESD MM Machine Model ESD Protection 200 V

VCC

VI

IIK Input Clamp Current VI < 0V

IOK Output Clamp Current VO < -0V

IO Continuous Output Current -0.5V < V

ICC

I

GND

TJ

T

STG

P

TOT

Note: 4. Stresses beyond the absolute maximum may result in immediate failure or reduced reliability. These are stress values and device operation should be within recommend values.

74LV06A

Document number: DS35660 Rev. 1 - 2

Supply Voltage Range -0.5 to +7.0 V

Input Voltage Range note 4 -0.5 to +7.0 V

Continuous Current Through Vcc 50 mA

Continuous Current Through GND -50 mA

Operating Junction Temperature -40 to +150 °C

Storage Temperature -65 to +150 °C

Total Power Dissipation 500 mW

= +25°C, unless otherwise specified.)

A

O VCC

www.diodes.com

October 2013

A

Recommended Operating Conditions (Note 5) (@T

Symbol Parameter Conditions Min Max Unit

VCC

VI

VO

IOL

Δt/ΔV

TA

Note: 5. Unused inputs should be held at VCC or Ground.

NEW PRODUCT

Electrical Characteristics (@T

Supply Voltage — 2.0 5.5 V

Input Voltage — 0 5.5 V

Output Voltage — 0 5.5 V

Low-Level Output Current

Input Transition Rise or Fall Rate

Operating Free-Air Temperature

= +25°C, unless otherwise specified.)

A

74LV06

= +25°C, unless otherwise specified.)

A

2.0V — 50 μA

2.3V to 2.7V — 2 mA

3.0V to 3.6V — 6 mA

4.5V to 5.5V — 12 mA

2.3V to 2.7V — 200

3.0V to 3.6V — 100

4.5V to 5.5V — 20

— -40 +125 °C

ns/V

Symbol Parameter Test Conditions

— 2.0V 1.5 — 1.5 —

High-Level Input

VIH

Voltage

— 2.3V to 2.7V

— 3.0V to 3.6V

— 4.5V to 5.5V

— 2.0V — 0.5 — 0.5

VIL

Low-Level Input Voltage

— 2.3V to 2.7V —

— 3.0V to 3.6V —

— 4.5V to 5.5V —

= 50μA

I

OL

VOL

Low-Level Output Voltage

IOL = 2mA

IOL = 6mA

IOL = 12mA

Power Down

I

OFF

Leakage Current

Input Current

II

Supply Current

ICC

VI or VO = 0 to 5.5V

VI =GND or 5.5V

= GND or VCC

V

I

= 0

O

74LV06A

Document number: DS35660 Rev. 1 - 2

= -40°C to +85°C TA = -40°C to +125°C

T

V

CC

A

Min Max Min Max

V

CC

X 0.7

V

CC

—

X 0.3

VCC X 0.7

—

— —

VCC X 0.3

2.0V to 5.5V — 0.1 — 0.1

2.3V — 0.4 — 0.4

3.0V — 0.44 — 0.44

4.5V — 0.55 — 0.55

0V — 5 — 5 μA

0 to 5.5V — ±1 — ±1 μA

5.5V — 20 — 20 μA

3 of 9

www.diodes.com

October 2013

Unit

V

—

V

A

Switching Characteristics

VCC = 2.5V ± 0.2V

Symbol Parameter Test Conditions

t

PLZ

t

PZL

PLZ

PZL

Propagation Delay A

to Y

N

=3.3V ± 03 V

V

CC

Symbol Parameter Test Conditions

t

PLZ

t

NEW PRODUCT

PZL

t

PLZ

t

PZL

=5.0V ± 0.5V

V

CC

Propagation Delay A

to Y

N

Symbol Parameter Test Conditions

t

PLZ

t

PZL

PLZ

PZL

Propagation Delay A

to Y

N

Operating Characteristics (@T

T

= +25°C

A

Min Typ Max Min Max Min Max

Figure 1

C

= 15pF

L

Figure 1

C

= 50pF

L

—

5.4 10.4 1 13 1 13

7.2 10.4 1 13 1 13

9.7 15.2 1 18 1 18

9.3 15.2 1 18 1 18

= +25°C

T

A

Min Typ Max Min Max Min Max

Figure 1

C

= 15pF

L

Figure 1

C

= 50pF

L

—

2.9 7.1 1 8.5 1 8.5

4 7.1 1 8.5 1 8.5

4.7 10.6 1 12 1 12

5.8 10.6 1 12 1 12

= +25°C

T

A

Min Typ. Max Min Max Min Max

Figure 1

C

= 15pF

L

Figure 1

C

= 50 pF

L

= +25°C, unless otherwise specified.)

A

—

2.2 5.5 1 6.5 1 6.5

2.9 5.5 1 6.5 1 6.5

3.4 7.5 1 8.5 1 8.5

4.2 7.5 1 8.5 1 8.5

74LV06

-40°C to +85°C -40°C to +125°C

Unit

ns

Unit

ns

Unit

ns

Cpd

Parameter Test Conditions

Power Dissipation

Capacitance per Gate

f = 10MHZ C

= 50pF

L

V

CC

3.3V 2.5

5.0V 3.0

Typ Unit

pF

Noise Characteristics

VCC = 3V, CL = 50pF TA = +25°C

Symbol Parameter Min Typ Max Unit

V

Quiet output, maximum dynamic VOL

OL(p)

V

Quiet output, minimum dynamic VOL

OL(V)

V

Quiet output, minimum dynamic VOH

OH(V)

V

IH(D)

IL(D)

High Level dynamic input voltage 2.31 — —

Low Level dynamic input voltage — — 0.99

—

0.2

-0.1

3.1

0.8 V

-0.8

—

V

Package Characterisitics

Symbol Parameter Test Conditions

Ci

Input Capacitance

Vi = V

– or GND

CC

74LV06A

Document number: DS35660 Rev. 1 - 2

V

CC

2.0 to 5.5V — 3.3 10 pF

4 of 9

www.diodes.com

Min Typ Max Unit

October 2013

A

Parameter Measurement Information

74LV06

NEW PRODUCT

Voltage Waveform

Pulse Duration

Notes: A. Includes test lead and test apparatus capacitance. B. All pulses are supplied at pulse repetition rate ≤ 10 MHz C. The inputs are measured one at a time with one transition per measurement.

D. For the open drain device t

E. t

F. t

is measured at VM.

PZL

is measured at VOL +V

PLZ

74LV06A

Document number: DS35660 Rev. 1 - 2

PLZ

∆

and t

are the same as t

PZL

where V∆ = 0.3V

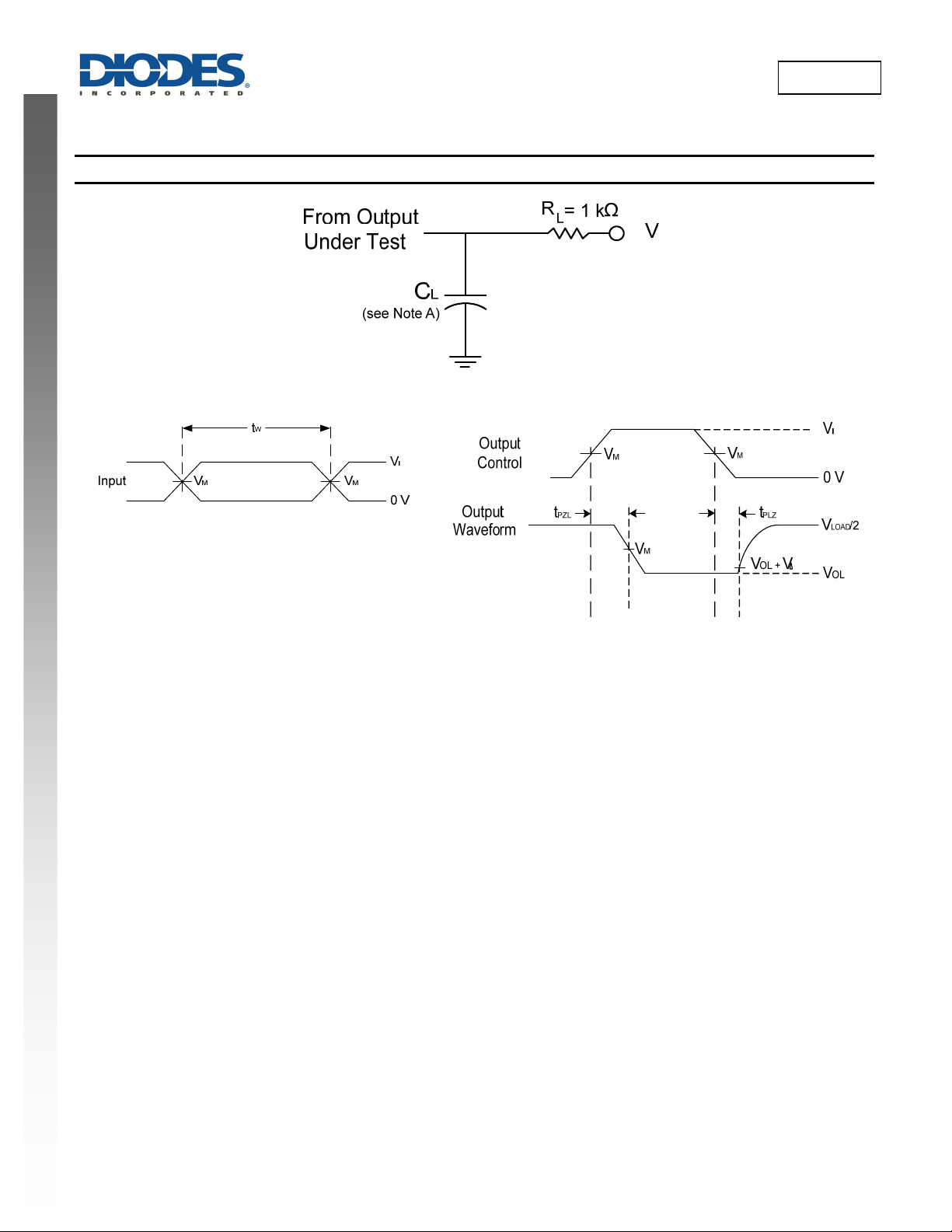

Figure 1 Load Circuit and Voltage Waveforms

PD

5 of 9

www.diodes.com

Voltage Waveform

Propagation Delay Times

October 2013

A

Ordering Information

Part Number Package Code

74LV06AS14-13 S14 SO-14 2500/Tape & Reel -13

74LV06AT14-13 T14 TSSOP-14 2500/Tape & Reel -13

Notes: 6. The taping orientation and tape details can be found at http://www.diodes.com/datasheets/ap02007.pdf

NEW PRODUCT

Packaging

(Note 6)

Quantity Part Number Suffix

Marking Information

(1) SO14, TSSOP14

74LV06

13” Tape and Reel

74LV06A

Document number: DS35660 Rev. 1 - 2

Part Number Package

74LV06AS14 SO-14

74LV06AT14 TSSOP-14

6 of 9

www.diodes.com

October 2013

A

Package Outline Dimensions (All dimensions in mm.)

Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.

Package Type: SO-14

Gauge Plane



7

°

(

NEW PRODUCT

B

Package Type: TSSOP-14

H

E

D

4

x

)

e

A2

A1

A

L

Detail “A”

Pin# 1 Indent

B

L

G

K

A

a

1

D

C

F1

F

Detail ‘A’

5 2

.

0

2

a

Gauge Plane Seating Plane

Detail ‘A’

74LV06A

Document number: DS35660 Rev. 1 - 2

7 of 9

www.diodes.com

SO-14

Dim Min Max

A 1.47 1.73 A1 0.10 0.25 A2 1.45 Typ

B 0.33 0.51

D 8.53 8.74

E 3.80 3.99

e 1.27 Typ

H 5.80 6.20

L 0.38 1.27

0 8



All Dimensions in mm

TSSOP-14

Dim Min Max

a1 7° (4X) a2

0

A 4.9 5.10 B 4.30 4.50 C



D 0.8 1.05 F 1.00 Typ

F1 0.45 0.75

G 0.65 Typ K 0.19 0.30 L 6.40 Typ

All Dimensions in mm

8°

1.2

74LV06

October 2013

A

Suggested Pad Layout

Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.

Package Type: SO-14

X

C2

C1

Y

NEW PRODUCT

Package Type: TSSOP-14

X

C2

Y

C1

74LV06A

Document number: DS35660 Rev. 1 - 2

8 of 9

www.diodes.com

Dimensions Value (in mm)

X 0.60

Y 1.50 C1 5.4 C2 1.27

Dimensions Value (in mm)

X 0.45

Y 1.45 C1 5.9 C2 0.65

74LV06

October 2013

A

74LV06

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks.

NEW PRODUCT

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the final and determinative format released by Diodes Incorporated.

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

IMPORTANT NOTICE

LIFE SUPPORT

74LV06A

Document number: DS35660 Rev. 1 - 2

9 of 9

www.diodes.com

October 2013
