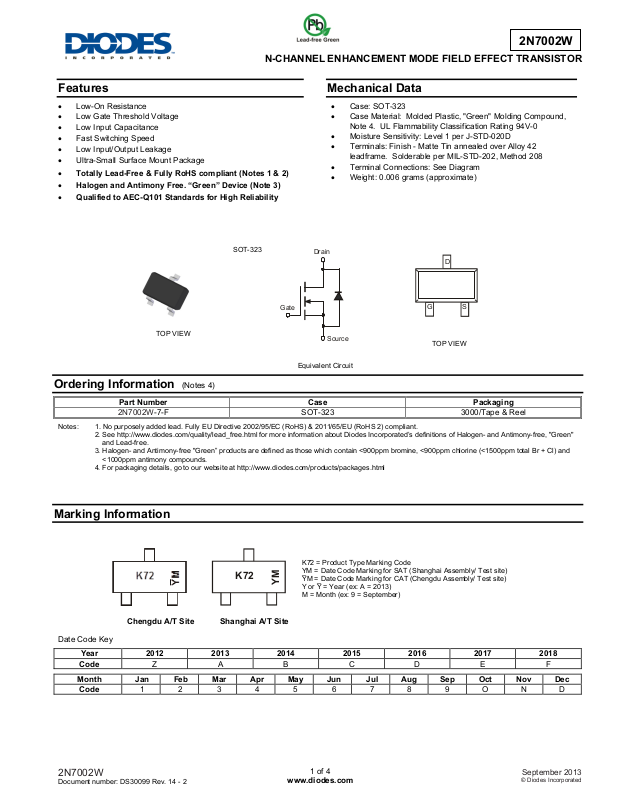

N-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR
Features
Low-On Resistance
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Ultra-Small Surface Mount Package
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
TOP VIEW
SOT-323
Gate
Equivalent Circuit
2N7002W
Mechanical Data
Case: SOT-323
Case Material: Molded Plastic, "Green" Molding Compound,
Note 4. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Finish - Matte Tin annealed over Alloy 42
leadframe. Solderable per MIL-STD-202, Method 208
Terminal Connections: See Diagram
Weight: 0.006 grams (approximate)
Drain
Source
D
GS
TOP VIEW
Ordering Information (Notes 4)
Part Number Case Packaging
2N7002W-7-F SOT-323 3000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
Date Code Key
Year 2012 2013 2014 2015 2016 2017 2018
Code Z A B C D E F
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Chengdu A/T Site
K72
Shanghai A/T Site
2N7002W
Document number: DS30099 Rev. 14 - 2
K72 = Product Type Marking Code
YM = Date Code Marking for SAT (Shanghai Assembly/ Test site)
Y M = Date Code Marking for CAT (Chengdu Assembly/ Test site)
YM
Y or Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)
1 of 4
www.diodes.com
September 2013
© Diodes Incorporated
Page 2
)
)
)
Maximum Ratings (@T
= +25°C, unless otherwise specified.)
A
Characteristic Symbol Value Unit
Drain-Source Voltage
Drain-Gate Voltage RGS 1.0M V
Gain-Source Voltage Continuous
Pulsed
Drain Current (Note 5) Continuous
Continuous @ +100C
Pulsed
Thermal Characteristics (@T
= +25°C, unless otherwise specified.)
A
Characteristic Symbol Value Unit
Total Power Dissipation (Note 5)
Derating above TA = +25°C
Thermal Resistance, Junction to Ambient
Operating and Storage Temperature Range
V
V
R
TJ, T
DSS
DGR
GSS
ID
PD
JA
STG
2N7002W
60 V
60 V
20
40
115
73
800
200
1.60
625
-55 to +150
V
mA
mW
mW
C/W
C
Electrical Characteristics (@T
= +25°C, unless otherwise specified.)
A
Characteristic Symbol Min Typ Max Unit Test Condition
OFF CHARACTERISTICS (Note 6)
Drain-Source Breakdown Voltage
Zero Gate Voltage Drain Current @ TC = +25°C
@ TC = +125°C
Gate-Body Leakage
BV
I
DSS
I
GSS
60 70
DSS
1.0
500
10
V
VGS = 0V, ID = 10A
A
VDS = 60V, VGS = 0V
nA
VGS = 20V, VDS = 0V
ON CHARACTERISTICS (Note 6)
Gate Threshold Voltage
Static Drain-Source On-Resistance @ TJ = +25°C
@ Tj = +125°C
On-State Drain Current
Forward Transconductance
V
R
DS(ON)
I
D(ON
GS(th
gFS
1.0
1.8
2.6
0.5 1.0
80
2.0 V
7.5
13.5
VDS = VGS, ID = 250A
VGS = 5.0V, ID = 0.05A
Ω
VGS = 10V, ID = 0.5A
A
VGS = 10V, VDS = 7.5V
mS
VDS = 10V, ID = 0.2A
DYNAMIC CHARACTERISTICS (Note 7)
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
C
C
oss
C
rss
iss
22 50 pF
11 25 pF
2.0 5.0 pF
VDS = 25V, VGS = 0V
f = 1.0MHz
SWITCHING CHARACTERISTICS (Note 7)
Turn-On Delay Time
Turn-Off Delay Time
Notes: 5. Device mounted on FR-4 PCB 1.0 x 0.75 x 0.062 inch pad layout as shown on Diodes, Inc. suggested pad layout AP02001, which can be found on our
website at http://www.diodes.com/datasheets/ap02001.pdf.
6. Short duration pulse test used to minimize self-heating effect.
7. Guaranteed by design. Not subject to production testing.
2N7002W
Document number: DS30099 Rev. 14 - 2
t
D(ON
t
D(OFF)
2 of 4
www.diodes.com
7.0 20 ns
11 20 ns
VDD = 30V, ID = 0.2A,
RL = 150Ω,V
R
= 25Ω
GEN
GEN
= 10V,
September 2013
© Diodes Incorporated
Page 3
R
O
R
R, NOR
1.0
0.8
0.6
0.4
0.2
D
I , DRAIN-SOURCE CURRENT (A)
0
012
V , DRAIN-SOURCE VOLTAGE (V)
DS
Fig. 1 On-Region Characteristics
3.5
3.0
2N7002W
7
6
5
4
MALIZED
3
, N
DS(ON)
2
1
DRAIN-SOURCE ON-RESISTANCE
3
45
0
00.2
0.4 0.6 0.8 1.0
I , DRAIN CURRENT (A)
D
Fig. 2 On-Resistance vs. Drain Current
6
5
2.5
4
2.0
MALIZED
3
1.5
DS(ON)
1.0
DRAIN-SOURCE ON-RESISTANCE
0.5
0.0
-55 -30
T , JUNCTION TEMPERATURE ( C)
20 45 70 95 120 145 170
-5
J
Fig. 3 On-Resistance vs. Junction Temperature
°
2
DS(ON)
R , NORMALIZED
1
DRAIN-SOURCE ON-RESISTANCE
0
0 2 4 6 8 1012141618
V , GATE TO SOURCE VOLTAGE (V)
GS
Fig. 4 On-Resistance vs. Gate-Source Voltage
Package Outline Dimensions
2N7002W
Document number: DS30099 Rev. 14 - 2
K
J
A
TOP VIEW
G
H
D
SOT-323
Dim Min Max
C
B
A 0.25 0.40
B 1.15 1.35
C 2.00 2.20
D 0.65 Nominal
F 0.30 0.40
G 1.20 1.40
H 1.80 2.20
M
J 0.0 0.10
K 0.90 1.00
L
F
L 0.25 0.40
M 0.10 0.18
0° 8°
All Dimensions in mm
3 of 4
www.diodes.com
September 2013
© Diodes Incorporated
Page 4
2N7002W
Suggested Pad Layout
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2013, Diodes Incorporated
www.diodes.com
Y
Z
C
Dimensions Value (in mm)
Z 2.8
X 0.7
Y 0.9
C 1.9
E 1.0
X E
