Dinsafer DHW01O, DMC01O, DYK01O User Manual

Smart Alarm System & App

Designed for home and business security.

Easy to setup and use with App.

Security Products User Manual

Perfectly match all Android® and iOS smart phones.

World famous expert of smart alarm system

User Manual

Meet the New Great Smart Alarm System.

We make things different.

2

P3

P6

P9

P23

P24

P25

P28

Get Ready and Power On

Work with the Main Panel

App Manual [Setting by Smartphone]

FAQ

Appendix 1 : Accessory Installing

Appendix 2 : Smart Camera Settings

Appendix 3 : Product Specification Lists

MENU

The screenshots and texts might be different from the version you’re using. Please refer to the latest one.

●

●

●

●

●

●

●

3

Get Ready and Power On 1/3

• When alarm is triggered, users can cancel the alarm by pressing down the DISARM button on the remote
controller, or by sending SMS commands via the mobile App.

• It’s recommended to pair the remote controller with the system first so users could test the system easily.

During the installation of the alarm system, you might trigger the alarm by
accident. If the remote controller has been paired with the system, you can
press the DISARM button on right top (with the unlock icon) to disarm the
system and cancel the alarm.

Main Panel Remote Controller

DISARM

4

Get Ready and Power On 2/3

Connect the power cable and insert sim card

Power ON

• Remove the battery cover on the back of the panel. Insert the power cable to the
power outlet first. Then open the SIM card slot to insert the SIM card.

For those micro or nano SIM cards, please use sim adapter to fit the card slot.

PLEASE REMEMBER TO INSERT THE POWER CABLE FOR THE FIRST TIME USING.

• Flip the switch on the back of the panel to the ON position. Replace the battery cover.
Wait 20 seconds as the system runs a start-up diagnostic with a welcome screen.

• You will hear a confirmation when the test is complete.
When you see the main screen ( left ) the system is ready.

• The main panel uses GSM based SIM cards to send text messages and make phone calls.

It might be incompatible with some WCDMA or LTE sim card.

• Make sure PIN-codes and voicemail are de-activated on the SIM before using with the panel.

• Make a note of the SIM telephone number, you will need it for setup.

Power Outlet

SIM Card Slot

5

Get Ready and Power On 3/3

Appendix: step by step guiding.

• Please use the Mini-SIM card (Standard-SIM card) for the alarm system.
Card adapter is required when using nano or micro SIM card.

1. Open the back cover 2. Slide the cover of the SIM slot to the left to
open it.

3. Insert the SIM card and align it (notch on right
top), slide the cover to the right to close it.

5. Turn on the power switch by move the button
to the right.

6. Put the cover back and close it.4. Insert the power cable (USB cable),

make sure the narrow edge is facing down.

OR

=

Mini-SIM

Nano-SIM Micro-SIM

Standard SIM Card

Micro SIM Card

Nano SIM Card

6

Work with the Main Panel 1/3

• The system uses MicroUSB as the power cable interface

.

• You can easily recharge it via any MicroUSB cable. Please make sure the recharger is 5V/2A as our official one.

LCD Monitor

Control Button

Press to enter the settings menu.

Press to select.

Press to navigate.

Press to go back.

Child Lock

Lock:

Long-press for 6 seconds until the lock icon shows on screen.

Unlock:

Long-press for 6 seconds until the lock icon disappears.

Power Light & Exit Delay Button

Power Light with logo.
Long-press to arm the system.

The system supports Exit Delay feature. It means the system would wait few seconds before going into ARM status.
It allows you to leave your home without triggering the alarm. The delay time can be adjusted in App.

7

Work with the Main Panel 2/3

08:18

18

°c

Wednesday, September 15

Signal Bars

Indicate the GSM signal strength.

Battery Life

Indicatethe remain battery lifewhen AC power is OFF.

Arm

All active sensors can trigger alarm.

Home Arm

Only those on Homemode stop trigger alarm.

Alarm Clock Status

Indicate one or more Alarm Clock has been set.

Real-time Temperature

The temperature surrounding main panel.
Users can change ºC or ºF in settings.

Clock

After initializing process, the time will
synchronize with your phone’s.

SIM Card Status

Flashing when starting up or SIM card error.

AC Power

External power is available.

Disarm

Stop trigger alarm, except those on 24-hours mode.

Arming Schedule

Indicate the Arm Schedule has been set.

Child Lock

Indicate the Child Lock is active.

8

Work with the Main Panel 3/3

Alarm Clock

Check all working alarm clocks set by App.

ºC/ ºF Switch

Switch the temperature scale between Fahrenheit and Celsius.

Screen Timeout

Set the screen saving time.

9

App User Manual

Setting by smartphone

10

Initializing by App

• Scan the QRCode or visit the website from your phone to download the
latest App for both Android and iOS phones.

• All operations and settings of the system could be easily done via App.

• App comes with multi-languages, you can easily change it in App.

Power to the people

Smart Alarm System

11

Add a New Main Panel

• The App is a great tool to control main panel. main panel should be added to App before using, which we call binding.

One App can handle more than one main panel. The phone number of main panel and the password would be asked during binding. Different
role has its default password.

Administrator:

General operations and advanced settings are available.

User:

General operations only.

• The beginners will get kindly reminder, which could help them through the settings step by step.

• The App supports renaming for the main panel, which is especially useful when managing multiple devices.

• Users without having a main panel may experience the products in the demo mode of App.

• Some carriers might ask you to remove the 0 at the start of the mobile number when country code is selected.

• The password would be saved to encrypt all outgoing SMS commands. You can change it in the device management menu.

SAVE

12

Switch Between One/Two Hands Mode

One/two hands mode

• There are different sizes of smart phones with
Android or iOS systems, which bring operation­al inconvenience for users.

• We bring convenience by offering one/two
hands modes for both small sizes phones (3.5
inches including under) and big sizes phones
and tablet PC (4 inches including above)

• It’s one good case to show our principle:
make every effort to minimum users’ operative
difficulty.

Two hands mode only works on Android

®

phone now.

One Hand Mode Two Hands Mode

13

How to Use the Control Panel of App

•

Arm:

All accessories under none “Disable” status are on arm.

•

Home arm:

Only the accessories on "Instant" or "24 Hours" mode are on arm.

•

Disarm:

Only “24 Hours”mode accessories are on arm.

System will alarm when one or more accessories on arm are triggered.

Navigator

Swap to switch between menus.
The other two menus are

[Information]

and

[Settings]

Easy Control Panel

Arm, Disarm, Home Arm, SOS, Etc.

Accessories QuickView

The fastest way to use your accessories.

Manage & Help

Add more main panels, Reinitialization.

App Settings & Supports

Change App languages. Send feedbacks.

Enable it to receive
reports for each SMS
command.

Renew it when Admin
or User password is
changed.

14

How to Add Emergency Contacts

• Slide softly on Main Panel, switch to

[SETTINGS]

menu.

• Click

[Emergency contacts]

. Up to 6 emergency contacts are for settings. Tap any of them for editing.

• The main panel calls and texts to emergency contacts when alarming. You can decide which informing message to receive.

• Please set your cellphone number as the 1st emergency contact. Because only the first one could receive important notifications

(

ARM, Power Lost, etc.

).

• You might need to add or remove the country code in the head of the emergency contact numbers to receive phone call and SMS correctly.

Please ask your local carriers when you need more informations.

Strongly recommend to set it when using main panel the first time.

15

Operations During the Emergency Call

Appendix: operation instructions when receiving emergency calls

You can key in the keypad commands during the
voice instructions played in the emergency call.

MONITOR

CANCEL SOS

LISTEN AGAIN

CALL NEXT CONTACT

Press ** to monitor and talk via
phone to main panel.

Press ## to cancel SOS.

Press 88 to listen again.

Hang up to call the next
emergency contact.

16

How to Add Accessories

• Click + on top-right of the screen.

• Scan the bar code or QR code printed on accessories with phone’s camera.

• Name the accessory.

• Set the trigger modes or other properties as you need, then save.

Tips:

When pairing with Smart Plug or
Wireless Siren, please power it up
before saving pairing settings.

17

Manage and Operate Smart Camera 1/3

• Like adding accessories, tap + to scan QR code on camera then name it.

• If you want to be informed to check the real-time video (like the camera facing the door) when alarm is trigger by certain accessory

(like the door/window sensor installed on the front door), you can use [inform when … alarms:] and tick the related accessories.

18

Manage and Operate Smart Camera 2/3

•

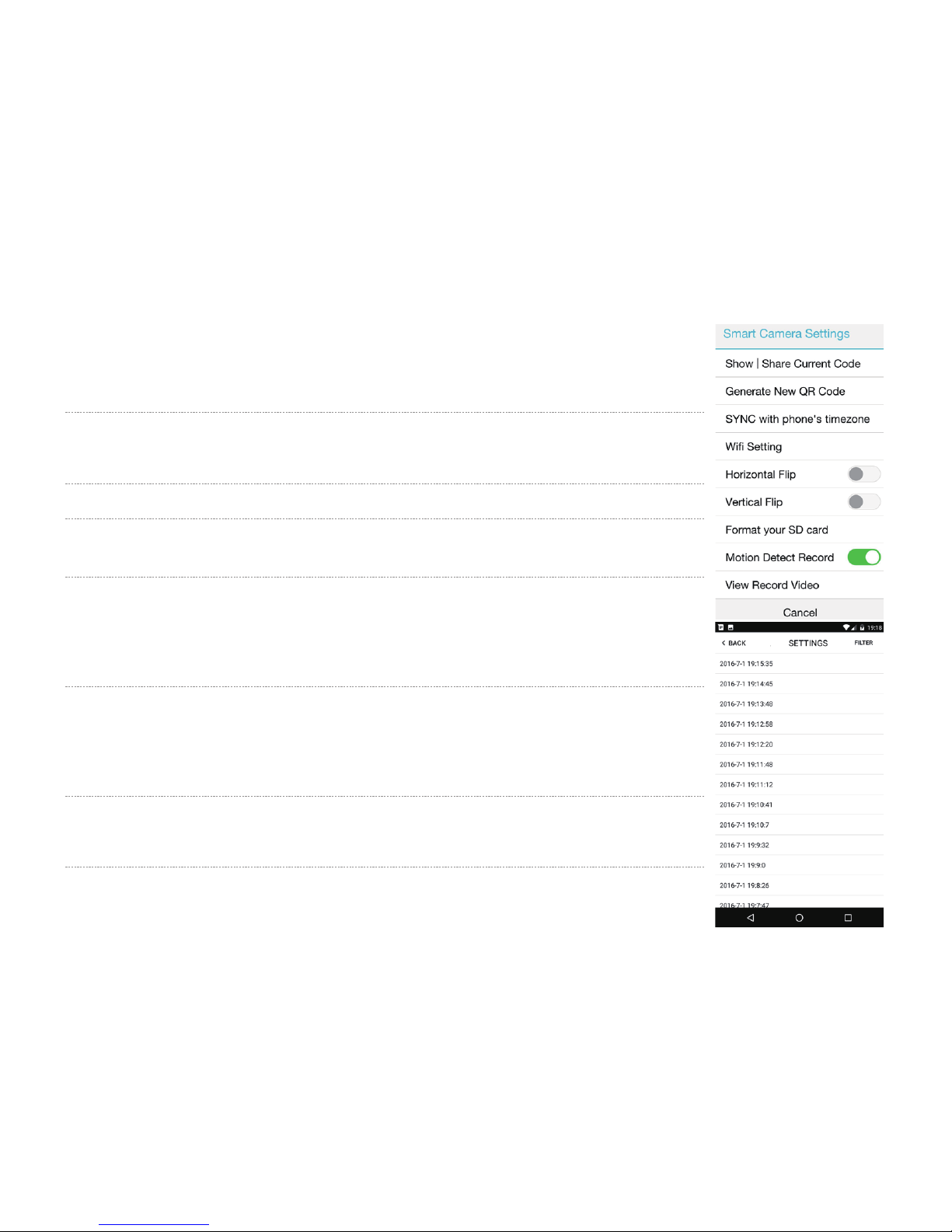

Move:

Watch by dragging on the screen or tapping Move button and control with joystick.

•

SnapShot:

Snapshot the current screen and save it to phone album.

•

Sound:

Listen to the sound around Smart Camera.

•

Talk:

Talk while tapping and it plays immediately via camera speaker.

SYNC with phone’s timezone:

SYNC with phone’s timezone. Synchronize the
timezone with your phone’s.

Show | Share Current Code:

Show the current QRCode of Smart Camera,
you can share it via MMS or other apps.

Generate New QR Code:

Generate a new QRCode of Smart Camera, us­ers who is still using the old QRCode would fail
when visiting this Smart Camera.

Wifi Setting:

Connect IP camera wirelessly.

Horizontal & Vertical Flip:

Flip the screen to view correctly when the
Smart Camera was installed upside-down.

Format Your SD card:

Erase and make your SD card recordable.

View Record Video:

List all the recorded video on your SD card, can
be sorted by date. Click to play.

Motion Detect Record:

Automatically record video when any motion is
detected (5s before + 15s after).

19

No Yes

ATTENTION: An alarm message is
received. Check the live video from
your Smart Camera now?

Manage and Operate Smart Camera 3/3

1. If a thief intrudes and triggers some

accessory alarm, the emergency contacts
would get informing SMS and alarming call
right after that.

2. The App captures the informing SMS right
after that and reminds the user to check live
video from the camera paired before. Users
get informed immediately even when the App
is exited.

3. Just one tap to show you the real-time
video! The thief is nowhere to hide!

Appendix: How Smart Camera works when alarm occurs?

20

Advanced Settings and Other Features 1/3

Emergency Contact:

Up to 6 contacts for setting.

Alarm Clock Setting:

Up to 4 clocks for setting, with 4 modes each.

Temperature Setting:

An informing SMS would be received when
surrounding temperature is out of the safe
range you set.

Knock Over to SOS:

Punch or knock over the main panel to
trigger SOS when the switch is ON.

(Strongly recommended to those live alone)

21

Advanced Settings and Other Features 2/3

Arming Schedule:

Up to 6 groups of settings for daily arming.

(Disarm is not supported for securit y consideration)

Exit Delay:

Waiting time before going into ARM status. It can be 90 seconds longest.

Entry Delay:

If some sensors in delay mode trigger alarm, system will wait few seconds before
activating alarm. It can be 90 seconds longest.

Speaker Volume:

The build-in speaker volume, with 4 grades and 1 is weakest.

Change Password:

Admin and user password settings, for authorization while initializing.

Sync Host Time:

Synchronize the time of main panel with the phone’s time.

Main panel Language:

Change the default language for the main panel’s menu and SMS. If the chosen
language is not supported by the current firmware, system will use English as default.

Siren Time:

The build-in siren time, up to 30 minutes long last.

22

Advanced Settings and Other Features 3/3

Logs & Events:

List recent arm, disarm and alarm records.

• Security Accessories' Trigger Mode:

Show names of paired accessories and
their trigger modes.

• Remote Controller List:

Show names of paired remote controllers.

• Smart Camera List & Linking Status:

Show all paired Smart Camera names
and their linking accessories status.

• Smart Plug List:

Show all paired Smart Switch.

System Status:

Check current time, arm status, etc.

Informing Strategies:

Check types of informing SMS received from
main panel when event occurs.

(Like power down, temperature alarm, etc.)

Arming Schedule:

Check timing arming schedule.

Alarm Clock List:

Show all available alarm clocks.

Realtime Temperature:

Check temperature around main panel.

Emergency Contacts:

Show added emergency c ontact s in main
panel.

Arming Time:

Check delay settings for Entry Delay and Exit Delay.

Main panel sends SMS to reply your inquiry here.

Smart Switch List

Smart Camera List & Linking Status

23

FAQ

Can I use other branded accessories with the main panel?

Sorry, main panel only supports official accessories.

1. The official accessories use encrypted communication protocols with patented technology. This makes them safer and more stable.

2. The official accessories are easily paired with the system just by scanning QR codes or barcodes.

Most of our accessories support low-battery warning.

How can I get help with my main panel system?

Contact the local agency first to get the fastest support services.

Why can't I receive SMS informing messages from main panel?

1、Please check the SIM card is installed correctly.
If the GSM status light keep flashing or stay ON, there should be some errors of the card or local carrier networking. Please change another SIM
card and try restarting the main panel.
2、You can call the main panel's phone number to check if the SIM card is working.
3、In some cases, you might need to remove the "0" from the head of the emergency contact number or main panel number during the initial­izing process.
Default Admin Password : 123456 Default User Password: 1234

How can I reset my main panel?

1. Power up your main panel.

2. Hold down the reset button on the back of the panel until you hear 1 beep.

3. Continue holding it for 6 seconds until hearing 2 beeps.

4. System would be reset and restart.

PLEASE MAKE SURE YOU CLEARLY KNOW THE RESULT OF RESETING: ALL SETTINGS WILL BE LOST.

24

Appendix 1: Accessory Installing

10-30

o

6.5-7.5 feet

• Remember to pull out the
battery insulating pieces
before use.

• Use App for pairing acces­sories before installing.

• It’s recommended to take
pictures for the QR codes
or barcodes printed on the
accessories and save them
to your phone’s album.

Less than 0.4 inches.

25

Appendix 2: Smart Camera Settings 1/3

Pairing with Main Panel

• Please use App to scan the QR code to pairing Smart Camera.

• The QR code is printed on the bottom of Smart Camera.

Insert LAN Cable and Power On

• Please always connect Smart Camera with LAN be-

fore powering up when you first using it.

• Makesurethethe settings like DHCP Server and

UPNPareenabled on your router.

• Connect the power cable, the Smart Camera will run

some diagnostic processes like rolling the camera.
When it stops rolling, the startup is completed.

Watch Live Video by App

• Tap the Smart Camera Listed in App

• If the camera is online, you can watch live video and

• control it like rolling or taking snapshot.

Bottom Back view of P-series

(Interface differs for each series)

PowerLANAudio Out SD Card Reset

26

Appendix 2: Smart Camera Settings 2/3

Connect Camera to Wireless Network

• The SSID will be automatically filled as your phone’s , please type in the password and tap [Confirm].

• Unplug the LAN cable, restart your Smart Camera by plugging out/in the power cable.

• If you saved the wrong password and restarted the Smart Camera, please reconnect it by LAN again,

then repeat the setting process above.

Horizontal & Vertical Flip

• Flip the screen to view correctly when the Smart Camera was installed upside-down.

Use SD Card for Video Recording

• If the SD card is new or needs to be erased, please tap [Format your SD card] to make it available for recording.

• Switch on [Motion Detect Record] to record videos when motion is detected by Camera's lens.

• The video will be recorded as 640*480 and lasted for 20s to 30s. When the SD card is full, the old files will be auto-

matically deleted for recording the latest one.

Play Recorded Videos

•Tap [View Record Video] to list all recent videos. Tap the records to play online.

• You can tap [Choose Date] to filter videos by date.

Synchronize the Timezone with Your Phone’s

• Tap [SYNC with phone’s timezone]

When your phone’s timezone changed, please do it again to keep both timezone the same.

SYNC with phone’s timezone:

SYNC with phone’s timezone. Synchronize the timezone with your phone’s.

Show | Share Current Code:

Show the current QRCode of Smart Camera, you can share it via MMS or other apps.

Generate New QR Code:

Generate a new QRCode of Smart Camera, users who is still using the old QRCode would fail when visiting this Smart
Camera.

27

Appendix 2: Smart Camera Settings 3/3 - FAQ

I

’ve Already Connect My Smart Camera with LAN, but I Can’t Connect It in App.

Please make sure your router has successfully connected to Internet.

DHCP Server/Service should be Enable on the router. UPNP should be Enable too.

Your phone’s data plan should be available. Some carriers restricts the p2p connection protocol, try using App in the same Wi-Fi with

Smart Camera to figure out the problem.

If you still can’t connect it, try another router if possible. Some routers’ build-in firewall also interfere the connection.

How to Reset The Wi-Fi Settings?

Reconnect it to LAN and re-type the password in Smart Camera setting first, always.

Unplug the LAN cable after Wi-Fi setting is completed and restart Smart Camera.

Camera can’t support 5G Wi-Fi now, please use 2.4G wireless routers instead.

I Can’t Save the Snapshots.

App will need to access to your phone’s album for saving snapshots. The authorization might need you to approve while using the

function for the first time in some phones. If you mis-click the ‘No’ option during the authorization, you might need to enable it in the

system setting menu.

How to Reset My Smart Camera?

PLEASE MAKE SURE YOU CLEARLY KNOW THE RESULT OF RESETING:

ALL DATA WILL BE ERASED INCLUDING THE INTERNET SETTINGS AND RECORDED VIDEOS.

Power up your Smart Camera, hold the reset button for 10 seconds. Release the button then the Smart Camera would be reset.

28

Appendix3: Product specification lists

Main Panel

• Wireless Range

200 meter / 656 feet, free air

• CPU

ARM7 Cortex

™

-M3 72MHz

• External Flash

64M

• Working Voltage and Current

5V/2A

• Transmission Frequency

433 MHz±0.5MHz

• GSM Mode

850/900/1800/1900 MHz quad-band

• Numbers of Supported Sensors

99 Sensors
Like Wireless Siren, Wireless Motion Sensors, Wireless Contact Sensors, etc.

• Battery Life

12 hours

• Access Level of Users

Admin, User

• Event Logs

Latest 60 logs

• Managing & Setting

SMS, App (iOS/Android

®

App), PC Client

• Updating, Managing and Programming

By PC

• Certifications

CE / RoHs / Reach / FCC

29

DHW01O

Wireless Motion Sensor

The wireless motion sensor is an accessory of smart alarm system, mainly for indoor use. With high performance infrared
sensor, works under digital dual-core fuzzy logic operative programming and intelligent analysis, it accurately detects human
body movement and effectively avoids false alarms. Featured with automatic temperature compensation technology, it en­sures high intelligence, sensitivity, and stability.
It’s fashion design, energy saving, low battery warning supported and with long transmission distance. The main panel will
send a SMS to user for battery changing when needed. With 360º angle adjustment supported, it’s easy to setup and never
get stuck.

• Working Voltage DC 3V

• Battery 2 × AA battery(1.5V)

• Working Current ≤20mA

• Standby Current ≤20μA

• Detective Range 110°

• Detective Distance 9m

• Transmission Distance Without obstacle 200m

• Transmission Frequency 433.92MHz

• Working Temperature -20℃~50

℃

• Humidity ≤90%rh (non-condensing)

• Weight 66g (battery not included) 112g (battery included) 62.3g (Bracket)

• Dimension 99.6mm*54.0mm*40.2mm L*W*H(±0.1mm)

30

Appearance PCB Layout

Detection Window

Magnetic Slice

Stainless-steel Bead

LED Indicator

Bracket

Detective Interval

Time Setting

Switch

(every 5s. or

5min.)

On/Off Switch

Infrared Sensor

Operating Instructions

1. Working principle

with digital dual-core fuzzy logic operative programming and intelligent analysis, it accurately detects human body movement with infrared sensor and
sends signal to main panel.

2. Pairing with main panel by App

① Scan the QR code printed on the sensor.

②

The pairing result would be confirmed by SMS sent from main panel.

31

Installation & Notice

10°-20°

1.8-2.2m

Detection blind zone

12m6m1.2m

• Open the case and remove the battery insulative strip.

• Pairing with main panel by App before installing.

• Fix the bracket with double-side sticky tape or screws on wall, connect the sensor to bracket, adjust a proper angle. 360° angle adjustment is easily

available with connection of bead and magnetic slice.

• Recommended to install at height of 1.8-2.2m from ground, with gradient 10°~20°.

• Indoor use only. Avoid installing the sensors in area with strong light, temperature changes rapidly or the air stream flows frequently, like close to

windows, air conditioner, refrigerator, heater, oven, and large obstacles.

• Aovid installing two sensors in the same detection scope to interference.

• The sensor is more sensitive to the cross movement than to the vertical movement, so the perference of sensor is best when the detection direction

is vertical to the walking direction of people.

32

Battery Replacement Instructions

①Press down the hook on sensor
with thumb, push it to open the cover.

②Replace with 2x AA battery.

Trigger Mode Clarification

If the LED indicator stays on, please replace the battery.

Trigger Mode Clarification

Close Deactivated when triggered

Instant Activated when ARM/HOME ARM

24 Hours Activated even when DISARM

Home Deactivated when DISARM/HOME ARM

Door Chime No alarm but clanking

33

DMC01O

Wireless Contact Sensor

The wireless contact sensor is an accessory of smart alarm system.
It's fashion design, energy saving, and low battery warning supported. The main panel will send a SMS to user for battery
replacement when needed.
It's easy to setup and works well with most doors and windows. When transmitter and magnet are apart, the sensor triggers
alarm.
Two great features:

- Transmitter can be put on either of magnet's left or right side.

• Working Voltage DC 3V

• Battery 1 × CR2032 button battery (3V)

• Working Current 20mA

• Standby Current 2μA

• Transmission Distance Without obstacle 200m

• Transmission Frequency 433.92MHz

• Working Temperature -10℃~40

℃

• Humidity ≤90%rh (non-condensing)

• Weight 35.5g(battery not included) 40g(battery included)

• Dimension

Transmitter: 80.0mm*38.2mm*13.3mm
Magnet: 80.0mm*14.8*12.9mm (L*W*H)

34

Appearance PCB Layout

Operating Instructions

1. Working principle

The transmitter sends trigger signal to main panel paired when the magnet mounted near is moved apart.

2. Pairing with main panel by App

①Scan the QR code printed on the sensor.
②The pairing result would be confirmed by SMS sent from main panel.

Magnet

Transmitter

LED Indicator

LED Indication

LED flashes once: Door/window is opened and
transmitter sends signal to the main panel.
LED lights stays on: Low battery, please
replace the battery immediately.

35

Installation & Notice

• Open the case and remove the battery insulative strip.

• Pairing to main panel by App before installing.

• Attach the transmitter and magnet seperately on door/window and its frame with double-side sticky tape or fix with screws. Transmitter can be put on

either of magnet's left or right side.

• Make sure the distance between transmitter and magnet is less than 1cm and at the same level.

• Avoid installing the sensors in area with a large amount of metal or electric wire.

Less than 1cm

36

Battery Replacement Instructions

①Insert the flat blade of a small screwdriver
into the pry-off slot of transmitter, twist the
blade to remove the cover.

②Replace with 1xCR2032 battery.

Trigger Mode Clarification

Trigger Mode Clarification

Close Deactivated when triggered

Instant Activated when ARM/HOME ARM

24 Hours Activated even when DISARM

Home Deactivated when DISARM/HOME ARM

Door Chime No alarm but clanking

37

DYK01O

Remote Controller

The remote controller is an accessory of series smart alarm system. It helps you quickly arm/disarm/home arm/trigger SOS the system.
It’s small and exquisite, convenient for carrying out on keychain or in pocket/bag.

• Working Voltage DC 3V

• Battery 1 × CR2032 button battery (3V)

• Working Current ≤7.5mA

• Standby Current No power consumption

• Transmission Distance Without obstacle 200m

• Transmission Frequency 433.92MHz

• Working Temperature -20℃~50

℃

• Humidity ≤90%rh (non-condensing)

• Weight 16.4g (battery included)

• Dimension 58.0mm*33.1mm*11.0mm L*W*H(±0.1mm)

38

Appearance PCB Layout

LED Indicator

Arm

Home Arm

Cover for Battery

Disarm

SOS

Keychain

1 × CR2032

Button Battery

Operating Instructions

①Scan the QR code printed on the controller.
②The pairing result would be confirmed by SMS sent from main

panel.

39

Operating Clarification

• Arm

Press , the LED indicator lights on, the system enters armed status.

• Home Arm

Press , the LED indicator lights on, the system enters home armed status.

• Disarm

Press , the LED indicator lights on, the system enters disarmed status.

• SOS

Press , the LED indicator lights on, the system immediately enters emergent alarming status to call/text emergency contacts.

Battery replacement instructions

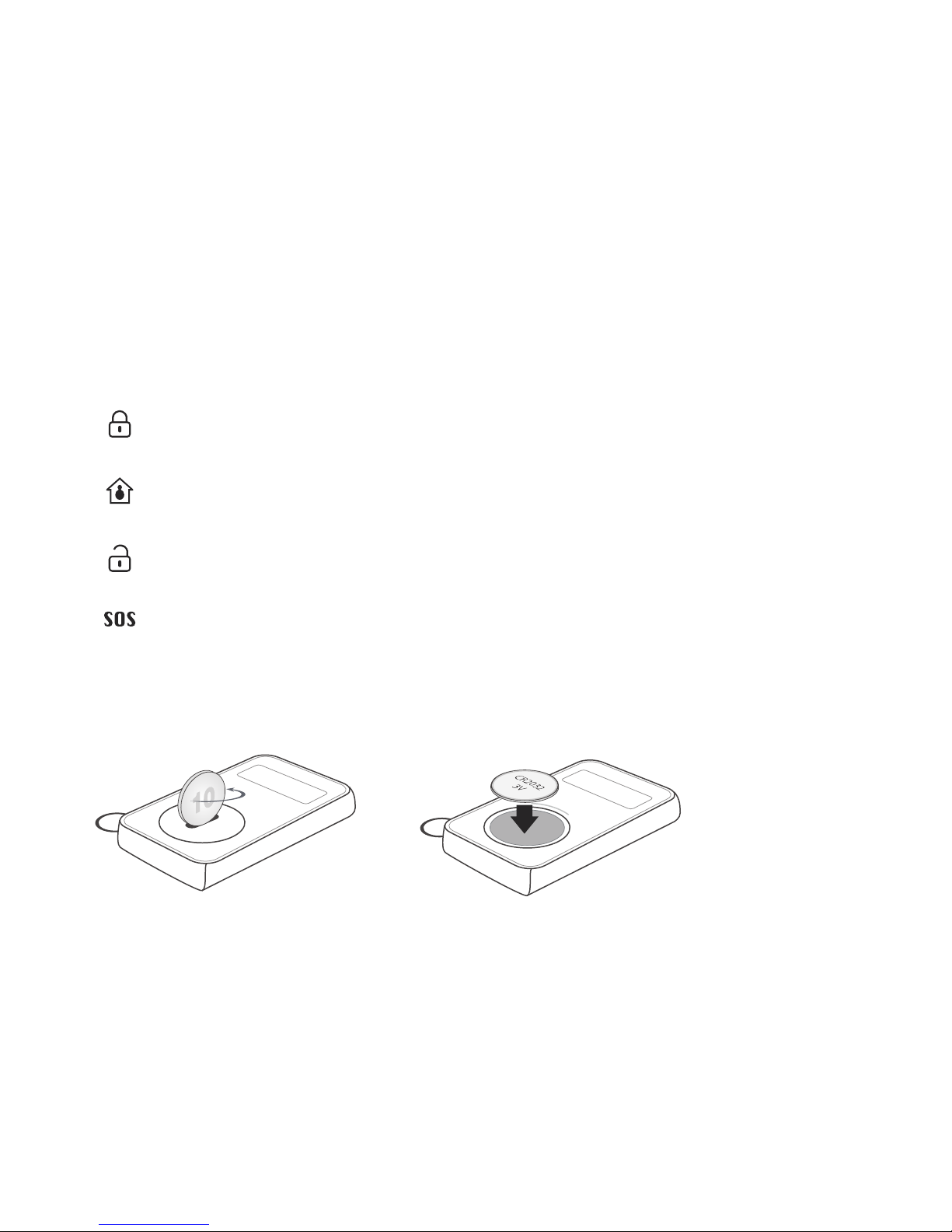

①Using a coin, turn the battery cover
slightly counterclockwise.

②Remove the used battery and replace with
1× CR2032 battery with the plus (+) sym

bol facing up.

If the LED indicator doesn't light up or the system is not responding when any button is pressed, please replace the battery.
