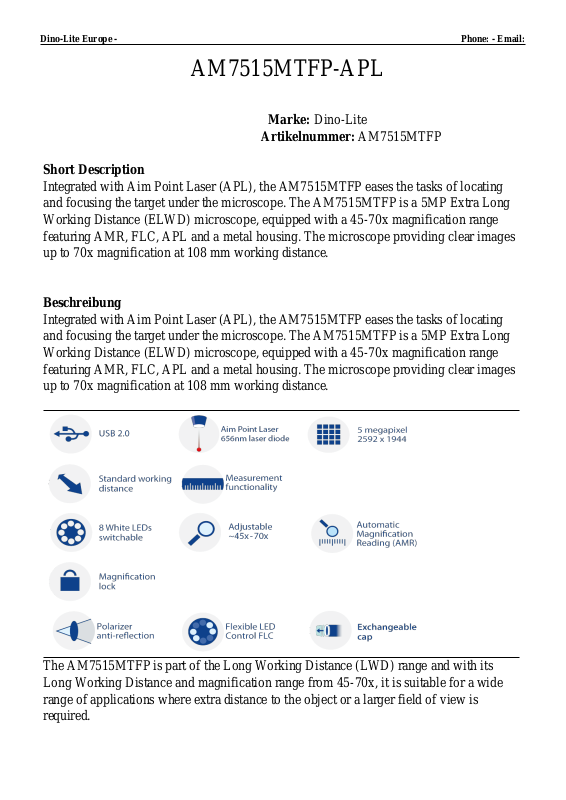

AM7515MTFP-APL
Marke: Dino-Lite
Artikelnummer: AM7515MTFP
Short Description
Integrated with Aim Point Laser (APL), the AM7515MTFP eases the tasks of locating
and focusing the target under the microscope. The AM7515MTFP is a 5MP Extra Long
Working Distance (ELWD) microscope, equipped with a 45-70x magnification range
featuring AMR, FLC, APL and a metal housing. The microscope providing clear images
up to 70x magnification at 108 mm working distance.
Beschreibung
Integrated with Aim Point Laser (APL), the AM7515MTFP eases the tasks of locating
and focusing the target under the microscope. The AM7515MTFP is a 5MP Extra Long
Working Distance (ELWD) microscope, equipped with a 45-70x magnification range
featuring AMR, FLC, APL and a metal housing. The microscope providing clear images
up to 70x magnification at 108 mm working distance.
The AM7515MTFP is part of the Long Working Distance (LWD) range and with its
Long Working Distance and magnification range from 45-70x, it is suitable for a wide
range of applications where extra distance to the object or a larger field of view is
required.
The extra working distance and larger field of view make this model an ideal solution for
tasks such as repair, rework or assembly or for working with bulky or fragile objects that
cannot be touched. Because of the built-in polarization filter this model is ideal when
working with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics,
etc. The AMR function is of particular importance when the measurement functions are
frequently used.
The Aim Point Laser (APL) is an integrated trough-lens laser projecting a red dot that
provides a visual reference point for the positioning and focusing of the target.
The main features of the AM7515MTFP are:
• 5 Megapixel Edge sensor
• Long Working Distance (LWD)
• 45-70x magnification
• Integrated polarizer
• Aluminum housing
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC)
• Extensive measurement functions
• Calibration
• Exchangeable front caps
• And more...
Working distance/field of view/depth of field
MAGNIFICA
TION RATE
Listed values
may differ
slightly
45 - 146 8.7 6.9 2.1
WORKING
DISTANCE 1
* Without
WORKING
DISTANCE
2*
front cap
FIELD OF
VIEW(X)
Unit = mm
FIELD OF
VIEW(Y)
DEPTH OF
FIELD
50 - 135 7.8 6.3 1.8
60 - 120 6.5 5.2 1.3
70 - 108 5.6 4.5 1.0
Listed values
may differ
slightly
* Without
front cap
Unit = mm
Spezifikation
Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available Yes (N3C-D included)
Emission filter No
Polarizer No
Laser Pointer 656nm laser diode
Optics
Magnification 45-70x
Macro zoom No
Working distance Long
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 5 Megapixel (2592x1944)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.14 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac
OS)
Supported image formats
(Windows)
Supported video formats
(Windows)
Supported image formats
(MacOS)
Supported video formats
BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA,
PCX, MNG, WBMP, JP2, JPC, PGX
WMV, FLV, SWF
JPEG, PNG
MOV (max 1.3MP)
(MacOS)
Imaging standards DirectShow, UVC
Wifi Wireless-ready, requires the WF-10 WiFi streamer
(optional)
Housing
Housing material Metal housing
Dimensions 10.7cm (L) x 3.2cm (D)
Weight 140gr
Cable length 1.8m
Features
Special feature Automatic Magnification Reading (AMR),
Flexible LED Control (FLC). Aim Pointer Laser
(APL)
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe Yes
Information
Package contents Microscope, carry pouch, software CD, calibration
target, user manual, N3C-O- Open cap, N3C-C-
Closed cap, N3C-D- Diffuser cap, N3C-E-
Extension cap, N3C-L- Long cap, N3C-S- Side
light cap
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €900,00 - €1000,00
