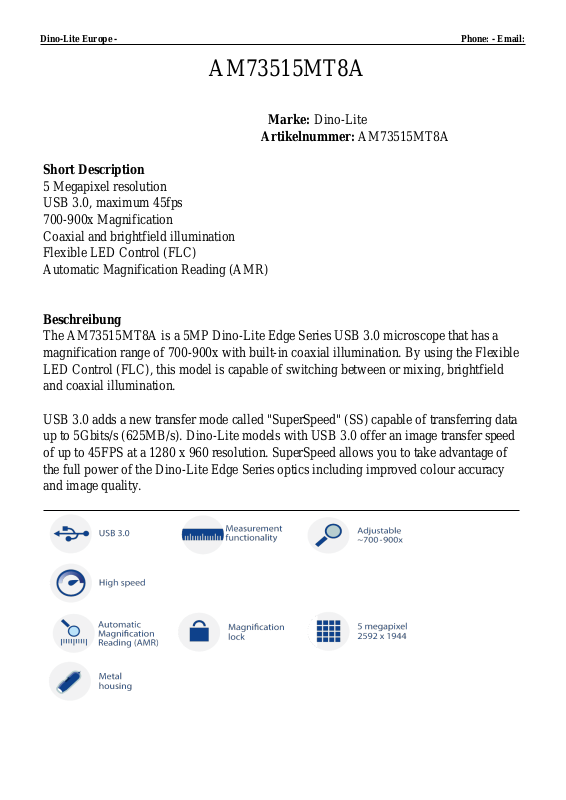

AM73515MT8A
Marke: Dino-Lite
Artikelnummer: AM73515MT8A
Short Description
5 Megapixel resolution
USB 3.0, maximum 45fps
700-900x Magnification
Coaxial and brightfield illumination
Flexible LED Control (FLC)
Automatic Magnification Reading (AMR)
Beschreibung
The AM73515MT8A is a 5MP Dino-Lite Edge Series USB 3.0 microscope that has a
magnification range of 700-900x with built-in coaxial illumination. By using the Flexible
LED Control (FLC), this model is capable of switching between or mixing, brightfield
and coaxial illumination.
USB 3.0 adds a new transfer mode called "SuperSpeed" (SS) capable of transferring data
up to 5Gbits/s (625MB/s). Dino-Lite models with USB 3.0 offer an image transfer speed
of up to 45FPS at a 1280 x 960 resolution. SuperSpeed allows you to take advantage of
the full power of the Dino-Lite Edge Series optics including improved colour accuracy
and image quality.
The coaxial illumination technique reveals details that are very difficult to see under
normal light, for example when inspecting wafer plates, microchips or other
microelectronics. The AM73515MT8A includes the Automatic Magnification Reading
(AMR) feature which automatically detects and displays the magnification in the
included Dino-Lite software.These unique features make the Dino-Lite AM73515MT8A
a great inspection tool for material analysis, electronics inspection, or any similar
application that requires high magnification, coaxial illumination, high speed, versatility
and mobility. The Dino-Lite AM73515MT8A is bundled with the user-friendly
DinoCapture 2.0 software for Windows.
For this model it includes functions such as Automatic Magnification Reading (AMR),
Flexible LED Control (FLC), calibration, measurement, capturing & annotating images,
and recording video. When focusing at such high magnification it is recommended to use
a high-precision stand. The Dino-Lite RK-10A for example is a great add-on, it is a
sturdy and stable high-end stand solution constructed of resilient stainless steel and
lightweight aluminum and offers a very precise fine-focus adjustment.
Working distance/field of view/depth of field
MAGNIFICATI
ON RATE
700 6.4 0.56 0.400 0.01
750 6.3 0.52 0.375 0.01
800 6.1 0.48 0.350 0.009
850 6.0 0.46 0.330 0.009
900 5.9 0.43 0.315 0.008
Listed values
may differ
slightly
WORKING
DISTANCE*
*Without front
cap
FIELD OF
VIEW(X)
Unit = mm
FIELD OF
VIEW(Y)
DEPTH OF
FIELD
Spezifikation
Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Emission filter No
Polarizer No
Optics
Magnification 700-900x
Macro zoom No
Working distance Standard
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 5 Megapixel (2592x1944)
Maximum frame rate 45fps (max 20fps video recording)
Compatibility
Interface USB 3.0, Cable included**
Operating system Windows 7, 8, 10 & 11, MacOS 10.11.16 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac
OS)
Supported image formats
(Windows)
Supported video formats
(Windows)
Supported image formats
(MacOS)
Supported video formats
(MacOS)
Imaging standards DirectShow, UVC
Wifi No
Housing
BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA,
PCX, MNG, WBMP, JP2, JPC, PGX
WMV, FLV, SWF
JPEG, PNG
MOV (max 1.3MP)
Housing material Metal housing
Magnification lock Yes
Dimensions 11.9cm (L) x 3.3cm (H)
Weight 110g
Cable length 1.8m
Features
Special feature Automatic Magnification Reading (AMR),
Flexible LED Control (FLC), Coaxial illumination
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe Yes
Information
Package contents Microscope, carry pouch, software CD, user
manual, quick guide, calibration target, front cover
N3C-C, N3C-E, N3C-O
Warranty information 2 years European warranty
Regulatory approval CMOS, UKCA – available upon request –
marketing@dino-lite.eu
Price range €1400,00 - €1600,00
Note **Dino-Lite USB 3.0 models use a custom USB-A
and USB-C cable that is specifically designed for
Dino-Lite
