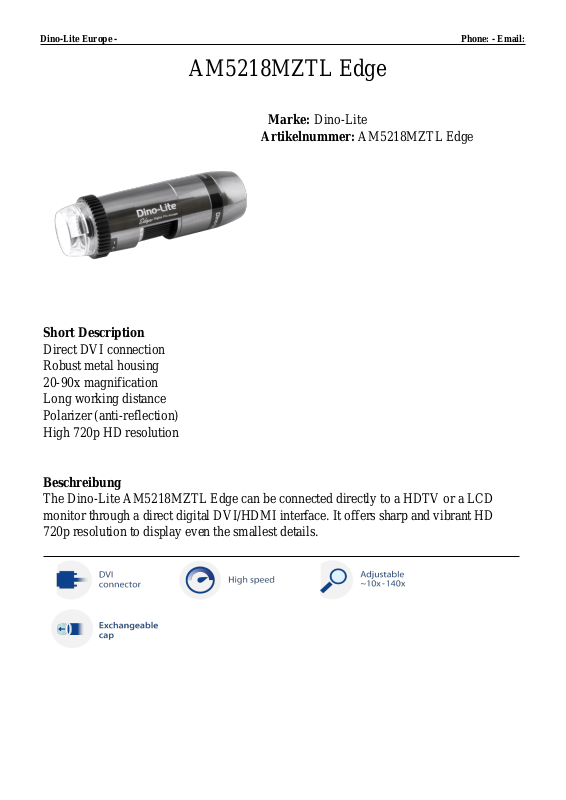

AM5218MZTL Edge
Short Description
Direct DVI connection
Robust metal housing
20-90x magnification
Marke: Dino-Lite
Artikelnummer: AM5218MZTL Edge
Long working distance
Polarizer (anti-reflection)
High 720p HD resolution
Beschreibung
The Dino-Lite AM5218MZTL Edge can be connected directly to a HDTV or a LCD
monitor through a direct digital DVI/HDMI interface. It offers sharp and vibrant HD
720p resolution to display even the smallest details.
Together with the long working distance of up to 15 centimetres the AM5218MZTL
Edge is the ideal choice in situations, where real time images are vital, such as working
on PCB's or other miniature objects. By tapping the Microtouch sensor on the
microscope, the image can be frozen for inspection of important details and by pressing
the Microtouch sensor for 2 seconds the LEDs can be switched on and off. The
aluminium housing offers enhanced protection and durability and has the best look and
feel. The built-in adjustable polarizer reduces glare and reflection on shiny objects, such
as metal surfaces, electronics, plastics etc.
Working distance/field of view/depth of field
MAGNIFICATI
ON RATE
10
20
30
40
50
60
70
80
90
100
110
120
130
140
Listed values
WORKING
DISTANCE
234.5 39 23.4 12
112.5 19.5 11.7 4.5
72.5 13 7.8 3.1
54.5 9.8 5.9 1.8
43.5 7.8 4.7 1.2
37.5 6.5 3.9 0.9
33.7 5.6 3.4 0.6
31.3 4.9 3 0.5
29.9 4.3 2.6 0.37
29.2 3.9 2.3 0.28
29.1 3.5 2.1 0.22
29.3 3.3 2 0.17
29.8 3 1.8 0.12
30.5 2.8 1.7 0.09
Unit = mm
FIELD OF
VIEW(X)
FIELD OF
VIEW(Y)
DEPTH OF
FIELD
may differ
slightly
Spezifikation
Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Emission filter No
Polarizer Yes, linear
Optics
Magnification 10-140x
Macro zoom No
Working distance Long
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution HD 720p
Maximum frame rate 60 fps
Compatibility
Interface DVI & HDMI
Wifi No
Housing
Housing material Metal housing
Magnification lock Yes
Dimensions 10.5cm (L) x 3.2cm (D)
Weight 140g
Cable length 1.8m
Features
Special feature No
Measurement No
Calibration No
Microtouch sensor Yes
ESD safe Yes
Information
Package contents Microscope, carry pouch, DVI & HDMI cable,
power adapter, user manual, N3C-O- Open cap,
N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-EExtension cap, N3C-L- Long cap, N3C-S- Side
light cap
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €900,00 - €1100,00
